AirLive WMM-3000AP User’s Manual
0
WMM-3000AP
MIMO-G Wireless AP
User’s Manual

Declaration of Conformity
We, Manufacturer/Importer
Declare that the product
MIMO 802.11g Wireless Access Point
is in conformity with
In accordance with 89/336 EEC-EMC Directive and 999/5 EC-R & TTE Directive
Clause Descri tion
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Essential requirements under article 3.2 of the R&TTE Directive
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic compatibility(EMC) standard for radio equipment and
HIPERLAN equipment
Product standard to demonstrate the Compliance of radio base
stations and Fixed terminal stations for wireless Telecommunication
System with the Basic restrictions or the reference levels related to
human exposure to radio Frequency electromagnetic fields ( 0 MHz
Safety for information technology equipment including electrical
business equipment
Manufacturer/Im orter
Position/ Title : Vice President
OvisLink Cor .
5F., NO.6, Lane 130, Min-Chuan Rd.,
Hsin-Tien City, Tai ei County, Taiwan
AirLive WMM-3000AP
■ EN 300 328 V1.6.1
(2004)
Wideband transmission equipment operating in the 2.4GHz ISM band
And using spread spectrum modulation techniques; Part ：technical
Characteristics and test conditions Part2：Harmonized EN covering
■ EN 301 489-1 V1.4.1
(2002)
■ EN 301 489-17 V1.2.1
Services; Part 7：Specific conditions for wideband data and
(2002)
■ EN 50385:2002
– 40 GHz ) - General public
■ EN 60950-1:2001
■ CE marking
Signature：
Name ：
Albert Yeh
Date： 2006/8/1
(Stamp)

AirLive WMM-3000AP CE Declaration Statement
Country Declaration Country Declaration
cs
Česky [Czech]
OvisLink Corp. tímto prohlašuje, že tento irLive
WMM-3000 P je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními
směrnice 1999/5/ES.
lt
Lietuvių
[Lithuanian]
Šiuo OvisLink Corp. deklaruoja, kad šis irLive
WMM-3000 P atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
da
Dansk [Danish]
Undertegnede OvisLink Corp. erklærer herved,
at følgende udstyr irLive WMM-3000 P
overholder de væsentlige krav og øvrige
relevante krav i direktiv 1999/5/EF.
nl
Nederlands [Dutch
Hierbij verklaart OvisLink Corp. dat het toestel irLive
WMM-3000 P in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen
van richtlijn 1999/5/EG.
de
Deutsch
[German]
Hiermit erklärt OvisLink Corp., dass sich das
Gerät irLive WMM-3000 P in Übereinstimmung
mit den grundlegenden nforderungen und den
übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
mt
Malti [Maltese]
Hawnhekk, OvisLink Corp, jiddikjara li dan irLive
WMM-3000 P jikkonforma mal-ħtiġijiet essenzjali u
ma provvedimenti oħrajn relevanti li hemm fid-
Dirrettiva 1999/5/EC.
et
Eesti [Estonian]
Käesolevaga kinnitab OvisLink Corp. seadme
irLive WMM-3000 P vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
hu
Magyar
[Hungarian]
z OvisLink Corporation kijelenti, hogy az irLive
WMM-3000 P megfelel az 1999/05/CE irányelv
alapvető követelményeinek és egyéb vonatkozó
rendelkezéseinek.
en
English
Hereby, OvisLink Corp., declares that this irLive
WMM-3000 P is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.
pl
Polski [Polish]
Niniejszym OvisLink Corp oświadcza, że irLive
WMM-3000 P jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.
es
Español
[Spanish]
Por medio de la presente OvisLink Corp. declara
que el irLive WMM-3000 P cumple con los
requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
pt
Português
[Portuguese]
OvisLink Corp declara que este irLive WMM-
3000 P está conforme com os requisitos essenciais
e outras disposições da Directiva 1999/5/CE.
el
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ OvisLink Corp. ΔΗΛΩΝΕΙ
ΟΤΙ irLive WMM-3000 P ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1999/5/ΕΚ.
sl
Slovensko
[Slovenian]
OvisLink Corp izjavlja, da je ta irLive WMM-3000 P
v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
fr
Français [French]
Par la présente OvisLink Corp. déclare que
l'appareil irLive WMM-3000 P est conforme
aux exigences essentielles et aux autres
dispositions pertinentes de la directive
1999/5/CE
sk
Slovensky [Slovak]
OvisLink Corp týmto vyhlasuje, že irLive WMM-
3000 P spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
it
Italiano [Italian]
Con la presente OvisLink Corp. dichiara che
questo irLive WMM-3000 P è conforme ai
requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 1999/5/CE.
fi
Suomi [Finnish]
OvisLink Corp vakuuttaa täten että irLive WMM-
3000 P tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen
lv
Latviski [Latvian]
r šo OvisLink Corp. deklarē, ka irLive WMM-
3000 P atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem
noteikumiem.
Íslenska [Icelandic]
Hér með lýsir OvisLink Corp yfir því að irLive WMM-
3000 P er í samræmi við grunnkröfur og aðrar kröfur,
sem gerðar eru í tilskipun 1999/5/EC.
sv
Svenska
[Swedish]
Härmed intygar OvisLink Corp. att denna irLive
WMM-3000 P står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv
1999/5/EG.
no
Norsk [Norwegian]
OvisLink Corp erklærer herved at utstyret irLive
WMM-3000 P er i samsvar med de grunnleggende
krav og øvrige relevante krav i direktiv 1999/5/EF.
copy of the full CE report can be obtained from the following address:
OvisLink Corp.
5F, No.6 Lane 1 0,
Min-Chuan Rd, Hsin-Tien City,
Taipei, Taiwan, R.O.C.
This equipment may be used in T, BE, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK,
SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR

AirLive WMM-3000AP User’s Manual
1
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in
an information retrieval system, translated into any language, or transmitted in any form or by any
means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior
written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and radiate
radio frequency energy and, if not installed and used in accordance with the instructions in this manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause interference, in which case the user, at his own expense, will be required to take
whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1
Class B.
The specification is subject to change without notice.

AirLive WMM-3000AP User’s Manual
2
Table of Contents
CHAPTER 1 INTRODUCTION...................................................................................................................4
1-1 FUNCTIONS AND FEATURES......................................................................................................................... 4
1-2 PACKING LIST .............................................................................................................................................. 5
CHAPTER 2 HARDWARE INSTALLATION..............................................................................................6
2.1 PANEL LAYOUT............................................................................................................................................. 6
2.1.1. Front Panel ........................................................................................................................... 6

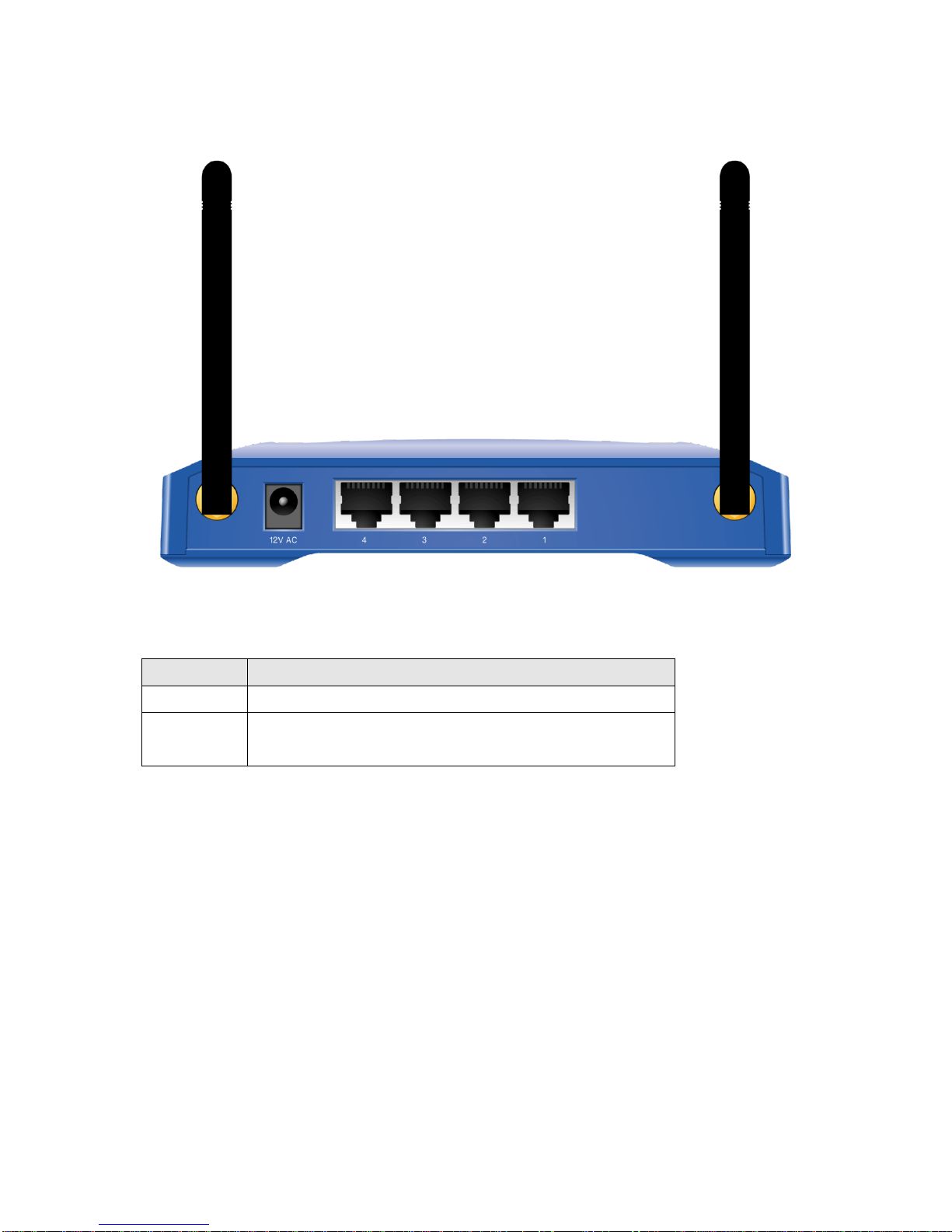

2.1.2. Rear Panel............................................................................................................................ 7
2.2 PROCEDURE FOR HARDWARE INSTALLATION.............................................................................................. 8
CHAPTER 3 NETWORK SETTINGS AND SOFTWARE INSTALLATION..............................................9
3.1 MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER.................................................................... 9
CHAPTER 4 CONFIGURING WIRELESS ACCESS POINT..................................................................10
4.1 START-UPAND LOG IN................................................................................................................................ 11
4.2 STATUS....................................................................................................................................................... 12
4.3 VIEW LOG................................................................................................................................................... 12
4.4 CLIENT LIST ............................................................................................................................................... 13
4.5 WIZARD...................................................................................................................................................... 13
4.6 BASIC SETTING.......................................................................................................................................... 15
4.6.1 Primary Setup –LAN IPAddress......................................................................................... 16
4.6.2 DHCP Server....................................................................................................................... 16
4.6.3 Wireless Setting, 802.1X setting and WDS......................................................................... 18
4.6.4 MAC Address Control (Basic SettingWireless Setting)................................................... 25
4.7 ADVANCED SETTINGS ....................................................................................................................................... 27
4.7.1 System Time........................................................................................................................ 27
4.8 MAINTENANCE ........................................................................................................................................... 28
4.8.1 Change Password ............................................................................................................... 28
4.8.2 View Log.............................................................................................................................. 29
You can View system log by clicking the View Log button ........................................................... 29
4.8.3 Firmware Upgrade............................................................................................................... 29
4.8.4 Backup Setting..................................................................................................................... 30
4.8.5 Reset to default.................................................................................................................... 30
4.8.6 Reboot ................................................................................................................................. 30
APPENDIX A TCP/IP CONFIGURATION FOR WINDOWS 95/98.........................................................31
APPENDIX B 802.1X SETTING...............................................................................................................36

AirLive WMM-3000AP User’s Manual
3
APPENDIX C WDS SETTING..................................................................................................................41
APPENDIX D FAQ AND TROUBLESHOOTING ....................................................................................45

AirLive WMM-3000AP User’s Manual
4
Chapter 1 Introduction
Congratulations on your purchase of this outstanding AirLive Wireless AP This product is specifically
designed for Small Office and Home Office needs. Instructions for installing and configuring this
product can be found in this manual. Before you install and use this product, please read this manual
carefully for fully exploiting the functions of this product.
1-1 Functions and Features
AP Basic functions
Auto-sensing Ethernet Switch
Equipped with a 4-port auto-sensing Ethernet switch.
DHCP server supported
All of the networked computers can retrieve TCP/IP settings automatically from this product.
Web-based configuring
Configurable through any networked computer’s web browser using Netscape or Internet
Explorer.
Wireless functions
High speed for wireless LAN connection
Up to 54Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing
(OFDM).
Roaming
Provides seamless roaming within the IEEE 802.11b (11M) and IEEE 802.11g (54M) WLAN
infrastructure.
IEEE 802.11b compatible (11M)
Allowing inter-operation among multiple vendors.
IEEE 802.11g compatible (54M)
Allowing inter-operation among multiple vendors.
Auto fallback
54M, 48M, 36M, 24M, 18M, 12M, 6M data rate with auto fallback in 802.11g mode.
11M, 5.5M, 2M, 1M data rate with auto fallback in 802.11b mode.
Security functions
802.1X supported
When the 802.1X function is enabled, the Wireless user must authenticate to this router first to
use the Network service.
Support WPA-PSK and WPA version 1 and 2
When the WPA function is enabled, the Wireless user must authenticate to this router first to
use the Network service

AirLive WMM-3000AP User’s Manual
5
Advanced functions
System time Supported
Allow you to synchronize system time with network time server.
1-2 Packing List
Wireless AP unit
Installation CD-ROM
Power adapter
CAT-5 UTP Fast Ethernet cable

AirLive WMM-3000AP User’s Manual
6
Chapter 2 Hardware Installation
2.1 Panel Layout
2.1.1. Front Panel
Figure 2-1 Front Panel
LED:
LED
Function
Color
Status
Description
Power
Power
indication
Green
On
Power is being applied to this product.
Status
System
status
Green
Blinking
Status is flashed once per second to indicate system is
alive.
WLAN
Wireless
activity
Green
Blinking
The WAN port is sending or receiving data.
Blinking
Sending or receiving data via wireless
Link.
1~4
Link status
Green
On
An active station is connected to the corresponding
LAN port.
Speed
10/100
Data Rate
Green
Blinking
The corresponding LAN port is sending or receiving
data.
On
Data is transmitting in 100Mbps on the corresponding
LAN port.
Reset
To reset system settings to factory defaults

AirLive WMM-3000AP User’s Manual
7
2.1.2. Rear Panel
Figure 2-2 Rear Panel
Ports:
Port
Description
PWR
Power inlet
Port 1-4
the ports where you will connect networked computers and other
devices.

AirLive WMM-3000AP User’s Manual
8
2.2 Procedure for Hardware Installation
1. Decide where to place your Wireless Access Point
You can place your Wireless Access Point on a desk or other flat surface, or you can mount it on a
wall. For optimal performance, place your Wireless Access Point in the center of your office (or your
home) in a location that is away from any potential source of interference, such as a metal wall or
microwave oven. This location must be close to power and network connection.
2. Setup LAN connection
a. Wired LAN connection: connects an Ethernet cable from your computer’s Ethernet port to one of
the LAN ports of this product.
b. Wireless LAN connection: locate this product at a proper position to gain the best transmit
performance.
Figure 2-3 Setup of WLAN and LAN connections for this product.
3. Power on
Connecting the power cord to power inlet and turning the power switch on, this product will
automatically enter the self-test phase. When it is in the self-test phase, the indicators M1 will be
lighted ON for about 10 seconds, and then M1 will be flashed 3 times to indicate that the self-test
operation has finished. Finally, the M1 will be continuously flashed once per second to indicate that
this product is in normal operation.

AirLive WMM-3000AP User’s Manual
9
Chapter 3 Network Settings and Software Installation
To use this product correctly, you have to properly configure the network settings of your computers and
install the attached setup program into your MS Windows platform (Windows 95/98/NT/2000).
3.1 Make Correct Network Settings of Your Computer
The default IP address of this product is 192.168.1.254, and the default subnet mask is 255.255.255.0.
These addresses can be changed on your need, but the default values are used in this manual. If the
TCP/IP environment of your computer has not yet been configured, you can refer to Appendix A to
configure it. For example,
1. configure IP as 192.168.1.1, subnet mask as 255.255.255.0 and gateway as 192.168.1.254, or
more easier,
2. configure your computers to load TCP/IP setting automatically, that is, via DHCP server of this
product.
After installing the TCP/IP communication protocol, you can use the ping command to check if your
computer has successfully connected to this product. The following example shows the ping procedure
for Windows 95 platforms. First, execute the ping command
ping 192.168.1.254
If the following messages appear:
Pinging 192.168.1.254 with 32 bytes of data:
Reply from 192.168.1.254: bytes=32 time=2ms TTL=64
a communication link between your computer and this product has been successfully established.
Otherwise, if you get the following messages,
Pinging 192.168.1.254 with 32 bytes of data:
Request timed out.
There must be something wrong in your installation procedure. You have to check the following items in
sequence:
1. Is the Ethernet cable correctly connected between this product and your computer?
Tip: The LAN LED of this product and the link LED of network card on your computer must be
lighted.
2. Is the TCP/IP environment of your computers properly configured?
Tip: If the IP address of this product is 192.168.1.254, the IP address of your computer must be
192.168.1.X and default gateway must be 192.168.1.254.

AirLive WMM-3000AP User’s Manual
10
Chapter 4 Configuring Wireless Access Point
This product provides Web based configuration scheme, that is, configuring by your Web browser, such
as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows,
Macintosh or UNIX based platforms.

AirLive WMM-3000AP User’s Manual
11
4.1 Start-up and Log in
Activate your browser, and disable the proxy or add the IP address of this product into the
exceptions. Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field
and press ENTER. For example: http://192.168.1.254.
After the connection is established, you will see the web user interface of this product. There are two
appearances of web user interface: for general users and for system administrator.
A window would pop-up asking for Login and Password. Please enter “admin” for login, and “airlive”
for password.

AirLive WMM-3000AP User’s Manual
12
4.2 Status
This option provides the function for observing this product’s working status:
A. Wireless MAC Address: display the MAC address of this Wireless Access Point.
B. Network ID (SSID):
The SSID is the network name used to identify a wireless network. The SSID must be the
same for all devices in the wireless network (i.e. in the same BSS). Several access points on
a network can have the same SSID. The SSID length is up to 32 characters. The default SSID
is “airlive”.
C. Channel: display the Channel number of this Wireless Access Point
D. Security Type: shows Wireless Security type information
4.3 View Log
Click the View Log button on System Status Page You can see the access logs from this screen also
you can download the logs and save to your computer.

AirLive WMM-3000AP User’s Manual
13
4.4 Client List
You can see the DHCP client information include Client IP,Host Name, Client’s MAC address,
administrator can select the client and do wake up and Delete actions, before you click the Wake Up
button, just make sure the network adapter of the machine support wake on LAN function and turn it
on. Then just workable.
4.5 Wizard
Setup Wizard will guide you through a basic configuration procedure step by step. Press ”Next >”

AirLive WMM-3000AP User’s Manual
14
Setup Wizard –LAN IPAddress: enter the IP address of this machine.
Setup Wizard –Wireless Setting : for details , please read the Basic Setting Wireless.:

AirLive WMM-3000AP User’s Manual
15
Setup Wizard –Configuration is Completed : save and Reboot this machine
4.6 Basic Setting
Basic Setting have Primary Setup, DHCP Server, and Wireless setting functions.

AirLive WMM-3000AP User’s Manual
16
4.6.1 Primary Setup –LAN IP Address
Entering the IPAddress: default ip is 192.168.1.254, you can change ip address in this field and
Press “Save”
4.6.2 DHCP Server
The settings of DHCP server include the following items:
1. DHCP Server: Choose “Disable” or “Enable.”
2. IP pool starting Address/ IP pool ending Address: Whenever there is a request, the DHCP
server will automatically allocate an unused IP address from the IP address pool to the
requesting computer. You must specify the starting and ending address of the IP address pool.
3. Domain Name: Optional, this information will be passed to the client.
press “More>>” button into the other settings :

AirLive WMM-3000AP User’s Manual
17
4. Primary DNS/Secondary DNS: This feature allows you to assign DNS Servers
5. Primary WINS/Secondary WINS: This feature allows you to assign WINS Servers
6. Gateway: The Gateway Address would be the IP address of an alternate Gateway.
This function enables you to assign another gateway to your PC, when DHCP server offers an
IP to your PC.
press “Client List >” button into client list page
