AirSep FreeStyle User manual

Patient Manual
FreeStyle
™
Portable
OxygenConcentrator

TABLE OF CONTENTS
AirSep®Freestyle™Portable
Oxygen Concentrator
Why Your Physician Prescribed Oxygen 2
What Is the FreeStyle Portable
Oxygen Concentrator? 3
Important Safety Rules 5
Getting Started with your
FreeStyle Portable Oxygen Concentrator 8
Battery Charging 10
Nasal Cannula 11
FreeStyle Unit Components 12
Operating Instructions 13
Power Supplies 14
Filter 15
Setting of the Flow Selector for
Prescribed Oxygen Concentration 16
Alarm/Light Indicators 17
How to Respond to FreeStyle’s Alarm/Light 19
Indicators

TABLE OF CONTENTS
AirSep®Freestyle™Portable
Oxygen Concentrator
Cleaning, Care, and Proper Maintenance 21
Cabinet 21
Filters 22
Carrying Bag 23
Alarm/Service Indicator 23
FreeStyle Accessories 24
Reserve Oxygen Supply 24
Troubleshooting 25
FreeStyle Specifications 27
Classification 28
Symbols 29
Limited Warranty 30

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
1
AirSep’s FreeStyle™Portable Oxygen Concentrator
ThisPatientManualwillacquaintyouwithAirSep’sFreeStyle™PortableOxygenConcentrator. Make sure you
readandunderstandall theinformationcontainedinthis manualbeforeyouoperateyourFreeStyleunit. Shouldyou
haveany questions, yourEquipmentProvider will behappytoanswer them foryou.
Ifyou observe that the FreeStyleunit is not working properly,if you feelilloruncomfortable,or if
youare unable to hear and/or feel theoxygenpulse,consultyour Equipment Provider and/or your
physicianimmediately.
This unit is not to be used for life support. Geriatric, pediatric, or any other patient unable to
communicatediscomfortorhearorseethealarmswhileusingthisconcentratormayrequireadditional
monitoring.Aphysicianshould beconsultedimmediately ifthepatient isexperiencingany signsof
patientdiscomfort.
Thisdevicesupplieshigh concentrationoxygen thatpromotesrapid burning.Do notallowsmoking
oropen flames within fivefeetof (1) this device,or(2)any oxygen-carrying accessory.Use nooil,
grease, or petroleum-based products on or near FreeStyle. Disconnect the power cord from the
electricaloutlet before youcleanor service theunit.
Whileusing FreeStyleoutdoorswith theACpower supply,connectthepower supplyinto aGround
FaultInterrupted(GFI) outletonly.FreeStyleshould notbe usedintherainwithoutproperprotection
oftheunit.

2
Why Your Physician Prescribed Oxygen
Manypeoplesufferfrom avarietyofheart,lung, andotherrespiratorydiseases. Asignificantnumberofthesepatients
canbenefit fromsupplemental oxygentherapyat home,whentraveling, orwhile participatingindaily activitiesaway
fromhome.
Oxygenis a gas that makesup 21% of the roomair we breathe. Our bodies dependon a steady supply tofunction
properly. Yourphysician has prescribed supplemental oxygen therapy because your body is not able to get enough
oxygenfromroom air. Oxygenisanon-addictivedrug,and yourphysicianprescribedaflowsufficienttoimproveyour
condition.
Pleasekeep in mind that unauthorized oxygen therapycanbedangerous. Youmustseekmedical advice before you
usethisoxygenconcentrator. TheEquipmentProviderwhosupplies youroxygenequipmentwilldemonstrate howto
settheprescribedflowrate.
It is very important to select the prescribed level of oxygen flow. Do not increase or decrease the flow
until you first consult your physician.
Usethe FreeStylePortableOxygen Concentratorduringsleep only underthe recommendation ofa
qualifiedclinician.

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
3
What Is the FreeStyle Portable Oxygen Concentrator?
Oxygenconcentrators were introduced in themid-1970sandhavebecome the most convenient, reliablesourceof
supplementaloxygen available today.Oxygenconcentratorsare the cost-effective,efficient,and safe alternativeto
usinghigh-pressure oxygen cylinders orliquidoxygen. Anoxygen concentrator provides all theoxygenyou need
withno cylinderorbottle deliveriesrequired.
Theair we breathe contains approximately 21% oxygen, 78% nitrogen,and1%othergases.In the FreeStyle unit,
roomairpasses through a regenerative, adsorbent material called "molecular sieve." This materialseparatesthe
oxygenfrom thenitrogen.The resultisa flowofhigh concentrationoxygendelivered tothepatient.
Thesize and weight of traditionaloxygenconcentratorshave limited their portability.Apersonwho needs oxygen
awayfrom home or a hospital has used high-pressure oxygencylindersand/orliquidoxygen.Oxygen conserving
devices(OCDs) have been used to increase the length oftimethatcylinderslast.OCDs deliver oxygen only at the
beginningofinhalation,whenoxygenis mostbeneficial. Using thistechnique, OCDsconserveoxygen.
FreeStyleusestraditionaloxygenconcentrationtechnologyandcombinesitwithoxygenconservingtechnology.This
combinationenablesasignificantreductioninthesizeoftheoxygen concentratorandmakesFreeStyleultra-portable.
Atypical oxygen concentrator weighs more than 50pounds.Incontrast,your FreeStyle concentrator weighs only
4.4lbs (2kg).

4
FreeStyledelivers aflowofoxygen uptoan equivalent flowof3 LPM (litersperminute) in thislightweightpackage
thatcanbe easily carried and used away from home.
FreeStyleoperates from four different power sources. (RefertothePower Supplies section of this manual.)

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
5
Important Safety Rules
Carefullyreviewand familiarizeyourself withthefollowingimportantsafetyinformationabouttheportableFreeStyle
OxygenConcentrator.
Inthe eventof analarmor ifyouare experiencinganysigns ofdiscomfort,consult yourEquipment
Providerand/oryourphysicianimmediately.
This unit is not to be used for life support. Geriatric, pediatric, or any other patients unable to
communicatediscomfortwhileusingthis machinemay requireadditional monitoring.Patients with
hearingand/orsightimpairment(s)may needassistance withmonitoring alarms.
Whenusing FreeStylein an automobile,boat, or other vehicle with theDC power supply,make
surethatthevehicleisstartedand runningbefore connectingthe FreeStyleunit. If theFreeStyle unit
isconnectedtothevehiclewhile starting it, jumping or charging the vehicle may cause a need to
resettheFreeStyleunit's DC power supply. Ifthisoccurs,disconnecttheDCpowersupplyfrom
theDCoutlet, restart your vehicle, and then reconnect your DC power supply intotheDCoutlet.

Never use FreeStyle with the device itself located in the trunk of an automobile.
Do not allow either the air intake filter or the air outlets to become blocked during use.
When the automobile in which you are using FreeStyle is turned off, disconnect and remove the unit
from the automobile with you. Never allow FreeStyle to be stored in a very hot automobile or in other
similar, high- or low-temperature environments. (Refer to the Specifications section in this manual.)
Do not leave a nasal cannula under bed coverings or chair cushions. If FreeStyle is turned on but not
in use, the oxygen could make the material flammable. Make sure FreeStyle is off when not in use.
Although FreeStyle is a low-voltage device, do not remove its housing. Only your Equipment Provider
should remove the unit covers.
6

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
7
AirSep recommends an alternate source of supplemental oxygen in the event of a power outage,
alarm condition, or mechanical failure. Consult your physician or Equipment Provider for the type of
reserve system required.
Federal (USA) law restricts this device to sale by order of a physician. Use FreeStyle in accordance
with AirSep’s FreeStyle Patient Manual.

8
Getting Started with Your FreeStyle Portable Oxygen Concentrator
TheFreeStyle packaging contains the following items, as shown in Figures 1-3. If any are missing, contact your Equipment
Provider.
•FreeStyle Portable Oxygen Concentrator withcarryingcase
•Patient manual(notshown)
•ACpowersupply(100-240 volts,50/60Hz) withpowercord(alternatepowercordsavailableforuseinvariouscountries)
•AutomobileDC power supply
Figure 2: FreeStyle AC Power Supply/Power Cord
Figure 3: FreeStyle DC Power Supply
Figure 1: FreeStyle Unit

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
9
Optionally,youmay alsohaveanAirBelt for extendedbatterylife.Thatpackagingcontains the following,asshown in
Figure4:
•AirBeltbattery belt
•ACpowersupply (100-240volts,50/60 Hz) withpowercord (alternatepowercordsavailableforuseinvariouscountries)

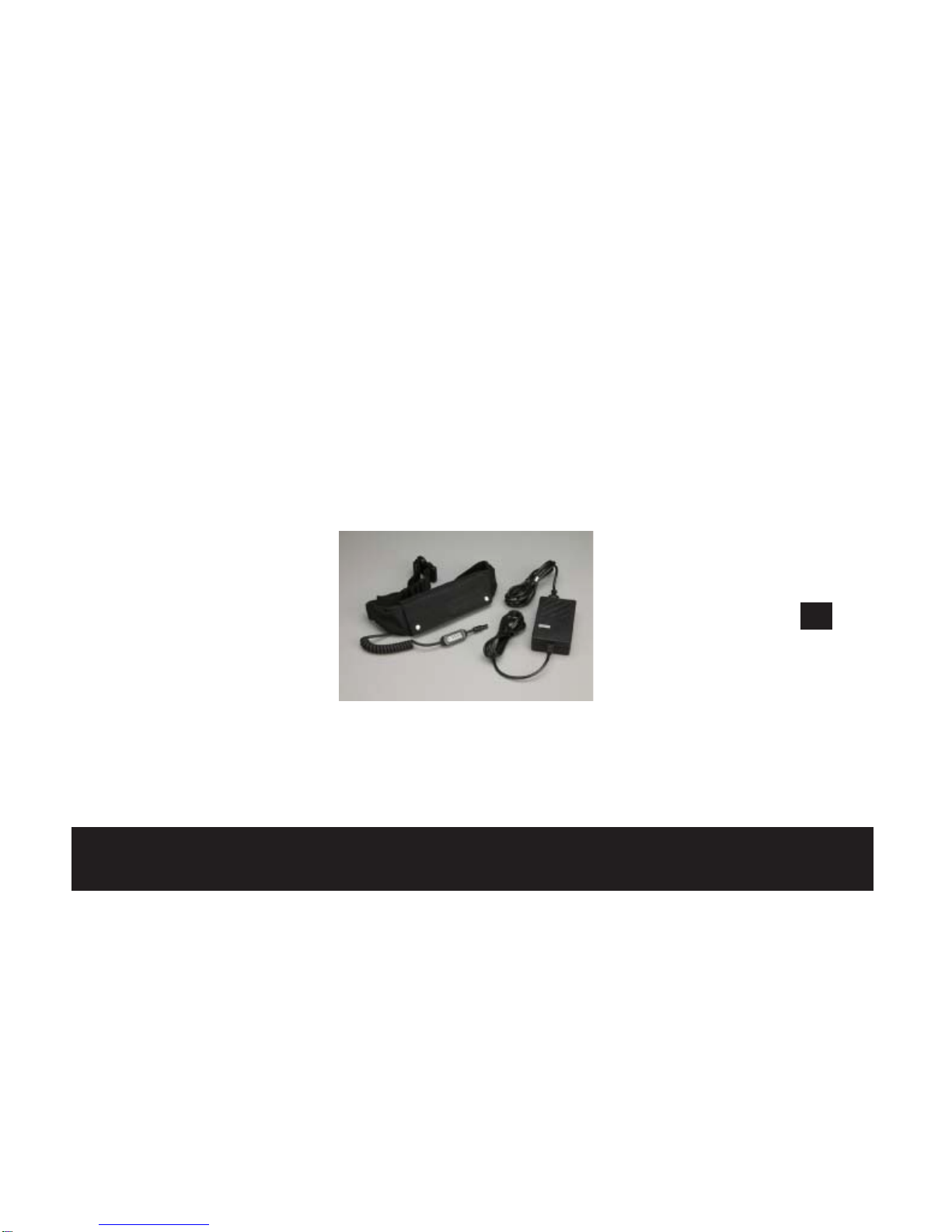

Figure 4: AirBelt and AC Power Supply/Power Cord
Beforeoperating FreeStylefor thefirsttime, familiarizeyourselfwiththelocations ofthemajor components.These are
illustratedinthefigures onthefollowingpagesand discussedlaterinthemanual.

10
Battery Charging
Checkto make sure your unit’sbattery is fully chargedbefore venturing out with FreeStylefor the first time orupon
subsequentuse.To check the level of chargeof the internal battery,press the BATTbutton on FreeStyle's keypad.
Thebattery gauge/indicator(s)LEDsabove theBATTbutton illuminatetoindicate thelevelof internalbatterycharge
(25-100%).
TochargeFreeStyle’sinternalbattery,simply connect itsACpowersupply or DCpowersupply into theunit’spower
connectioninlet(as shown in Figure 5) and the otherend to its properAC or DC power outlet. FreeStyle’sinternal
batterywillcompletely rechargefromitsfullydepletedstateinapproximately 3½hours.Whilechargingthebattery,the
batterygauge/indicator(s)onthe FreeStyleunit’skeypad willilluminate toindicatethelevelof internalbatterycharge.
Whenfullycharged,allfourLEDswillilluminatecontinously.
TheoptionalAirBelt, which can increase FreeStyle’sbattery duration toup to 10 hours, requiresapproximately 3
hourstocompletelychargewhentheexternal batteryis fullydepleted.To rechargeAirBelt,connectits ownACpower
supplyto the end ofAirBelt’spowercord(as shown in Figure 6),andtheother end of the power supplyintoaproper
ACpower outlet.Aseparatebatterygauge/indicatorfor checkingthelevel ofchargeontheAirBelt’sbatteryislocated
onthis accessory’scordand functions exactly liketheinternal battery’sindicatoron the keypad.

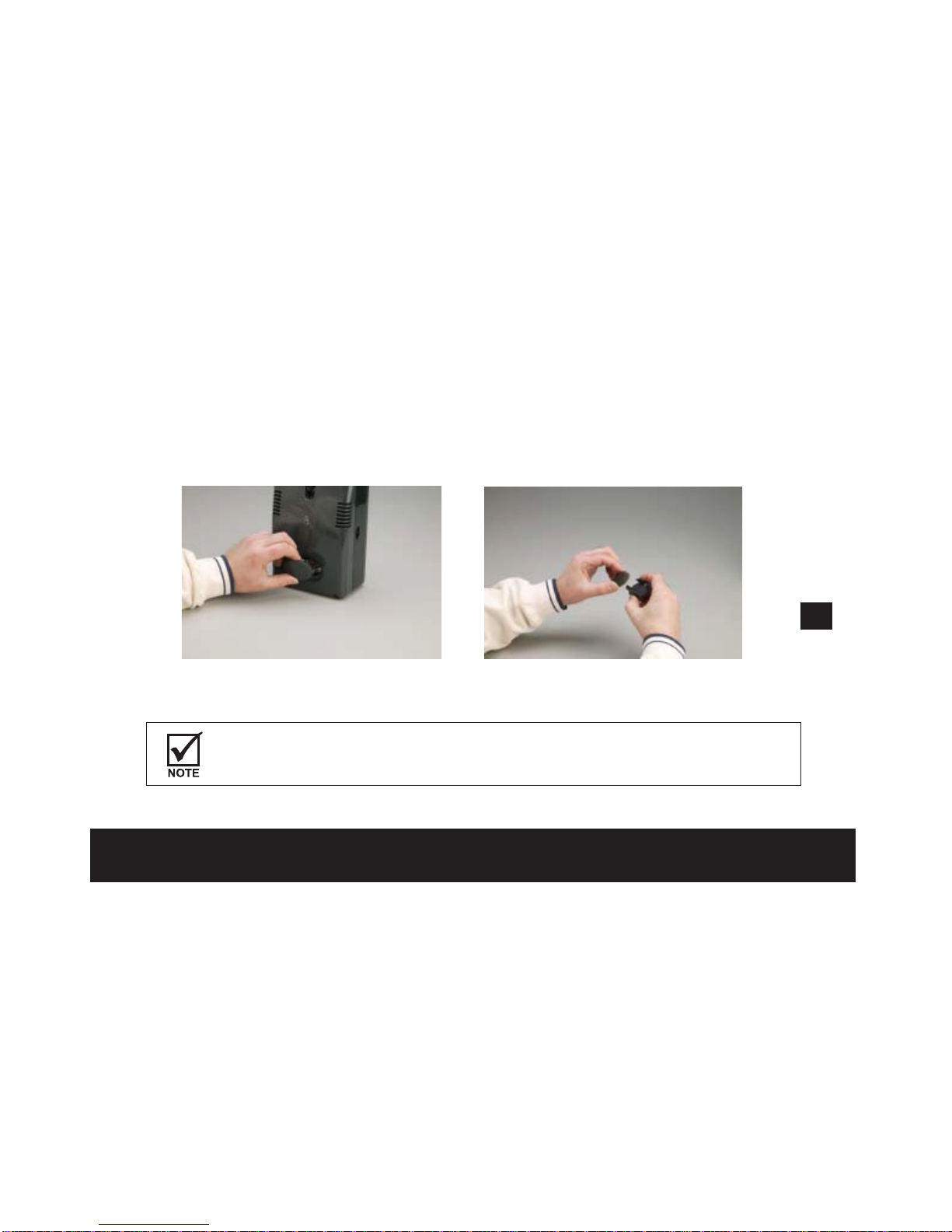

Figure 5: Internal Battery Charging Figure 6: AirBelt Battery Charging

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
11
Nasal Cannula
AnasalcannulaandtubingareusedtodeliveroxygenfromtheFreeStyleunit tothe user.Thetubingisconnectedtothe
unit’soxygenoutlet.(See Figure7.)
Figure 7: Connecting Cannula to FreeStyle's Oxygen Outlet
AirSeprecommends anasalcannula with7 ft(2.1m) oftubing,AirSepPartNo.CU002-1. Other lengthsoftubing up
to25 ft(7.62m) maximum,includingnasal cannula,maybe used.
Normally,whentheunitisinitscarryingcase,it willbenecessarytofirstfeedthecannulathroughthespeciallydesigned
holeinthetopcenterofthecaseandthentoliftthecoverofthecasetosecurethecannulatotheoxygenoutlet.
Ifthepowersupply remainsconnected whentheinternal batteryis fullycharged,thefourLEDs willturn
offafterapproximately onehour.

Figure 9: Close-Up of Keypad/Alarm Display
Dust Cover
Alarm/Service
Indicator
Pulse Flow
Indicator(s)
Flow Selection Button
(Internal) Battery
Button
12
Handle
Oxygen Outlet
Figure 8: FreeStyle Exterior View - Front
FreeStyle Unit Components
Figure 10: FreeStyle Exterior View - Back
Label/Patient
Instructions
Nowthat you arefamiliarwith FreeStyle’scomponents, reviewtheinstructions on thefollowingpage to operate
theFreeStyleunit.
Air Outlet
Inlet for Power Connections
Air Intake/Filter
Cover
Battery Gauge/
Indicator(s)

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
13
Operating Instructions
1. LocateandpositionFreeStyleso thatthe airinletsandairoutletsarenotobstructed.Theunit,particularly
theair intake area, should be located in awell-ventilatedspace.
2. Power theunitfrom(a) the internalbattery;(b)AirBelt;(c)DCoutlet; or (d)anACoutlet. (Refer tothe
PowerSupplies sectionofthisPatient Manual.)
a. Usethe internal battery only; or
b. UsetheAirBelt byconnectingitto the FreeStyleunit's inlet.
c. Ifyou are inanautomobile, connect oneendof theDCpowersupply intotheFreeStyleunit's inletand
the other endintothe DC outlet; or
d. Ifyou are near anAC outlet, connect one end of theACpower supply into the FreeStyleunit's inlet
and the other end into theAC outlet.
3. Connect yourcannulato the oxygenoutlet.
4. Lift thedustcoveron the unit.
5. Turn the FreeStyle unit on by pressing the 1, 2, or 3 button on the unit's keypad for the liter flow
prescribedbyyourphysician. ThegreenLEDabovethebuttonselected illuminates.Eachtimeyouturn
onthe FreeStyle unit, a brief alarmsounds.Thisindicates that FreeStyle is powered foruse.
6. To changethepulseflowsetting, presstheappropriatebutton. Youwill observeachange incompressor
speed,which isnormal.
7. Toturn FreeStyleoff,pressthebutton corresponding tothe pulse flowsettinglight thatisilluminated.
WhenFreeStyle sensesinhalation, oxygenissupplied toyouthroughyourcannula. Thedurationof this
pulseflow isdependentupon theflowsetting.
The time required to reach maximum oxygen concentration after turning on the FreeStyle unit is
approximatelytwominutes.

14
Power Supplies
FreeStylecanbe powered infourdifferentways – theinternalbattery,anACpower supply,DCpowersupply,and an
optionalAirBeltbattery beltincombinationwiththeunit’sinternalbattery.
1. InternalBattery:Arechargeable, internalbatteryislocatedwithin eachFreeStyleunit.When itisfully
charged,it suppliespowertothe FreeStyleunit for up to3½hours.Anaudible alarm sounds when the
batterypowerisgettinglow.Thealarmisdiscussedin theAlarm/LightIndicatorssectionofthismanual.
BatteryCharging:Tocharge the internal battery, connect FreeStyletoeither theAC power supply
and a 100-240 volt, 50/60 HzAC power outlet, or connect it to a DC power outlet in an automobile
(boat,motor home, etc.). It takes a minimum of31/2hours for a discharged battery to fullycharge. It
isrecommended to rechargethebattery,even if only partially depleted, asoftenaspossible.
2. ACPowerSupply:AnAC power supply allowsFreeStyleto be connected toa 100-240 volt, 50/60
Hzoutlet.The power supply converts 100-240 voltAC to a DC voltage for theFreeStyleunit.When
FreeStyleisoperatedwiththeACpowersupply,power fromtheACoutlet powersthe unitand recharges
FreeStyle’sbatterysimultaneously.
3. DCPowerSupply:ADCpowersupplycanbeconnectedfromtheFreeStyleunit to an automobile's
(boat, motor home, etc.) 12-volt DC outlet. When FreeStyle is connected to the automobile’s DC
outlet, power from the automobile battery powers the FreeStyle unit and recharges the FreeStyle’s
batterysimultaneously.
4. OptionalAirBelt (ExternalBattery Belt): FreeStyle can also be powered by an external battery
belt. Thisbeltcanbewornaround thewaist, andwhen usedincombinationwithafullycharged internal
battery,supplies power to FreeStylefor up to 10 hours. The belt pack connects to the FreeStyleunit's
powerinlet,anditcanberechargedby connecting it to the battery belt's own power supply.

FREESTYLE PORTABLE OXYGEN CONCENTRATOR
15
Filters
Airenters FreeStylethrough anairintake filterlocatedunderthe coveronthe lower frontofthe oxygen concentrator.
(SeeFigures 11and 12.)This filterpreventsdust and otherlargeparticlesintheair fromenteringtheunit. Beforeyou
operateFreeStyle,make sure this filter iscleanandpositioned correctly.
UseonlyAirSep Part No. FI144-1 as theairintakefilterforthisunit.
Figure 11: Removal of Air Intake
Filter Cover Figure 12: Removal of Filter from Filter Cover

16
Setting of the Flow Selector for Prescribed Oxygen Concentration
TheFreeStyle unit has three pulse flow settings:1,2,and3, providing flows equivalent to 1–3 LPM oxygen.Liftthedust
coveron the unit's keypad, and press the 1, 2,or3button,which corresponds to the oxygen pulse flow thatyourphysician
hasprescribed. (See Figures 13 and 14.)
Itis very importanttoselect only theprescribedlevel of oxygenflow.Changethe pulse flowselectiononly
undertheguidanceof yourphysician.
Figure 13: Lifting Dust Cover on Keypad Display Figure 14: Pressing Flow Selection Button
