Airspan AirSynergy 2000 User manual

UGD-D01001 Rev B
AirSynergy 2000
Installation Guide

AirSynergy 2000 Installation Guide
Page 2 Commercial in Confidence UGD-D01001 Rev B
Copyright
© Copyright by Airspan Networks Inc., 2014. All rights reserved worldwide.
The information contained within this document is proprietary and is subject to all relevant
copyright, patent and other laws protecting intellectual property, as well as any specific
agreements protecting Airspan Networks Inc. rights in the aforesaid information. Neither this
document nor the information contained herein may be published, reproduced or disclosed to
third parties, in whole or in part, without the express, prior, written permission of Airspan Networks
Inc. In addition, any use of this document or the information contained herein for the purposes
other than those for which it is disclosed is strictly forbidden.
Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in
equipment design or specifications.
Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However,
no responsibility is assumed by Airspan Networks Inc. for the use thereof nor for the rights of third
parties which may be effected in any way by the use of thereof.
Any representation(s) in this document concerning performance of Airspan Networks Inc.
product(s) are for informational purposes only and are not warranties of future performance, either
expressed or implied. Airspan Networks Inc. standard limited warranty, stated in its sales contract
or order confirmation form, is the only warranty offered by Airspan Networks Inc. in relation
thereto.
This document may contain flaws, omissions or typesetting errors; no warranty is granted nor
liability assumed in relation thereto unless specifically undertaken in Airspan Networks Inc. sales
contract or order confirmation. Information contained herein is periodically updated and changes
will be incorporated into subsequent editions. If you have encountered an error, please notify
Airspan Networks Inc. All specifications are subject to change without prior notice.
Product performance figures quoted within this document are indicative and for information
purposes only.

AirSynergy 2000 Installation Guide
Page 3 Commercial in Confidence UGD-D01001 Rev B
Table of Contents
Copyright ..........................................................................................................................................2
Table of Contents .............................................................................................................................3
Summary of Figures .........................................................................................................................5
Summary of Tables ..........................................................................................................................7
Warnings and Cautions ....................................................................................................................8
Human Exposure to Radio Frequencies ......................................................................................8
Radio Interference........................................................................................................................8
Avoiding Radio Interference .........................................................................................................8
Modifications.................................................................................................................................8
General.........................................................................................................................................8
Safety............................................................................................................................................8
Warning of Hazardous Voltages...............................................................................................9
Adherence to European Directive 1999/519/EC ..........................................................................9
Warning Symbols..........................................................................................................................9
Service Information.......................................................................................................................9
UL Information............................................................................................................................10
Lightning Protection....................................................................................................................10
DECLARATION OF CONFORMITY...............................................................................................11
FCC Notice.....................................................................................................................................12
Federal Communication Commission Notice .............................................................................12
GPS Compliance........................................................................................................................12
Maximum Output TX Power ...........................................................................................................13
Power Consumption ...................................................................................................................13
Antenna Types............................................................................................................................13
Switched Beam Antenna ............................................................................................................14
Front Mount Sector Antenna ......................................................................................................14
Omni - Blade Antenna ................................................................................................................16
AirSynergy Antenna Usage Options.......................................................................................16
1About this Guide .....................................................................................................................18
1.1 Purpose ..........................................................................................................................18
1.2 Intended Audience..........................................................................................................18
1.3 Conventions....................................................................................................................18
1.4 Referenced Documentation............................................................................................18
1.5 Organization of this Guide..............................................................................................18
2Introduction.............................................................................................................................20
2.1 AirSynergy......................................................................................................................20
2.1.1 Deployment Description..........................................................................................20
3Getting Started........................................................................................................................22

AirSynergy 2000 Installation Guide
Page 4 Commercial in Confidence UGD-D01001 Rev B
3.1 Workflow of Installation...................................................................................................22
3.2 AirSynergy Installation Checklist ....................................................................................23
4Verify Prerequisites.................................................................................................................24
4.1 Verify Site Requirements................................................................................................24
4.2 Verify Installation Requirements.....................................................................................24
4.2.1 Verify the Tools.......................................................................................................24
4.2.2 Verify the Parts and Kits.........................................................................................24
4.2.2.1 Power Supply..........................................................................................................26
4.2.3 Verify Components.................................................................................................26
4.2.4 Physical Dimensions...............................................................................................29
4.2.5 Environmental.........................................................................................................30
5Install AirSynergy....................................................................................................................31
5.1 Pole Mount Assembly.....................................................................................................31
5.2 Wall Mount Assembly.....................................................................................................32
5.3 Front Sector Antenna Assembly.....................................................................................33
5.4 Connecting GPS Antenna to AirSynergy........................................................................34
5.5 Securing AirSynergy to the Mounting Plate....................................................................36
5.6 Front Mount Antenna Tilt Adjustment.............................................................................37
5.7 LED Display....................................................................................................................38
6Connect and Manage Cables.................................................................................................39
6.1 Connecting the Ground Cable........................................................................................39
6.2 Connecting RF Jumper Cables to External Antenna......................................................40
6.3 Connecting the DC Power Cable to AirSynergy.............................................................40
7Power System Connection .....................................................................................................42
7.1 Required Tools ...............................................................................................................42
7.2 Cable Connections ...........................................................................................................42
7.2.1 DC Power Cable Installation...................................................................................42
7.2.2 Network Cable Installation......................................................................................43
7.3 Wiring DC Power Cable to the PSU ...............................................................................44
7.4 Connecting the AC/DC PSU to Power Supply ...............................................................46
8Appendix A .............................................................................................................................48
Review Job Sheet.......................................................................................................................48
9Appendix B - Glossary of Terms - Acronym, Abbreviations & Definitions..............................49
10 Appendix C - Installation Checklist.....................................................................................51
11 Appendix D –PSU for USA................................................................................................52
12 Appendix E .........................................................................................................................53
12.1 Revision History..............................................................................................................53
12.2 Contact Information ........................................................................................................53

AirSynergy 2000 Installation Guide
Page 5 Commercial in Confidence UGD-D01001 Rev B
Summary of Figures
Figure 1 - AirSynergy with sunshield..............................................................................................16
Figure 2 - AirSynergy with front sector antenna.............................................................................17
Figure 3 - AirSynergy with switched beam antenna.......................................................................17
Figure 4 - AirSynergy 2000 assembled with: Front Mount antenna, sunshield, SBA and sunshield
........................................................................................................................................................21
Figure 5 - Workflow of Installation..................................................................................................22
Figure 6 - AirSynergy Unit, bottom termination..............................................................................28
Figure 7 - AirSynergy Unit, RF ports, Internal Duplexers...............................................................28
Figure 8 - AirSynergy Unit, RF ports ..............................................................................................29
Figure 9 - AirSynergy Unit, RF ports, External Duplexers..............................................................29
Figure 10 - AirSynergy mounting plate and hardware....................................................................31
Figure 11 - Assemble clamp bands (2 required) ............................................................................31
Figure 12 –press down locking mechanism ..................................................................................32
Figure 13 –tighten clamp bands....................................................................................................32
Figure 14 –mounting plate installed on large diameter pole .........................................................32
Figure 15 - positioning wall mounting plate....................................................................................33
Figure 16 - wall mounting plate fastened on wall ...........................................................................33
Figure 17 - attaching front mounted antenna to mounting plate ....................................................34
Figure 18 –Attaching front mount antenna assembly to AirSynergy.............................................34
Figure 19 - attaching GPS antenna to mounting bracket...............................................................35
Figure 20 - Attaching the GPS antenna assembly to AirSynergy ..................................................36
Figure 21 - Lift unit to top of mounting plate...................................................................................36
Figure 22 - unit engages into slots on the top of mounting plate ...................................................36
Figure 23 - lift the unit until the bottom studs fit into the bottom slots............................................37
Figure 24 - AirSynergy unit engaged into the bottom slots ............................................................37
Figure 25 - tilt adjustment body......................................................................................................37
Figure 26 - tilt adjustment antenna.................................................................................................38
Figure 27 –attaching ground cable to AirSynergy.........................................................................39
Figure 28 - attach ground cable to pole..........................................................................................39
Figure 29 - Connecting RF cable....................................................................................................40
Figure 30 - weather-proof the connection - external antenna ........................................................40
Figure 31 - attaching power cable to AirSynergy ...........................................................................41
Figure 32 - required tools ...............................................................................................................42
Figure 33 - DC Power connection ..................................................................................................43
Figure 34 - Power connection - AirSynergy bottom panel..............................................................43
Figure 35 - power and network cable overview..............................................................................44
Figure 36 - Waterproof connector exploded view...........................................................................44
Figure 37 - power cable preparation...............................................................................................44

AirSynergy 2000 Installation Guide
Page 6 Commercial in Confidence UGD-D01001 Rev B
Figure 38 - waterproof connector separated ..................................................................................44
Figure 39 - gland and connector on cable......................................................................................45
Figure 40 - secure cable to connector............................................................................................45
Figure 41 –power cable wires assembled.....................................................................................45
Figure 42 - numbered connector contacts......................................................................................45
Figure 43 - assemble and tighten...................................................................................................45
Figure 44 - PSU cable connector assembly...................................................................................46
Figure 45 - PSU wires assembled..................................................................................................46
Figure 46 - assemble and tighten...................................................................................................46
Figure 47 - connector assembled and tightened............................................................................46
Figure 48 - High power (240W) PSU –used for dual AirSynergy installations..............................46
Figure 49 - Standard power (150W) PSU –used for standard AirSynergy installation .................46
Figure 50 - attaching PSU ..............................................................................................................47
Figure 51 - PSU for USA deployment ............................................................................................47
Figure 52 - PSU for USA ................................................................................................................52
Figure 53 - Inside PSU with cable terminations .............................................................................52

AirSynergy 2000 Installation Guide
Page 7 Commercial in Confidence UGD-D01001 Rev B
Summary of Tables
Table 1 - AirSynergy FCC Maximum Output TX Power.................................................................13
Table 2 - AirSynergy ETSI Maximum Output TX Power ................................................................13
Table 3 - Switched Beam Antenna Parameters - Directional Mode...............................................14
Table 4 - Switched Antenna Parameters - Omni Mode..................................................................14
Table 5 - Front Mounted Sector Antenna Parameters ...................................................................16
Table 6 –Omni - Blade Antenna Parameters ................................................................................16
Table 7 - AirSynergy installation tools............................................................................................24
Table 8 - AirSynergy installation parts and kits ..............................................................................24
Table 9 - External Antenna and feeder kits (Optional)...................................................................26
Table 10 - AirSynergy additional items...........................................................................................26
Table 11 - AirSynergy components................................................................................................26
Table 12 - AirSynergy physical dimensions ...................................................................................29
Table 13 - AirSynergy Environment Compliance ...........................................................................30
Table 14 - LED Display...................................................................................................................38
Table 15 - Glossary of Terms.........................................................................................................49
Table 16 - Checklist for Procedure.................................................................................................51

AirSynergy 2000 Installation Guide
Page 8 Commercial in Confidence UGD-D01001 Rev B
Warnings and Cautions
Human Exposure to Radio Frequencies
The AirSynergy antennas should be installed and operated from a minimum safe distance of:
AirSynergy with External Antenna: 1.5m
AirSynergy with Front Mount Antenna: 1.0m
AirSynergy with Smart Beam Antenna (SBA): 0.5m
Radio Interference
This AirSynergy generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment on and off, the technician is encouraged to try
to correct the interference by performing one or more of the following measures:
Re-orientate or relocate the antenna
Increase separation between the eNodeBs and/or End Device
Connect the equipment to an outlet on a circuit different from that to which the power
source is connected
Avoiding Radio Interference
Ensure a minimum of 1-meter separation between co-located antennas of AirSynergy units.
Modifications
Any changes and modifications to this device that are not expressly approved by Airspan
Networks may void the user's authority to operate the equipment.
General
Only qualified personnel should be allowed to install, replace, and service the
equipment.
The device cannot be sold retail, to the general public or by mail order. It must be
sold to operators.
Installation must be controlled.
Installation must be performed by licensed professionals.
Installation requires special training. The AirSynergy radio and antenna should be
installed ONLY by experienced installation professionals who are familiar with local
building and safety codes and, wherever applicable, are licensed by the appropriate
government regulatory authorities. Failure to do so may void Airspan's product
warranty and may expose the end user or the service provider to legal and financial
liabilities. Airspan and its resellers or distributors are not liable for injury, damage or
violation of regulations associated with the installation of outdoor units or antennas.
Safety
1. Read this guide and follow all operating and safety instructions.
2. Keep all product information for future reference.
3. This product is supplied with a grounding power plug. Do not defeat this important
safety feature.
4. Warning: High voltages exist inside the product - do not remove the lid or base: No
user serviceable parts inside.
5. Position the power cord to avoid possible damage; do not overload wall outlets.

AirSynergy 2000 Installation Guide
Page 9 Commercial in Confidence UGD-D01001 Rev B
6. Do not place this product on or near a direct heat source, and avoid placing objects
on the terminal.
7. To avoid electrical shock do not install this device during adverse conditions such as
rain or inclement weather.
8. Use only a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Disconnect
the power before cleaning.
9. The units should not be located near power lines or other electrical power circuits.
10. The radio transceiver must be properly grounded to protect against power surges and
accumulated static electricity. It is the user’s responsibility to install this device in
accordance with the local electrical codes.
11. Installation of the AirSynergy must be contracted to a professional installer.
12. Disconnect Device. The socket outlet should be easily accessible in case you have to
disconnect the device.
13. When installed in the final configuration, the product must comply with the applicable
Safety Standards and regulatory requirements of the country in which it is installed. If
necessary, consult with the appropriate regulatory agencies and inspection
authorities to ensure compliance.
Warning of Hazardous Voltages
On AC installations, hazardous voltages exist. Use caution when verifying or working with AC
power. Remove metal jewelry that could come into contact with AC power.
On DC sections, short circuiting the low voltage, low impedance circuits can cause severe arcing
that may result in burns or eye damage. Remove rings, watches etc. to avoid shorting DC circuits.
Note: Airspan products do not contain hazardous substances (as defined in UK
Control of Substances Hazardous to Health Regulations 1989 and the Dangerous
Substances Regulations 1990). At the end of any Airspan products life cycle, the
customer should consult with Airspan to ensure that the product is disposed of in
conformance with the relevant regulatory requirements.
Adherence to European Directive 1999/519/EC
European Council Recommendation 1999/519/EC details basic restrictions and reference levels
on human exposure to electromagnetic fields as advised by the ICNIRP. Adherence to these
recommended restrictions and reference levels should provide a high level of protection as
regards the established health effects that may result from exposure to electromagnetic fields.
Warning Symbols
The following symbols may be encountered during installation or troubleshooting. These warning
symbols mean danger. Bodily injury may result if you are not aware of the safety hazards involved
in working with electrical equipment and radio transmitters. Familiarize yourself with standard
safety practices before continuing.
Electro-Magnetic Radiation
High Voltage
Service Information
Refer all repairs to qualified service personnel. Do not remove the covers or modify any
part of this device, as this will void the warranty.

AirSynergy 2000 Installation Guide
Page 10 Commercial in Confidence UGD-D01001 Rev B
Disconnect the power to this product and return it for service if the following conditions
apply:
a. The terminal does not function after following the operating instructions outlined
in this manual.
b. Liquid has been spilled, a foreign object is inside, or the terminal has been
exposed to rain.
c. The product has been dropped or the housing is damaged.
Locate the serial number of the terminal, antenna, and transceiver and record these on your
registration card for future reference. Use the space below to affix serial number stickers.
Also record the MAC address, located on the back of the terminal.
UL Information
- The equipment must be properly grounded according with NEC and other local safety code
requirements.
- Reminder to all the BWA system installers: Attention to Section 820-40 of the NEC which
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to the point of cable entry as is
practical.
- AirSynergy is designed to operate in environmental conditions complying with IP66 and relevant
standards.
Lightning Protection
WARNING: The following notes are general recommendations for the system. The wireless
equipment should be installed by a qualified professional installer and must follow local and
national codes for electrical grounding and safety. Failure to meet safety requirements and/or use
of non-standard practices and procedures could result in personal injury and damage to
equipment. A direct lightning strike may cause serious damage even if these guidelines are
followed.
All outdoor wireless equipment is susceptible to lightning damage from a direct hit or induced
current from a near strike. Lightning protection and grounding practices in local and national
electrical codes serve to minimize equipment damage, service outages, and serious injury.
Reasons for lightning damage are summarized as:
- Poorly grounded tower/antenna sites that can conduct high lightning strike energy into
equipment.
- Lack of properly installed lightning protection equipment that can cause equipment failures from
lightning induced currents.
A lighting protection system provides a means by which the energy may enter earth without
passing through and damaging parts of a structure. A lightning protection system does not
prevent lightning from striking; it provides a means for controlling it and preventing damage by
providing a low resistance path for the discharge of energy to travel safely to ground. Improperly
grounded connections are also a source of noise that can cause sensitive equipment to
malfunction.
A good tower grounding system disperses most of the surge energy from a tower strike away
from the building and equipment.
To limit the equipment damage due to a lightning strike, the following practices are recommended
for the wireless system:
- Provide direct grounding from the antenna mounting bracket, the radio and antenna and the
lightning/surge protectors to the same ground point at the base of the tower or a ground bus on
the building. Use the grounding screws on the antenna bracket and the radio and antenna for
terminating the ground wires.
- The AC wall outlet ground must be connected to the same grounding system as the eNodeB.

AirSynergy 2000 Installation Guide
Page 11 Commercial in Confidence UGD-D01001 Rev B
DECLARATION OF CONFORMITY
European Community, Switzerland, Norway, Iceland, and Liechtenstein
Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC
English:
This equipment is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Deutsch:
Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprecheneden
Vorgaben der Richtlinie 1999/5/EU.
Dansk:
Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i
Directiv 1999/5/EF.
Español:
Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la
Directive 1999/5/EC.
Greek:
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Airspan ΔΗΛΩΝΕΙ ΟΤΙ Ο ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français:
Cet appareil est conforme aux exigencies essentialles et aux autres dispositions pertinantes de la
Directive 1999/5/EC.
Íslenska:
Þessi búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipunar 1999/5/ESB.
Italiano:
Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva
1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijn
1999/5/EC.
Norsk:
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-
directiv 1999/5/EC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões da Directiva 1999/5/EC.
Suomalainen:
Tämä laite täyttää direktiivin 1999/5/EY oleelliset vaatimukset ja on siinä asetettujen muidenkin
ehtojen mukainen.
Svenska:
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra relevanta
bestämmelser i Direktiv 1999/5/EC.
Român:
Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 1999/5/CE.
The Declaration of Conformity related to this product can be obtained from [email protected].

AirSynergy 2000 Installation Guide
Page 12 Commercial in Confidence UGD-D01001 Rev B
FCC Notice
Federal Communication Commission Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his/her own
expense.
Fixed and base stations transmitting a signal with an emission bandwidth greater than 1 MHz
must not exceed an EIRP of 1000 watts/MHz and an antenna height of 305 m HAAT, except that
antenna heights greater than 305 m HAAT are permitted if power levels are reduced below 1000
watts/MHz EIRP.
GPS Compliance
The GPS is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC."
The GPS complies with the following EMC Common Regulatory Testing standards:
EN55022: Radiated and Conducted Emissions
CISPR 22: Class B
EN 50081-1: Generic Emissions Class B
EN 50082-1: Generic Immunity Class B
EN 61000-4-2: Electrostatic Discharge Immunity
EN 61000-4-3: Radiated RF EM Field Immunity Test
EN 61000-4-4: Electrical Fast Transient/Burst Test
EN 61000-4-6: Conducted Immunity
EN 61000-4-8: Magnetic Field Immunity
Note: A GPS is recommended for synchronizing between LTE sectors.
Note: An optional GPS Lightning/Surge protector is available from Airspan for
lightning prone deployments.

AirSynergy 2000 Installation Guide
Page 13 Commercial in Confidence UGD-D01001 Rev B
Maximum Output TX Power
Table 1 - AirSynergy FCC Maximum Output TX Power
Frequency Band
FCC
TX EIRP
Antenna Gain
728-746 MHz
33.68dBm
47.18dBm
13.5dBi
2110-2170 MHz
33.48dBm
50.48dBm
17.0dBi
2496-2690MHz
33.65dBm
51.65dBm
18.0dBi
2620-2690MHz
33.36dBm
51.36dBm
18.0dBi
3650-3675MHz
34.91dBm
36.91dBm
2.0dBi
3650-3675MHz
18.91dBm
36.91dBm
18.0dBi
Table 2 - AirSynergy ETSI Maximum Output TX Power
Frequency Band
ETSI
TX EIRP
Antenna Gain
728-746 MHz
33dBm
46.5dBm
13.5dBi
2110-2170 MHz
33dBm
50dBm
17.0dBi
2496-2690MHz
33dBm
51dBm
18.0dBi
2560-2630 MHz
33dBm
51dBm
18.0dBi
2620-2690 MHz
33dBm
51dBm
18.0dBi
3400-3500 MHz
33dBm
51dBm
18.0dBi
3650-3675MHz
33dBm
35dBm
2.0dBi
3650-3675MHz
33dBm
51dBm
18.0dBi
Caution: Do not set maximum output TX power to higher than local regulations.
Power Consumption
AirSynergy has a Max nominal power consumption of 78W. AirSynergy power consumption is
described in the following table:
Duplex
Tx Power at RF
Port (dBm)
Nominal Power
Consumption (W)
Power Supply
Requirement (W)
FDD
30
80
120
TDD
30
78
120
Antenna Types
The following antennas are designed specifically for AirSynergy deployments. Externally mounted
antennas are available for use as well, but are specified separately.
Note: For a list of compatible external antennas, please contact your nearest
Airspan sales representative.

AirSynergy 2000 Installation Guide
Page 14 Commercial in Confidence UGD-D01001 Rev B
Switched Beam Antenna
Switched Beam antenna (with built-in GPS antenna) variant include a top mounted steerable
antenna with the following specification. The antenna is a multi-element cross polarized (dual
slant) design which can be used in directional or omni modes of operation.
Table 3 - Switched Beam Antenna Parameters - Directional Mode
Parameter
698 MHz
698 MHz
23xx MHz
25xx MHz
34xx MHz
Frequency
698 –806 MHz
698 –806 MHz
2300 - 2500
MHz
2500 - 2700
MHz
3400 - 3700
MHz
Polarization
Dual Slant ±45
Dual Slant ±45
Dual Slant ±45
Dual Slant ±45
Dual Slant ±45
Polarization
discrimination
-14 dB
-14 dB
-14 dB
-14 dB
-14 dB
Boresight
gain
12.5 dBi
13.5 dBi
8 dBi
8 dBi
9 dBi
Azimuth
HPBW
90±10
60±10
90±10
90±10
90±10
Elevation
HPBW
17
17
20
20
20
Co & X-Pol
RPE
EN302-326-3
Class DN1
EN302-326-3
Class DN1
EN302-326-3
Class DN1
EN302-326-3
Class DN1
EN302-326-3
Class DN1
Grounding
DC GND
DC GND
DC GND
DC GND
DC GND
Table 4 - Switched Antenna Parameters - Omni Mode
Parameter
698 MHz
698 MHz
23xx MHz
25xx MHz
34xx MHz
Frequency
698 –746 MHz
746 –806 MHz
2300 - 2500
MHz
2500 - 2700
MHz
3400 - 3700
MHz
Polarization
Linear Vertical
Linear Vertical
Dual Slant ±45
Dual Slant ±45
Dual Slant ±45
Polarization
discrimination
-15dB (max)
-15dB (max)
-16 dB
-16 dB
-16 dB
Average gain
6.0 dBi
6.5 dBi
2 dBi
2 dBi
3.5 dBi
Minimum gain
ripple
5.4 dBi
5.8 dBi
4.5 dBi
4.5 dBi
4.5 dBi
Elevation
HPBW
19±1,5
17
20
20
20
Co & X-Pol RPE
EN 302-326-3
EN 302-326-3
EN 302-326-3
EN 302-326-3
EN 302-326-3
Grounding
DC GND
DC GND
DC GND
DC GND
DC GND
Front Mount Sector Antenna
The front mounted sector antenna is a cross polarized fixed antenna which mounts on the front of
the unit in place of the sun-shield.
Note: When using a front mounted antenna, external antennas cannot be
used.

AirSynergy 2000 Installation Guide
Page 15 Commercial in Confidence UGD-D01001 Rev B

AirSynergy 2000 Installation Guide
Page 16 Commercial in Confidence UGD-D01001 Rev B
Table 5 - Front Mounted Sector Antenna Parameters
Parameter
23xx MHz
33xx MHz
33xx MHz
Frequency
2300 –2700 MHz
3300 –3800 MHz
3300 –3800 MHz
Polarization
Dual Slant ±45
Dual Slant ±45
Double Dual Linear ±45
Polarization
discrimination
>18 dB
>15 dB
N/A
Boresight gain
12 dBi
11.5 dBi
17±0.5 dBi (min)
Azimuth HPBW
63
65
65(typ)
Elevation HPBW
21
22
7.5(typ)
Grounding
DC GND
DC GND
DC GND
Omni - Blade Antenna
Table 6 –Omni - Blade Antenna Parameters
Parameter
36xx MHz
Frequency
3600 - 4000 MHz
Polarization
Linear (vertical)
Cross Polar
20 dB Approx.
Gain
2 dBi
Beamwidth
360(Az. X 70 (El.) Approx.
Grounding
DC GND
AirSynergy Antenna Usage Options
AirSynergy comes in arange of frequency variants that can be mounted with different
antenna options and formats.

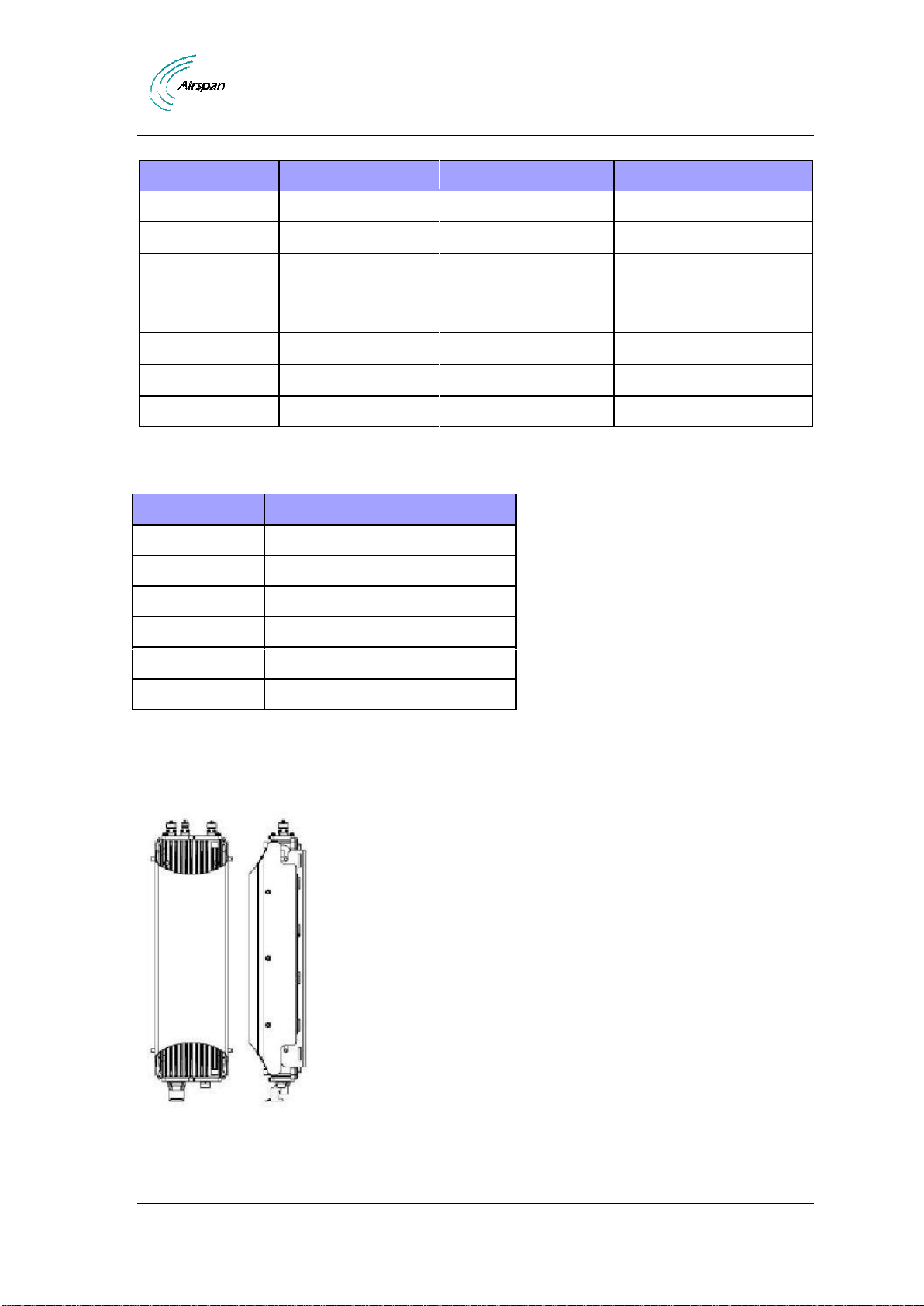

Figure 1 - AirSynergy with sunshield
A typical sector installation will have a cross-polar sector antenna fitted directly to the front of the
AirSynergy main unit. (This is attached instead of the sun-shield).

AirSynergy 2000 Installation Guide
Page 17 Commercial in Confidence UGD-D01001 Rev B
Figure 2 - AirSynergy with front sector antenna
A switched beam antenna version with built in GPS antenna allows for versatile LTE access,
selecting between omni and n x 90antenna patterns.
Figure 3 - AirSynergy with switched beam antenna
Note: Appropriate mounting kit (included) for the various external antennas is
required.

AirSynergy 2000 Installation Guide
Page 18 Commercial in Confidence UGD-D01001 Rev B
1 About this Guide
This section discusses the purpose, intended audience, conventions, referenced documentation
and organization for this guide.
1.1 Purpose
This guide provides the workflow and step-by-step procedures for Installing the AirSynergy.
These procedures include:
Verify prerequisites
Install the AirSynergy radio equipment
Install the PSU equipment (optional)
Connect and manage cables
1.2 Intended Audience
This guide is intended for persons who are responsible for installing the AirSynergy equipment.
These persons should have aworking knowledge of the equipment.
1.3 Conventions
This document uses the following informational conventions.
Icon
Description
Checkpoint: Marks a point in the workflow where there may be an exit or branch
to some other procedure. At each Checkpoint the reason for an exit or branch is
given along with specific directions to locate the entry point in the other
procedure.
Reference: Gives a resource in the workflow that may be needed to complete a
procedure along with specific directions to use the resource.
Caution: Describes a possible risk and how to lessen or avoid the risk.
Advice: Provides a recommendation based on best practice.
Note: Provides useful information.
1.4 Referenced Documentation
AirSynergy 2000 Hardware Product Specification
AirSynergy Overview Guide (pending)
AirSynergy LTE Commissioning Manual
1.5 Organization of this Guide
This guide is organized into the following Sections:
About this Guide
Introduction
Getting Started
Verify prerequisites

AirSynergy 2000 Installation Guide
Page 19 Commercial in Confidence UGD-D01001 Rev B
Install AirSynergy
Install the PSU equipment (Optional)
Connect and manage cables
Power System Connection
Appendixes

AirSynergy 2000 Installation Guide
Page 20 Commercial in Confidence UGD-D01001 Rev B
2 Introduction
This section provides a descriptive overview of the Airspan’s AirSynergy Pico eNodeB and its
place in the product suite.
2.1 AirSynergy
AirSynergy is part of Airspan’s carrier-class 4G Pico eNodeB family. AirSynergy supports 3GPP’s
Long Term Evolution (LTE) eNodeB, providing high-speed data and mobility, in order to meet the
demands of the Broadband Wireless Access market.
AirSynergy is a compact, easy to install pico-cell, allowing an operator to deploy LTE broadband
services using existing Street Furniture (e.g. street lamps, power poles, etc…)
AirSynergy employs Software Defined Radio (SDR) technology, together with two transmit and
receive paths, antennas and a GPS receiver - all in a highly integrated, physically small and light,
All-Outdoor package, targeted to blend seamlessly into the urban environment. This very compact
outdoor product minimizes physical footprint, power consumption and operator OPEX.
AirSynergy supports a wide array of frequencies and channel sizes, able to operate in both
licensed and unlicensed bands with more frequencies and channel sizes added regularly.
AirSynergy implements dual 30dBm (2 x 1W) transmitters, with several optional integral antennas
and external antennas connectivity.
All Airspan eNodeB products, including AirSynergy, are interoperable with a rich portfolio of 3rd
party end user devices, including many handsets, indoor UEs, outdoor UEs and USB dongles
from several ODMs, using various chipsets. For an updated of interoperability list, please contact
your nearest Airspan Sales Representative.
Note: For management please refer to the AirSynergy LTE Commissioning
Manual as well as the Netspan User Manual.
2.1.1 Deployment Description
A highly flexible and scalable 4G Base Station, the AirSynergy is capable of supporting LTE
profiles across multiple frequency bands.
Note: The following is for illustration only; actual layout may differ as
infrastructure is installation-specific.
Note: AirSynergy must be properly grounded according with NEC and other
local safety code requirements.
Note: Installation of the GPS Lightning/Surge protector (ordered separately)
is necessary to protect the GPS antenna. The Lightning/Surge protector must
be properly grounded with NEC and other local safety code requirements.
Note: An External Duplexer is required for some lower frequency (<1GHz)
FDD variants (supplied with AirSynergy, where required).
