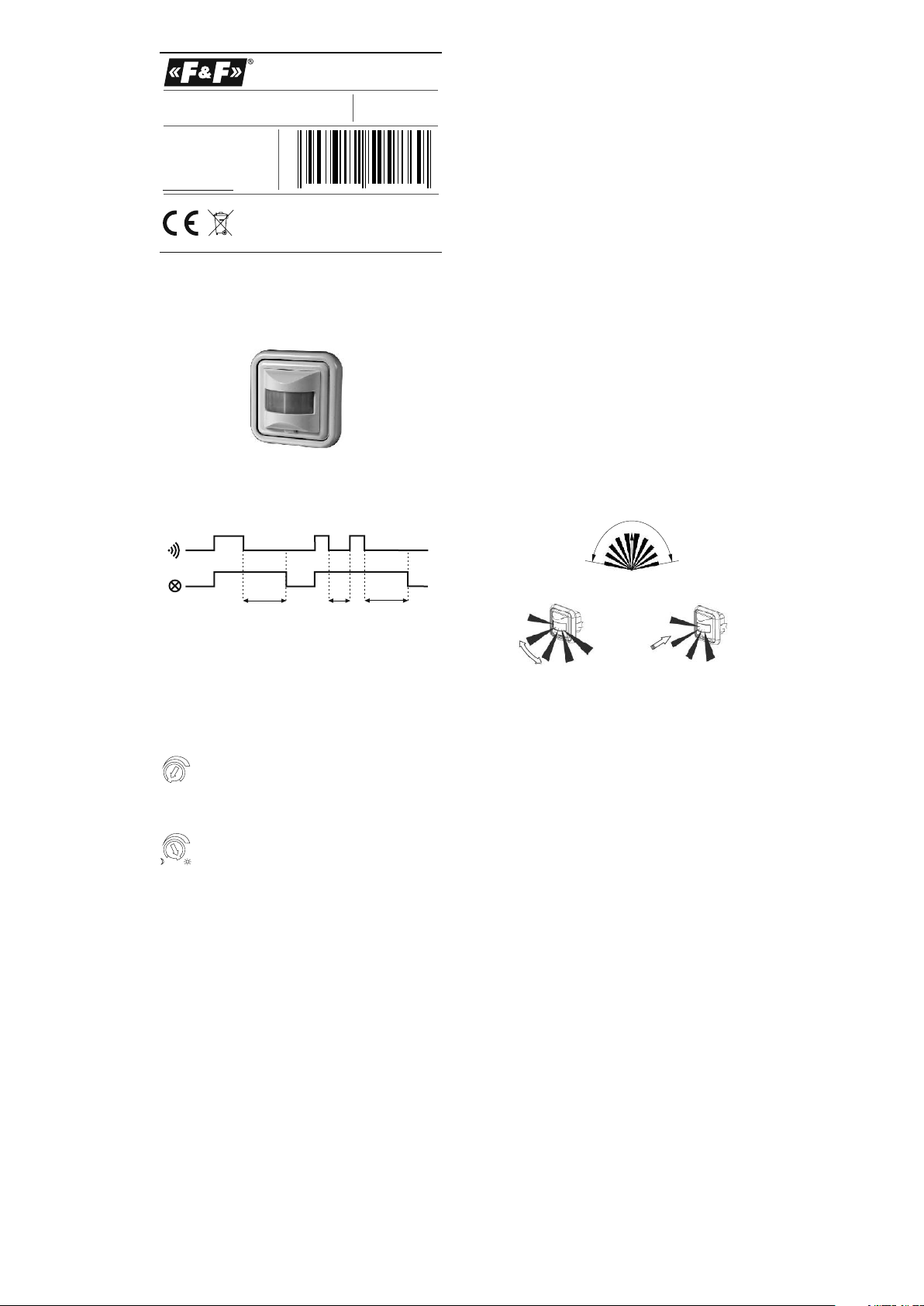

F&F DR-03 User manual

Purpose
The motion sensor is designed for automatic, scheduled lighting
activation if a person or other object appears in places such as
corridors, courtyards, approaches and driveways, garages, etc.
MOTION SENSOR
(PIR) DR-03
Functioning
The sensor detects the infrared radiation sources. It analyzes the
parameters such as the size of the object, the amount of heat
emitted and the speed of movement between sectors of
detection. Movement in the detection area will automatically
switch on the lighting. From this moment the light will stay on, as
long as the sensor detects continuous movement. Only the lack of
movement in the detection area triggers the lighting support
time. Another movement in the detection area and its sub-
sequent disappearance during the measured time resets the
support time to the beginning.
The specific of operation allows to use the DR-03 as a presence
sensor.
The motion sensor is equipped with a twilight sensor to prevent
switching the lighting on during the day. Detection status and
standby to switch on the lighting are activated only after dark. The
activation time of the sensor can be. In addition, user can adjust
the switching time of the receiver within a range of 10 sec to
7 min.
Changes in temperature can affect the motion detection.
The motion sensor can work indoors and outdoors in places not
directly exposed to rain or snow and where there is no risk of
splashing the sensor casing and its electrical terminals with water
or other liquid.
Note!
The minimum sensor distance from the light source is 60 cm.
If the motion sensor is installed too close to the light source it
switches, the system may activate, i.e. the sensor will sponta-
neously turn the light source on and off. It is necessary to move the
sensor to an appropriate distance away from the light source it
activates.
Switch-on time
The time of the receiver switch-on can be adjusted
within the range of 3 sec to 7 min. Turning the control
knob right [+] increases the switching-on time, turning
left [-] reduces the switching-on time.
The sensitivity of twilight sensor
The sensitivity of twilight sensor can be adjusted within
the range of 3Lx do 2000Lx. Turning the control knob in
the direction of the value "moon" - will switch the light
later, turning in the direction "sun" - will switch earlier.
For the sensor to be active throughout the day, the
control knob should be maximally turned in the direction
of "sun".
Settings
Diagram
tOFF tOFF<tOFF
- 1 - - 2 -
- 3 -
+
-
TIME
LUX
5 9 0 8 3 1 2 5 9 9 8 6 9
Detection area
160°
9m
Sensibility good Sensibility bad
Motion direction in detection area
- 4 -
1. Disconnect the power supply.
2. Make the mounting hole in the base / fix flush-mounted box
(Ø60).
3. Pry hooks and remove the outer casing of the sensor.
4. Connect according to the diagram.
5. Place the body in the mounting hole / flush-mounted box and
tighten the mounting screws.
6. Set the sensitivity of the twilight sensor and time of switching.
7. Assemble the outer casing of the sensor.
8. Connect the power supply.
Assembly
F&F Filipowski sp. j.
Konstantynowska 79/81 95-200 Pabianice
phone/fax: [phone] POLAND
http://www.fif.com.pl e-mail: biur[email protected]
WARRANTY. The F&F products are
covered by a warranty of the 24 months
from the date of purchase. Effective only
with proof of purchase. Contact your
dealer or directly with us. More informa-
tion how to make a compliant can be
found on the website:
www.fif.com.pl/reklamacje
Do not dispose of this device in the trash along with other waste! According
to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collection, as well as to store the
occasion of the purchase of new equipment (in accordance with the principle
of old-for-new, regardless of brand). Electro thrown in the trash or abandoned
in nature, pose a threat to the environment and human health.

Technical data
power supply 230V AC
current load <3A
twilight activation threshold 3÷2000Lx
motion of detection 0.6÷1.5m/sec
switch-off time 10sec 3sec ÷ 7min.±2min.
vertical detection field 160°
maximum radius detection (T<24°C) 9m
sensor height installation h=1.0÷1.8m
power consumption 0.5W
terminal 1.0mm² screw terminals
working temperature -10÷40°C
dimensions
external 80×80×62mm
groove Ø=60mm, depth=32mm
mounting hole Ø=60mm
screw spacing 58mm
mounting two screws to substrate
in flush mounted Ø60
protection level IP20
±
500W 100W
500W
incandescent fluorescent energy-saving
halogen LED
100W 100W
Table of power
D161014
Wiring diagram
- 5 -
- 7 -
- 6 -
- 8 -
(N) L
L
N
(N) L
L
N
DR-03 DR-03
80 mm
Dimensions
62 mm
32 mm
48 mm 80 mm
Note!
mounting handle
mounting hole
mounting screw
1) 2)
3) 4)
open cover
pry 2 hooks
Unmounting/mounting of device
1) Do not mount near the outlet of the air conditioner or other
heat sources.
2) Do not mount in direct sunlight area.
3) Do not mount near the moving objects.
4) Do not mount near the light source (min. distance 60 cm).
The above data are indicative and will heavily depend on the design of a specific receiver
(that is especially important for LED bulbs, energy-saving lamps, electronic transformers and
pulse power supply units), switching frequency and operating conditions.
For more information visit: www.fif.com.pl.
