Aiwa HS-PX797 User manual

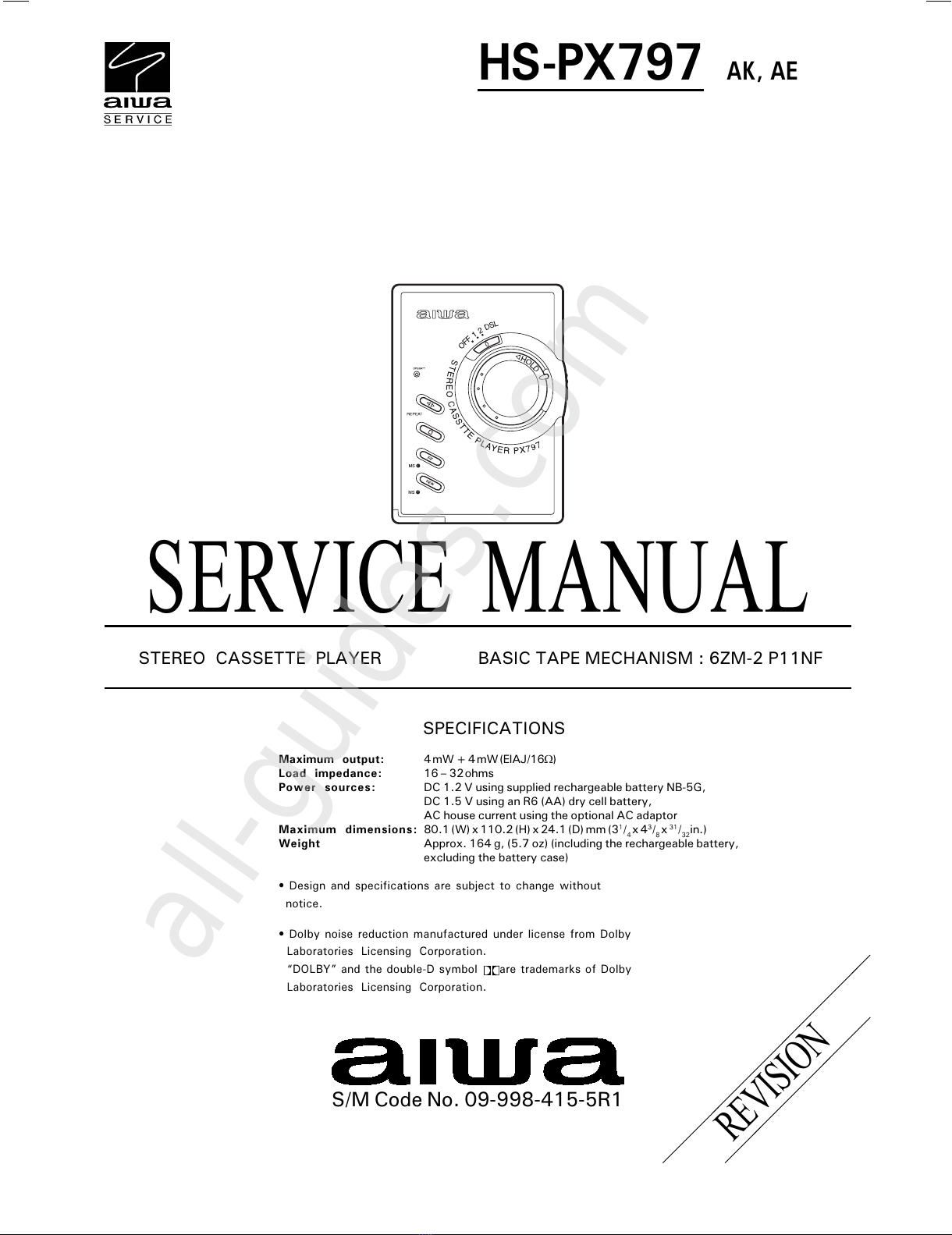

SERVICE MANUAL
HS-PX797 AK, AE
STEREO CASSETTE PLAYER BASIC TAPE MECHANISM : 6ZM-2 P11NF
S/M Code No. 09-998-415-5R1
REVISION
 Design and specifications are subject to change without
notice.
Maximum output: 4 mW + 4 mW (EIAJ/16W)
Load impedance: 16  32 ohms
Power sources: DC 1.2 V using supplied rechargeable battery NB-5G,
DC 1.5 V using an R6 (AA) dry cell battery,
AC house current using the optional AC adaptor
Maximum dimensions: 80.1 (W) x 110.2 (H) x 24.1 (D) mm (31/4 x 43/8 x 31/32in.)
Weight Approx. 164 g, (5.7 oz) (including the rechargeable battery,
excluding the battery case)
 Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
DOLBY and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
SPECIFICATIONS
All manuals and user guides at all-guides.com
all-guides.com

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A21-179-040 C-IC,TA2123AF
87-A20-818-040 C-IC,NJM2185AV
87-A20-961-040 C-IC,MM1279XV
87-A21-277-010 C-IC,ML63512-122
87-A20-861-040 C-IC,S-80808ANNP
TRANSISTOR
89-111-624-080 TR,2SA1162Y
87-026-417-080 TR,RN1310
87-026-480-080 C-TR,RN4605
89-333-266-080 CHIP TR,2SC3326B
89-113-625-080 TR,2SA1362GR
89-341-165-080 C-TR,2SC4116GR
87-026-423-080 C-TR RN2305
DIODE
87-A40-666-040 C-DIODE,HN2S01F
87-A40-676-040 C-ZENER,UDZ11B
MAIN C.B
C101 87-012-273-080 C-CAP,U 820P-50 B
C102 87-012-273-080 C-CAP,U 820P-50 B
C103 87-012-273-080 C-CAP,U 820P-50 B
C104 87-012-273-080 C-CAP,U 820P-50 B
C105 87-016-114-080 C-CAP,U0.01-25B
C106 87-016-114-080 C-CAP,U0.01-25B
C107 87-A11-188-080 C-CAP,TN 22-4 AM004R
C108 87-A11-188-080 C-CAP,TN 22-4 AM004R
C109 87-A11-188-080 C-CAP,TN 22-4 AM004R
C110 87-A10-025-080 C-CAP,U 0.22-16Z F
C111 87-012-278-080 C-CAP,U 2200P-50 KB
C112 87-A10-263-080 C-CAP,U 0.1-16ZF
C113 87-A11-188-080 C-CAP,TN 22-4 AM004R
C115 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C116 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C117 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C118 87-016-562-080 C-CAP,TN 4.7-10 SV A
C119 87-A11-797-080 C-CAP,S 2.2-16 Z F
C120 87-A10-263-080 C-CAP,U 0.1-16ZF
C123 87-A10-263-080 C-CAP,U 0.1-16ZF
C124 87-A10-263-080 C-CAP,U 0.1-16ZF
C125 87-A10-706-080 C-CAP,U 0.33-16Z F
C126 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C127 87-A11-056-080 C-CAP,U 1-10 Z F
C128 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C129 87-016-562-080 C-CAP,TN 4.7-10 SV A
C130 87-A10-263-080 C-CAP,U 0.1-16 Z F
C131 87-A11-797-080 C-CAP,S 2.2-16 Z F
C132 87-A11-797-080 C-CAP,S 2.2-16 Z F
C133 87-016-317-080 C-CAP,TN 2.2-6.3
C134 87-A11-056-080 C-CAP,U 1-10 Z F
C135 87-A11-797-080 CAP, S 2.2-16 ZF
C136 87-A11-797-080 CAP, S 2.2-16 ZF
C137 87-010-805-080 CAP, S 1-16
C138 87-010-805-080 CAP, S 1-16
C141 87-010-828-080 CHIP CAPACITOR,U 0.033-25F
C142 87-010-828-080 CHIP CAPACITOR,U 0.033-25F
C143 87-010-674-080 CAP, ELECT 220-2
C144 87-010-674-080 CAP, ELECT 220-2
C148 87-A11-056-080 C-CAP,U 1-10 ZF
C149 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C170 87-010-785-080 C-CAP,U 0.015-25 KB
C201 87-010-805-080 CAP, S 1-16
C202 87-010-805-080 CAP, S 1-16
C203 87-012-274-080 CHIP CAP,U 1000P-50B
C204 87-A11-187-080 C-CAP,TN 10-4 AM004R
C205 87-A11-188-080 C-CAP,TN 22-4 AM004R
C207 87-A10-369-080 C-CAP,S 0.47-16 K B
C208 87-A10-369-080 C-CAP,S 0.47-16 K B
C209 87-016-460-080 C-CAP,S 0.22-16 B
C210 87-016-460-080 C-CAP,S 0.22-16 B
C301 87-A10-031-080 C-CAP,U 0.01-25 KB
C302 87-A10-260-080 C-CAP,U 0.1-16 K B
C303 87-A11-796-080 C-CAP,S 4.7-10 Z F
C304 87-A10-260-080 C-CAP,U 0.1-16 K B
C305 87-A10-025-080 C-CAP,U 0.22-16Z F
C306 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C307 87-A11-056-080 C-CAP,U 1-10 ZF
C308 87-A10-031-080 C-CAP,U 0.01-25 KB
C309 87-A10-031-080 C-CAP,U 0.01-25 KB
C601 87-A11-189-080 C-CAP,TN 47-4 M BM004R
C602 87-A11-188-080 C-CAP,TN 22-4 AM004R
C701 87-010-505-080 CA, CHIP TANTALUM 1-16
C702 87-A10-263-080 C-CAP,U 0.1-16ZF
C703 87-A11-056-080 C-CAP,U 1-10 Z F
C704 87-A10-263-080 C-CAP,U 0.1-16ZF
C705 87-012-166-080 C-CAP,U 4P-50 C CH
C707 87-A11-056-080 C-CAP,U 1-10 Z F
C708 87-A10-263-080 C-CAP,U 0.1-16ZF
C709 87-A10-263-080 C-CAP,U 0.1-16ZF
C801 87-A11-812-080 C-CAP,E 220-4 MVSV
C903 87-010-831-080 C-CAP,U 0.1-16 ZF
C904 87-010-831-080 C-CAP,U 0.1-16 ZF
C905 87-012-274-080 C-CAP,U 1000P-50 K
C907 87-012-274-080 C-CAP,U 1000P-50 K
J101 85-HK3-605-010 JACK,DIA3.5 ST 5P
L901 87-005-906-080 C-COIL,S 10UH K LK2125
L902 87-005-906-080 C-COIL,S 10UH K LK2125
LED501 87-A90-278-080 C-LED,SML-210VT RED
PS401 87-A91-428-010 SNSR,PHOTO NJL5193K-F10
R105 87-022-281-080 CHIP RES U 680-1/6W F
R106 87-022-281-080 CHIP RES U 680-1/6W F
R107 87-022-281-080 CHIP RES U 680-1/6W F
R108 87-022-281-080 CHIP RES U 680-1/6W F
R203 87-022-252-080 C-RES,U36K-1/16WF
R709 87-022-286-080 C-RES U 100K-1/16WF
R710 87-022-249-080 C-RES U27K 1/16WF
S101 87-036-379-180 C-SW,SL SS-350-A12B-C-T
S102 87-A90-703-080 C-SW,SL 1-1-3 SSSS813-B-2B
S201 87-036-379-180 C-SW,SL 1-1-2 SS-350-A12B-
S701 87-A91-320-080 C-SW,SL 1-1-2 SSSS8A2-B-
S702 87-036-379-180 C-SW,SL 1-1-2 SS-350-A12B-
S703 87-A90-665-280 C-SW,TACT LS7A2M
S704 87-A90-665-280 C-SW,TACT LS7A2M
S705 87-A90-665-280 C-SW,TACT LS7A2M
S706 87-A90-665-280 C-SW,TACT LS7A2M
S707 87-A91-421-010 SW,LEAF 6ZM-2(H)
S708 87-A91-365-080 C-SW,PUSH 1-1-1 SPVG21
S709 87-A91-461-010 SW,PUSH HXW4010
SFR301 87-A91-465-040 C-SFR,K 6.8K H RH03AEC
TH301 87-A90-855-080 C-THMS,SC20-3K102K
VR101 87-A90-116-080 C-VR,RTRY 20KCX2 V XV0103
X701 87-A70-151-110 VIB,XTAL 32.768KHZ VT-
HEAD FLEX C.B
PH1 88-HK5-602-010 HEAD ASSY 6ZM-2(P5)
2
All manuals and user guides at all-guides.com

3 4
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
IC BLOCK DIAGRAM
IC, MM1279XV
IC, TA2123AF
IC, NJM2185AV
RN2305
RN1310
2SA1162Y
2SC3326B
2SC4116GR
2SA1362GR
RN4605
BE
C
B1
C1
E2
C2
E1
B2
All manuals and user guides at all-guides.com

WIRING
65
14 13 12 11 10 9 8 7 6 5 4 3 2 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
UU
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM (MAIN)
87
PHONES/REMOTE
J101
All manuals and user guides at all-guides.com

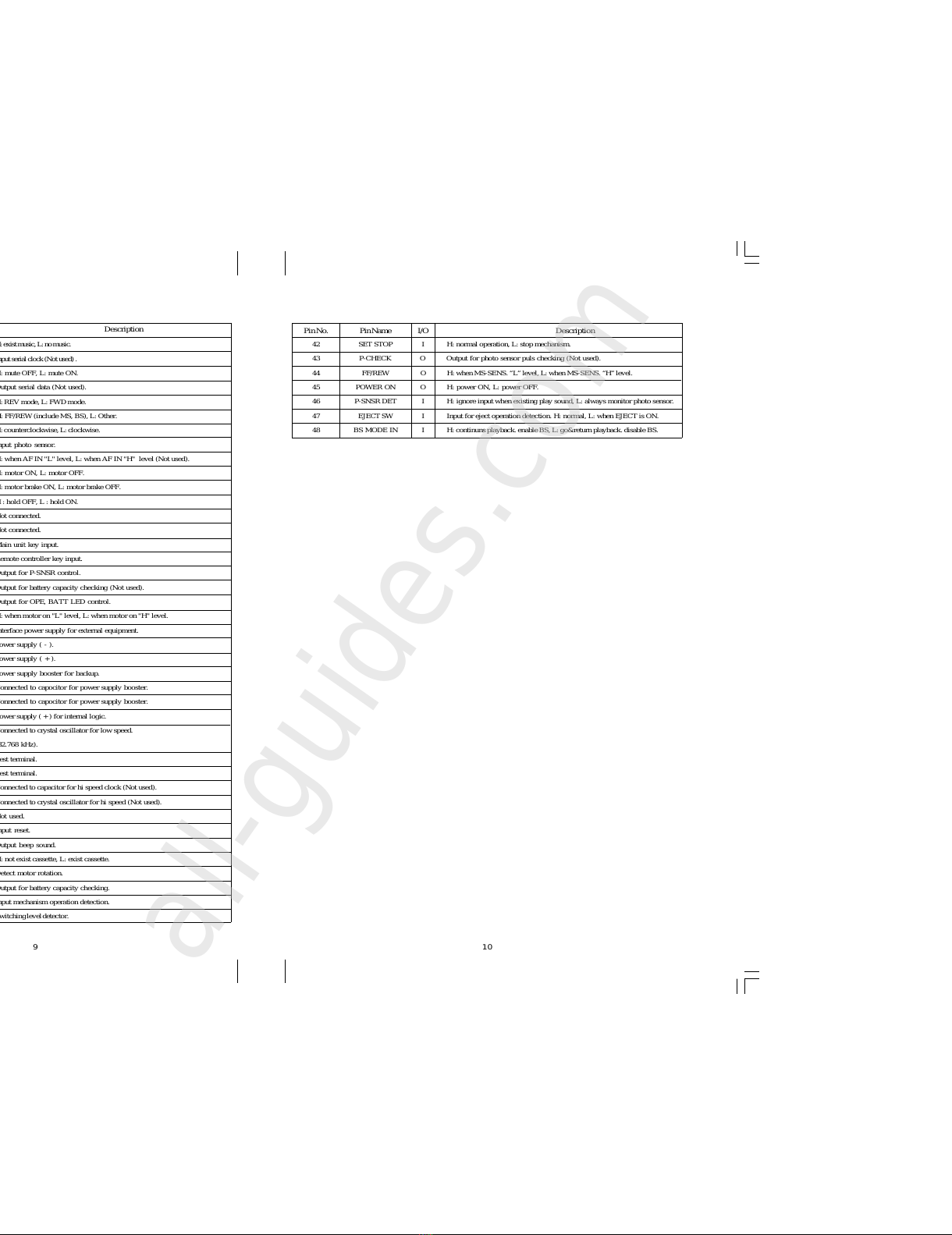

IC,ML63512-122
ICDESCRIPTION
910
1 AF IN I H:existmusic,L:nomusic.
2 SCLK I Input serial clock (Not used) .
3 MUTE O H: mute OFF, L: mute ON.
4 SDATA O Output serial data (Not used).
5 F/R CONT O H: REV mode, L: FWD mode.
6 MS-SENS O H: FF/REW (include MS, BS), L: Other.
7 MOT DIR O H: counterclockwise, L: clockwise.
8 P-SNSR IN I Input photo sensor.
9 AF-MOMITOR O H: when AF IN "L" level, L: when AF IN "H" level (Not used).
10 MOT ON O H: motor ON, L: motor OFF.
11 MOT BR O H: motor brake ON, L: motor brake OFF.
12 HOLD IN I H : hold OFF, L : hold ON.
13 NC – Not connected.
14 NC – Not connected.
15 KEY MAIN I Main unit key input.
16 REMOTE I Remote controller key input.
17 P- SNSR K O Output for P-SNSR control.
18 LOAD CTL O Output for battery capacity checking (Not used).
19 LED K O Output for OPE, BATT LED control.
20 MOTOR ON L O H: when motor on "L" level, L: when motor on "H" level.
21 VDDI – Interface power supply for external equipment.
22 VSS – Power supply ( - ).
23 VDD – Power supply ( + ).
24 VDDH – Power supply booster for backup.
25 CB1 – Connected to capocitor for power supply booster.
26 CB2 – Connected to capocitor for power supply booster.
27 VDDL – Power supply ( + ) for internal logic.
28 XT0 Connected to crystal oscillator for low speed.
29 XT1 –(32.768 kHz).
30 TEST1B – Test terminal.
31 TEST2B – Test terminal.
32 OSCM – Connected to capacitor for hi speed clock (Not used).
33 OSC0 – Connected to crystal oscillator for hi speed (Not used).
34 OSC1 – Not used.
35 RESETB I Input reset.
36 BEEP O Output beep sound.
37 CASSSW I H: not exist cassette, L: exist cassette.
38 MOTOR CH I Detect motor rotation.
39 LOAD CTL2 O Output for battery capacity checking.
40 TIMING SW I Input mechanism operation detection.
41 REMOTE DET I Switchingleveldetector.
PinNo. PinName I/O Description
42 SET STOP I H: normal operation, L: stop mechanism.
43 P-CHECK O Output for photo sensor puls checking (Not used).
44 FF/REW O H: when MS-SENS. “L” level, L: when MS-SENS. “H” level.
45 POWER ON O H: power ON, L: power OFF.
46 P-SNSR DET I H: ignore input when existing play sound, L: always monitor photo sensor.
47 EJECT SW I Input for eject operation detection. H: normal, L: when EJECT is ON.
48 BS MODE IN I H: continuns playback. enable BS, L: go&return playback. disable BS.
PinNo. PinName I/O Description
All manuals and user guides at all-guides.com
all-guides.com

11
ADJUSTMENT
PRACTICAL SERVICE FIGURE
<TAPE SECTION>
Tape speed : 3015Hz ± 50Hz
Wow : Less than 0.55% (RMS)
Take-up torque : 20 ~ 30g-cm (FWD)
F.F torque : 70 ~ 150g-cm
REW torque : 70 ~ 150g-cm
Back tension : 1.0 ~ 3.0g-cm (FWD)
S/N ratio : More than 42dB (PB, DC)
Distortion : Less than 3.0% (PB, DC)
Noise level : Less than 3.0mV
(Vol MAX, PB, DC)
Less than 0.4mV
(Vol MIN, PB, DC)
Frequency response : 63Hz + 3 /  5dB ~ 8kHz + 4 /  4dB
(NORMAL)
63Hz + 3 /  5dB ~10kHz + 4 /  4dB
(CrO2)
Test tape : TTA  100
TTA  200
TTA  320(NORMAL)
TTA  310(CrO2)
<TAPE PLAYER SECTION>
1. Tape Speed Adjustment
Settings :  Test tape : TTA  100 (Tape center)
 Test point : Phones Jack (J101)
 Adjustment location : SFR301
 Dolby : OFF
 MSP : CLASSIC
 DSL : OFF
 Tape selector : NORMAL(AUTO)
 Volume : MAX
Method : Play back (FWD) the test tape and adjust
SFR301 so that the frequency becomes
3015Hz ± 10Hz. Then confirm WOW is
less than 0.50%.
2. Dolby Level Adjustment
Setting :  Test tape : TTA  200
 Test point : TP1(RCH),TP2(LCH)
 DSL : OFF
 Tape selector : NORMAL
 Dolby SW : OFF
 Volume : MIN
 Adjustment points : Soldered patterns 
Procedure : Short the patterns via solder as showen in the
table so the Dolby NR level is 24.5mV ± 1.0dB.
Adjust so the specifications are satisfied in both
the forward and reverse directions. Connect 10mF
/16V coupling capacitors between test points and
test equipment (connect the positive terminals to
the test points).
SOLDER PATTERN 
STANDARD : 24.5 ± 1.0dB
14
Lch
Rch
SOLDER POINT INCRESE LEVEL
3
2
1
4
only +1dB
and
only
1 2
only
only
3and 4
+1.5dB
+2.5dB
+1dB
+1.5dB
+2.5dB
14
SFR 301
MAIN C.B
A
PHONES
J101
1
1
VR101
VOLUME
TP1
(R-CH)
(L-CH)
TP2
IC701
1
2
GND
IC301
2
22
3
4
2
All manuals and user guides at all-guides.com

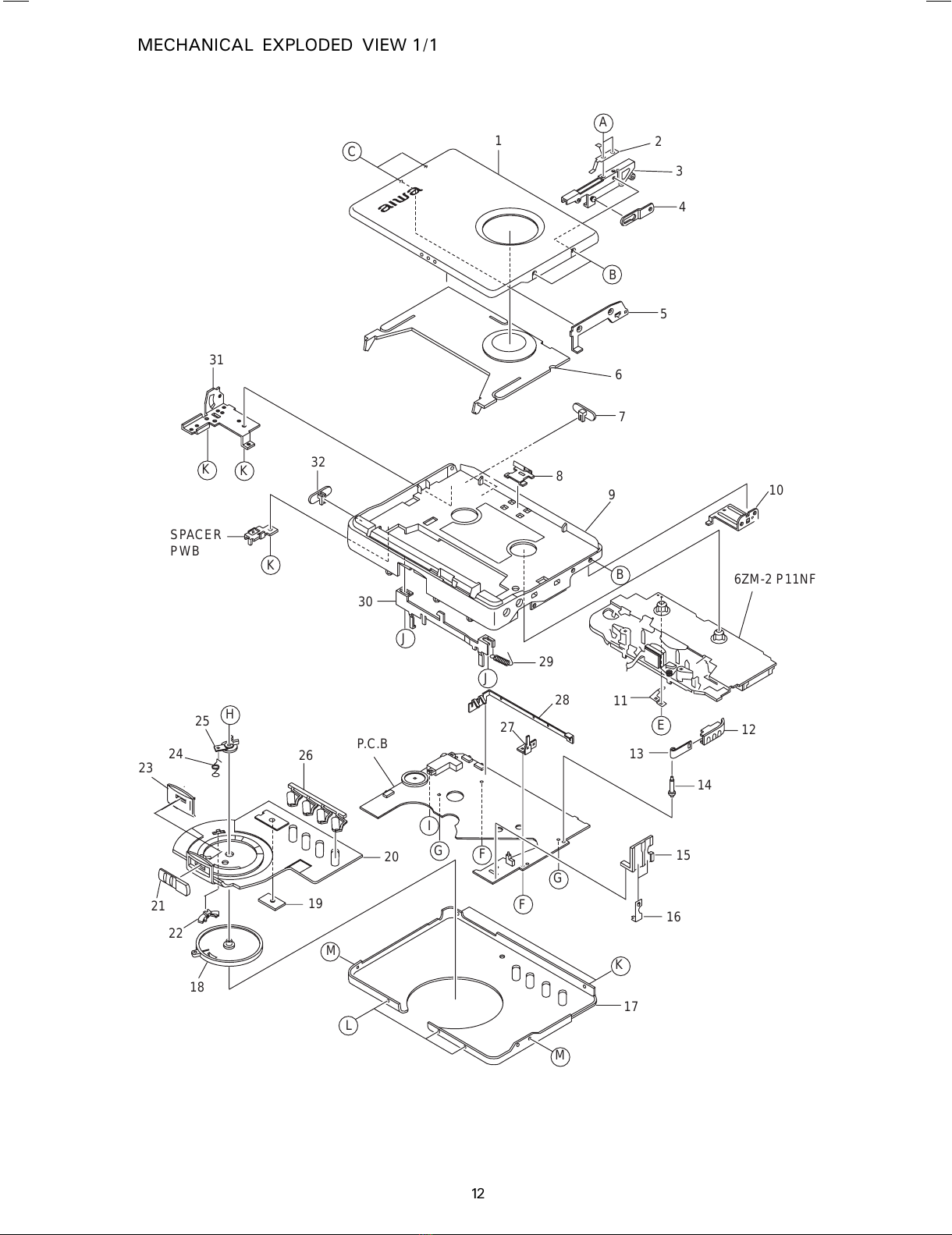

MECHANICAL EXPLODED VIEW 1/1
12
HS-PX797
(FileName:EXPRODED.EPS)
99/7/2
K
K
C
A
B
K
J
B
J
HE
G
F
F
G
I
M
L
M
K
32
SPACER
PWB
89
31
12
3
4
5
7
6
30
29
28
10
6ZM-2 P11NF
11
13
14
15
16
17
20
19
12
27
25
24
23
21
22
18
P.C.B
26
All manuals and user guides at all-guides.com

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL PARTS LIST 1/1
13
Basic color Color Basic color Color Basic color Color
symbol symbol symbol
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue L L Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange
COLOR NAME TABLE
1 8Z-HK3-002-010 LID ASSY,CASS
2 8Z-HK5-216-010 SPR-P,POP-UP
3 8Z-HK5-214-010 HLDR ASSY,CASS MOT
4 88-HK5-208-010 ARM,SLIDE
5 8Z-HK5-213-010 HLDR,CASS JACK
6 8Z-HK5-021-010 WINDOW,CASS SMK
7 8Z-HK5-012-010 KNOB,SL BS
8 8Z-HRB-207-010 SPR-P,CASS
9 8Z-HK3-004-010 FRAME,CENTER
10 8Z-HK5-202-010 PLATE,HINGE MOT
11 88-HK5-220-010 SPR-P,MECHA EARTH
12 8Z-HK3-008-010 LID,BATT GLD
13 8Z-HK5-206-010 BAT-CONTACT,P
14 88-HK5-216-010 SHAFT,BAT
15 8Z-HK5-209-010 HLDR,CONT B-BOX
16 8Z-HK5-207-010 BAT-CONTACT,BOX HEAD
17 8Z-HK3-001-010 CABI,REAR
18 8Z-HK5-009-010 KNOB,RTRY HOLD
19 8Z-HK5-008-010 LENS,LED
20 8Z-HK3-005-010 PANEL,CABI BRN
21 8Z-HK5-010-010 KNOB,SL OPEN
22 8Z-HK3-006-010 KNOB,SL DSL BRN
23 8Z-HK5-210-010 HLDR,KNOB OPEN
24 8Z-HK5-221-010 SPR-T,CLICK
25 8Z-HK5-222-010 JOINT,HOLD
26 8Z-HK5-007-010 KEY,CONT
27 8Z-HK5-204-010 PLATE,B-BOX
28 8Z-HK5-226-010 BAT-CONTACT,M
29 8Z-HK5-224-010 SPR-E,OPEN
30 8Z-HK5-203-010 PLATE,OPEN
31 8Z-HK5-201-010 PLATE,HINGE JACK
32 8Z-HK5-011-010 KNOB,SL TP
A 87-067-588-010 SCREW,V+1.4-1.4
B 87-HK5-240-010 S-SCREW,1.4-1 CR NL
C 87-HK5-237-010 S-SCREW,1.4-2 CR NL
D 87-078-116-010 SCRW M1.4-2.5B NL
E 88-HK5-228-010 S-SCREW,+1.4-2 CR
F 87-067-746-010 SCREW,M 1.4-2(H0.5)
G 87-078-052-010 S-SCREW+1.4-3.5HL(B)
H 8Z-HK5-227-010 S-SCREW,+1.7-3.5 BLK HL
I 87-078-079-010 V+1.4-4.7CRN
J 87-HK5-235-010 S-SCREW,1.4-0.6-2.5
K 87-067-385-010 SCREW,VT +1.4-2.5HL
L 87-067-597-010 VT1.4-25HL
M 87-HK5-236-010 S-SCREW,1.4-2.3
All manuals and user guides at all-guides.com

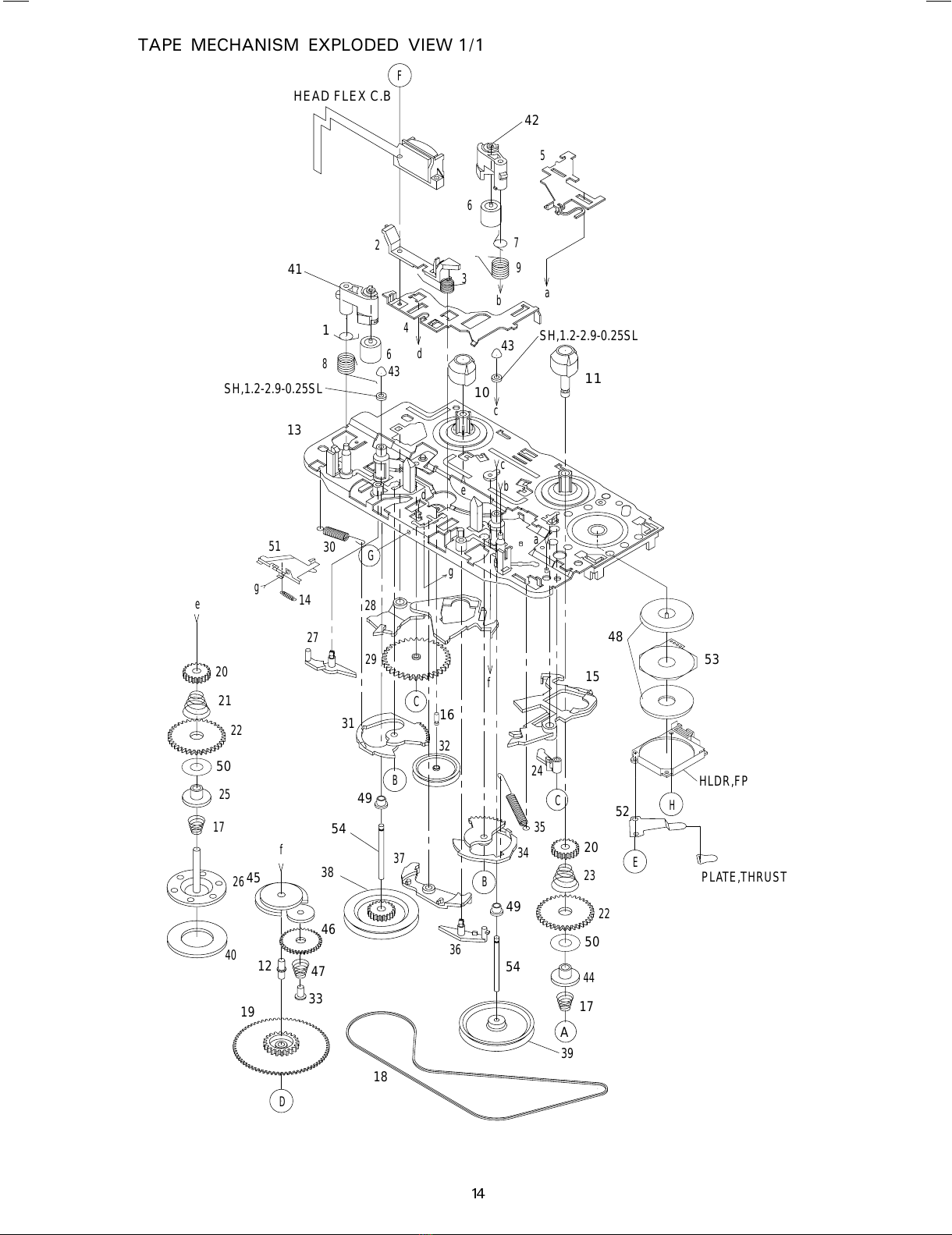

TAPE MECHANISM EXPLODED VIEW 1/1
14
2
3
4
5
6
6
1
7
8
9
10
11
43
41
42
20
21
22
25
26
22
23
44
18
39
38
a
b
c
d
e
a
b
c
d
e
f
HEAD FLEX C.B
43
32
40
SH,1.2-2.9-0.25SL
SH,1.2-2.9-0.25SL
13
15
24
27
28
30
31
34
35
36
37
17
17
29
16
F
49
49
19
45
46
47
33
12
f
D
A
50
50
C
B
B
20
C
Gg
g
51
14
53
48
HLDR,FP
PLATE,THRUST
52
E
H
54
54
All manuals and user guides at all-guides.com

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.

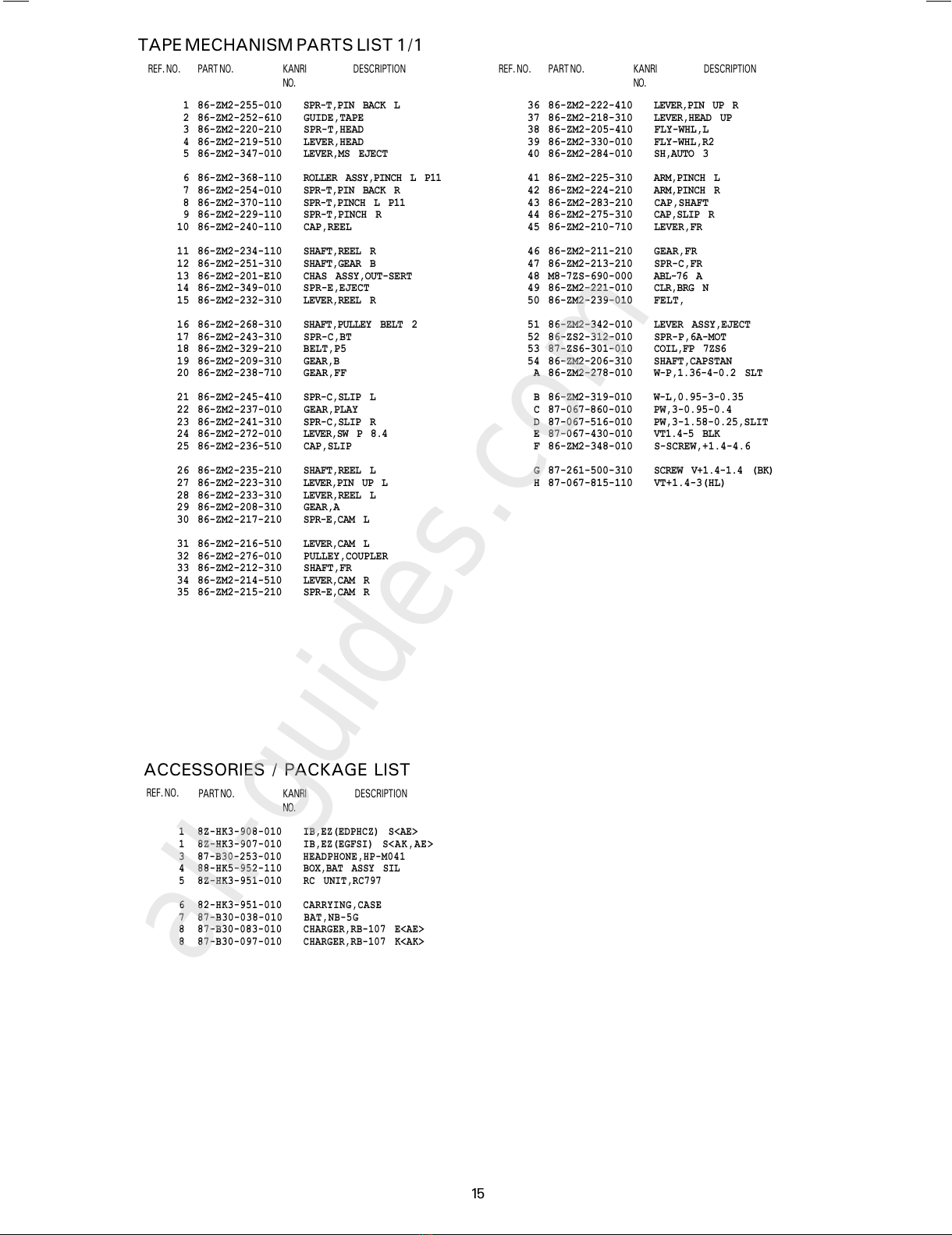

TAPE MECHANISM PARTS LIST 1/1
15
1 8Z-HK3-908-010 IB,EZ(EDPHCZ) S<AE>
1 8Z-HK3-907-010 IB,EZ(EGFSI) S<AK,AE>
3 87-B30-253-010 HEADPHONE,HP-M041
4 88-HK5-952-110 BOX,BAT ASSY SIL
5 8Z-HK3-951-010 RC UNIT,RC797
6 82-HK3-951-010 CARRYING,CASE
7 87-B30-038-010 BAT,NB-5G
8 87-B30-083-010 CHARGER,RB-107 E<AE>
8 87-B30-097-010 CHARGER,RB-107 K<AK>
ACCESSORIES / PACKAGE LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO.
1 86-ZM2-255-010 SPR-T,PIN BACK L
2 86-ZM2-252-610 GUIDE,TAPE
3 86-ZM2-220-210 SPR-T,HEAD
4 86-ZM2-219-510 LEVER,HEAD
5 86-ZM2-347-010 LEVER,MS EJECT
6 86-ZM2-368-110 ROLLER ASSY,PINCH L P11
7 86-ZM2-254-010 SPR-T,PIN BACK R
8 86-ZM2-370-110 SPR-T,PINCH L P11
9 86-ZM2-229-110 SPR-T,PINCH R
10 86-ZM2-240-110 CAP,REEL
11 86-ZM2-234-110 SHAFT,REEL R
12 86-ZM2-251-310 SHAFT,GEAR B
13 86-ZM2-201-E10 CHAS ASSY,OUT-SERT
14 86-ZM2-349-010 SPR-E,EJECT
15 86-ZM2-232-310 LEVER,REEL R
16 86-ZM2-268-310 SHAFT,PULLEY BELT 2
17 86-ZM2-243-310 SPR-C,BT
18 86-ZM2-329-210 BELT,P5
19 86-ZM2-209-310 GEAR,B
20 86-ZM2-238-710 GEAR,FF
21 86-ZM2-245-410 SPR-C,SLIP L
22 86-ZM2-237-010 GEAR,PLAY
23 86-ZM2-241-310 SPR-C,SLIP R
24 86-ZM2-272-010 LEVER,SW P 8.4
25 86-ZM2-236-510 CAP,SLIP
26 86-ZM2-235-210 SHAFT,REEL L
27 86-ZM2-223-310 LEVER,PIN UP L
28 86-ZM2-233-310 LEVER,REEL L
29 86-ZM2-208-310 GEAR,A
30 86-ZM2-217-210 SPR-E,CAM L
31 86-ZM2-216-510 LEVER,CAM L
32 86-ZM2-276-010 PULLEY,COUPLER
33 86-ZM2-212-310 SHAFT,FR
34 86-ZM2-214-510 LEVER,CAM R
35 86-ZM2-215-210 SPR-E,CAM R
36 86-ZM2-222-410 LEVER,PIN UP R
37 86-ZM2-218-310 LEVER,HEAD UP
38 86-ZM2-205-410 FLY-WHL,L
39 86-ZM2-330-010 FLY-WHL,R2
40 86-ZM2-284-010 SH,AUTO 3
41 86-ZM2-225-310 ARM,PINCH L
42 86-ZM2-224-210 ARM,PINCH R
43 86-ZM2-283-210 CAP,SHAFT
44 86-ZM2-275-310 CAP,SLIP R
45 86-ZM2-210-710 LEVER,FR
46 86-ZM2-211-210 GEAR,FR
47 86-ZM2-213-210 SPR-C,FR
48 M8-7ZS-690-000 ABL-76 A
49 86-ZM2-221-010 CLR,BRG N
50 86-ZM2-239-010 FELT,
51 86-ZM2-342-010 LEVER ASSY,EJECT
52 86-ZS2-312-010 SPR-P,6A-MOT
53 87-ZS6-301-010 COIL,FP 7ZS6
54 86-ZM2-206-310 SHAFT,CAPSTAN
A 86-ZM2-278-010 W-P,1.36-4-0.2 SLT
B 86-ZM2-319-010 W-L,0.95-3-0.35
C 87-067-860-010 PW,3-0.95-0.4
D 87-067-516-010 PW,3-1.58-0.25,SLIT
E 87-067-430-010 VT1.4-5 BLK
F 86-ZM2-348-010 S-SCREW,+1.4-4.6
G 87-261-500-310 SCREW V+1.4-1.4 (BK)
H 87-067-815-110 VT+1.4-3(HL)
All manuals and user guides at all-guides.com
all-guides.com

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827)
3111
L
Printed in Singapore
A4
2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
9630469 931261
All manuals and user guides at all-guides.com
