SERVICE MANUAL
DATA
XH-N3 EZ
COMPACT DISC
STEREO SYSTEM
SIMPLE
S/M Code No. 09-003-424-7T2
• Replace this Service manual with “Revision Publishing” when it is issued.
BASIC TAPE MECHANISM : 6ZM-1 AR3NM
BASIC CD MECHANISM : AZG-1 ZD8RNDM

ELECTRICAL MAIN PARTS LIST - 1/10
NOTE: The characters in the suffix column indicate the part usage.
EZSM ...................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 9 87-016-520-000 CAP,E 3300-65 M SMG A...................
C 8 87-016-520-000 CAP,E 3300-65 M SMG A...................
C 8 87-016-658-000 CAP,E 4700-35 M SMG ....................
C 9 87-016-658-000 CAP,E 4700-35 M SMG ....................
C 2 87-018-214-080 CAP TC U 0.1-50F A...................
C 6 87-018-214-080 CAP TC U 0.1-50F A...................
C 4 87-018-214-080 CAP TC U 0.1-50F A...................
C 5 87-018-214-080 CAP TC U 0.1-50F A...................
C 3 87-018-214-080 CAP TC U 0.1-50F A...................
C 7 87-A10-479-080 CAP,CER 2200P-250 M E KH A...................
C 11 87-016-520-000 CAP,E 3300-65 M SMG A...................
C 10 87-016-520-000 CAP,E 3300-65 M SMG A...................
C 14 87-018-214-080 CAP TC U 0.1-50F A...................
C 12 87-018-214-080 CAP TC U 0.1-50F A...................
C 19 87-018-214-080 CAP TC U 0.1-50F ....................
C 15 87-018-214-080 CAP TC U 0.1-50F A...................
C 13 87-018-214-080 CAP TC U 0.1-50F A...................
C 18 87-018-214-080 CAP TC U 0.1-50F ....................
C 11 87-A10-416-090 CAP,E 6800-80 SMG VB ....................
C 16 87-A10-416-090 CAP,E 6800-80 SMG VB ....................
C 17 87-A10-416-090 CAP,E 6800-80 SMG VB ....................
C 10 87-A10-416-090 CAP,E 6800-80 SMG VB ....................
C 20 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 22 87-018-214-080 CAP TC U 0.1-50F ....................
C 21 87-018-214-080 CAP TC U 0.1-50F ....................
CN 3 87-099-674-010 CONN,2P VA V ....................
CN 5 87-099-674-010 CONN,2P VA V A...................
CN 4 87-A60-129-010 CONN 3P V VA B3P5 VH ....................
CN 2 87-A60-850-010 CONN,7P V VH A...................
CN 2 87-A60-851-010 CONN,9P V VH ....................
CN 1 87-A61-110-010 CONN,9P V TID-A A...................
D 6 87-017-654-060 DIODE,GBU6J A...................
D 8 87-017-654-060 DIODE,GBU6J A...................
D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 6 87-A40-224-010 DIODE,GBU8D ....................
D 8 87-A40-224-010 DIODE,GBU8D ....................
D 7 87-A40-224-010 DIODE,GBU8D ....................
D 10 87-020-465-080 DIODE,1SS133 (110MA) A...................
PR 3 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 7 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 4 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 2 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 1 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 8 87-026-682-080 PROTECTOR,10A 60V491 ....................
PR 6 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 5 87-026-682-080 PROTECTOR,10A 60V491 A...................
PT 2 8A-NF8-662-010 PT,SUB ANF-8 (E) A...................
PT 2 8A-NF8-663-010 PT,SUB ANF-8 (H) ....................
Q 1 87-026-245-080 TR,DTC114ES A...................
Q 2 87-A30-198-080 TR,KTC3199GR A...................
RY 1 87-A91-339-010 RELAY,AC DC12V G5PA-2 ....................
RY 2 87-A91-418-010 RELAY,AC12V G5PA-1-M A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ....................
C 102 87-010-178-080 CHIP CAP 1000P A...................
C 106 87-010-311-080 CAP 12P A...................
C 108 87-010-405-040 CAP,E 10-50 A...................
C 105 87-012-155-080 C-CAP 180P-50CH A...................
C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 101 87-A10-189-040 CAP,E 220-10 A...................
C 115 87-010-178-080 CHIP CAP 1000P A...................
C 110 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 111 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 117 87-010-378-080 CAP, ELECT 10-16V A...................
C 116 87-010-400-040 CAP,E 0.47-50 A...................
C 119 87-010-408-040 CAP,E 47-50 SME A...................
C 118 87-012-369-080 C-CAP,S 0.047-50F A...................
C 112 87-016-460-080 C-CAP,S 0.22-16 B A...................
C 113 87-A10-189-040 CAP,E 220-10 A...................
C 126 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 127 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 129 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 121 87-010-404-040 CAP,E 4.7-50 SME A...................

ELECTRICAL MAIN PARTS LIST - 2/10
C 120 87-010-404-040 CAP,E 4.7-50 SME A...................
C 122 87-010-408-040 CAP,E 47-50 SME A...................
C 128 87-012-140-080 CAP 470P A...................
C 130 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 201 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 207 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 204 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 281 87-010-112-040 CAP,E 100-16 A...................
C 305 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 381 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 388 87-010-263-040 CAP,E 100-10 A...................
C 382 87-012-158-080 C-CAP,S 390P-50 CH A...................
C 390 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 938 87-012-145-080 CAP, CHIP S 270P CH A...................
C 943 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 941 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 942 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 948 87-012-145-080 CAP, CHIP S 270P CH A...................
C 949 87-012-145-080 CAP, CHIP S 270P CH A...................
C 945 87-012-145-080 CAP, CHIP S 270P CH A...................
C 946 87-012-145-080 CAP, CHIP S 270P CH A...................
C 944 87-012-145-080 CAP, CHIP S 270P CH A...................
C 947 87-012-145-080 CAP, CHIP S 270P CH A...................
C 951 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 950 87-012-145-080 CAP, CHIP S 270P CH A...................
CN 103 87-099-015-010 CONN,13P 6216V A...................
CN 102 87-A60-136-010 CONN,11P V FE A...................
CN 101 87-A60-142-010 CONN,17P V FE A...................
CN 105 87-A60-586-010 CONN,4P V FE A...................
CN 104 87-A60-673-010 CONN,9P H 2MM JMT A...................
CN 301 87-A60-140-010 CONN,15P V FE A...................
D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 105 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 109 87-A40-344-080 ZENER,MTZJ6.2C A...................
D 114 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 115 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 111 87-A40-270-080 C-DIODE,MC2838 A...................
D 122 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 170 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 302 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 307 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 308 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 301 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 312 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 311 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 315 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 314 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 313 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 316 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 327 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 333 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 330 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 385 87-017-932-080 ZENER,MTJ6.2B A...................
D 383 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 384 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 382 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 381 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 501 87-070-345-080 DIODE,IN4148 A...................
FL 101 8A-MT4-605-010 FL,BJ741GK A...................
IC 102 87-A20-914-010 IC,SPS-442-1-F A...................
IC 101 8A-MT4-601-010 C-IC,LC866560W-XXXX A...................
IC 101 8A-MT4-666-010 C-IC,LC86P6560 ....................
IC 201 87-A21-021-040 C-IC,BU2099FV A...................
IC 380 87-A21-023-040 C-IC,BA3835F A...................
L 101 87-A50-408-010 COIL,OSC 5.76MHZ A...................
LED 248 87-A91-748-010 LED,SLA-570JT A...................
LED 243 87-A91-748-010 LED,SLA-570JT A...................
LED 246 87-A91-748-010 LED,SLA-570JT A...................
LED 242 87-A91-748-010 LED,SLA-570JT A...................
LED 250 87-A91-748-010 LED,SLA-570JT A...................
LED 254 87-A91-748-010 LED,SLA-570JT A...................
LED 256 87-A91-748-010 LED,SLA-570JT A...................
LED 251 87-A91-748-010 LED,SLA-570JT A...................
Q 103 87-026-610-080 TR,KTC3198GR A...................
Q 108 87-A30-073-080 C-TR,RT1N 141C A...................
Q 102 87-A30-076-080 C-TR,2SC3052F A...................
Q 101 87-A30-087-080 C-FET,2SK2158 A...................
Q 119 87-A30-071-080 C-TR,RT1N 144C A...................
Q 121 87-026-580-080 C-TR,DTA123JK A...................

ELECTRICAL MAIN PARTS LIST - 3/10
Q 120 87-A30-071-080 C-TR,RT1N 144C A...................
Q 122 87-A30-074-080 C-TR,RT1P 141C A...................
Q 203 87-A30-072-080 C-TR,RT1P 144C A...................
Q 301 87-A30-074-080 C-TR,RT1P 141C A...................
Q 504 87-A30-047-080 TR,CSD655E A...................
Q 505 87-A30-047-080 TR,CSD655E A...................
Q 502 87-A30-073-080 C-TR,RT1N 141C A...................
Q 503 87-A30-159-080 C-TR,KTA1298Y A...................
Q 506 87-A30-240-080 TR,CSA1585BC A...................
Q 501 87-A30-240-080 TR,CSA1585BC A...................
Q 507 87-A30-240-080 TR,CSA1585BC A...................
R 301 87-022-355-080 C-RES,S10K-1/10W F A...................
R 321 87-022-355-080 C-RES,S10K-1/10W F A...................
R 341 87-022-355-080 C-RES,S10K-1/10W F A...................
CNA 304 88-805-021-590 CONN ASSY,2P A...................
S 316 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 315 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 314 87-A90-095-080 SW,TACT EVQ11G04M A...................
C 150 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 209 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 205 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 284 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 282 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 206 87-099-564-010 CONN,4P TUC-P4P-B1 A...................
CN 205 87-099-564-010 CONN,4P TUC-P4P-B1 A...................
CN 208 87-099-564-010 CONN,4P TUC-P4P-B1 A...................
CN 207 87-099-564-010 CONN,4P TUC-P4P-B1 A...................
CN 302 87-A60-163-010 CONN,15P H FE A...................
CN 303 87-A60-619-010 CONN,2P V 2MM JMT A...................
IC 202 87-A21-021-040 C-IC,BU2099FV A...................
LED 202 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 204 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 201 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 203 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 205 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 216 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 217 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 218 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 219 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 220 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 221 87-A40-496-040 LED,SLR-342MCT31 GRN A...................
LED 293 87-A40-317-080 LED,SLR-342VCT31 RED A...................
Q 109 87-A30-071-080 C-TR,RT1N 144C A...................
Q 202 87-A30-074-080 C-TR,RT1P 141C A...................
Q 201 87-A30-074-080 C-TR,RT1P 141C A...................
S 102 87-A91-589-010 SW,RTRY RE0121PVJOG A...................
S 101 87-A91-590-010 SW,RTRY RE0121PVVOL A...................
S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 307 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 301 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 309 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 310 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 329 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 326 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 321 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 325 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 322 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 324 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 327 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 328 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 323 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 333 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 334 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 332 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 347 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 346 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 341 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 348 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 349 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 344 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 351 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 350 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 353 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 352 87-A90-095-080 SW,TACT EVQ11G04M A...................
C 608 87-010-178-080 CHIP CAP 1000P A...................
C 601 87-010-186-080 CAP,CHIP 4700P A...................
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 603 87-010-320-080 CHIP CAP 68P A...................
C 602 87-010-405-040 CAP,E 10-50 A...................
C 604 87-010-492-040 CAP,E 0.33-50 GAS A...................
C 606 87-016-044-040 CAP,E 100-16 GAS A...................

ELECTRICAL MAIN PARTS LIST - 4/10
CN 601 87-009-030-010 CONNECTOR 2P PH M _ A...................
CNA 602 88-805-041-690 CONN ASSY,4P PH A...................
CNA 601 8Z-MA1-614-010 CONN ASSY,2P V 60MM A...................
FB 601 87-A50-190-080 C-COIL,S BLM21A102S A...................
J 602 87-099-659-010 JACK,6.3 JY-6314-01130 A...................
J 601 87-099-659-010 JACK,6.3 JY-6314-01130 A...................
Q 604 87-A30-075-080 C-TR,2SA1235F A...................
Q 602 87-A30-076-080 C-TR,2SC3052F A...................
Q 603 87-A30-076-080 C-TR,2SC3052F A...................
Q 601 87-A30-087-080 C-FET,2SK2158 A...................
CN 203 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1 A...................
CN 202 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1 A...................
CN 201 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1 A...................
CN 204 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1 A...................
D 202 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB A...................
D 203 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB A...................
D 201 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB A...................
D 204 87-A40-786-080 LED,SMLS1BE16WTP4 BLU/UMB A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-178-080 CHIP CAP 1000P A...................
C 315 87-010-178-080 CHIP CAP 1000P A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 322 87-012-142-080 CAP, S 0.33-16 A...................
C 321 87-012-142-080 CAP, S 0.33-16 A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 355 87-010-178-080 CHIP CAP 1000P A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 352 87-012-140-080 CAP 470P A...................
C 351 87-012-140-080 CAP 470P A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 388 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 393 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 394 87-010-319-080 C-CAP,S 56P-50 CH A...................
CN 351 87-A60-625-010 CONN,8P V 2MM JMT A...................
D 352 87-A40-269-080 C-DIODE,MC2836 A...................
FB 301 87-008-372-080 FILTER, EMI BL OIRNI A...................
IC 303 87-A20-783-040 C-IC,BA7762AFS A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 357 87-026-610-080 TR,KTC3198GR A...................
Q 356 87-A30-076-080 C-TR,2SC3052F A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 355 87-A30-202-080 C-TR,RT1P441C A...................
SFR 351 87-024-356-080 SFR,47K DIA6 H A...................
SFR 352 87-024-356-080 SFR,47K DIA6 H A...................
C 407 87-010-188-080 CAP,CHIP 6800P A...................
C 408 87-010-188-080 CAP,CHIP 6800P A...................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 402 87-010-260-080 CAP, ELECT 47-25V A...................
C 404 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 406 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 403 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 405 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 409 87-012-140-080 CAP 470P A...................
C 417 87-010-195-080 C-CAP,S 0.068-25 F A...................
C 416 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 415 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 419 87-010-260-080 CAP, ELECT 47-25V A...................
C 413 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 414 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 411 87-010-404-080 CAP, ELECT 4.7-50V A...................

ELECTRICAL MAIN PARTS LIST - 5/10
C 412 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B A...................
C 410 87-012-140-080 CAP 470P A...................
C 421 87-012-140-080 CAP 470P A...................
C 422 87-012-140-080 CAP 470P A...................
D 402 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 401 87-A40-269-080 C-DIODE,MC2836 A...................
IC 401 87-A21-022-040 C-IC,BA3880FS A...................
C 106 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 105 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 103 87-010-401-080 CAP, ELECT 1-50V A...................
C 104 87-010-401-080 CAP, ELECT 1-50V A...................
C 112 87-010-187-080 CAP CHIP S5600P A...................
C 113 87-010-187-080 CAP CHIP S5600P A...................
C 116 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 115 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 121 87-010-405-080 CAP, ELECT 10-50V A...................
C 120 87-010-405-080 CAP, ELECT 10-50V A...................
C 137 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 138 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 149 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 148 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 161 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 451 87-010-401-080 CAP, ELECT 1-50V A...................
C 452 87-010-401-080 CAP, ELECT 1-50V A...................
C 454 87-010-401-080 CAP, ELECT 1-50V A...................
C 461 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 471 87-010-401-080 CAP, ELECT 1-50V A...................
C 481 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CNA 202 88-805-051-890 CONN ASSY,5P PH A...................
D 105 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
IC 102 87-017-888-080 IC,NJM4558MD A...................
IC 101 87-017-888-080 IC,NJM4558MD A...................
IC 451 87-A21-031-040 C-IC,BU4551BF A...................
Q 102 89-333-266-080 CHIP TR,2SC3326B A...................
Q 101 89-333-266-080 CHIP TR,2SC3326B A...................
Q 127 87-A30-075-080 C-TR,2SA1235F A...................
Q 202 89-333-266-080 CHIP TR,2SC3326B A...................
Q 201 89-333-266-080 CHIP TR,2SC3326B A...................
Q 223 87-A30-075-080 C-TR,2SA1235F A...................
C 601 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 602 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 608 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 607 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 619 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 612 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 611 87-018-134-080 CAPACITOR,TC-U 0.01-16 A...................
C 618 87-A10-301-080 CAP,M 0.033-50 J A...................
C 617 87-A10-301-080 CAP,M 0.033-50 J A...................
C 620 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 628 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 621 87-010-401-080 CAP, ELECT 1-50V A...................
C 622 87-010-401-080 CAP, ELECT 1-50V A...................
C 629 87-010-405-080 CAP, ELECT 10-50V A...................
C 637 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 630 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 632 87-010-263-080 CAP, ELECT 100-10V A...................
C 633 87-010-263-080 CAP, ELECT 100-10V A...................
C 636 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 631 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 640 87-010-314-080 C-CAP,S 22P-50V A...................
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 681 87-010-197-080 CAP, CHIP 0.01 DM A...................
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 ....................
CN 602 87-A60-131-010 CONN,6P V FE A...................
CN 601 87-A60-136-010 CONN,11P V FE A...................
CN 607 87-A60-140-010 CONN,15P V FE A...................
CN 603 87-A60-142-010 CONN,17P V FE A...................
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 A...................
CN 608 87-A60-621-010 CONN,4P V 2MM JMT A...................
CN 655 87-A60-130-010 CONN,5P V FE A...................
CN 656 87-A60-130-010 CONN,5P V FE A...................
CN 652 87-A60-131-010 CONN,6P V FE A...................
CN 651 87-A60-131-010 CONN,6P V FE A...................
CN 654 87-A60-138-010 CONN,13P V FE A...................
CN 653 87-A60-138-010 CONN,13P V FE A...................
D 64 87-070-274-080 DIODE,1N4003 SEM A...................
D 601 87-A40-002-080 ZENER,MTZJ5.1C A...................

ELECTRICAL MAIN PARTS LIST -6/10
D 603 87-A40-234-080 ZENER,MTZJ5.6A A...................
D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................
IC 601 87-A21-202-040 C-IC,M62445AFP A...................
J 601 87-099-625-010 JACK PIN 4P,RVS (KM) A...................
Q 601 87-026-609-080 TR,KTA1266GR A...................
Q 603 87-A30-087-080 C-FET,2SK2158 A...................
Q 604 87-A30-142-040 C-TR,DTA123EKA A...................
Q 602 87-A30-269-040 C-FET,2SJ461-T1 A...................
C 707 87-010-180-080 C-CER 1500P A...................
C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 706 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 708 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 709 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 701 87-010-263-080 CAP, ELECT 100-10V A...................
C 703 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 704 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 705 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 711 87-010-181-080 CAP,CHIP S 1800P A...................
C 717 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 718 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 710 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 714 87-010-374-080 CAP, ELECT 47-10V A...................
C 716 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 715 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 713 87-010-544-080 CAP, ELECT 0.1-50V A...................
C 735 87-010-178-080 CHIP CAP 1000P A...................
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 736 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 738 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 731 87-010-415-080 CAP ELE SRE 10-50V A...................
C 734 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 741 87-010-178-080 CHIP CAP 1000P A...................
C 740 87-010-322-080 C-CAP,S 100P-50 CH A...................
D 701 87-A40-234-080 ZENER,MTZJ5.6A A...................
IC 701 87-A20-613-040 C-IC,BU9262AFS A...................
L 701 87-005-448-080 COIL 220UH,K A...................
Q 732 87-A30-075-080 C-TR,2SA1235F A...................
Q 731 87-A30-076-080 C-TR,2SC3052F A...................
CNA 3 8A-MTM-639-010 CONN ASSY,2P AC-SW ....................
CNA 2 8A-MTM-640-010 CONN ASSY,3P AC-SW ....................
S 1 87-036-067-010 SLIDE SW (AC VOLTAGE)(H ONLY) ....................
C 5 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 6 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 1 87-012-369-080 C-CAP,S 0.047-50F A...................
C 2 87-012-369-080 C-CAP,S 0.047-50F A...................
C 9 87-016-658-090 CAP,E 4700-35 SMG A...................
C 10 87-016-658-090 CAP,E 4700-35 SMG A...................
C 24 87-010-247-080 CAP, ELECT 100-50V A...................
C 29 87-010-247-080 CAP, ELECT 100-50V A...................
C 23 87-010-247-080 CAP, ELECT 100-50V A...................
C 26 87-010-263-080 CAP, ELECT 100-10V A...................
C 21 87-010-385-080 CAP, ELECT 220-25V A...................
C 22 87-010-385-080 CAP, ELECT 220-25V A...................
C 25 87-010-430-080 CAP, ELECT 100-63 A...................
C 31 87-010-126-080 CAP,E 470-50 A...................
C 30 87-010-235-080 CAP,E 470-16 SME A...................
C 61 87-010-260-080 CAP, ELECT 47-25V A...................
C 62 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 92 87-010-374-080 CAP, ELECT 47-10V A...................
C 93 87-010-380-080 CAP, ELECT 47-16V A...................
C 91 87-010-401-080 CAP, ELECT 1-50V A...................
C 150 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 229 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 234 87-010-190-080 S CHIP F 0.01 A...................
C 233 87-010-190-080 S CHIP F 0.01 A...................
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 230 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 250 87-010-406-080 CAP, ELECT 22-50 A...................
CN 3 87-A60-739-010 CONN,13P JL-BT A...................
CN 91 87-A60-109-010 CONN,2P V S2M-2W A...................
CNA 1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) A...................
CNA 205 8A-MT4-606-010 CONN ASSY,2P VH ....................
D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 6 87-070-274-080 DIODE,1N4003 SEM A...................
D 5 87-070-274-080 DIODE,1N4003 SEM A...................
D 4 87-070-274-080 DIODE,1N4003 SEM A...................
D 3 87-070-274-080 DIODE,1N4003 SEM A...................
D 1 87-A40-224-010 DIODE,GBU8D A...................
D 7 87-A40-341-080 ZENER,MTZJ 36 A A...................
D 63 87-A40-004-080 ZENER,MTZJ16A A...................
D 62 87-A40-269-080 C-DIODE,MC2836 A...................
D 61 87-A40-270-080 C-DIODE,MC2838 A...................

ELECTRICAL MAIN PARTS LIST - 7/10
D 91 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 92 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 99 87-A40-435-080 ZENER,MTZJ30D ....................
J 205 87-A60-750-010 JACK,PIN 4P R/W BLUE A...................
J 202 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI A...................
L 202 87-003-383-010 COIL,1UH-S A...................
L 201 87-003-383-010 COIL,1UH-S A...................
Q 2 87-026-609-080 TR,KTA1266GR A...................
Q 1 87-026-609-080 TR,KTA1266GR A...................
Q 8 87-A30-075-080 C-TR,2SA1235F A...................
Q 9 87-A30-234-080 TR,CSC4115BC A...................
Q 66 87-A30-075-080 C-TR,2SA1235F A...................
Q 64 87-A30-075-080 C-TR,2SA1235F A...................
Q 65 87-A30-076-080 C-TR,2SC3052F A...................
Q 67 87-A30-076-080 C-TR,2SC3052F A...................
Q 63 87-A30-076-080 C-TR,2SC3052F A...................
Q 92 87-026-609-080 TR,KTA1266GR A...................
Q 94 87-A30-075-080 C-TR,2SA1235F A...................
Q 91 87-A30-076-080 C-TR,2SC3052F A...................
R 146 87-A00-441-050 RES,270-1/2W J RP A...................
R 145 87-A00-441-050 RES,270-1/2W J RP A...................
R 144 87-A00-441-050 RES,270-1/2W J RP A...................
R 143 87-A00-441-050 RES,270-1/2W J RP A...................
WH 3 87-A90-506-010 HLDR,WIRE 2.5-2P ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ....................
C 29 87-010-247-080 CAP, ELECT 100-50V A...................
C 27 87-012-140-080 CAP 470P A...................
C 101 87-010-178-080 CHIP CAP 1000P A...................
C 102 87-010-178-080 CHIP CAP 1000P A...................
C 108 87-010-405-080 CAP, ELECT 10-50V A...................
C 107 87-010-405-080 CAP, ELECT 10-50V A...................
C 104 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 103 87-010-545-080 CAP, ELECT 0.22-50V A...................
C 119 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 111 87-010-405-080 CAP, ELECT 10-50V A...................
C 112 87-010-405-080 CAP, ELECT 10-50V A...................
C 113 87-010-866-080 CAP, ELECT 10-63 A...................
C 114 87-010-866-080 CAP, ELECT 10-63 A...................
C 120 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 128 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 125 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
C 126 87-A11-595-080 C-CAP,S 0.056-50 K B A...................
C 133 87-010-186-080 CAP,CHIP 4700P A...................
C 209 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 212 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 211 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 214 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 210 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 213 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 218 87-010-405-080 CAP, ELECT 10-50V A...................
C 217 87-010-405-080 CAP, ELECT 10-50V A...................
C 223 87-010-190-080 S CHIP F 0.01 A...................
C 224 87-010-190-080 S CHIP F 0.01 A...................
C 220 87-010-405-080 CAP, ELECT 10-50V A...................
C 228 87-010-405-080 CAP, ELECT 10-50V A...................
CN 201 87-A60-727-010 CONN,13P JL-R A...................
CN 402 87-A60-622-010 CONN,5P V 2MM JMT A...................
CNA 203 8A-MT4-608-010 CONN ASSY,7P VH A...................
D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 10 87-A40-345-080 ZENER,MTZJ10C A...................
D 65 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 62 87-A40-313-080 C-DIODE,MC 2840 A...................
D 101 87-A40-269-080 C-DIODE,MC2836 A...................
D 116 87-A40-270-080 C-DIODE,MC2838 A...................
D 202 87-A40-269-080 C-DIODE,MC2836 A...................
IC 101 87-A21-417-010 IC,STK490-310 A...................
IC 201 87-A21-396-010 IC,STK490-040 A...................
J 203 87-A61-167-010 TERMINAL,SP 4P LTS0420-1002 A...................
L 102 87-003-383-010 COIL,1UH-S A...................
L 101 87-003-383-010 COIL,1UH-S A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 6 87-A30-076-080 C-TR,2SC3052F A...................
Q 65 87-A30-075-080 C-TR,2SA1235F A...................
Q 66 87-A30-075-080 C-TR,2SA1235F A...................
Q 126 87-A30-107-070 C-TR,CMBT5401 A...................
Q 123 87-A30-107-070 C-TR,CMBT5401 A...................
Q 124 87-A30-107-070 C-TR,CMBT5401 A...................
Q 130 87-A30-106-070 C-TR,CMBT5551 A...................
Q 219 87-A30-107-070 C-TR,CMBT5401 A...................
Q 220 87-A30-107-070 C-TR,CMBT5401 A...................
R 131 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 132 87-A00-262-080 RES,M/F 0.15-2W J A...................
R 234 87-022-050-080 RES,M/F 0.22-1W J A...................
R 233 87-022-050-080 RES,M/F 0.22-1W J A...................
WH 2 87-A90-460-010 HLDR,WIRE 2.5-7P A...................

ELECTRICAL MAIN PARTS LIST - 8/10
C 29 87-010-247-080 CAP, ELECT 100-50V ....................
C 27 87-012-140-080 CAP 470P ....................
C 109 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 108 87-010-408-080 CAP, ELECT 47-50V ....................
C 107 87-010-408-080 CAP, ELECT 47-50V ....................
C 103 87-010-408-080 CAP, ELECT 47-50V ....................
C 104 87-010-408-080 CAP, ELECT 47-50V ....................
C 116 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 113 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 111 87-010-260-080 CAP, ELECT 47-25V ....................
C 114 87-010-260-080 CAP, ELECT 47-25V ....................
C 110 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 112 87-A10-812-080 C-CAP,S 220P-200 J CH ....................
C 115 87-A10-812-080 C-CAP,S 220P-200 J CH ....................
C 129 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 127 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 126 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 125 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 128 87-012-368-080 C-CAP,S 0.1-50 F ....................
C 130 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 132 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 133 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 131 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 209 87-010-405-080 CAP, ELECT 10-50V ....................
C 212 87-010-186-080 CAP,CHIP 4700P ....................
C 211 87-010-186-080 CAP,CHIP 4700P ....................
C 217 87-010-260-080 CAP, ELECT 47-25V ....................
C 218 87-010-260-080 CAP, ELECT 47-25V ....................
C 210 87-010-405-080 CAP, ELECT 10-50V ....................
C 214 87-010-405-080 CAP, ELECT 10-50V ....................
C 213 87-010-405-080 CAP, ELECT 10-50V ....................
C 224 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 223 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 220 87-010-405-080 CAP, ELECT 10-50V ....................
C 228 87-010-405-080 CAP, ELECT 10-50V ....................
C 251 87-010-235-080 CAP,E 470-16 SME ....................
C 303 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 302 87-016-299-080 CAP,E 10-100 SME ....................
C 301 87-016-299-080 CAP,E 10-100 SME ....................
CN 5 87-099-674-010 CONN,2P VA V ....................
CN 201 87-A60-727-010 CONN,13P JL-R ....................
CN 402 87-A60-622-010 CONN,5P V 2MM JMT ....................
CNA 204 8A-MT4-607-010 CONN ASSY,9P VH ....................
D 9 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 10 87-A40-345-080 ZENER,MTZJ10C ....................
D 65 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 106 87-020-331-080 CHIP-DIODE,DAN202K ....................
D 102 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 107 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 105 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 101 87-A40-269-080 C-DIODE,MC2836 ....................
D 108 87-A40-488-080 DIODE,1SS244 ....................
D 103 87-A40-488-080 DIODE,1SS244 ....................
D 110 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 116 87-A40-270-080 C-DIODE,MC2838 ....................
D 180 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 202 87-A40-269-080 C-DIODE,MC2836 ....................
D 308 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 309 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 301 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 305 87-070-136-080 ZENER,MTZJ5.1B ....................
D 304 87-070-136-080 ZENER,MTZJ5.1B ....................
D 302 87-A40-345-080 ZENER,MTZJ10C ....................
D 307 87-A40-345-080 ZENER,MTZJ10C ....................
D 303 87-A40-646-010 DIODE,FMB-G16L ....................
D 306 87-A40-646-010 DIODE,FMB-G16L ....................
D 312 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 311 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 310 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 316 87-A40-313-080 C-DIODE,MC 2840 ....................
D 315 87-A40-313-080 C-DIODE,MC 2840 ....................
IC 203 87-A21-398-010 IC,STK490-110 ....................
J 203 87-A61-167-010 TERMINAL,SP 4P LTS0420-1002 ....................
L 102 87-003-383-010 COIL,1UH-S ....................
L 101 87-003-383-010 COIL,1UH-S ....................
Q 5 87-026-610-080 TR,KTC3198GR ....................
Q 6 87-A30-076-080 C-TR,2SC3052F ....................
Q 66 87-A30-075-080 C-TR,2SA1235F ....................
Q 106 87-A30-076-080 C-TR,2SC3052F ....................
Q 104 87-A30-076-080 C-TR,2SC3052F ....................
Q 105 87-A30-076-080 C-TR,2SC3052F ....................
Q 103 87-A30-076-080 C-TR,2SC3052F ....................
Q 108 87-A30-097-010 TR,FN 1016 ....................
Q 109 87-A30-098-010 TR,FP 1016 ....................
Q 101 87-A30-107-080 C-TR,CMBT5401 ....................
Q 102 87-A30-107-080 C-TR,CMBT5401 ....................
Q 107 87-A30-190-080 TR,CC5551 ....................

ELECTRICAL MAIN PARTS LIST - 9/10
Q 115 87-A30-076-080 C-TR,2SC3052F ....................
Q 113 87-A30-076-080 C-TR,2SC3052F ....................
Q 116 87-A30-076-080 C-TR,2SC3052F ....................
Q 114 87-A30-076-080 C-TR,2SC3052F ....................
Q 118 87-A30-097-010 TR,FN 1016 ....................
Q 119 87-A30-098-010 TR,FP 1016 ....................
Q 111 87-A30-107-080 C-TR,CMBT5401 ....................
Q 110 87-A30-107-080 C-TR,CMBT5401 ....................
Q 112 87-A30-107-080 C-TR,CMBT5401 ....................
Q 117 87-A30-190-080 TR,CC5551 ....................
Q 126 87-A30-107-070 C-TR,CMBT5401 ....................
Q 120 87-A30-107-080 C-TR,CMBT5401 ....................
Q 130 87-A30-106-070 C-TR,CMBT5551 ....................
Q 140 87-A30-107-080 C-TR,CMBT5401 ....................
Q 219 87-A30-107-070 C-TR,CMBT5401 ....................
Q 220 87-A30-107-070 C-TR,CMBT5401 ....................
Q 302 87-A30-074-080 C-TR,RT1P 141C ....................
Q 306 87-A30-074-080 C-TR,RT1P 141C ....................
Q 304 87-A30-075-080 C-TR,2SA1235F ....................
Q 303 87-A30-076-080 C-TR,2SC3052F ....................
Q 307 87-A30-107-080 C-TR,CMBT5401 ....................
Q 305 8A-MT4-665-010 CONN ASSY,3P V WHT SCN ....................
Q 301 8A-MT4-665-010 CONN ASSY,3P V WHT SCN ....................
R 151 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 156 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 153 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 152 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 155 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 157 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 154 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 175 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 278 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
R 277 87-A00-669-080 RES,M/F 0.22-2W J RA ....................
TH 102 87-A91-042-080 C-THMS,100K 55001 ....................
TH 101 87-A91-042-080 C-THMS,100K 55001 ....................
WH 3 87-A90-506-010 HLDR,WIRE 2.5-2P ....................
C 907 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 906 87-010-260-080 CAP, ELECT 47-25V A...................
C 909 87-010-371-040 CAP,E 470-6.3 A...................
C 908 87-010-387-080 CAP,E 470-25 SME A...................
C 901 87-010-406-040 CAP,E 22-50 SME A...................
C 902 87-010-406-040 CAP,E 22-50 SME A...................
C 904 87-010-406-080 CAP, ELECT 22-50 A...................
C 905 87-010-406-080 CAP, ELECT 22-50 A...................
C 903 87-010-406-080 CAP, ELECT 22-50 A...................
C 917 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 918 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 914 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 915 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 912 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 916 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 911 87-010-371-040 CAP,E 470-6.3 A...................
C 910 87-010-371-080 CAP, ELECT 470-6.3V A...................
C 953 87-010-188-080 CAP,CHIP 6800P A...................
C 954 87-010-188-080 CAP,CHIP 6800P A...................
C 951 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 952 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 901 87-A60-130-010 CONN,5P V FE A...................
CN 902 87-A60-130-010 CONN,5P V FE A...................
CN 907 87-A60-139-010 CONN,14P V FE A...................
CN 904 87-A60-140-010 CONN,15P V FE A...................
CN 908 87-A60-162-010 CONN,14P H FE A...................
CN 906 87-A60-594-010 CONN,17P TUC-P17X-B1 A...................
CN 905 87-A60-595-010 CONN,17P TUC-P17P-B1 A...................
D 902 87-070-136-080 ZENER,MTZJ5.1B A...................
D 903 87-070-136-080 ZENER,MTZJ5.1B A...................
D 901 87-070-136-080 ZENER,MTZJ5.1B A...................
D 953 87-A40-313-080 C-DIODE,MC 2840 A...................
D 955 87-A40-313-080 C-DIODE,MC 2840 A...................
FB 951 83-XM1-617-080 C-COIL,BK2125HM601 A...................
IC 903 87-017-726-080 IC,BU4052 BCF A...................
IC 904 87-017-915-080 IC,BU4094BCF A...................
IC 902 87-017-917-080 IC,BU4066BCF A...................
IC 901 87-A20-820-010 IC,BA7625 A...................
J 903 87-A61-236-010 JACK,PIN 3P Y/R/W A...................
J 951 87-A61-180-010 JACK,PIN 3P Y/W/R W/O SW G A...................
J 961 87-JB1-615-010 CONN,21P V SCART A...................
J 962 87-JB1-615-010 CONN,21P V SCART A...................
L 901 87-003-152-080 COIL, 100UH A...................
Q 905 87-A30-074-080 C-TR,RT1P 141C A...................
Q 904 87-A30-074-080 C-TR,RT1P 141C A...................
Q 901 87-A30-075-080 C-TR,2SA1235F A...................
Q 902 87-A30-075-080 C-TR,2SA1235F A...................
Q 903 87-A30-075-080 C-TR,2SA1235F A...................
R 905 87-010-317-080 C-CAP,S 39P-50 CH A...................
C 907 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................

ELECTRICAL MAIN PARTS LIST - 10/10
C 906 87-010-260-080 CAP, ELECT 47-25V ....................
C 909 87-010-371-040 CAP,E 470-6.3 ....................
C 908 87-010-387-080 CAP,E 470-25 SME ....................
C 902 87-010-406-040 CAP,E 22-50 SME ....................
C 901 87-010-406-040 CAP,E 22-50 SME ....................
C 905 87-010-406-080 CAP, ELECT 22-50 ....................
C 903 87-010-406-080 CAP, ELECT 22-50 ....................
C 904 87-010-406-080 CAP, ELECT 22-50 ....................
C 913 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 917 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 914 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 916 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 915 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 912 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 918 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 911 87-010-371-040 CAP,E 470-6.3 ....................
C 910 87-010-371-080 CAP, ELECT 470-6.3V ....................
C 953 87-010-188-080 CAP,CHIP 6800P ....................
C 954 87-010-188-080 CAP,CHIP 6800P ....................
C 952 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 951 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
CN 901 87-A60-130-010 CONN,5P V FE ....................
CN 904 87-A60-140-010 CONN,15P V FE ....................
CN 906 87-A60-594-010 CONN,17P TUC-P17X-B1 ....................
CN 905 87-A60-595-010 CONN,17P TUC-P17P-B1 ....................
CNA 901 87-A60-130-010 CONN,5P V FE ....................
D 903 87-070-136-080 ZENER,MTZJ5.1B ....................
D 902 87-070-136-080 ZENER,MTZJ5.1B ....................
D 901 87-070-136-080 ZENER,MTZJ5.1B ....................
D 953 87-A40-313-080 C-DIODE,MC 2840 ....................
D 955 87-A40-313-080 C-DIODE,MC 2840 ....................
FB 951 83-XM1-617-080 C-COIL,BK2125HM601 ....................
IC 903 87-017-726-080 IC,BU4052 BCF ....................
IC 904 87-017-915-080 IC,BU4094BCF ....................
IC 902 87-017-917-080 IC,BU4066BCF ....................
IC 901 87-A20-820-010 IC,BA7625 ....................
J 905 87-A61-236-010 JACK,PIN 3P Y/R/W ....................
J 904 87-A61-236-010 JACK,PIN 3P Y/R/W ....................
J 901 87-A61-236-010 JACK,PIN 3P Y/R/W ....................
J 902 87-A61-236-010 JACK,PIN 3P Y/R/W ....................
J 903 87-A61-236-010 JACK,PIN 3P Y/R/W ....................
J 951 87-A61-180-010 JACK,PIN 3P Y/W/R W/O SW G ....................
L 901 87-003-152-080 COIL, 100UH ....................
Q 905 87-A30-074-080 C-TR,RT1P 141C ....................
Q 904 87-A30-074-080 C-TR,RT1P 141C ....................
Q 903 87-A30-075-080 C-TR,2SA1235F ....................
Q 902 87-A30-075-080 C-TR,2SA1235F ....................
Q 901 87-A30-075-080 C-TR,2SA1235F ....................
R 905 87-010-317-080 C-CAP,S 39P-50 CH ....................

NOTE: The characters in the suffix column indicate the part usage.
ZRDS ...................XX.......................................F..............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 701 87-010-381-080 0E CAP, ELECT 330-16V ABCDEFGH............
C 702 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 711 87-010-260-080 0E CAP, ELECT 47-25V ABCD.FGH............
C 711 87-010-553-080 0E CAP,E 47-16 ....E...............
C 712 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGH............
C 718 87-012-179-080 0E C-CAP,U 20P-50 CH .BCD................
C 727 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 728 87-010-248-080 0E CAP, ELECT 220-10V ABCDEFGH............
C 721 87-012-176-080 0E CAP 15P ABCDEFGH............
C 722 87-012-176-080 0E CAP 15P ABCDEFGH............
C 720 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFGH............
C 729 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGH............
C 725 87-018-131-080 0E CAP, CER 1000P-50V .....FG.............
C 805 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 806 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
CN 701 87-A60-650-010 1A CONN,16P H GRY TUC-P16X-C1 .....F..............
CN 701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1 ABCDE.GH............
D 721 87-017-149-080 0E ZENER,HZS6A2L .BCDEFGH............
D 722 87-020-465-080 0E DIODE,1SS133 (110MA) .....FG.............
D 721 87-A40-234-080 0E ZENER,MTZJ5.6A A...................
IC 721 87-070-127-110 1C IC,LC72131 D ABCDEFGH............
Q 713 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 711 87-A30-196-080 0E TR,2SC4115SRS A...................
Q 711 87-A30-234-080 0E TR,CSC4115BC .BCDEFGH............
X 721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABCDEFGH............
C 872 87-010-400-080 0E CAP, ELECT 0.47-50V AB.....H............
C 873 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 877 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 878 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 889 87-010-248-080 0E CAP, ELECT 220-10V AB.....H............
C 884 87-010-260-080 0E CAP, ELECT 47-25V AB.....H............
C 883 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 885 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 886 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 888 87-010-787-080 0E CAP, U 0.022-25 AB.....H............
C 881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F AB.....H............
C 882 87-012-172-080 0E CAPACITOR CHIP U 10P CH AB.....H............
C 887 87-012-286-080 0E CAP, U 0.01-25 AB.....H............
C 886 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
C 885 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
IC 871 87-070-060-040 1F IC,TA2040AF AB.....H............
Q 873 87-026-226-080 0E CHIP-TR,DTA143EK AB.....H............
X 891 87-030-394-010 1B VIB,CER CSA3.6MGF228 AB.....H............
C 705 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 706 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 705 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 706 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 737 87-010-180-080 0E C-CER 1500P ....................
C 734 87-010-180-080 0E C-CER 1500P ....................
C 733 87-010-180-080 0E C-CER 1500P ....................
C 738 87-010-180-080 0E C-CER 1500P ....................
C 735 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 734 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 733 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 735 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 733 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 734 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 737 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 738 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 752 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 751 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 758 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGH............
C 757 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGH............
C 753 87-012-195-080 0E C-CAP,U 100P-50CH .....FG.............
C 752 87-012-282-080 0E CAP, U 4700P-50 .....FG.............
C 756 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 752 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 751 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 766 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 769 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 765 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 768 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 764 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDE..H............
C 774 87-010-263-080 0E CAP, ELECT 100-10V ABCDEFGH............
C 771 87-010-383-080 0E CAP, ELECT 33-25V ABCDEFGH............
C 777 87-010-400-080 0E CAP, ELECT 0.47-50V ABCDE..H............
C 775 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 777 87-010-493-040 0E CAP,E 0.47-50 GAS ....................
ELECTRICAL MAIN PARTS LIST - 1/3 (TUNER: ZZA-1)

C 777 87-010-493-080 0E CAP,E 0.47-50 GAS .....FG.............
C 770 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGH............
C 780 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 785 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
C 786 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
C 786 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 785 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 786 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 785 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 788 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 787 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 784 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 796 87-010-403-080 0E CAP, ELECT 3.3-50V ABCDEFGH............
C 794 87-010-406-080 0E CAP, ELECT 22-50 ABCDEFGH............
C 795 87-010-596-080 0E CAP, S 0.047-16 ..CDEFG.............
C 793 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGH............
C 797 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
C 798 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
D 771 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............
D 773 87-A40-291-080 0E DIODE,1N4148 (CPT) ....................
IC 771 87-A20-913-010 1D IC,LA1837NL ABCDEFGH............
L 771 87-A50-266-010 1A COIL,FM DET-2N(TOK) ABCDEFGH............
L 772 87-A90-052-010 1C FLTR,CFMT-450A(TOK) ....E...............
L 772 87-A90-053-010 1C FLTR,PCFMT-060(TOK) AB.....H............
L 772 87-A90-733-010 1A FLTR,PCFAZH-450 (TOK) ....................
L 772 87-A91-110-010 1B FLTR,PCFJZH-450 (TOK) ..CD.FG.............
L 781 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 791 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
L 792 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
X 771 87-030-354-010 1A VIB,CF BFU 450C ....E...............
C 859 87-012-286-080 0E CAP, U 0.01-25 .....F..............
C 865 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .....F..............
C 866 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 864 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 869 87-012-180-080 0E C-CAP,U 22P-50 CH .....F..............
C 868 87-012-184-080 0E C-CAP,U 33P-50 CH .....F..............
C 862 87-012-199-080 0E CAP 220P .....F..............
C 861 87-012-199-080 0E CAP 220P .....F..............
C 863 87-012-270-080 0E CAP, U 470P-50 .....F..............
C 867 87-012-286-080 0E CAP, U 0.01-25 .....F..............
IC 851 87-A20-440-040 1H C-IC,BU1920FS .....F..............
L 851 87-005-847-080 0E COIL,2.2UH(CECS) .....F..............
Q 853 87-A30-076-080 0E C-TR,2SC3052F .....F..............
X 851 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 .....F..............
C 801 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 809 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 802 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 803 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 804 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 808 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 807 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 810 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 820 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 893 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 894 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 942 87-012-168-080 0E C-CAP,U 6P-50 CH .....FG.............
C 942 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................
C 941 87-012-180-080 0E C-CAP,U 22P-50 CH ....E...............
C 944 87-014-049-080 0E CAP,PP 470P-100 J ....................
C 944 87-014-051-080 0E CAPACITOR (PP), 560P ....E...............
C 949 87-A10-039-080 0E C-CAP,U 470P-50 J CH .....FG.............
C 958 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 956 87-010-263-080 0E CAP, ELECT 100-10V ....E...............
C 959 87-010-831-080 0E C-CAP,U,0.1-16F ....EFG.............
C 954 87-012-358-080 0E C-CAP,S 0.47-10 F Z ....E...............
C 950 87-014-073-080 0E CAP,PP 4700P-100 J ....E...............
C 963 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 962 87-010-401-080 0E CAP, ELECT 1-50V .....FG.............
C 964 87-012-170-080 0E C-CAP,U 8P-50 CH A...................
C 961 87-012-174-080 0E CAP CHIP CERA SS 12P CHJ .BCD...H............
C 960 87-012-350-080 0E C-CAP,1-25 F ....E...............
CF 802 82-785-747-010 1A CF MS2 GHY R .....FG.............
CF 802 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-423-010 1A CERAMIC FILTER, SFE10.7 .....FG.............
D 944 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFG.............
D 942 87-A40-270-080 0E C-DIODE,MC2838 .....FG.............
D 981 87-A40-618-080 1B VARI-CAP,SVC 348(S/T) ....E...............
FFE 801 A8-6ZA-190-030 0E 6ZA-1 FEUNM ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....FG.............
FFE 801 A8-6ZA-192-030 2Y 6ZA-1 FEJNM .B..................
FFE 801 A8-6ZA-193-130 6ZA-1 FEVNM ....................
FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................
FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................
FFE 801 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC A......H............
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.E...............
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)

FFE 801 A8-8ZA-193-070 1E 8ZA-1 YFEUNC ...D................
J 801 87-033-241-010 1B TERMINAL,ANT AJ-2039 .....FG.............
J 801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036 ABCD...H............
J 801 87-A60-703-010 1A TERMINAL,ANT 3P CJ-9037 ....E...............
J 940 81-754-629-010 0E CONNECTOR, 2P ....E...............
L 832 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 943 87-005-372-080 0E COIL S 1MHM ....................
L 942 87-A50-019-010 0E COIL,OSC LW(COI) .....FG.............
L 941 87-A50-020-010 0E COIL,ANT LW(COI) .....FG.............
L 941 87-A50-022-010 0E COIL,ANT SW(COI) ....E...............
L 944 87-A50-159-010 0E COIL,10MH K C2B ....E...............
L 942 87-A50-173-010 0E COIL,OSC SW-N(COI) ....E...............
L 943 87-A50-432-010 0E COIL,1MH K CW ....E...............
L 981 87-A50-430-010 0E COIL,ANT MW(3BSW) ....E...............
L 982 87-A50-431-010 0E COIL,OSC MW(3BSW) ....E...............
L 981 87-NF4-650-010 1D COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-010 1C COIL,AM PACK2N(TOM) ....................
L 981 88-NF8-625-110 1D COIL,AM PACK3N(TOK) ....................
L 981 8Z-ZA1-664-010 1D COIL,AM PACK 4(TOK) .BCD...H............
L 981 8Z-ZA1-665-010 1E COIL,AM PACK 2(TOK) .....FG.............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ABCD.FGH............
Q 805 89-327-143-080 0E TR,2SC2714 (0.1W) ABCDEFGH............
Q 942 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 943 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 949 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 945 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 944 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 948 87-A30-086-070 0E C-TR,CSD1306E ....EFG.............
Q 947 89-503-602-080 1A C-FET,2SK360E ....E...............
Q 947 89-505-434-540 0E C-FET,2SK543(4/5) .....FG.............
Q 951 87-A30-074-080 0E C-TR,RT1P 141C ....EFG.............
TC 942 87-011-164-010 0E CAPACITOR,TRIMMER 30P .....FG.............
TC 941 87-011-173-010 1A CERAMIC TRIMMER 20P ....................
TC 941 87-011-220-080 1A TRIMMER CAP 20P VTC ....E...............
TC 943 87-011-221-080 1A CAP, TRIMMER 30P ....E...............
ELECTRICAL MAIN PARTS LIST - 3/3 (TUNER: ZZA-1)

MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
EZSM ...................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-B00-002-010 BADGE,AIWA 30 ABS SIL A...................
8A-MT4-005-010 PANEL,FR(4 EZ) A...................
8A-MT4-007-010 PANEL,FR(4 LH) ....................
8A-MT4-019-010 PANEL,FR 2(4 LH) ....................
8A-MT4-026-010 PANEL,FR 2(4 EZ) A...................
8A-MTM-005-010 CABI,STEEL A...................
8A-MTM-009-010 PANEL,REAR CD A...................
8A-MTM-042-010 PANEL,WINDOW A...................
8A-MTM-052-010 HLDR,FAN A...................
8A-MTM-064-010 HLDR,PIN JACK ....................
8A-MTM-065-010 HLDR,PIN JACK (EZ) A...................
* 8A-MT4-001-010 CABI,FR A...................
* 8A-MT4-002-010 CABI,REAR LH ....................
* 8A-MT4-004-010 CABI,REAR EZ A...................
8A-MT4-027-010 KEY,CLOCK A...................
8A-MT4-030-010 KEY,REV A...................
8A-MTM-011-010 KEY,OPEN A...................
8A-MTM-020-010 KEY,BBE A...................
8A-MTM-031-010 KNOB,RTRY VOL A...................
8A-MTM-032-010 KNOB,RTRY JOG A...................
8A-MTM-059-010 KEY,PRESET A...................
8A-MTM-063-010 KEY,VF(3) A...................
8A-MTM-069-010 KEY,ASSY POWER A...................
8A-MTM-070-010 KEY,ASSY FUN A...................
8A-MTM-072-010 KEY,ASSY PLAY U A...................
88-NF3-090-010 RING,FOOT A...................
8A-MT4-009-010 PLATE,FUN(T4) A...................
8A-MT4-010-010 PLATE,FL A...................
8A-MT4-011-010 PLATE,LENS A...................
8A-MT4-021-010 PANEL,TRAY DECK (T4) A...................
8A-MT4-022-010 PANEL,DOLBY(T4) A...................
8A-MT4-023-010 WINDOW,AMP(4 LH) ....................
8A-MT4-028-010 WINDOW,AMP (4 EZ) A...................
8A-MTM-029-010 RING,VOL A...................
8A-MTM-040-010 PANEL,TRAY CD A...................
8A-MTM-055-010 REFLECTOR,AMP A...................
8A-MTM-056-010 REFLECTOR,CD A...................
84-ZG1-245-210 CAP,OPTICAL A...................
87-064-185-010 HLDR,WIRE A...................
87-MA3-062-010 FOOT, H17 A...................
87-NF4-221-010 HLDR,CABLE A...................
88-MA1-208-210 JOINT,CABI A...................
8A-MTM-204-010 HLDR,DECK A...................
8A-MTM-205-010 HLDR,PWB MAIN A...................
8A-MTM-206-010 HLDR,HT-SINK A A...................
8A-MTM-207-010 HLDR,HT-SINK B A...................
8A-MTM-208-010 HLDR,CHAS A A...................
8A-MTM-209-010 HLDR,CHAS B A...................
8A-MTM-212-010 GUIDE,PLAY A...................
8A-MTM-214-010 GUIDE,REFLECTOR CD A...................
8A-MTM-218-010 COVER, VOLTAGE ....................
8A-MTM-219-010 HLDR,PWB PT-S A...................
8A-MTM-220-010 HLDR,PWB PT-M ....................
8A-MTM-223-010 JOINT,CABI 2 ....................
* 8A-MT4-202-010 GUIDE,GEQ A...................
81-MK1-210-010 S-SCREW,VFT2+3-16 A...................
87-067-581-010 TAPPING SCREW, BVT2+3-15 A...................
87-067-688-010 BVTT+3-6 A...................
87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-761-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-822-010 BVT2+3-20 W/O SLOT A...................
87-078-060-010 BVIT3PB+3-10 A...................
87-078-191-010 S-SCREW,IT+4-10 A...................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
* 8Z-NF3-210-010 GUIDE,FL A...................
8A-MTM-202-010 CHAS,MAIN A...................
87-099-811-010 PLUG,ADPTR CONV(K) ....................
87-A90-796-010 FAN,F614R-12MC-15-300MM ....................
88-904-401-110 FF-CABLE,4P 1.25 A...................
88-905-281-110 FF-CABLE, 5P 1.25 280MM A...................
88-906-231-110 FF-CABLE, 6P 1.25 230MM A...................
88-906-701-110 FF-CABLE, 6P 1.25 700MM A...................
88-911-301-110 FF-CABLE,11P 1.25 A...................
88-913-221-110 FF-CABLE, 13P 1.25 220MM A...................
88-913-401-110 FF-CABLE, 13P 1.25 A...................
88-914-141-110 FF-CABLE,14P 1.25 A...................
88-915-081-110 FF-CABLE, 15P 1.25 80MM A...................
88-915-751-110 FF-CABLE,15P 1.25 750MM A...................
88-917-361-110 FF-CABLE,17P 1.25 A...................

MECHANICAL PARTS LIST - 2/2
88-NF9-210-010 BUSHING,CORD-E A...................
8A-MTM-645-010 CONN ASSY,9P DECK-MECHA A...................
PT 1 8A-MT4-621-010 PT,AMT-4 LH ....................
PT 1 8A-MT4-623-010 PT,AMT-4 EZ A...................
Q 3 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 109 87-A30-374-010 TR,2SB1588A ....................
Q 108 87-A30-375-010 TR,2SD2439A ....................
Q 119 87-A30-374-010 TR,2SB1588A ....................
Q 118 87-A30-375-010 TR,2SD2439A ....................
Q 301 87-A30-162-010 FET,2SK2937 ....................
Q 305 87-A30-162-010 FET,2SK2937 ....................
W 1 86-LB7-694-010 AC CORD SET,KE2 BLK ....................
W 1 8A-MTM-649-010 AC CORD ASSY,EKH BLK A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ....................
WH 3 87-A90-506-010 HLDR,WIRE 2.5-2P ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ....................
WH 2 87-A90-460-010 HLDR,WIRE 2.5-7P A...................
WH 3 87-A90-506-010 HLDR,WIRE 2.5-2P ....................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
EZSM ...................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-MT4-902-010 IB,LH(ESP)M ....................
8A-MT4-905-010 IB,K(E)M -N3 ....................
8A-MT4-906-010 IB,EZ(9L)M -N3 A...................
87-006-225-010 AM LOOP ANT NC2 ....................
87-043-106-010 WIRE, FM ANT (Z) A...................
87-043-115-010 ANT,FEEDER FM A...................
87-099-789-010 PLUG,ADPTR IR44 ....................
8A-MT4-702-010 RC UNIT,RC-AAS02(VS) A...................

SCHEMATIC DIAGRAM - 1 (MAIN : FUNCTION / GEQ / DSP / ECHO)

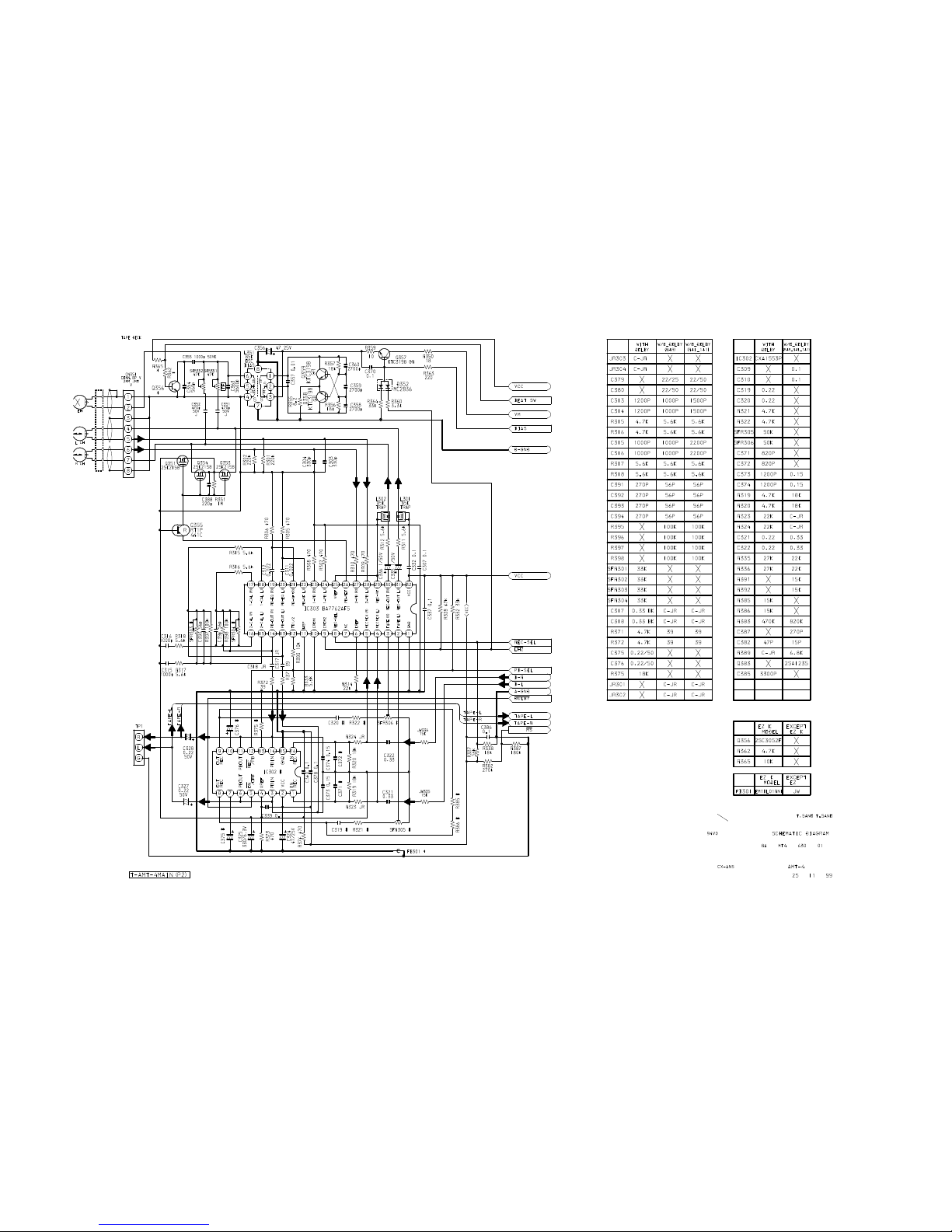

SCHEMATIC DIAGRAM-2(MAIN:DECK)

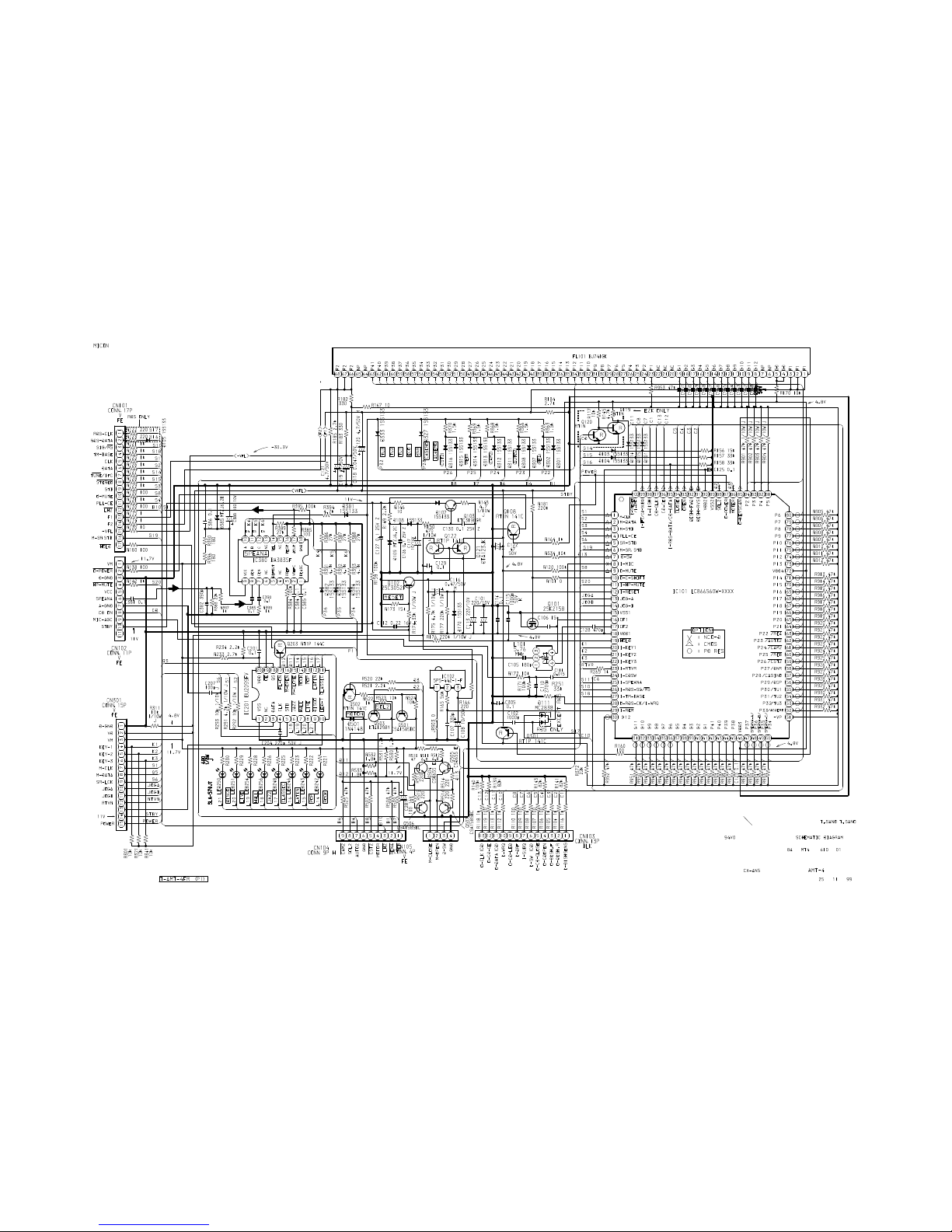

SCHEMATIC DIAGRAM - 3 (FRONT)
