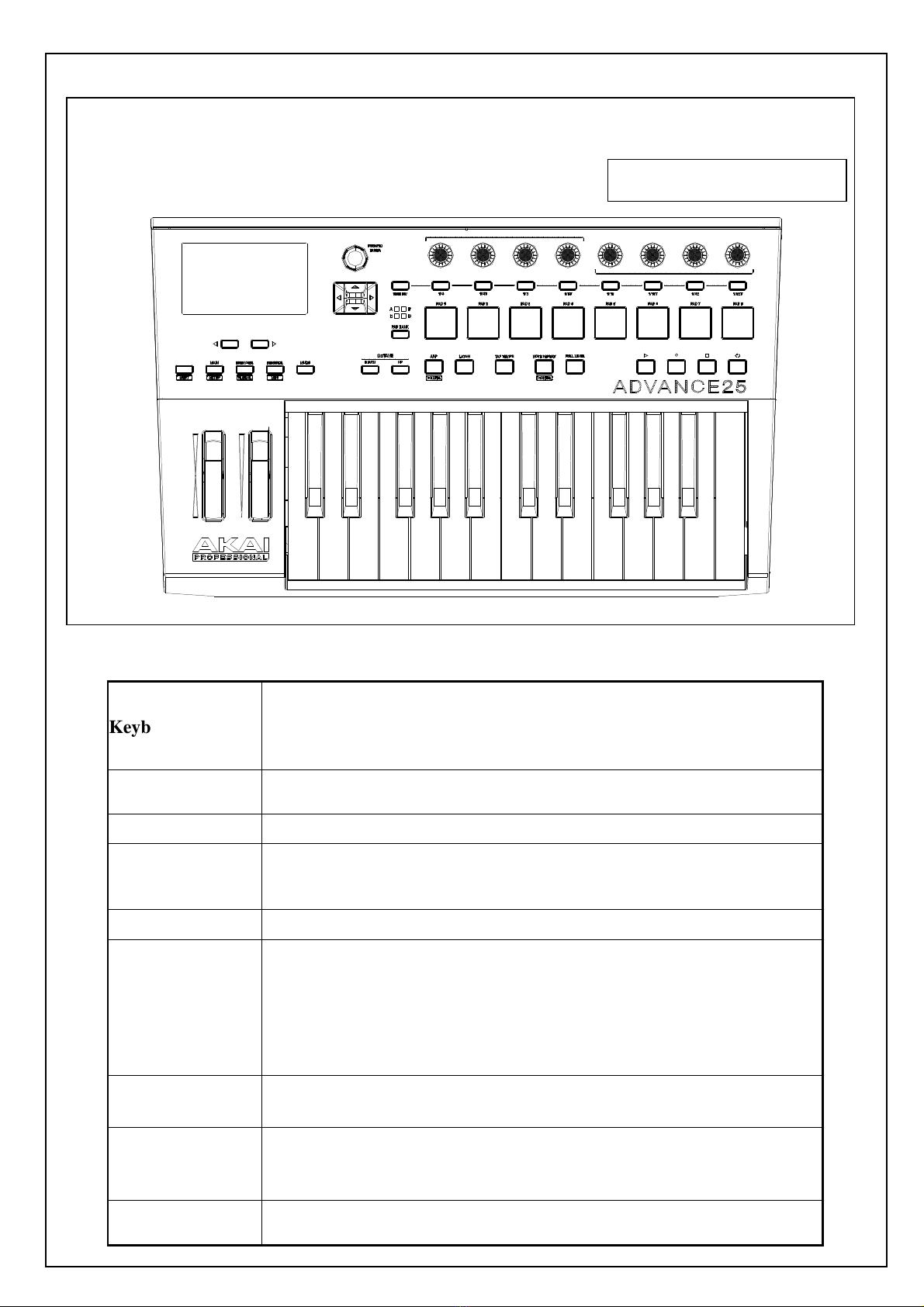

Akai ADVANCE25 User manual

SPECIFICATIONS
Keyboard
25
velocity- and pressure-sensitive keys
10-octave range with Octave Down/Up buttons
Pitch-bend wheel
Modulation wheel
Encoders
8
360° assignable encoders
1 360° encoder with push function for display navigation
Pads 8 velocity- and pressure-sensitive pads; multicolor-backlit
Switches
8
assignable switches; amber-backlit
20 function switches; amber-backlit
4 directional cursor buttons
Display 3.75" x 2.125" (95.3 mm x 54 mm) full-color LCD
Connections
1 1/4" (6.35 mm) TRS expression pedal input
1 1/4" (6.35 mm) TS sustain pedal input
1 5-pin MIDI input
1 5-pin MIDI output
1 USB port
1 power adapter input
Power 6 V DC, 1 A, center-positive
Dimensions
(width x depth x height)
19.2" x 11.5" x 3.4"
48.8 cm x 29.2 cm x 8.6 cm
Weight 6.8 lbs.
3.1 kg
SERVICE MANUAL
MODEL:ADVANCE25

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE CABINET AND TOP PANEL. (Fig.1)
(A) REMOVE 15 SCREWS FROM BOTTOM PANEL.
(B) REMOVE 3 CABLES.
(Fig.1)
2. DISASSEMBLE THE REAR I/O PCB ASS’Y. (Fig.2)
(A) REMOVE 2 CABLES FROM THE REAR I/O PCB ASS’Y.
(B) REMOVE 2 NUTS FROM THE REAR I/O PCB ASS’Y.
(C) REMOVE 3 SCREWS FROM THE REAR I/O PCB ASS’Y.
(Fig.2)

3.DISASSEMBLE THE TOP RIGHT PCB ASS’Y.(Fig.3)
(A) REMOVE 9 KNOBS FROM THE TOP RIGHT PCB ASS’Y.
(B) REMOVE 8 NUTS AND 8 WASHERS FROM THE TOP RIGHT PCB ASS’Y.
(C) REMOVE THE COPPER TAP FROM THE TOP LEFT PCB ASS’Y.
(D) REMOVE 13 SCREWS FROM THE TOP RIGHT PCB ASS’Y.
(Fig.3)
4.DISASSEMBLE THE MAIN PCB ASS’Y.(Fig.4)
(A) REMOVE 4 SCREWS FROM THE MAIN PCB ASS’Y
(B) REMOVE THE METAL COVER FROM THE MAIN PCB ASS’Y
(C) REMOVE 2 CABLES FROM THE TFT AND THE TOP LEFT PCB ASS’Y.
(Fig.4)

5.DISASSEMBLE THE TOP LEFT PCB ASS’Y. (Fig.5)
(A) REMOVE 2 CABLES FROM THE TOP LEFT PCB ASS’Y.
(B) REMOVE 9 SCREWS FROM THE TOP LEFT PCB ASS’Y.
(Fig.5)
6.DISASSEMBLE THE PITCH/MOD LED PCB ASS’Y. (Fig.6)
(A) REMOVE 3 SCREWS FROM THE PITCH/MOD PCB ASS’Y.
(Fig.6)
7.DISASSEMBLE THE P/M WHEEL ASS’Y. (Fig.7)
(A) REMOVE 4 SCREWS FROM THE P/M WHEEL ASS’Y.
(Fig.7)

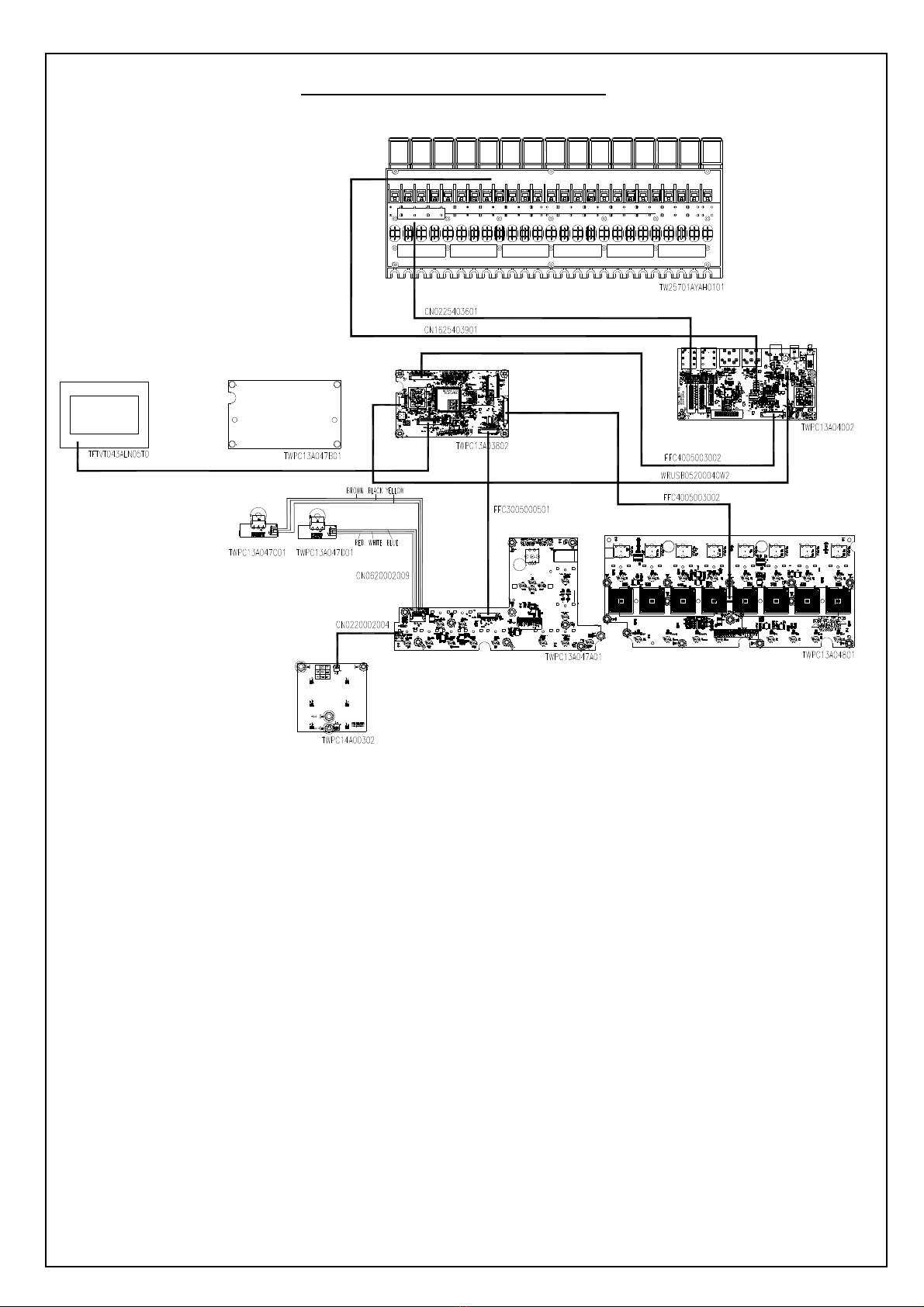

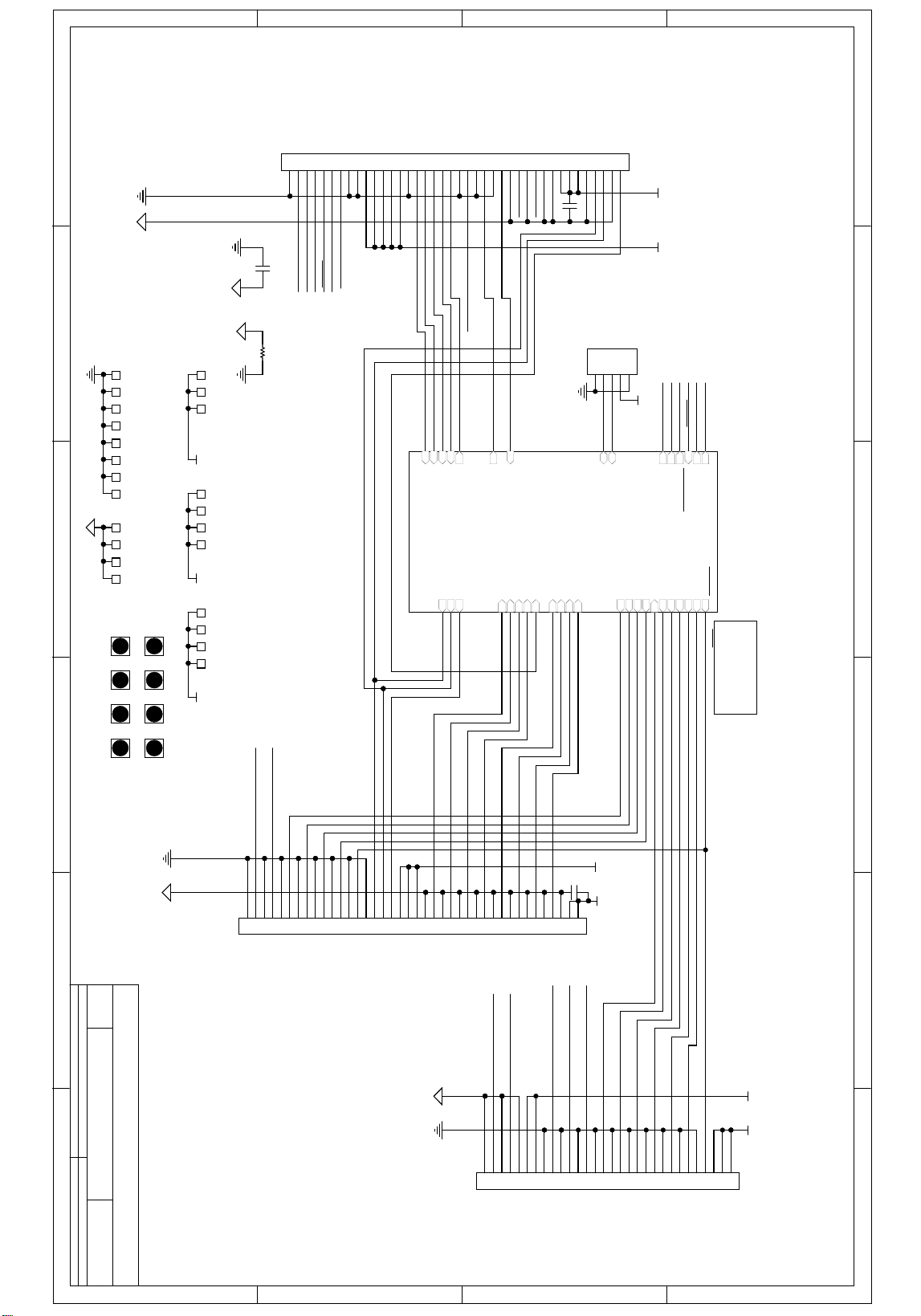

WIRING DIAGRAM
(US/AUS)
SEQUENCE NO OF EXPLODE DIAGRAM WILL BE MARKED ON REF. COLUMN OF BOM LIST

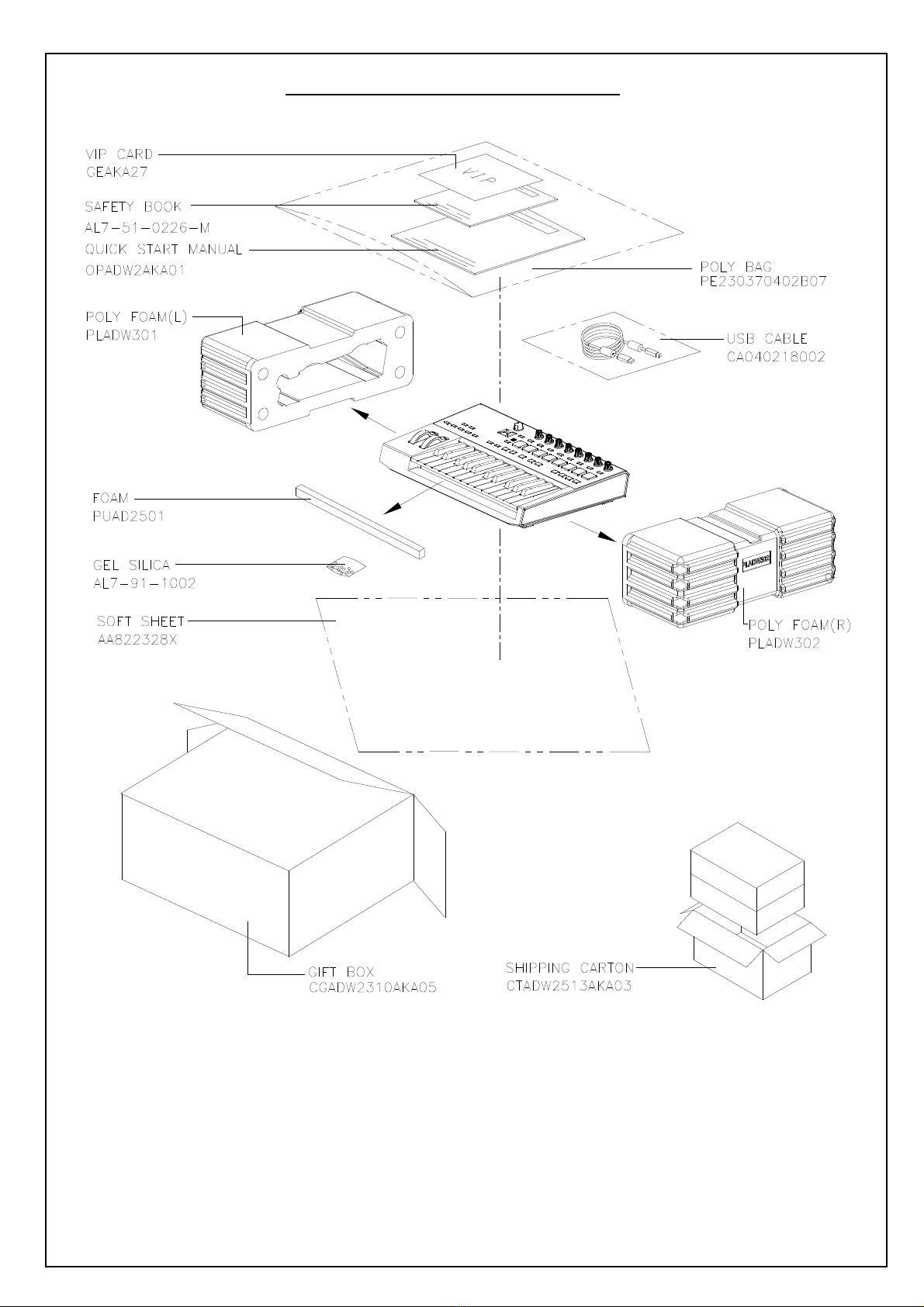

PACKING DIAGRAM
(US)

PACKING DIAGRAM
(AUS)

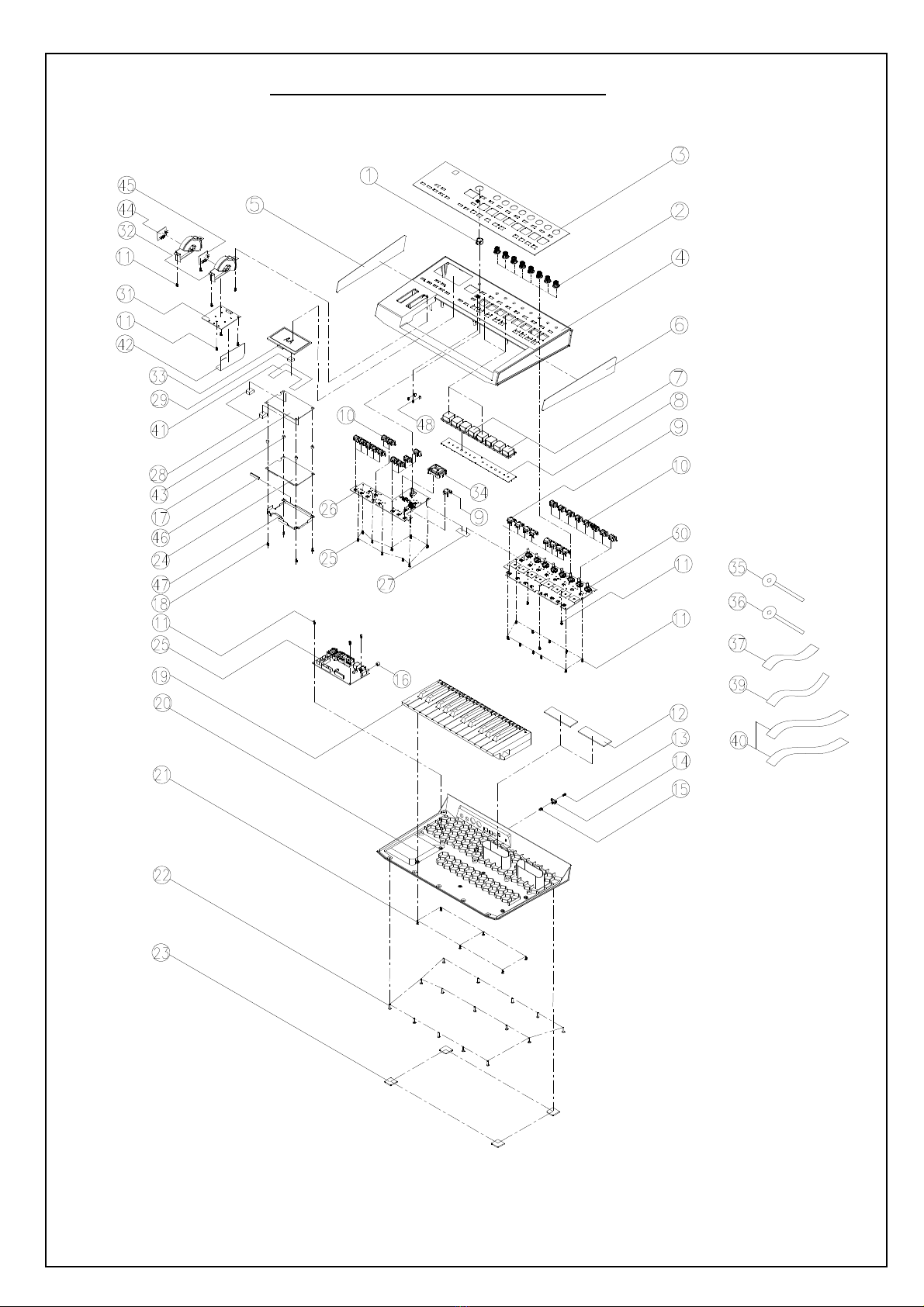

EXPLODE DIAGRAM
(US/AUS)
EQUENCIAL NO EXPLODE DIAGRAM WILL BE MARKED ON REF.COLUMM OF BOM LIST

ADW2AKA01 BOM
LEVEL
P/N DESCRIPTION QTY REF
0 ADW2AKA01 ADW2 (25KEY) AC100V~240V/60/50Hz USA 0
1 BAGL-40A Clip 1 35
1 BAGL-55A CABLE CLIP 55L 3
36
1 BASP0105263 Tube 4 17
1 CA040218002 Usb Cable 1.8M A/B Black 1
1 CN0620002009 Flat Cable Multicolored 6Pin Pitch 2.0mm 1 39
Single Row Length 200mm
1 EVA1504460 EVA 2 12
1 EVA1504467 EVA Adhesive 1
41
1 EVA1504478 EVA(T=0.5mm) 1 46
1 FFC3005000501 FFC 30Pin Pitch:0.5mm Length:50mm 1
37
1 FFC4005003002 FFC 40Pin Pitch:0.5mm Length:300mm 2 40
1 LAC22AKA356 Bar Code Label 1
1 LAC54AKA395 Safety Label 1
1 LAC62AKA357 Bar Code Label(CODE39) 0.5
1 LAC62AKA358 Bar Code Label(GTIN14) 0.5
1 LAC67YAH261 Label φ8mm Green 1
1 MT1504339 Bronze 1 15
1 MT1512212 Metal Cover 1
47
1 MT152060101 Side Panel(L)(Anodized-Printing) 1 5
1 MT152060201 Side Panel(R)(Anodized-Printing) 1
6
1 NM1501810 Copper 1 27
1 NM1504436 Plate 1
42
1 NP215AKA36 Name Plate 1 3
1 OTFSR8KEY-ADW2 FSR 1X8KEY 1
8
1 PADW2AKA01 Packing Assembly 1
2 AA822328X SHEET POLY 900X900 1
2 AL7-51-0226-M Safety Manual 1
2 AL7-91-1002 Gel Silica 1
2 CGADW2310AKA05 Gift Box 1
2 CTADW2513AKA03 Shipping Carton 0.5
2 GEAKA27 VIP Download Card 1
2 OPADW2AKA01 Quick start manual 1
2 PE230370402B07 Poly Bag 230*370mm 1
2 PLADW301 Poly Foam(Left) 1
2 PLADW302 Poly Foam(Right) 1
2 PUAD2501 EPE FOAM 1
1 PT1110685 Button Push 19 10
1 PT1304315 Power Cable Retainer 1 14
1 PT1504329 Light Pipe 4 48
1 PT1510611001 Power Button(Painting) 1
16
2 PT15106110 Power Button 1
1 PT1510611301 Knob Print 1 1
2 PT15106113 Knob 1
1 PT15106125 Button(B; clear) 9 9
1 PT15106150 Knob 8
2
1 PT151063905 Button Cursor(Black)Printing 1 34
2 PT1510639 BUTTON CURSOR(BLACK) 1
1 PT153004102 Top Housing(Printing-Painting) 1 4

2 PT1530041 Top Housing 1
1 PT153033101 Bottom Housing(Printing-Painting) 1 20
2 PT1530331 Bottom Housing 1
1 PU008008008 CONDUCTIVE FOAM 2 28
1 PU008008025 Conductive Foam 1 29
1 RU1504371 Rubber Pad 2 7
1 RU1530608 Rubber Foot 4 23
1 SC0308RBNI Screw M3X8 PRN Tapping 32 11
1 SC0310BIBI SCREW M3X10 PBB 1 13
1 SC0310RBBI Screw M3X10 PPB Tapping 6 21
1 SC2608RBZI SCREW M2.6X8 PPC TAPPING 4 18
1 SC3514PBBI SCREW M3.5X14 PBB TAPPING 15 22
1 TFTVT043ALN05T0 TFT4.3
吋 VT043A-LN05-T01B 480*272 Pix 6 1
33
O'clock
1 TW25701AYAH0101 Keyboard Assembly(YH 25KEY) 1 19
2 BAGL-55A CABLE CLIP 55L 1
2 CN0225403601 Flat Cable 2Pin Pitch 2.54mm Single Row 1
Length 360mm Female Header/Pin Header
2 CN1625403901 Flat Cable Type 8P*2 Pitch 2.54mm Dual 1
Row Length 390mm Female/Female Header
2 KB25701AYAH01 25 Key board weighted with aftertouch 1
1 TWPC13A03802 ADW2 Main PCB Assembly 1 24
2 CS047C5002NPO CCAP SMD 4.7pF/50V ±0.25pF 0402 NPO 6 C6,7,9~12
2 CS102J5002NPO CCAP SMD 1nF/50V ± 5% 0402 NPO 9 C23~31
2 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 29 C1,5,8,34~42,44,47,50~64
2 CS105K1605X7R CCAP SMD 1uF/16V 10% 0805 X7R 4 C65~68
2 CS105K5006X7R CCAP SMD 1UF/50V 10% 1206 X7R 1 C3
2 CS106K1606X7R CCAP SMD 10uF/16V 10% 1206 X7R 3 C2,43,46
2 CS180J5002NPO CCAP SMD 18pF/50V 5% 0402 NPO 2 C32,33
2 CS225K1605X7R CCAP SMD 2.2uF/16V 10% 0805 X7R 2 C48,49
2 DISR26 Schottky Barrier Rectifier 1 D1
2 FCN1R0503001 FCN Up Touch ZIF SMD Pitch=0.5mm 30P 1 FCN1
2 FCN1T0504001 FCN Down Touch ZIF SMD Pitch=0.5mm 40 2 J8,9
Pin
2 FCN1T0504002 FCN Up Touch ZIF SMD Pitch=0.5mm 40P 1 FCN2
2 IC74AHC541PW IC 74AHC541PW Octal Buffer/Line driver 1 U18
3-state output TSSOP-20
2 ICAP3031KTR-G1 IC AP3031KTR-G1 SOT-23-6 1 IC1
2 ICEM63A165TS-6G IC EM63A165TS-6G 16M*16bit SDRAM TSOP 1 U17
II-54
2 ICYH103M15 IC(ICSTM32F429IGT6+Program) LQFP-176 1 U16
3 ICSTM32F429IGT6 IC STM32F429IGT6 MCU 32Bit 2MB Flash 1 (U16)
LQFP-176
2 ICYH103M16 IC(ICMX25L3235EM2I+Program)SOP-8 1 U2
3 ICMX25L3235EM2I IC MX25L3235EM2I-10G 32Mbit Flash Memory 1 (U2)
with 104MHz SPI Multi I/O Bus SOP-8
2 PC13A038 Main PCB 6-Layer FR-4 119*71mm 1.6T 1 -
2 RS000010J03 RES 0Ω5% SMD 0603 6 R7,11,16,17,19,20
2 RS000108J05 RES 1.0 Ω5% SMD 0805 1 R250
2 RS001010F03 RES 10Ω1% SMD 0603 1 R267
2 RS003310F03 RES 33Ω1% SMD 0603 1 R164
2 RS004716F02 RES 47Ω1% SMD 0402 29 R208,227,228,230,232,234,236,238,240
