Akai S1100 User manual

OOL
US
MIDI STEREO DIGITAL SAMPLER
SPECIFICATIONS MODEL
Display Backlit 320 characters/240 *64
graphic LCD
Disk drive 3.5” dual density drive, 2Mbyte ca-
pacity (2HD), 1Mbyte capacity
(2DD)
Memory 2Mbyte expandable to 32Mbyte
Data format 16 bit linear
Maximum number of
samples 200
Maximum number of
programs 100
Sampling rates 44.1/22.05 kHz, switchable
Sampling time
(unexpanded memory) ... 23.76 sec. (mono/sampling rate
44.1 kHz)
47.52 sec. (mono/sampling rate
22.05
kHz)
11.88 sec. (stereo/sampling rate
44.1 kHz)
23.76 sec. (stereo/sampling rate
22.05
kHz)
Frequency response 20 Hz to 20 kHz (sampling rate
22.05
kHz)
20 Hz to 10 kHz (sampling rate
22.05
kHz)
Pitch shift Interpolation and decimation digi-
tal algorithm (24 bit algorithm/cus-
tom LSI)
±2 octave changeable, 1cent/step
Filter Digital moving low pass filter (-18
dB/oct)
Envelope generator 2sets/digital ADSR
Levels/impedance
REC INPUT HI :-58 dBm
(L. R./MIC PLUG) MID: -38 dBm
LOW: -18 dBm
STEREO OUT
(L/mono &RCH) -5dBm/600 ohms
EFFECT SEND -5dBm/600 ohms
CH 1to CH 8OUT .... -5dBm/600 ohms
AES/EBU
(Digital out) .RS-422 level
Connectors
Front panel .REC INPUT
CANON PLUG x2 (L ch., Rch.)
MIC PLUG x2 (Lch., Rch.)
Rear panel .STEREO HEADPHONE xl
STEREO OUT x2, EFFECT SEND
xl, ASSIGNABLE MIX OUT x8,
EFFECT RETURN x2, FOOT SW xl
,
MIDI IN xl, MIDI OUTxl, MIDI THRU
xl
Power requirement .AC 100 V, 50/60 Hz for Japan
AC 120 V, 60 Hz for USA and Ca-
nada
AC 220 V, 50 Hz for Europe except
UK
AC 240 V, 50 Hz for UK and Austra-
lia
Power consumption .J:32W. A:50W. E,V:32W
Dimensions .483(W) x133(H) x425(D)mm
(EIA3U size)
Weight
Options
.10.1kg
EXM005 .Memory expansion board(2M
bytes)
EXM008 .Memory expansion board(8M
bytes)
IB104 .AES/EBU Digital audio interface
board
BL1000 .3.5 inch 2HD blank disk
Standard accessories
Sound library disk 4
AC cord 1
Operator’s manual 1
*For improvement purposes, specifications and design are subject to change without notice.

SAFETY INSTRUCTIONS
PRECAUTIONS DURING SERVICING
1. Parts indentified by the A(*) symbols are critical for
safety Replace only with parts number specified.
2. In addition to safety, other parts and assemblies are
specified forconformance with such regulations as
those applying to spurious radiation.
These must also be replaced only with specified re-
placements.
Examples: RF converters, tuner units, antenna selector
switches, RF cables, noise blocking capacitors, noise
blocking filters, etc.
3. Use specified internal wiring note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
4. Use specified insulating materials for hazardous live
parts. Note especially:
1) Insulation Tape
2) PVC tubing
3) Spacers (Insulating Barriers)
4) Insulation sheets for transistors
5) Plastic screws for fixing microswitch (especially in
turtable)
5. When replacing AC primary side components(transfor-
mers, power cords, noise blocking capacitors, etc.),
wrap ends of wires securely about the terminals be-
fore soldering.
6.
Observe that wires do not contact heat producing
parts (heatsinks, oxide metal film resistors, fusible re-
sistors, etc.).
7. Check that replaced wires do not contact sharp edged
or pointed parts.
8. Also check areas surrounding repaired locations.
9. Use care that foreign objects (screws, solder droplets,
etc.) do not remain inside the set.
SAFETY CHECK AFTER SERVICING
After servicing, make measurements of leakage-current
or resistance in order to determine that exposed parts
are acceptably insulated from the supply circuit.
The leakage-current measurement should be done be-
tween accessible metal parts (such as chassis, ground
terminal, microphone jacks, signal input/output connec-
tors, etc.) and the earth ground through aresister of
1500ohms paralleled with a0.15 \if capacitor, under the
unit’s normal working condition. The leakage-current
should be less than 0.5 mA rms AC.
The resistance measurement should be done between
accessible exposed metalparts and power cord plug
prongs with the power switch (if included) “ON”. The re-
sistance should be more than 2.2 Mohms.
INFORMATION
SYMBOLS FOR PRIMARY DESTINATION
Alphabet indicates the destination of the units as listed
below.
Symbols Principal Destinations
AUSA
BUK
CCanada
EEurope (except UK)
1JJapan
S\
Australia
VW. Germany only
uUniversal Area
Y* Custom version
SERVICE MANUAL
2

I. DISASSEMBLY
In case of trouble, etc. necessitating dismantling, please dismantle in the order shown in the illustrations.
Reassemble in the reverse order.
3

25X24X23X22) (2 I20 19 18 17 16X15X14
Fig. 2-1
1. SWITCHING REGULATOR BLK
2. FILTER PCB
3. AC INLET
4. POWER SUPPLY PCB
5. POWER TRANSFORMER
6. S1100 SCSI PCB
7. SMPTEPCB
8. DSP PCB
9. CPU PCB
10. MEMORY PCB
11. VOICE (2) PCB
12. VOICE (1) PCB
13. AD PCB
14. INPUT JACK PCB
15. VR PCB
16. REC GAIN PCB
17. ROTARY ENCODER (DATA)
18. PANEL PCB
19. ROTARY ENCODER (CURSOR)
20. LCD BLK
21. HARD DISK DRIVE UNIT (Optional)
22. FDD BLK
23. POWER SW PCB
24. DISPLAY VR PCB
25. INVERTOR PCB
SERVICE MANUAL
4

III. ELECTRICAL ADJUSTMENT
3-1. INSTRUMENT CONNECTION
Fig. 3-1 Instrument connection
3-2. LOCATION OF ADJUSTMENT POINTS
VR201@ £j$VR202
VR 101 :Lch DAC OFF SET ADJ
VR 201 :Rch DAC OFF SET ADJ
VR 301 :SEND DAC OFF SET ADJ
VR 102: LCH DAC MSB ADJ
VR 202: RCH DAC MSB ADJ
VR 302: SEND DAC MSB ADJ
Fig. 3-2 View from right side
©©r
i
i®VR1 01
i
i®VR1 02
i
i
i
i©VR201
i
i©VR202
1
1
1
|®VR301
1
l*55 VR302
1
1®VR401
1
1
1
1
l_ ©VR402
VIEW FROM RIGHT SIDE
(VOICE1, 2PCB)
VR 101 :CH 1.CH 5DAC OFF SET ADJ
VR 201 :CH 2. CH 6DAC OFF SET ADJ
VR 301 :CH 3. CH 7DAC OFF SET ADJ
VR 401 :CH 4. CH 8DAC OFF SET ADJ
VR 102: CH 1.CH 5DAC MSB ADJ
VR 202: CH 2. CH 6DAC MSB ADJ
VR 302: CH 3. CH 7DAC MSB ADJ
VR 402: CH 4. CH 8DAC MSB ADJ
Fig. 3-3 View from right side
SERVICE MANUAL

3-3. HARDWARE TEST
THE HARDWARE TEST MODE
*This test mode is used for inspecting the unit.
[HOW TO SET THE HARDWARE TEST MODE]
1) Turn on the power, press the “MARK/#” and “NAME” buttons at the same time (all red indicators will light), then press
the “+/ <”button.
2) The following menu (refire to Fig. 3-4) will appear on the LC-display when the model S1 100 is set to the HARDWARE
TEST mode.
IHARDWARE TEST
ADJUST CLOCK RATE BEFORE SETTING
THE DAC/ADC TRIMS
[1 cpu][2wav][3dac][4of f][5adl][6adr][7adm][boot]
Fig. 3-4
[THE PROGRAM NUMBERS AND PROGRAM NAMES] [HOW TO RELEASE FROM THE HARDWARE TEST MODE]
PROG. No
S1 100 HARDWARE TEST
CONTENTS
CPU MEMORY TEST
WAVEFORM MEMORY TEST
NOT USED
NOT USED ~
LEFT ADC OFF-SET NULL
~
RIGHT ADC OFF-SET NULL
NOT USED
*During the HARDWARE TEST mode, press the “F8/H”
button.
*Although displayed,the contents are disregarded. Fig.3-5
3-3-1 .CPU MEMORY TEST
1) During the HARDWARE TEST mode, press the “FI /A” button. The following display will appear on the LC-display(refer
to Fig. 3-6).
HARDWARE TEST] 1. CPU MEMORY TEST
BANK DAT A>1514131211109 876543 210RESULT
1
2
[1 cpu][2wav][3dac][4of f][5adl][6adr][7adm][boot]
Fig. 3-6
2) Afew second later, the LC-display will show the message “OK” as in Fig. 3-7. If the message “OK” does not appear on
the LC-display, it means amalfunction in the memory circuit. In this case check the memory circuit and LSI.
HARDWARE TEST 1. CPU MEMORY TEST
BANK DATA>1 51 41 31 21 11098765432 10RESULT
1OK
2OK
[1 cpu][2wav][3dac][4of f][5adl][6adr][7adm][boot]
Fig. 3-7
SERVICE MANUAL

3-3-2. WAVEFORM MEMORY TEST
1) During the HARDWARE TEST mode, press the “F2/B” button. The following display will appear on the LC-display(refer
to Fig. 3-8).
2. WAVEFORM MEMORY TEST
BANK
1
2
3
4
DAT A>1514131211109 8765432 10RESULT
testing 35s e c
[1 cpu][2wav][3dac][4of f][5adl][6adr][7adm)[boot]
Fig. 3-8
2) After 35 seconds the LC-display will show the message as shown Fig. 3-9. If this message does not appear on the LC-
display, it means amalfunction in the waveform memory circuit. Check the waveform memory circuit and LSI.
2. WAVEFORM MEMORY TEST
BANK
1
2
3
4
DATA>1 5141 31 21 11098765432 10RESULT
OK
NO CARD?
NO CARD?
NO CARD?
[1 cpu][2wav][3dac][4of f][5adl][6adr][7adm][boot]
Fig. 3-9
3-3-3. ADC OFF-SET NULL CONFIRMATION
1) During the HARDWARE TEST mode, press the “F5/E” button. The following display will appear on the LC-display(refer
to Fig. 3-1 0).
5. LEFT ADC OFFSET NULL
SET MIN. REC. LEVEL, LOW GAIN, SHORT INPUTS
ADJUST LEFT INPUT OFFSET TRIM
TO ZERO THE OFFSET:- 0
i11
+1t
[1 cpu][2wav][3dac][4of f)[5adl][6adr][7adm][boot)
ARDWARE TEST
Fig. 3-10
2) Next, press the “F6/F” button. The following display will appear on the LC-display (refer to Fig. 3-1 1).
1HARDWARE TEST| 6. RIGHT ADC OFFSET NULL
SET MIN. REC. LEVEL, LOW GAIN, SHORT INPUTS
ADJUST RIGHT INPUT OFFSET TRIM
TO ZERO THE OFFSET:- 0
II1
+1t
[1 cpu][2wav][3dac][4of f][5adl][6adr][7adm][boot)
Fig. 3-1
1
•Although the display instruct to adjust the OFF-SET TRIM, this is confirmation only. No adjustment is necessary.
3-4. DAC OFF-SET ADJUSTMENT
(PRECAUTIONS BEFORE ADJUSTMENT)
•For connection of test equipment refer to Fig. 3-1
.
•Set the MAIN VOLUME to the maximum position.
•Set the REC LEVEL to the maximum position and the REC GAIN switch to the “MID” position.
•Let the unit warm up for at least 5minutes before proceeding with the following adjustments.
•Be sure to connect the plugs to the LCH and RCH outputs, otherwise L-R mixed output will be obtained from both
outputs.
SERVICE MANUAL
7

3-4-1. DAC OFF-SET ADJUSTMENT
1) After turning the unit on, press the EDIT SAMPLE button. Next use the DATA knob to select “SINE,” then press the
[REC 2] F3/C button. Connect the audio signal generator to the LEFT input and sample aIKHz sine wave. Adjust the
signal level so that the output is -6dBm. Select “tim: s” with the CURSOR knob, then select “10.00” with the DATA
knob. Next press the [ARM] F8/H button to sample a1KHz tone.
2) Press the EDIT PROGRAM button, then press the [KGRP] F2/B button. Select “change number of KEYGROUPS” with
the CURSOR knob, then select “12” with the +/< button. Next select “note on sample COHERENCE” with the CURSOR
knob and select “ON” with the DATA knob.
3) Press the [SLCT] FI /A button, then press the [OUT] F4/D button. Next select “loudness” with the CURSOR knob and
press the ENT/PLAY button. Set the DATA knob so that the output from OUTPUT (L CH, RCH) is +11 dBm. Select
“eft out” with the CURSOR knob, and 14% with the DATA knob only when adjusting the send level.
4) Press the ENT/PLAY button and adjust the VR101 (LEFT), VR201 (RIGHT) and VR301 (SEND) on the AD PCB so that
DISTORTION is less than 1%.
5) Select “mono out” with the CURSOR knob. Use the DATA knob to select channels between CH1-CH8 and adjust the
appropriate VR (refer to following list) so that the distortion of each channel is less than 1%.
On VOICE 1PCB:
VR101 (CH 1)
VR201 (CH 2)
VR301 (CH 3)
VR401 (CH 4)
On VOICE 2PCB:
VR101 (CH 5)
VR201 (CH 6)
VR301 (CH 7)
VR401 (CH 8)
3-4-2. DAC MSB ADJUSTMENT
1) Press the “MARK/#” and “NAME” buttons at the same time then press the “~/\> ”button to set the default values.
Press the EDIT SAMPLE button. Next use the DATA knob to select “SINE”, then press the [REC 2] F3/C button. Con-
nect the audio signal generator to the LEFT input and sample a100Hz sine wave. Adjust the signal level so that the
output is -20dBm. Select “tim: s” with the CURSOR knob, then select “10.00” with the DATA knob. Next press the
[ARM] F8/H button to sample a100Hz tone.
2) Press the EDIT PROGRAM button, then press the [OUT] F4/D button. Select “loudness” with the CURSOR knob and
press the ENT/PLAY button. Set the output to -60dBm with the DATA knob.
3) Adjust the VR102 (LEFT), VR202 (RIGHT), VR302 (SEND) on AD PCB so that the waveform becomes acontinuous
sine wave at -60dBm output level.
INCORRECT
iiCOmV Ptr.
AA
CORRECT
Fig. 3-12
4)
Select “mono out” with the CURSOR knob. Use the DATA knob to select channels between CH1-CH8 and adjust the
appropriate VR (refer to following list) so that the waveform of each channel becomes acontinuous sine wave at
-60dBm output level.
On VOICE 1PCB:
VR102 (CHI)
VR202 (CH2)
VR302 (CH3)
VR402 (CH4)
On VOICE 2PCB:
VR102 (CH5)
VR202 (CH6)
VR302 (CH7)
VR402 (CH8)
SERVICE MANUAL

IV. PARTS LIST
ri>\V ’///. •
*m%W%m•/ V//AW%'
^VV•••
•
AN
'S>
..... ..... ..AW/. //.
>...«•.. >V< mm.WVV////. AV\W<////
f*m •*****m\W\S%f*****mW\ ,**t ••*A%* .••'
Kiiiii-iiJissr!
A’///. .VMW/////
^fffff
>...»>• AV//. /• ••///A\%\*
V///A\V\W ••V/A\' \m mmmAN »:
w.
w.
L1 1
9mm V
V.v/// AA. *. N••
1
—1
V/
..CCW//. ..ssv«v///. /A
**m
/A
. . /. . . //A\%WW//ANVVV<.
W<<yAW\NV^//AA\\\* •/^A^AW' ••///AAA" *
;iv :vwmv"':;««*>:>:::<«Cv»: ::<Xz<&//,v
>iKv.. .. ..a.vwaw/. ..wvw/sa
-^
'.V
.
HOW TO USE THIS PARTS LIST
1. This Parts List lists those parts which are considered necessary for repairs. Other common parts, such as resis-
tors and capacitors, are listed in the “Common List for Service Parts” from which these parts should be selected
and stocked.
2. The Recommended Spare Parts List shows those parts in the Parts List which are considered particularly import-
ant for service.
3. Parts not shown in the Parts List and “Common List for Service Parts” will not in principle be supplied.
4. How to read the Parts List.
a) Mechanism Block
2. HEAD BASE BLOCK
Ref.No. Part No. Description
1BH-T2023A320A HEAD BASE BLOCK
2HP-H2206A010A HEAD R/P PR4-8FU C
3ZS-477876 PAN20*03STL CMT
4ZS-536488 BID20*08STL CMT
5ZG-402895 SP CS ANGLE ADJUST
LSP (Service Parts) Classification
—This number corresponds with the individ
ual parts index number in that figure.
The available PC Board Blocks are listed separately.
b) PC Board
6. MAIN PC BOARD
Ref.No. Part No. Description
1C 1El-324536 1C HD14049BP
IC2 El-336801 1C MB8841-564M
CIA EC-338399 CMMY V223M 250AC [U,E,B,S]
Cl BEC-350949 CMMY V223M 250DC [J]
C1C EC-338397 CMMY V223M 125AC [C,A]
>a El-318384 OSC X’TAL NC-18C ~7
fSymbols for primary destination -
[A] :AAL (U.S.A) [S]
:
SAA (Australia)
[B] :BEAB (England) [U]
:
U/T (Universal Area)
[C] :CSA (Canada)
[E]
:
CEE (Europe) [V]
:
VDE (W. Germany)
[J]: JPN (Japan) [Y]
:
Custom Version
SP (Service Parts) Classification
These reference symbols correspond
with component symbols in the
Schematic Diagrams.
PARTS LIST
9

1.RECOMMENDED SPARE PARTS Ref.No.
We suggest you to stock the following Recommended
Spare Part items listed below since they can cover
most of the routine service.
Ref.No. Part No. Description
1BB-393291
J
FLOPPY DISK FD-235HF-270
2*BP-397454J SW POW PMC50E4XULA 100/200
3*BT-396271J TRANS POW S1 100(C,A)
4*BT-396272J TRANS POW S1 100(E,V,B,S)
5*BT-396269J TRANS POWSIIOO(J)
6ED-359863 DLED LN81 CV-(LF) AK ORANGE
7ED-330319 DSILICON DBA1 0B 100/1 .0A
8ED-389834J DSILICON DS135E-FB2 FI 2100/1
9ED-301911 DSILICON HDS448
10 ED-344280 DSILICON HGMA-01-FY2 F05
11 ED-378219 DETECTOR PC 6N137
12 *EF-358974 FUSE BET T250V 630MA
[B]
13 *EF-601964 FUSE SEMKO T250V 1.60A
[E,V,S]
14 *EF-601942 FUSE SEMKO T250V 630MA
[E,V,S]
15 *EF-306949 FUSE TSC A250V 1.25A
[J]
16 *EF-311839 FUSE TSC A250V 1.60A
[J]
17 *EF-309392 FUSE TSC125V1.25A
[A,C]
18 *EF-308847 FUSE TSC 125V 1.60A
[A,C]
19 EH-388603J COMP REXB-RA13 221
J
20 EH-388604J COMP REXB-RA13 331
J
21 EH-397281
J
FILTER EMI DSS306-54B 101M CUT
22 EH-397365J FILTER EMI DSS306-55B 221 MCUT
23 EH-397279J FILTER EMI DSS310-55B 101M CUT
24 EH-396514J FILTER LC LP 258BLV-5571
N
25 EI-396532J 1C ADR6021
26 EI-386308J 1C AK5326
27 EI-397343J 1C AM27C256-1 50DC
28 El-3891 42J 1C CD74AC541
E
29 EI-396535J 1C CD74AC573E
30 EI-388792J 1C CXD121 IP
31 El-386343
J
1C DSP56001 FE-20
32 EI-384770J 1C FLR-L6009
33 EI-396503J 1C HD63B03RP
34 El-389061 J1C HD74AC04P
35 El-396537
J
1C HD74AC08P
36 EI-396536J 1C HD74AC1 38P
37 EI-386293J 1C HD74AC1 39P
38 EI-386292J 1C HD74AC1 53P
39 EI-386290J 1C HD74AC157P
40 EI-389050J 1C HD74AC32P
41 El-38871 U1C HD74HC00P
42 EI-387934J 1C HD74HC04P
43 EI-386303J 1C HD74HC08P
44 E1-393703
J
1C HD74HC10P
45 EI-386289J 1C HD74HC138P
46 El-393701 J1C HD74HC1 39P
47 EI-397093J 1C HD74HC157P
48 El-39651 3J 1C HD74HC165P
49 El-39651 0J 1C HD74HC173P
50 EI-393699J 1C HD74HC195P
51 EI-393697J 1C HD74HC259P
52 EI-393700J 1C HD74HC279P
53 EI-388709J 1C HD74HC32P
54 EI-393698J 1C HD74HC365P
55 El-39651 2J 1C HD74HC368P
56 EI-396504J 1C HD74HC375P
57 EI-386295J 1C HD74HC541P
58 EI-388567J 1C HD74HC573P
59 EI-393702J 1C HD74HC595P
60 EI-387937J 1C HD74HC74P
61 El-386694
J
1C HM51 1000P-10S
62 El-360954 1C IR931
1
63 El-384771 J1C ITP-L6009
64 El-379461 1C LC3517ASL-15
65 El-378276 1C LC7981
66 El-396550
J
1C LM2940CT-1
2
67 EI-396559J 1C LM7912CT
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
Part No. Description
El-386331 J
EI-396533J
EI-379657J
EI-388602J
El-3561 60
El-360043
El-336995
El-39651 5J
El-360772
El-39651 7J
EI-400855J
El-368612
EI-397345J
EI-397344J
EI-396539J
El-364253
El-4021 27J
El-4021 28J
El-324691
EI-400750J
El-401 064J
EI-384806J
EI-372890J1
EI-384769J
El-379593
EI-386350J
El-396531 J
El-397589
J
EI-397590J
El-396541 J
EI-397320J
EI-384779J
EL-728382J
EM-38231 7J
EO-390188J
EQ-348929
ER-3251 14
ER-382385J
ER-367512
ER-397529J
ES-396542J
ES-365943
*ES-373020
*ES-384812J
ES-38481 1
J
ES-349474
ET-397160J
EV-384808J
1C MBM27C1 001 -20Z-G
[BLANK ROM]
1C MB81 C4256-1 0PSZ-G
1C MB89255A-P-G
1C MB89352-P-G
1C M5216P
1C M5220P
1C NJM78L05A
1C NJM78L06A
1C NJM79L05A
1C NJM79L06A
1C NJM79M05FA
1C PCM56P
1C PEEL1 8CV8PC-25 L6021 B
1C PEEL1 8CV8PC-25 L6021 C
1C PEEL1 8CV8PC-25S L6021
A
1C PST520D-2
1C SCOEF1 0-51 29753-004 LSB
1C SCOEF1 1-51 29753-005 MSB
1C TC4075BP
1C TC55257BSPL-85
1C TC74AC393P
1C TC74HC4053AP
1C TC74HC574AP
1C TE7730
1C UPD5200C
1C UPD7021 6GF-1 0-3B9
1C UPD72068GF-3B9
IC.MBM27C1 001 -20Z-G VI .01 -L
IC.MBM27C1 001 -20Z-G VI .01 -M
OSC X’TAL HC-49/U 32.000000MHZ
OSC X’TAL HC-49/US20.000000MHZ
OSC X’TAL TD308C 33.8688MHZ
EL BACK LIGHT
IND LCD EDM-MPJ2COW
TRANS PULSE CIT0723DIP-340B
RELAY SIG G5A-237P 2TR 12V
RCB HSI 0FS RDS 1/4W 330J
RCB HSI 2FS RDS 1/2W 100J
RCB HS12 FS RDS 1/2W 121
J
RFUSE HSI 2ERQ1 2AJ 1/2W 4R7J
SW DIP SLIDE SSGM14 1-4-2N
SW EWT-XDFK2550B
SW PUSH ESB-8283V
[J AC] [POWER SW]
SW PUSH SDDSA3 02-1
[E,V,B,S] [POWER SW]
SW SLIDE ESD-32243
[REC GAIN SW]
SW TACT SKHHAM004A
[SELECT PROG/1]
TR 2SC3330 R,S,T,U,V
VR ROTARY EWK-E9A027A14 A103X2
[REC VR]
2. P.C BOARD BLOCK
Ref.No. Part No. Description
1BA-L6021 A030A PC CPU BLK S1 100
2BA-L6021 A040A PC AD BLK SHOO
3BA-L6021 A050A PC VOICE1BLK S1 100
4BA-L6021 A060A PC VOICE2 BLK S1 100
5BA-L6021 A070A PC DSP BLK S1100
6BA-L6021 A080A PC PANEL BLK S1 100
7BA-L6021 A100A PC SMPTE BLK S1 100
8BA-L6021 A1 10A PC SCSI BLK S1 100
9A BA-L6021 A020A PC(#) FILT BLKS1100(J)
9B BA-L6021 A020B PC(#) FILT BLK SI 100(E)
10 BA-L6009A020A PC MEMORY BLK SI 000
PC (#) FILT BLK CONSISTS OF FOLLOWING P.C BOARD.
•POWER SUPPLY P.C BOARD
•REC GAIN P.C BOARD
•FILTER P.C BOARD
•DISPLAY VR P.C BOARD
•INPUT JACK P.C BOARD
•POWER SW P.C BOARD
•VR P.C BOARD
PARTS LIST
TO

3. CPU P.C BOARD Ref.No. Part No.
Ref.No. Part No. Description PI 20 EJ-365834
PI 21 EJ-365891
D8 ED-344280 DSILICON HGMA-01-FY2 F05 PI 22 EJ-365891
D9 ED-344280 DSILICON HGMA-01-FY2 F05 PHI ED-378219
FL1 EH-397279J FILTER EMI DSS310-55B 101M CUT R37 ER-382385J
FL2 EH-397279J FILTER EMI DSS310-55B 101M CUT R38 ER-367512
FL3 EH-397279J FILTER EMI DSS310-55B 101M CUT R39 ER-3251 1
4
FL4 EH-397279J FILTER EMI DSS310-55B 101M CUT SW1 ES-396542J
FL5 EH-397365J FILTER EMI DSS306-55B 221 MCUT T1 EO-390188J
FL6 EH-397365J FILTER EMI DSS306-55B 221 MCUT TR1 ET-397160J
FL7 EH-397281
J
FILTER EMI DSS306-54B 101M CUT TR2 ET-397160J
FL14 EH-397279J FILTER EMI DSS310-55B 101M CUT XI EI-397320J
IB1 EH-397364J COMP CEXF-P12F101M X2 El-396541 J
IC1 EI-386350J 1C UPD7021 6GF-1 0-3B9 X3 EI-384779J
IC2 EI-384769J 1C TE7730
IC3 El-396531 J1C UPD72068GF-3B9
IC4 El-384771 J1C ITP-L6009
IC5 EI-384770J 1C FLR-L6009 4. AD P.C BOARD
IC6 EI-396532J 1C ADR6021
IC7 El-378276 1C LC7981
„!Ref.No. Part No.
IC8 EI-388792J ICCXD1211P
IC9 EI-379657J 1C MB89255A-P-G D1 ED-301911
IC10 EI-397589J IC.MBM27C1 001 -20Z-G V1.01-L D2 ED-301911
IC10A El-386331 J1C MBM27C1 001 -20Z-G D3 ED-301911
[BLANK ROM] D4 ED-301911
IC11 EI-397590J IC.MBM27C1 001 -20Z-G V1.01-M D401 ED-301911
IC11A EF386331
J
1C MBM27C1 001 -20Z-G FL3 EH-397365J
[BLANK ROM] FL4 EH-397365J
IC12 El-4021 27J 1C SCOEFIO-512 9753-004 LSB FL101 EH-396514J
IC13 El-4021 28J 1C SCOEF1 1-512 9753-005 MSB FL201 EH-396514J
IC14 El-379461 1C LC3517ASL-15 FL301 EH-396514J
IC15 El-364253 1C PST520D-2 IC1 El-360043
IC18 EI-396533J 1C MB81 C4256-1 0PSZ-G IC2 El-360043
IC19 EI-396533J 1C MB81 C4256-1 0PSZ-G IC3 El-360043
IC20 EI-396533J 1C MB81 C4256-1 0PSZ-G IC4 El-360043
IC21 EI-396533J 1C MB81 C4256-1 0PSZ-G IC5 El-360043
IC22 EI-386290J 1C HD74AC157P IC6 EI-386308J
IC23 EI-386290J 1C HD74AC157P IC7 El-336995
IC24 EI-386292J 1C HD74AC153P IC8 El-360772
IC25 EI-387937J 1C HD74HC74P IC9 El-336995
IC26 EI-393699J 1C HD74HC195P IC10 El-336995
IC27 El-401 064J 1C TC74AC393P IC11 El-336995
IC28 EI-393698J 1C HD74HC365P IC12 El-39651 5J
IC29 EI-393697J 1C HD74HC259P IC14 El-360772
IC30 EI-386289J 1C HD74HC138P IC15 El-39651 7J
IC31 EI-397093J 1C HD74HC157P IC23 El-360772
IC32 EI-387937J 1C HD74HC74P IC101 El-368612
IC33 EI-393702J 1C HD74HC595P 1C 102 EI-384806J
IC34 EI-393702J 1C HD74HC595P 1C 103 El-360043
IC35 EI-393698J 1C HD74HC365P 1C 104 El-360043
IC36 EI-393700J 1C HD74HC279P IC105 El-360043
IC37 El-393701 J1C HD74HC139P IC201 El-368612
IC38 EI-396535J 1C CD74AC573E IC202 EI-384806J
IC39 El-388567
J
1C HD74HC573P IC205 El-360043
IC40 EI-388567J 1C HD74HC573P IC301 El-368612
IC41 EI-396536J 1C HD74AC138P IC302 EI-384806J
IC42 El-3891 42J 1C CD74AC541
E
IC303 El-360043
IC43 El-3891 42J 1C CD74AC541
E
IC401 El-356160
IC44 EI-393703J 1C HD74HC10P IC402 El-379593
IC45 EI-388709J 1C HD74HC32P J101 EJ-364322
IC46 EI-388709J 1C HD74HC32P J201 EJ-364322
IC47 El-38871 1J 1C HD74HC00P J301 EJ-364322
IC48 EI-386303J 1C HD74HC08P J401 EJ-353031
IC49 EI-387934J 1C HD74HC04P J501 EJ-379523
IC50 El-389061 J1C HD74AC04P R407 ER-321619
IC51 EI-396537J 1C HD74AC08P R408 ER-321619
IC52 EI-389050J 1C HD74AC32P RL401 EQ-348929
IC53 El-389061 J1C HD74AC04P TR401 ET-397160J
IC54 EI-396539J 1C PEEL1 8CV8PC-25S L6021A VR101 EV-379061
J101 EJ-364256 DIN JMl 704 3P VR102 EV-379061
[MIDI] VR201 EV-379061
PI 00 EJ-384780J SOCKET 64S-6033-0431 -2 64P VR202 EV-379061
P101 EJ-384780J SOCKET 64S-6033-0431 -2 64P VR301 EV-379061
PI 02 EJ-384780J SOCKET 64S-6033-0431 -2 64P VR302 EV-379061
PI 03 EJ-384780J SOCKET 64S-6033-0431 -2 64P
PI 04 EJ-384780J SOCKET 64S-6033-0431 -2 64P
PI 05 EJ-384780J SOCKET 64S-6033-0431 -2 64P
PI 06 EJ-384780J SOCKET 64S-6033-0431 -2 64P
PI 07 EJ-384780J SOCKET 64S-6033-0431 -2 64P
PI 08 EJ-384780J SOCKET 64S-6033-0431 -2 64P
P1 13 EJ-365834 PLUG RK-H341 TD-01 90 34P
P1 18 EJ-365891 PLUG RA-H261 TD-01 90 26P
PARTS LIST
Description
PLUG RK-H341 TD-01 90 34P
PLUG RA-H261 TD-01 90 26P
PLUG RA-H261 TD-01 90 26P
DETECTOR PC 6N137
RCB HS12 FS RDS 1/2W 100J
RCB HS12 FS RDS 1/2W 121
J
RCB HS10 FS RDS 1/4W 330J
SW DIP SLIDE SSGM14 1-4-2N
TRANS PULSE CIT0723DIP-340B
TR 2SC3330 R,S,T,U,V
TR 2SC3330 R,S,T,U,V
OSC XTAL HC-49/US20.000000MHZ
OSC XTAL HC-49/U 32.00Q000MHZ
OSC XTAL TD308C 33.8688MHZ
Description
DSILICON HDS448
DSILICON HDS448
DSILICON HDS448
DSILICON HDS448
DSILICON HDS448
FILTER EMI DSS306-55B 221 MCUT
FILTER EMI DSS306-55B 221 MCUT
FILTER LC LP 258BLV-5571N
FILTER LC LP 258BLV-5571N
FILTER LC LP 258BLV-5571N
1C M5220P
1C M5220P
1C M5220P
1C M5220P
1C M5220P
1C AK5326
1C NJM78L05A
1C NJM79L05A
1C NJM78L05A
1C NJM78L05A
1C NJM78L05A
1C NJM78L06A
1C NJM79L05A
1C NJM79L06A
1C NJM79L05A
1C PCM56P
1C TC74HC4053AP
1C M5220P
1C M5220P
1C M5220P
1C PCM56P
1C TC74HC4053AP
1C M5220P
1C PCM56P
1C TC74HC4053AP
1C M5220P
1C M5216P
1C UPD5200C
PHONE J2P HLJ0520-1 10 W/NUT
PHONE J2P HLJ0520-1 10 W/NUT
PHONE J2P HLJ0520-1 10 W/NUT
PHONE J3P HLJ0520-010
PHONE J3P HLJ4305-3080 S.NUT
ROMF H S15 FS 1W 101
J
ROMF HSI 5FS 1W 101
J
RELAY SIG G5A-237P 2TR 12
V
TR 2SC3330 R,S,T,U,V
RS-FIX HPK50 0.50W 104
RS-FIX HPK50 0.50W 104
RS-FIX HPK50 0.50W 104
RS-FIX HPK50 0.50W 104
RS-FIX HPK50 0.50W 104
RS-FIX HPK50 0.50W 104
11

5. VOICE (1),(2) P.C BOARD 7. PANEL P.C BOARD
Ref.No. Part No. Description Ref.No. Part No. Description
FL101 EH-396514J FILTER LC LP 258BLV-5571N D1 ED-359863 DLED LN81CV-(LF) AK ORANGE
FL201 EH-396514J FILTER LC LP 258BLV-5571
N
D2 ED-359863 DLED LN81CV-(LF) AK ORANGE
FL301 EH-396514J FILTER LC LP 258BLV-5571
N
D3 ED-359863 DLED LN81CV-(LF) AK ORANGE
FL401 EH-396514J FILTER LC LP 258BLV-5571
N
D4 ED-359863 DLED LN81CV-(LF) AK ORANGE
IC1 El-336995 1C NJM78L05A D5 ED-359863 DLED LN81CV-(LF) AK ORANGE
IC2 El-400855
J
1C NJM79M05FA D6 ED-359863 DLED LN81CV-(LF) AK ORANGE
IC3 El-336995 1C NJM78L05A D7 ED-359863 DLED LN81CV-(LF) AK ORANGE
IC4 EI-400855J 1C NJM79M05FA D8 ED-359863 DLED LN81CV-(LF) AK ORANGE
IC5 El-39651 5J 1C NJM78L06A SRI EH-384815J COMP RRKC1/8B12 103J
IC6 El-39651 7
J
1C NJM79L06A SR2 EH-384817J COMP RRKC1/8B8 102J
IC101 El-368612 1C PCM56P SW1 ES-349474 SW TACT SKHHAM004A
1C102 EI-384806J 1C TC74HC4053AP [SELECT PROG/1]
1C 103 El-360043 1C M5220P SW2 ES-349474 SW TACT SKHHAM004A
IC104 El-360043 1C M5220P [FI /A]
IC201 El-368612 1C PCM56P SW3 ES-349474 SW TACT SKHHAM004A
IC202 EI-384806J 1C TC74HC4053AP [3/Y]
IC301 El-368612 1C PCM56P SW4 ES-349474 SW TACT SKHHAM004A
IC302 EI-384806J 1C TC74HC4053AP [-/]
IC303 El-360043 1C M5220P SW5 ES-349474 SW TACT SKHHAM004A
IC304 El-360043 1C M5220P [EDIT SAMPLE/J]
IC401 El-368612 1C PCM56P SW6 ES-349474 SW TACT SKHHAM004A
IC402 EI-384806J 1C TC74HC4053AP [F2/B]
J101 EJ-364322 PHONE J2P HLJ0520-1 10W/NUT SW7 ES-349474 SW TACT SKHHAM004A
J201 EJ-364322 PHONE J2P HLJ0520-1 10W/NUT [NAME]
J301 EJ-364322 PHONE J2P HLJ0520-1 10 W/NUT SW8 ES-349474 SW TACT SKHHAM004A
J401 EJ-364322 PHONE J2P HLJ0520-1 10 W/NUT [ENT/PLAY]
VR101 EV-379061 RS-FIX HPK50 0.50W 104 SW9 ES-349474 SW TACT SKHHAM004A
VR102 EV-379061 RS-FIX HPK50 0.50W 104 [EDIT/PROG/K]
VR201 EV-379061 RS-FIX HPK50 0.50W 104 SW10 ES-349474 SW TACT SKHHAM004A
VR202 EV-379061 RS-FIX HPK50 0.50W 104 [F3/C]
VR301 EV-379061 RS-FIX HPK50 0.50W 104 SW11 ES-349474 SW TACT SKHHAM004A
VR302 EV-379061 RS-FIX HPK50 0.50W 104 [7/Q]
VR401 EV-379061 RS-FIX HPK50 0.50W 104 SW12 ES-349474 SW TACT SKHHAM004A
VR402 EV-379061 RS-FIX HPK50 0.50W 104 SW13 ES-349474
[4/T]
SW TACT SKHHAM004A
[MIDI/L]
SW14 ES-349474 SW TACT SKHHAM004A
6. DSP P.C BOARD [F4/D]
SW15 ES-349474 SW TACT SKHHAM004A
Ref.No. Part No. Description SW16 ES-349474
[8/R]
SW TACT SKHHAM004A
IC1 EI-386343J 1C DSP56001 FE-20 [5/U]
IC2 EI-400750J 1C TC55257BSPL-85 SW17 ES-349474 SW TACT SKHHAM004A
IC3 EI-400750J 1C TC55257BSPL-85 [DISK/M]
IC4 EI-400750J 1C TC55257BSPL-85 SW18 ES-349474 SW TACT SKHHAM004A
IC5 EI-372890J1 1C TC74HC574AP [F5/E] ..
IC6 EI-388567J 1C HD74HC573P SW19 ES-349474 SW TACT SKHHAM004A
IC7 EI-372890J1 1C TC74HC574AP [9/S]
IC8 EI-386295J 1C HD74HC541P SW20 ES-349474 SW TACT SKHHAM004A
IC9 E1-400750
J
1C TC55257BSPL-85 [6/VJ
IC10 EI-400750J 1C TC55257BSPL-85 SW21 ES-349474 SW TACT SKHHAM004A
IC11 EI-400750J 1C TC55257BSPL-85 [MASTER TUNE/N]
IC12 El-39651 0J 1C HD74HC173P SW22 ES-349474 SW TACT SKHHAM004A
IC13 EI-396504J 1C HD74HC375P [F6/F]
IC14 El-39651 2J 1C HD74HC368P SW23 ES-349474 SW TACT SKHHAM004A
IC15 EI-393702J 1C HD74HC595P [MARK/-]
IC16 EI-393702J 1C HD74HC595P SW24 ES-349474 SW TACT SKHHAM004A
IC17 El-39651 3J 1C HD74HC165P [JUMP/»]
IC18 El-39651 3J 1C HD74HC165P SW25 ES-349474 SW TACT SKHHAM004A
IC19 El-39651 3J 1C HD74HC165P [DRUM/O]
IC20 El-39651 3J 1C HD74HC165P SW26 ES-349474 SW TACT SKHHAM004A
IC21 EI-386293J 1C HD74AC139P [F7/G]
IC22 EI-397345J 1C PEEL1 8CV8PC-25 L6021 BSW27 ES-349474 SW TACT SKHHAM004A
IC23 EI-397344J 1C PEEL1 8CV8PC-25 L6021 C[2/X]
J1 EJ-384790J PLUG 64P-6033-0431 -0 64P SW28 ES-349474 SW TACT SKHHAM004A
XI EI-397320J OSC X’TAL HC-49/US20.000000MHZ SW29 ES-349474 [+/]
SW TACT SKHHAM004A
[UTILITY/P]
SW30 ES-349474 SW TACT SKHHAM004A
[F8/H]
SW31 ES-349474 SW TACT SKHHAM004A
[1/W]
SW32 ES-349474 SW TACT SKHHAM004A
[0/Z]
PARTS LIST
12

8. SMPTE P.C BOARD 12. FILTER P.C BOARD
Ref.No. Part No. Description
FL1 EH-397365J FILTER EMI DSS306-55B 221 MCUT
FL2 EH-397365J FILTER EMI DSS306-55B 221 MCUT
FL3 EH-397365J FILTER EMI DSS306-55B 221 MCUT
FL4 EH-397365J FILTER EMI DSS306-55B 221 MCUT
IC1 EI-397343J 1C AM27C256-1 50DC
IC2 El-360954 1C IR9311
IC3 El-38871 1
J
1C HD74HC00P
IC4 EI-396503J 1C HD63B03RP
IC5 EI-386289J 1C HD74HC1 38P
IC6 EI-379657J 1C MB89255A-P-G
IC7 EI-396504J 1C HD74HC375P
IC8 El-324691 1C TC4075BP
J1 EJ-3901 89J PHONE J3P HLJ0544-01 0W/NUT
J2 EJ-3901 89J
[SMPTE IN]
PHONE J3P HLJ0544-01 0W/NUT
PI EJ-384790J [SMPTE OUT]
PLUG 64P-6033-0431 -0 64P
9.
SCSI P.C BOARD
Ref.No. Part No. Description
D1 ED-389834J DSILICON DS135E-FB2 FI 2 100/1
D2 ED-301911 DSILICON HDS448
FR1 EH-388603J COMP REXB-RA13 221
J
FR2 EH-388603J COMP REXB-RA1 3221
J
FR3 EH-388604J COMP REXB-RA1 3331
J
FR4 EH-388604J COMP REXB-RA13 331
J
IC1 EI-388602J 1C MB89352-P-G
J1 EJ-368452 PLUG 57LE-40500-7700(D1 2)
[SCSI]
PI EJ-384790J PLUG 64P-6033-0431 -0 64P
P2 EJ-397342J PLUG PS-50PE-D4LT1-B1
10.
POWER SUPPLY P.C BOARD
Ref.No. Part No. Description
D1 ED-330319 DSILICON DBA10B 100/1.0A
D2 ED-389834J DSILICON DS135E-FB2 FI 2100/1
D3 ED-389834J DSILICON DS135E-FB2 FI 2100/1
D4 ED-389834J DSILICON DS135E-FB2 FI 2 100/1
D5 ED-389834J DSILICON DS135E-FB2 FI 2 100/1
D6 ED-344280 DSILICON HGMA-01-FY2 F05
D7 ED-344280 DSILICON HGMA-01-FY2 F05
F2A *EF-311839 FUSE TSC A250V 1.60A
[J]
F2B *EF-308847 FUSE TSC 125V 1.60A
[A,C]
F2C *EF-601964 FUSE SEMKO T250V 1.60A
[E.V.S]
F2D *EF-601964 FUSE SEMKO T250V 1.60A
[B]
F3A *EF-31 1839 FUSE TSC A250V 1.60A
[J]
F3B *EF-308847 FUSE TSC 125V 1.60A
[A,C]
F3C *EF-601964 FUSE SEMKO T250V 1.60A
[E,V,S]
F3D *EF-601964 FUSE SEMKO T250V 1.60A
[B]
FL1 EH-397365J FILTER EMI DSS306-55B 221 MCUT
FL2 EH-397365J FILTER EMI DSS306-55B 221 MCUT
IC1 6EI-396550J 1C LM2940CT-12
IC17 EI-396559J 1C LM7912CT
J3 EJ-386340J SOCKET RECEPTACLE XLB3-32PCVM1
[DIGITAL OUT]
Ref.No. Part No. Description
FI A*EF-306949 FUSE TSC A250V 1.25A
[J]
FIB *EF-309392 FUSE TSC 125V 1.25A
[A,C]
F1C *EF-601942 FUSE SEMKO T250V 630MA
[E.V.S]
FID *EF-358974 FUSE BET T250V 630MA
[B]
LI *EO-389172J COIL LF LF-4N 502
13. DISPLAY VR P.C BOARD
Ref.No. Part No. Description
VR3 EV-384810J VR ROTARY EVH-CCA363B53 B502
[CONTRAST VR]
14. INPUT JACK P.C BOARD
Ref.No. Part No. Description
J1 EJ-379523 PHONE J3P HLJ4305-3080 S.NUT
[REC IN L]
J2 EJ-379523 PHONE J3P HLJ4305-3080 S.NUT
[REC IN R]
15. POWER SW P.C BOARD
Ref.No. Part No. Description
Cl *EC-361942 CCE VDNS103ZV V103Z 400AC
[E,V,B,S]
C2 *EC-361942 CCE VDNS103ZV V103Z 400AC
[E,V,B,S]
C3 *EC-361942 CCE VDNS103ZV V103Z 400AC
[J,A,C]
SW1 *ES-384812J SW PUSH SDDSA3 02-1
[E,V,B,S] [POWER SW]
SW2 *ES-373020 SW PUSH ESB-8283V
[J,A,C] [POWER SW]
16. VR P.C BOARD
Ref.No. Part No. Description
VR1 EV-384808J VR ROTARY EWK-E9A027A14 A103X2
[REC VR]
VR2 EV-384808J VR ROTARY EWK-E9A027A14 A103X2
[OUT PUT VR]
11.
REC GAIN SW P.C BOARD
Ref.No. Part No. Description
SW3 ES-38481 1JSW SLIDE ESD-32243
[REC GAIN SW]
PARTS LIST

FINAL ASSEMBLY

17. MEMORY P.C BOARD
Ref.No. Part No.
IC1 EI-386694J
IC2 EI-386694J
IC3 EI-386694J
IC4 EI-386694J
IC5 EI-386694J
IC6 EI-386694J
IC7 EI-386694J
IC8 EI-386694J
IC9 EI-386694J
IC10 EI-386694J
IC11 EI-386694J
IC12 EI-386694J
IC13 EI-386694J
IC1
4
EI-386694J
IC1
5
EI-386694J
IC1
6
EI-386694J
IC1
7
El-3891 42J
IC1
8
El-3891 42J
IC19 EI-386295J
IC20 EI-386295J
Description
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM511000P-10S
1C HM511000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C HM51 1000P-10S
1C CD74AC541
E
1C CD74AC541E
1C HD74HC541P
1C HD74HC541
P
18. INVERTOR P.C BOARD
Ref.No. Part No. Description
FR2 ER-397529J RFUSE HS12 ERQ12AJ 1/2W 4R7J
T1 BT-390145J TRANS PULSE NI05-05-5

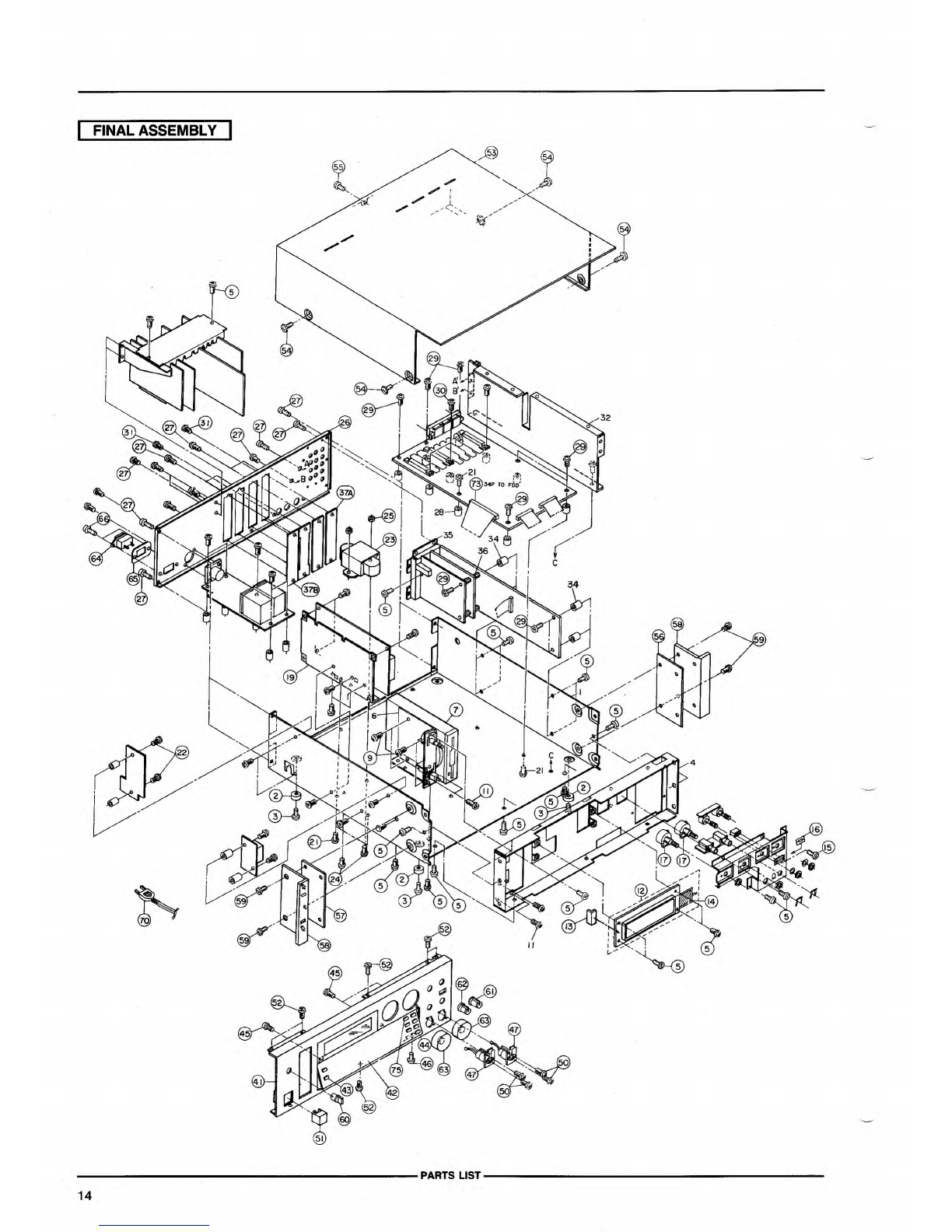

19. FINAL ASSEMBLY
Ref.No. Part No. Description
2SA-349332 FOOT
3ZS-344754 ST PAN30X06STL CMT C080
5ZS-320906 ST BR30X06STL CMT
7BB-393291
J
FLOPPY DISK FD-235HF-270
9ZS-323728 BID30X05STL CMT
11 ZS-422076 PAN30X05STL CMT
12 EM-38231 7J IND LCD EDM-MPJ2COW
13 EJ-378269 PLUG B10P-ER 10P
14 EL-728382J EL BACK LIGHT
15 ZS-608095 PAN20X05STL CMT
16 SZ-38841 2J MASK SLIDE SW
17 ES-365943 SW EWT-XDFK2550B
19 *BP-397454J SW POW PMC50E4XULA 100/200
21 ZS-417150 PAN40X06STL CMT
22 ZS-379405 BID30X06STL CMT
23A *BT-396269J TRANS POW S1100(J)
23B *BT-396271J TRANS POW S1100(C,A)
23C *BT-396272J TRANS POW SI 100(E,V,B,S)
24 ZS-345530 ST BID30X08STL CMT
25 ZW-609434 NFRANGE 30STL CMT
26 SP-396273J PANEL REAR S1100
27 ZS-345272 ST BR30X06STL BNI
29 ZS-379405 BID30X06STL CMT
30 ZS-421806 PAN30X08STL CMT
31 ZS-350934 PT BR30X08STL BNI
37A SC-384696J COVER CONNECTOR(A)
37B SC-385427J COVER CONNECTOR(B)
41 SP-396283J PANEL FRONT S1100 PART
42 SP-400417J1 PANEL FUNCTIONS) PART
43 SK-382418J1 KNOB PUSH(A)
44 SK-400299J KNOB PUSH(D)
45 ZS-323728 BID30X05STL CMT
46 ZS-325495 T2BR30X06STL CMT
47 EJ-384747J SOCKET RECEPTACLE XLR-31-F77
50 ZS-355590 CTS26X06STL NI3
51 SK-343017J KNOB POWER (C)
52 ZS-345530 ST BID30X08STL CMT
53 SP-401684J COVER UPEER MASKING
54 ZS-341959 ST BID40X06STL NI3
55 ZS-319460 T2BR30X06STL BZN PROJECTION
56 SC-38471 7
J
COVER MOUNT(R)
57 SC-38471 8J COVER MOUNT(L)
58 SH-362361 HANDLE RACK
59 ZS-322570 ST BID40X08STL NI3
Ref.No. Part No. Description
60 SK-384814J KNOB VOL-C
61 SK-386675J KNOB SINGLE(2)PART
62 SK-386676J KNOB SINGLE(3)PART
63 SK-384714J KNOB CONTROL PART
64A *EJ-358633 SOCKET INLET SOT-17 2P
[J]
64B *EJ-358632 SOCKET INLET SOT-16 3P
[C,A,E,V,B,S]
65 MZ-385430J HOLDER INLET
66 ZS-362534 T2CTS30X1 0STL BNI
70A *EW-365947 AC CORD 250 SKP210KS17B AJ
[J]
70B *EW-368420 AC CORD200SKP30KS1 6BAC
[A.C]
70C *EW-368421 AC CORD200SKP481 9DKS1 6BE
[E,V]
70D *EW-368422 AC CORD200 KS-1 16AGTBS
[B]
70E *EW-368418 AC CORD200SKP550KS1 6BS
[S]
73 EW-396261
J
WIRE ASSY SHOO W904 34P
NOTE:
Parts will not be supplied if they are not listed in the parts
list, even if they appear on the assembling illustrations
with reference No.
EXM 008
2. MEMORY P.C BOARD
Ref.No. Part No. Description
IC1 El-39481 2J 1C HM514100ZP-10
IC2 El-39481 2J 1C HM514100ZP-10
IC3 El-39481 2J 1C HM514100ZP-10
IC4 El-39481 2J 1C HM514100ZP-10
IC5 El-39481 2J 1C HM514100ZP-10
IC6 El-39481 2J 1C HM514100ZP-10
IC7 El-39481 2J 1C HM514100ZP-10
IC8 El-39481 2J 1C HM514100ZP-10
IC9 El-39481 2J 1C HM514100ZP-10
IC10 El-39481 2J 1C HM514100ZP-10
IC11 El-39481 2J 1C HM514100ZP-10
IC12 El-39481 2J 1C HM514100ZP-10
IC13 El-39481 2J 1C HM514100ZP-10
IC14 El-39481 2J 1C HM514100ZP-10
IC15 El-39481 2J 1C HM514100ZP-10
IC16 El-39481 2J 1C HM514100ZP-10
IC17 El-3891 42J 1C CD74AC541
E
IC18 El-3891 42J 1C CD74AC541
E
IC1
9
EI-386295J 1C HD74HC541
P
IC20 EI-386295J 1C HD74HC541
P
J1 EJ-384790J PLUG 64P-6033-0431 -0 64P
PARTS LIST
15

ABBREVIATIONS FOR THE SERVICE MANUAL
ABBREVIATION EXPLANATION ABBREVIATION EXPLANATION
AMP (Amp) AMPlifier MINI MINImum
BBD Backet Brigade Diode MIX MIXer
BCD Binary Code Decimal MOD MODulation
B.DOWN Brake DOWN M.WHEEL
|
Modulation WHEEL
B.UP Back UP osc OSCillator
CE Chip Enable RAM Random Access Memory
CH CHannel RD ReaD
COMP COMParator REG REGulator
CONT CONTrol RESO RESOnance
CV Control Voltage RL ReLay
D/A Digital to Analogue ROM Read Only Memory
EG Envelope Generator S/H Sample and Hold
EXT EXTernal SW SWitch
FREQ FREQuency THRU THRoUgh
HPF High Pass Filter TRANS TRANSpose
INH INHibit UUpper
INT INTerrupt VA Voltage Analog
INV INVerter VCA Voltage Controlled Amplifier
LLower VCF Voltage Controlled Filter
LFO Low Frequency Oscillator VR Variable Resistor
MAX MAXimum Vref REFerence Voltage
MEMO MEMOry WR WRite
MIDI Musical Instrument Digital Interface
AKAI ELECTRIC CO., LTD.
ELECTRONIC MUSICAL INSTRUMENT DIV.
335 Kariyado, Nakahara-ku, Kawasaki-shi, Kanagawa, Japan
SERVICE SECr KAWASAKI 044(434)7710 FAX [phone]
Printed No. 90101 9-A1 -350 Printed Date November 23, 1990
Printed in Japan
