Akai QX-D4300 User manual

SERVICE MANUAL
Model:
QXD4300
MINI HIFI
MICRO COMPONENT SYSTEM

1 OF 13
Model no.: QX-D4300
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
1 121-481111-7V TRANSFORMER EI-48 230V VDE APP PCS
W/115?M20 FUSE
(
SF48E/131603
)
(
S0012
)
LOW CURRENT
2 192-300000-02 CLOSE END CONNECTOR UL/VDE APP PCS
HW-C4
(
TCM & FAVORTRON
)
3 201-033072-1D POWER CORD VDE APP. 72" PCS
W/0 SOCKET END CUT
(
YCV-010
PLUG
)
(
Y0007
)
4 212-0GT161-53 CASS DECK THL-21SC-T1615A 6KEY PCS
W/CLUTCH MOTOR:EG530AD-2B R/P
HEAD:AP-4211L
(
0.6mm SPRING
)
5 303-000004-01 CABLE TIE 4" CT-100M PCS
(
T0042
)
6 500-030807-00 SCREW 3 x 8 W/T PCS
7 500-030826-00 SCREW 3 x 8 K/T
(
HEXAGON PCS
SOCKET
)
8 500-031001-00 SCREW 3 x 10 P/T PCS
9 500-031003-00 SCREW 3 x 10 B/T PCS
10 500-031007-00 SCREW 3 x 10 W/T PCS
11 500-040803-00 SCREW 4 x 8 B/T PCS
12 501-020404-00 SCREW 2 x 4 T/T PCS
13 501-030602-00 SCREW 3 x 6 B/M PCS
14 501-030808-00 SCREW 3 x 8 PW/M PCS
15 503-153515-00 FIBER WASHER 3.5 x 15 x 1.5mm PCS
16 605-011000-03 RUBBER FOOT ?1 x 3mm W/TAPE PCS
(
3M#9448
)
(
BLACK AP401B
A-PRODUCT
)
17 701-032900-C0 MKG. BKT.
(
M0028
)
PCS
18 706-068000-A0 RECORDING PLATE
(
S0051
)
PCS
19 707-021800-A0 FIXING PLATE
(
S0051
)
PCS
20 713-021800-A0 HEADPHONE JACK MTG. BKT PCS
(
S0051
)
21 717-088700-A0 CASS P.C.B. MTG. BKT "1" PCS
(
S0051
)
22 717-088804-A0 CASS P.C.B. MTG. BKT "D" PCS
(
S0051
)
23 719-882800-00 CASS DOOR SPRING ?.8MM PCS
24 721-032800-00 CD DOOR SPRING ?.2mm PCS
25 738-882800-00 VOLUME KNOB SPRING ?.5mm PCS
26 800-032900-03 FRONT CABINET BRIGHT SILVE
R
PCS
SPRAY
(
A78-030
)
& HOT STAMP
W/D.GREY
(
432C
)
AKAI
(Q
X-D4300
)
27 801-032900-01 BACK CABINET MOULD GREY PCS
(
PMS430C
)
28 806-032900-01 CD BASE BRIGHT SILVER SPRAY PCS
(
A78-030
)
W/D.GREY
(
432C
)
29 807-032900-01 CD DOOR BRIGHT SILVER
(
A78-030
)
PCS
SPRAY W/D.GREY
(
432C
)
30 809-032900-01 CASS DOOR COVER BRIGHT SILVER PCS
(
A78-030
)
& HOT STAMP W/D.GREY
(
432C
)
31 812-032800-06 CASS KNOB "PLAY" MOULD GREY PCS
S
p
are Parts List

2 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
(
430C
)
32 813-032800-06 CASS KNOB "PAUSE" MOULD GREY PCS
(
430C
)
33 814-032800-06 CASS KNOB "F.F." MOULD GREY PCS
(
430C
)
34 815-032800-06 CASS KNOB "REW" MOULD GREY PCS
(
430C
)
35 816-032800-06 CASS KNOB "STOP/EJECT" MOULD PCS
GREY
(
430C
)
36 817-032800-06 CASS KNOB "RECORD" MOULD GREY PCS
(
430C
)
37 821-032900-01 CD DOOR OPEN KNOB BRIGHT PCS
SILVER SPRAY
(
A78-030
)
38 822-032900-01 VOLUME KNOB CHROME PCS
39 824-032900-01 POWER KNOB CHROME PCS
40 825-032901-02 FUNCTION KNOB "CD" MOULD CLEAR PCS
LENS SILKSCREEN SILVER
(
877C
)
ON B/G,W/WHITE LETTE
R
41 825-032902-02 FUNCTION KNOB "TUNER" MOULD PCS
CLEAR LENS SILKSCREEN SILVE
R
(
877C
)
ON B/G,W/WHITE LETTER
42 825-032904-02 FUNCTION KNOB "TAPE" MOULD PCS
CLEAR LENS SILKSCREEN SILVE
R
(
877C
)
ON B/G,W/WHITE LETTER
43 832-032900-04 CASS DOOR LENS MOULD CLEAR PCS
LENS SILKSCREEN SILVER
(
877C
)
ON B/G,W/WHITE LETTER AKA
I
44 835-032900-02 DISPLAY LENS MOULDED CLEA
R
PCS
LENS SILKSCREEN SILVER
(
877C
)
ON B/G & W/WHITE LETTE
R
45 836-032900-04 CD DOOR LENS MOULD CLEAR LENS PCS
W/WHITE ON SURFACE S.S
(
REV1
)
46 836-032901-00 POWER LENS PCS
47 838-032800-00 GEAR MOULD BLAC
K
PCS
48 839-032800-00 GEAR HOLDER MOULD BLAC
K
PCS
49 843-032800-00 DISPLAY BKT MOULD WHITE PCS
50 845-021800-00 PCB MTG. BKT
(
A
)
MOULD BLAC
K
PCS
51 845-032900-00 PCB BKT.
(
RC VER
)
PCS
52 845-032901-00 CD DOOR OPEN KNOB BKT. PCS
53 878-032900-01 CASS KNOB DOOR BRIGHT SILVER PCS
(
A78-030
)
W/D.GREY
(
432C
)
54 901-032800-36 GIFT BOX AKAI DESIGN
(Q
X-D4300
)
PCS
SILVER/CLEAR LENS
"4905192504823"
55 902-032900-02 INSTRUCTION MANUAL AKAI PCS
DESIGN
(Q
X-D4300
)
(
ENG/CZ/SK
)
56 912-032820-00 BACKLIGHT PLATE
(
90 X 27.5 X PCS
0.6mm
)
BLUE COLO
R
57 912-032830-00 BACKLIGHT FILM
(
90 X 27.5 X PCS
0.1mm
)
58 912-032900-01 RC PLATE
(
SMOKY COLOR 0.5 PVC
)
PCS
59 912-032901-02 RATING PLATE AKAI DESIGN PCS
(Q
X-D4300
)
(
CZECH VER
)
60 919-000001-01 SERIAL No. LABEL STD. PCS
61 919-020099-01 RESET LABE
L
PCS

3 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
62 919-032916-01 IMPEDANCE LABEL AKAI DESIGN PCS
(Q
X-D4300
)
4 OHM
63 919-088802-01 LASER BEAM LABEL YELLOW ST
D
PCS
64 919-088803-06 LASER CAUTION LABEL YELLOW B/
G
PCS
W/BLK STD
(
NEW
)(
2000 YEAR VER
)
65 919-088804-02 CLASS 1 LABEL YELLOW STD PCS
66 919-380099-04 P.R.C. LABEL PCS
67 919-530213-01 THERMAL FUSE LABEL 115

PCS
68 930-032901-00 POLYFOAM END CAP "TOP 1" PCS
69 930-032902-00 POLYFOAM END CAP "TOP 2" PCS
70 930-032903-00 POLYFOAM END CAP "TOP 3" PCS
71 930-032904-00 POLYFOAM END CAP "TOP 4" PCS
72 930-032905-00 POLYFOAM END CAP "BOTTOM 1" PCS
73 930-032906-00 POLYFOAM END CAP "BOTTOM 2" PCS
74 930-032907-00 POLYFOAM END CAP "BOTTOM 3" PCS
75 930-032908-00 POLYFOAM END CAP "BOTTOM 4" PCS
76 960-120504-01 POLYBAG 12"
(
L
)
x 5"
(
O
)
x PCS
0.04mm W/PRINTING PUNCH HOLE
77 960-181604-01 POLYBAG 18"
(
L
)
x 16"
(
O
)
x PCS
0.04mm W/PRINTING & PUNCH HOLE
78 960-221904-01 POLYBAG 22"
(
L
)
x 19"
(
W
)
x PCS
0.04mm W/PRINTING & PUNCH HOLE
79 K-003H-0003 RH-03H
(
16 KEYS
)
REMOTE PART PCS
ASS'Y BRIGHT SILVER SPRAY
(
MX-329
)
AKAI DESIGN
0,1 100-023309-00 P.C.B. REMOTE BOARD MX-V233PLL PCS
(
IC 202
)
0,2 101-0S9243-97 I.C. SC9243
(
SILAN
)
REMOTE IC PCS
0,3 102-038050-04 TRANSISTOR 2SC8050D PCS
(
S0059
)
0,4 104-134148-3G DIDOE 1N4148
(
D0005
)
PCS
0,5 104-600350-4I INFRARED LED IED350B PCS
(
M0008
)
0,6 112-100455-00 RESONATOR 455kHz 2 PIN PCS
CRB455E ANGLE TYPE
(
M0004
)
0,7 130-110931-00 RESISTOR 1 OHM 1/4W ?% PCS
0,8 130-168231-00 RESISTOR 6.8 K OHM 1/4W ?% PCS
0,9 140-010122-00 CERAMIC CAP 100
p
F 50V ?0% PCS
0,1 141-047304-30 E. CAP 47uF 16V +80-20% PCS
0,11 611-000306-00 KEYPAD MOULDED PAD
(
27 KEYS
)
PCS
MOULD GREY
(
PMS 424C
)
0,12 720-000300-00 BATTERY SPRING
(
-
)
PCS
0,13 720-000301-00 BATTERY SPRING
(
+
)
PCS
0,14 720-001200-00 BATTERY SPRING
(
+/-
)
PCS
0,15 858-000300-76 FRONT CABINET
(
RH-03
)
BRIGHT PCS
SILVER
(
A78-030
)
W/D.GREY
(
432C
)
S.S. AKAI
(Q
X-D4300
)
0,16 859-000300-04 REAR CABINET
(
RH-03
)
BRIGHT PCS
SILVER
(
A78-030
)
SPRAY
0,17 860-000300-04 BATTERY DOOR
(
RH-03
)
BRIGHT PCS
SILVER
(
A78-030
)
SPRAY
0,18 912-000306-05 REMOTE HANDSET PLATE
(
23 KEYS
)
PCS
BLACK W/SILVER
(
877C
)
& M.GRE
Y
(
8403C
)
S.S. AKAI
Q
X-D4300
)

4 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
0,19 960-080404-02 POLYBAG 8"
(
L
)
x 4"
(
O
)
x 0.04mm PCS
W/PRINTING
(
SKD
)
80 K-CD39-0001 CD PART ASS'Y MX-32/MX-329 PCS
(
SONY CD
)
0,1 175-012100-4B LEAF SWITCH 1P2T TC48-021-03 PCS
(
51-60G FORCE
)
(
A0003
)
0,2 211-000213-08 CD MECHANISM
(
KSM-213CDM
)
PCS
(
SONY
)
0,3 500-021001-00 SCREW 2 x 10 P/T PCS
0,4 500-260803-00 SCREW 2.6 x 8 B/T PCS
0,5 501-020401-00 SCREW 2 x 4 P/M PCS
0,6 502-033115-06 METAL WASHER 3.3 x 11.5 x 0.6 PCS
0,7 608-088601-03 CD RUBBER CUSHION
(
SONY 213
)
PCS
(
GREEN
)
SW-02-B658
(
S0044
)
(
HARD
)
-40?
0,8 608-088602-03 CD RUBBER CUSHION
(
SONY 213
)
PCS
(
RED
)
SW-02-A658
(
S0044
)
(
HARD
)
-30?
0,9 614-088600-01 MAGNET RING
(
S0044
)
PCS
0,1 713-031800-A0 MAGNET RING HOLDER
(
THK=0.6mm
)
PCS
LONG TRENE PLATE
(
S0051
)
0,11 847-032800-01 CHUCKING PLATE HOLDER PCS
MOULD GREY 921633
0,12 849-088801-00 CHUCKING PLATE
(
KENLEX
)
PCS
0,13 866-088600-00 CD LENS COVER
(
SONY 213
)
PCS

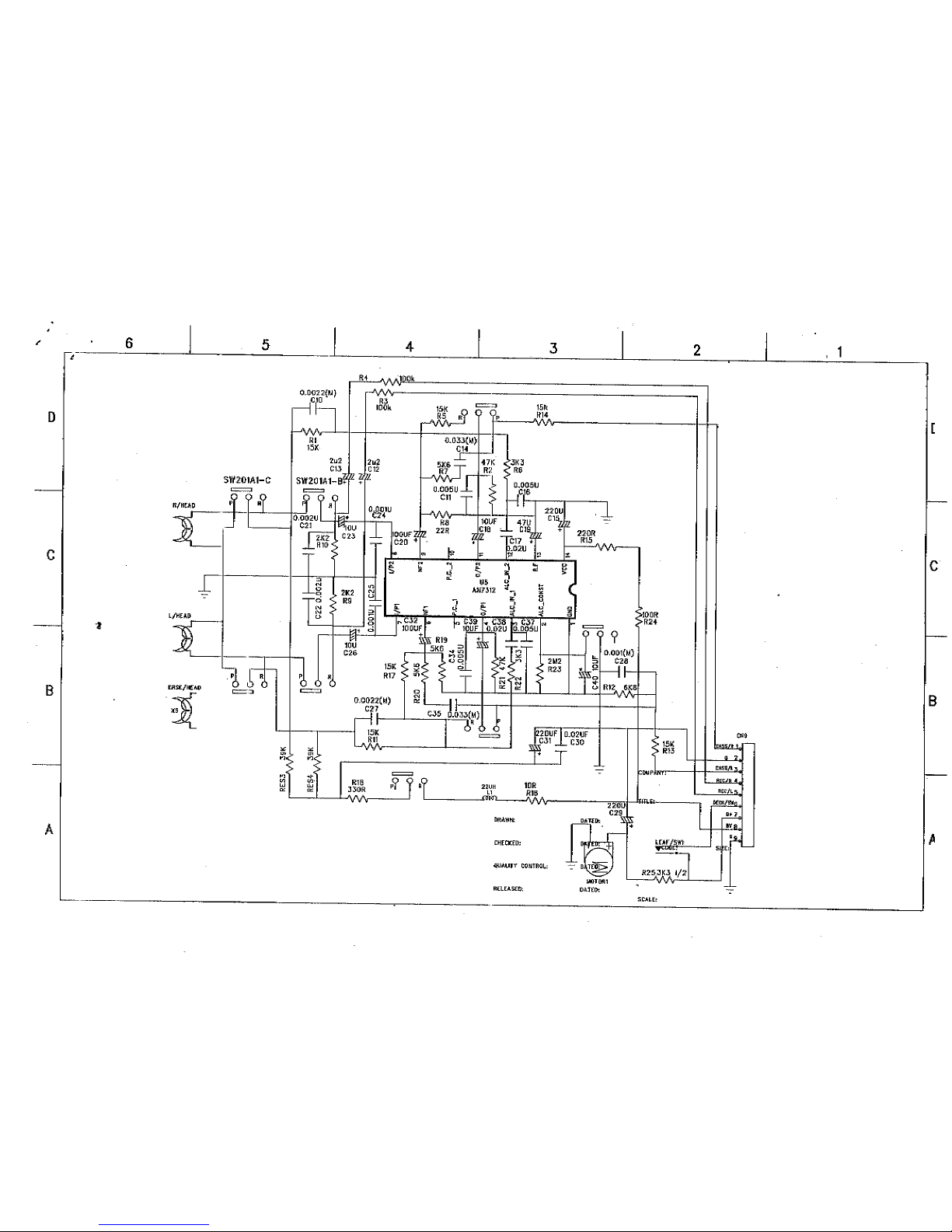

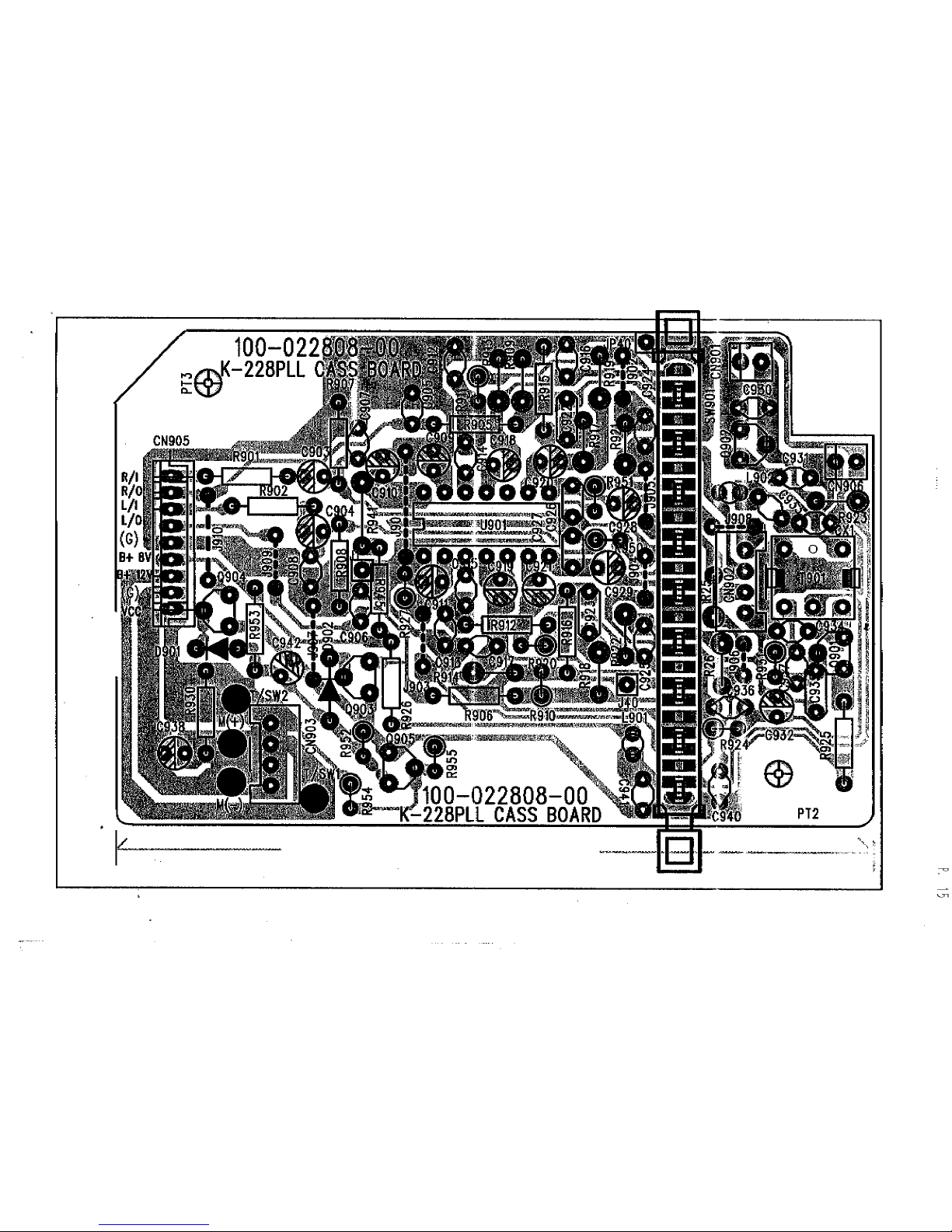

81 PCB-032806-00 CASSETTE PCB K-328 ASS'Y F/AC PCS
& W/BEAT CUT
(
IC 202
)
0,1 100-062802-00 P.C.B. CASSETTE PCB K-628 PCS
(
REV.1
)
0,2 101-0E7312-53 I.C. AN7312
(
D0005
)
PCS
0,3 102-038050-04 TRANSISTOR 2SC8050D PCS
(
S0059
)
0,4 102-039014-03 TRANSISTOR 2SC9014C PCS
(
S0059
)
0,5 102-039015-03 TRANSISTOR 2SC9015C PCS
(
S0059
)
0,6 116-934932-03 I.F.T. REC BIAS 10mm
(
BLACK
)
PCS
N
o.:4932
0,7 117-422204-2B CHOKE COIL 22uH +/-10% PCS
(
DR2W 4 x 5.5-220K
)
(
T0055
)
0,8 130-110031-00 RESISTOR 10 OHM 1/4W ?% PCS
0,9 130-110331-00 RESISTOR 10 K OHM 1/4W ?% PCS
0,1 130-110431-00 RESISTOR 100 K OHM 1/4W ?% PCS
0,11 130-115331-00 RESISTOR 15 K OHM 1/4W ?% PCS
0,12 130-122031-00 RESISTOR 22 OHM 1/4W ?% PCS
0,13 130-122131-00 RESISTOR 220 OHM 1/4W ?% PCS
0,14 130-122531-00 RESISTOR 2.2 M OHM 1/4W ?% PCS
0,15 130-127231-00 RESISTOR 2.7 K OHM 1/4W ?% PCS
0,16 130-133131-00 RESISTOR 330 OHM 1/4W ?% PCS
0,17 130-133231-00 RESISTOR 3.3 K OHM 1/4W ?% PCS
0,18 130-133931-00 RESISTOR 3.3 OHM 1/4W ?% PCS
0,19 130-133932-00 RESISTOR 3.3 OHM 1/2W ?% PCS

5 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
0,2 130-147331-00 RESISTOR 47 K OHM 1/4W ?% PCS
0,21 130-156231-00 RESISTOR 5.6 K OHM 1/4W ?% PCS
0,22 130-168231-00 RESISTOR 6.8 K OHM 1/4W ?% PCS
0,23 130-182331-00 RESISTOR 82 K OHM 1/4W ?% PCS
0,24 140-010122-00 CERAMIC CAP 100
p
F 50V ?0% PCS
0,25 140-020220-00 CERAMIC CAP 0.002uF 50V PCS
0,26 140-020320-00 CERAMIC CAP 0.02uF 50V +80-20% PCS
0,27 140-050220-00 CERAMIC CAP 0.005uF 50V PCS
0,28 141-010303-30 E. CAP 10uF 10V +80-20% PCS
0,29 141-010403-30 E. CAP 100uF 10V +80-20% PCS
0,3 141-022203-30 E. CAP 2.2uF 10V +80-20% PCS
0,31 141-022403-30 E. CAP 220uF 10V +80-20% PCS
0,32 141-022404-30 E. CAP 220uF 16V +80-20% PCS
0,33 141-047303-30 E. CAP 47uF 10V +80-20% PCS
0,34 142-110210-20 MYLAR CAP 0.001uF 100V ?0% PCS
0,35 142-115210-20 MYLAR CAP 0.0015uF 100V ?0% PCS
0,36 142-122310-20 MYLAR CAP 0.022uF 100V ?0% PCS
0,37 142-127210-20 MYLAR CAP 0.0027uF 100V ?0% PCS
0,38 142-133310-20 MYLAR CAP 0.033uF 100V ?0% PCS
0,39 142-147210-20 MYLAR CAP 0.0047uF 100V ?0% PCS
0,4 175-392000-00 PUSH SWITCH 9P2T PS92D04 PCS
(
NON-SHORTING
)
0,41 193-202025-07 WAFER 2 PIN P=2.5mm
(
U0003
)
PCS
0,42 193-204025-07 WAFER 4 PIN P=2.5mm
(
U.F.A
)
PCS
0,43 193-209025-07 WAFER 9 PIN P=2.5mm
(
U0003
)
PCS
0,44 194-040107-26 PIN ASS'Y 4 PIN HOUSING TO PCS
DOUBLE SHIELD WIRE UL #28
160mm P=2.5mm
(
U0003
)
0,45 198-000002-0X BARE WIRE LBS
0,46 198-326010-40 JUMPER WIRE #26 100mm BLAC
K
PCS
UL1007
0,47 198-326010-42 JUMPER WIRE #26 100mm RED PCS
UL1007
0,48 198-326014-41 JUMPER WIRE #26 140mm BROWN PCS
UL1007
0,49 512-020040-00 EYELET 2 x 4mm PCS

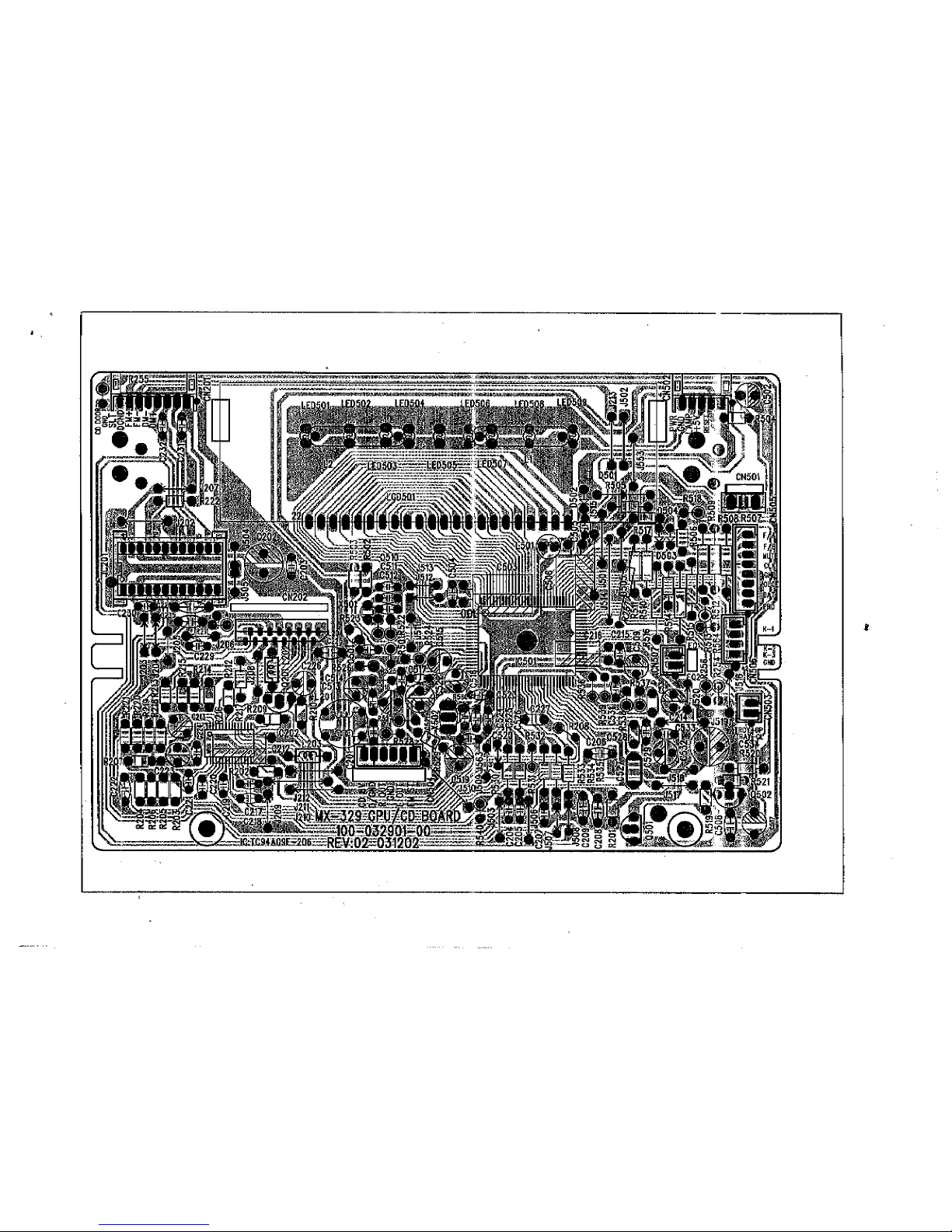

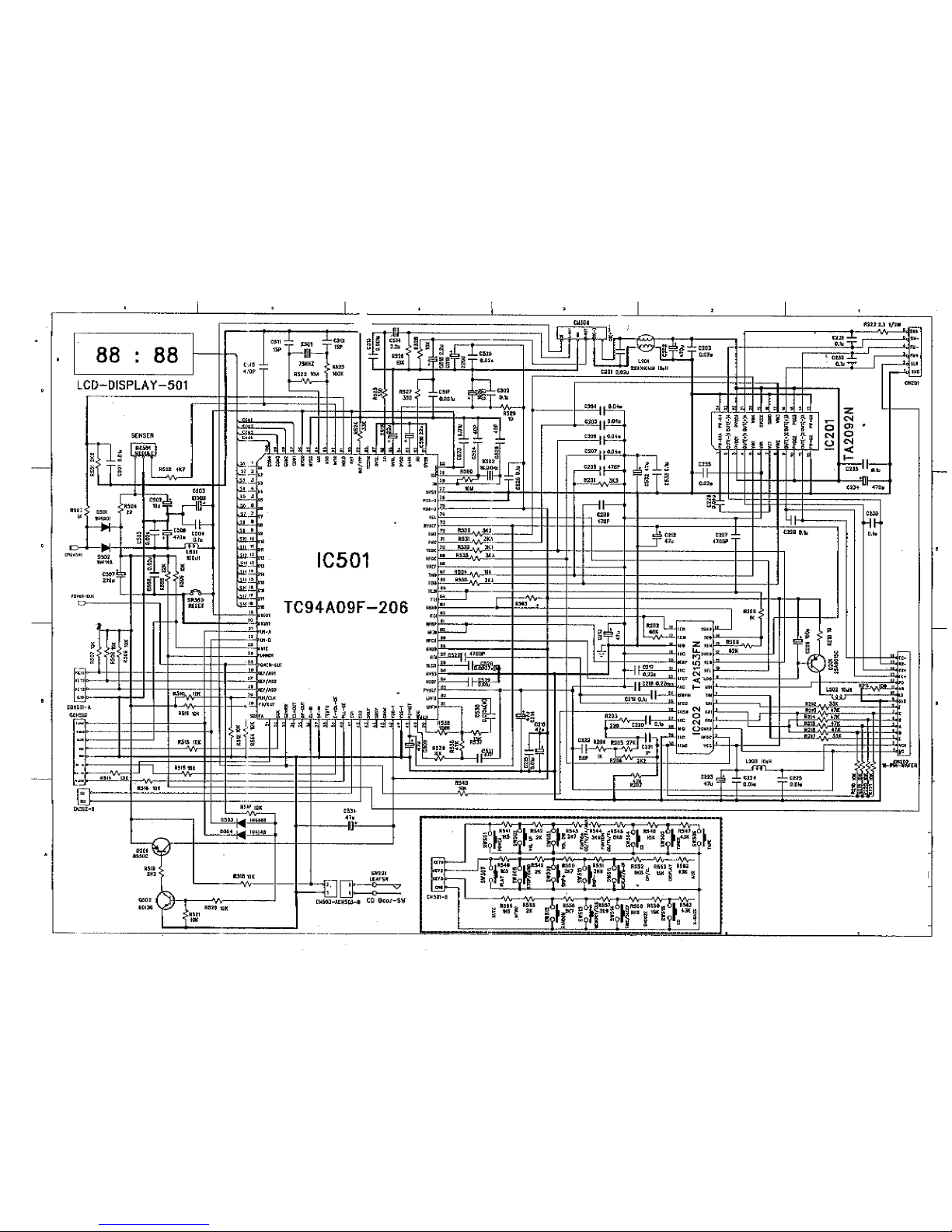

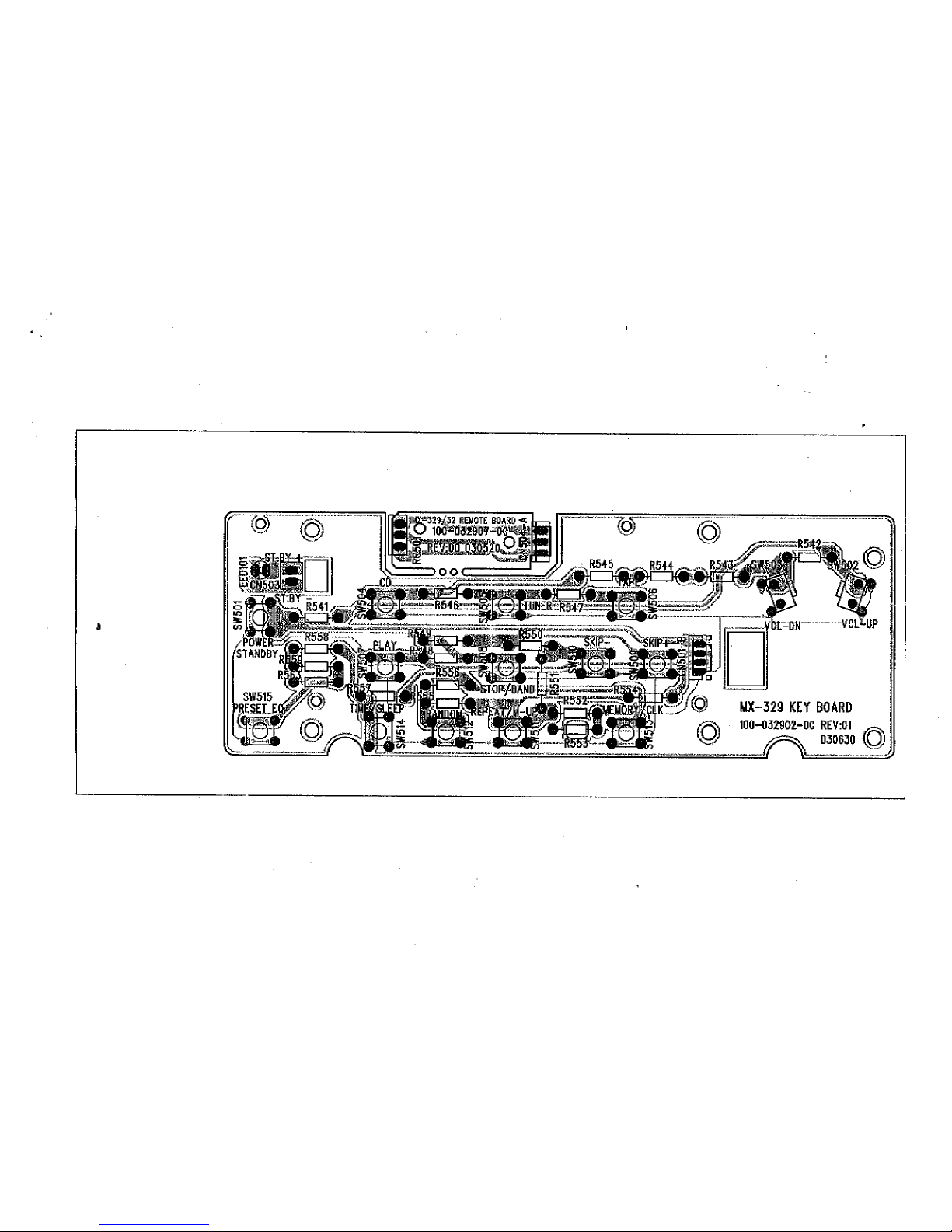

82 PCB-032900-00 CD PCB MX-329 ASS'Y FOR IC 206 PCS
(
SONY CD
)
0,1 100-032901-00 P.C.B. CD BOARD MX-329 PCS
0,2 100-032907-00 P.C.B. REMOTE 94HB PCS
0,3 101-002092-04 I.C. TA2092N PCS
0,4 101-0T2153-04 I.C. TA2153FN
(
S0005
)
PCS
0,5 101-0T9406-04 I.C. TC94A09F-206
(
CPU-IC
)
PCS
(
S0005
)
0,6 102-038550-03 TRANSISTOR 2SC8550C PCS
0,7 102-039014-03 TRANSISTOR 2SC9014C PCS
(
S0059
)
0,8 102-039015-03 TRANSISTOR 2SC9015C PCS
(
S0059
)
0,9 104-134148-3G DIDOE 1N4148
(
D0005
)
PCS
0,1 104-314001-3G DIODE 1N4001
(
D0005
)
PCS
0,11 105-017138-05 DETECT SENSOR RPM7138 PCS
(
TELELINK
)
0,12 106-040970-05 LAMP ? x 10mm 9V 70mA PCS

6 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
(
H0030
)
0,13 112-301693-00 RESONATOR 16.93MHZ 2 PINS PCS
0,14 113-750005-02 CRYSTAL 75KHZ DT-38
(
A0016
)
PCS
0,15 117-410204-10 CHOKE COIL 10uH ?mm ?0% PCS
0,16 117-410305-11 CHOKE COIL 100uH ?mm ?0% PCS
0,17 117-410305-1B CHOKE COIL 100uH ?mm ?0% PCS
(
DR2W 4 x 5.5-101K
)
(
T0055
)
0,18 117-600703-00 FERRITE CORE COIL 2 x 4 x 10m
m
PCS
0,19 130-110031-00 RESISTOR 10 OHM 1/4W ?% PCS
0,2 130-110131-00 RESISTOR 100 OHM 1/4W ?% PCS
0,21 130-110231-00 RESISTOR 1 K OHM 1/4W ?% PCS
0,22 130-110331-00 RESISTOR 10 K OHM 1/4W ?% PCS
0,23 130-110431-00 RESISTOR 100 K OHM 1/4W ?% PCS
0,24 130-110631-00 RESISTOR 10 M OHM 1/4W ?% PCS
0,25 130-112331-00 RESISTOR 12 K OHM 1/4W ?% PCS
0,26 130-115331-00 RESISTOR 15 K OHM 1/4W ?% PCS
0,27 130-122031-00 RESISTOR 22 OHM 1/4W ?% PCS
0,28 130-122131-00 RESISTOR 220 OHM 1/4W ?% PCS
0,29 130-122231-00 RESISTOR 2.2 K OHM 1/4W ?% PCS
0,3 130-122331-00 RESISTOR 22 K OHM 1/4W ?% PCS
0,31 130-122431-00 RESISTOR 220 K OHM 1/4W ?% PCS
0,32 130-122932-00 RESISTOR 2.2 OHM 1/2W ?% PCS
0,33 130-133131-00 RESISTOR 330 OHM 1/4W ?% PCS
0,34 130-133231-00 RESISTOR 3.3 K OHM 1/4W ?% PCS
0,35 130-133331-00 RESISTOR 33 K OHM 1/4W ?% PCS
0,36 130-139231-00 RESISTOR 3.9 K OHM 1/4W ?% PCS
0,37 130-147231-00 RESISTOR 4.7 K OHM 1/4W ?% PCS
0,38 130-147331-00 RESISTOR 47 K OHM 1/4W ?% PCS
0,39 130-168331-00 RESISTOR 68 K OHM 1/4W ?% PCS
0,4 130-182331-00 RESISTOR 82 K OHM 1/4W ?% PCS
0,41 140-010310-00 CERAMIC CAP 0.01uF 25V +80-20% PCS
0,42 140-010410-00 CERAMIC CAP 0.1uF 25V +80-20% PCS
0,43 140-010922-00 CERAMIC CAP 1
p
50V ?0% PCS
0,44 140-015022-20 CERAMIC CAP 15
p
50V ?0% NPO PCS
0,45 140-020320-00 CERAMIC CAP 0.02uF 50V +80-20% PCS
0,46 140-020322-00 CERAMIC CAP 0.02uF 50V ?0% PCS
0,47 140-022420-00 CERAMIC CAP 0.22uF 50V +80-20% PCS
0,48 140-040022-00 CERAMIC CAP 40
p
F 50V ?0% PCS
0,49 140-040320-00 CERAMIC CAP 0.04uF 50V +80-20% PCS
0,5 140-047022-00 CERMAIC CAP 47
p
50V ?0% PCS
0,51 140-047122-00 CERAMIC CAP 470
p
F 50V ?0% PCS
0,52 140-056022-00 CERAMIC CAP 56
p
50V ?0% PCS
0,53 141-010303-30 E. CAP 10uF 10V +80-20% PCS
0,54 141-010403-30 E. CAP 100uF 10V +80-20% PCS
0,55 141-010503-30 E. CAP 1000uF 10V +80-20% PCS
0,56 141-022207-30 E. CAP 2.2uF 50V +80-20% PCS
0,57 141-022303-30 E. CAP 22uF 10V +80-20% PCS
0,58 141-022403-30 E. CAP 220uF 10V +80-20% PCS
0,59 141-047303-30 E. CAP 47uF 10V +80-20% PCS
0,6 141-047404-30 E. CAP 470uF 16V +80-20% PCS
0,61 142-110210-20 MYLAR CAP 0.001uF 100V ?0% PCS
0,62 142-115310-20 MYLAR CAP 0.015uF 100V ?0% PCS
0,63 142-127210-20 MYLAR CAP 0.0027uF 100V ?0% PCS
0,64 142-147210-20 MYLAR CAP 0.0047uF 100V ?0% PCS
0,65 161-5B9046-36 LCD DISPLAY G9046TT-P
(
A7
)
HTN PCS

7 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
W/22 PIN L=36mm TRANSMISSIVE
(
Y0013
)
0,66 193-204020-07 WAFER 4 PIN P=2mm
(
U0003
)
PCS
0,67 193-208020-17 WAFER 8 PIN P=2mm
(
U.F.A
)
PCS
(
ANGLE TYPE
)
0,68 193-216010-0G 16 PIN WAFER P=1MM X 2 ROW PCS
DOUBLE ENTRY & STREIGHT TYPE
(
02-3100-1160
)
(
M0008
)
0,69 194-020004-16 PIN ASS'Y 2 PIN HOUSING TO PCS
UL1007 #26 180mm P=2mm
(
U0003
)
0,7 194-050467-19 PIN ASS'Y 5 PIN HOUSING TO PCS
FLAT CABLE #26 250mm P=2m
m
(
T0061
)
0,71 194-060412-16 PIN ASS'Y 6 PIN HOUSING TO 3 PCS
PIN UL1007 #26 & 3 PIN D/S
WIRE L=180mm P=2mm
(
U0003
)
0,72 194-08U435-16 PIN ASS'Y 8 PIN HOUSING TO PCS
FLAT CABLE #26 L=150mm P=2m
m
(
U0003
)
0,73 194-080480-19 PIN ASS'Y 8 PIN HOUSING TO PCS
UL1007 #26 180/220mm P=2mm
0,74 198-000002-0X BARE WIRE LBS
0,75 198-326005-40 JUMPER WIRE #26 50mm BLAC
K
PCS
UL1007
0,76 198-326015-50 JUMPER WIRE #26 150mm BLAC
K
PCS
UL1007
0,77 199-168420-4E FILM FLAT CABLE 16 PIN P=1m
m
PCS
L=4+200+4mm
(
SONY
)(
KMW9340-1A
)
0,78 714-856600-A0 HEAT SINK
(
0.5mm TIN PLATE
)
PCS
(
S0051
)

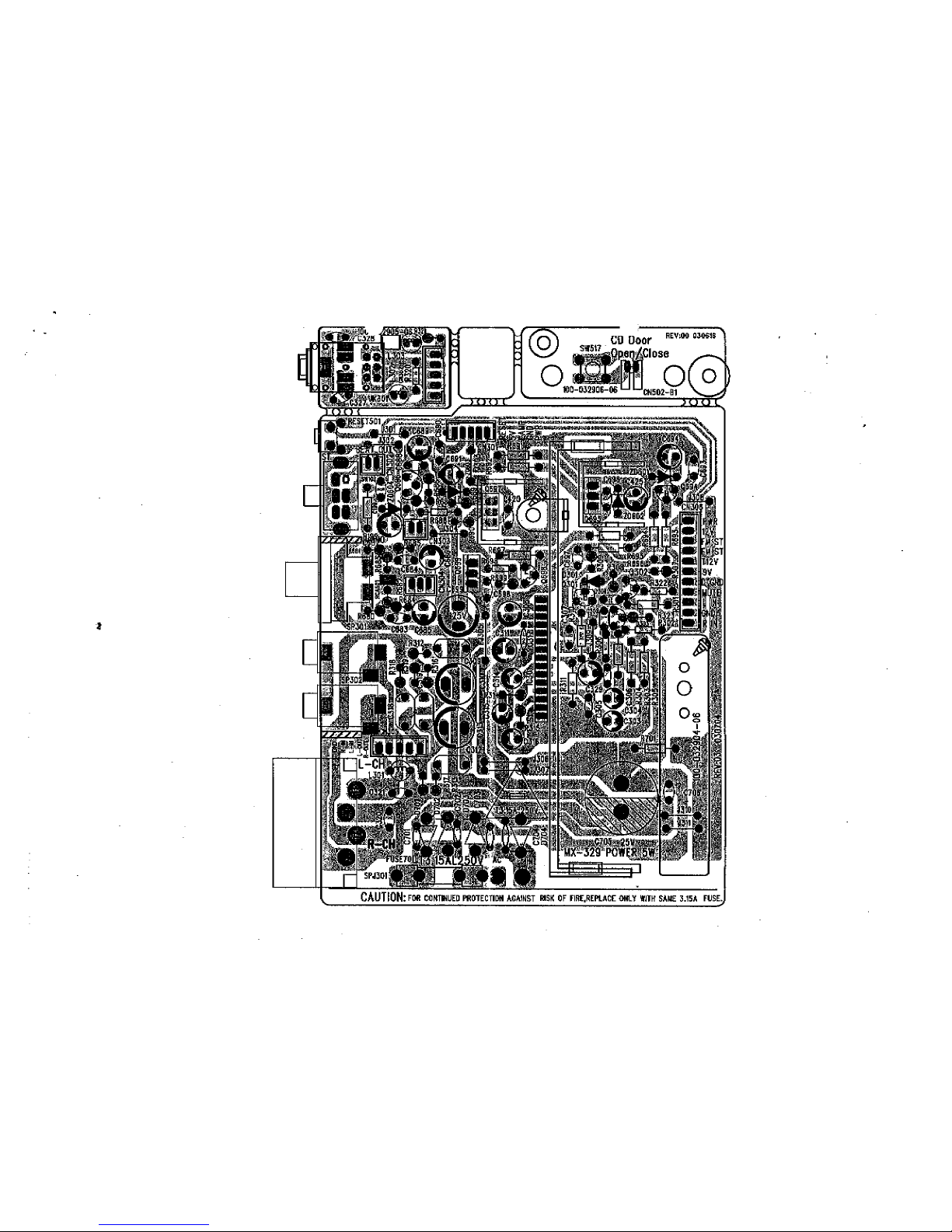

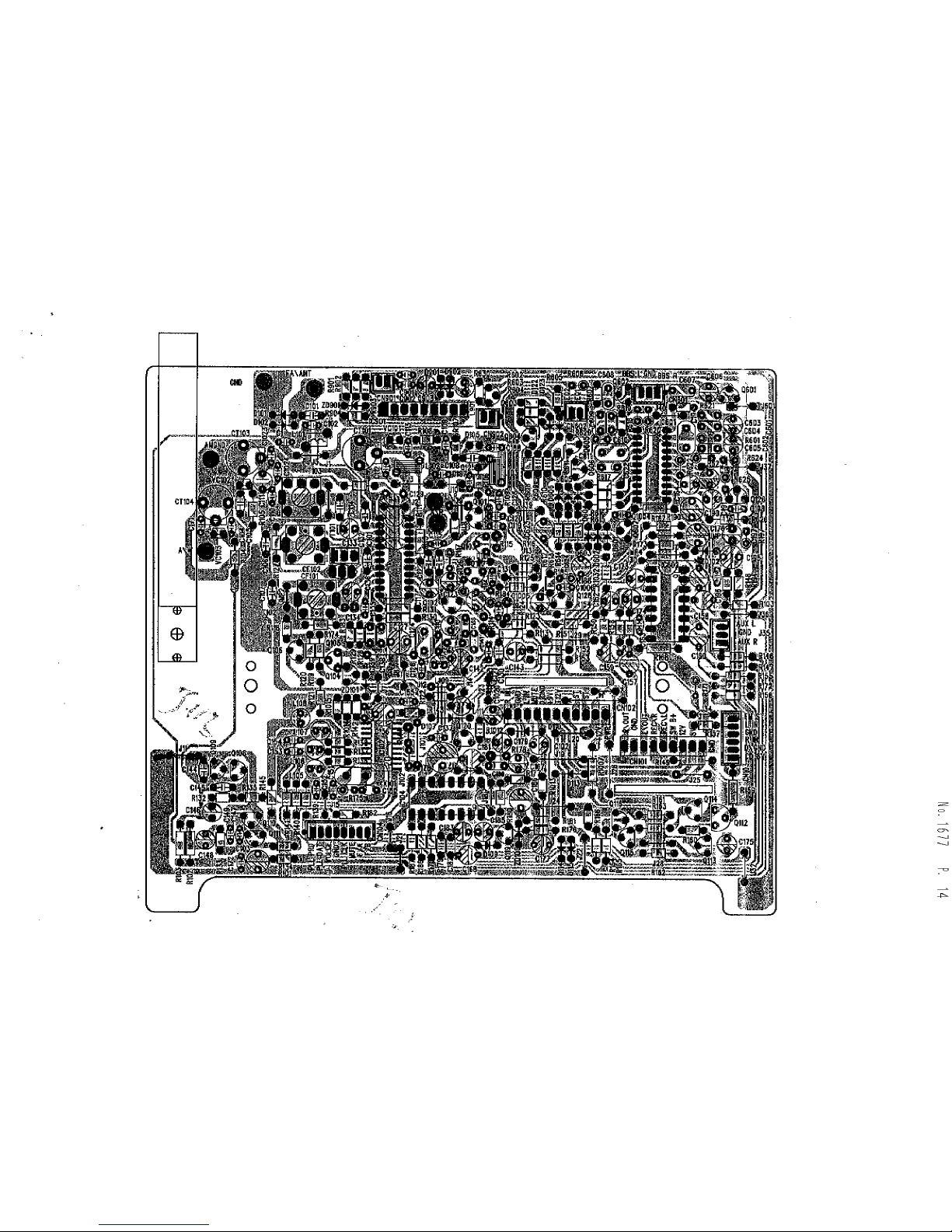

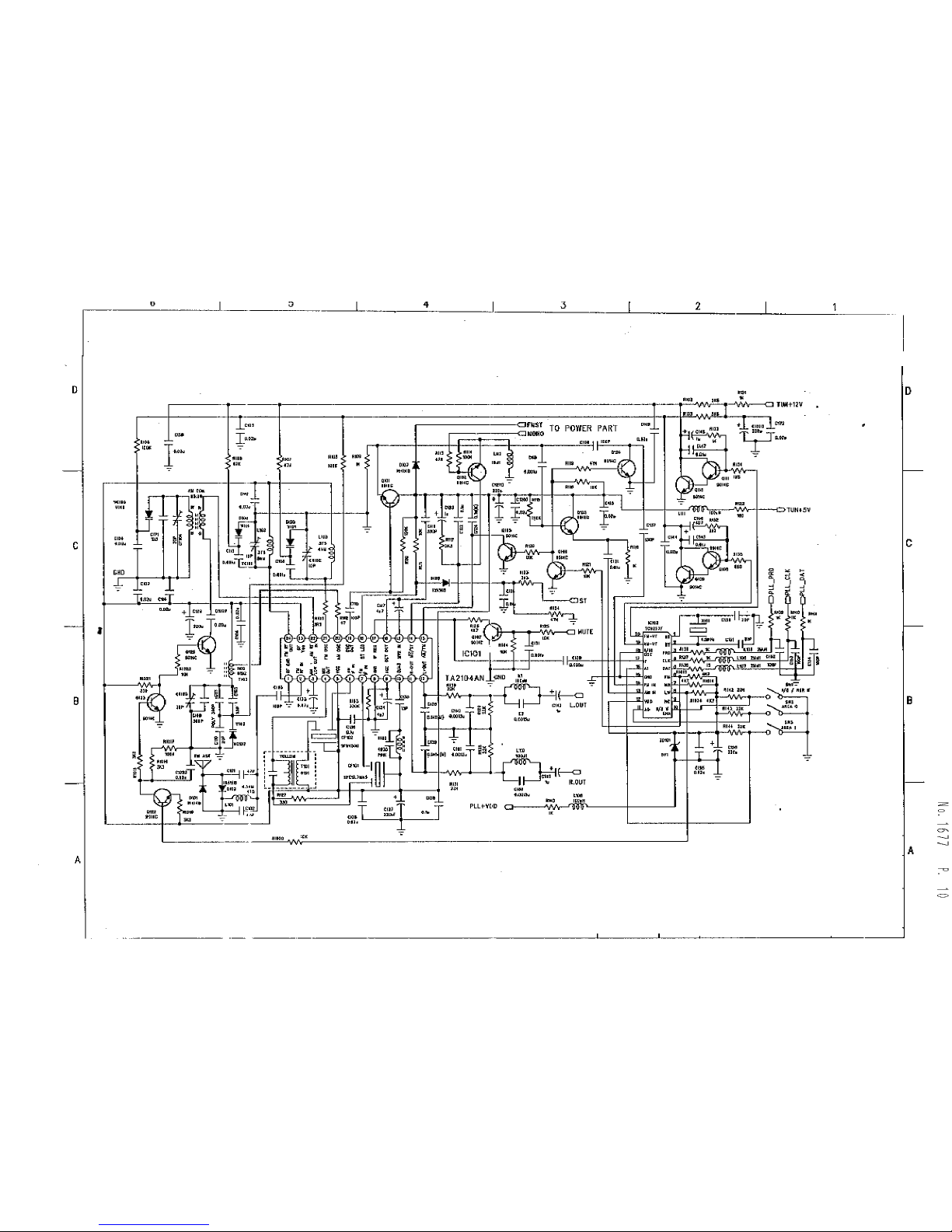

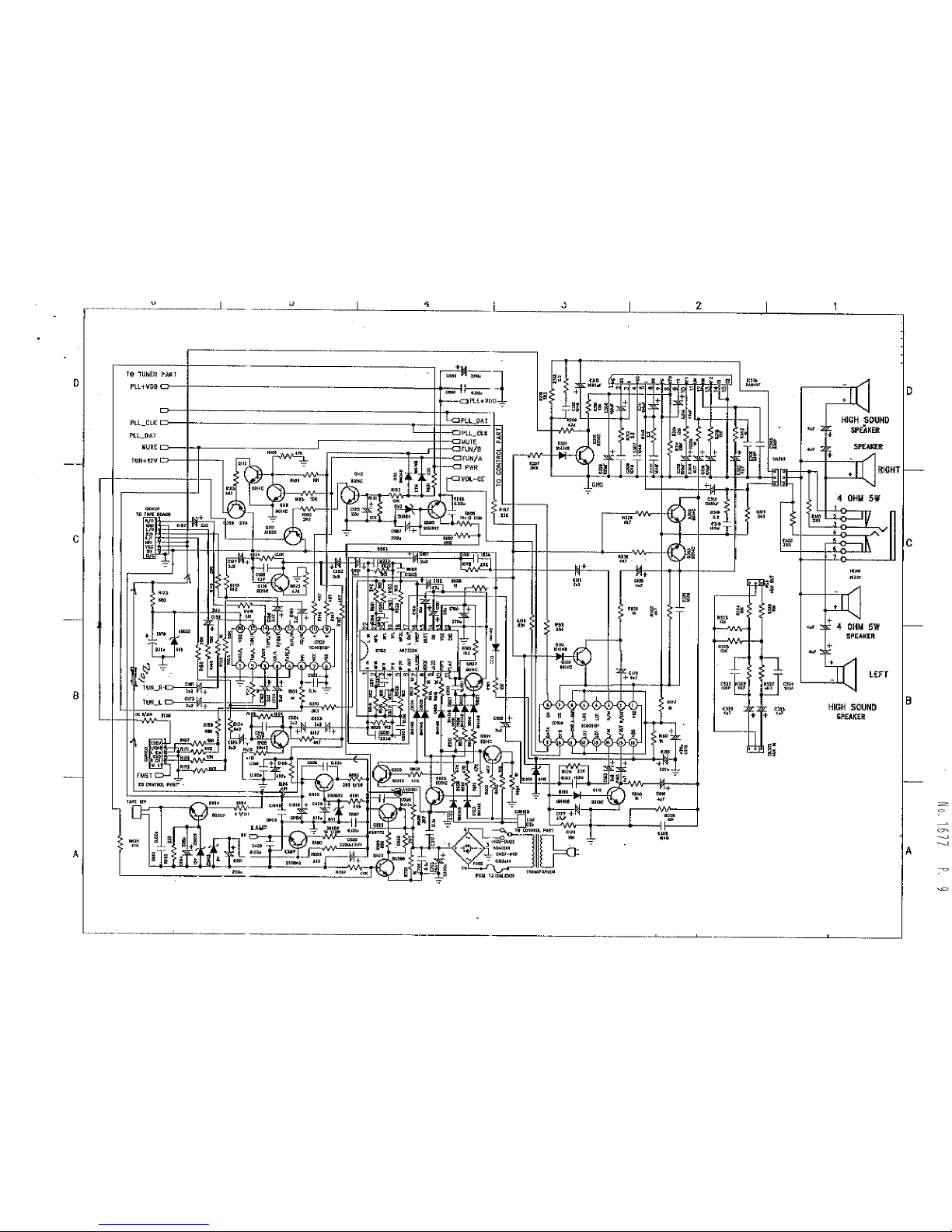

83 PCB-032901-00 MAIN PCB MX-329 ASS'Y
(
2 BAND
)
PCS
FOR IC 206
0,1 100-032903-00 P.C.B. MAIN PCB MX-329 PCS
0,2 101-004052-61 I.C. HEF4052BP PCS
0,3 101-0E7338-53 I.C. AN7338K
(
DAIWA
)
PCS
0,4 101-0T2104-04 I.C. TA2104BN
(
S0005
)
PCS
0,5 101-0T9257-04 I.C. TC9257F
(
S0005
)
PCS
0,6 101-0T9260-04 I.C. TC9260P
(
S0005
)
PCS
0,7 102-011020-00 TRANSISTOR 2SA1020 PCS
0,8 102-038550-03 TRANSISTOR 2SC8550C PCS
0,9 102-039014-03 TRANSISTOR 2SC9014C PCS
(
S0059
)
0,1 102-039018-07 TRANSISTOR 2SC9018G PCS
0,11 104-134148-3G DIDOE 1N4148
(
D0005
)
PCS
0,12 104-230101-30 TUNING DIODE V101 PCS
0,13 104-230149-30 TUNING DIODE V149 PCS
0,14 104-410051-3M ZENER DIODE 5.1V 500mW
(
EDAL
)
PCS
(
BZX79C-5V1
)
0,15 104-410068-3M ZENER DIODE 6.8V 500mW
(
EDAL
)
PCS
(
BZX79C-6V8
)
0,16 111-100450-00 CERAMIC FILTER 450kHz 3 PIN PCS
CFSFU450B
0,17 111-110700-01 CERAMIC FILTER 10.7MHz
(
RED
)
PCS
LT10.7MA5
(
M0004
)

8 OF 13
Part no. Description UM
t No.: MX-329 R5-0007 MX-329/5W AKAI
(Q
X-D4300
)
AM/FM VDE 230V SILVER/CLEAR
LENS
0,18 113-450004-02 CRYSTAL 4.5MHz
(
A0016
)
PCS
0,19 116-736191-03 I.F.T. AM MIX 10mm
(
YELLOW
)
PCS
N
O.:6191
0,2 116-736192-03 I.F.T. AM OSC 10mm
(
RED
)
PCS
N
O.:6192
0,21 116-834935-03 I.F.T. FM DET 10mm
(
PINK
)
PCS
N
o.:4935
0,22 117-410204-10 CHOKE COIL 10uH ?mm ?0% PCS
0,23 117-410305-11 CHOKE COIL 100uH ?mm ?0% PCS
0,24 117-420405-10 CHOKE COIL 2mH ?mm ?0% PCS
0,25 118-035E40-08 FM COIL 3T5 ID=4mm WD=0.8m
m
PCS
(
H0039
)
0,26 118-035E50-08 FM COIL 3T5 ID=5mm WD=0.8m
m
PCS
(
H0039
)
0,27 118-045E45-08 FM COIL 4T5 ID=4.5mm WD=0.8m
m
PCS
"HONG XING"
(
H0039
)
0,28 119-206520-72 AM COIL 65:20T L=120mm PCS
0,29 130-110031-00 RESISTOR 10 OHM 1/4W ?% PCS
0,3 130-110131-00 RESISTOR 100 OHM 1/4W ?% PCS
0,31 130-110231-00 RESISTOR 1 K OHM 1/4W ?% PCS
0,32 130-110331-00 RESISTOR 10 K OHM 1/4W ?% PCS
0,33 130-110431-00 RESISTOR 100 K OHM 1/4W ?% PCS
0,34 130-110932-00 RESISTOR 1 OHM 1/2W ?% PCS
0,35 130-112231-00 RESISTOR 1.2 K OHM 1/4W ?% PCS
0,36 130-112331-00 RESISTOR 12 K OHM 1/4W ?% PCS
0,37 130-115131-00 RESISTOR 150 OHM 1/4W ?% PCS
0,38 130-115231-00 RESISTOR 1.5 K OHM 1/4W ?% PCS
0,39 130-115331-00 RESISTOR 15 K OHM 1/4W ?% PCS
0,4 130-115431-00 RESISTOR 150 K OHM 1/4W ?% PCS
0,41 130-118131-00 RESISTOR 180 OHM 1/4W ?% PCS
0,42 130-118231-00 RESISTOR 1.8 K OHM 1/4W ?% PCS
0,43 130-118431-00 RESISTOR 180 K OHM 1/4W ?% PCS
0,44 130-122031-00 RESISTOR 22 OHM 1/4W ?% PCS
0,45 130-122231-00 RESISTOR 2.2 K OHM 1/4W ?% PCS
0,46 130-122331-00 RESISTOR 22 K OHM 1/4W ?% PCS
0,47 130-127331-00 RESISTOR 27 K OHM 1/4W ?% PCS
0,48 130-133131-00 RESISTOR 330 OHM 1/4W ?% PCS
0,49 130-133231-00 RESISTOR 3.3 K OHM 1/4W ?% PCS
0,5 130-133331-00 RESISTOR 33 K OHM 1/4W ?% PCS
0,51 130-139331-00 RESISTOR 39 K OHM 1/4W ?% PCS
0,52 130-147031-00 RESISTOR 47 OHM 1/4W ?% PCS
0,53 130-147131-00 RESISTOR 470 OHM 1/4W ?% PCS
0,54 130-147231-00 RESISTOR 4.7 K OHM 1/4W ?% PCS
0,55 130-147331-00 RESISTOR 47 K OHM 1/4W ?% PCS
0,56 130-156231-00 RESISTOR 5.6 K OHM 1/4W ?% PCS
0,57 130-168131-00 RESISTOR 680 OHM 1/4W ?% PCS
0,58 130-168231-00 RESISTOR 6.8 K OHM 1/4W ?% PCS
0,59 130-168331-00 RESISTOR 68 K OHM 1/4W ?% PCS
0,6 130-182231-00 RESISTOR 8.2 K OHM 1/4W ?% PCS
0,61 140-010022-20 CERAMIC CAP 10
p
F 50V ?0% NPO PCS
0,62 140-010122-00 CERAMIC CAP 100
p
F 50V ?0% PCS
0,63 140-010220-00 CERAMIC CAP 0.001uF 50V PCS
0,64 140-010310-00 CERAMIC CAP 0.01uF 25V +80-20% PCS
0,65 140-010410-00 CERAMIC CAP 0.1uF 25V +80-20% PCS
0,66 140-012022-00 CERAMIC CAP 12
p
50V ?0% PCS
