Akai TX-350 User manual

Service Manual
MINI COMPONENT SYSTEM
Model : TX-350 /TX-550
AKAI ELECTRONICS CO., LTD.

Table of Contents
- 1 -
SAFETY PRECAUTIONS......................................................................................... 2
ADJUSTMENTS....................................................................................................... 4
EXPLODED VIEW AND PARTS LIST...................................................................... 5
WIRING DIAGRAM................................................................................................... 8

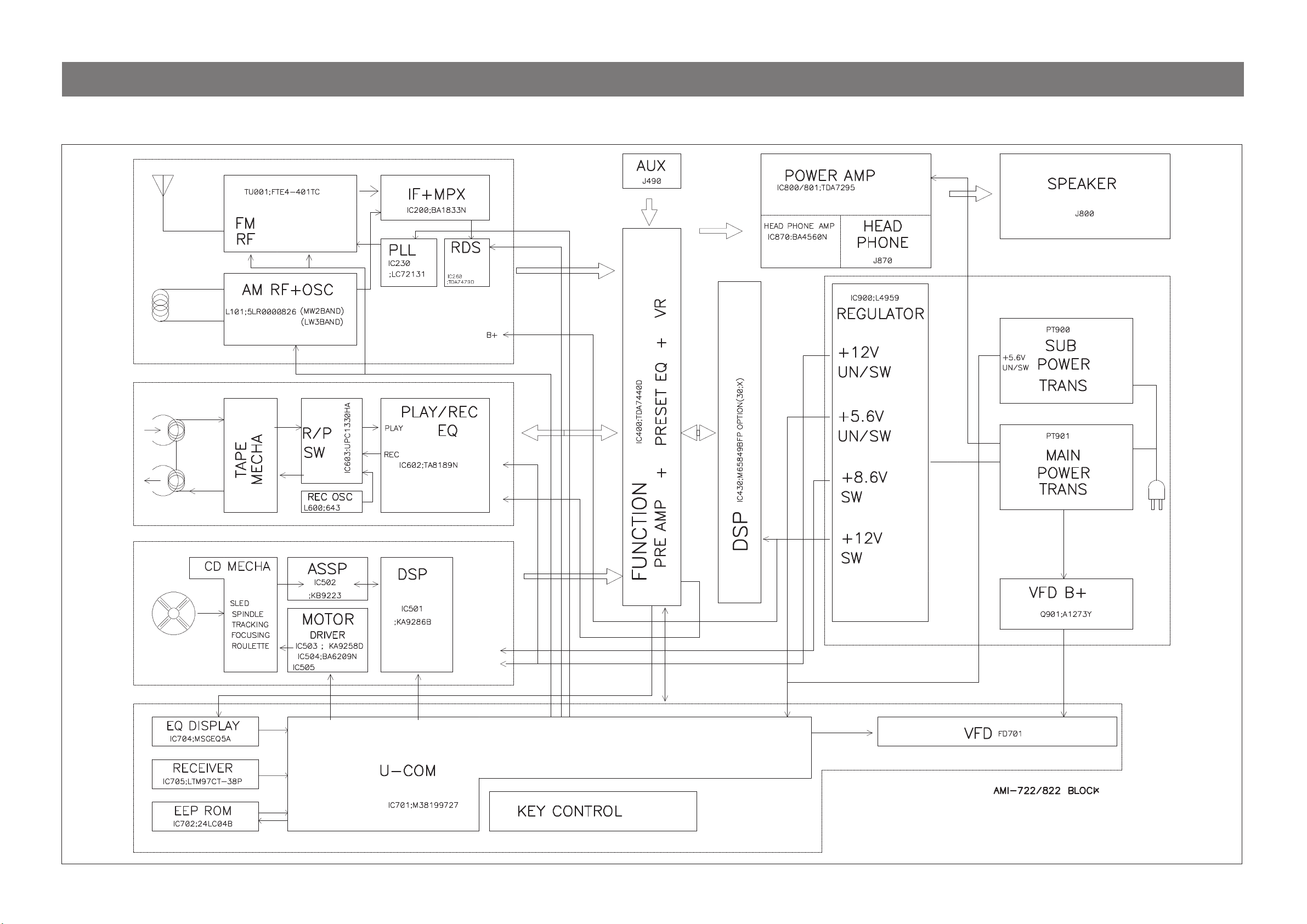

BLOCK DIAGRAM.................................................................................................... 9

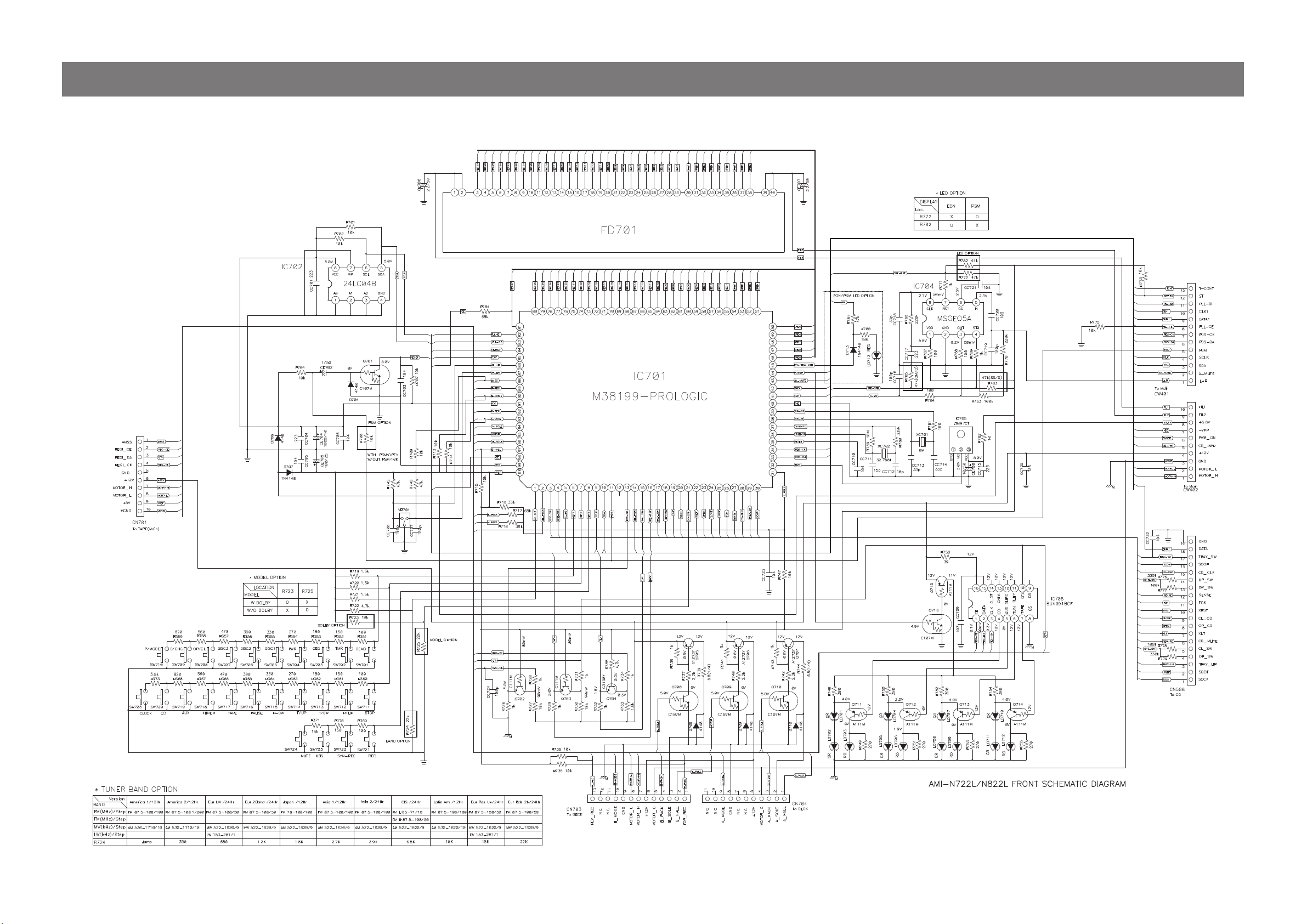

SCHEMATIC DIAGRAM ........................................................................................... 10
POWER / AMP /TUNER / TAPE .................................................................................................... 10

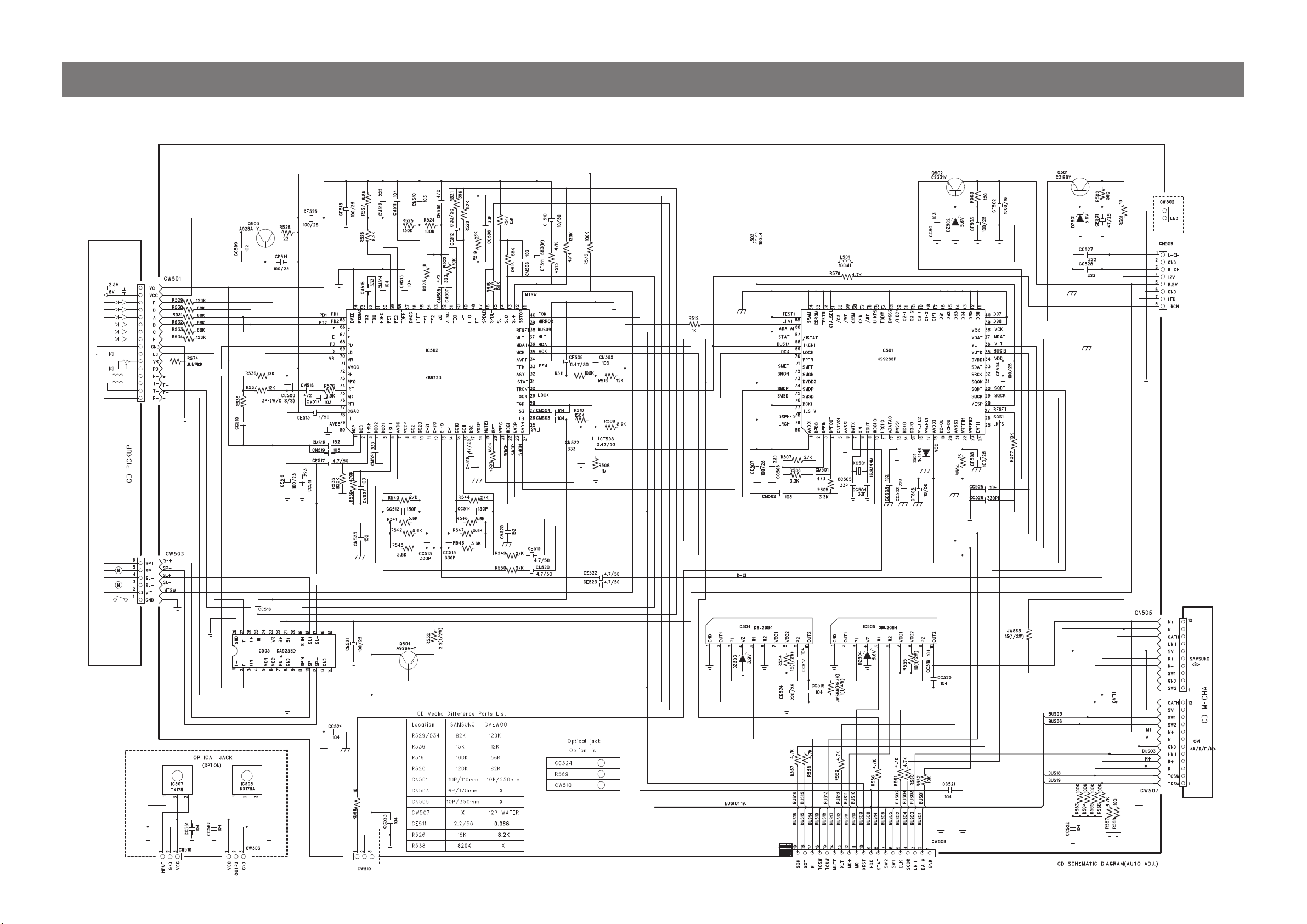

CD ....................................................................................................................................................11
CONTROL ........................................................................................................................................ 12
PCB PATTERN LAYOUT ........................................................................................ 13
ELECTRICAL PART LIST ....................................................................................... 17
MINI COMPONENT SYSTEM
TX-350/TX-550

Safety Precautions
- 2 -
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK IF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION : POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON-
DANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be
used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like. 2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should
be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and
cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance
should be mounted to a wall or
ceiling
only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so
that its
location or position does not interfere with
its proper
ventilation. For example, the appliance
should not be situated
on a bed, sofa, rug, or
similar surface that may block the
ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers,
stoves, or other
appliances (including amplifiers) that
produce heat.
7. Power Sources - The appliance should be
connected to a
power supply only of the type
described in the operating
instructions or as marked
on the appliance.
8. Grounding or Polarization - The precautions that
should be
taken so that the grounding or
polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords
should be
routed so that they are not likely to be
walked on or pinched
by items placed upon or
against them, paying particular
attention to cords at
plugs, convenience receptacles, and the
point where
they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload
protection. This is a
safety feature.
See Instruction Manual for replacement or
resetting of
protective device. If replacement of the plug is
required, be sure the
service technician has used a
replacement plug
specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located
away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2

Safety Precautions
- 3 -
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna
system is
grounded so as to provide some protection against voltage
surges and built-up static
charges. Article 810 of the National
Electrical Code,
ANSI/NFPA 70, provides information with
regard to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antenna-
discharge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left
unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so
that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should
be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been
damaged; or
b) Objects have fallen, or liquid has been spilled
into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate
normally or
exhibits a marked change in
performance; or
e) The appliance has been dropped, or the
enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing
should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
INWIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDINGCONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE

TAPE SECTION
Test Tape be used
HEAD ADJUSTMENT (AZIMUTH)
1. 10KHz test tape(example: MTT-114N) must be used for this adjustment.
2. Connect to VTVM or oscilloscope to the headphone jack or speaker terminal.
3. Press the play button.
4. Adjust the azimuth by using a screw driver to maintain the max. L&R output voltage.
5. Adjust tape A(1), tape B(2) respectively, Please secure the azimuth position by using locking paint.
RECORDING BIAS OSCILLATOR FREQUENCY ADJUSTMENT
1. Connect the frequency counter to TP603, GND.
2. Press the REC button.
3. Adjust L603 to obtain 80 KHz ± 100Hz
Tape Contents Use
MTT-111N 3 KHz Tape Speed Adjustment
MTT-114N 10 KHz Head Azimuth Adjustment
MTT-5511 Blank Record Frequency Property
VTVM
Scope
R-CH
L-CH
47 kohm
47 kohm
Input Level
Measurement
Point
Input Point
Output Level
Measurement
Point
TAPE ALIGNMENT CHART
Step Item Reference Value Test Tape Adjust Point Test Point Note FIG.
1Tape Speed
Adjustment
Normal
3,015~3,025Hz MTT-111N RV601 Line Out L/R
Channel Confirm Wow & Flut- ter is within 0.35% FIG.1
3,000~3,010Hz MTT-111N RV601 Line Out L/R
Channel
Confirm Tape Speed
of end position after
adjustment at tape
start position
FIG.1
High 5,820~6,180Hz MTT-111N - - - - - - Shorted TP601,
TP602
Confirm High speed
after normal speed
adjustment FIG.1
2Azimuth Adjustment Maximum Level
Phase:Within90° MTT-114N Head Screw Line Out L/R
Channel FIG.2,3,4
3Recording Bias Oscilla-
tor Frequency Adjust-
ment 80 KHz±0.5 MTT-5511 L603 TP603,GND Adjust with frequency
counter connected. FIG.1
FIG. 1 : Tape Speed & Record Bias Oscillator
Frequency Adjust Circuit
Test Tape : MTT-111N(3kHz)
MTT-5511(Blank)
Frequency Counter
Output Level
Measurement Point
Set
FIG. 2 : Tape Azimuth Adjust Location
(Record/Playback Head)
FIG. 3 : Tape Azimuth Adjust Head Screw & Waveform FIG. 4 : Tape Azimuth Adjust Circuit & Waveform
Forward
Side
Adjust with Frequency
Counter Connected
L-CH
Peak
R-CH
Peak
Screw
Angle
Output Level
within
1 dB
within
1 dB
L-CH
Peak R-CH Peak Screw Angle
VH
Oscilloscope
L-CH
Output Level
Measurement Point
Set
Test Tape
MTT-114N
(10kHz)
Screen Pattern
In Phase 45 90 135 180
Good Wrong
Adjustments
- 4 -

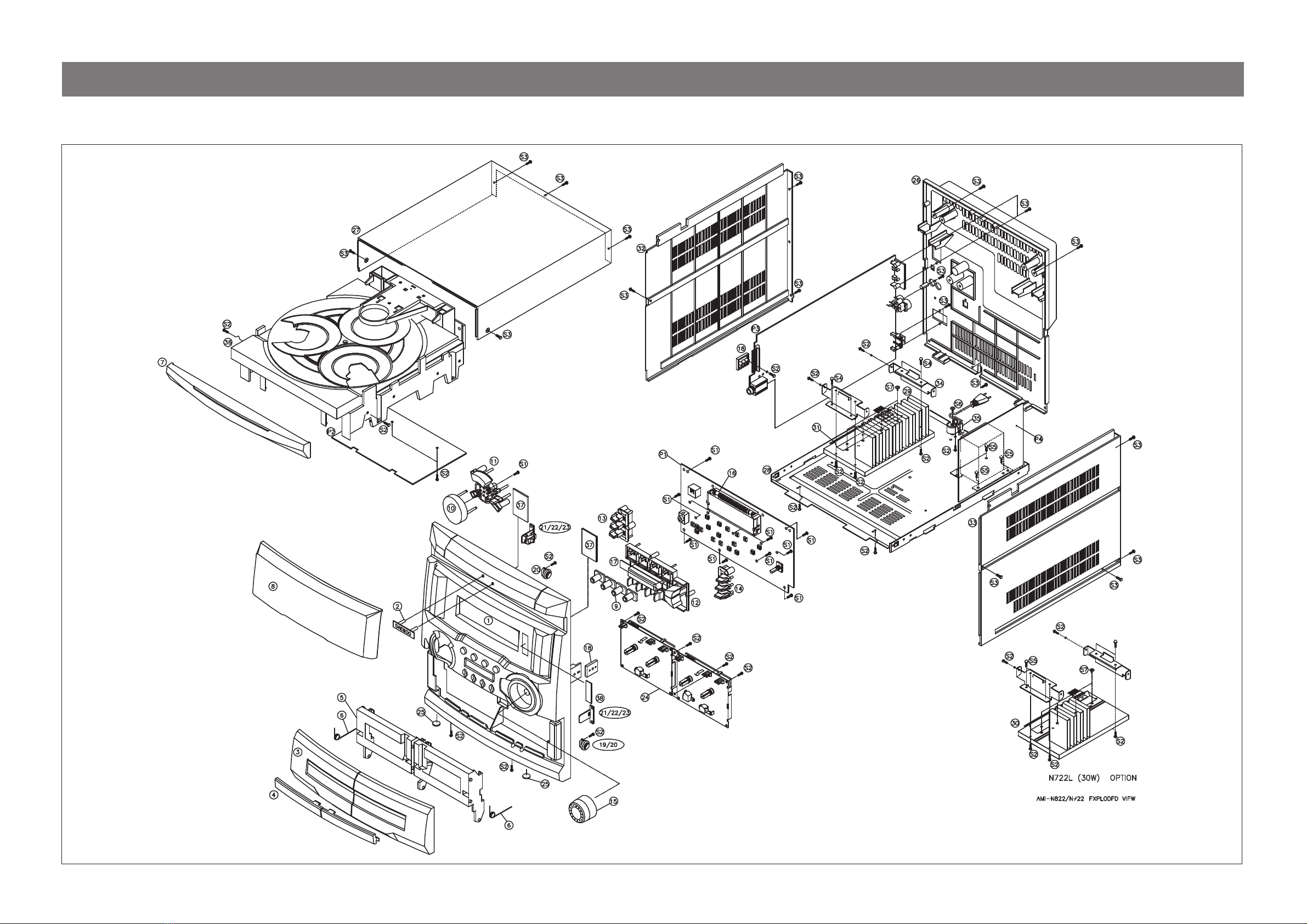

Exploded View and Mechanical Parts List
Model No:TX-350 / TX-550
- 5 -

Model No: TX-350/550
Exploded View and Mechanical Parts List
- 6 -
NO PARTS NAME CODE NO Q'ty REMARKS
1PANEL FRONT 9CD0307100 MIPS 1
2BADGE DAEWOO 9CD1500900 ABS 1
3DOOR CASSETTE A/B 9CD1810500 MIPS 1
4WINDOW DOOR A/B 9CD16153B0 ACRYL 1
5DOOR FRAME A/B 9CD18113A0
9CD18113B0 ABS 1
6SRING DOOR EJECT L/R 9CD3007800 1
7DOOR CD 9CD1810600 MIPS 1
8WINDOW FLT 9CD1615400 ACRYL 1
9KNOB FUNCTION 9CD1337900 ACRYL 1
10 KNOB CD 9CD1338000 ABS 1
11 KNOB POWER 9CD1338100 ABS 1
12 KNOB CONTROL 9CD1338200 ABS 1
13 KNOB EQ L 9CD13383L0 ABS 1
14 KNOB EQ R 9CD13383R0 ABS 1
15 KNOB VOLUME 9CD1334400 ABS 1
16 GUIDE FLT 9CD2505600 ABS 1
17 PLATE FILTER 9CD0910700 PC T0.3 1
18 BRKT SIDE 9CD2412900 ABS 2
19 DAMPER GEAR B 9CD2603200 ACETAL 2
20 DAMPER BASE B 9CD2603300 ACETAL 2
21 LOCKER BASE 9CDOB01900 ACETAL 2
22 LOCKER CAM 9CDOB02000 ACETAL 2
23 LOCKER SPRING 9CDOB01600 STS 2
24 CASSETTE DECK LOGIC 9CD6007000 ADR-2138MW 1
25 CUSHION FOOT 9CD4207700 EVA 2
26 COVER BACK 9CD0411100 MIPS 1
27 COVER TOP 9CD0409600 MIPS 1
28 CHASSIS BOTTOM 9CD0607100 SCP 1
29 HEAT SINK 50 9CD4404800 AL 1ONLY AMI-N822
30 HEAT SINK AL 1ONLY AMI-N722
31 BRACKET HEAT SINK 9CD2414400 ST 0.3 1
32 COVER SIDE L 9CD04112L0 MIPS 1
33 COVER SIDE R 9CD04112R0 MIPS 1
34 BRAKETHEAT SINK 9CD2414600 BSP 0.5T 1
35 HOLDER AC CORE 9CD2303300 ABS
36 CD DECK MECHA 9CD6007000 1
37 PLATE FLT 9CD0909800 PVC SHEET T1.0 2
38 PLATE FUNCTION 9CD0910000 PVC SHEET T0.5 1
DESCRIPTIONS

Model No: TX-350/550
Exploded View and Mechanical Parts List
- 7 -
NO PARTS NAME CODE NO Q'ty REMARKS
DESCRIPTIONS
P1 FRONT PCB 1
P2 CD DECK PCB 1
P3 MAIN PCB 1
P4 POWER PCB 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 13
S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 21
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 20
S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X 6 MFZN 4
S5 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X 6 MFZN 4
S6 SCREW WASHER 9CD3102400 3.0X10+D14 MFZN 1
S7 SCREW WASHER 9CD3102401 4
3.0X8+D14
Ref : AMI-N822

WIRING DIAGRAM
- 8 -
Model No:TX-350 / TX-550
PLAY
HEAD R/P HEAD
CW703
SN : 9738804300 7P 350MM
SN : 9738835000 3P 260MM
CW704
10P CONN PINSN : 9736407800
SN : 9736407600 13P CONN PIN SN : 9738833700 8P 220MM
FD701
IC702
CN508
CW401
CW402
SN : 9738834100 13P 100MM
CN704 CN703 CN701
SN : 9738834000 11P 150MM
50W 30W
P/T
CW900
CN401
CN400
FUNCTION
SN:9738833900 10P 350MM
CW600
CW602
CW601
TUNER
CW400 CN900
SN:9738832101 7P 250MM
CW503CW501
CW508
CW507
CN509
CW502
MM
CDMECHA.ASS'Y
SN:9738840900 19P 110MM
CN502
Pick-Up
MM

BLOCK DIAGRAM
- 9 -
Model No:TX-350 /TX-550

Schemetic Diagram
- 10 -
Model No:TX-350 / TX-550
Ass'y Name: POWER/AMP/TUNER/TAPE
DA CE CK DO XIN NC
PD1 VSS
AM/FM
XOUT
VDD
FMIN
IFIN
FM SD
AMIN
NC
ST/MO
IF REQ
LW
S-CURVE
AM/FM
IF
BUFF 304KHz 19K 19K 0
1612 3 6 145 13
811 7124 910 15
VDD1
R/DATA
QUAL
R/CLK
CLOCK
VSS1 ANALOG
V REF
VSS2 VSS3
PLL
1187.5Hz
PLL 57KHz
RDS/ARI
anti
aliasimg
8th switched
capacitor
filter comparator
BIPHASE
DECODER
TEST
Differential
DECODER
ALC

Schemetic Diagram
Model No:TX-350 / TX-550
Ass'y Name: CD
- 11 -

Schemetic Diagram
- 12 -
Model No:TX-350 /TX-550
Ass'y Name: CONTROL

P.C.B Pattern Layout
Model No:TX-350 / TX-550
Ass'y Name: Main PCB
-1 3 -

Model No : TX-350 / TX-550
Ass'y Name : CD P.C.B
P.C.B Pattern Layout
- 14 -

P.C.B Pattern Layout
Model No:TX-350 / TX-550
Ass'y Name: CONTROL
- 15 -- 13 -

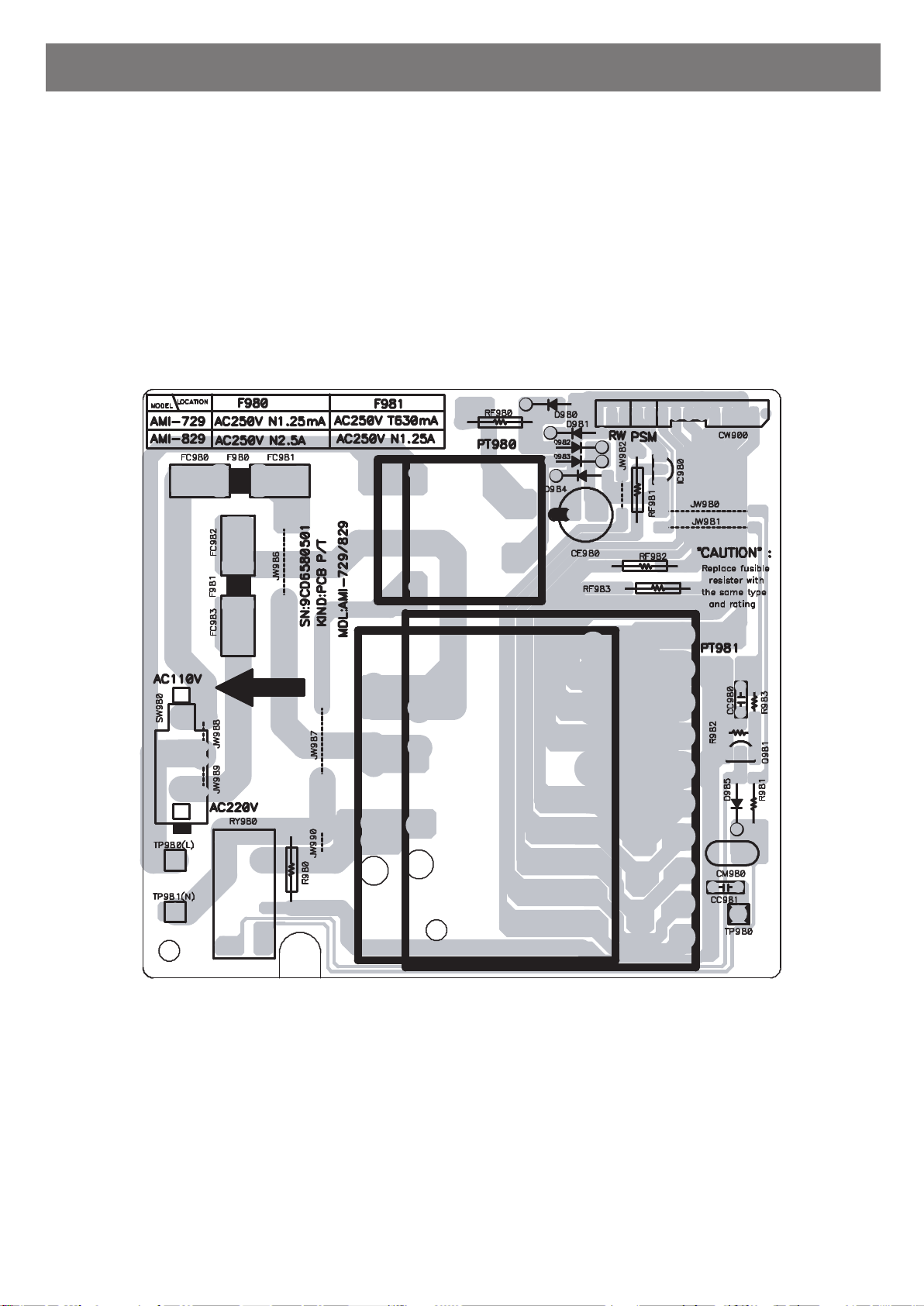

P.C.B Pattern Layout
Model No:TX-350 / TX-550
Ass'y Name: PT
- 16 -

Europe FTZ(E) Korea(K1) America(A)
Asia(S,Y2,Y6)
1CN601 9738833300 CONN AS UL2851 #28 3P SHIELD 250M O O O O
2CN602 9738833500 CONN AS #28 6P SHIELD 250MM O O O O
3W601 9738834300 WIRE LEAD #26 1P 200MM O O O O
1 11000 9CDC046100 PCB CD AS AMI-810LN0FR O O O O
2B501 9CD6574800 PCB CD 247X197 O O O O
3CC501~503 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING) O O O O
4CC504~506 CCXF1H104Z C CERA 50V F 0.1MF Z O O O O
5CC507 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING) O O O O
6CC508 CCZB1E121K C CERA 25V B 120PF K (AXIAL) O O O O
7CC509 CCXF1H473Z C CERA 50V F 0.047MF Z (TAPPING) O O O O
8CC510 CCZB1E222K C CERA 25V B 2200PF K (AXIAL) O O O O
9CC511~513 CCXF1H104Z C CERA 50V F 0.1MF Z O O O O
10 CC514 CCZB1E682K C CERA 25V B 6800PF K (AXIAL) O O O O
11 CC515 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING) O O O O
12 CC516 CCZB1E222K C CERA 25V B 2200PF K (AXIAL) O O O O
13 CC517 CZCH1E809K C CERA CH 25V 8PF K AXL 52MM O O O O
14 CC518 CCZB1E472K C CERA 25V B 4700PF K (AXIAL) O O O O
15 CC519 CZCH1E309K C CERA CH 25V 3PF K AXIAL O O O O
16 CC520 CCZB1E102K C CERA 25V B 1000PF K (AXIAL) O O O O
17 CC521 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING) O O O O
18 CC522 CCXF1H473Z C CERA 50V F 0.047MF Z (TAPPING) O O O O
19 CC523 CCZB1E152K C CERA 25V B 1500PF K (AXIAL) O O O O
20 CC524~525 CZCH1H270J C CERA CH 50V 27PF J AXL 52MM O O O O
21 CC526~527 CCXF1H104Z C CERA 50V F 0.1MF Z O O O O
22 CC528 CCXF1H473Z C CERA 50V F 0.047MF Z (TAPPING) O O O O
23 CC529 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING) O O O O
24 CC531~532 CCZB1E151K C CERA 25V B 150PF K (AXIAL) O O O O
25 CC533~534 CCZB1E102K C CERA 25V B 1000PF K (AXIAL) O O O O
26 CC535~536 CCXF1H103Z C CERA 50V F 0.01MF Z (TAPPING) O O O O
27 CC537 CCXF1H104Z C CERA 50V F 0.1MF Z O O O O
28 CC542~543 CCZB1E472K C CERA 25V B 4700PF K (AXIAL) O O O O
29 CC544~550 CCXF1H104Z C CERA 50V F 0.1MF Z O O O O
30 CC563 CXCH1H101J C CERA 50V CH 100PF J (TAPPING) O O O O
31 CE501 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP O O O O
32 CE502~503 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP O O O O
33 CE504 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP O O O O
34 CE505 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP O O O O
35 CE506 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP O O O O
36 CE507 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP O O O O
37 CE508~510 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP O O O O
38 CE511~513 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP O O O O
39 CE514 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP O O O O
40 CE515 CEXE1C102A C ELECTRO 16V RS 1000MF 13X20 O O O O
41 CE516 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP O O O O
42 CE517 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP O O O O
43 CE518 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP O O O O
44 CE519~522 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP O O O O
45 CE523 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP O O O O
46 CE524 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP O O O O
47 CM501 CMXM1H333J C MYLAR 50V 0.033MF J (TP) O O O O
48 CM502 CMXM1H683J C MYLAR 50V 0.068 MF J O O O O
49 CM503 CMXM1H183J C MYLAR 50V 0.018MF J O O O O
50 CM504 CMXM1H333J C MYLAR 50V 0.033MF J (TP) O O O O
51 CM505~506 CMXM1H122J C MYLAR 50V 0.0012MF J O O O O
52 CN501 9738840800 CONN AS FFC 16P P1.0X250MM R O O O O
53 CN508 9738840900 CONN AS FFC 19P P1.25X110MM K O O O O
54 CN509 9738832100 CONN AS 7P 200 P=2.5 BOARDIN O O O O
55 CW501 9CD6259300 CONN WAFER 52807-1610 O O O O
56 CW502 9CD6259600 CONN WAFER 2503-WS-2P O O O O
COMMENT
MODEL
NO PART-NAME LOCATION PART-CODE PART-DESC
- 17 -
Model No:TX-550
Electrical Parts List

Electrical Parts List
Europe FTZ(E) Korea(K1) America(A)
Asia(S,Y2,Y6)
COMMENT
MODEL
NO PART-NAME LOCATION PART-CODE PART-DESC
57 CW503 9CD6259500 CONN WAFER 2001-WS-6P O O O O
58 CW507 9CD6259400 CONN WAFER 2001-WS-12P O O O O
59 CW508 9736408400 CONN WAFER 52045-1945 19P O O O O
60 D501~502 DZN4148--- DIODE 1N4148 AUTO 52MM O O O O
61 DZ501 DZTZ5R6B-- DIODE ZENER UZ-5.6B O O O O
62 DZ502 DZTZ3R9B-- DIODE ZENER MTZ3.9B O O O O
63 DZ503~504 DZTZ5R6B-- DIODE ZENER UZ-5.6B O O O O
64 IC501 1KA9220B-- IC CHIP RF KA9220B O O O O
65 IC502 1KA9282B-- IC AUDIO DSP KA9282B O O O O
66 IC503 1KA9258D-- IC CHIP KA9258D O O O O
67 IC504 1DBL2084-- IC DBL2084(D/W) O O O O
68 IC505 1KA9270--- IC AUDIO KA9270 O O O O
69 IC506 1DBL2084-- IC DBL2084(D/W) O O O O
70 JW501~504 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
71 JW505~506 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
72 JW507~509 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
73 JW510~513 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
74 JW514 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
75 JW515~518 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
76 JW519~527 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
77 JW528~529 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
78 JW530 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
79 JW531~534 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
80 JW535~536 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
81 JW537~542 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
82 JW543 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
83 JW544 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO O O O O
84 JW545~546 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
85 JW547 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
86 JW548 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO O O O O
87 JW549 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
88 JW550~557 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
89 JW558 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
90 JW559~566 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
91 JW567 RD-AZ102J- R CARBON FILM 1/6 1K OHM J O O O O
92 JW568 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
93 JW569 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO O O O O
94 JW570~573 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
95 JW575~576 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO O O O O
96 JW581 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO O O O O
97 Q501~502 TKSA928AY- TR KSA928A-Y O O O O
98 Q503 TKSC2331Y- TR KSC2331Y O O O O
99 Q504 TKSR1003-- TR KSR1003 O O O O
100 Q505 TZTC3198Y- TR KTC3198Y-(1815Y) (AUTO) O O O O
101 R501 RD-AZ474J- R CARBON FILM 1/6 470K OHM J O O O O
102 R502 RD-AZ104J- R CARBON FILM 1/6 100K OHM J O O O O
103 R503 RD-AZ154J- R CARBON FILM 1/6 150K OHM J O O O O
104 R504 RD-AZ184J- R CARBON FILM 1/6 180K OHM J O O O O
105 R505 RD-AZ105J- R CARBON FILM 1/6 1M OHM J O O O O
106 R506 RD-AZ820J- R CARBON FILM 1/6 82 OHM J O O O O
107 R507 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J O O O O
108 R508~560 RD-AZ105J- R CARBON FILM 1/6 1M OHM J O O O O
109 R509 RD-AZ123J- R CARBON FILM 1/6 12K OHM J O O O O
110 R510 RD-AZ104J- R CARBON FILM 1/6 100K OHM J O O O O
111 R511 RD-AZ102J- R CARBON FILM 1/6 1K OHM J O O O O
112 R512 RD-AZ473J- R CARBON FILM 1/6 47K OHM J O O O O
113 R513 RD-AZ124J- R CARBON FILM 1/6 120K OHM J O O O O
114 R514 RD-AZ563J- R CARBON FILM 1/6 56K OHM J O O O O
115 R515 RD-AZ153J- R CARBON FILM 1/6 15K OHM J O O O O
- 18 -
Model No:TX-550
Electrical Parts List

Electrical Parts List
Europe FTZ(E) Korea(K1) America(A)
Asia(S,Y2,Y6)
COMMENT
MODEL
NO PART-NAME LOCATION PART-CODE PART-DESC
116 R516 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J O O O O
117 R517 RD-AZ563J- R CARBON FILM 1/6 56K OHM J O O O O
118 R518~519 RD-AZ104J- R CARBON FILM 1/6 100K OHM J O O O O
119 R520 RD-AZ393J- R CARBON FILM 1/6 39K OHM J O O O O
120 R521~522 RD-AZ102J- R CARBON FILM 1/6 1K OHM J O O O O
121 R523 RD-AZ123J- R CARBON FILM 1/6 12K OHM J O O O O
122 R524 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J O O O O
123 R525 RD-AZ154J- R CARBON FILM 1/6 150K OHM J O O O O
124 R526 RD-AZ183J- R CARBON FILM 1/6 18K OHM J O O O O
125 R527 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J O O O O
126 R528 RD-AZ223J- R CARBON FILM 1/6 22K OHM J O O O O
127 R529 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J O O O O
128 R530 RD-AZ223J- R CARBON FILM 1/6 22K OHM J O O O O
129 R531 RD-AZ123J- R CARBON FILM 1/6 12K OHM J O O O O
130 R532~533 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J O O O O
131 R534 RD-AZ220J- R CARBON FILM 1/6 22 OHM J O O O O
132 R535~536 RD-AZ124J- R CARBON FILM 1/6 120K OHM J O O O O
133 R537 RD-AZ393J- R CARBON FILM 1/6 39K OHM J O O O O
134 R538~539 RD-AZ123J- R CARBON FILM 1/6 12K OHM J O O O O
135 R540 RD-AZ474J- R CARBON FILM 1/6 470K OHM J O O O O
136 R541 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J O O O O
137 R542 RD-AZ273J- R CARBON FILM 1/6 27K OHM J O O O O
138 R543 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J O O O O
139 R545 RD-AZ100J- R CARBON FILM 1/6 10 OHM J O O O O
140 R546 RD-AZ221J- R CARBON FILM 1/6 220 OHM J O O O O
141 R547 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J O O O O
142 R548~549 RD-AZ104J- R CARBON FILM 1/6 100K OHM J O O O O
143 R550 RD-2Y229J- R CARBON FILM 1/2 2.2 OHM J O O O O
144 R551 RD-AZ121J- R CARBON FILM 1/6 120 OHM J O O O O
145 R552 RD-AZ221J- R CARBON FILM 1/6 220 OHM J O O O O
146 R553~554 RD-AZ153J- R CARBON FILM 1/6 15K OHM J O O O O
147 R555~556 RD-AZ273J- R CARBON FILM 1/6 27K OHM J O O O O
148 R557~558 RD-AZ123J- R CARBON FILM 1/6 12K OHM J O O O O
149 R561~562 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J O O O O
150 R563~563 RD-AZ102J- R CARBON FILM 1/6 1K OHM J O O O O
151 R565~566 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J O O O O
152 R567~568 RD-AZ104J- R CARBON FILM 1/6 100K OHM J O O O O
153 R569 RD-AZ561J- R CARBON FILM 1/6 560 OHM J O O O O
154 R570~571 RD-AZ561J- R CARBON FILM 1/6 560 OHM J O O O O
155 R572 RD-AZ393J- R CARBON FILM 1/6 39K OHM J O O O O
156 R573~578 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J O O O O
157 R579 RD-AZ103J- R CARBON FILM 1/6 10K OHM J O O O O
158 R580 RD-AZ102J- R CARBON FILM 1/6 1K OHM J O O O O
159 R581 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J O O O O
160 R582~583 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J O O O O
161 R584~585 RD-AZ104J- R CARBON FILM 1/6 100K OHM J O O O O
162 R586~587 RD-AZ393J- R CARBON FILM 1/6 39K OHM J O O O O
163 R588~589 RD-4Z100J- R CARBON FILM 1/4 10 OHM J O O O O
164 RV501~502 RV6417223- R SEMI FIXED VM6CK-PV(1S) B 22K OHM O O O O
165 TP501~504 9713550400 PIN WRAPPING 1.0X2.5X15 O O O O
166 XC501 5PCSA16R93 RESONATOR CERA CSALA16M9X55-A0 (16.93M) O O O O
1 12000 9CDC053603 PCB FRONT AS AMI-N722LK O
2 12000 9CDC053601 PCB FRONT AS AMI-N722LU O
3 12000 9CDC053602 PCB FRONT AS AMI-N722LZ O
4 12000 9CDC053604 PCB FRONT AS AMI-N722REF O
5B701 9CD6578900 PCB FRONT 197X163X1.6T O O O O
6CC701 CCXF1H223Z C CERA 50V F 0.022MF Z (TAPPING) O O O O
7CC703 CCXF1H104Z C CERA 50V F 0.1MF Z O O O O
8CC704 CCXF1H223Z C CERA 50V F 0.022MF Z (TAPPING) O O O O
- 19 -
Model No:TX-550
Electrical Parts List
