Alcatel Conference 1500
USER’S GUIDE

TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS......................................... 1
1.1. Package Contents 2
1.2. Location 3
2. SET UP YOUR PHONE ................................................................... 4
2.1. Connect the Base Unit 4
2.2. Activate the battery of the Wireless Microphone Unit 5
2.3. Insert the battery to the Wireless Microphone Unit 5
3. GETTING TO KNOW YOUR PHONE.............................................. 7
3.1. Base Unit Overview 7
3.2. Wireless Microphone Unit Overview 9
4. USING YOUR PHONE.................................................................... 10
4.1. Set Date and Time 10
4.2. Change LCD language 10
4.3. Make a Call 10
4.4. Answer a Call 10
4.5. End a Call 10
4.6. Redial 11
4.7. Adjust Speaker Volume 11
4.8. Mute a Call 12
4.9. Page All Microphones 12
4.10. Temporary Ringer Silence 12
4.11. Set Up a Conference Call 12
5. PHONEBOOK................................................................................. 13
5.1. Add a New Phonebook Entry 13
5.2. Search a Phonebook Entry 13
5.3. Dial a Phonebook Entry 14
5.4. Edit a Phonebook Entry 14
5.5. Delete a Phonebook Entry 14
5.6. Delete all Phonebook Entries 14
5.7. Capacity of Phonebook 14
5.8. Speed Dial 15

6. CALLER DISPLAY (Network dependent)..................................... 16
6.1. View the Call List 16
6.2. Call an Entry in the Call List 16
6.3. Store a Call List Number into the Phonebook 17
6.4. Delete an Entry in the Call List 17
6.5. Delete the Entire Call List 17
7. PHONE SETTINGS......................................................................... 18
7.1. Set Ringer Volume 18
7.2. Set Ringer Melody 18
7.3. Set the Time Format 18
7.4. Set the Date Format 18
7.5. Set Key Tone 19
7.6. Change the Flash Time 19
7.7. Rename the Base Unit 19
7.8. Change Dial Mode 19
7.9. Reset Your Phone 20
7.10. Set PABX Mode 20
7.11. Set a Prefix Code 20
8. TROUBLESHOOTING.................................................................... 21
9. TECHNICAL SPECIFICATIONS..................................................... 22
10. SAFETY .......................................................................................... 23
11. ENVIRONMENT .............................................................................. 24

1
When using your conference phone, basic safety precautions should always be followed to reduce the risk
of fire, electric shock and injury, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
Do not use this product near water such as near a bath tub, wash bowl, kitchen sink, laundry tub or
swimming pool, or in a wet basement or shower.
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the base unit and wireless microphone unit are provided
for ventilation. To protect them from overheating, these openings must not be blocked by placing the
product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over
a radiator or heat register. This product should not be placed in any area where proper ventilation is
not provided.
This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply in your office, consult your dealer or local
power company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be
walked on.
Never push objects of any kind into this product through the slots in the base unit or wireless
microphone unit because they may touch dangerous voltage points or create a short circuit. Never
spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized
service facility. Opening or removing parts of the base unit or wireless microphone unit other
than specified access doors may expose you to dangerous voltages or other risks. Incorrect
reassembling can cause electric shock when the product is subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the
following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operation instructions. Improper adjustment of other controls may
result in damage and often requires extensive work by an authorized technician to restore the
product to normal operation.
If the product has been dropped and the base unit and/or wireless microphone unit has been
damaged.
If the product exhibits a distinct change in performance.
Avoid using the conference phone during an electrical storm. There is a remote
risk of electric shock from lightning.
Do not use the conference phone to report a gas leak in the vicinity of the leak.
Under certain circumstances, a spark may be created when the adapter is plugged into the power
outlet, or when the remote microphone unit is replaced in its cradle. This is a common event
associated with the closing of any electrical circuit. The user should not plug the phone into a power
outlet, and should not put a charged wireless microphone unit into the cradle, if the phone is located
in an environment containing concentrations of flammable or flame-supporting gases, unless there
is adequate ventilation. A spark in such an environment could create a fire or explosion. Such
environments might include: medical use of oxygen without adequate ventilation; industrial gases
(cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc.
Only put the wireless microphone unit next to your ear when it is in normal talk mode.
The power cables are intended to be correctly oriented in a vertical or floor mount position. The
prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or
cabinet outlet.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
•
•
•
•
•
•
13.
14.
15.
16.
1. IMPORTANT SAFETY INSTRUCTIONS

2

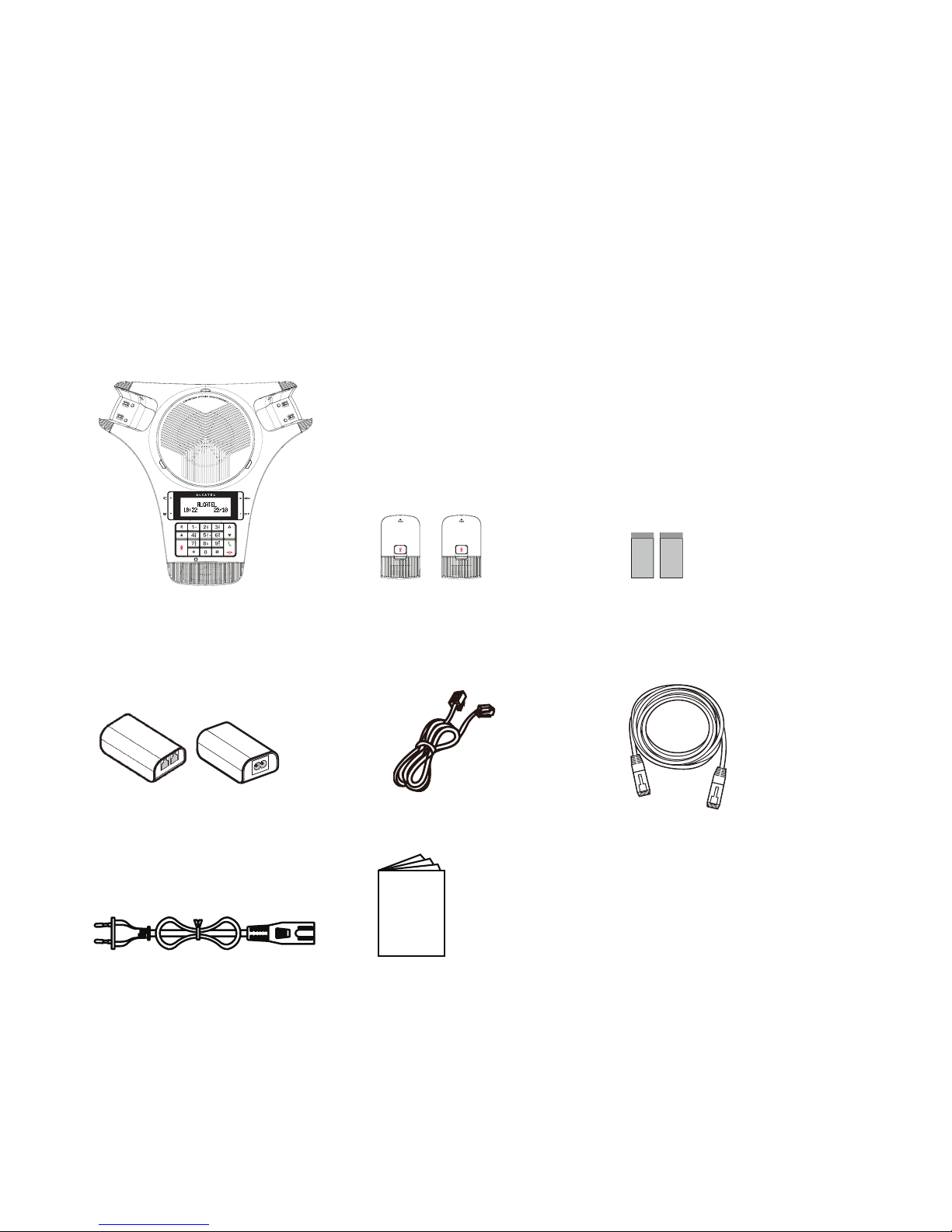

1.1. Package Contents
The package contains the following items.
• 1 Alcatel Conference 1500 base unit
• 2 Wireless microphone units
• 1 AC power cord
• 1 Interface module (AC power / To Phone & From Wall)
• 1 Telephone line cord
• 2 3.7V 240mAh Li-Polymer rechargeable batteries
• 1 6-metre connector cable
• User’s guides
Important: Only use the mains power adaptor, cables, and rechargeable batteries
supplied in the package. Otherwise, this product might not work. Any replacement
rechargeable batteries must be of the same type.
Alcatel Conference 1500
base unit x 1
User guides
Telephone line cord x 1
Wireless microphone
unit x 2
6-metre connector
cable x 1
3.7V 240mAh Li-Polymer
rechargeable battery x 2
Interface module x 1
AC power cord x 1
User guide
ErisStation JTM

3
1.2. Location
For maximum coverage and reduce the interference, here are some guidelines you
should consider when you place the base unit:
- place it away from electronic appliances such as televisions, microwave ovens,
radios, personal computers, wireless devices, or other cordless phones.
- avoid facing radio frequency transmitters, such as external antennas of mobile
phone cell stations.
- avoid plugging it into the same circuit as other major household electrical
appliances because of the potential for interference. Try moving the appliance or
the base unit to another power outlet.
- If the reception between a wireless microphone unit and the base unit is not
satisfactory, move the units to another location for better reception.

4
2.1. Connect the Base Unit

Always use the cables provided in the box.
2. SET UP YOUR PHONE
Plug one end of the 6-metre connector cable into the base unit, and then plug the
other end into the interface module. Route the cord through the slots.
Plug one end of the telephone line cord into the interface module, and then plug
the other end into the wall jack or micro-filter.
Plug the small end of the AC power cord into the interface module, and plug the
large end into the wall power outlet.
1.
2.
3.

5
2.2. Activate the battery of the Wireless Microphone Unit
1. Activate the battery of each wireless microphone unit by pulling the plastic tag
away from the back of the unit.

If the microphone unit still does not turn on after the pull tag is removed and charged over 8 hours,
take the battery out and re-insert it by following the steps in the section 2.3.
•
1
2.3. Insert the battery to the Wireless Microphone Unit
1. Place the supplied rechargeable battery carefully as indicated. Pay extra
attention to the direction of battery.

6
1

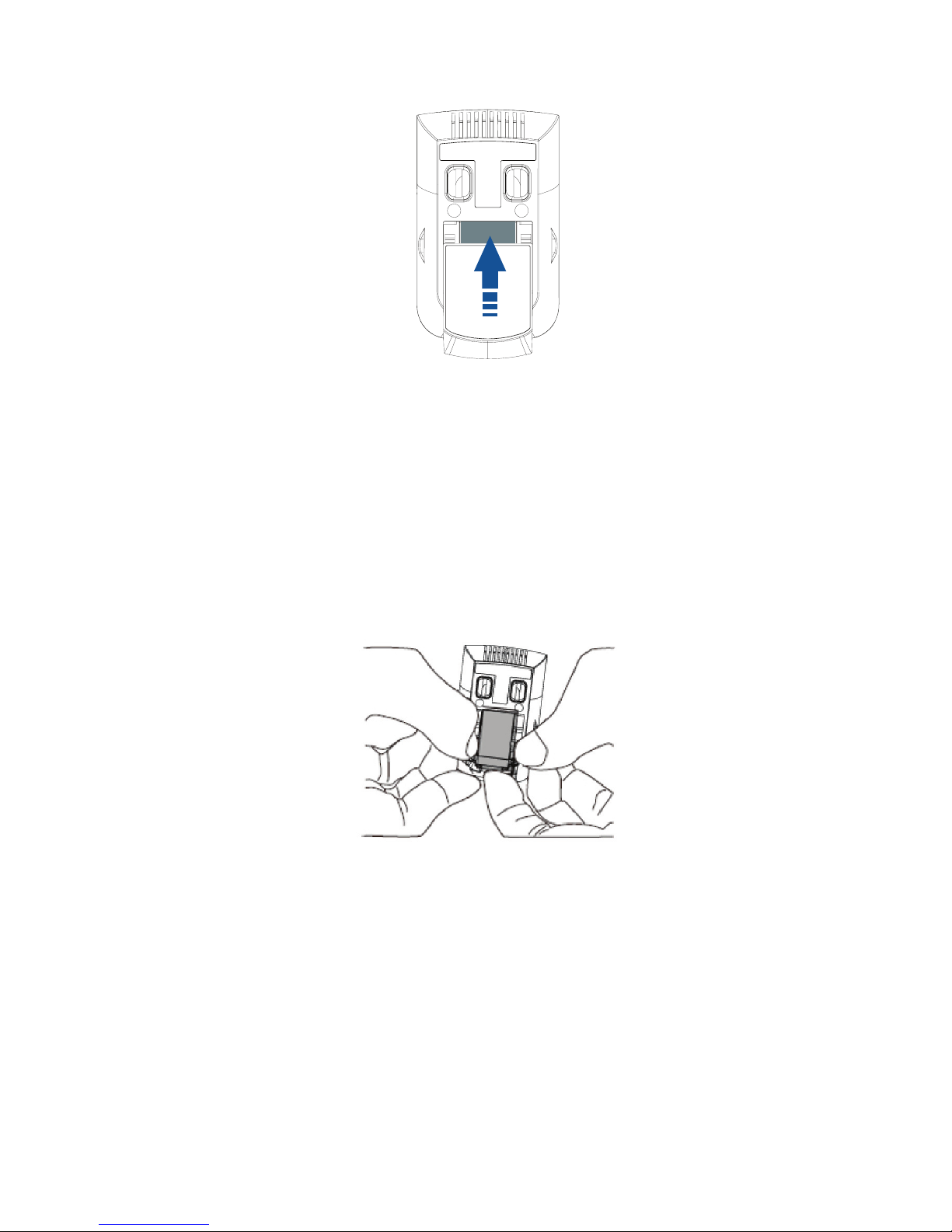

2. Slide the battery compartment cover back.
3. Put the microphone unit on the base unit and charge for 8 hours before first use.
The unit will emit red light when it is properly placed on the base.

Use only the supplied Li-ion Polymer rechargeable battery.
If the wireless microphone units will not be used for a long time, disconnect and remove the battery
to prevent possible leakage - Slide open the cover, and then press the 2 ribs outwards. After that, use
finger to lift the battery from the end side, and then slowly take out the battery.
•
•
If you have a Broadband Line
If you connect your telephone to a line with a broadband connection, you will need
to insert a micro-filter between the telephone and the telephone line. Otherwise,
there may be interference between the telephone and the broadband, which could
cause problems.
In a fixed line with broadband, every telephone must have a micro-filter connected,
not just the one at the telephone point that your modem is connected to. If you need
more broadband micro-filters, contact your broadband supplier.

7
3.1. Base Unit Overview
1. ( )
• In menu mode: Press to scroll up the menu items.
• In idle mode: Press to access the call list.
• While entering names or numbers in the phonebook: Press to move the
cursor to the right.
2. ( )
• In menu mode: Press to scroll down the menu items.
• In idle mode: Press to access the phonebook.
• While entering names or numbers in the phonebook: Press to move the
cursor to the left.
3.
• In idle / predialing mode: Press to insert a flash.
• During a call: Press to dial a flash.
• Set up conference call (see section 4.11).
3. GETTING TO KNOW YOUR PHONE
ErisStation JTM
1
2
3
4
13
12
11
8
14
7
6
5
9
10

8
4.
• In Idle mode: Press to access the redial list.
5.
• During a call: Press to mute/unmute all microphones in the system.
6.
• Press to insert a space when entering names.
7.
• Press and hold to insert a dialing pause when entering numbers.
8.
• Press to end a call.
9.
• Press to make or answer a call.
10.
• Press to decrease ringer or speaker volume.
11.
• Press to increase ringer or speaker volume.
12. C (EXIT)
• Press to go back or delete a character.
• Press and hold to delete all characters.
13. OK (MENU)
• Press to select a menu item displayed next to the key.
• While in a menu: Press to select an item or save an entry or setting.
14. LED Lights
• Green during a call.
• Red when mute is on.
• Flashing Green when there is an incoming call.

9
3.2. Wireless Microphone Unit Overview
1.
U
s
e
r
’
s
m
a
n
u
a
l
Quick start guide
(x4) (x4)
Press the
U
s
e
r
’
s
m
a
n
u
a
l
Quick start guide
(x4) (x4)
position, and then lift the wireless microphone unit from
the base during a call.
2.
• During a call: Press to mute/unmute all microphones in the system.
Muted when the wireless microphone units are on the base unit charging
cradles.
3. LED Light
Green when the wireless microphone units are lifted from the base unit
charging cradles during a call.
Flashing Green when there is an incoming call.
Red when charging, or when all microphones are muted.
Flashing Red quickly when there is low battery.
Flashing Red slowly when the wireless microphone units are out of range of
the base unit.
Orange when fully charged.
4. Microphone
•
•
•
•
•
•
•
•
1
2
3
4

10
4.1. Set Date and Time
You should set the correct time and date before use.
Press OK on the base unit in idle mode to enter the main menu.
Press or to select SET DATE/TIME, and then press OK.
Press or to select the day, and then press OK.
Press or to select the month, and then press OK.
Press or to select the year, and then press OK.
Press or to select the hour, and then press OK.
Press or to select the minutes, and then press OK.You hear a confirmation
tone.
4.2. Change LCD language
Press OK on the base unit in idle mode to enter the main menu.
Press or to select SETTINGS, and then press OK.
Press or to select LCD LANGAUGE, and then press OK.
Press or to select desired language, and then press OK.You hear a
confirmation tone.
4.3. Make a Call
4.3.1 Preparatory Dialing
Enter the phone number, and then press to dial the number. To clear the entry,
press C.
4.3.2. Direct Dialing
Press to take the line, and then enter the phone number to dial.
4.4. Answer a Call
Press .
4.5. End a Call
During a call, press . After the call ends, put all wireless microphone units back
to the base unit charging cradles.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
4. USING YOUR PHONE

11
4.6. Redial
The base unit stores the last 10 dialed numbers (up to 30 digits each) in the redial
list.
4.6.1. Review the Redial List
Press in idle mode.
Press , or repeatedly to browse the list. The base unit beeps twice at the end
of the list.
Press Cto exit.
4.6.2. Dial a Redial Entry
1. Repeat steps 1 and 2 in section 4.6.1.
2. Press .
4.6.3. Save a Redial Entry to the Phonebook
Repeat steps 1 and 2 in section 4.6.1.
Press OK twice.
The base unit displays EDIT NUMBER. Use the dialing keys to edit the number.
Press OK, the base unit displays ENTER NAME. Use the dialing keys to
input name.
Press OK, and then SAVED displays. You hear a confirmation tone.
4.6.4. Delete a Redial Entry
Repeat steps 1 and 2 in section 4.6.1.
Press OK, and then to select DELETE.
Press OK to delete the displayed number. You hear a confirmation tone.
4.6.5. Delete the Entire Redial List
Repeat steps 1 and 2 in section 4.6.1.
Press OK, and then to select DELETE ALL.
Press OK, the screen displays DELETE ALL ENTRIES? Press OK to delete all
redial numbers. You hear a confirmation tone. The screen displays DELETED.
4.7. Adjust Speaker Volume
During a call, press or to increase or decrease the speaker volume.
1.
2.
3.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3.

12
4.8. Mute a Call
You can talk to someone nearby without letting the caller hear you during a call.
During a call:
Press to mute all microphones in the system and MUTED will display on the
screen. Your caller cannot hear you. Press again to unmute all microphones in the
system.
4.9. Page All Microphones
You can page the wireless microphone units to help you relocate them.
Press OK in idle mode.
Press or to select FIND ALL MICS, and then press OK.
All registered wireless microphone units that are outside charging cradles and
within range will beep for 60 seconds.
To stop the paging beep, press on the wireless microphone unit or place it
back to the base unit charging cradles.
4.10. Temporary Ringer Silence
When the telephone is ringing, you can temporarily silence the ringer of the base
unit without disconnecting the call. The next call rings normally at the preset volume.
To silence the ringer:
Press on the base unit and RINGER MUTED displays.
4.11. Set Up a Conference Call
If your telephone system supports 3-party call conferencing, you can set up a
conference call.
1. Press .
2. When you hear a dial tone, dial the first phone number.
3. When the first call is answered, press to put the first call on hold.
4. When you hear a dial tone, dial the second phone number.
5. When the second call is answered, press . Your conference call starts.
This conference call descriptions may vary depending on your local public network
or your private telephone system. Please contact your local operator or phone
installer.
1.
2.
3.
4.
1.

13
The phonebook stores up to 50 entries, with up to 30 digits for each phone number
and 15 characters for each name.
When there are no records in the phonebook, the screen displays PHONE
EMPTY, and then ADD CONTACT?.
When the phonebook is full and you try to save an entry, the screen displays
PHONEBOOK FULL.
When you try to add an entry already stored in the phonebook, the base unit
displays NUMBER ALREADY SAVED.
5.1. Add a New Phonebook Entry
Press OK in idle mode to select PHONEBOOK, and then press OK.
1.1. If phonebook is empty, the screen displays ADD CONTACT?
Press OK. The screen displays ENTER NUMBER.
1.2. If phonebook record is available, press OK, and then to select
ADD CONTACT. The screen displays ENTER NUMBER.
2. Enter a telephone number.
OR
Copy a number from the redial list.
• Press , and then , , or repeatedly to browse for a number.
Press OK to copy the displayed number.
3. Press OK. The screen displays ENTER NAME.
4. Enter the name:
• Press or to move the cursor to the left or right respectively.
• Press to add a space.
• Press C to delete a character.
• Press and hold C to delete all characters.
• Press OK to confirm and the screen displays SAVED.You hear a confirmation
tone.
5.2. Search a Phonebook Entry
Press ( ) in idle mode.
Press or to select a phonebook entry, or use your keypad to enter first letter of
the name you are looking for.
•
•
•
1.
1.
2.
5. PHONEBOOK

14
5.3. Dial a Phonebook Entry
Search for the desired entry in the phonebook.
Press .
5.4. Edit a Phonebook Entry
Search for the desired entry in the phonebook, and then press OK.
The screen displays EDIT CONTACT. Press OK.
The screen displays EDIT NUMBER. Edit the number, and then press OK.
The screen displays EDIT NAME. Edit a name, and then press OK.
The screen displays SAVED. You hear a confirmation tone.
5.5. Delete a Phonebook Entry
Search for the desired entry in the phonebook.
Press OK, and then to select DELETE. Press OK. The screen displays
DELETE CONTACT? and the name of the entry. Press OK to confirm.
The screen displays CONTACT DELETED. You hear a confirmation tone, and
then
the next alphabetical entry in the phonebook.
5.6. Delete all Phonebook Entries
Press OK in idle mode to select Phonebook, and then press OK twice.
Press to select DELETE ALL. Press . The screen displays DELETE ALL
CONTACTS? Press OK to confirm. The screen displays ALL CONTACTS
DELETED. You hear a confirmation tone.
5.7. Capacity of Phonebook
Press OK in idle mode to select Phonebook, and then press OK twice.
Press to select CAPACITY. Press OK to confirm. The screen displays
CAPACITY X/50 USED. (Xis the number of phonebook entries stored).
1.
2.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
1.
2.

15
5.8. Speed Dial
You can assign 5 of your phonebook entries to a speed dial location (1, 2, 3, 4, and 5).
5.8.1. Set a Speed Dial Number
Press OK in idle mode to select PHONEBOOK, and then press OK twice.
Press or to select SPEED DIAL, and then press OK.
Press or to select an empty slot (1-5), and then press OK.
The screen displays COPY FROM PHONEBOOK, and then press or to select
your desired phonebook.
When the desired entry appears, and then press OK.You hear a confirmation tone.
5.8.2. Change a Speed Dial Entry
Press OK in idle mode to select PHONEBOOK, and then press OK twice.
Press or to select SPEED DIAL, and then press OK.
Press or to select an empty slot (1-5), and then press OK.
Select EDIT, and then press OK.
Press or to select the name you want to change.
Press OK to save the new entry.You hear a confirmation tone.
5.8.3. Dial a Speed Dial Entry
In idle mode, press and hold a desired speed dial key (1, 2, 3, 4, and 5).
5.8.4. Delete a Speed Dial Entry
Press OK in idle mode to select PHONEBOOK, and then press OK twice.
Press or to select SPEED DIAL, and then press OK.
Press or to select an empty slot (1-5), and then press OK.
Press to select DELETE, and then press OK. The screen displays SPEED DIAL
EMPTY. You hear a confirmation tone.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
6.
1.
1.
2.
3.
4.

16
This feature is available if you have subscribed the Caller ID service with your
telephone service provider.

Alcatel Conference 1500 does not display caller number during call waiting.
Your phone can store up to 50 received calls with date/time information in the
call list. The number will be shown on the screen when the phone is ringing. If the
number matches with one of the entries in your private phonebook, the caller’s name
stored in the private phonebook will be displayed with the number.
If the caller number is disabled to send caller information, WITHHELD will
be displayed.
If the caller number is not provided by the network, UNAVAILABLE will
be displayed.
In idle mode, if three unanswered calls are received, “” will be
displayed. Whenever you enter the call list, or the base unit resumes power after
power outage, the missed call indicator goes away.
If the incoming telephone number matches the last 7 digits of a telephone number in
your phonebook, the name that appears on the screen matches the corresponding
name in your phonebook.
6.1. View the Call List
All received calls are saved in call list with the latest call placed at the top of the list.
When the call list is full, the oldest call will be replaced by a new call.
In idle mode, press ( ) to review the calling number display history.
OR
You can also review the calling number display history by pressing OK, and then
or to select to CALL LIST, and then press OK.
Press or to browse.
6.2. Call an Entry in the Call List
1. Refer to View the Call List.
2. Press .
1.
2.
6. CALLER DISPLAY (Network dependent)

17
6.3. Store a Call List Number into the Phonebook
1. Select a desired entry in the call list, and then press OK. The screen displays
STORE TO PB.
2. Press OK. The screen displays EDIT NUMBER.
3. Edit the number, and then press OK. The screen displays EDIT NAME
4. Edit the name, and then press OK to confirm. The screen displays SAVED. You
hear a confirmation tone.
6.4. Delete an Entry in the Call List
1. Select a desired entry in the call list.
2. When the desired entry is displayed, press OK.
3. Press to select DELETE, and press OK. The screen displays the next call list
entry.You hear a confirmation tone.
6.5. Delete the Entire Call List
1. Select a desired entry in the call list.
2. When the desired entry is displayed, press OK.
3. Press to select DEL ALL CALLS, and then press OK to confirm. The screen
displays DELETE ALL CALLS?.
4. Press OK to confirm. You hear a confirmation tone.
