Introduction
Safety Guidelines
Before proceeding with the installation or operation of this product, read all instructions thoroughly, as well as complying with
all federal, state and local codes, regulations, and practices. This product must be installed by qualied personnel familiar with
all applicable local electrical and mechanical codes. Refer to the National Electrical Code (NFPA 70). Failure to properly install
and test this product can result in personal injury or equipment malfunction.
WARNING
1. DISCONNECT POWER when installing or servicing the product. Failure to disconnect all power sources could result in
serious injury or death.
2. NEVER enter a ooded space without proper Personal Protective Equipment (PPE). Always wear dielectric rubber boots
and other applicable protective equipment when water is on the oor and you must service an energized pump, alarm
system, or product.
3. DO NOT enter the water if the water level is higher than that of the protection your PPE offers or if your PPE is not
watertight.
4. DO NOT use this product with or near ammable liquids.
5. DO NOT install this product in locations classied as hazardous or in explosive atmospheres as dened by any applicable
electrical safety code.
The VersAlarm™ I/O is a versatile option for indoor and outdoor utility monitoring. This alarm can be used for a wide variety
of applications, including but not limited to: septic tanks, sump pits, holding tanks, pump chambers, and water tanks. The
VersAlarm™ I/O has several setup options that include: indoor wall mount and outdoor mounting to a wall or post. Visit our
website alderonind.com to view different options and accessories to use with the VersAlarm™ I/O for liquid level monitoring.

4 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE

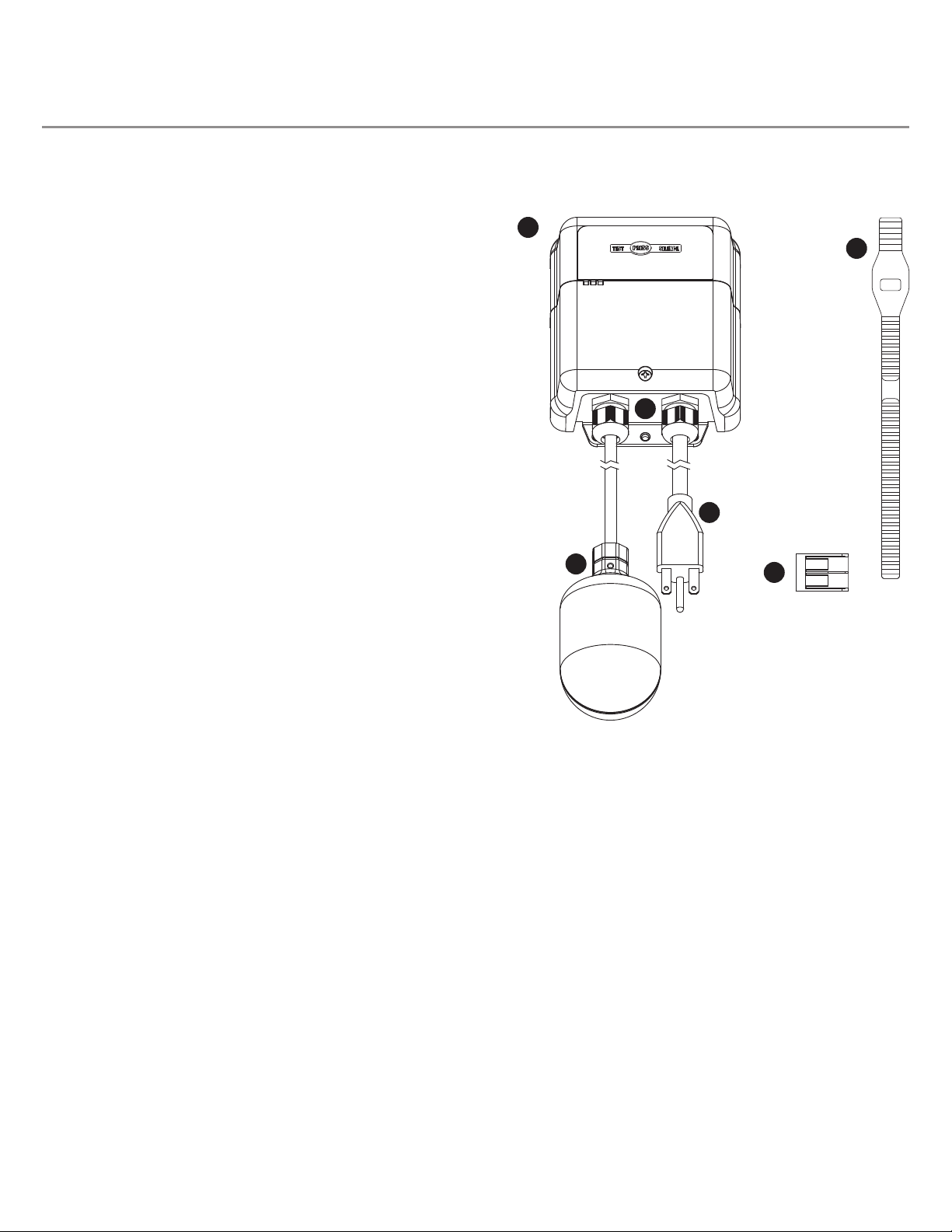

This model includes: (1) VersAlarm™ I/O, (1) 6-Foot 230VAC Power Cable, (2) Cable Grips, (1) Alarm Float Switch (lengths vary
per part number), (1) RubberLox™ Pipe Clamp, and (1) Wago connector.
(1) VersAlarm™ I/O
The VersAlarm™ I/O includes one sensor input equipped with
audible and visual alarm indication. The alarm is suitable for
both indoor and outdoor applications. The alarm is compatible
with a variety of sensors for liquid level monitoring.
(2) 6-Foot 230VAC Power Cable
A male, 230VAC, 6-foot power cable is pre-installed.
(3) Alarm Float Switch
The alarm oat switch is the default sensor option for liquid level
monitoring.
(4) Cable Grips
The cable grips are pre-installed to secure the power and alarm
oat switch cables.
(5) RubberLox™ Pipe Clamp
The RubberLox™ pipe clamp is included to secure the alarm
oat switch.
(6) Wago Connector
The Wago connector is included for ground wire termination.
Included with Alarm
1
6
2
3
4
5

Alderon Industries™ - Leading Edge Control Products | 5
VersAlarm™ I/O - USER GUIDE
Features
Refer to the illustration below to reference the feature descriptions provided.
(1) Power On Indicator - A pair of green LEDs will illuminate inside
the top cover of the enclosure to indicate that the unit is powered on.
(2) Alarm Beacon - During an alarm condition, the green power on
indicator will turn off and the red alarm LEDs will illuminate, ashing
inside the top cover of the enclosure.
(3) Alarm Buzzer - The alarm buzzer will annunciate in addition to
the visual indication provided by the red LEDs inside the top cover of
the enclosure during an alarm condition.
(4) Test/Silence Pushbutton - This button may be used to either
test or silence the alarm. If the alarm is not in the state of an alarm
condition, the button will test the alarm activating the alarm beacon
and buzzer. During an alarm condition, it will silence the buzzer and
the red LEDs will stop ashing and remain solid.
(5) Auxiliary Contacts - One set of auxiliary contact terminals are
included allowing the alarm to interface with an external device. The
contacts are rated for 24VDC @ 0.5A maximum.
(6) Sensor Input - One set of sensor terminals are included for the
alarm oat switch which activates the alarm.
(7) Power Mains Input - The alarm has terminals for the line (L1/L2)
connection wires to install 230VAC power from the mains. If 120VAC
power is needed, visit alderonind.com or call factory for options.
(8) Power Indicator Turn Off - Hold down the test/silence push-
button for 15 seconds to turn off the green power indicator. Repeat
process to turn power indicator back on.
(9) QR Code - Scan code which directs you to alderonind.com where
additional information can be found for the VersAlarm™ I/O.
(10) Sound Chamber - The enclosure is designed to allow maximum
sound output from the alarm buzzer. This chamber prevents water
from getting into the enclosure while letting the sound out.
(11) Cable Grips (not shown) - Pre-installed for easy installation.
(12) 6-Foot 230VAC Power Cable (not shown) - A male, 230VAC
power cable is pre-installed for easy installation.
(13) Alarm Float Switch/Sensor (not shown) - Pre-installed for
easy installation.
8
10
1
3
4
5
9
2
7
6

6 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE
Installation
DISCONNECT ALL POWER SOURCES WHEN INSTALLING OR SERVICING THIS PRODUCT. FAILURE TO
TURN OFF ALL POWER SOURCES COULD RESULT IN SERIOUS INJURY OR DEATH.
Mounting Enclosure and Alarm Float Switch
STEP 1: WALL MOUNT ENCLOSURE
Determine the mounting location for the VersAlarm™ I/O. Make
sure the power outlet is within six feet of the alarm panel for the
pre-installed power cable. Hold the VersAlarm™ I/O up to the
desired mounting location, mark the drill hole locations. Once
marked, drill pilot holes for screws (not included) and use wall
mount anchors (not included) if necessary. Place enclosure in
the mounting location, adjust until the pilot holes are lined up
with the enclosure and fasten screws to secure the alarm panel
in place.
STEP 2: DETERMINE ACTIVATION LEVEL
The alarm panel comes with a pre-installed power cable and
alarm oat switch. Refer to the instructions that came with the
alarm oat switch to determine the alarm activation level and
mount the alarm oat switch. See step 3 for proper installation
of the alarm oat switch.
Note: If using auxiliary contacts, see Wiring step 1 instructions.
CAUTION: Do not connect power until installation/wiring is
complete and the alarm is ready for testing.
Plug power cable into
230VAC receptacle
Mount alarm oat switch
at alarm activation level

Alderon Industries™ - Leading Edge Control Products | 7
VersAlarm™ I/O - USER GUIDE
STEP 3: MOUNT ALARM FLOAT SWITCH
The RubberLox™ pipe clamp is included to securely fasten the
alarm oat switch at desired alarm activation level.
1) Before tightening RubberLox™, place the oat cable on
cable placement area (3A).
2) Tether the alarm oat switch at 3.5 inches (3B).
3) Securely tighten RubberLox™ by ratcheting for
maximum tension to prevent slipping (3C).
Mounting Enclosure and Alarm Float Switch (continued)
Connecting Power to Alarm
STEP 1: CONNECTING POWER CABLE
The pre-installed power cable is connected to a standard
230VAC wall outlet or power receptacle. Make sure outlet is on
a separate circuit breaker from any other device and not on a
switched receptacle to maintain power integrity.
CAUTION: Do not connect power until installation/wiring is
complete and the alarm is ready for testing.
Tether
Length
3A
3B
3C
Cable Placement Area

8 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE
Testing the Alarm
Make sure the installation process is completed and there is
power to the product.
STEP 1: TEST ALARM
Press the test/silence pushbutton on the front of the enclosure
for a few seconds. The red LEDs should illuminate, ashing and
the buzzer should annunciate.
STEP 2: TEST ALARM FLOAT SWITCH
The pre-installed alarm oat switch is connected to the sensor
terminals (3 and 4). Activate the alarm oat switch, the red LEDs
should illuminate, ashing and the buzzer should annunciate.
STEP 3: TEST ALARM SILENCE
Press the test/silence pushbutton on the front of the enclosure
while the alarm oat switch is activated. The red LEDs should
stop ashing and remain solid and the buzzer should silence.
The silence condition will reset when the alarm oat switch is
deactivated.
STEP 4: TEST WEEKLY
To ensure the product is functioning properly, test once a week.
POWERSENSORAUX
1 2 3 4 5 6

Alderon Industries™ - Leading Edge Control Products | 9
VersAlarm™ I/O - USER GUIDE
Wiring
STEP 2: WIRING

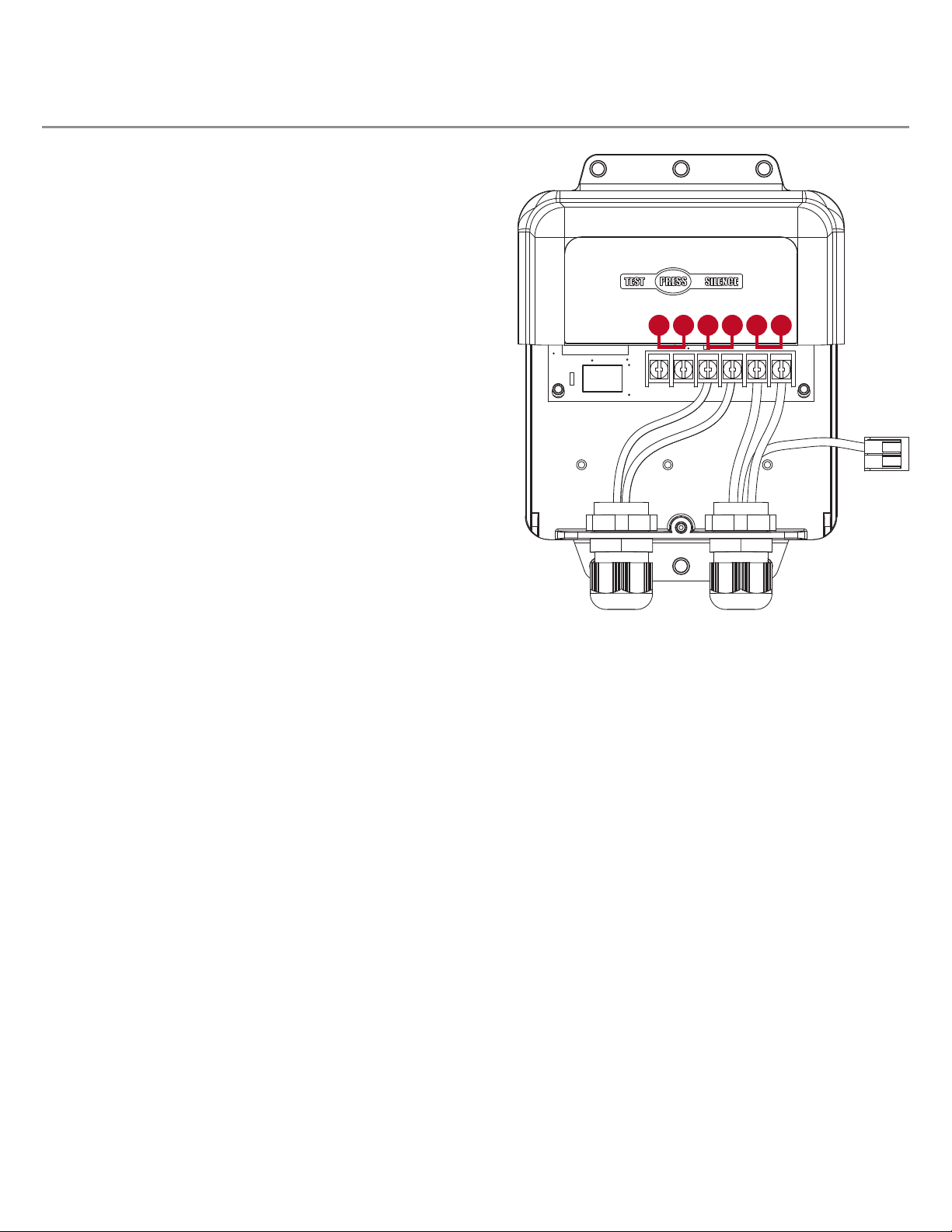

The wiring diagram shows six terminals on the terminal block
that consists of three pairs of connections.
1) Starting from the right, the rst pair of terminals (5 and
6) are for the power mains. The rst line connection (L1)
is installed in terminal 5 and second line connection (L2)
is installed in terminal 6.
2) The second pair of terminals (3 and 4) are for the sensor
connections. The sensor is typically a oat switch, but
most digital switch sensors will work with the sensor
input.
3) The third pair of terminals (1 and 2) are for the auxiliary
contacts. This connection can be used on most digital
peripheral alarm monitors or extensions.
4) NEVER leave ground wire exposed inside the panel, use
provided Wago connector for ground termination. See
step 3 for installing wire into Wago connector.
STEP 1: REMOVE BOTTOM COVER
The bottom enclosure cover is fastened by a single screw on
the bottom of the enclosure. Remove the screw and slide the
cover directly downward until sound chamber is cleared (1A)
and pull directly away from the enclosure (1B).
1B
1A
This model comes with a pre-installed power cable and alarm oat switch. If using auxiliary contacts or servicing is required,
use this section for entry and wiring of the VersAlarm™ I/O.
WAGO
G
R
O
U
N
D
POWERSENSORAUX
1 2 3 4 5 6

10 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE
STEP 4: INSTALL BOTTOM COVER
Place the bottom of enclosure back on, lining up with the
grooves (4A). Then slide the bottom piece upward (4B) until it
meets the top piece and screw hole is lined up with the boss.
Replace the screw at the bottom of the enclosure.
STEP 3: INSTALLING WIRE INTO WAGO CONNECTOR
1) Lift tab(s) upward.
2) Insert wire(s) into slot.
3) Press tab(s) downward.
4) Make sure wire(s) are secured.
4A
4B
Wiring (continued)
General Operation
The VersAlarm™ I/O is an alarm panel rated for indoor or outdoor use equipped with audible and visual alarm indication. The
VersAlarm™ I/O is activated by the alarm oat switch. This model comes with a pre-installed power cable and alarm oat
switch. The applications are not limited to what is listed in this user guide. Follow all individual instructions for the alarm oat
switch and accessories used with the VersAlarm™ I/O.
The following applications can be found in this user guide: Septic Tank Monitoring, Sump Pit Monitoring, and Alarm Auxiliary
with Auto Dialer.
TO OPEN
WAGO
TO CLOSE
WAGO

Alderon Industries™ - Leading Edge Control Products | 11
VersAlarm™ I/O - USER GUIDE

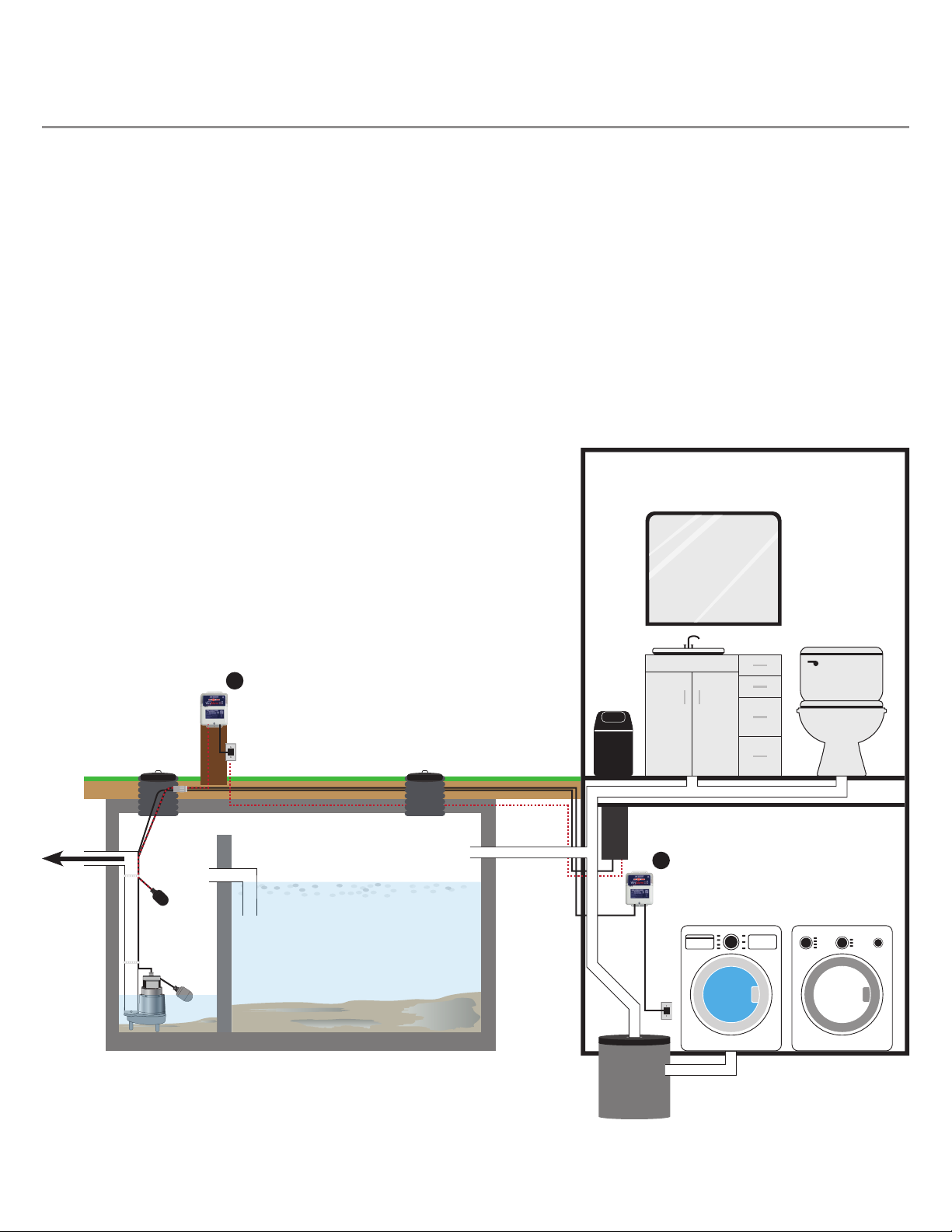

Septic Tank Monitoring
The diagram below shows the typical setup for septic tank monitoring. The VersAlarm™ I/O is shown in two locations to demon-
strate the most typical options for septic tank monitoring. The alarm oat switch is connected to the sensor input for high water
indication. If water level is not high enough to activate the alarm oat switch, then the top cover of the enclosure will be green.
If the alarm oat switch is activated, then the top cover of the enclosure will ash red and the buzzer will annunciate. The alarm
condition will stay on until the alarm oat switch is deactivated. If the silence pushbutton is pressed during an alarm condition,
then the top cover of the enclosure will turn solid red and the buzzer will silence. The silence condition will reset when the alarm
oat switch deactivates. If the alarm is in silence mode for longer than 24 hours, the alarm will reactivate.
1) Indoor Application - The rst option shows the VersAlarm™ I/O mounted in the utility room. The alarm oat switch will
need splicing for the additional wire length. A second common indoor installation method is mounting the alarm in the
garage (not shown).
2) Outdoor Application - The second option is to mount the VersAlarm™ I/O to a post in the ground next to the septic tank.
This option would require a shorter alarm oat switch cable length and running the power mains out to the alarm.
13:27
Cycle: WASH
HEATTIME START
Septic
to
Drain Field
VersAlarm™ I/O
VersAlarm™ I/O
Alarm
Float
Pump
Switch
2
1

12 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE

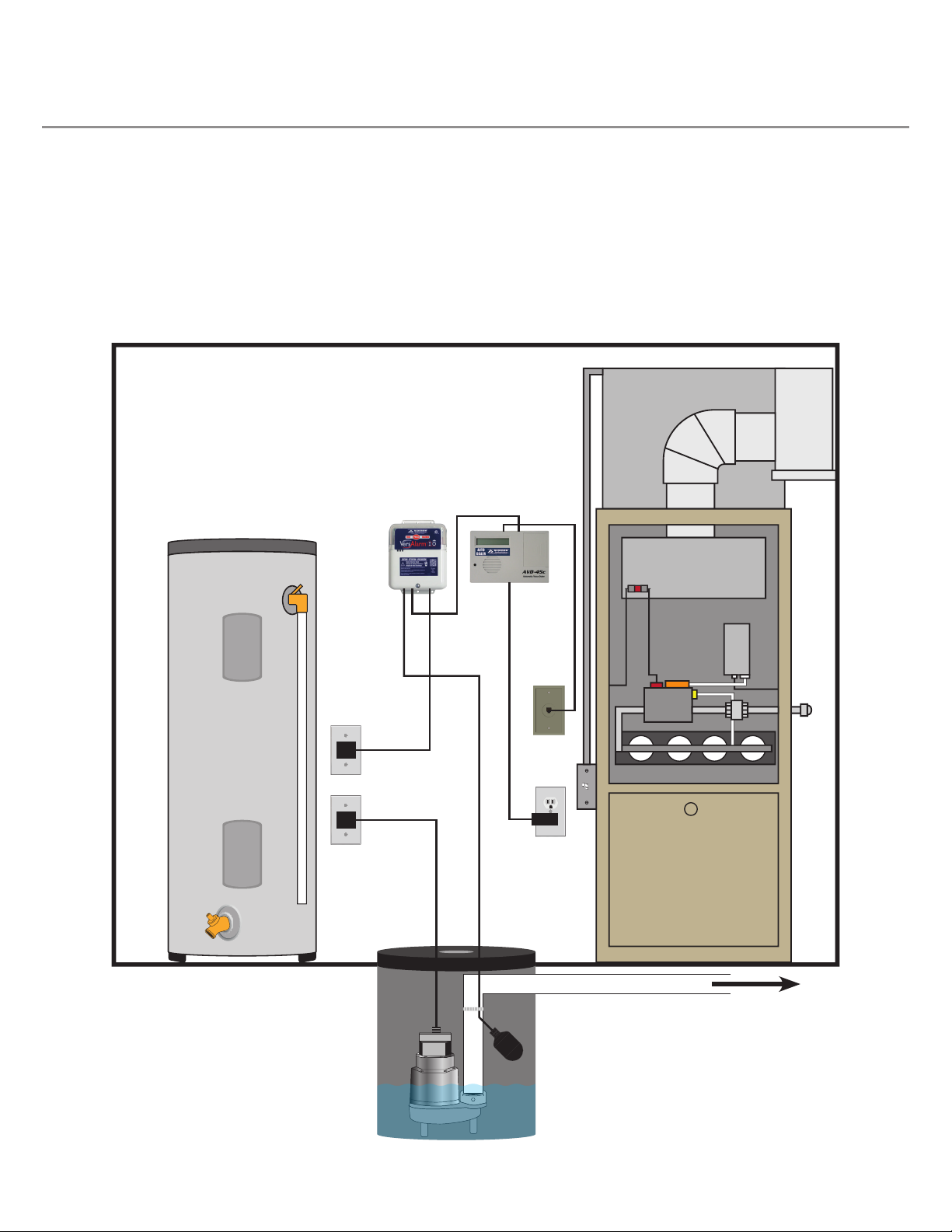

Sump Pit Monitoring
House to Yard
VersAlarm™ I/O
Alarm
Float Switch
The diagram below is a typical setup for sump pit monitoring. The VersAlarm™ I/O is mounted on the wall. The pump and alarm
are powered by 230VAC. The alarm oat switch is connected to the sensor input for high water indication. If water level is not
high enough to activate the alarm oat switch, then the top cover of the enclosure will be green. If the alarm oat switch is ac-
tivated, then the top cover of the enclosure will ash red and the buzzer will annunciate. The alarm condition will stay on until
the alarm oat switch is deactivated. If the silence pushbutton is pressed during an alarm condition, then the top cover of the
enclosure will turn solid red and the buzzer will silence. The silence condition will reset when the alarm oat switch deactivates.
If the alarm is in silence mode for longer than 24 hours, the alarm will reactivate.

Alderon Industries™ - Leading Edge Control Products | 13
VersAlarm™ I/O - USER GUIDE
Alarm Auxiliary with Auto Dialer
The diagram below includes the VersAlarm™ I/O and auto dialer. The alarm oat switch is connected to the sensor input on the
alarm for high water indication and the auto dialer is connected to the auxiliary contacts. If water level is not high enough, then
the top cover of the enclosure will be green. If the alarm oat switch is activated, then the top cover of the enclosure will ash
red, the buzzer will annunciate, and auxiliary contacts close activating the input of the auto dialer sending a voice message to
programmed number(s). The alarm condition will stay on until the alarm oat switch is deactivated. If the silence pushbutton is
pressed during an alarm condition, then the top cover of the enclosure will turn solid red and the buzzer will silence. The silence
condition will reset when the alarm oat switch deactivates. If the alarm is in silence mode for longer than 24 hours, the alarm
will reactivate.
VersAlarm™ I/O
Auto
Dialer
House to YardAlarm
Float Switch

14 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE
Troubleshooting
PROBLEM PROBABLE CAUSE SOLUTION
Green LEDs on the enclosure are not
turning on during initial setup
Power not applied or power loss Check to see if alarm is plugged in, have
qualied personnel check receptacle
with voltmeter and make sure circuit
breaker is not tripped
Green LED turn off feature activated Hold down the test/silence pushbutton
for 15 seconds and the green LEDs
should ash before illuminating
While using the pre-installed oat switch,
the alarm conditions are resuming with
an empty tank
Check to see if the oat switch is hung
up on something
Make sure the oat switch is free and
the line is tethered at desired location in
a secure fashion
If the oat switch is old, the contacts
could be stuck shut
Replace the oat switch
The oat switch is activated, but the red
LEDs on the enclosure are solid and the
buzzer is not annunciating
The silence pushbutton has been
pressed
Deactivate or disconnect the oat switch
and then reactivate or reconnect the
oat switch to ensure normal operation
resumes
The auxiliary contacts are not activating If the alarm is not activated, then the
auxiliary contacts should also be off
Test the alarm and the auxiliary contacts
should work while the alarm is activated

Alderon Industries™ - Leading Edge Control Products | 15
VersAlarm™ I/O - USER GUIDE
Specications
Primary Power:
Power:
Certications:
Auxiliary Contacts:
Enclosure:
230VAC, 50/60 Hz
2.64 Watts maximum (alarm condition)
FCC Part 15 (US and Canada), CSA (US and Canada)
24VDC @ 0.5 Amps maximum
Outdoor, rated Type 3R
FCC Part 15:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures: increase the separation
between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which
the receiver is connected, consult the dealer or an experienced radio/TV technician for help. Caution: changes/mod-
ications not approved by Alderon Industries could void the user’s authority to operate the equipment.
VersAlarm™ I/O
Electrical:
Operating Temperature:
Cable Type:
Float Housing:
Switching Differential:
Switching Conguration:
Certications:
5 Amp, 120/240VAC
0 - 140° F
SJOOW (UL/CSA), exible, 18 gauge, 2-conductor, and water/oil resistant
Polypropylene
20° total (narrow angle) and 90° total (wide angle)
Single Pole, Single Throw - Normally Open (high level alarm) or Normally Closed
(low level alarm)
CSA (US and Canada)
Altra™ Alarm Float Switch

16 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE
Warranty Information
LIMITED WARRANTY: Subject to the conditions of this Three-Year Limited Warranty, Alderon Industries, LLC (“Alderon”) war-
rants to the original user or consumer of an Alderon product (the “Product”) that, for a period of three (3) years from the date of
manufacture, the Product will be free from defects in materials and workmanship under normal use and service, and provided
the Product is installed, operated and maintained in accordance with instructions supplied by Alderon.
WARRANTY EXCLUSIONS: Notwithstanding anything to the contrary, this Limited Warranty does not cover:
1. Alderon custom control units. Please see the One-Year Limited Warranty – Custom Controls.
2. Damage, defects or malfunctions resulting from (a) failure to properly install, operate or maintain the Product in accordance
with printed instructions provided and with applicable local codes, ordinances and good trade practices; (b) normal wear and
tear; (c) abuse, accident or negligence; (d) de-installation and movement of the Product from its original installation location;
(e) repair and/or modication of the Product without prior authorization from Alderon; (f) use of the Product for purposes other
than for what it was designed and manufactured; or (g) conditions beyond the control of Alderon, including lightning and freight
damages (hidden or visible). Contact parcel or the freight company for claims on freight damage in transit.
3 Cost of eld labor or other charges incurred by you in removing and/or re-afxing the Product or any part or component
thereof.
4. Transportation costs.
CLAIM PROCEDURE: To make a claim regarding breach of warranty, (a) the claim must be received by Alderon before the ex-
piration of the warranty period; and (b) the defective Product, or part thereof, must be returned to a designated Alderon location,
FREIGHT PREPAID, together with proof of purchase. A return goods authorization must be received prior to the return of the
defective Product or part. Please contact the sales representative in your area to determine the designated Alderon location for
return and to obtain the return goods authorization. If you do not have a sales representative in your area, please call 218-483-
3034 to submit your claim, or mail notice of your claim to:
Warranty Claims
Alderon Industries, LLC
P.O. Box 827
Hawley, MN 56549
EXCLUSIVE REMEDY: In the event of a warranty claim that Alderon determines to be covered by this Limited Warranty, Al-
deron will, at its option, repair or replace the Product.
The above limited warranty and this exclusive remedy are the sole express warranty and remedy given by Alderon on the Prod-
uct. No warranties or representations at any time made by any representative from Alderon shall vary or expand the provisions
hereof. TO THE EXTENT PERMITTED BY LAW, ALL EXPRESS AND IMPLIED WARRANTIES (INCLUDING IMPLIED WAR-
RANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT) OTHER THAN
THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE ARE EXPRESSLY DISCLAIMED. UPON THE EXPIRATION OF
THE ABOVE STATED LIMITED WARRANTY PERIOD, ANY AND ALL APPLICABLE IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-IN-
FRINGEMENT, ARE DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRAN-
TY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
LIABILITY LIMITATION: In no event will Alderon’s liability to you or any other person or entity exceed the price paid to Alderon
for the defective Product. IN NO EVENT SHALL ALDERON BE LIABLE TO YOU OR ANY OTHER PERSON OR ENTITY
FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING
OUT OF WARRANTY (INCLUDING ANY IMPLIED WARRANTIES) OR ANY OTHER CONTRACT, STRICT LIABILITY, NEG-
LIGENCE OR OTHER TORT, OR OTHERWISE, INCLUDING ARISING FROM INSPECTION OR REMEDY DELAYS. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
Three-Year Limited Warranty - Standard Products
62800933.2

Alderon Industries™ - Leading Edge Control Products | 17
VersAlarm™ I/O - USER GUIDE
This page intentionally left blank

18 | Alderon Industries™ - Leading Edge Control Products
VersAlarm™ I/O - USER GUIDE
This page intentionally left blank

Alderon Industries™ - Leading Edge Control Products | 19
VersAlarm™ I/O - USER GUIDE
This page intentionally left blank

Company Location: 151 16th Street South, Hawley, MN 56549
Mailing Address: PO Box 827, Hawley, MN 56549
Main Ofce Phone: [phone]
Website: alderonind.com
General Inquiry Email: [e-mail]
Submit New Orders: order[email protected]
UG00005_Rev04_VLIO-00005_VersAlarm IO | March 25, 2022 1:49 PM
A
L
D
E
R
O
N
I
N
D
U
S
T
R
I
E
S
™
L
E
A
D
I
N
G
E
D
G
E
C
O
N
T
R
O
L
P
R
O
D
U
C
T
S
