Samsung SHS-2320 User manual

1

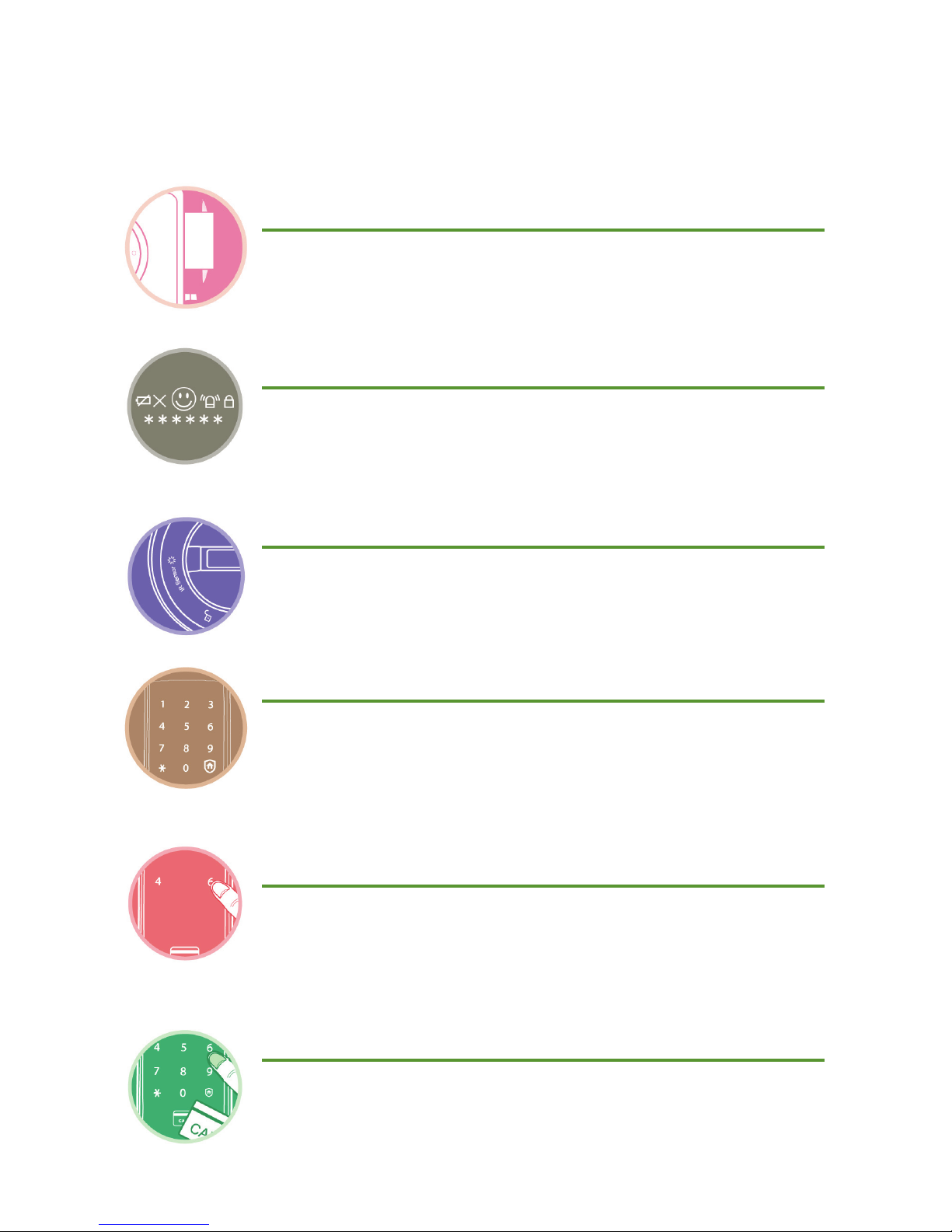

Product Features
Double Claw Bolt Ensures Robust and Safe Lock
With double claw bolt, it prevents forced intrusion, ensuring your safety.
User-friendly Graphic Interface Allows You to
Check the Status of the Doorlock
When the user opens the door or sets up the modes, user-friendly
graphic interface icons appear showing the user the status of the
doorlock, making it convenient.
With Infrared Ray Sensor, Security Is Stronger
When the door is unlocked from the inside without sensing any
movement inside, the door won’t open, strengthening the security
against intrusion.
Anti-theft Function Ensures Worry Free Trip
When going out, the user can set up the anti-theft function, which
creates a warning sound when the doorlock operates, preventing any
tempering.
Multi-leveled Security Code Entry Mode Is More
Secure
Passwords will be pressed after press two random numbers,
preventing intruders from checking the fingerprint marks left on the pad
and break in.
Double Authentication Function Is More Secure
With double authentication mode set up, both password and card must
be authenticated to open the door, strengthening security.

2

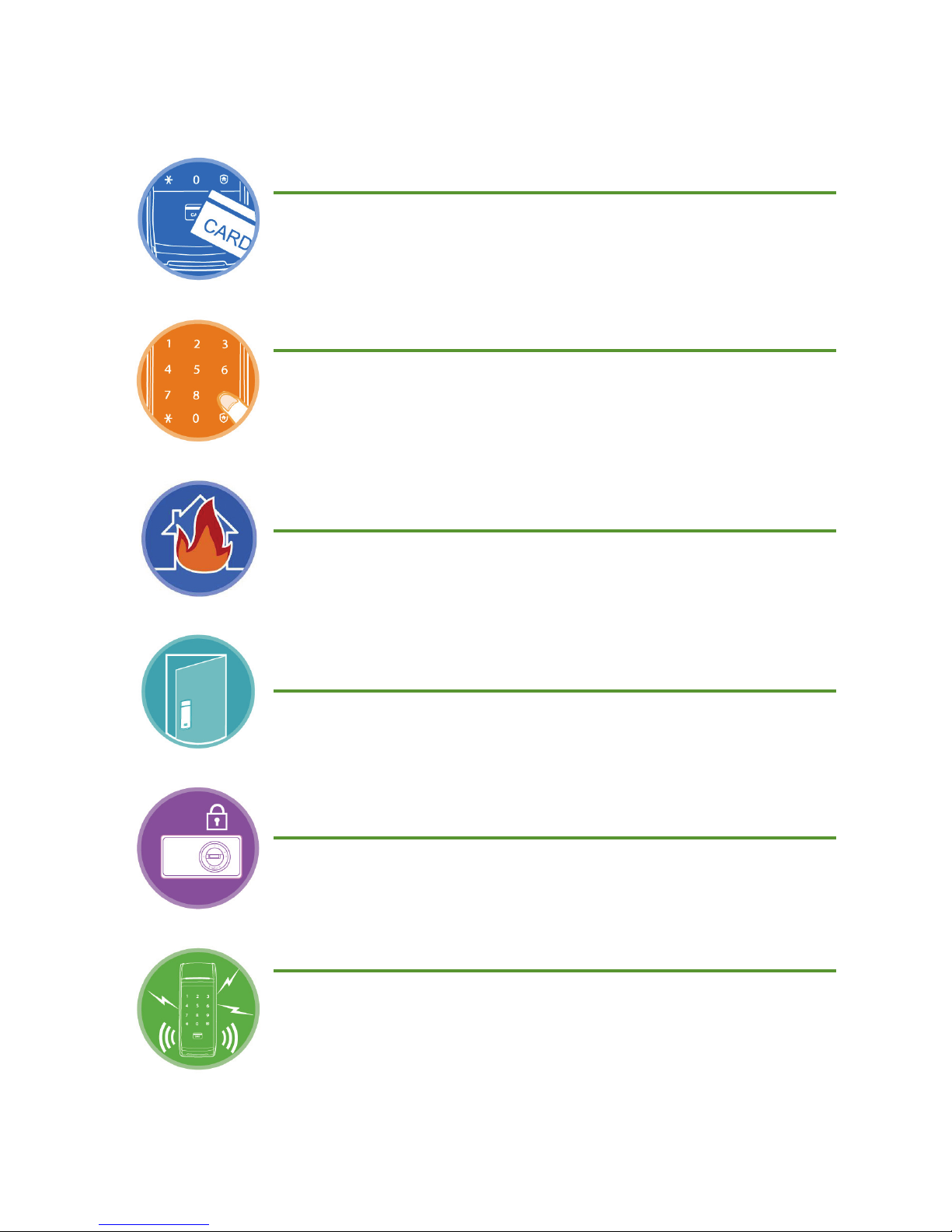

Other RF-enabled Cards as well as the Key
Tag Provided Can Be Used to Open the Door
Not only the key tag provided but also other cards with a radio
frequency function can be registered and used to open the door. (Up
to 20 cards can be registered.)
Passwords Can Open the Door
Register desired password, and use it to open the door without any
keys.
With the Built-in Fire Detection Feature, It Is
Possible to Exit Promptly and Safely in Case of a
Fire
When a fire breaks out from the inside and temperature exceeds the
normal level, a warning alarm will sound and the door will automatically
open.
Door has Auto-lock Function
Auto-lock allows the door to be locked automatically.
Double Lock System Is More Secure
At night, it is best to use double lock function to lock the door.
Protects from Outside Tampering
When trying to open the door with an unregistered card, key tag or
password 5 times, the alarm will sound and the power will shut down
for 3 minutes automatically.

3
Table of Contents
Product Features 1
Precautions 4
Read before Use 7
Product Components .................................................................. 7
Outer Body Part Names ............................................................... 8
Inner Body Part Names ............................................................... 9
How to Replace Batteries ........................................................... 10
How to Use Emergency Battery ................................................... 11
Basic Functions 12
How to Reset (Password, Card, Key Tag) ...................................... 12
How to Register and Change Password......................................... 13
How to Register Card and Key Tag ............................................... 15
How to Delete Card or Key Tag ................................................... 17
How to Open Door from the Outside (Password) ............................. 18
How to Open Door from the Outside (Card, Key Tag) ............................ 19
How to Open and Close the Door from Inside ............................... 20
Additional Functions 21
How to Set up Multi-leveled Security Code Entry Mode .................. 21
How to Set up Infrared Ray Sensor .............................................. 22
How to Set up Double Authentication Mode ............................... 23
How to Set up Auto/Manual Lock ................................................. 24
How to Set up and Turn off Sound ................................................ 25
Warning Alarm / Emergency Alarm .............................................. 26
Troubleshooting 30
Summary of Usage 32
Product Specifications 34
Product Warranty 35

4
Precautions
The following contents are designed to protect user safety and prevent loss and
damage of their property. Please read this prior to use to ensure the product properly
used.
Meaning of Warning, Caution, and Reference
Warning text
Provides user information to prevent physical damage.
Things to Be Cautious of
Provides user information to prevent system error or system damage.
Things to refer to
Provides additional information regarding each topic.
Meaning of Each Symbol
Indicates warnings or cautions.
Indicates banning miss-use of the product.
Indicates special instructions for the user.

5

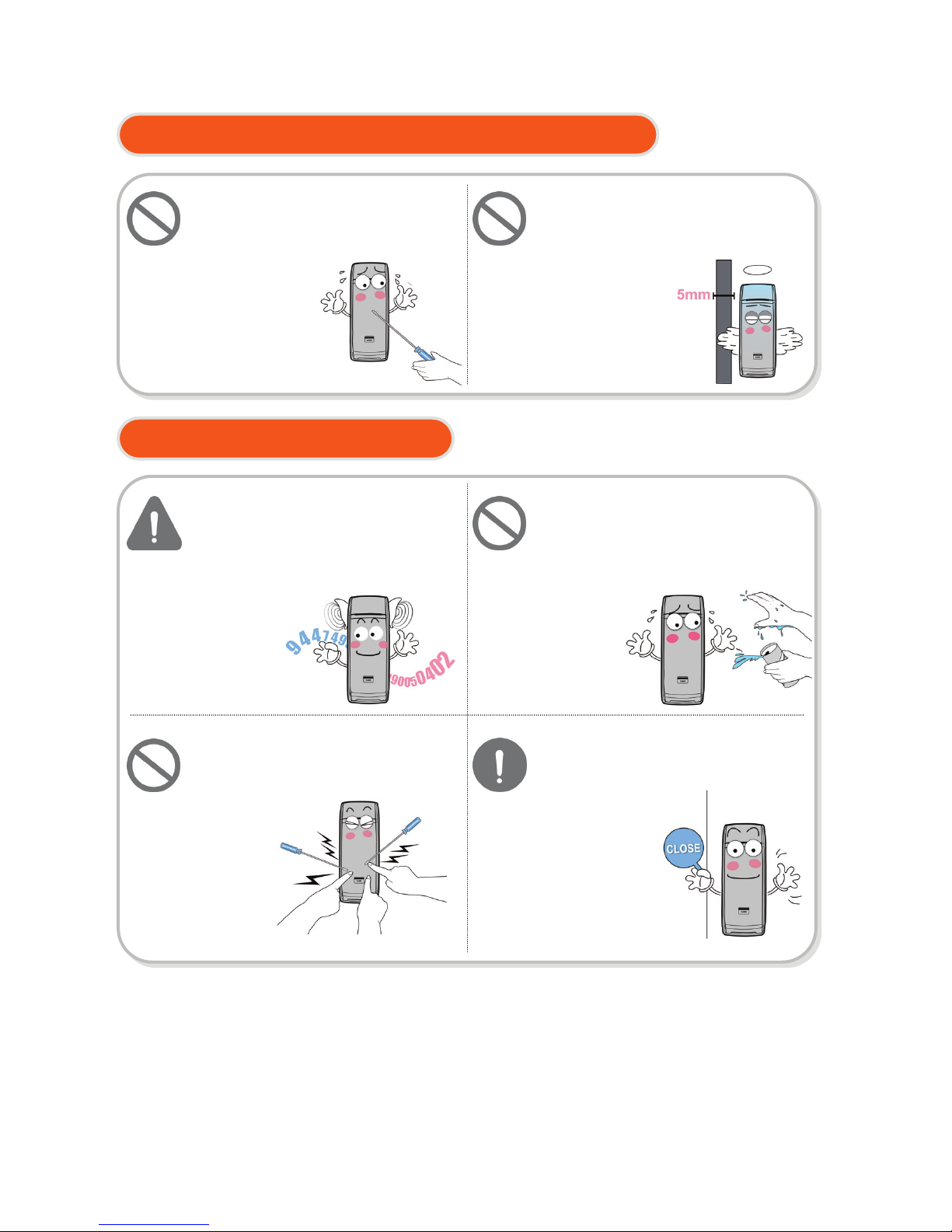

Cautions Regarding the Installation
Caution While in Use
Do not install or disassemble on
your own.
If users install or repair on their own,
the company
will not be
responsible for
any damage.
Do not install where the gap
between door and door frame is
bigger than 5mm.
May not work well
if large gap exists.
Do not let others know the
password. Change it periodically.
This is done to prevent
a potential break-in.
Do not push the buttons
excessively hard or with a sharp
object.
This may
result in a
malfunction.
Please check if the door is locked
before you leave.
The company will not be
responsible for
accidents resulting
from an unlocked
door.
Please do not use the product
with wet hands, and make sure
that liquids such as water or a
beverage do not get inside the
product.
This may
result in a
malfunction
or damage
to the produc
t
.

6
Cautions Regarding Repair and Maintenance
When replacing the batteries,
please replace all the batteries at
the same time, and do not mix
new batteries with used ones.
Product can be
damaged or
its lifespan can
be reduced.
When the product sounds to
indicate the need for a battery
change for the first time, please
make sure to do so within one
week.
If the batteries
are not
replaced on
time, it may
only be
opened with
the emergency
ke
y
.
When cleaning the product, please
do not use water, benzene, or
alcohol; instead, please use a soft,
dry cloth.
There is a
risk of
damaging
the product.
Insert batteries with correct
(+/-) directions.
If the battery is not properly inserted,
it might lead to
a leakage or
explosion.

7
Inner body
holding panel
Inner bod
y
Screws to ensure fixture between the
panel and the outer body
Read before Use

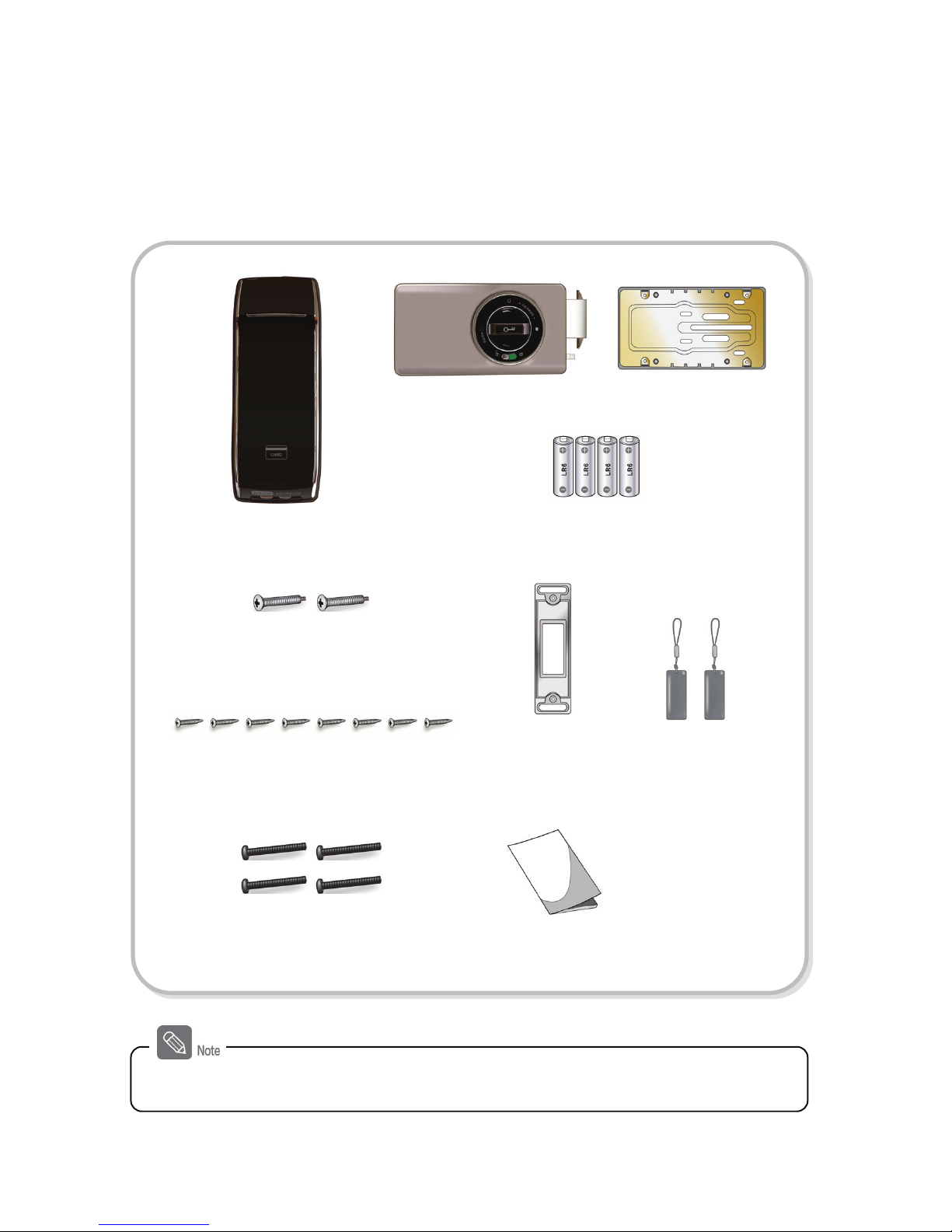

Product Components
User Guide
'AA' batteries (LR6)
Screws to hold the fixtures from
the inside
- Product composition can be different and subject to change without notification.
Outer body
Self-drilling screws to hold panel
Strike Key tags

ㅔ
8
Outer Body Part Names
No. Part Function
1 User-friendly
Graphic Interface Shows the status of the doorlock function.
Battery Change Time
Notification Double Lock Mode Being Setu
p
Password or Card
Authentication Failure/
Registration or Setup Failure
Password or Card
Authentication Success/
Registration or Setup
Succes
s
Intrusion/Fire/Security
Breach Inciden
t
Word Count of Password
Entered
2 Number Pad Press to change password or to select or delete it.
Use number pad to enter the password and open the door.
3 Card Reader The place to read cards or key tags to unlock the door
Touch the number pad to activate the Card reader.
4 Emergency
Power Supply
Gives power in case of complete discharge of batteries with the
connection of an emergency battery. (Use 9-volt battery.)
Number Pad (off)
Number Pad (on)
User-friendly
Graphic Interface
Emergency Power
Supply
Card Reader
Number Pad

9

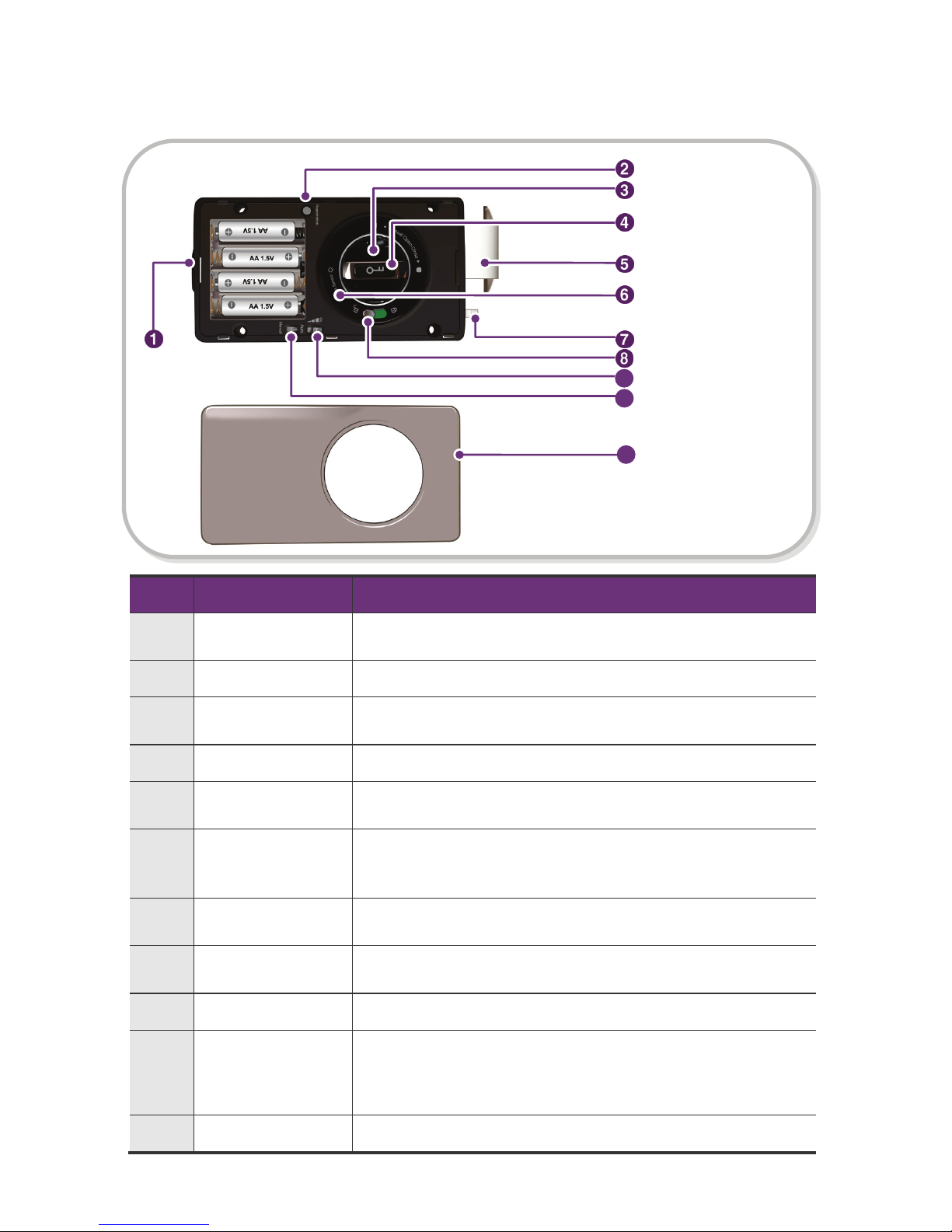

Inner Body Part Names
No. Part Function
1 Battery Cover Open
Button Button used to open the battery cover.
2 Registration Button Button used to register/change password, card, key tag.
3 Manual Open/Close
Lever
Lever used to lock or unlock the door manually in case of any
electrical failure.
4 Open/Close Button Button used to open and close the door.
5 Deadbolt
(With Double Claw Bolt)
Device that locks the door at the door frame with double claw
shaped bolts.
6 Infrared Ray Sensor
When pressing Open/Close button, the red light will appear if the
sensor detects normal environment. (If infrared ray sensor is not
activated, the light will not appear)
7 Open-door Sensor Sensor that detects open/close status after auto-lock mode is
being set up.
8 Double Lock Lever Lever that prevents any opening from the outside with password,
card or key tag.
9 Sound Volume Switch Switch that adjust the volume of sound.
10 Auto/Manual
Locking Switch
Switch that converts from Auto-lock to Manual-lock or vice
versa. If it is at auto-lock position, the door locks automatically.
If it is at manual-lock position, closing the door does not
automatically lock the door.
11 Battery Cover Cover that protects batteries and registration button.
10
Battery Cover
Open Button
Registration Button
Manual Open/Close
Lever
Open/Close Button
Deadbolt (With
Double Claw Bolt)
Open-door Sensor
Double Lock Lever
Sound Volume Switch
Auto/Manual
Locking Switch
Batter
y
Cover
9
11
Infrared Ra
y
Sensor

ㅔ
10
How to Replace Batteries
1. When the Low Battery Ring Tone Sounds
If the melody "Fur Elise" rings before the door
opens with password or key tag, it is time to
replace batteries (The replace battery icon
at the user-friendly graphic interface will light
up after the low battery ring tone sounds)
2. Opening Inner Body Cover
Press the battery cover button lightly and pull the cover to open.
3. Replacing Batteries
Please replace all 4 batteries with new ones
within a week.
- The product may shut down without warning if
the battery is not replaced promptly after the
replace battery sound.
- If the battery is not inserted correctly, the door lock will not work.
- Leakage from the battery may harm the product, so please check the battery regularly
(about once every six months).
- Until the battery is replaced after the replace battery warning sound, functions like register,
change, or setup of password/card cannot be used.
AA형 건전지×4개
Battery lifespan is different depending on its manufacturer,
manufacturing date, and use environment. Use 4 1.5volt
AA Alkaline batteries and batteries last 10 months with an
average of 10 uses a day.
Battery Lifespan

11
How to Use Emergency Battery
1. When Door Will Not Open Due to Complete Discharge
of AA Batteries
When it is time to change the batteries, if not replaced, the door lock will not function
normally.
2. Purchasing a 9V Battery
Purchase emergency battery (9V) at the
nearest convenience store or electronics shop.
3. Opening Door Using Emergency Battery
Place 9V battery emergency battery at the connection point, then place card or key tag
on the Card reader or enter password.
- Use alkaline batteries that last longer than normal manganese
batteries or rechargeable batteries.
Or
Enter password Read Card or Key Tag Door is not opening properly
Or

12
Basic Functions
This section explains ways to reset the data in the doorlock system, ways to register
password, card and other information and ways to open and close the door.

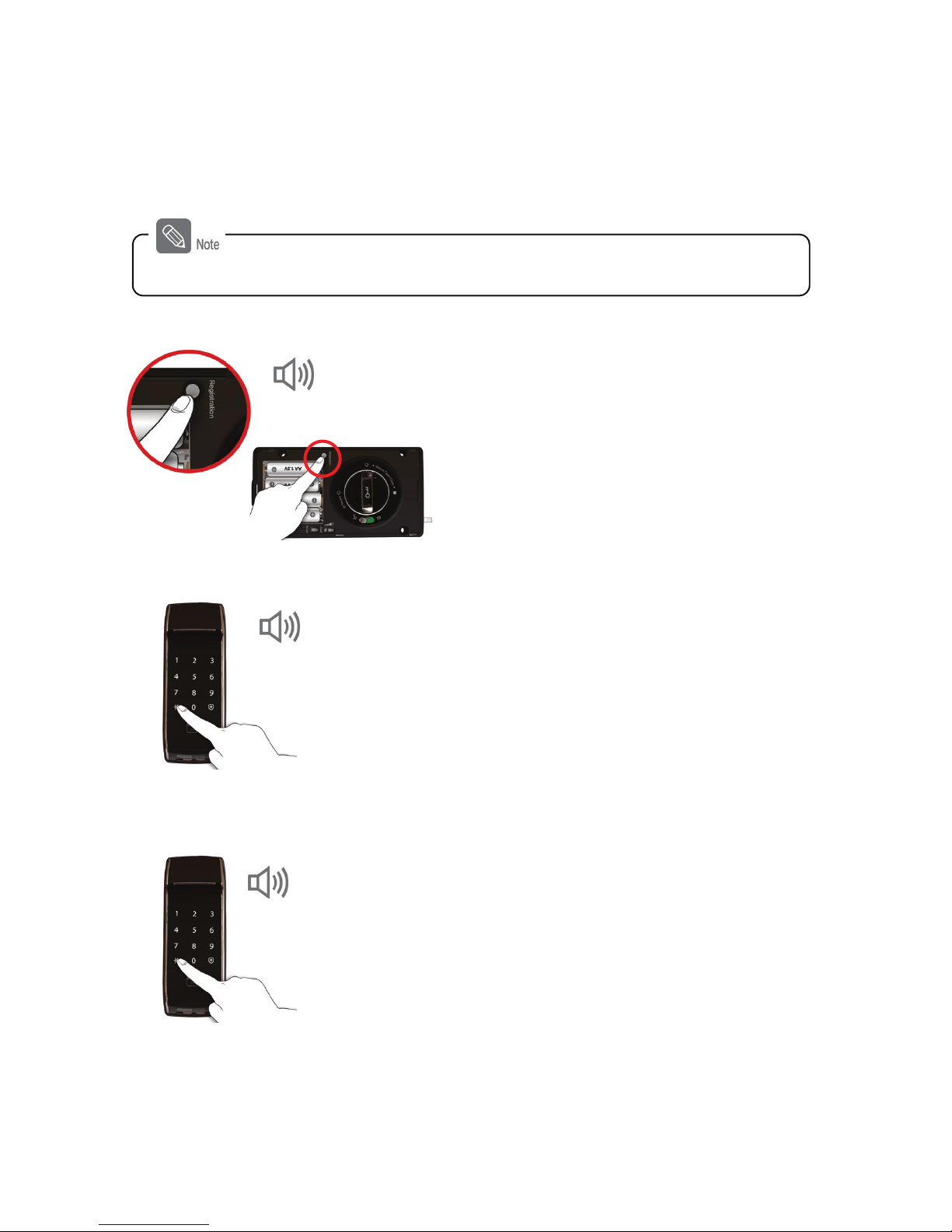

How to Reset (Password, Card, Key Tag)
Delete all data (about password, card, and key tag). When data is being reset,
password will be '1234' and previously registered information on card, key tag and
password will be deleted.
1. Opening Cover
Press the [battery cover open] button lightly
and pull the cover to open.
2. Pressing [Register] Button
Press [Register] button for 10 seconds.
3. Entering Password
Press current password or '4560852580' and
then press [¹] button.
- Reset the door lock data and re-register new password and card.
- Resetting can only be done while the door is open.
Success:
Ding dong
dang
Ding dong Æ Ding ding Æ Ding ding

13
How to Register and Change Password
Password can be registered with 4~12 digit numbers, and only one can be registered
and used. If the password needs to be changed, changing procedure is the same as
that of registering password.
1. Pressing [Register] Button
Open the battery cover and press [Register]
button briefly.
2. Entering Current Password
Enter current password (initialized password is
‘1234’) and then press [¹] button.
3. Entering New Password
Enter new password (4~12 digits) and then
press [¹] button.
- On the user-friendly user interface, number of
digits entered during the registration of the
password will appear and if the number of digits is
more than 6, the numbers will light up in order.
- To prevent theft, it is highly recommended that a
password with more than 6 digits is used. (Only
numbers from 0~9 can be used.)
Ding dong
Ding dong
- Changing password can only be done while the door is open.
Ding dong

14

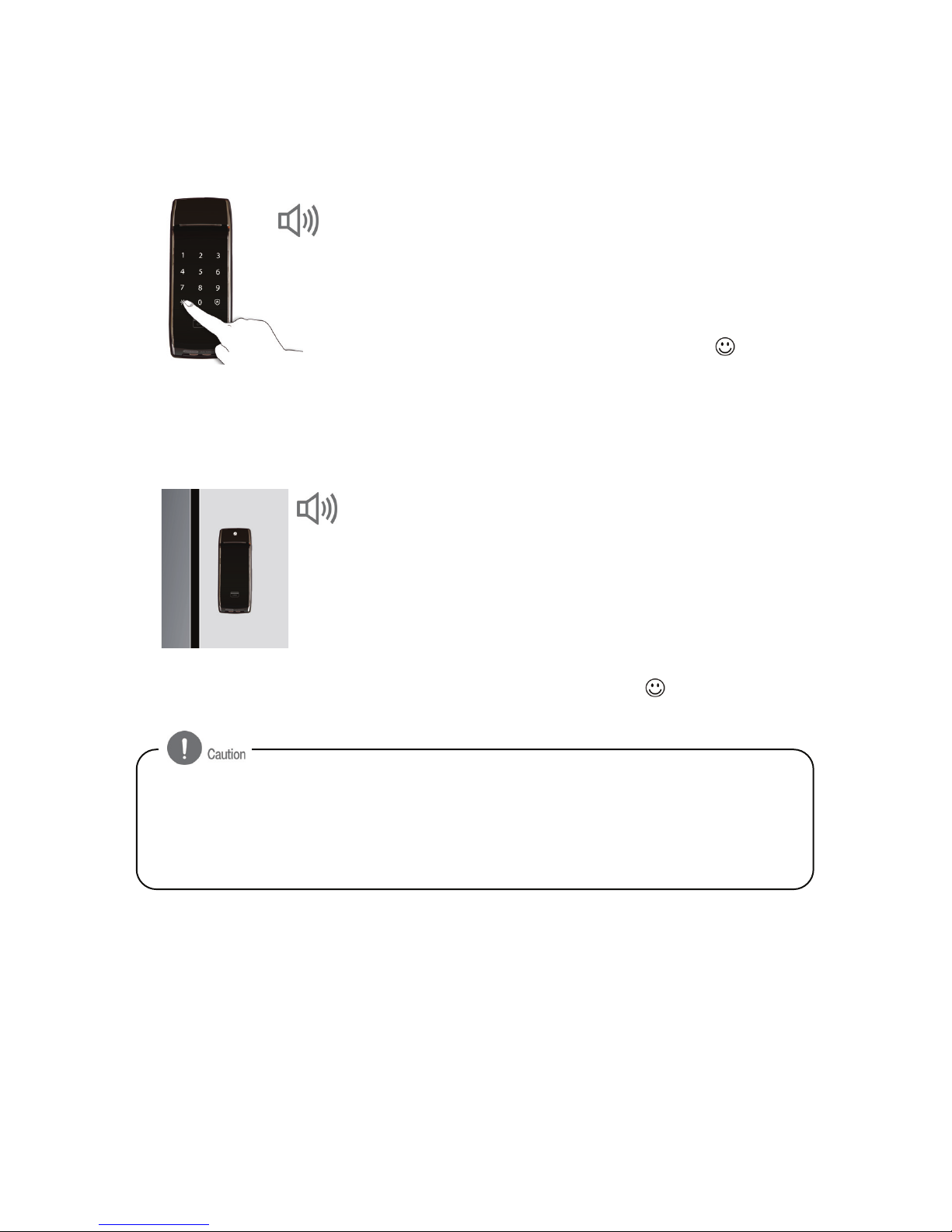

4. Re-entering New Password
To check the registered or newly entered
password is entered correctly, enter the new
password again and then pressing [¹] button
will complete the procedure.
- If registration of password completes, icon will
light up on the user-friendly graphic interface.
5. Confirmation with New Password
To check the new password is successfully
registered, enter the new password before
actually closing the door.
- To check the new password, while the door is
open, press the open-door sensor, and when
deadbolt comes out, follow the procedure of
“How to Open Door from the Outside (Password)”
Section in page 18.
- If the door opens normally, icon will light up.
Ding dong
dang dong
- Do not let others know the password. Using the same password for a long time may
cause a breach, so change it periodically to prevent break-in.
- Registered password cannot be deleted and can only be changed with new password
or deleting all information (password, card, and key tag) by resetting them and re-
registering new information and use.
Ding dong
dang

15

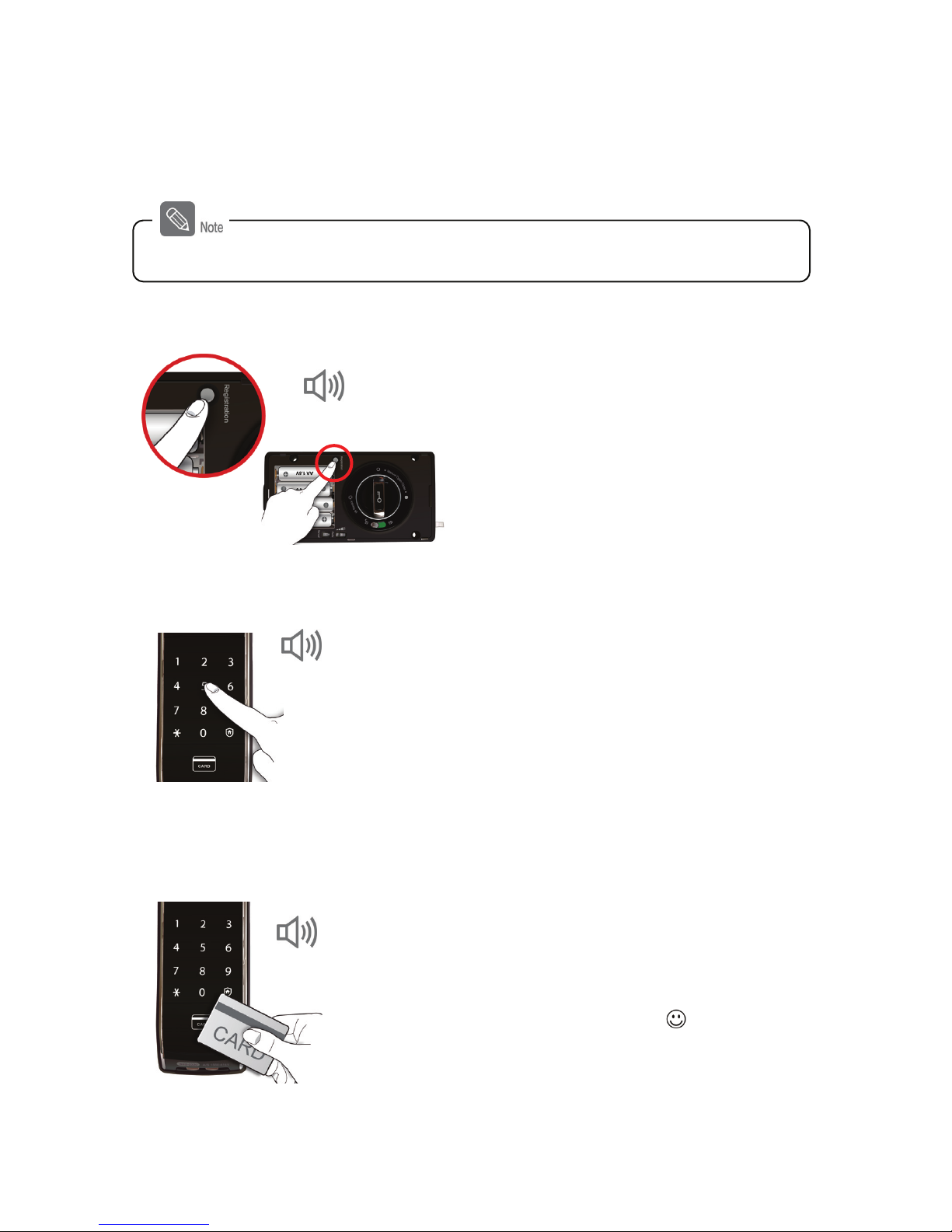

How to Register Card and Key Tag
The total number of 20 including key tag can be registered.
(ISO14443A Type Compliance)
1. Pressing [Register] Button
Open the battery cover and press [Register]
button briefly.
2. Entering Current Password
Enter current password and then press [¹]
button.
3. Contacting Card or Key Tag
Hold card or key tag to be registered up to the
outer body card reader, the registration will be
completed with “ding dong dang” sound.
- If registration of card completes, icon will light
up on the user-friendly graphic interface.
Ding
dong
- Registration of cards or key tags can only be done while the door is open.
Ding dong
dang
Ding dong

16

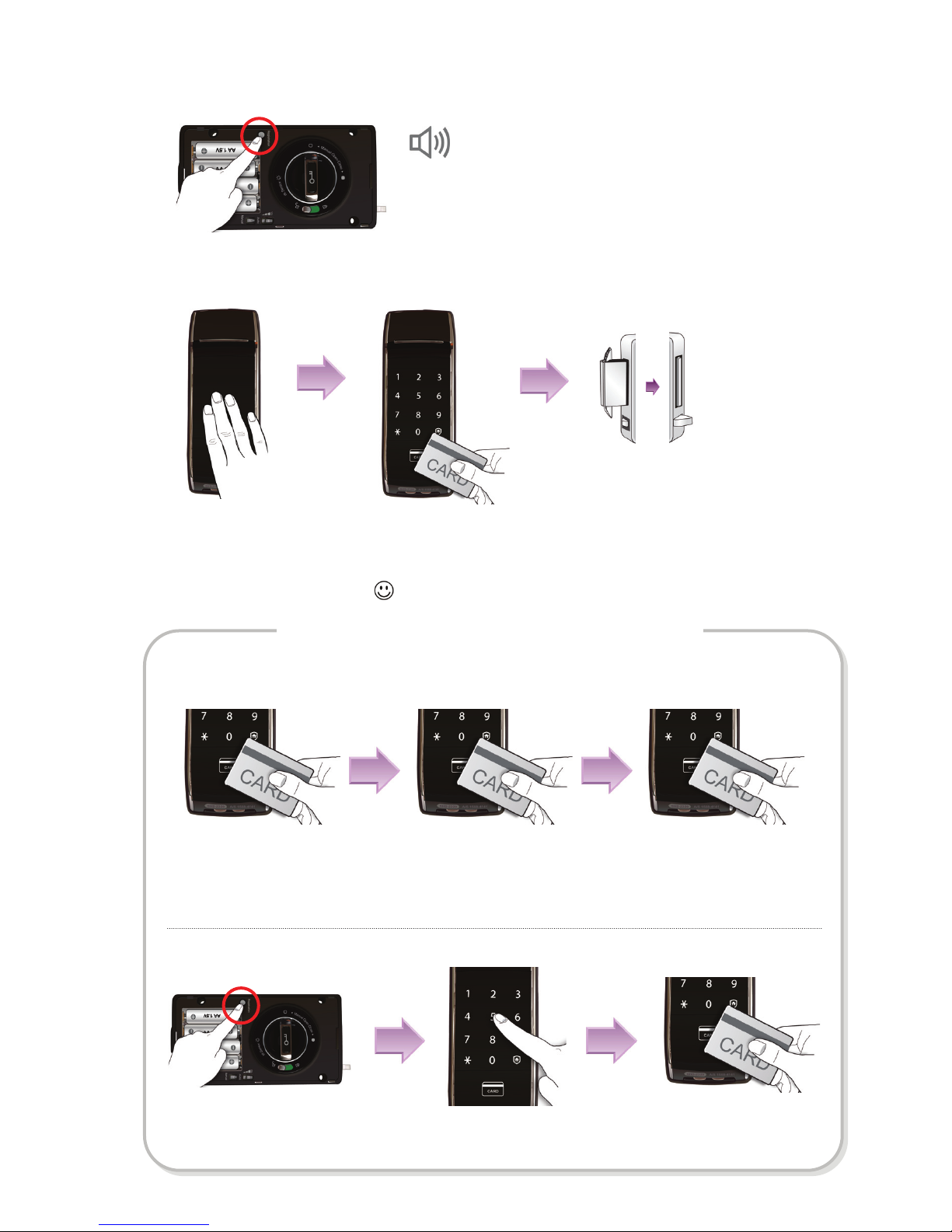

4. Completion of Card Registration
Press [Register] button on the inner body to
complete registration procedure.
5. Confirmation of Card/Key Tag Registration
To u c h [Number Pad], and then place registered card or key tag on the Card reader.
- Follow the procedure of “How to Open Door from the Outside (Card, Key tag)” Section in
page 19.
- If the door opens normally, icon on the user-friendly graphic interface will light up.
Ding dong dang
T
o Re
g
ister Additional Card
Continuous Registration
Later Registration
If additional cards or key tags are need to be added after the initial registration of cards,
the registration procedure must be followed.
To register multiple cards, after the previous card, place others within 10 seconds of each
other.
If no card is placed within 10 seconds, the procedure will end automatically.

17

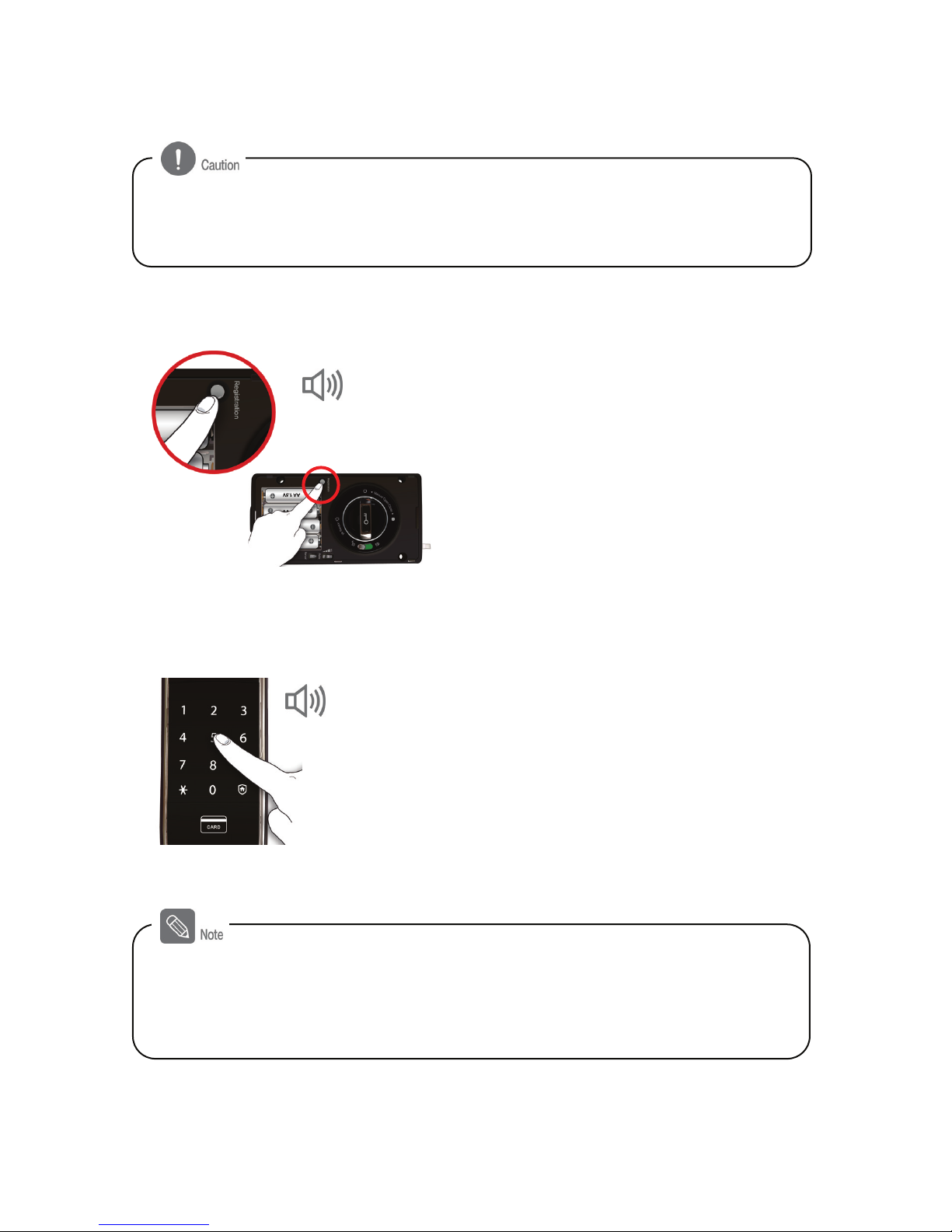

How to Delete Card or Key Tag
1. Pressing [Register] Button
Open the battery cover and press [Register]
button for 5 seconds.
2. Entering Password
Enter password and then press [¹] button.
- Register and use new cards after delete card information.
- If all card information has been deleted, use registered password to open the door.
- Deleting card information can only be done while the door is open.
- If all card information is deleted, double authentication mode will be deactivated.
Registered card cannot be deleted individually, and can only be deleted with all the cards
and key tags if card delete function is used. After applying the card delete function, pre-
registered cards cannot be used to open the door.
Ding dong Æ Ding ding
Ding dong dang

18

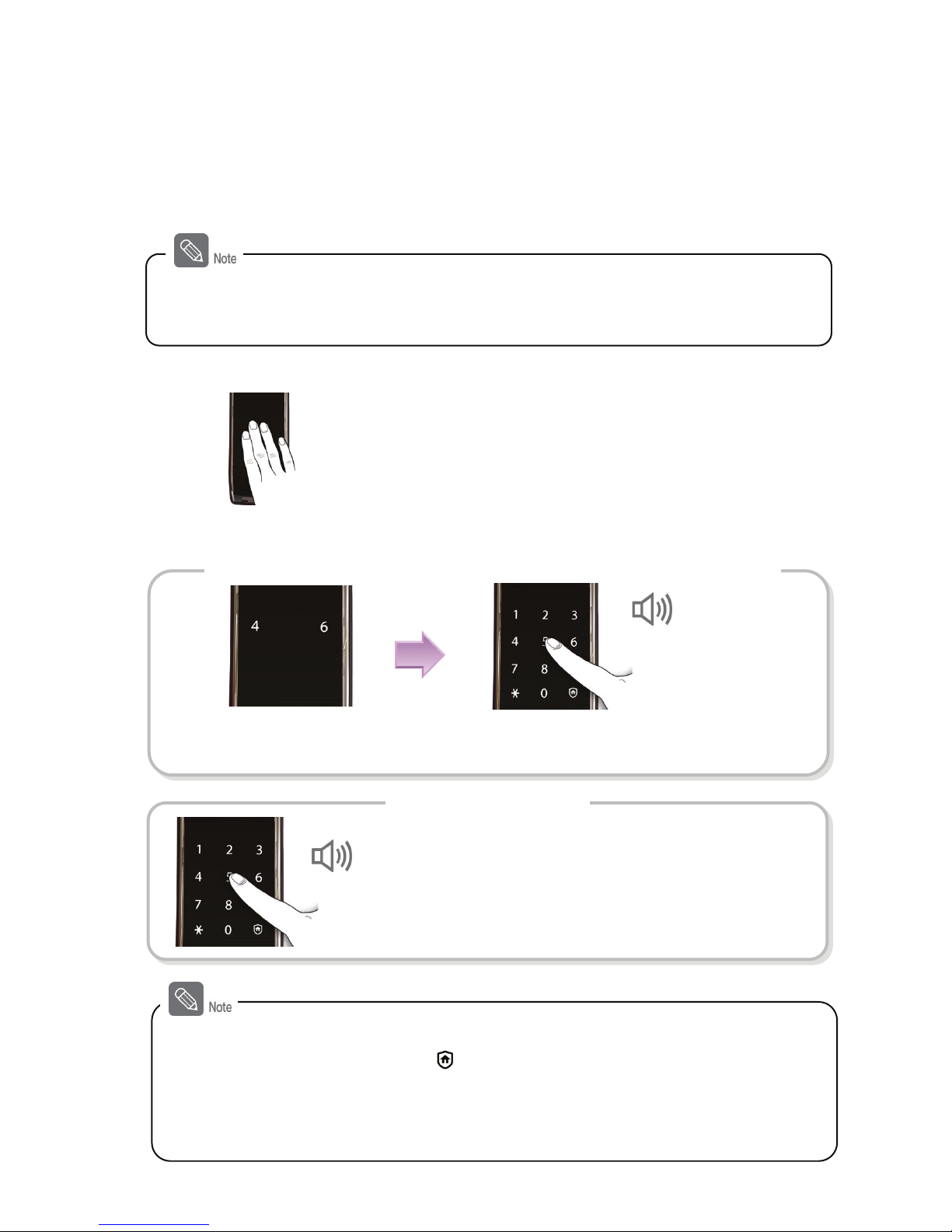

How to Open Door from the Outside
(Password)
From the outside, the password can open the door. Touch [Number Pad] and open the
door with the registered password.
1. Touching [Number Pad]
To u c h [Number Pad].
2. Entering password
ㅔ
- Password must be entered after the light is on, if it does not then touch [Number Pad] and
re-enter.
- To cancel after a wrong entry, press [] button and re-enter.
- If the password is wrong 5 times, "piririri" warning alarm will sound for 10 seconds, and the
system will shut-down for about 3 minutes. When stop mode occurs, "beep" will sound every
10 seconds, and stop mode will be deactivated automatically after 3 minutes of multiple 'beeps'.
With stop mode, the user-friendly graphic interface will show the duration time by turning off
[¹] icon one at a time every 30 seconds.
Multi-leveled Security code entry mode
When the light comes on, on the number pad
enter the password and press [¹] button.
Press 2 number buttons that randomly
light up.
Normal mode
When the light comes on, on the number pad,
enter the password and press [¹] button.
-
W
hen purchased, the product is initially set to multi-leveled security code entry mode but
double authentication mode is not activated.
- If normal mode is to be set up, please refer to “How to Set up Multi-leveled Security Code
Entry Mode” on page 21.
Success: Ding
dong dang dong
Fail: Ding dong
ding dong
Success: Ding dong dang dong
Fail: Ding dong ding dong
