Allen + Roth 1227VA-36-201 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
welcoming • sophisticated • inspiring
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
RR20232
ITEM #0819968
Français p. 10
Español p. 19
MODEL #1227VA-36-201
ALLEN + ROTH and logo design are trademarks or registered
trademarks of LF, LLC. All rights reserved.
VANITY WITH TOP

2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................3
Safety Information............................................................................................................................3
Preparation.....................................................................................................................................4
Assembly or Installation Instructions................................................................................................4
Care and Maintenance....................................................................................................................8
Warranty..........................................................................................................................................8
Replacement Parts List....................................................................................................................9

3

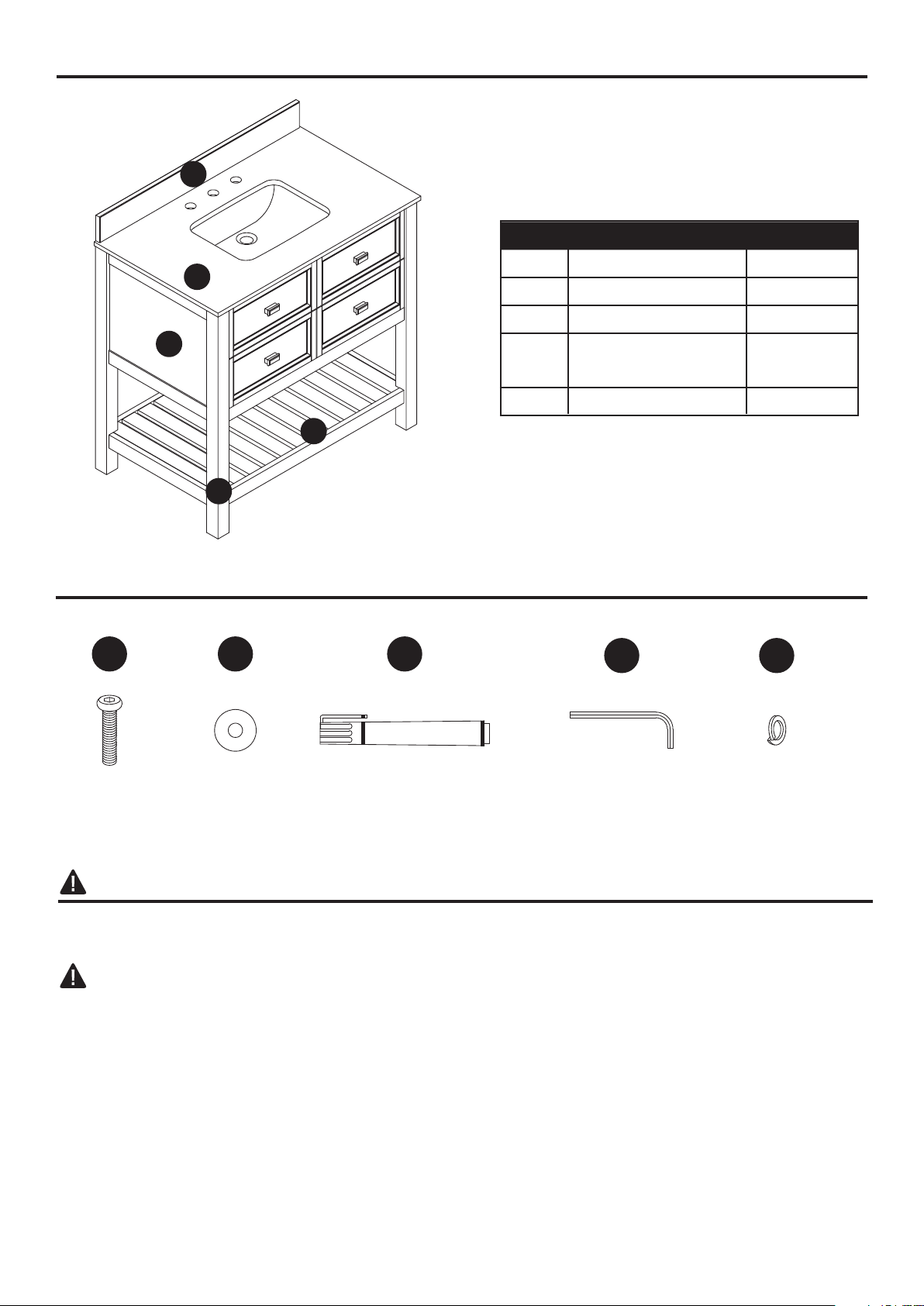

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• Unpacking requires two adults and several steps are more easily handled with two adults.
CAUTION
• DO NOT try to pry off top from vanity, as damage to top or vanity may occur.
• Follow these instructions closely, take your time, and use care while assembling this vanity.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PART DESCRIPTION QUANTITY
A Vanity 1
B Leg 4
C Shelf 1
DTop (preassembled
to vanity (A)) 1
E Backsplash 1
CC
Touch Up Pen
Qty. 1
Spring Washer
Qty. 12
AA
Bolt
Qty. 12
BB
Washer
Qty. 12
Allen Wrench
Qty. 1
DD EE
A
B
C
D
E

4
INSTALLATION INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Installation Time: 20-30 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors,
silicone caulk, power drill with drill bit
Helpful Tools (not included): Measuring tape, level
1. To remove drawers preassembled in vanity (A),
fully extend drawers. Locate plastic levers on
metal glide tracks at left and right sides of
drawer box.
To disengage drawer box from glides, push on
plastic levers. Then, gently lift drawer up to
remove it from vanity (A).
A
1
12

5
INSTALLATION INSTRUCTIONS
2
1
2
A
B
AA
EE
BB
DD
Hardware used
AA Bolt x 4
BB Washer x 4
DD Allen wrench x 1
EE Spring washer x 4
2. With the help of another person, place vanity
(A) upside down on a scratch free surface.
Place leg (B) into correct position on vanity (A).
Insert bolts (AA), spring washers (EE) and
washers (BB) into the predrilled holes on the
inside of the vanity (A). Tighten bolts (AA) with
allen wrench (DD). Repeat for additional one
leg (B); DO NOT install the final two legs (B).
AA Bolt x 4
BB Washer x 4
DD Allen wrench x 1
EE Spring washer x 4
Hardware used
3. Place shelf (C) into notches of the two installed
legs (B). Push final two legs (B) snug to the shelf
(C). Insert bolts (AA), spring washers (EE) and
washers (BB) into the predrilled holes on the
inside of the vanity (A), tighten with allen
wrench (DD).
1
2
2
A
B
C
DD AA
EE
BB
3
3

6
INSTALLATION INSTRUCTIONS
Hardware used
AA Bolt x 4
BB Washer x 4
DD Allen wrench x 1
EE Spring washer x 4
4. Insert bolts (AA), spring washers (EE) and
washers (BB) into the predrilled holes on the
inside of the legs (B), tighten with allen
wrench (DD).
A
B
BB
EE
AA
DD
4
5
A
D
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.
5. With two people, carefully place vanity (A) with
top (D) against the wall in its final location.
From inside vanity (A), drill hole through vanity
mounting area and into wall studs. Using
mounting hardware (not included) appropriate
for your installation site, secure vanity (A) to
wall stud. If possible, secure vanity (A) to
two wall studs for increased stability.
Note: Use preassembled levelers on legs of
vanity (A) to level the item. Twisting the
levelers counterclockwise will increase the
height of vanity (A), twisting them clockwise
will decrease it.

7
INSTALLATION INSTRUCTIONS
6. To reinstall drawers into vanity (A), fully extend
metal glide tracks. Gently lower and slide
drawer box into rear glide catch. Next lower
drawer box down to completely rest on
extended glides. Then, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height, spin
the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
7. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (E). Position
backsplash (E) on top (D) and against wall.
Clean any excess caulk before allowing
to dry.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to
complete the installation.
A
6
3
2
1
22
ED
7
1

8
CARE AND MAINTENANCE
WARRANTY
IMPORTANT
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard marble cleaning agents available at your local
supplier.
• Tips for using touch-up pen (CC): For scratches, stroke in direction of scratch. Rub off excess
colorant promptly with a soft cloth.
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
The manufacturer warrants this item against defects in materials and workmanship for a period
of one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer is not accountable whatsoever for product installation during the warranty period.
There is no further expressed warranty. The manufacturer shall not be legally responsible for
incidental, consequential or special damages arising at or in connection with product use or
performance except as may otherwise be accorded by law. The manufacturer disclaims any and
all implied warranties.

9

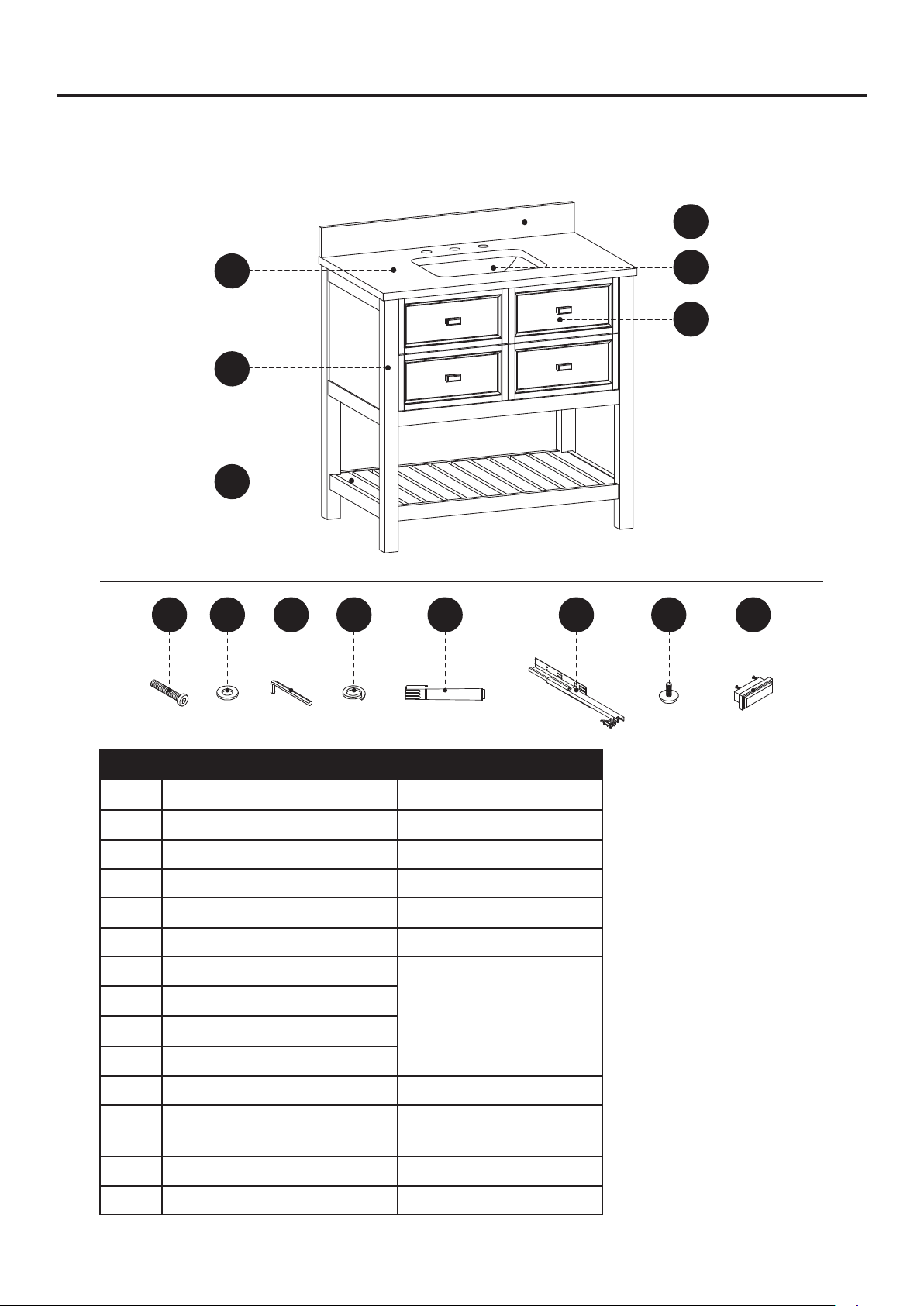

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
ALLEN + ROTH and logo design are trademarks or registered
trademarks of LF, LLC. All rights reserved.
Printed in Vietnam
AA BB DD EE CC FF GG HH
G Sink PU17-18x14-SQUARE
HH Drawer handle CF-32-003-BN
PU17-1227-KD-
HARDWARE PACK
AA Bolt
Touch-up pen OF-0010
BB
CC
Washer
DD Allen wrench
Spring washer
EE
FF Drawer glide set PUDTC-14x3-HANDLE
GG Leveler T-1007
PART DESCRIPTION PART#
B
Backsplash
PU17-1227-201-LEG
C 1227VA-36-201-002
E 1227-36EC-BS
F Drawer front 1227VA-36-201-003
Leg
Shelf
D 1227VA-36-EC TOP
Top
E
G
F
D
B
C

10
