Allen + Roth 52052 User manual

1
Español p. 15
VR20346
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-439-9800, 8 am - 8 pm, EST, Monday - Sunday.
ALLEN+ROTH®and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ITEM # 2592445
MODEL # 52052
36.2” STACKED STONE
GAS FIRE TABLE
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area
immediately.
• After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
WARNING
For outdoor use only.
installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
WARNING
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to the owner's information
manual provided with this appliance.
For assistance or additional information consult a
qualified installer, services agency or the gas
supplier.
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING

2
SAFETY INFORMATION
WARNING
Please read and understand this entire manual before attempting to assemble, operate or install
the product. Failure to follow the dangers, warnings and cautions contained in this owners manual
may result in a fre or explosion causing damage to property, serious bodily injury or death.
• The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• Solid fuels shall not be burned in this appliance.
• When igniting this unit, stay away from the burner as the flame will light up and may cause injury.
• LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass®
above the burner holes. Doing so will suffocate the flame.
• If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
1. Disconnect the propane gas tank. 2. Do not attempt to fix the problem yourself. 3. Contact your
gas supplier or fire department for help.
• Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
• Do not use a flame to check for gas leaks.
• Manifold pressure: 11 inch w.c. (2.74kPa).
• use LP propane tanks with the following dimensions: diameter 12 in. heaight 18 in. - capacity 20 lbs.
• You must use a propane tank that has a collar to protect the gas valve.
• Do not fill tank over 80 percent full.
• The tank system must be set up for vapor withdrawal.
• Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
• Do not burn anything other than the provided materials for this fire table.
• Keep away from the unit for the first 20 minutes after igniting your unit for the first time, as lava
rocks/pumice stones/LavaGlass®could pop out and cause injury. Should any rocks pop out, discard
them.
• Always ensure that lava rocks/pumice stones/LavaGlass®are completely dry before use. Failure to
do so will cause them to crack or pop.
• Do not operate unit until all parts are fully assembled.
• Do not paint or color any part of this heating unit.
• Unit may be hot while in use, do not attempt to move it while in use.
• Never leave this heating unit unattended while in use.
• This unit is not intended for cooking.
• Keep any flammable items away and do not use any other fireplace cover for this unit.
• Keep a safe distance to avoid burning skin or clothing.
• Do not sit or rest hands or feet on this heating unit.
• Never place hands or fingers on upper portion of this unit while in use.
• Keep all electrical cords and fuel supply hose away from heated surfaces.
• Cover must be removed when burner is in operation.

3
SAFETY INFORMATION
• Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
around the entire unit.
• Keep the appliance area clear and free from combustible material, gasoline and other flammable
vapors and liquids.
• If the flame goes out while burning, turn the gas valve off. Wait for 5 minutes before repeating the
initial lighting procedure. Once you have a flame started, hold down the control knob for 1 minute.
• Do not add water into the unit.
• Do not operate unit if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and replace any part of the control system and any gas control that has
been under water.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave outdoors.
• Do not operate on a boat or vehicle. This unit must be used on a flat surface outdoors ONLY.
• Always remove protective cover before operating (if applicable).
• Do not set the protective cover over the unit until it is turned off and completely cooled down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be supervised while near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external tank)
• Maximum gas supply: 250 psi; Min. gas supply: 10 psi.
• All installation and repair should be done by a qualified professional. this unit should be
inspected annually and cleaned regularly.
• Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
• Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
• Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
• The gas supply tank should be constructed and marked with the specifications for the LP gas tanks
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP
gas tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
• The LP gas tank must have a listed overfilling prevention device and a QCCI or type I, (CGA791) LP
gas tank connection.
• This heating appliance should not be used on plastic or artificial wood decks.
• Children and adults should be alerted to the hazards of high surface temperatures and
should stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the area of the appliance.
• Clothing or other flammable materials should not be hung from the appliance or placed on or
near the appliance.
• Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
• Installation and repair should be done by a qualified service person. the appliance should be
inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that the control compartment,
burners and circulating airways of the appliance are kept clean.
IF APPLICABLE:
• Allow heating item to cool completely before placing on lid.
• DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.

4
SAFETY INFORMATION

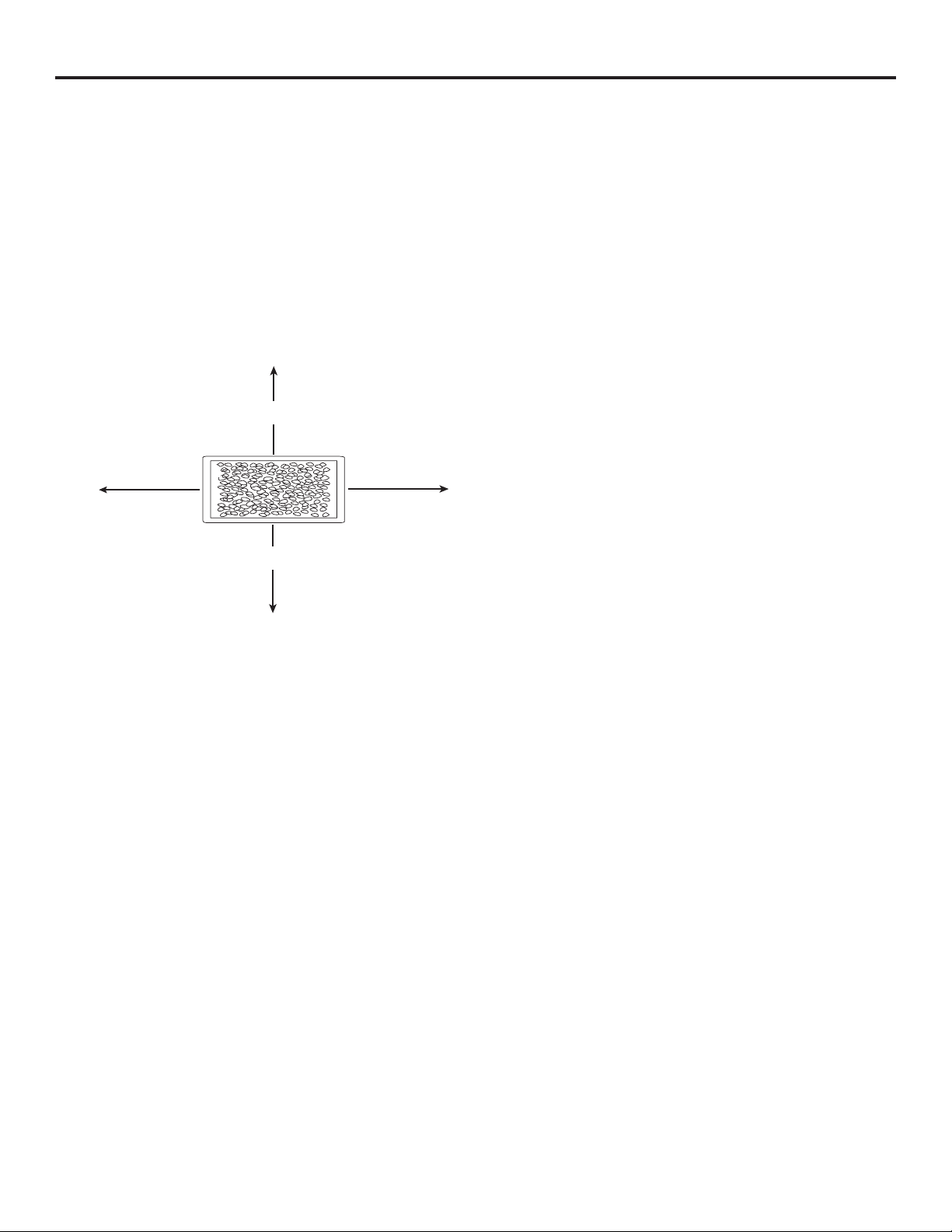

Combustible materials should not
be within 60 inches of the top of the
unit, or within 48 inches around the
entire unit.
Only use the regulator and hose assembly provided with this unit. Replacement parts must be
supplied directly by the manufacturer.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance. For assistance with repair or replacement of the burner or any other parts, call our
customer department at 1-866-439-9800.
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)
Min. Clearance
48 in (121.9 cm)

5

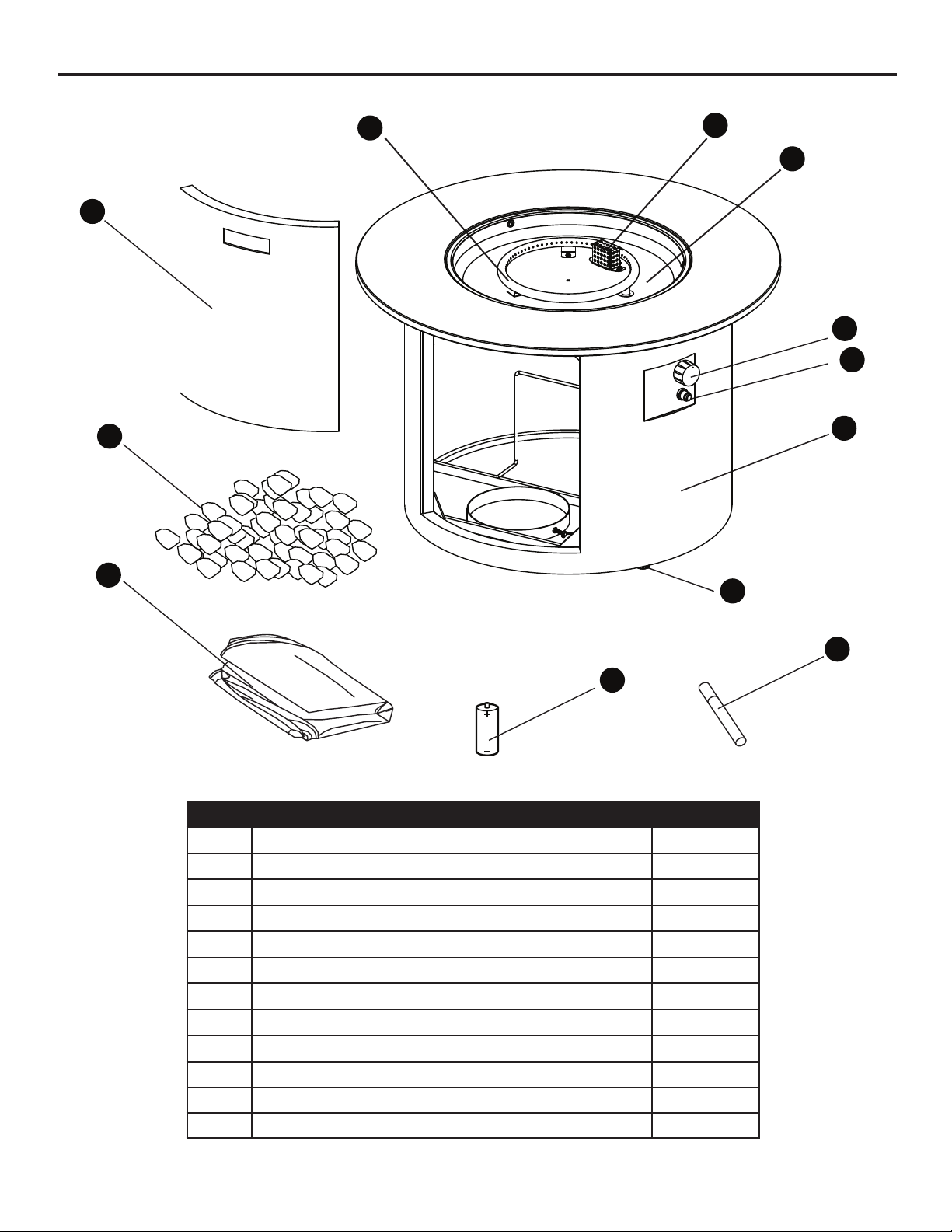

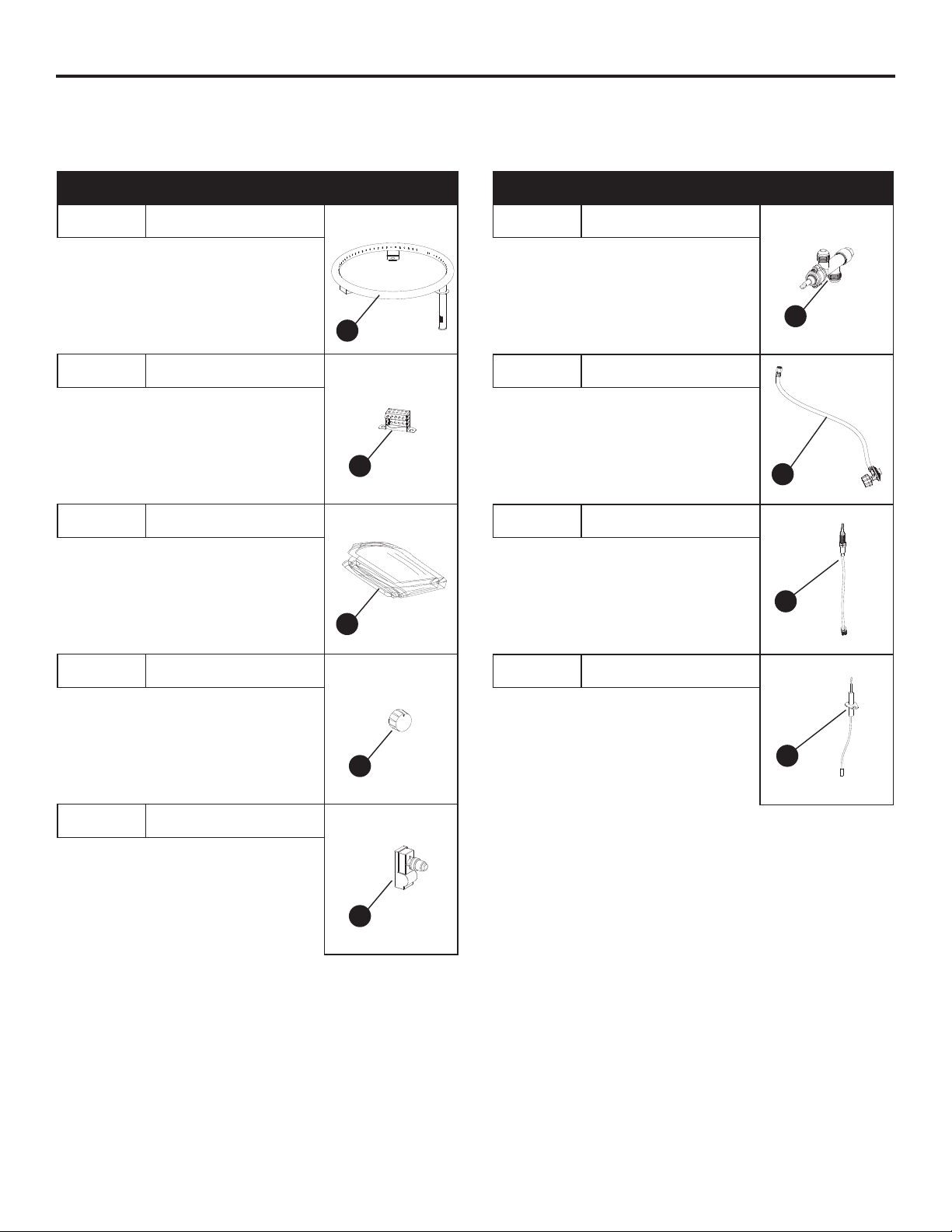

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A 1
B Body
Firebowl
1
C Door 1
D Burner (preassembled) 1
E Guard (preassembled) 1
F Lava Rocks 2 bags
G Protective Cover
Battery (AAA)
1
H 1
I Control Knob (preassembled) 1
J Electronic Igniter (preassembled) 1
K Feet (preassembled) 3
L Touch-up Pen 1
C
F
DE
A
I
J
B
K
H
L
G

6
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any parts are missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 10 minutes
No tools required.
NOTE: You must follow all steps to properly assemble the heating unit. Make sure the gas valve is
turned “OFF” before assembling. Do NOT attempt to assemble without proper tools.

7
ASSEMBLY INSTRUCTIONS
1
3
2
1. Check that the control knob (I) for the gas
supply system is turned to the “OFF” position
before starting any assembly.
2. Remove door from body (B) and place propane
gas tank (not included) into the metal stand inside of
the body (B).
3. Turn the cylinder valve on the tank clockwise to
close the propane tank. Attach the preassembled
regulator from the body (B) to the cylinder valve by
turning the regulator coupling nut clockwise. Make
sure it is fastened securely and tighten connections
by hand only.
OFF
I
B
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal

8
ASSEMBLY INSTRUCTIONS
4
5
6
4. Once the tank is attached to the regulator,
make sure the propane gas tank sits on the
metal stand inside body (B) completely. Turn the
preassembled wing screw on the outer part of
metal stand clockwise to secure the propane gas
tank tightly.
5. Replace door (C) onto the body (B).
6. Remove the rubber cap on the electronic igniter (J)
by unscrewing and slide battery (H) into the battery
slot. Make sure the positive side of the battery faces
outwards. Screw the electronic igniter cap (J) over
the battery tightly.
J
H
B
B
C

9
7
ASSEMBLY INSTRUCTIONS
7. Pour lava rocks (F) into the firebowl (A).
To ensure proper function, the guard (E) on
this burner (D) should be free of lava rocks at
all times.
Keep away from the unit and have the unit to
burn 20 minutes for the first time use.
Always ensure that lava rocks/pumice
stones/LavaGlass®are completely dry before
use. Failure to do so will cause them to crack
or pop.
WARNING
A
F
E

10
OPERATING INSTRUCTIONS
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “OFF”
position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur
on any connection there may be a leak. If you smell gas or a leak is discovered turn the gas
valve off, disconnect propane gas tank and do not use the appliance until the leak is repaired.
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion you
must replace the hose (if applicable). Pumice stones/lava rocks/LavaGlass®could pop up and strike
somebody’s face during the process of lighting this unit; stand away from the unit for the first 20
minutes after igniting. Flame height should be a yellow/blue color between 2 - 10 inches in height.
Wait 50 minutes after extinguishing flame prior to place a lid (if applicable) or protective cover on
heating item.
To Light
1. Make sure the control knob (I) is in the “OFF” position.
2. Remove door (C) and slowly open the valve on the propane gas tank by turning the knob
counterclockwise.
3. Replace the door (C) on the body (B).
4. Push and hold in the electronic igniter (J) to create sparks within the electrode, continue to hold.
5. Push in the control knob (I) and turn to the “LOW” position. Keep holding down the control knob (I)
to allow gas to flow for 15 seconds.
6. If ignition doesn’t occur within a few seconds, release the control knob (I) and rotate to the “OFF”
position. Wait for 5 minutes for gas to clear and then repeat the above lighting instructions.
7. Once the fire product is lit, the flame intensity may be controlled by turning the control knob (I)
between the “LOW” and “HIGH” positions.
To Extinguish
1. Turn control knob (I) clockwise to the “LOW” position; let the knob pop up and continue turning the
control knob (I) to the “OFF” position.
2. Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time.
