Allen + Roth 1960VA-60-267-900-UM User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
60-IN VANITY WITH TOP
welcoming • sophisticated • inspiring
ITEM #4136462; 4136463; 4136464; 4136465; 4136466; 4136467; 4136468; 4136469; 4136470; 4136471;
4136472; 4136473
MODEL #1960VA-60-267-900-UM; 1960VA-60-267-901-UM; 1960VA-60-267-925-UM; 1960VA-60-267-926-UM;
1960VA-60-274-900-UM; 1960VA-60-274-901-UM; 1960VA-60-274-925-UM; 1960VA-60-274-926-UM;
1960VA-60-277-900-UM; 1960VA-60-277-901-UM; 1960VA-60-277-925-UM; 1960VA-60-277-926-UM
1960VA-60-267-900-UM AR 60-IN BRAWLEY RUSTIC TAUPE OAK VANITY W/CARRARA MARBLE TOP
1960VA-60-267-901-UM AR 60-IN BRAWLEY RUSTIC TAUPE OAK VANITY W/ENGINEEREED WHITE TOP
1960VA-60-267-925-UM AR 60-IN BRAWLEY RUSTIC TAUPE OAK VANITY W/ENGINEERED CARRARA TOP
1960VA-60-267-926-UM AR 60-IN BRAWLEY RUSTIC TAUPE OAK VANITY W/ENGINEERED CALACATTA TOP
1960VA-60-274-900-UM AR 60-IN BRAWLEY CERUSED NATURAL OAK VANITY W/CARRARA MARBLE TOP
1960VA-60-274-901-UM AR 60-IN BRAWLEY CERUSED NATURAL OAK VANITY W/ENGINEERED WHITE TOP
1960VA-60-274-925-UM AR 60-IN BRAWLEY CERUSED NATURAL OAK VANITY W/ENGINEERED CARRARA TOP
1960VA-60-274-926-UM AR 60-IN BRAWLEY CERUSED NATURAL OAK VANITY W/ENGINEERED CALACATTA TOP
1960VA-60-277-900-UM AR 60-IN BRAWLEY RUSTIC OAK VANITY W/CARRARA MARBLE TOP
1960VA-60-277-901-UM AR 60-IN BRAWLEY RUSTIC OAK VANITY W/ENGINEERED WHITE TOP
1960VA-60-277-925-UM AR 60-IN BRAWLEY RUSTIC OAK VANITY W/ENGINEERED CARRARA TOP
1960VA-60-277-926-UM AR 60-IN BRAWLEY RUSTIC OAK VANITY W/ENGINEERED CALACATTA TOP
MODEL NUMBER DESCRIPTION

2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................3
Safety Instructions...........................................................................................................................3
Preparation......................................................................................................................................4
Assembly or Installation Instructions...............................................................................................4
Care and Maintenance..................................................................................................................10
Warranty........................................................................................................................................10
Replacement Parts List.................................................................................................................11

3

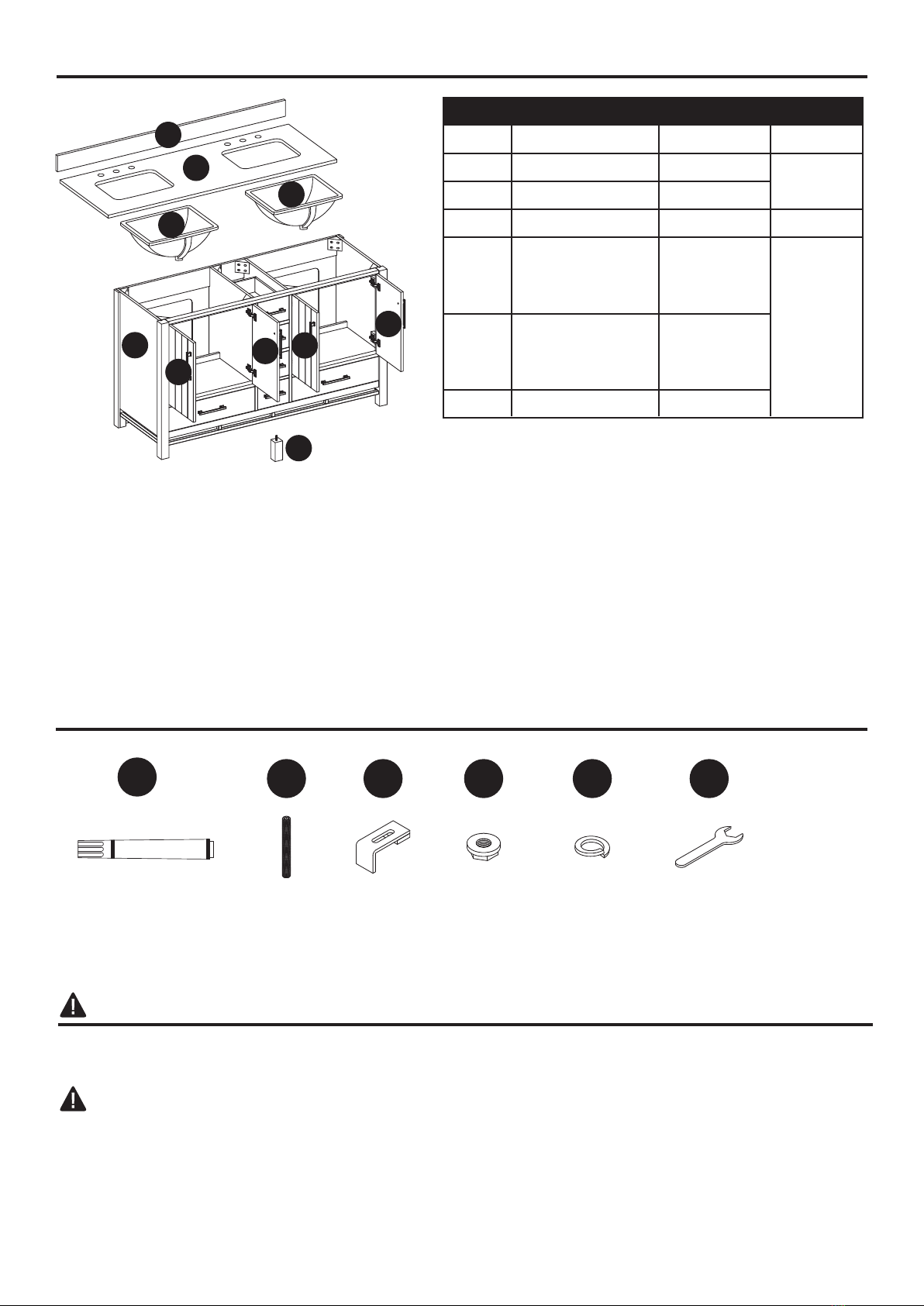

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS (Undermount Sink)
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• There are several assembly steps, including unpacking, that require two adults.
CAUTION
• Follow these instructions closely, take your time, and use care while assembling this vanity.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
C
B
D
A
E
FE
F
K
D
PART DESCRIPTION QUANTITY CARTON
A Vanity 1
B Top 1
D Sink 2
KCenter Support Leg 1
C Backsplash 1
E
Left Door
(preassembled
to vanity (A))
2
F
Right Door
(preassembled
to vanity (A))
2
Box 2 of 3
Box 2 of 3
Box 1 of 3
Box 3 of 3
AA
Touch Up Pen
Qty. 1
HH II JJ KK LL
Lock Washer
Qty. 8
Nut
Qty. 8
Wrench
Qty. 1
Bolt
Qty. 8
Sink Bracket
Qty. 8

4
INSTALLATION INSTRUCTIONS (Undermount Sink)
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level

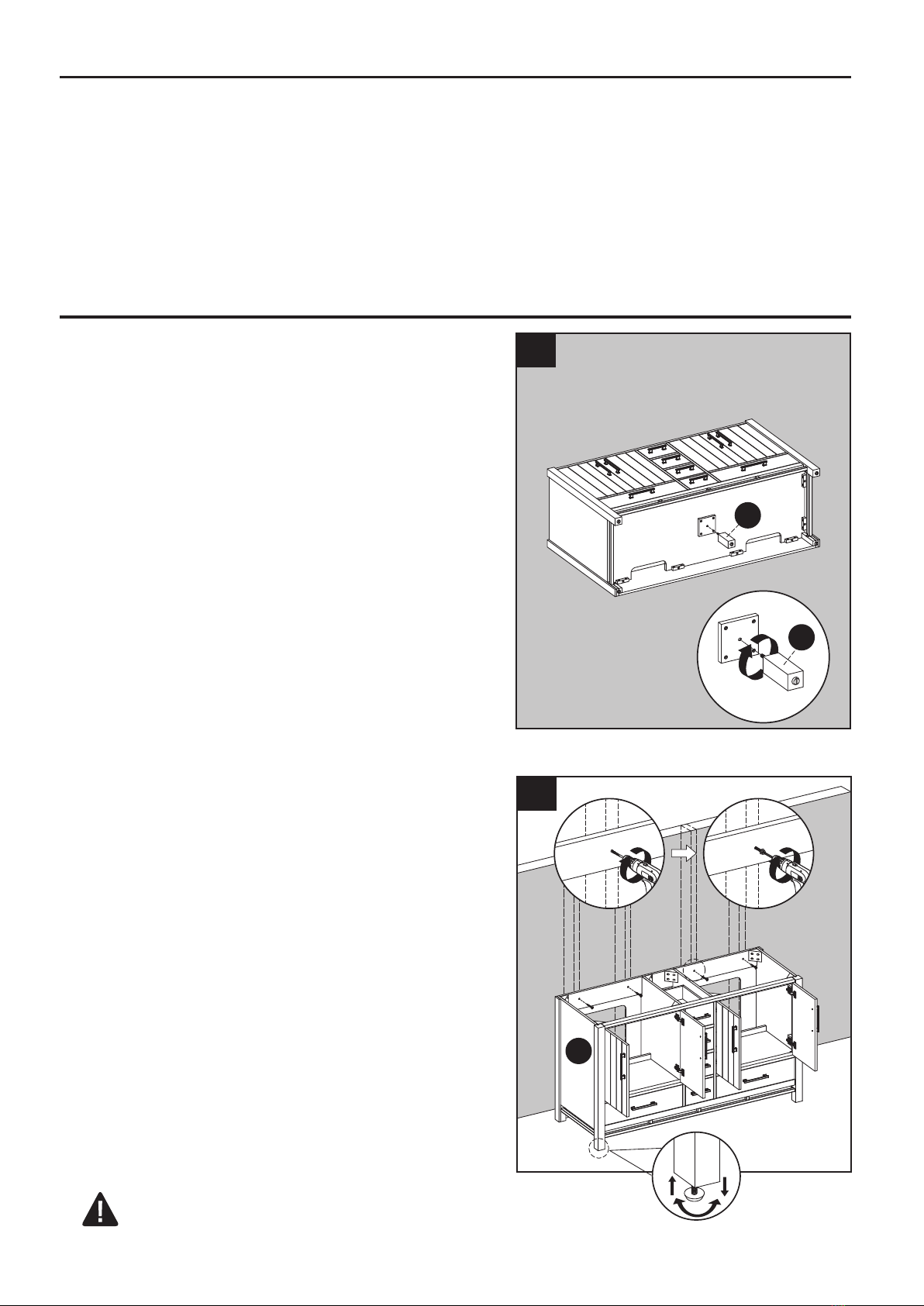

1. With 2 people, place the vanity on its back on
a flat, scratch free surface. Locate the center
support leg (N) and screw into the base of the
vanity. Once complete, lift the vanity back up
into the upright position.
1
K
K
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.
2. With two people, carefully place vanity (A)
against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 2). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
2
12
A

5
INSTALLATION INSTRUCTIONS (Undermount Sink)

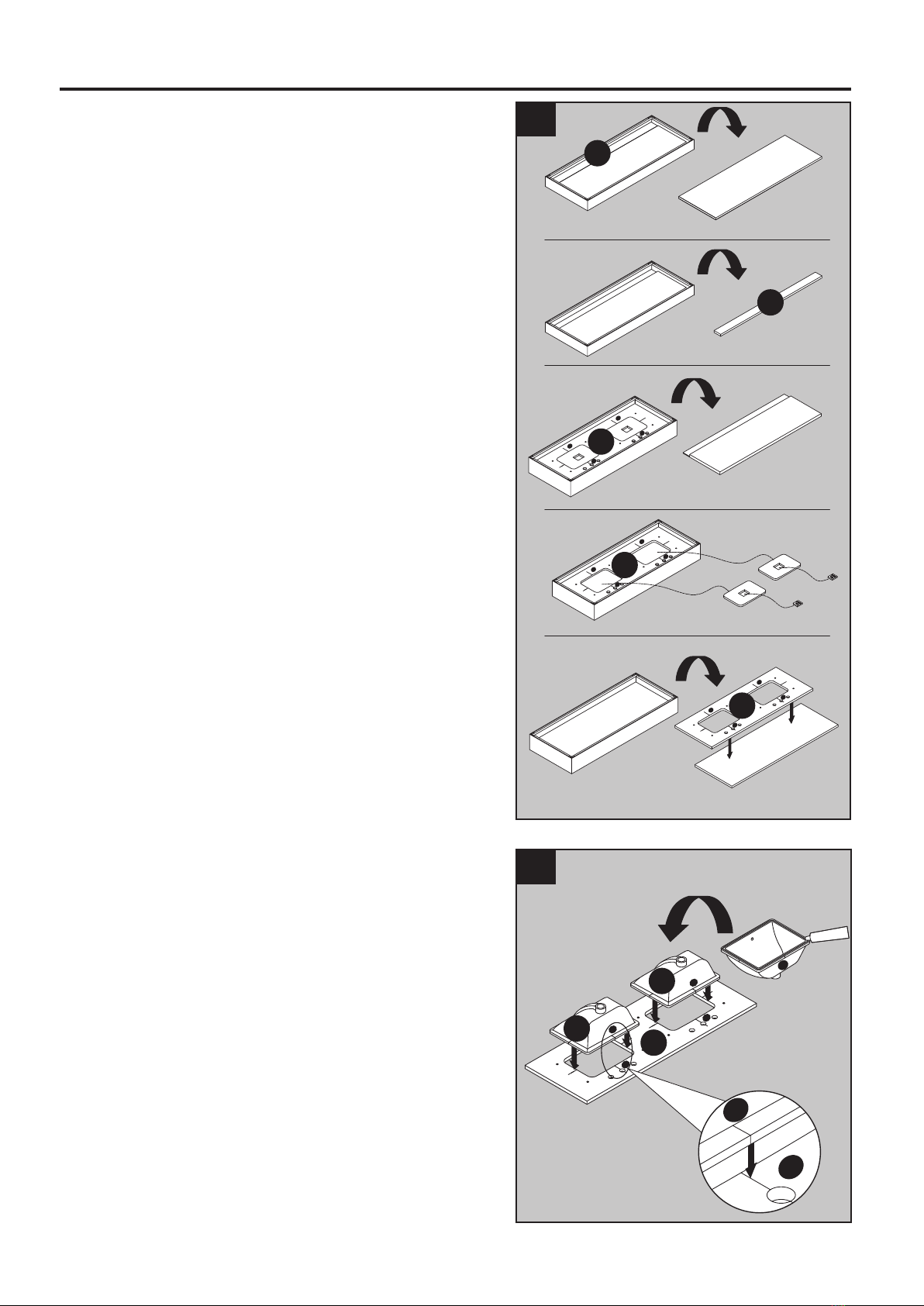

3. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
down onto a scratch free surface such as a
foam sheet that came in the packaging.
4. Apply silicone caulk (not included) to
the top edge of sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top.
Make sure the sink over-flow hole is facing
the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Repeat for the remaining sink.
Note: To install the sink onto the top correctly,
ensure that the two "BACK" stamps on the sink
and the top are aligned on the same sides.
Use the guide lines marked on the sink and
bottom side of stone top to assist with sink
location.
3
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
Foam sheet
C
Foam sheet
B
BACK
FRONT
BACK
FRONT
B
BACK
FRONT
BACK
FRONT
1
2
1
2
B
BACK
FRONT
BACK
FRONT
Hardware
Pack
Hardware
Pack
4
BACK
1
2
2
2
2
BACK
BACK
BACK
BACK
D
D
B
Sink Lip
Top
BACK
BACK

6
INSTALLATION INSTRUCTIONS (Undermount Sink)

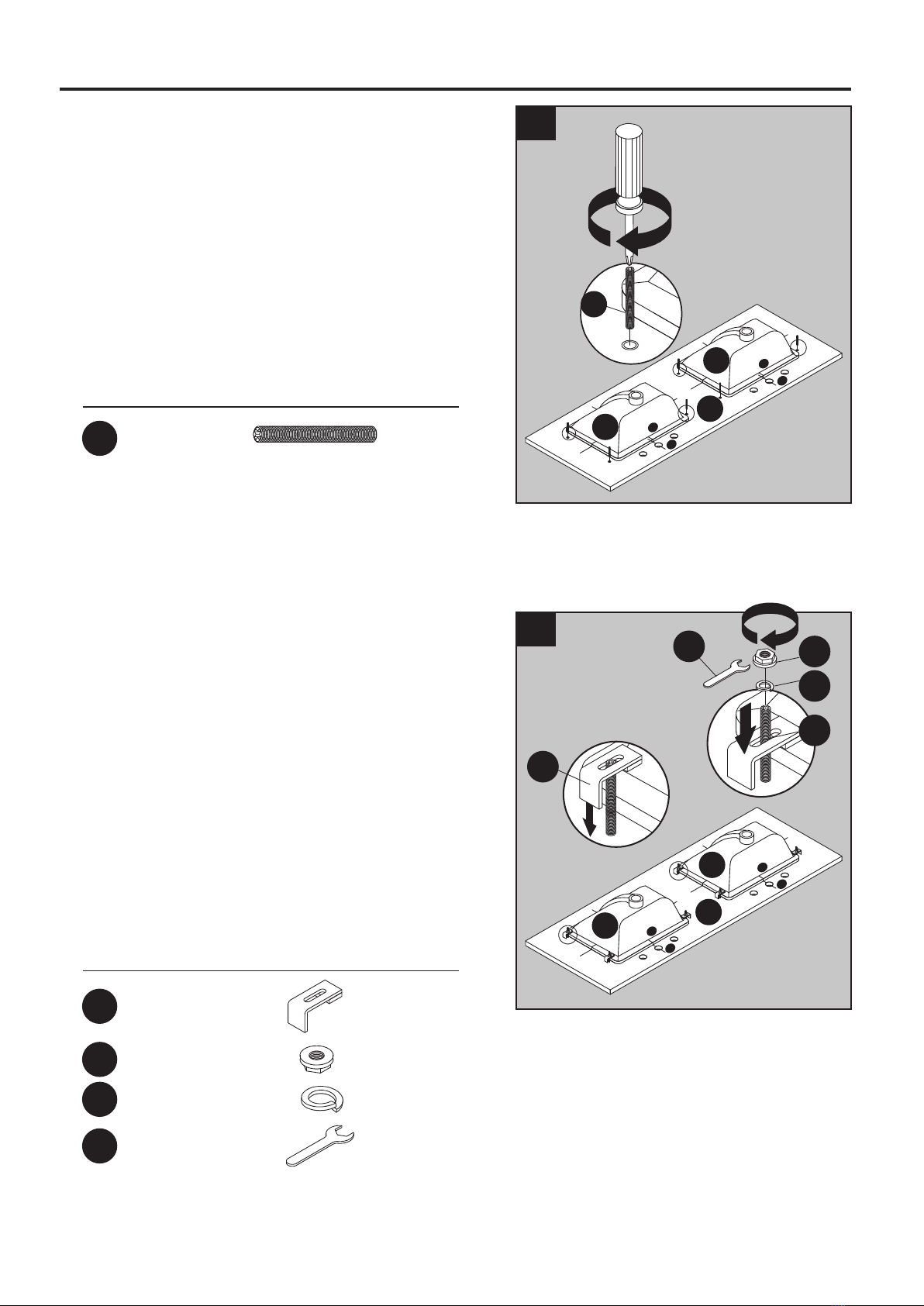

Hardware Used
Bolt x 8
5. Screw bolts (HH) into the threaded holes of
stone top (B).
Hardware Used
Sink bracket x 8
Nut x 8
x 8Lock Washer
6. Lower the sink brackets (II) over the bolts
(HH) and allow to rest on the sink lip. Adjust
location of bracket to firmly grasp sink lip.
Lower lock washers (KK) over bolts (HH) and
secure with nuts (JJ). Hand tighten nuts (JJ)
with included wrench (LL).
DO NOT OVER TIGHTEN!
Repeat for the remaining sink.
Tip: Check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
caulk to dry. If the sink is not centered well
unscrew sink clamps, re-adjust the sink position
and re-tighten the sink brackets.
HH
II
JJ
KK
Wrench x 1
LL
5
HH
D
D
B
BACK
BACK
BACK
BACK
6
3
JJ
KK
HH
LL
2
II
1
D
D
B
BACK
BACK
BACK
BACK

7
INSTALLATION INSTRUCTIONS (Undermount Sink)

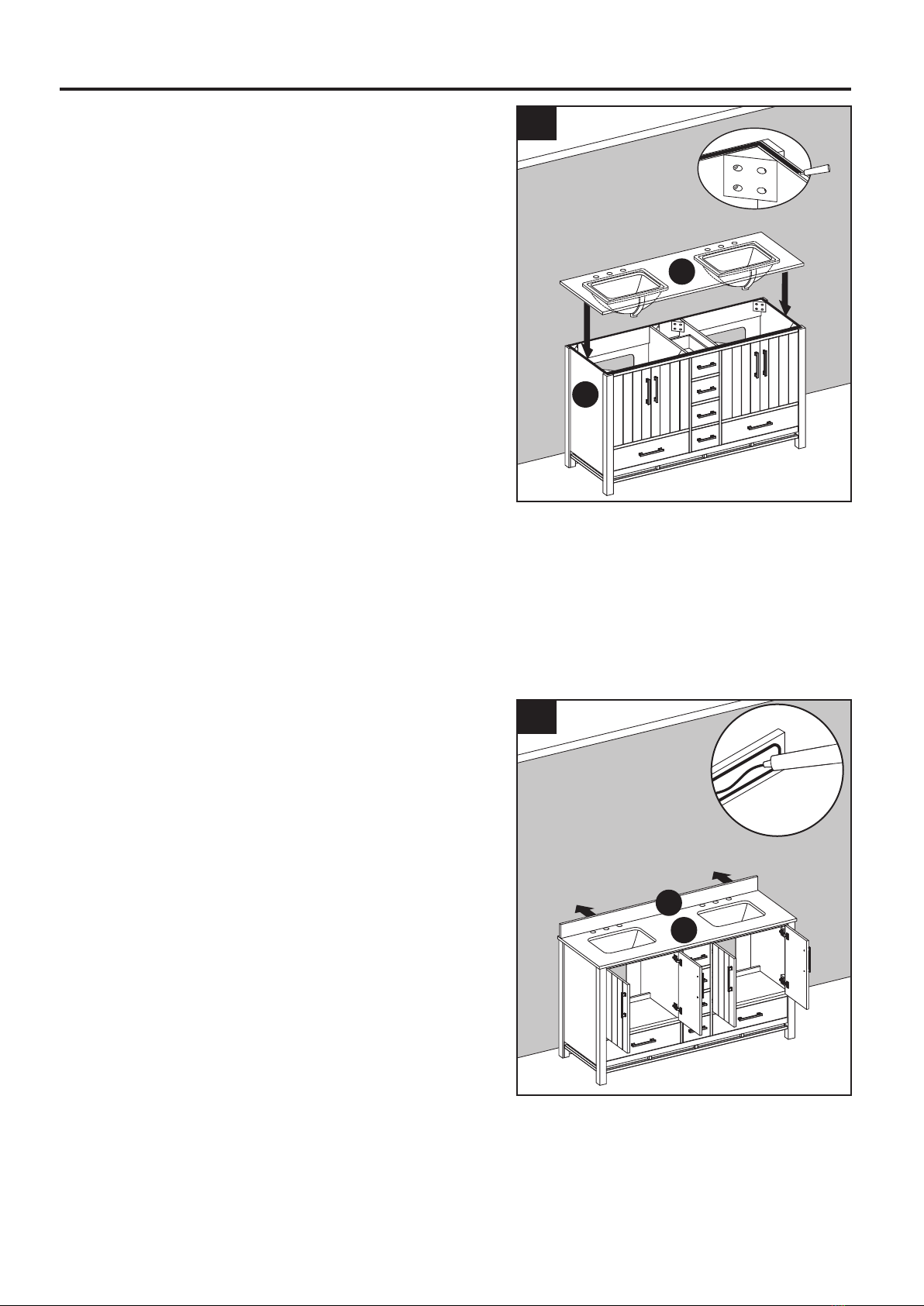

8. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 7.
7.
Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.
7
1
2
2
A
B
8
1
22
C
B

8
INSTALLATION INSTRUCTIONS (Undermount Sink)

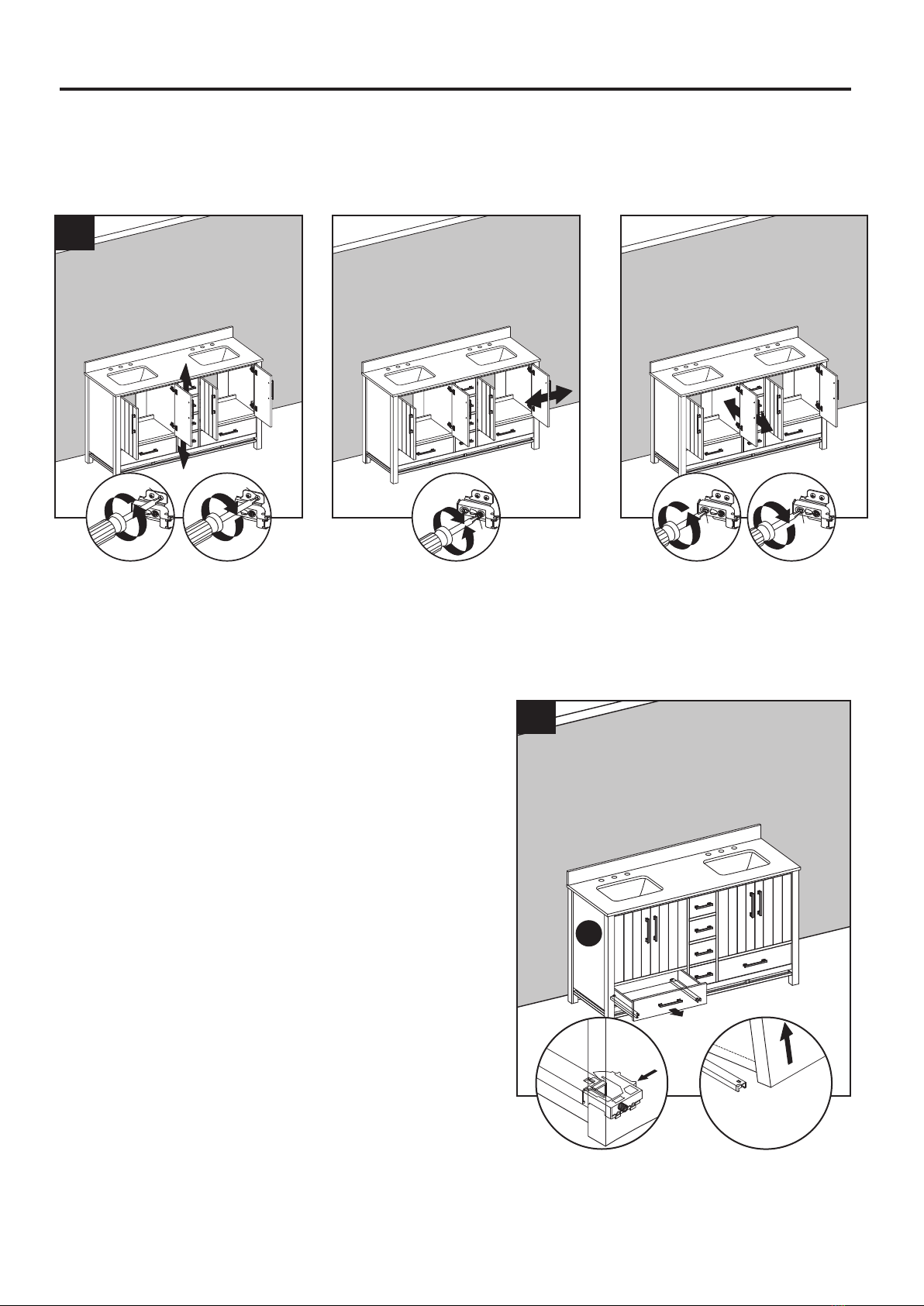

9.
If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
10. To remove drawers preassembled in vanity (A),
fully extend drawers. Locate plastic levers on
metal glide tracks at left and right sides of
drawer box.
To disengage drawer box from glides, push on
plastic levers. Then, gently lift drawer up to
remove it from vanity (A).
9
2
2
22
2
2
b
1
1
c
1
c
3
a
1
a
3
10
A
12

9
INSTALLATION INSTRUCTIONS (Undermount Sink)
11. To reinstall drawers into vanity (A), fully extend
metal glide tracks. Gently lower and slide
drawer box into rear glide catch. Next lower
drawer box down to completely rest on
extended glides. Then, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height, spin
the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right-side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
11
A
3
2
1
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.

10
CARE AND MAINTENANCE
WARRANTY
IMPORTANT
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard marble cleaning agents available at your local
supplier.
• Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch; for worn areas,
stroke in direction of wood grain. Rub off excess colorant promptly with a soft cloth.
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity Manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
The manufacturer warrants this item against defects in materials and workmanship for a period of
one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer will not be held liable for damages caused from cleaners or soaps that etch or stain
the stone top. The manufacturer is not accountable whatsoever for product installation during the
warranty period. There is no further expressed warranty. The manufacturer shall not be legally
responsible for incidental, consequential or special damages arising at or in connection with
product use or performance except as may otherwise be accorded by law. The manufacturer
disclaims any and all implied warranties.

11

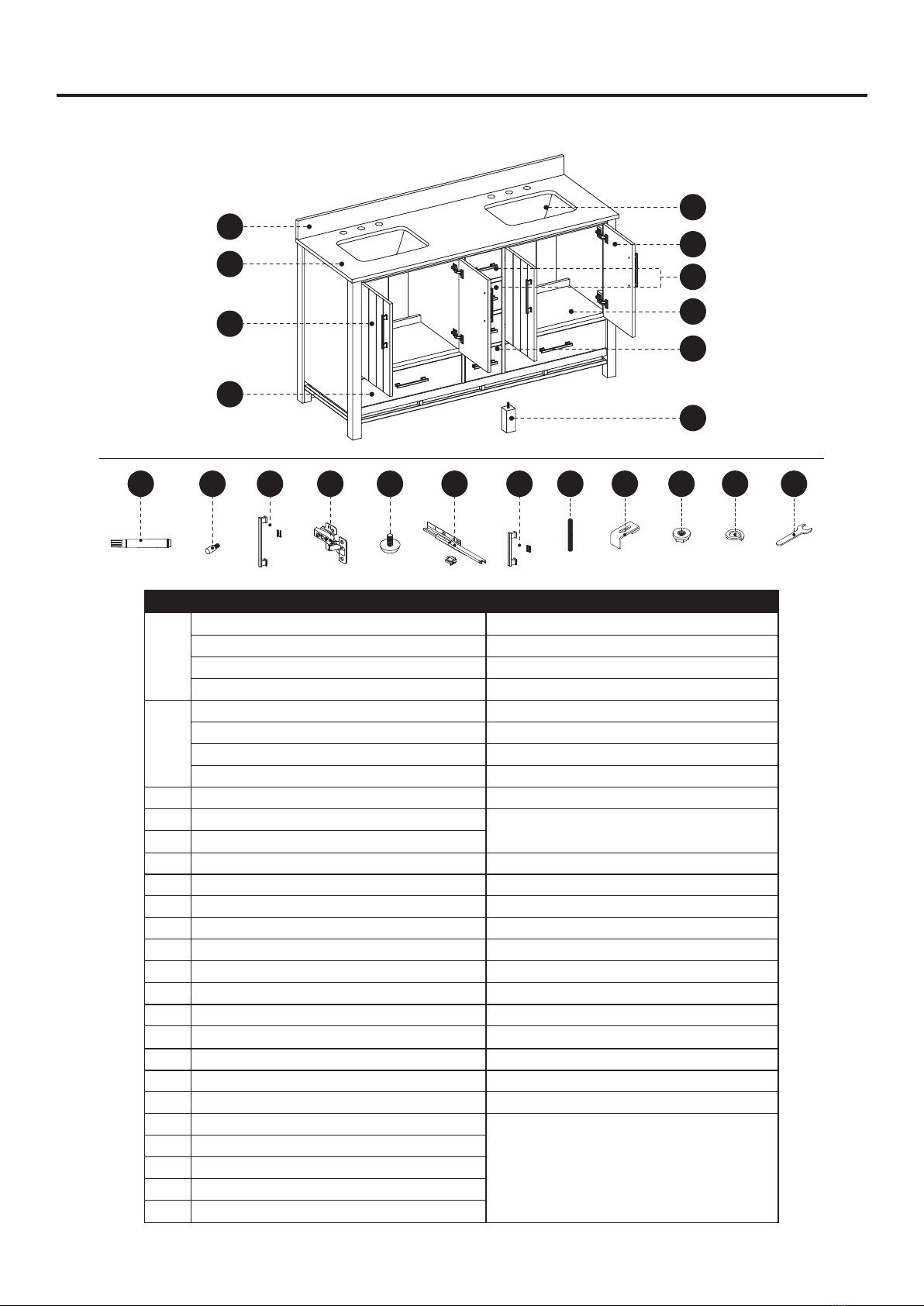

REPLACEMENT PARTS LIST FOR 1960VA-60-267-UM (Undermount Sink)
For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
AA Touch-up pen M-1108
1960VA-MB HANDLE-L
T-1007
CC Long Pull (with screw)
PU17-SP-002
BB Shelf Pin
DD
Leveler
C-90-107
EE
UDTC-14X3-HANDLEDrawer Glide SetFF
1960VA-MB HANDLE-SShort Pull (with screw)GG
BoltHH
Sink BracketII
GTC-SINK CLIPSNutJJ
Lock WasherKK
WrenchLL
Hinge
PART DESCRIPTION PART#
Left Door
E1960VA-60-267 DOOR SET
FRight Door
G Shelf 1960VA-60-267-SHELF
1960VA-60-267-LARGE DRAWER FRONT
H Large Drawer Front
1960VA-60-267-UPPER DRAWER FRONT
I Upper Drawer Front
1960VA-60-267-LOWER DRAWER FRONT
J Lower Drawer Front
1960VA-60-267-C LEG
K Center Support Leg
D PU17-18X14-SQUARE
Sink
PUBS-25-926-60
60" Engineered Calacatta Backsplash
PUBS-25-925-60
60" Engineered Carrara Backsplash
CPUBS-25-901-60
60" Engineered White Backsplash
PUBS-25-900-60
60" Carrara Marble Backsplash
2550VT-60-926
Complete Set 60" Engineered Calacatta Top
2550VT-60-925
Complete Set 60" Engineered Carrara Top
B2550VT-60-901
Complete Set 60" Engineered White Top
2550VT-60-900
Complete Set 60" Carrara Marble Top
BBAA CC DD EE FF GG HH II JJ KK LL
B
E
H
C
D
G
I
F
J
K

12
REPLACEMENT PARTS LIST FOR 1960VA-60-274-UM (Undermount Sink)
For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
AA Touch-up pen M-3008
1960VA-MB HANDLE-L
T-1007
CC Long Pull (with screw)
PU17-SP-002
BB Shelf Pin
DD
Leveler
C-90-107
EE
UDTC-14X3-HANDLEDrawer Glide SetFF
1960VA-MB HANDLE-SShort Pull (with screw)GG
BoltHH
Sink BracketII
GTC-SINK CLIPSNutJJ
Lock WasherKK
WrenchLL
Hinge
PART DESCRIPTION PART#
Left Door
E1960VA-60-274 DOOR SET
FRight Door
G Shelf 1960VA-60-274-SHELF
1960VA-60-274-LARGE DRAWER FRONT
H Large Drawer Front
1960VA-60-274-UPPER DRAWER FRONT
I Upper Drawer Front
1960VA-60-274-LOWER DRAWER FRONT
J Lower Drawer Front
1960VA-60-274-C LEG
K Center Support Leg
D PU17-18X14-SQUARE
Sink
PUBS-25-926-60
60" Engineered Calacatta Backsplash
PUBS-25-925-60
60" Engineered Carrara Backsplash
CPUBS-25-901-60
60" Engineered White Backsplash
PUBS-25-900-60
60" Carrara Marble Backsplash
2550VT-60-926
Complete Set 60" Engineered Calacatta Top
2550VT-60-925
Complete Set 60" Engineered Carrara Top
B2550VT-60-901
Complete Set 60" Engineered White Top
2550VT-60-900
Complete Set 60" Carrara Marble Top
BBAA CC DD EE FF GG HH II JJ KK LL
B
E
H
C
D
G
I
F
J
K

13
REPLACEMENT PARTS LIST FOR 1960VA-60-277-UM (Undermount Sink)
For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m.,
EST, Monday - Sunday.
AA Touch-up pen M-1610
1960VA-MB HANDLE-L
T-1007
CC Long Pull (with screw)
PU17-SP-002
BB Shelf Pin
DD
Leveler
C-90-107
EE
UDTC-14X3-HANDLEDrawer Glide SetFF
1960VA-MB HANDLE-SShort Pull (with screw)GG
BoltHH
Sink BracketII
GTC-SINK CLIPSNutJJ
Lock WasherKK
WrenchLL
Hinge
PART DESCRIPTION PART#
Left Door
E1960VA-60-277 DOOR SET
FRight Door
G Shelf 1960VA-60-277-SHELF
1960VA-60-277-LARGE DRAWER FRONT
H Large Drawer Front
1960VA-60-277-UPPER DRAWER FRONT
I Upper Drawer Front
1960VA-60-277-LOWER DRAWER FRONT
J Lower Drawer Front
1960VA-60-277-C LEG
K Center Support Leg
D PU17-18X14-SQUARE
Sink
PUBS-25-926-60
60" Engineered Calacatta Backsplash
PUBS-25-925-60
60" Engineered Carrara Backsplash
CPUBS-25-901-60
60" Engineered White Backsplash
PUBS-25-900-60
60" Carrara Marble Backsplash
2550VT-60-926
Complete Set 60" Engineered Calacatta Top
2550VT-60-925
Complete Set 60" Engineered Carrara Top
B2550VT-60-901
Complete Set 60" Engineered White Top
2550VT-60-900
Complete Set 60" Carrara Marble Top
BBAA CC DD EE FF GG HH II JJ KK LL
B
E
H
C
D
G
I
F
J
K
