48-IN VANITY WITH TOP
ITEM #4767962; 4767963; 4767960; 4767961; 1028461; 1028453; 864224; 3839344; 864225;
3839343;
4767958; 4767959; 4767956; 4767957; 720436; 1028449; 720443; 3839342;
720446; 3839341; 720449; 1028450; 720422; 720425
MODEL #2026VA-48-242-926; 2026VA-48-242-926-SR; 2026VA-48-242-925; 2026VA-48-242-925-SR;
2026VA-48-242-906; 2026VA-48-242-905; 2026VA-48-242-901; 2026VA-48-242-901-SR;
2026VA-48-242-900; 2026VA-48-242-900-SR;
2026VA-48-201-926; 2026VA-48-201-926-SR;
2026VA-48-201-925; 2026VA-48-201-925-SR;
2026VA-48-201-906; 2026VA-48-201-905;
2026VA-48-201-901; 2026VA-48-201-901-SR; 2026VA-48-201-900; 2026VA-48-201-900-SR;
2026VA-48-200-906; 2026VA-48-200-905; 2026VA-48-200-901; 2026VA-48-200-900
OR
OPTION 1
(Semi-Recessed Sink)
OPTION 2
(Undermount Sink)

2
2026VA-48-242-905 RVLND 48-IN VTY LGRY TZO TOP
2026VA-48-242-906 RVLND 48-IN VTY LGRY DK GY TOP
2026VA-48-242-925-SR RVLND 48-IN VTY LGRY EC SR
2026VA-48-242-925 RVLND 48-IN VTY LGRY EC TOP
2026VA-48-242-926-SR RVLND 48-IN VTY LGRY ECLT SR
2026VA-48-242-926 RVLND 48-IN VTY LGRY ECLT TOP
2026VA-48-242-901 RVLND 48-IN VTY LGRY WH TOP
2026VA-48-242-900 RVLND 48-IN VTY LGRY CAR TOP
2026VA-48-242-901-SR RVLND 48-IN VTY LGRY WH SR
2026VA-48-242-900-SR RVLND 48-IN VTY LGRY CAR SR
2026VA-48-201-906 RVLND 48-IN VTY WHT DK GY TOP
2026VA-48-201-925-SR RVLND 48-IN VTY WHT EC SR
2026VA-48-201-925 RVLND 48-IN VTY WHT EC TOP
2026VA-48-201-926-SR RVLND 48-IN VTY WHT ECLT SR
2026VA-48-201-926 RVLND 48-IN VTY WHT ECLT TOP
2026VA-48-201-900 RVLND 48-IN VTY WHT CAR TOP
2026VA-48-201-901 RVLND 48-IN VTY WHT WH TOP
2026VA-48-201-900-SR RVLND 48-IN VTY WHT CAR SR
2026VA-48-201-901-SR RVLND 48-IN VTY WHT WH SR
2026VA-48-201-905 RVLND 48-IN VTY WHT TZO TOP
2026VA-48-200-906 RVLND 48-IN VTY DGRY DK GY TOP
MODEL NUMBER DESCRIPTION
2026VA-48-200-900 RVLND 48-IN VTY DGRY CAR TOP
2026VA-48-200-905 RVLND 48-IN VTY DGRY TZO TOP
2026VA-48-200-901 RVLND 48-IN VTY DGRY WH TOP

3
TABLE OF CONTENTS FOR OPTION 1 (Semi-Recessed Sink)
Package Contents...........................................................................................................................4
Hardware Contents..........................................................................................................................4
Safety Information............................................................................................................................4
Preparation......................................................................................................................................5
Assembly or Installation Instructions...............................................................................................5
Care and Maintenance...................................................................................................................11
Warranty........................................................................................................................................11
Replacement Parts List..................................................................................................................12
TABLE OF CONTENTS FOR OPTION 2 (Undermount Sink)
Package Contents.........................................................................................................................14
Hardware Contents........................................................................................................................14
Safety Information..........................................................................................................................14
Preparation....................................................................................................................................15
Assembly or Installation Instructions.............................................................................................15
Care and Maintenance...................................................................................................................21
Warranty........................................................................................................................................21
Replacement Parts List..................................................................................................................22

4

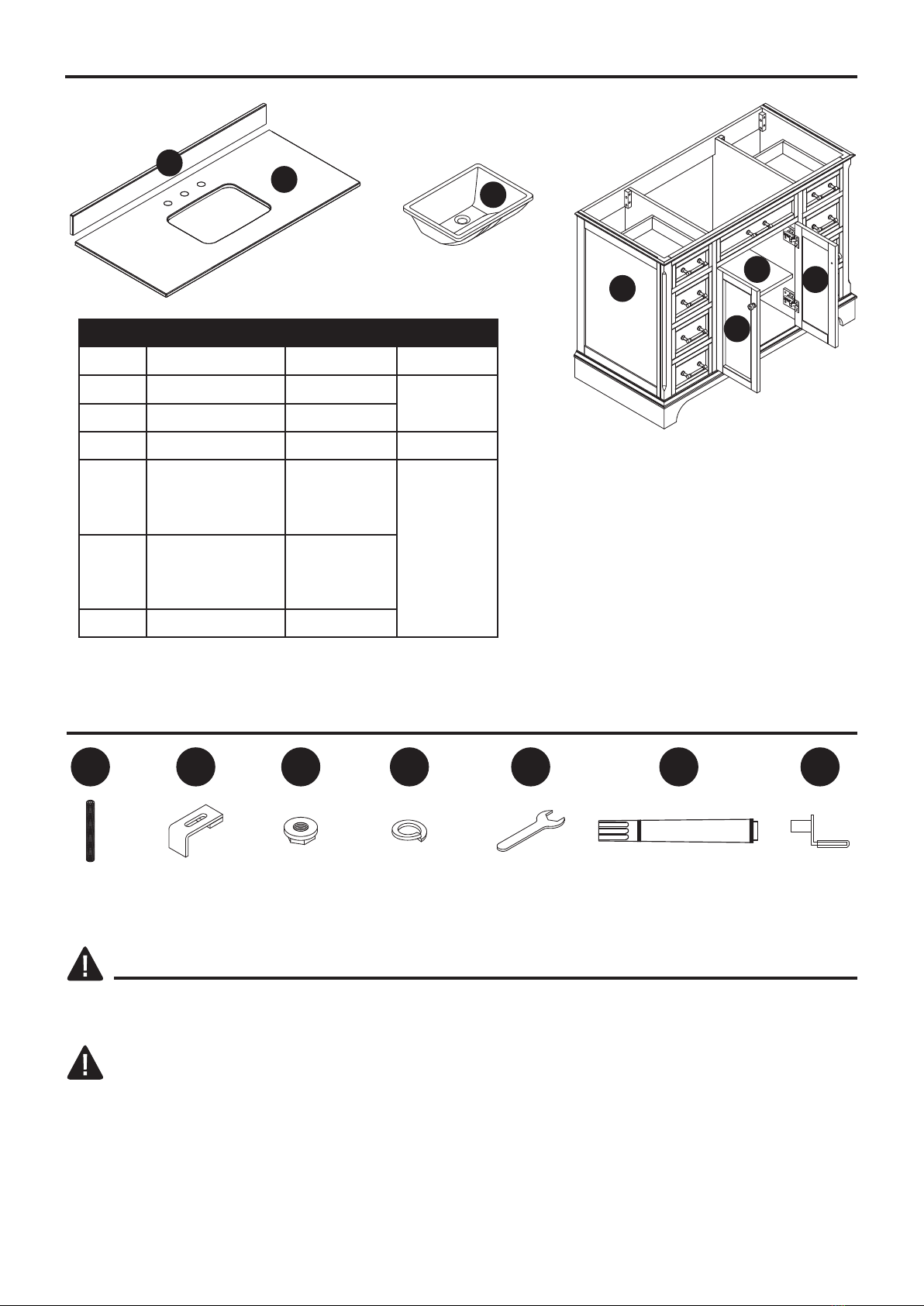

PACKAGE CONTENTS (Semi-Recessed Sink)
HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
WARNING
CAUTION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
• Use care when assembling the vanity, take your time and follow the assembly instructions closely.
• Weight capacity for shelf is 10 lb.
SAFETY INFORMATION
• Some steps are more easily handled with two adults.
Shelf Pin
Qty. 4
GG
Touch-up Pen
Qty. 1
FF
PART DESCRIPTION QUANTITY
BTop 1
AVanity 1
C Backsplash 1
DSink 1
G Shelf 1
LSink Template 1
E 1
F
Right Door
(preassembled
to vanity (A))
1
CARTON
box 1 of 3
box 3 of 3
box 2 of 3
box 2 of 3
box 1 of 3
Left Door
(preassembled
to vanity (A))
A
E
GF
B
CL
D

5
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

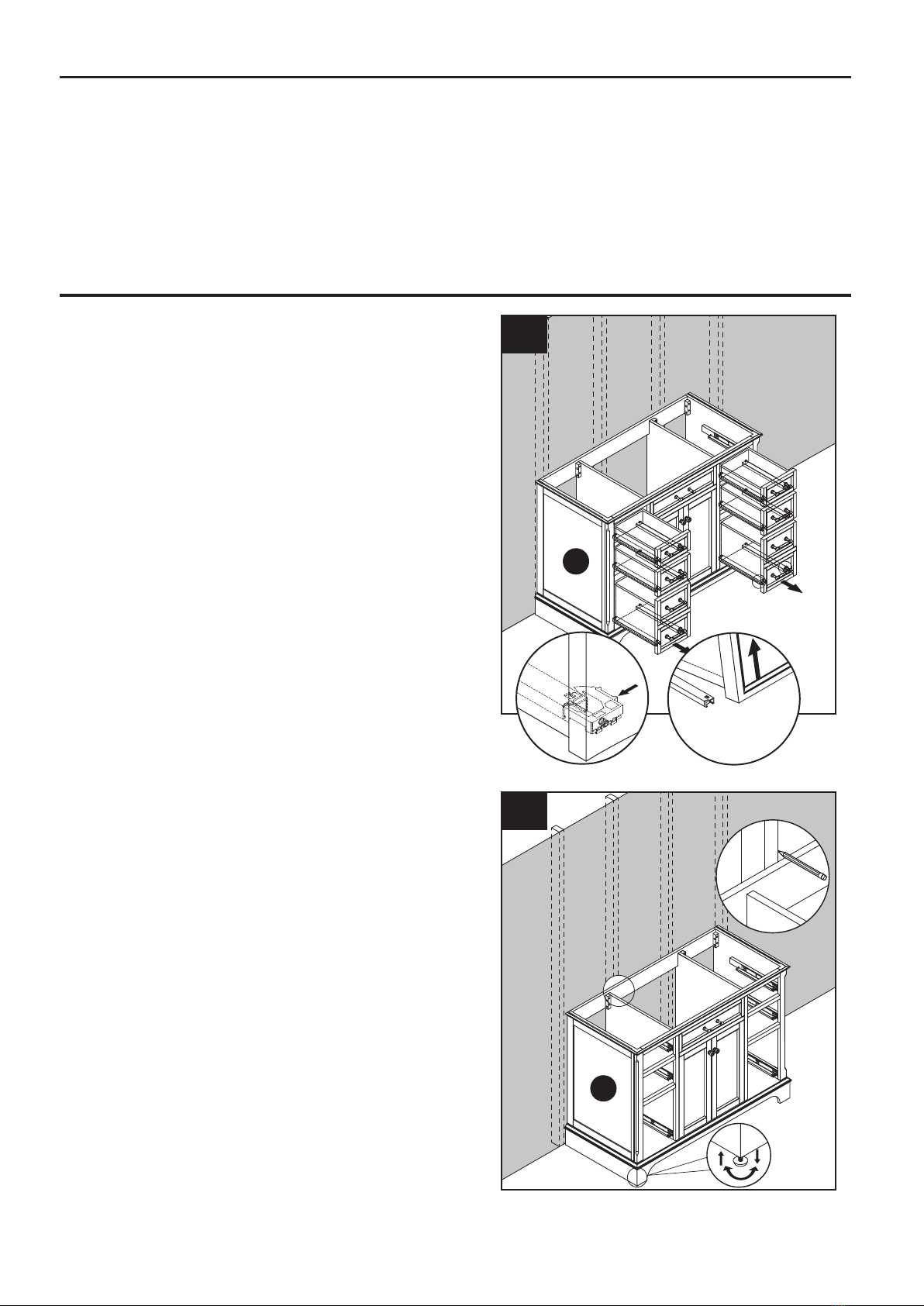

2. Clean area where the vanity (A) will be
permanently located prior to beginning
installation, ensuring the vanity (A) will not
interfere with any water supply and drain lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed vanity
cabinet assembly in its final location. Adjust
the height of the vanity cabinet (A) by
twisting the adjustable leveler foot pins on the
bottom of each leg. Twist clockwise to
decrease height or twist counter-clockwise to
increase vanity height.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level
1. To remove drawers from vanity base (A),
fully extend drawers and locate the plastic
levers on left and right sides of the metal glide
tracks. Push the plastic levers, on both sides,
at the same time, This will disengage the
drawer box from the glides. Gently lift up on
the drawer to remove it from the glide tracks.
Set aside as these will be re-installed.
1
A
12
2
A

6
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
3. Using hardware appropriate for your wall type
(not included), secure vanity cabinet (A) to
two wall studs anywhere through the vanity
mounting plates. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
Mounting Plate
3
A
WARNING
Vanity (A) MUST be secured to the wall.
4. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
up onto a scratch free surface such as a
foam sheet that came in the packaging.
4
Remove the top foam sheet
C
Foam sheet
C
Remove the backsplash and place
it on a scratch free surface
Remove the foam sheet
B

7
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
Note: A
t this stage it may be easier to install
the faucet and drain kit (not included) to top (B)
per the manufacturer’s instructions, before
moving on to Step 5.
5.
Apply stain free silicone caulk (not included) to
the top edge of vanity (A). With the help of
another adult, gently lower top (B) onto the
vanity (A). Wipe away any excess caulk with a
soft cloth, and wait approximately 24 hours for
it to dry.
6. Put the sink template (L) on the top (B).
The hole in the cardboard needs to be
aligned with the hole in the stone top.
Make sure the sink template and stone top are
flush along the back edge.
1
5
A
B
2
2
6
L
B

8
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
7. Apply a thin bead of silicone caulk (not included)
onto the stone top close to the edge of the sink
cut out as pictured.
8. With the help of another adult, Gently lower
the sink onto the stone top using even
pressure to set the sink properly.
Make sure the sink over-flow hole is at the
front of wood cabinet.
If some silicone caulk has over-flowed please
clean it up at that time with water.
7
L
B
8
D
B

9
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)
10. Insert shelf pins (GG) at desired height,
ensuring they are level. Place shelf (G) on
top of shelf pins (GG).
9. To re-install drawers into vanity (A). Please fully
extend metal glide tracks, gently lower and slide
drawer box into rear glide catch, then, lower
drawer box down to completely rest on
extended glides, push plastic levers to
lock the drawer box in place.
Repeat for remaining drawers.
Note: To adjust the drawer box height. Please
spin the adjustment wheel to the left to raise the
drawer box or spin the adjustment wheel to
the right to lower the drawer box. You can
adjust the left and right side glide heights
independently in order to find the drawers best
alignment position.
CAUTION
DO NOT force drawer or damage to glide may
occur. If drawer does not slide in with ease,
remove and try again from the start.
Hardware Used
GG Shelf Pin x 4
9
A
B
10
1
GG
2
G

10
INSTALLATION INSTRUCTIONS (Semi-Recessed Sink)

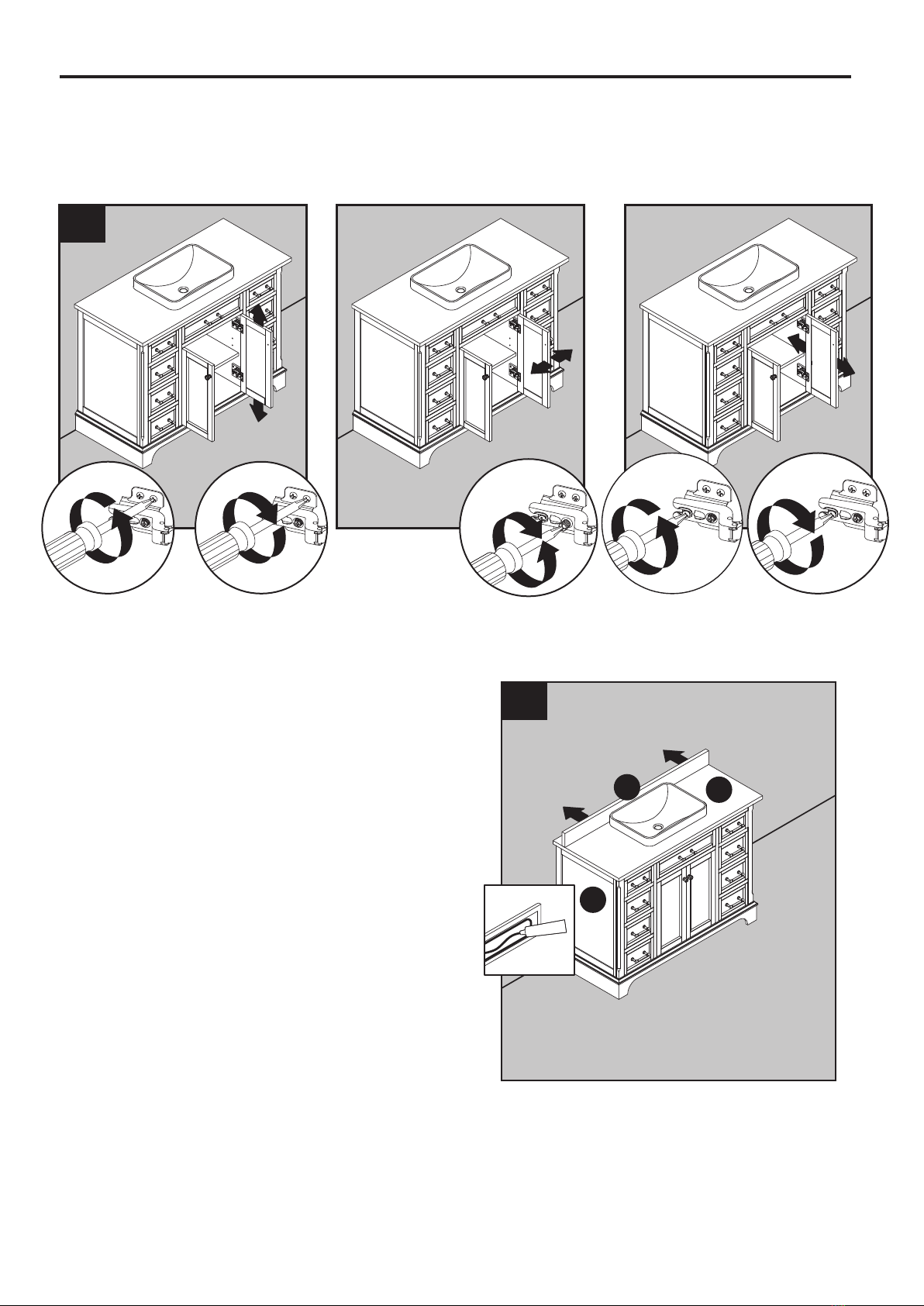

11. If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
12. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
11
2
2
2
2
22
a
3
a
1
b
1
1
c
1
c
3
12
A
B
22
C
