Alliance Laundry Systems Pocket Hardmount Operating manual

Preventative Maintenance
www.comlaundry.com
Pocket
Hardmount
Part No. 7-04-49
November 2005
https://appliancetechmanuals.com

https://appliancetechmanuals.com

© Copyright 2005, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.
Table of Contents
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 1
Daily............................................................................................................................................................................2
Beginning of the Day............................................................................................................................................2
End of the Day......................................................................................................................................................4
Weekly ........................................................................................................................................................................6
Monthly ......................................................................................................................................................................7
Quarterly..................................................................................................................................................................11
Care of Stainless Steel .............................................................................................................................................13
Daily Preventative Maintenance Checklist ...........................................................................................................15
Beginning of the Day:.........................................................................................................................................15
End of the Day:...................................................................................................................................................16
Weekly Preventative Maintenance Checklist........................................................................................................17

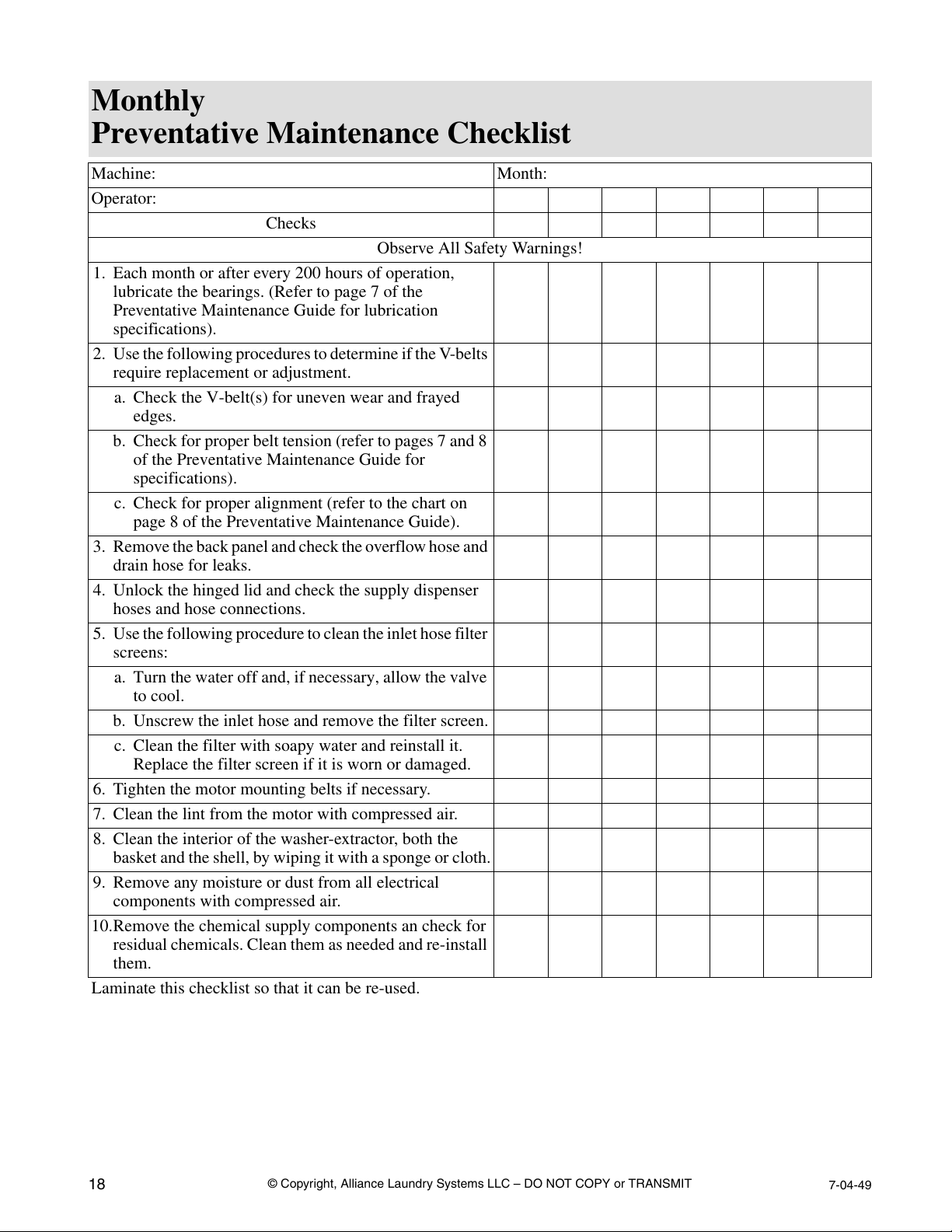

Monthly Preventative Maintenance Checklist......................................................................................................18
Quarterly Preventative Maintenance Checklist ...................................................................................................19
IMPORTANT: Replace all panels that are removed to perform maintenance procedures. Do not operate the
washer-extractor with missing guards or with broken or missing parts. Do not bypass any safety devices.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
27-04-49

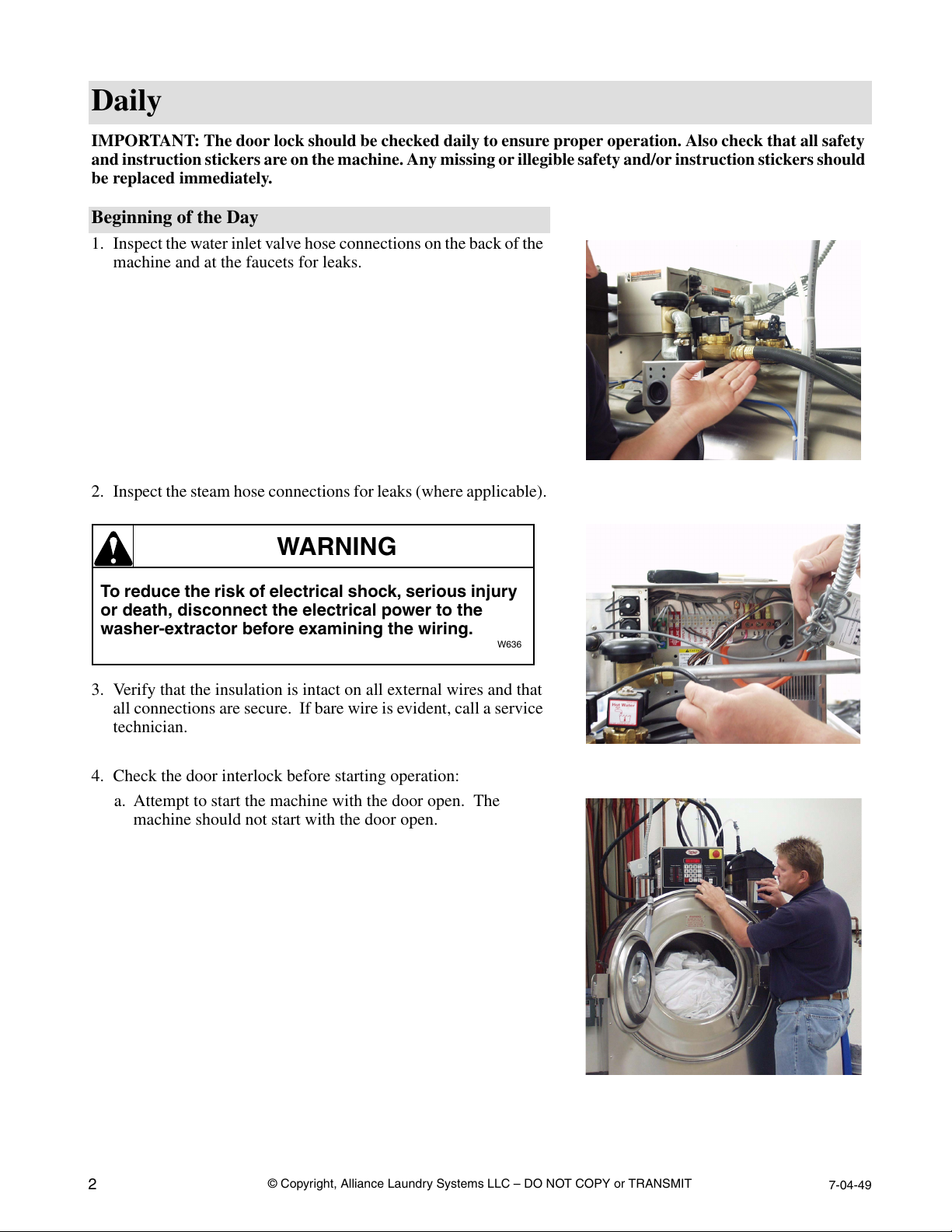

Daily
IMPORTANT: The door lock should be checked daily to ensure proper operation. Also check that all safety
and instruction stickers are on the machine. Any missing or illegible safety and/or instruction stickers should
be replaced immediately.
Beginning of the Day
1. Inspect the water inlet valve hose connections on the back of the
machine and at the faucets for leaks.
2. Inspect the steam hose connections for leaks (where applicable).
3. Verify that the insulation is intact on all external wires and that
all connections are secure. If bare wire is evident, call a service
technician.
4. Check the door interlock before starting operation:
a. Attempt to start the machine with the door open. The
machine should not start with the door open.
To reduce the risk of electrical shock, serious injury
or death, disconnect the electrical power to the
washer-extractor before examining the wiring.
W636
WARNING
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 3
Daily
b. Close the door without locking it and attempt to start the
machine. The machine should not start with the door
unlocked.
c. Close and lock the door and start a cycle. Attempt to open the
door while the cycle is in progress. The door should not open.
If the door lock and interlock are not functioning properly, call a
service technician.
5. If the washer-extractor is equipped with a premium Wet Clean
module, inspect the water recirculation pipe connections to
make sure that they are tight and do not leak.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
47-04-49
Daily

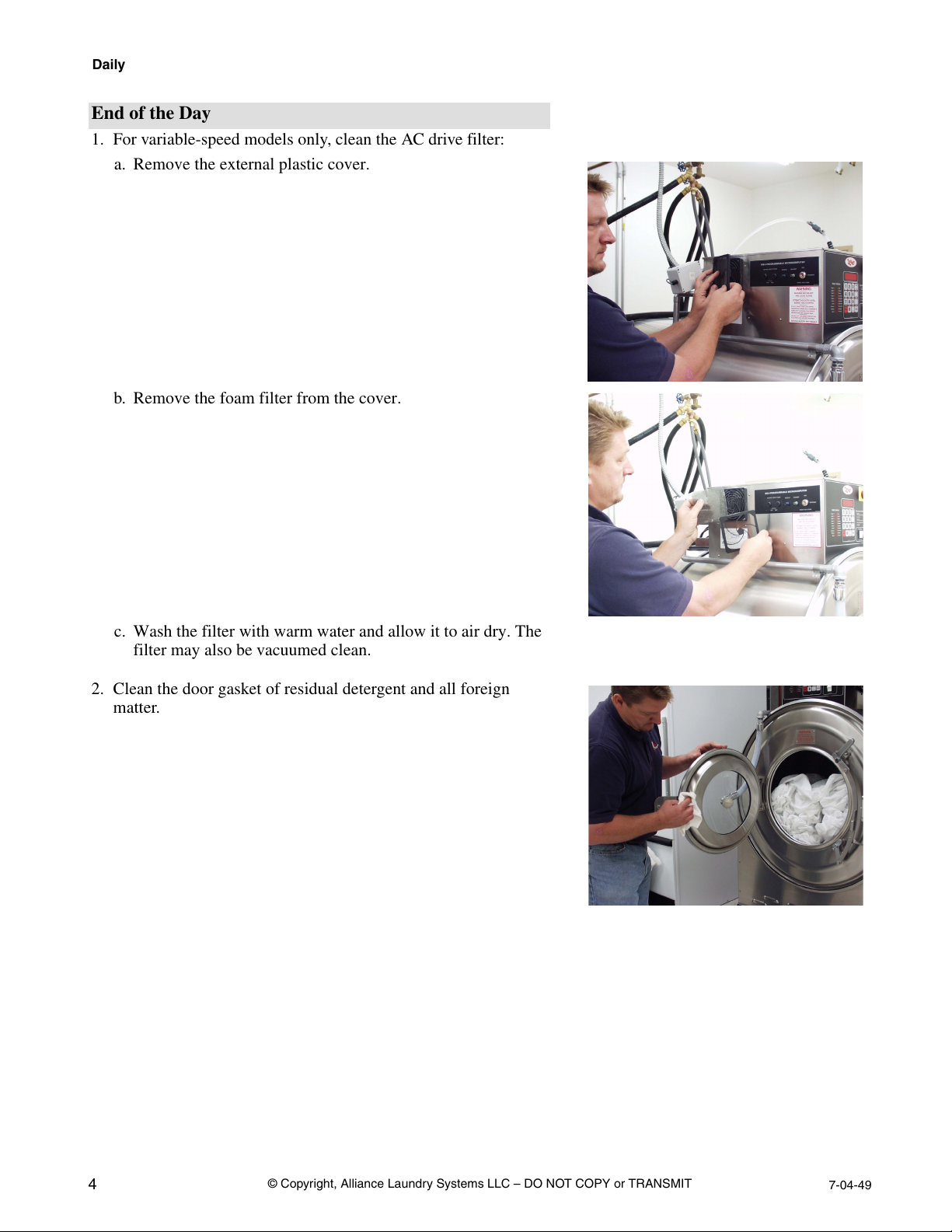

End of the Day
1. For variable-speed models only, clean the AC drive filter:
a. Remove the external plastic cover.
b. Remove the foam filter from the cover.
c. Wash the filter with warm water and allow it to air dry. The
filter may also be vacuumed clean.
2. Clean the door gasket of residual detergent and all foreign
matter.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 5
Daily
3. Clean the automatic supply dispenser lid and general area with
mild detergent. Rinse the dispenser with clean water.
4. Clean the machine’s top, front and side panels with mild
detergent. Thoroughly rinse and dry all surfaces after cleaning
them.
5. Leave the loading door open at the end of each day to allow
moisture to evaporate.
NOTE: Unload the machine promptly after each completed
cycle to prevent moisture buildup. Leave the loading door open
after each completed cycle to allow moisture to evaporate.
6. If the washer-extractor is equipped with a premium Wet Clean
module, clean the water recirculation filter, which is located
inside of the canister.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
67-04-49
Weekly
1. Check the washer-extractor for leaks:
a. Start an unloaded cycle to fill the washer-extractor.
b. Verify that the door and door gasket do not leak.
c. Verify that the drain valve is operating and that the drain
system is free from obstruction. If water does not leak out
during the pre-wash segment, the drain valve is closed and
functioning properly.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 7
Monthly
NOTE: Disconnect power to the machine at its source before performing the monthly maintenance
procedures.
1. Each month or after every 200 hours of operation, lubricate the
bearings. Locate the bearing lubrication decal on the rear, right
of the washer-extractor.
a. The lubricant must have the following characteristics:
- NLGI Grade 2 - Water-insoluble - Anti-oxidizing
- Lithium-based - Anti-rusting - Mechanically stable
The lubricant must have adequate base oil viscosity with one
of the following ratings:
- ISO VG150 (135-165 CST at 40°C or 709-871 SUS at
100°F
- ISO VG 220 (198-242 CST at 40°C or 1047-1283 SUS at
100°F
- An SAE 40 rating is also acceptable as long as the CST or
SUS values are within the specified ranges
b. Pump the grease gun slowly, permitting only 2 strokes.
2. Use the following procedures to determine if the V-belt(s)
require replacement or adjustment. Call a qualified service
technician in either case.
a. Check the V-belt(s) for uneven wear and frayed edges.
b. After disconnecting power to the washer-extractor and
removing all panels necessary for access to the drive belt, use
one of the following methods to verify that the v-belts are
properly tensioned.
•Tension Gauge. Loosen the motor mounting bolts and slide
the motor along the motor plate to change the span length.
UWPV belt tension should be between 70 and 90 pounds
(± 5 pounds). Set the initial tension toward the high end of
this range.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
87-04-49
Monthly
•Deflection. Loosen the motor mounting bolts and slide the
motor along the motor plate to change the belt span length.
Belt tension measurements should be taken as close to the
center of the belt span as possible. For every inch of span
length, the belt should deflect 1/64 inch (0.40mm). For
example, a belt with a span length of 50 inches should deflect
50/64 inches (19.84mm). An initial (run-in) force of 5.25
pounds should be used to set the belt tension. An operating
(normal) force of 3.5 pounds should be used after the
washer-extractor has operated for a few hours.
c. Verify that the V-belts are properly aligned by checking the
pulley alignment. Place a straightedge across both pulley
faces. The straightedge should make contact with the pulleys
in four places.
3. Remove the back panel and check the overflow hose and drain
hose for leaks.
4. Unlock the hinged lid and check the supply dispenser hoses and
hose connections.
H039I
Span Length
Deflection
H040I
Motor
Motor
Pulley
Straightedge
Basket
Pulley
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 9
Monthly
5. Use the following procedure to clean the inlet hose filter screens:
a. Turn the water off and, if necessary, allow the valve to cool.
b. Unscrew the inlet hose and remove the filter screen.
c. Clean the filter screen with soapy water and reinstall it.
Replace the filter screen if it is worn or damaged.
6. Tighten the motor mounting bolts if necessary.
Pin
Motor Pulley
Motor Spring
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
10 7-04-49
Monthly
7. Clean the lint from the motor with compressed air.
8. Clean the interior of the washer-extractor, both the basket and
the shell, by wiping it with a sponge or cloth.
9. Remove any moisture or dust from all electrical components
with compressed air.
10.Remove the chemical supply components and check for residual
chemicals. Clean them as needed and re-install them.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 11

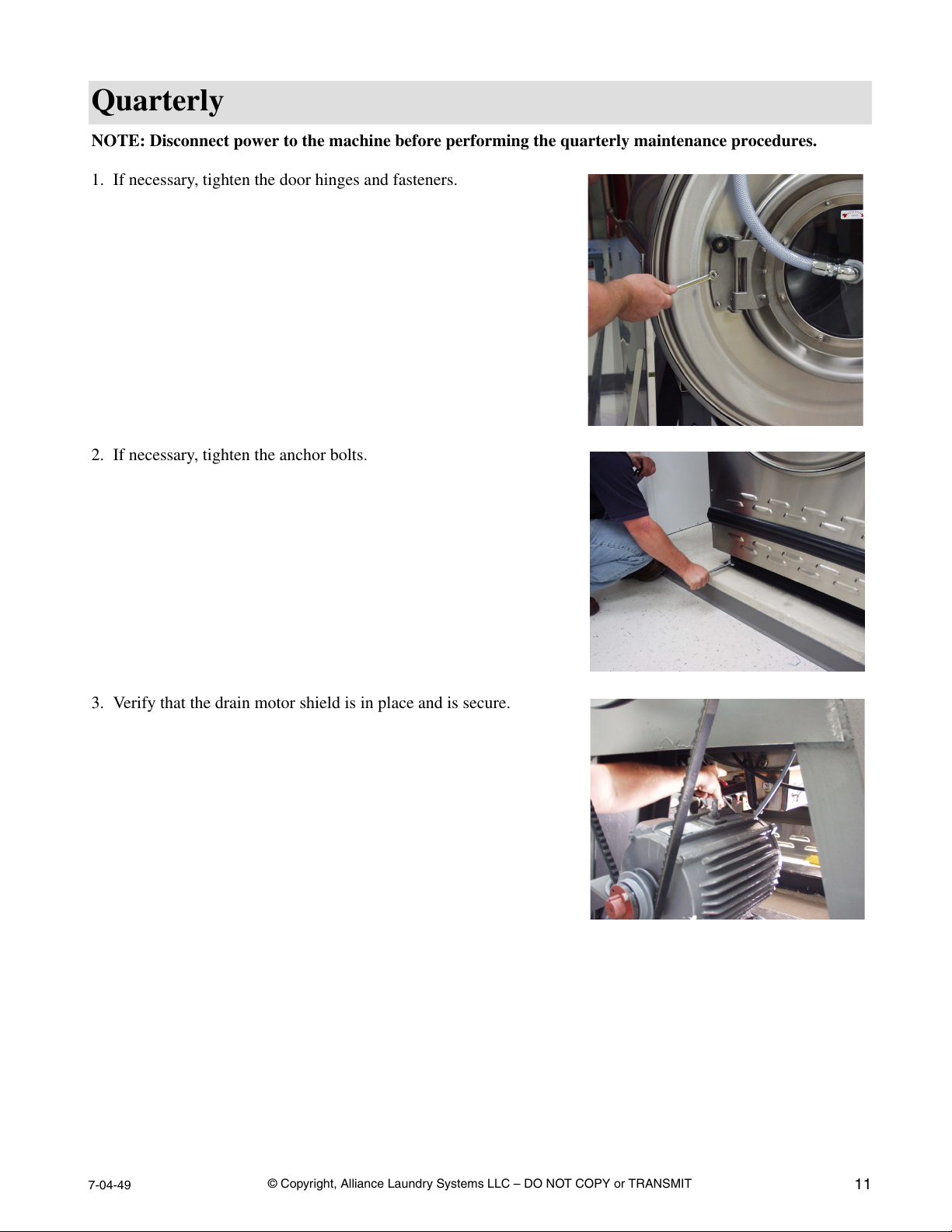

Quarterly
NOTE: Disconnect power to the machine before performing the quarterly maintenance procedures.
1. If necessary, tighten the door hinges and fasteners.
2. If necessary, tighten the anchor bolts.
3. Verify that the drain motor shield is in place and is secure.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
12 7-04-49
Quarterly

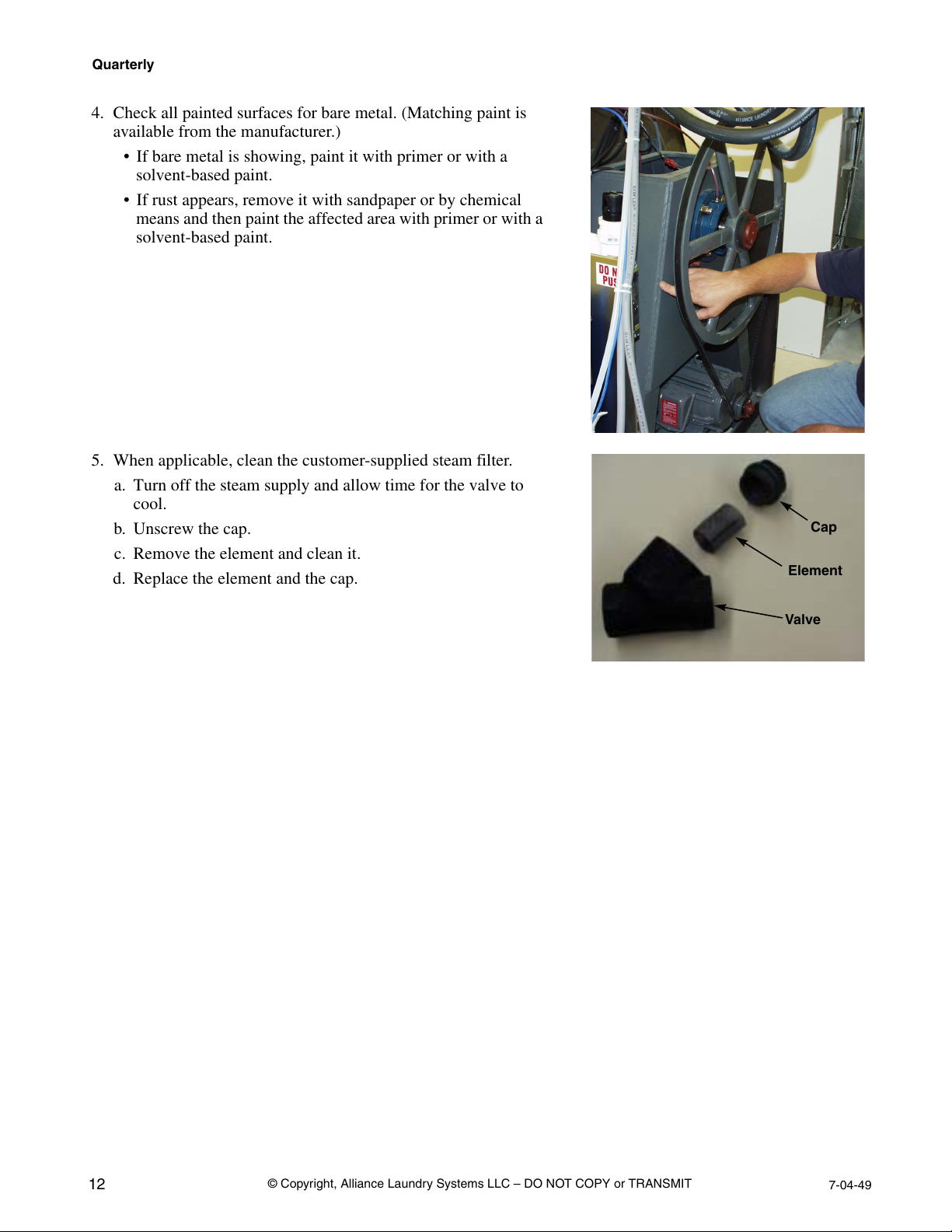

4. Check all painted surfaces for bare metal. (Matching paint is
available from the manufacturer.)
• If bare metal is showing, paint it with primer or with a
solvent-based paint.
• If rust appears, remove it with sandpaper or by chemical
means and then paint the affected area with primer or with a
solvent-based paint.
5. When applicable, clean the customer-supplied steam filter.
a. Turn off the steam supply and allow time for the valve to
cool.
b. Unscrew the cap.
c. Remove the element and clean it.
d. Replace the element and the cap.
Valve
Element
Cap
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 13
✓Remove dirt and grease with detergent and water.
Thoroughly rinse and dry after washing.
✓Avoid contact with dissimilar metals to prevent
galvanic corrosion when salty or acidic solutions are
present.
✓Do not allow salty or acidic solutions to evaporate
and dry on stainless steel. Wipe clean of any
residues.
✓Rub in the direction of the polish lines or “grain” of
the stainless steel to avoid scratch marks when using
abrasive cleaners. Use stainless steel wool or soft,
non-metal bristle brushes. Do not use ordinary steel
wool or steel brushes.
✓If the stainless steel appears to be rusting, the source
of the rust may be an iron or steel part not made of
stainless steel, such as a nail or screw. Tip: Paint all
carbon steel parts with a heavy protective coating.
Stainless steel fasteners should be used whenever
possible.
✓Remove discoloration or heat tint from overheating
by scouring with a powder or by employing special
chemical solutions.
✓Do not leave sterilizing solutions on stainless steel
equipment for prolonged periods of time.
✓When an external chemical supply is used, ensure
no siphoning of chemicals occurs when the washer-
extractor is not in use. Highly concentrated
chemicals can cause severe damage to stainless steel
and other components within the machine. Damage
of this kind is not covered by the manufacturer’s
warranty. Locate the pump and tubing below the
washer-extractor’s injection point to prevent
siphoning of chemicals into the machine.
Care of Stainless Steel
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
14 7-04-49
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 15
Daily
Preventative Maintenance Checklist
Machine: Week of:
Operator: Days
Checks 1 2 3 4 5 6 7
Observe All Safety Warnings!
Beginning of the Day:
1. Inspect the water inlet valve hose connections on the back of
the machine and at the faucets for leaks.
2. Inspect the steam hose connections for leaks (where
applicable).
3. Verify that the insulation is intact on all external wires and
that all connections are secure. If bare wire is evident,
contact a service technician.
4. Check the door interlock before starting operation:
a. Attempt to start the machine with the door open. The
machine should not start with the door open.
b. Close the door without locking it and attempt to start the
machine. The machine should not start with the door
unlocked.
c. Close and lock the door and start a cycle. Attempt to open
the door while the cycle is in progress. The door should
not open.
5. If the washer-extractor is equipped with a premium Wet
Clean module, inspect the water recirculation pipe
connections to make sure that they are tight and do not leak.
Laminate this checklist so that it can be re-used.
To reduce the risk of electrical shock, serious
injury or death, disconnect the electrical power to
the washer-extractor before examining the wiring.
W636
WARNING
(continued)
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
16 7-04-49
Daily
Preventative Maintenance Checklist
Machine: Week of:
Operator: Days
Checks 1 2 3 4 5 6 7
Observe All Safety Warnings!
End of the Day:
1. For variable-speed models only, clean the AC drive filter:
a. Remove the external plastic cover.
b. Remove the foam filter from the cover.
c. Wash the filter with warm water and allow it to air dry.
The filter may also be vacuumed clean.
2. Clean the door gasket of residual detergent and all foreign
matter.
3. Clean the automatic supply dispenser lid and general area
with mild detergent. Rinse the dispenser with clean water.
4. Clean the machine’s top, front and side panels with mild
detergent. Thoroughly rinse and dry all surfaces after
cleaning them.
5. Leave the loading door open at the end of each day to allow
moisture to evaporate.
6. If the washer-extractor is equipped with a premium Wet
Clean module, clean the water recirculation filter, which is
located inside of the canister.
Laminate this checklist so that it can be re-used.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7-04-49 17
Weekly
Preventative Maintenance Checklist
Machine: Week of:
Operator: Week Ending:
Checks ///////
Observe All Safety Warnings!
1. Check the washer-extractor for leaks:
a. Start an unloaded cycle to fill the washer-extractor.
b. Verify that the door and door gasket do not leak.
c. Verify that the drain valve is operating and that the
drain system is free from obstruction. If water does not
leak out during the pre-wash segment, the drain is
closed and functioning properly.
Laminate this checklist so that it can be re-used.
https://appliancetechmanuals.com

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
18 7-04-49
Monthly
Preventative Maintenance Checklist
Machine: Month:
Operator:
Checks
Observe All Safety Warnings!
1. Each month or after every 200 hours of operation,
lubricate the bearings. (Refer to page 7 of the
Preventative Maintenance Guide for lubrication
specifications).
2. Use the following procedures to determine if the V-belts
require replacement or adjustment.
a. Check the V-belt(s) for uneven wear and frayed
edges.
b. Check for proper belt tension (refer to pages 7 and 8
of the Preventative Maintenance Guide for
specifications).
c. Check for proper alignment (refer to the chart on
page 8 of the Preventative Maintenance Guide).
3. Remove the back panel and check the overflow hose and
drain hose for leaks.
4. Unlock the hinged lid and check the supply dispenser
hoses and hose connections.
5. Use the following procedure to clean the inlet hose filter
screens:
a. Turn the water off and, if necessary, allow the valve
to cool.
b. Unscrew the inlet hose and remove the filter screen.
c. Clean the filter with soapy water and reinstall it.
Replace the filter screen if it is worn or damaged.
6. Tighten the motor mounting belts if necessary.
7. Clean the lint from the motor with compressed air.
8. Clean the interior of the washer-extractor, both the
basket and the shell, by wiping it with a sponge or cloth.
9. Remove any moisture or dust from all electrical
components with compressed air.
10.Remove the chemical supply components an check for
residual chemicals. Clean them as needed and re-install
them.
Laminate this checklist so that it can be re-used.
https://appliancetechmanuals.com
