Alliance Laundry Systems SWD444C Guide

Installation/Operation
www.comlaundry.com
Stacked
Washer and Dryer
Electric Models
SWD444C
SWD444C
Part No. 802031R2
July 2005
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

802031 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• Installation and service must be performed by a qualified installer or service agency.
W257
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING

2802031
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

© Copyright 2005, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
802031 3
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Replacement Parts.............................................................................. 5
Safety Information.............................................................................. 7
Explanation of Safety Messages........................................................... 7
Important Safety Instructions ............................................................... 7
Installation........................................................................................... 11
Dimensions and Specifications............................................................. 11
Before You Start................................................................................... 12
Tools ................................................................................................ 12
Water................................................................................................ 12
Location ........................................................................................... 12
Exhaust............................................................................................. 12
Electrical .......................................................................................... 12
Installing the Unit................................................................................. 13
Step 1: Position Unit Near Installation Area.................................... 13
Step 2: Connect Water Fill Hoses.................................................... 13
Step 3: Connect Drain Hose to Drain Receptacle............................ 14
Step 4: Connect Dryer Exhaust System........................................... 15
Step 5: Position and Level the Unit ................................................. 16
Step 6: (Washer Only) Remove the Shock Sleeves and
Shipping Brace ............................................................................... 17
Step 7: (Dryer Only) Connect Electrical Cord................................. 18
Step 8: Wipe Out Inside of Washer Drum and Dryer Drum............ 18
Step 9: Connect the Washer and Dryer to Electrical Power............ 19
Step 10: Check Installation.............................................................. 19
Moving Unit to a New Location...................................................... 19
Heat Source Check ............................................................................... 20
Electric Dryers ................................................................................. 20
Electrical Requirements........................................................................ 20
Washer ............................................................................................. 20
Dryer ................................................................................................ 21
Water Supply Requirements................................................................. 24
Water Temperature .......................................................................... 24
Water Pressure ................................................................................. 24
Risers................................................................................................ 24
Location Requirements......................................................................... 25
Dryer Exhaust Requirements................................................................ 26
Exhaust System Materials................................................................ 26
Make-Up Air Requirements............................................................. 27
Make-Up Air Dos and Don’ts.......................................................... 27
Exhaust Direction............................................................................. 27
Exhaust System................................................................................ 28
Exhaust System Maintenance .......................................................... 29
Dryer Airflow................................................................................... 29
Multi-Dryer Installation Exhaust Requirements................................... 30
Lint Filter.............................................................................................. 32
Dryer Motor Overload Protector .......................................................... 32

4802031
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation............................................................................................. 33
Operation Instructions for Washers...................................................... 33
Step 1: Set Fabric Selector/Wash Temperature (°C) ....................... 33
Step 2: Add Laundry Supplies......................................................... 33
Step 3: Load Laundry....................................................................... 34
Step 4: Close Loading Door............................................................. 34
Step 5: Determine Proper Controls for Washer............................... 34
Step 6: Insert Coin(s) or Card.......................................................... 34
Step 7: Select Prewash if Desired.................................................... 35
Step 8: Press Start ............................................................................ 35
Indicator Lights................................................................................ 35
Operation Instructions for Dryers......................................................... 36
Step 1: Clean Lint Filter................................................................... 36
Step 2: Load Laundry....................................................................... 36
Step 3: Close Loading Door............................................................. 36
Step 4: Determine Proper Controls for Dryer.................................. 37
Step 5: Set Fabric Selector............................................................... 37
Step 6: Insert Coin(s) or Card.......................................................... 37
Step 7: Start Dryer ........................................................................... 38
Step 8: Remove Laundry ................................................................. 38
Maintenance........................................................................................ 39
User-Maintenance Instructions............................................................. 39
Lubrication....................................................................................... 39
Cold Weather Care........................................................................... 39
Vacations and Extended Non-Use ................................................... 39
Care of Your Washer ....................................................................... 39
Replacing Hoses............................................................................... 39
Care of Your Dryer.......................................................................... 39
Filter Screens ................................................................................... 39
Exhaust System................................................................................ 40
For Energy Conservation...................................................................... 40
Before You Call for Service................................................................. 41
If Service Is Required........................................................................... 42
Information for Handy Reference......................................................... 43
Installer Checklist................................................................ Back Cover

5
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your unit or contact: Alliance Laundry Systems Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

802031
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

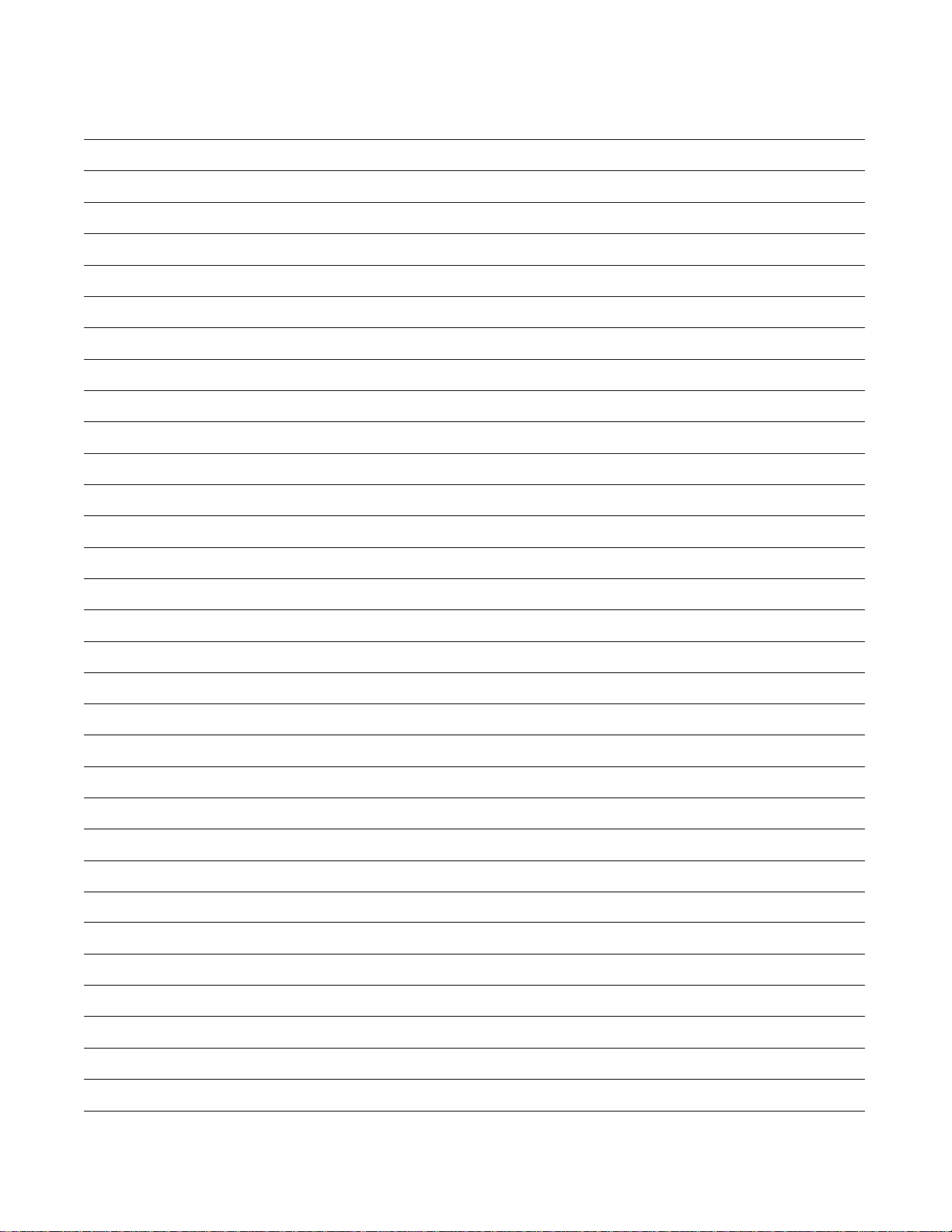

Notes

7
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the unit.
2. Refer to the EARTHING INSTRUCTIONS in
the INSTALLATION manual for the proper
earthing of the unit.
3. Do not wash or dry articles that have been
previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, or
other flammable or explosive substances as they
give off vapors that could ignite or explode.
4. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
5. Do not allow children to play on or in the unit.
Close supervision of children is necessary when
the unit is used near children. This is a safety rule
for all appliances.
6. Before the unit is removed from service or
discarded, remove the doors to the washing and
drying compartments.
7. Do not reach into the washer or dryer if the
cylinders are revolving.
8. Do not install or store the unit where it will be
exposed to water and/or weather.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
or injury to persons when using your
stacked washer and dryer, follow these
basic precautions.
W287
WARNING

Safety Information
802031
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not tamper with the controls.
10. Do not repair or replace any part of the unit, or
attempt any servicing unless specifically
recommended in the User-Maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
11. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
12. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
13. To reduce the risk of an electric shock or fire, DO
NOT use an adapter to connect the unit to the
electrical power source.
14. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam rubber or similarly
textured rubberlike materials.
15. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time.
16. Keep area around the exhaust opening and
adjacent surrounding area free from the
accumulation of lint, dust and dirt.
17. The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
18. Washer and dryer will not operate with the
loading door open. DO NOT bypass the door
safety switches by permitting the washer or dryer
to operate with the doors open. The washer and
dryer will stop tumbling when the doors are
opened. Do not use the washer or dryer if they do
not stop tumbling when the doors are opened or
start tumbling without pressing the START
mechanisms. Remove the unit from use and call
the service person.
19. Do not put articles soiled with vegetable or
cooking oil in the washer or dryer. Due to the oil,
the fabric may catch on fire by itself.
20. To reduce the risk of fire, DO NOT put clothes
which have traces of any flammable substances
such as machine oil, flammable chemicals,
thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, or
anything dry-cleaned at home with a dry-
cleaning solvent in the dryer.
21. Use your washer only for its intended purpose,
washing clothes.
22. Use the dryer only for its intended purpose,
drying clothes.
23. Always disconnect the electrical power to the
washer and dryer before attempting service to
either unit. Disconnect the power cords by
grasping the plug, not the cord.
24. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
25. Install this unit according to the
INSTALLATION INSTRUCTIONS. All
connections for electrical power and earthing
must comply with local codes and be made by
licensed personnel when required. Do not do it
yourself unless you know how!
26. Keep your unit in good condition. Bumping or
dropping the unit can damage safety features. If
this occurs, have your unit checked by a qualified
service person.
27. Remove laundry immediately after the dryer
stops.
28. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
29. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
30. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.

Safety Information
9
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
31. ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
32. Never operate the unit with any guards and/or
panels removed.
33. DO NOT operate the unit with missing or broken
parts.
34. DO NOT bypass any safety devices.
35. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
36. Do not operate washer and dryer if the units have
been separated.
IMPORTANT: Solvent vapors from dry-cleaning
machines create acids when drawn through the
heater of the drying unit. These acids are corrosive
to the dryer as well as to the laundry load being
dried. Be sure make-up air is free of solvent vapors.
IMPORTANT: Have your unit installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating this unit.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

802031
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Notes

11
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
Dimensions and Specifications
NOTE: Side and rear exhaust openings are 102 mm
(4 inch) ducting. IMPORTANT: The dryer should have sufficient clearance around it for needed ventilation and for
the ease of installation and servicing.For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
SWD562N
*With leveling legs turned into base.
SWD562N
597 mm
(23.5 in.)
51 mm
(2.0 in.)
178 mm
(7.0 in.)
448 mm
(17.5 in.)
*363 mm
(14.3 in.)
711 mm
(28 in.)
*751 mm (29.6 in.)
*790 mm (31.1 in.)
*1943 mm (76.5 in.)
*1163 mm (45.8 in.)
391 mm
(15.4 in.)
683 mm
(26.9 in.)
51 mm
(2.0 in.)
203 mm
(8.0 in.)
UNITS WITH OLD STYLE DOOR
SWD729N
*With leveling legs turned into base.
SWD729N
597 mm
(23.5 in.)
51 mm
(2.0 in.)
178 mm
(7.0 in.)
475 mm
(18.7 in.)
*363 mm
(14.3 in.)
711 mm
(28 in.)
*751 mm (29.6 in.)
*790 mm (31.1 in.)
*1946 mm (76.6 in.)
*1163 mm (45.8 in.)
391 mm
(15.4 in.)
683 mm
(26.9 in.)
51 mm
(2.0 in.)
203 mm
(8.0 in.)
UNITS WITH NEW STYLE DOOR

Installation
802031
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Before You Start
Tools
For most installations, the basic tools you will need
are:
Figure 1
Water
Washer needs two standard 19.1 mm (3/4 inch) water
supply faucets with a pressure between 138 and
827 kPa (20 to 120 pounds per square inch). For more
detailed information, refer to section on Water Supply
Requirements.
Location
Place the unit on a solid floor with an adequate air
supply. For more detailed information, refer to section
on Location Requirements.
Exhaust
Use rigid metal duct and exhaust the dryer to the
outside by the shortest route possible.
NOTE: For more detailed information, refer to
section on Dryer Exhaust Requirements.
Figure 2
Electrical
●WASHER
Refer to serial plate for specific electrical
requirements. For more detailed information,
refer to section on Washer Electrical
Requirements.
●DRYER
Refer to serial plate for specific electrical
requirements.
Dryer needs a 2 wire plus earthing, 230 Volt,
60 Hertz, 30 Amp, single-phase electrical supply.
For more detailed information, refer to section on
Dryer Electrical Requirements.
D814I
1Wrench
2Screwdrivers
3Pliers
4Socket Wrench
5Teflon Tape
6Level
7Duct Tape
1 2 3
4
5
6
7
H311I

Installation
13
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

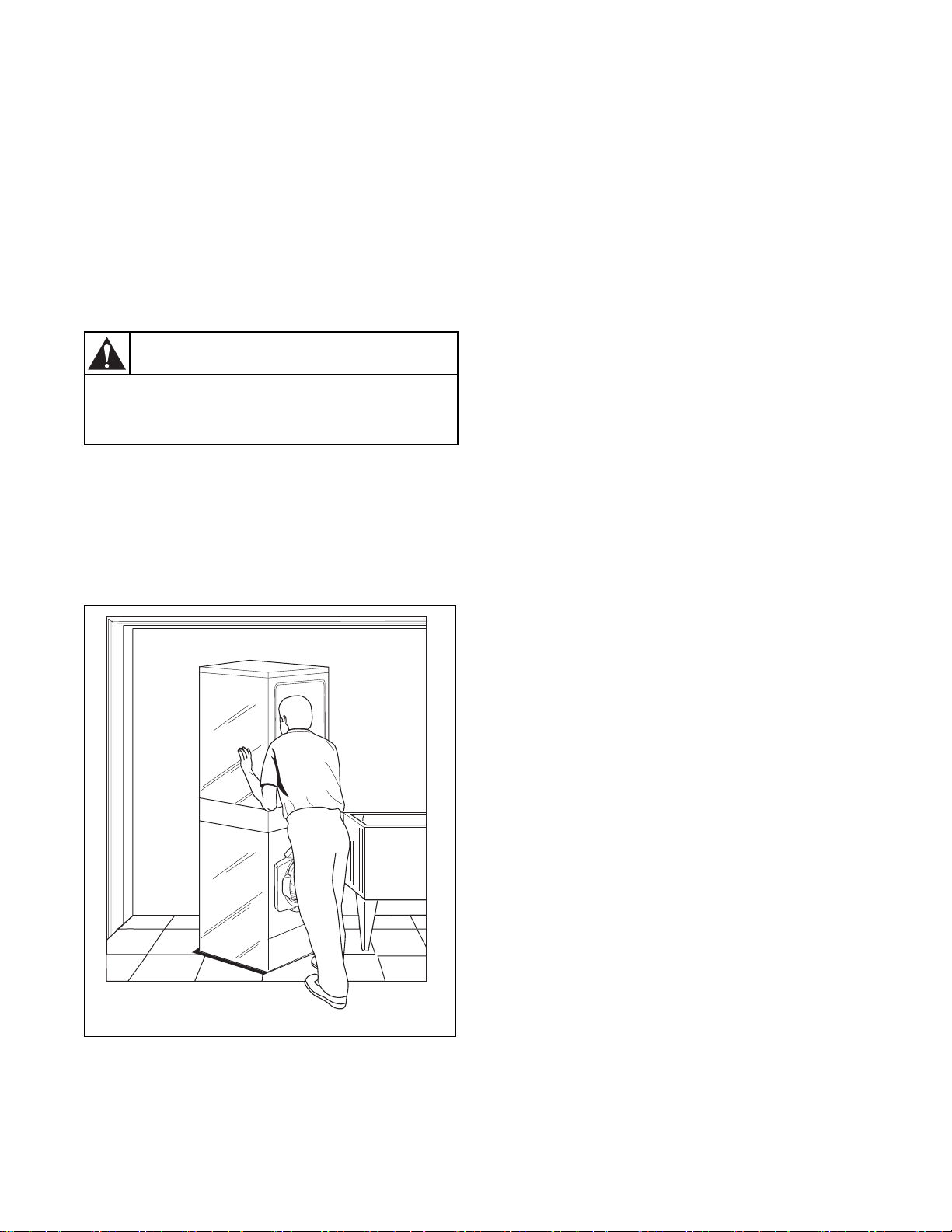

Installing the Unit
Step 1: Position Unit Near Installation
Area
NOTE: If the unit is delivered on a cold day (below
freezing), or is stored in an unheated room or area
during the cold months, do not attempt to operate
it until the washer has had a chance to warm up.
Move unit so that it is within 1.2 meters (4 feet) of the
desired area of installation.
NOTE: For best performance and to minimize
vibration or movement, install unit on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. DO NOT install the unit on carpeting,
soft tile, pedestal, a platform or other weakly
supported structures.
Figure 3
Step 2: Connect Water Fill Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting water fill hoses.
The appliance is to be connected to the water mains
using new hose-sets and old hose-sets should not be
reused.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Remove the two filter screens and the two plain rubber
washers from the accessories bag.
Insert each filter screen into the end of each fill hose
that will connect to the water supply faucet. The
screen must be facing outward. Refer to Figure 4.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear of the washer. Refer to Figure 4.
Connect fill hoses to water supply faucets. Then
connect the hoses to the hot and cold valve
connections at the rear of the washer. For hoses with
metric couplings, connect black hose coupling to
water supply faucet. Connect brass hose coupling to
water mixing valve connection at rear of washer.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
SWD706N
Washer and dryer are not designed to be
operated as separated, side-by-side units.
W187
CAUTION
SWD706N

Installation
802031
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Figure 4
Figure 5
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a yearly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 32 mm (1-1/4 inch) outside
diameter drain hose.
Figure 6
TLW1976N
1Water Faucet
2Fill Hoses
3Plain Rubber Washer
4Filter Screens
SWD566N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Fill Hoses
HOT
COLD
1
2
3
4
SWD566N
1
2
3
4
WATER MIXING
VALVE
SWD567N
1Shipping Tape
1

Installation
15
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 7
Step 4: Connect Dryer Exhaust System
For further assistance, refer to sections on Location
Requirements and Dryer Exhaust Requirements.
●DO NOT use plastic or thin foil ducting.
●Locate unit so exhaust duct is as short as
possible.
●Be certain old ducts are cleaned before installing
your new dryer.
●Use 102 mm (4 inch) diameter rigid or flexible
metal duct.
●The male end of each section of duct must point
away from the dryer.
●Use as few elbows as possible.
●Use duct tape or pop-rivets on all duct joints.
●Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
●Install backdraft dampers in multi-dryer
installations.
●Failure to exhaust dryer properly will void
warranty.
Figure 8
NOTE: Venting materials are not supplied with the
unit (obtain locally).
SWD568N
1Drain Hose
2Standpipe – 40 mm (1-1/2 in.) or 50.8 mm
(2 in.)
3Beaded Tie-Down Strap
1
3
2
610 TO 914.4 mm
(24 TO 36 in.)
RECOMMENDED
HEIGHT
H312I
A clothes dryer produces combustible lint.
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W116
WARNING
H312I
DO DON'T

Installation
802031
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 5: Position and Level the Unit
Place unit in position on a solid, sturdy and level floor.
Installing the unit on any type of carpeting, soft tile,
pedestal, a platform or weakly supported structures is
not recommended.
Loosen 7/8 inch locknut and adjust the front and rear
leveling legs until the unit is level from side to side and
front to back (using a level). Unit should not rock.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 9.
Tighten the locknuts securely against the unit base
using the 7/8 inch wrench. If the locknuts are not tight,
unit will move out of position during operation.
NOTE: DO NOT slide unit more than four feet
across floor if the leveling legs have been extended,
as legs and base could become damaged.
NOTE: Use of the dispenser drawer or washer or
dryer doors as handles in the transportation of the
unit may cause damage to the dispenser or doors.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Verify that unit does not rock.
NOTE: For further assistance, refer to section on
Location Requirements.
Figure 9
Units elevated above floor level must be
anchored to that elevated surface, base or
platform. The material used to elevate the
unit should also be anchored to the floor to
ensure that the unit will not walk or that the
unit can not be physically pulled, tipped or
slid from its installed position. Failure to do
so may result in conditions which can
produce serious injury, death and/or
property damage.
W307
WARNING
SWD693N
1Leveling Leg
2Unit Base
3Level
4Locknut
5Rubber Foot
SWD693N
3
2
1
4
5

Installation
17
802031 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 6: (Washer Only) Remove the Shock
Sleeves and Shipping Brace
Remove front access panel by removing the two
screws.
Remove bolts and lockwashers from shipping brace
with a wrench and remove brace. Remove shock
sleeves by pulling on the yellow rope.
Remove label from front side of front access panel and
place on backside of front access panel.
NOTE: The shipping brace, bolts, lockwashers and
shock sleeves should be saved and MUST be
reinstalled whenever the unit is moved more than
four feet. Do not lift or transport unit from front or
without shipping materials installed.
Store the shipping materials in the bag provided in the
accessories bag. Save materials for use whenever the
unit is moved.
NOTE: The shipping materials MUST be reinstalled
whenever the unit is moved. Refer to Moving Unit
to a New Location section for proper instructions on
reinstalling the shipping materials.
Reinstall front access panel.
IMPORTANT: DO NOT tip unit more than
152.4 mm (6 inches) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage to unit may result. For
leveling purposes, the unit may be tilted a
maximum of 152.4 mm (6 inches) in any direction.

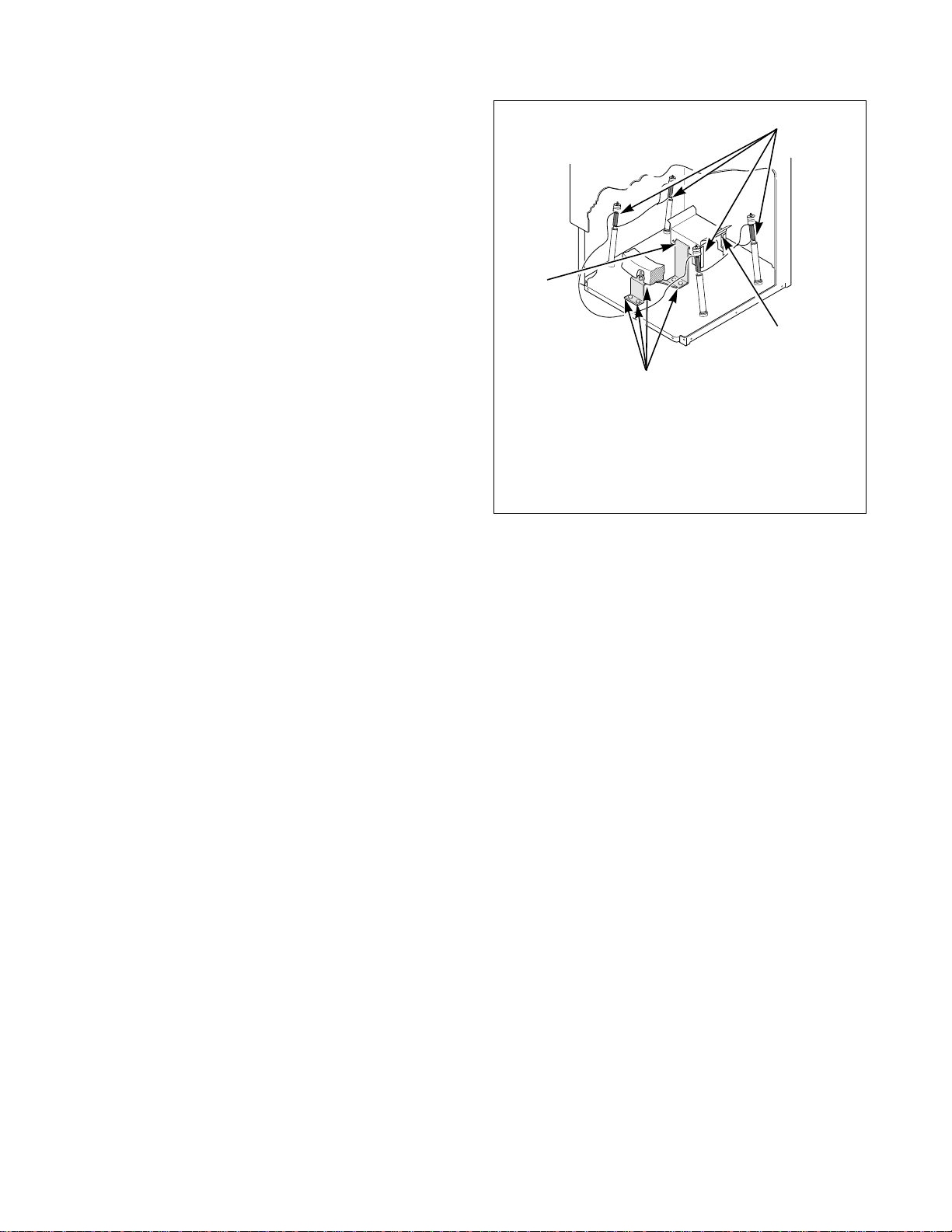

Figure 10
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
3
4

Installation
802031
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 7: (Dryer Only) Connect Electrical
Cord
230 Volt/60 Hertz
Refer to section on Electrical Requirements.
Figure 11
Figure 12
NOTE: Unit is shown with access cover removed
for illustration purposes only. NEVER operate unit
with access cover removed.
Step 8: Wipe Out Inside of Washer Drum
and Dryer Drum
Before using the washer and dryer for the first time,
use an all-purpose cleaner, or a detergent and water
solution, and a damp cloth to remove shipping dust
from inside the drums.
Figure 13
Figure 14
D703I
D679I
D703I
TWO-WIRE CONNECTION
D679I
THREE-WIRE CONNECTION
SWD695N
SWD675N
