Alliance Laundry Systems UW35TV User manual

Operation/Maintenance
www.alliancelaundry.com
Washer-Extractor
Pocket Hardmount
UniLinc Control
Refer to Page 8 for Model Identification
PHM1401C
UniLinc Control PHM1401C
Part No. F8138701ENR6
November 2012
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2012, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F8138701 (EN) 1
Table of
Contents
Safety Information.............................................................................. 2
Explanation of Safety Messages........................................................... 2
Important Safety Instructions ............................................................... 2
Safety Decals ........................................................................................ 4
Operator Safety..................................................................................... 5
Safe Operating Environment ................................................................ 5
Environmental Conditions ............................................................... 5
Machine Location ............................................................................ 6
Input and Output Services................................................................ 6
AC Inverter Drive ............................................................................ 7
Introduction......................................................................................... 8
Model Identification ............................................................................. 8
Nameplate Location.............................................................................. 9
Nameplate Location - UniLinc Models ........................................... 9
Replacement Parts ................................................................................ 9
Customer Service.................................................................................. 9
Operation............................................................................................. 11

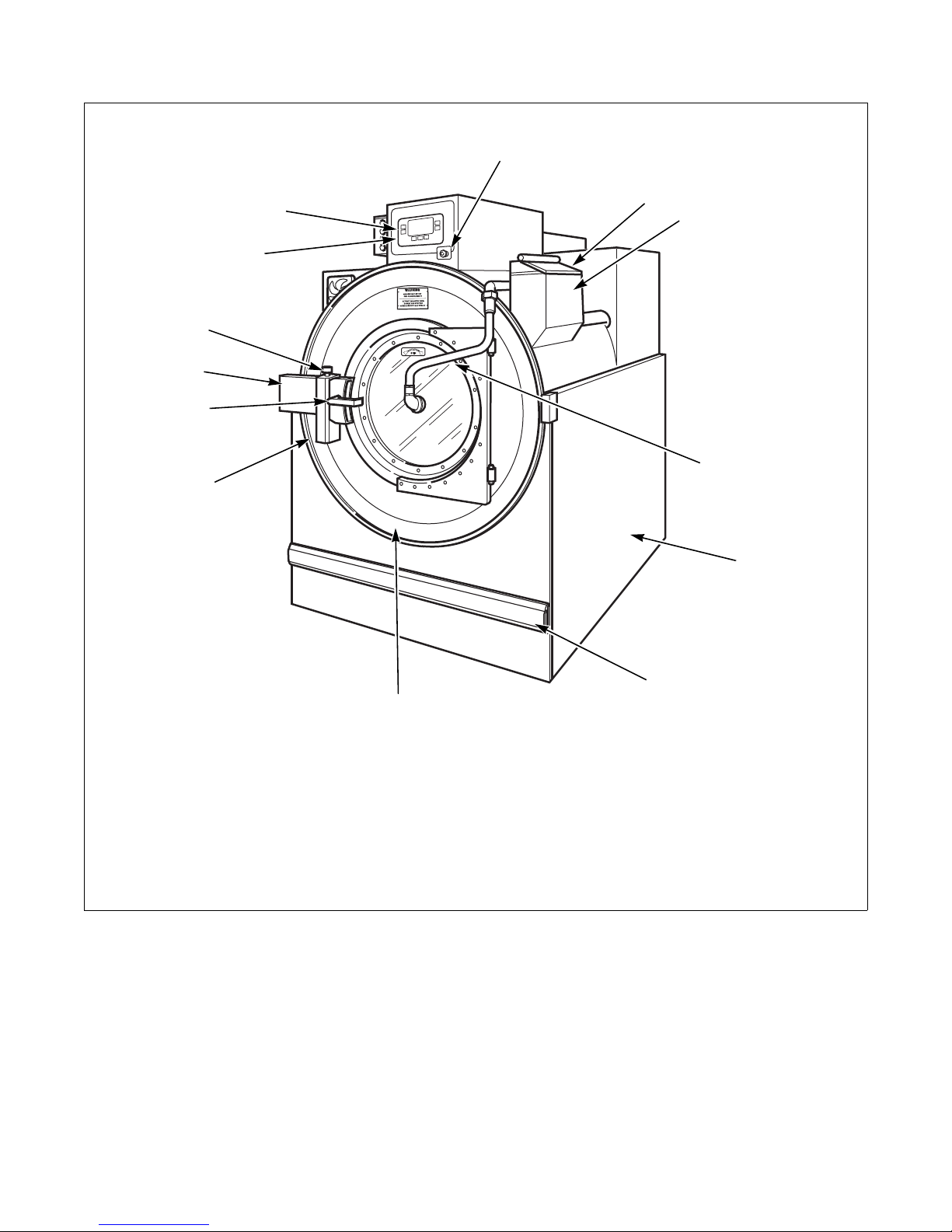

Machine Familiarization Guide ............................................................ 11
UniLinc Control.................................................................................... 13
About the Control (UniLinc Control) .............................................. 13

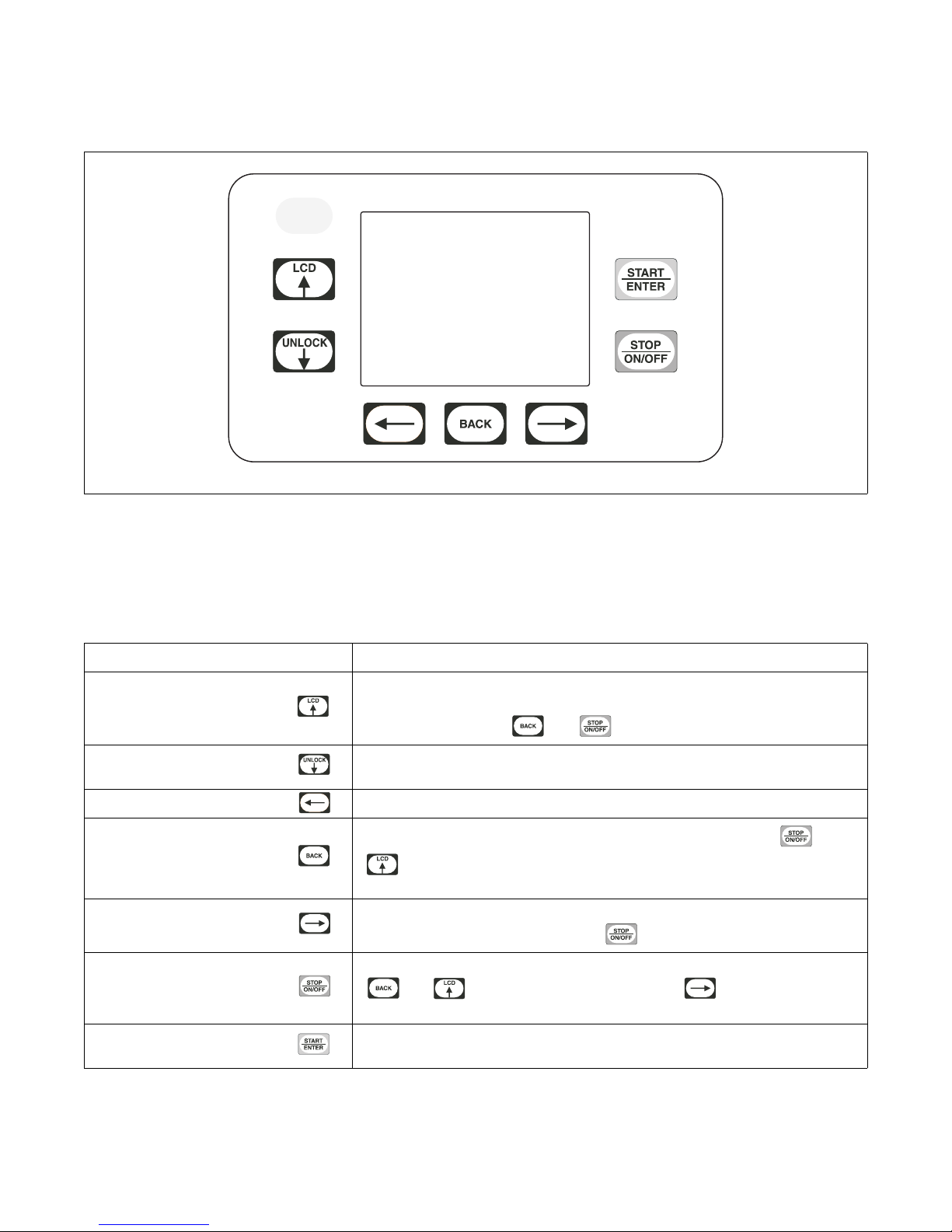

Operational Keypad (UniLinc Control)................................................ 14
Cycle Display (UniLinc Control)..................................................... 15

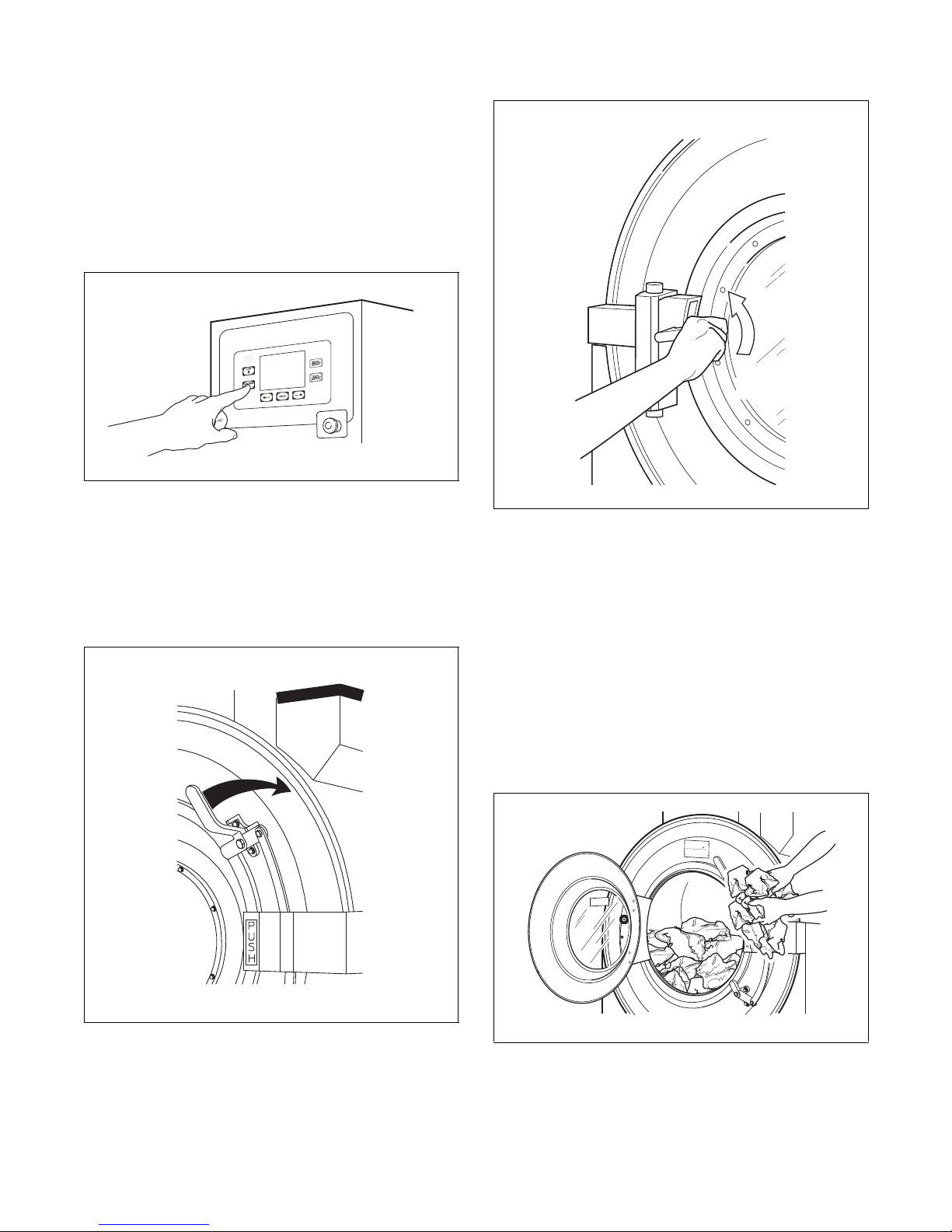

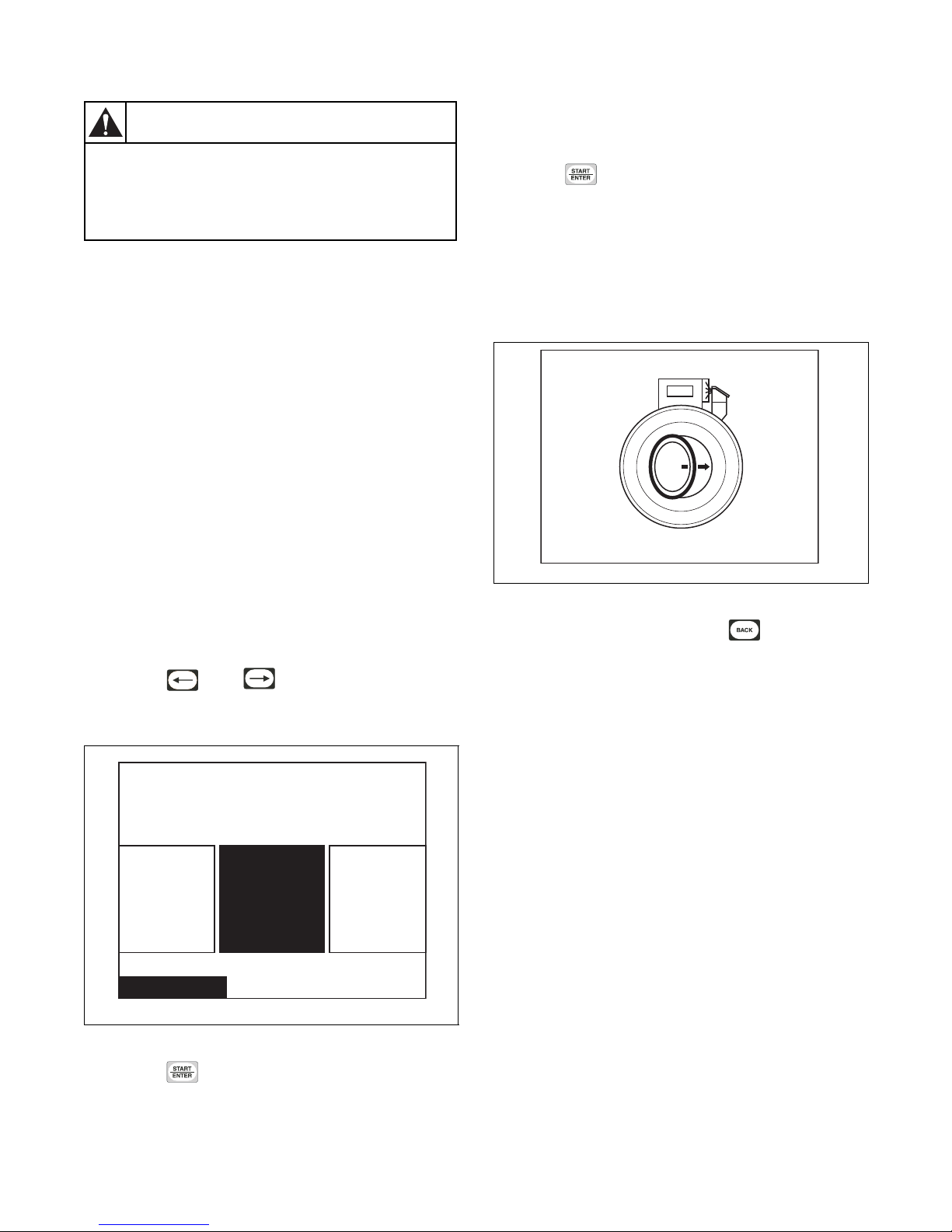

Operating Instructions (UniLinc Control) ............................................ 16
Shakeout Routine (UniLinc Control).................................................... 18
Basket Jog Feature (150 Model Only) (UniLinc Control).................... 18
Error Recovery Routine (UniLinc Control).......................................... 18
Models Equipped with Both Steam and Electric Heating .................... 19
Maintenance ........................................................................................ 20
Daily (UniLinc Control) ....................................................................... 21
Weekly (UniLinc Control).................................................................... 21
Monthly (UniLinc Control) .................................................................. 22
Quarterly (UniLinc Control)................................................................. 24
Care of Stainless Steel .......................................................................... 25
Daily Preventive Maintenance Checklist.............................................. 26
Weekly Preventive Maintenance Checklist.......................................... 27
Monthly Preventive Maintenance Checklist......................................... 28
Quarterly Preventive Maintenance Checklist ....................................... 29

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)
2
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
3
F8138701 (EN)
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a
qualified service person.
20. Replace worn power cords and/or loose plugs.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
29. Do not attempt to open the door until water has
drained and all moving parts have stopped.
30. Do not climb onto or into the washer.
31. Be aware that hazardous chemicals may be
present.
32. Be aware that hot water is used to flush the
supply dispenser.
33. Wear hand and eye protection when adding
detergents and chemicals.
34. Avoid opening the dispenser lid while machine is
running.
35. Do not attach anything to the supply dispenser’s
nozzles. The air gap must be maintained.
36. Use only low-sudsing, no-foaming types of
commercial detergent.
37. Do not operate the machine without the water
reuse plug or water reuse system in place.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
F8138701
4
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the
manufacturer immediately.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Ensure that the machine is installed on a
level floor of sufficient strength and that
the recommended clearances for
inspection and maintenance are provided.
Never allow the inspection and
maintenance space to be blocked.
SW020
CAUTION
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
5
F8138701 (EN)
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
Safe Operating Environment
Safe operation requires an appropriate operating
environment for both the operator and the machine. If
questions regarding safety arise, contact the
manufacturer immediately.
Environmental Conditions
•Ambient Temperature. Water in the machine will
freeze at temperatures of 32°F (0°C) or below.
Temperatures above 120°F (50°C) will result in
more frequent motor overheating and, in some
cases, malfunction or premature damage to solid
state devices that are used in some models.
Special cooling devices may be necessary.
Water pressure switches are affected by increases
and decreases in temperature. Every 25°F (10°C)
change in temperature will have a 1% effect on
the water level.
•Humidity. Relative humidity above 90% may
cause the machine’s electronics or motors to
malfunction or may trip the ground fault
interrupter. Corrosion problems may occur on
some metal components in the machine.
If the relative humidity is below 30%, belts and
rubber hoses may eventually develop dry rot.
This condition can result in hose leaks, which
may cause safety hazards external to the machine
in conjunction with adjacent electrical
equipment.
•Ventilation. The need for make-up air openings
for such laundry room accessories as dryers,
ironers, water heaters, etc., must be evaluated
periodically. Louvers, screens, or other
separating devices may reduce the available air
opening significantly.
•Radio Frequency Emissions. A filter is available
for machines in installations where floor space is
shared with equipment sensitive to radio
frequency emissions.
•Elevation. If the machine is to be operated at
elevations of over 3280 feet (1000 m) above sea
level, pay special attention to water levels and
electronic settings (particularly temperature) or
desired results may not be achieved.
•Chemicals. Keep stainless steel surfaces free of
chemical residues.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage.
SW039
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
F8138701
6
•Water Damage. Do not spray the machine with
water. Short circuiting and serious damage may
result. Repair immediately all seepage due to
worn or damaged gaskets, etc.
Machine Location
•Foundation. The concrete floor must be of
sufficient strength and thickness to handle the
floor loads generated by the high extract speeds
of the machine. Refer to Installation manual.
•Service/Maintenance Space. Provide sufficient
space to allow comfortable performance of
service procedures and routine preventive
maintenance.
Consult installation instructions for specific details.
Input and Output Services
•Water Pressure. Best performance will be
realized if water is provided at a pressure of 30 –
85 psi (2.0 – 5.7 bar). Although the machine will
function properly at lower pressure, increased fill
times will occur. Water pressure higher than 100
psi (6.7 bar) may result in damage to machine
plumbing. Component failure(s) and personal
injury could result.
•Steam Heat (Optional) Pressure. Best
performance will be realized if steam is provided
at a pressure of 30 – 80 psi (2.0 – 5.4 bar). Steam
pressure higher than 125 psi (8.5 bar) may result
in damage to steam components and may cause
personal injury.
For machines equipped with optional steam heat,
install piping in accordance with approved
commercial steam practices. Failure to install the
supplied steam filter may void the warranty.
•Drainage System. Provide drain lines or troughs
large enough to accommodate the total number of
gallons that could be dumped if all machines on
the site drained at the same time from the highest
attainable level. If troughs are used, they should
be covered to support light foot traffic.
•Power. For personal safety and for proper
operation, the machine must be grounded in
accordance with state and local codes. The
ground connection must be to a proven earth
ground, not to conduit or water pipes. Do not use
fuses in place of the circuit breaker. An easy-
access cutoff switch should also be provided.
Always disconnect power and water supplies before a
service technician performs any service procedure.
Where applicable, steam and/or compressed air
supplies should also be disconnected before service is
performed.
Do not place volatile or flammable fluids
in any machine. Do not clean the machine
with volatile or flammable fluids such as
acetone, lacquer thinners, enamel
reducers, carbon tetrachloride, gasoline,
benzene, naptha, etc. Doing so could
result in serious personal injury and/or
damage to the machine.
SW002
DANGER
Replace all panels that are removed to
perform service and maintenance
procedures. Do not operate the machine
with missing guards or with broken or
missing parts. Do not bypass any safety
devices.
SW019
CAUTION
Ensure that a ground wire from a proven
earth ground is connected to the ground
lug near the input power block on this
machine. Without proper grounding,
personal injury from electric shock could
occur and machine malfunctions may be
evident.
SW008
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
7
F8138701 (EN)
AC Inverter Drive
Machines equipped with the AC inverter drive require
special attention with regard to the operating
environment.
•An especially dusty or linty environment will
require more frequent cleaning of the AC inverter
drive cooling fan filter and of the AC inverter
drive itself.
•Power line fluctuations from sources such as
uninterruptible power supplies (UPS) can
adversely affect machines equipped with the AC
inverter drive. Proper suppression devices should
be utilized on the incoming power to the machine
to avoid problems.
•A clean power supply free from voltage spikes
and surges is absolutely essential for machines
equipped with the AC inverter drive. Nonlinear
inconsistencies (peaks and valleys) in the power
supply can cause the AC inverter drive to
generate nuisance errors.
•Sufficient space to perform service procedures
and routine preventive maintenance is especially
important for machines equipped with the AC
inverter drive.
This manual is designed as a guide to operating and
maintaining the Pocket Hardmount washer-extractor
equipped with the AC inverter drive.
NOTE: All information, illustrations, and
specifications contained in this manual are based
on the latest product information available at the
time of printing. We reserve the right to make
changes at any time without notice.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F8138701 (EN)
8
Introduction
Model Identification
Information in this manual is applicable to these
models:
UW35TV
UW60TV
UW80TV
UW100TV
UW125TV
UW150TV

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
9
F8138701 (EN)

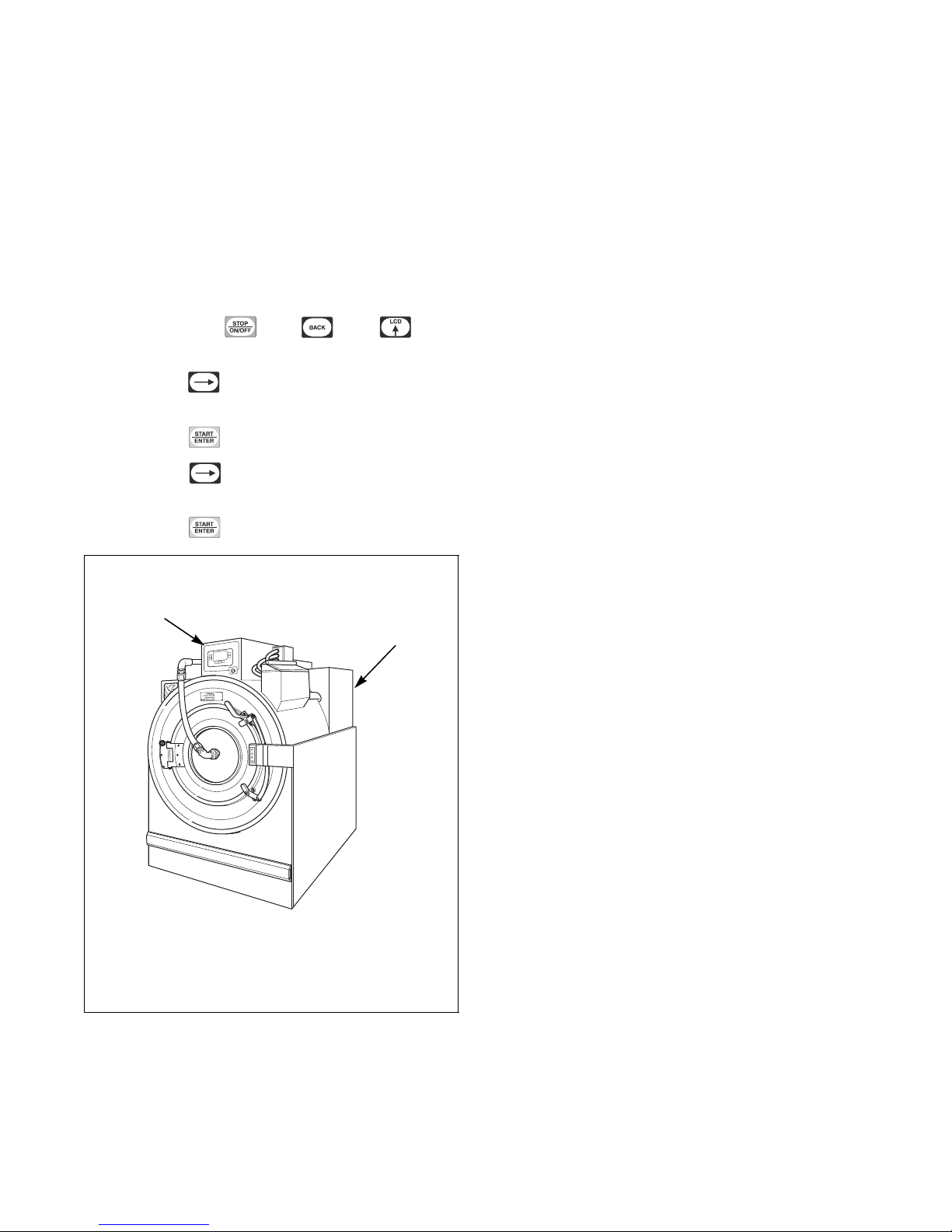

Nameplate Location
The nameplate is located on the back of the machine.
Always provide the machine’s serial number and
model number when ordering parts or when seeking
technical assistance. Refer to Figure 1 and Figure 2.
Nameplate Location - UniLinc Models
On UniLinc models, nameplate information is also
programmed into the control. To access machine ID
through the control:
1. Press and hold , then , then
keypads at the same time.
2. Press the keypad until Diagnostic is
highlighted.
3. Press the keypad.
4. Press the keypad until machine ID is
highlighted.
5. Press the keypad.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from which the washer-extractor was
purchased or contact Alliance Laundry Systems LLC
at [phone] for the name of the nearest
authorized parts distributor. A parts manual may be
ordered by returning the reply card provided with each
washer-extractor.
Customer Service
For technical assistance, contact your local distributor
or call:
[phone]
Ripon, Wisconsin
A record of each washer-extractor is on file with the
manufacturer. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance. Refer to Figure 1
and Figure 2.
PHM1400C
1In UniLinc Control
2At back of machine
PHM1400C
2
1
EXAMPLE OF MACHINE NAMEPLATE LOCATION

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
F8138701
10
Figure 2
Model Number Familiarization Guide
Sample Model Number: UW60TVQU10001
UW Model Number Prefix
60 Washer-Extractor Capacity (60 pounds dry weight of laundry)
TType of Electrical Control T = UniLinc Control
VWasher-Extractor Speed Capabilities V = 8 Speeds
QElectrical Characteristics
U1 Design Series
0001 Option Identification (varies from machine to machine)
PHM697N
PHM697N
UW060TVQU10001
00000000000
500000
200 – 240
50 – 60 3 3
30
60 27 720
19
EXAMPLE OF NAMEPLATE

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 11
F8138701 (EN)
Operation
Machine Familiarization Guide
The machine familiarization guide in Figure 3 and
Figure 4 identifies major operational features of the
UW washer-extractor.
Figure 3
PHM1400C
1Emergency Stop Button 9Side Panel
2Supply Valve Box 10 Rub Rail
3Supply Dispenser 11 Shell Front
4Door Latch Handle 12 Door Hinge
5Door Handle 13 Spray Rinse Tube (optional)
6Door Box 14 Control Module
7Door Latch Extension Arm 15 Door Unlock Button
8Door Latch
PHM1400C
12
4
5
6
7
8
9
10
11
12
13
14
15
35 – 125 MODELS
3

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
F8138701
12
Figure 4
PHM1402C
1Emergency Stop Button 7Shell Front
2Supply Valve Box 8Basket Jog Button
3Supply Dispenser 9Door Latch Handle
4Spray Rinse Tube 10 Door Box
5Side Panel 11 Control Module
6Rub Rail 12 Door Unlock Button
PHM1402C
1
2
3
5
6
7
9
10
11
150 MODEL
4
8
8
12

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
13
F8138701 (EN)
UniLinc Control
About the Control (UniLinc Control)
The UniLinc control on the washer-extractor is an
advanced, graphical, programmable computer that lets
the owner control most machine features by
interacting with the control.
UniLinc allows the owner to program custom cycles,
run diagnostic cycles and retrieve audit, error and
bearing information. 2
Washer-extractors shipped from the factory have
default cycles and wash temperature settings built in.
However, the owner can change the default cycle, or
any cycle.
PHM702N
Figure 5
For Technical Service
Distributor ABC
1-800-555-5555
Cycle41:
Supply Set
Up
Cycle02:
Towels White
Cycle01:
Towels
White
Bleach
Cycle Menu

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
F8138701
14
Operational Keypad
(UniLinc Control)
The control includes seven keypads. These functions
are available to the operator and are intended to
control operation of the washer extractor. Refer to
Figure 6 and Tab le 1.
PHM1401C
Figure 6
Keypad Description
LCD/UP ARROW
Press to move the cursor on display to edit programming values. Also, press
while in Cycle Menu or Run Menu to change to the Contrast Adjust/Backlight
Menu. Also, press with and to enter System Menu.
UNLOCK/DOWN ARROW Press to move the cursor on display, edit programming values, or unlock door.
The door can only be unlocked while the machine is idle.
LEFT ARROW Press to move cursor on display.
BACK
Press to move back to the previous display menu. Also, press with and
to enter System Menu. Also, back from the Cycle Menu to enter the
Service Schedule Menu.
RIGHT ARROW Press to move cursor on display. Press while running a cycle to get to Run
Diagnostic Menu. Press and hold with to enter Delayed Start Menu.
STOP/ON/OFF
Press to stop and abort a machine cycle during Run Mode. Also press with
and to enter System Menu. Press with to enter Delayed Start
Menu.
START/ENTER Press to start or rapid advance a machine cycle during Run Mode. Also, press to
save edited programming values when used in programming menus.
Tabl e 1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
15
F8138701 (EN)
Cycle Display (UniLinc Control)
Figure 7
PHM1071N
1Cycle Name 6Water Level – OVFL, HIGH, MED, LOW, 1–30
2Segment Name 7Water Level – Graphical Value/Action graphic
3Step Name 8Internal Supply Indicators
4Programmed Water Temperature - 9External Supply Indicators
HOT, WARM, COLD or specific temperature 10 Run Screen Indicator
5Actual Temperature – range of 35-205°F
(2-96°C)
11 Countdown Timer
HOT LOW
Cycle01: Towels White Bleach
Segment01: Wash
Fill
Run Menu
PHM1071R
41:43
ESI
SI S2 S3 S4 S5
ES2
ES3
ES4
ES5
ES6
ES7
ES8
1
2
3
4
5
6
7
8
9
10
11

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
F8138701
16
Operating Instructions
(UniLinc Control)
1. When display shows the Cycle Menu Screen
washer-extractor is ready to be loaded with
laundry.
2. Press the door unlock button located on the lower
left front on the control. Refer to Figure 8.
Figure 8
3. Open door within five seconds of pressing the
door unlock keypad.
4. On 35 – 125 models, turn door handle clockwise
and swing the door left to open. Door must be
opened within 5 seconds of pressing the door
unlock button. Refer to Figure 9.
Figure 9
5. On 150 models, turn handle counterclockwise
and swing the door right to open. Door must be
opened within 5 seconds of pressing the door
unlock button. Refer to Figure 10.
Figure 10
6. Load the washer-extractor to full capacity
whenever possible, but do not exceed the rated
dry-weight capacity of the machine if the fabric
to be washed is quite dense, closely woven, and
heavily soiled.
Overloading can result in an inferior wash. The
operator may need to experiment to determine
load size based on fabric content, soil content,
and level of cleanliness required. Do not
underload the machine. Underloading can result
in premature bearing and sealing failure and out-
of-balance situations.
Figure 11
PHM705N
PHM791N
PHM705N
UW35 – UW150 MODELS
PHM791N
UW35 – UW125 MODELS
PHM717N
PHM590N
UW150 MODELS
WARNING
MACHINEMAYBEHOT
ANDCAUSEBURNS
ATTEMPTNOENTRYUNTIL
BASKETHASSTOPPED
SERIOUSINJURYMAY RESULT

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
17
F8138701 (EN)
NOTE: When washing items which may
disintegrate or fragment, such as mop heads or
sponges, use laundry nets to prevent drain
blockage.
IMPORTANT: To prevent out-of-balance
conditions, premature wear or damage to machine
when using laundry nets, use several small nets in a
load.
7. When loading is complete, ensure that all fabric
is inside the basket. Then close and lock the door.
8. Add dry supplies are placed in the supply dispenser
compartment cups prior to the start of each cycle.
Liquid supplies can be injected directly into the supply
dispenser by an external chemical supply system.
NOTE: Supply dispenser compartment cups must
not be removed when an external chemical
injection supply system is attached to the washer-
extractor.
9. Press and keypads to select desired
wash cycle from the programmed cycle charts in
the Programming section of this manual.
10. Press to start the selected cycle.
As the cycle proceeds, the display will show a
summary of the cycle occuring. Refer to Figure 7.
To begin the cycle at any step other than the first step,
press the keypad to advance through the cycle
to the desired starting point. (The Rapid Advance
feature keypad is enabled at the factory and can be
disabled.) Refer to Programming Manual for
information to disable Rapid Advance.
If the door is not closed and locked, the display will
indicate that the door needs to closed and locked.
Refer to Figure 13.
Close door to start cycle or press keypad to
return to Cycle Menu.
11. The cycle will continue until its completion.
Then the display will show the door is ready to be
unlocked and opened.
NOTE: The Drain Step that occurs before an
Extract Step or a Spray Rinse Extract Step cannot
be skipped using Rapid Advance. The machine
MUST drain and balance during the Drain Step
before it can extract.
PHM702N
Figure 12
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
For Technical Service
Distributor ABC
1-800-555-5555
Cycle41:
Supply Set
Up
Cycle02:
Towels White
Cycle01:
Towels
White
Bleach
Cycle Menu
PHM706N
Figure 13

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
F8138701
18
Shakeout Routine (UniLinc Control)
A Shakeout agitation step is programmed at the end of
every cycle
The Shakeout Step will help prevent tangling of the
load.
The Shakeout time is set at the factory to agitate for 40
seconds. Refer to Programming Manual to disable or
change the time of the Shakeout.
Basket Jog Feature (150
Model Only) (UniLinc Control)
150 models are equipped with a basket jog feature.
This feature allows the basket to rotate very slowly
while the door is open for easy clothes removal. To
operate the jog feature:
1. With the door open and the control in Cycle
Menu, press and HOLD both jog buttons. A
series of loud beeps will occur, indicating the jog
feature is about to start.
The jog feature is deactivated when the loading door is
closed and the jog buttons are not pressed.
Error Recovery Routine
(UniLinc Control)
When the control detects an error, it will either stop
running the current step and display a message to
indicate what type of error was found or it will
continue to run and log the error. Refer to Machine
Errors section in Programming Manual.
Non-Recoverable Error Conditions:
Door Lock Error
Door Open Error
Drive Balance Switch Error
Frame Balance Switch Error
Open Temperature Sensor Error
Shorted Temperature Sensor Error
SPI Error
Water Level Sensor Error
Recoverable Error Conditions:
Drain Alarm Error
Drive Fault Error
Fill Alarm Error
Rotation Sensor Error
Unbalance Error
Heat Alarm Error
PDA Communication Error
PHM622N
Figure 14
NEVER insert hands or objects into basket
until it has completely stopped. Doing so
could result in serious injury.
SW012
WARNING
To avoid personal injury, do NOT reach
into the basket while it is rotating. Keep all
personnel at a safe distance from the
machine while using the Basket Jog
Feature.
W641
WARNING
