Alliance Laundry Systems HF150 User manual

HF150, HF185, HF234, HF304
Instruction manual
Washer Extractors
Technical specications
Installation instructions
Maintenance
for corresponding “CHF” and “IHF” models,
see page 5 for complete model list
Part No. D0289R10
Code: 249/00390/10
March 2012

1
2
3
4
3
Contents
Contents
Model Numbers .............................................................................................. 5
Safety and Environmental Informations ...................................................... 6
Safety .......................................................................................................... 6
Environmental .............................................................................................. 7
Explanation of Safety Messages ................................................................. 8
Important Safety Instructions ....................................................................... 9
Operator Safety ......................................................................................... 11
Technical data and dimensions ................................................................. 12
Technical data HF150, IHF150, IHF033, CHF150, CHF033 ..................... 12

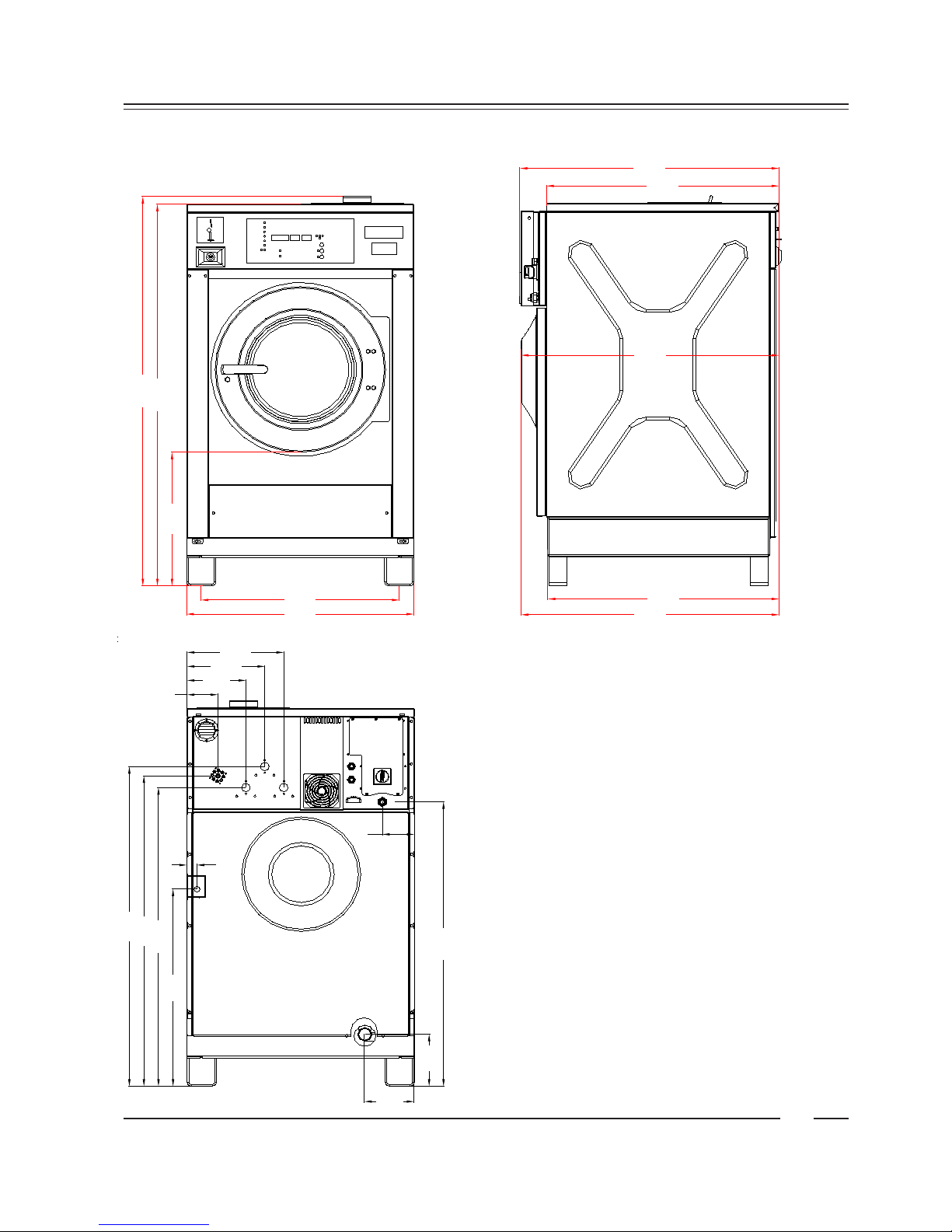

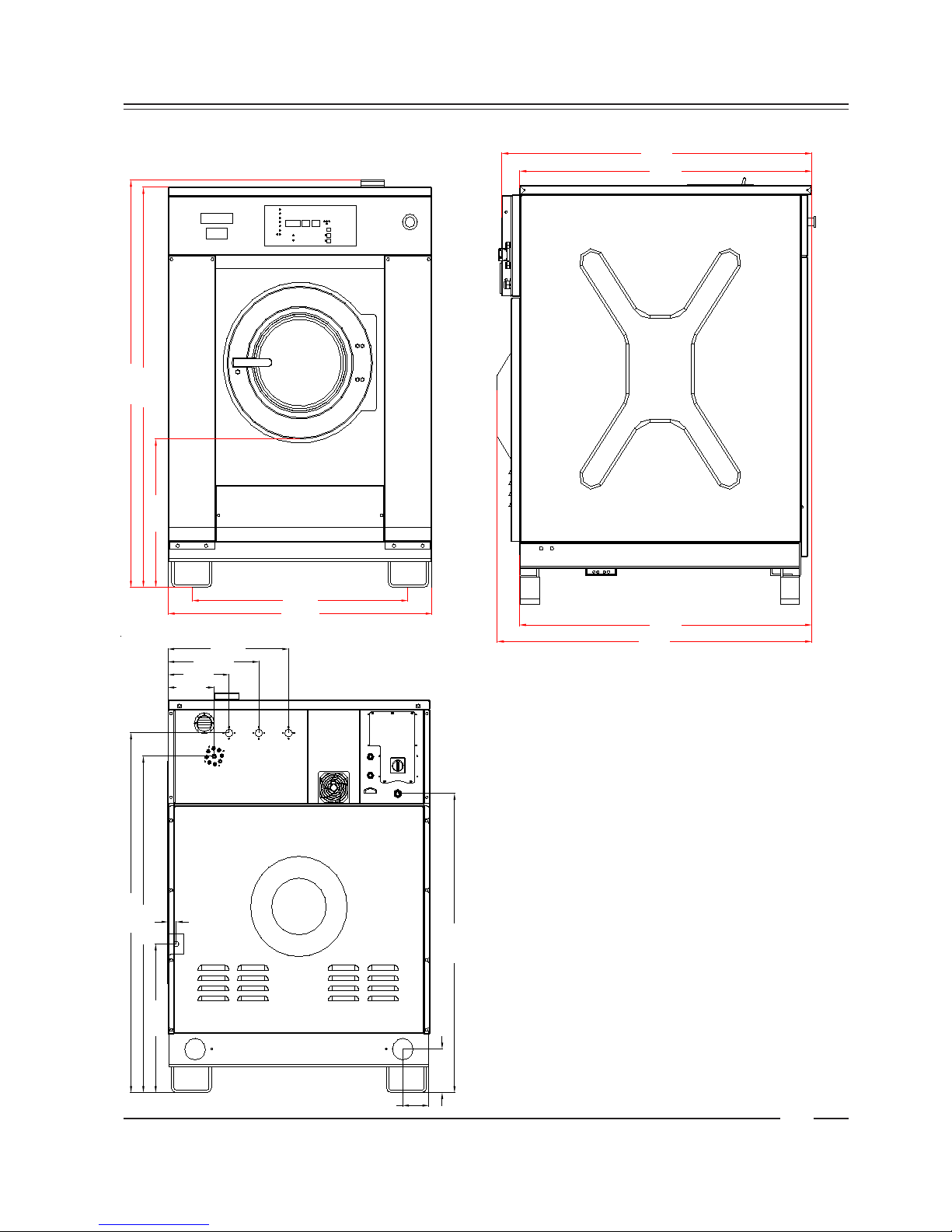

Dimensions HF150, IHF150, IHF033, CHF150, CHF033 .......................... 13
Technical data HF185, IHF185, IHF045, CHF185, CHF045 ..................... 14

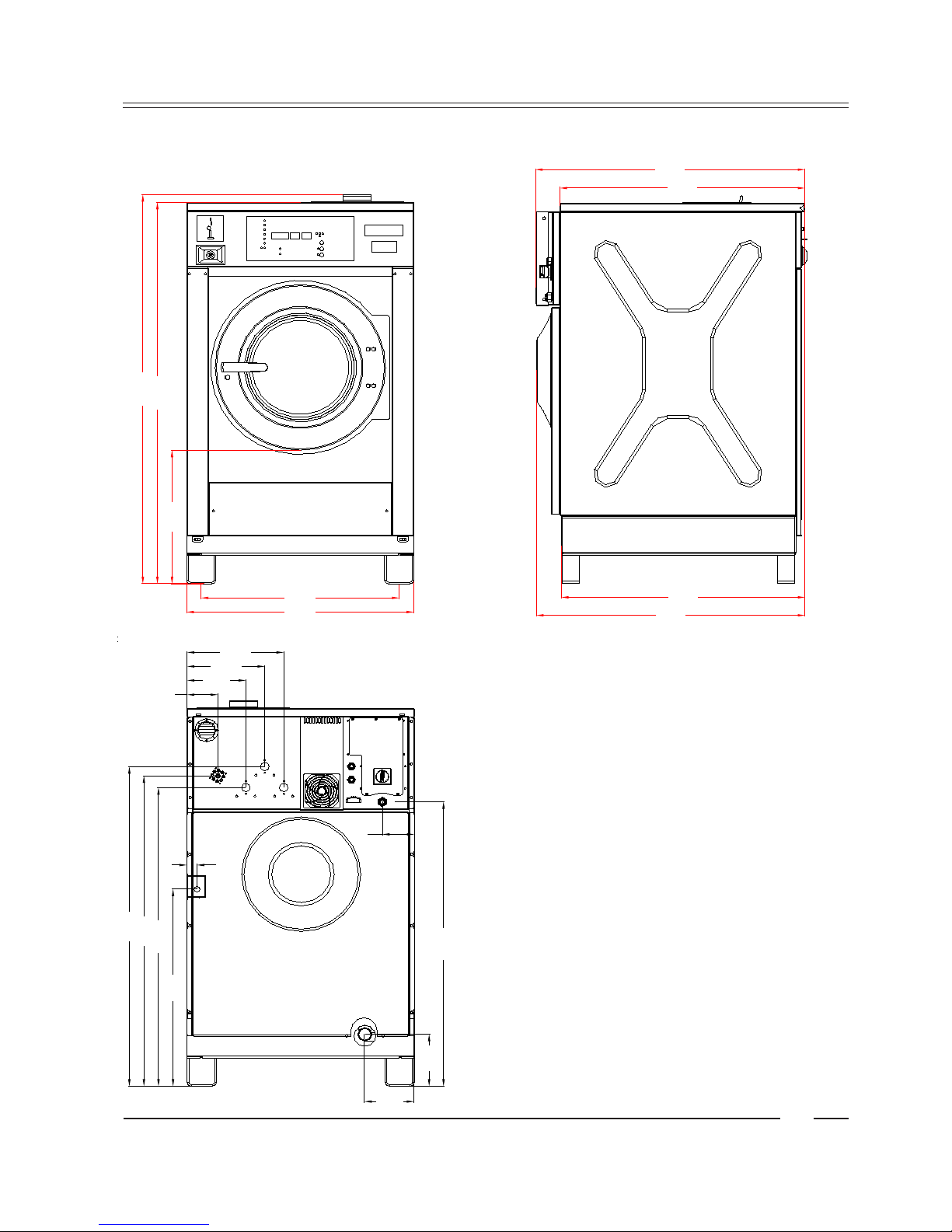

Dimensions HF185, IHF185, IHF045, CHF185, CHF045 .......................... 15
Technical data HF234, IHF234, IHF055, CHF234, CHF055 ..................... 16
Dimensions HF234, IHF234, IHF055, CHF234, CHF055 .......................... 17
Technical data HF304, IHF304, IHF075, CHF304, CHF075 ..................... 18
Dimensions HF304, IHF304, IHF075, CHF304, CHF075 .......................... 19
Installation and Connection Instructions .................................................. 20
Surface ...................................................................................................... 20
Out of balance switch ................................................................................ 20
Removal of the transport safety ................................................................. 21
Mounting Bolt Hole Locations for machines, HF150, IHF150, IHF033,
CHF150, CHF033 ...................................................................................... 22
Mounting Bolt Hole Locations for machines, HF185, IHF185, IHF045,
CHF185, CHF045 ...................................................................................... 23
Mounting Bolt Hole Locations for machines, HF234, IHF234, IHF055,
CHF234, CHF055 ...................................................................................... 24
Mounting Bolt Hole Locations for machines, HF304, IHF304, IHF075,
CHF304, CHF075 ...................................................................................... 25
Water connection ....................................................................................... 26
Water drain ................................................................................................ 26
Electrical installation .................................................................................. 27
Main power connection .............................................................................. 29
Electrical Specifications HF150, IHF150, IHF033, CHF150, CHF033 ...... 31
Electrical Specifications HF185, IHF185, IHF045, CHF185, CHF045 ....... 32
Electrical Specifications HF234, IHF234, IHF055, CHF234, CHF055 ....... 33
Electrical Specifications HF304, IHF304, IHF075, CHF304, CHF075 ....... 34
Liquid soap connection (option) ................................................................. 35
Connection of a central operating panel for coin machines (option) ......... 37

5
6
7
8
9
4
Steam connection ........................................................................................ 38
Technical remarks ....................................................................................... 39
Internal connections of the electrical heating ............................................ 39
Maintenance instruction of the machine ................................................... 40
End of day .................................................................................................. 40
General maintenance ................................................................................ 40
Periodical maintenance ............................................................................. 40
Annual maintenance .................................................................................. 41
Contact Information ..................................................................................... 42
Nameplate ................................................................................................. 42
Repair and after-sales service .................................................................... 44

5
Model Numbers 1
HF150
HF185
HF234
HF304
HX55
HX75
xHF150yyHyyyyyy
xHF185yyHyyyyyy
xHF234yyHyyyyyy
xHF304yyHyyyyyy
xHF033yyHyyyyyy
xHF045yyHyyyyyy
xHF055yyHyyyyyy
xHF075yyHyyyyyy
Build-up
Model numbers CHF033
CHF045
CHF055
CHF055ANHX1
CHF055MNHX1
CHF075
CHF075ANHP1
CHF075ANHQ1
CHF150
CHF185
CHF234
CHF304
IHF033
IHF033ANHX1
IHF045
IHF045ANHX1
IHF055
IHF055ANHX1
IHF055ZNHX1
IHF075
IHF075ANHN1
IHF075ANHQ1
IHF150
IHF150MNHX1
IHF150ZNHP1
IHF185
IHF185ANHN1
IHF185ANHP1
IHF185ANHX1
IHF185YNHP1
IHF185ZNHP1
IHF185ZNHX1
IHF234
IHF234ANHN1
IHF234ANHP1
IHF234ANHQ1
IHF234MNHP1
IHF234MNHX1
IHF234ZNHP1
IHF234ZNHX1
IHF234ANHX1
IHF304
IHF304ANHP1
IHF304MNHP1
IHF304ZNHP1

6
2
Safety and Environmental Informations
Safety
CAUTION LABELS
Please familiarize yourself with the following standard warning symbols. They are
used throughout this manual and on the equipment to alert you to possible hazards.
Anyone operating or servicing this equipment must understand these symbols and
must follow all safety rules in this manual.
ELECTRICAL HAZARD
This symbol alerts you to the presence of a dangerous voltage, which could cause a
serious shock resulting in personal injury or death.
CONSULT MANUAL
This symbol warns you to consult the manual for important instructions concerning
the machine and possible hazards.
MOVING PARTS HAZARD
This symbol alerts you to the presence of possible dangerous moving parts within
the machine. Guards should always be in place when the machine is in operation. Be
very careful when servicing the drive system.
PINCHING HAZARD
This warning symbol indicates the presence of a pinch point on the machine. This is
a place where your hand might be pinched or crushed, resulting in a severe injury.
Make sure you understand these hazards and keep all body parts clear of them.
HOT SURFACE HAZARD
This symbol indicates the presence of a potentially hot surface. Some machine
surfaces and parts may become extremely hot during normal operation and should
not be touched.
ATTENTION
This symbol identies information about practices or circumstances that can lead to
personal injury or death, property damage, or economic loss.

7
2
Environmental
Disposal of Unit
This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Ensuring this product is disposed
of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. The recycling
of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local
distributor resources.

8
Explanation of Safety Messages
Throughout this manual and on machine decals, you will nd precautionary statements (“DANGER”,
“WARNING” and “CAUTION”) followed by specic instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and those maintaining the machine.
DANGER
Indicates an imminently hazardous situation that, if not
avoided, will cause severe personal injury or death.
WARNING
Indicates a hazardous situation that, if not avoided, could
cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided, may
cause minor or moderate personal injury or property
damage.
Safety Decals
Safety decals appear at crucial locations on the machine. Failure to maintain legible safety decals could
result in injury to the operator or service technician.
To provide personal safety and keep the machine in proper working order, follow all maintenance and
safety procedures presented in this manual. If questions regarding safety arise, contact the manufacturer
immediately.
Use manufacturer-authorized spare parts to avoid safety hazards.
Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specic instructions.
IMPORTANT: The word “IMPORTANT” is used to inform the reader of specic procedures where
minor machine damage will occur if the procedure is not followed.
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing
information that is important but not hazard related.
2

9
Important Safety Instructions
WARNING
To reduce the risk of re, electric shock, serious injury or
death to persons when using your washer, follow these
basic precautions:
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in the installation Manual for the proper grounding of the
washer.
3. Do not wash textiles that have been previously cleaned, washed, soaked, or spotted with gasoline,
dry-cleaning solvents, or other ammable or explosive substances as they give off vapors that could
ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances to the wash
water. These substances give off vapors that could ignite or explode.
5. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been
used for such a period, before using a washing machine or combination washer-dryer, turn on all hot
water faucets and let the water ow from each for several minutes. This will release any accumulated
hydrogen gas. The gas is ammable, do not smoke or use an open ame during this time.
6. Do not allow children to play on or in the washer. This appliance is not intended for use by young
children or inrm persons without supervision. Young children should be supervised to ensure that
they do not play with the appliance.
7. Before the washer is removed from service or discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is moving. This is an imminently hazardous situation
that, if not avoided, will cause severe personal injury or death.
9. Do not install or store the washer where it will be exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or attempt any servicing unless specically
recommended in the user-maintenance instructions or in published user-repair instructions that the
user understands and has the skills to carry out.
12. To reduce the risk of an electric shock or re, DO NOT use an extension cord or an adapter to connect
the washer to an electrical power source.
13. Use a washer only for its intended purpose, washing textiles.
14. ALWAYS disconnect the washer from the electrical supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the INSTALLATION INSTRUCTIONS. All connections for water, drain,
electrical power and grounding must comply with local codes and be made by licensed personnel
when required.
16. To reduce the risk of re, textiles which have traces of any ammable substances such as vegetable
oil, cooking oil, machine oil, ammable chemicals, thinner, etc., or anything containing wax or
chemicals such as in mops and cleaning cloths, must not be put into the washer. These ammable
substances may cause the fabric to catch on re.
17. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of
the fabric softener or product.
18. Keep washer in good condition. Bumping or dropping the washer can damage safety features. If this
occurs, have washer checked by a qualied service person.
19. Replace worn power cords and/or loose plugs.
20. Be sure water connections have a shut-off valve and that ll hose connections are tight. CLOSE the
shut-off valves at the end of each wash day.
2

10
22
21. Loading door MUST BE CLOSED any time the washer is to ll, tumble, or spin. DO NOT bypass the
loading door switch by permitting the washer to operate with the loading door open.
22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all
warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of the reach
of children at all times (preferably in a locked cabinet).
23. Always follow the fabric care instructions supplied by the textile manufacturer.
24. Never operate the washer with any guards and/or panels removed.
25. DO NOT operate the washer with missing or broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions
may result in conditions which can produce bodily injury and/or property damage.
28. It is recommended that the machine be installed by qualied technicians.
29. Before starting repairs or maintenance, shut off all power and water supplies.
30. To prevent re and explosion:
Keep the area around the machine free from inammable or combustible products.
NOTE: The WARNINGS and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not
meant to cover all possible conditions and situations that may occur. Common sense, caution, and
care must be exercised when installing, maintaining, or operating the washer.
Any problems or conditions not understood should be reported to the dealer, distributor, service agent, or
the manufacturer.
SAVE THESE INSTRUCTIONS

11
Operator Safety
WARNING
NEVER insert hands or objects into basket until it has
completely stopped. Doing so could result in serious
injury.
To ensure the safety of machine operators, the following maintenance checks must be performed daily:
1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible
signs must be replaced immediately. Make certain that spares are available.
2. Check door interlock before starting operation of the machine:
a. Attempt to start the machine with the door open. The machine should not start with the door open.
b. Close the door without locking it and attempt to start the machine. The machine should not start with
the door unlocked.
c. Close and lock the door and start a cycle. Attempt to open the door while the cycle is in progress.
The door should not open.
If the door lock and interlock are not functioning properly, call a service technician.
3. Do not attempt to operate the machine if any of the following conditions are present:
a. The door does not remain securely locked during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly grounded circuit.
Do not bypass any safety devices in the machine.
WARNING
Never operate the machine with a bypassed or
disconnected balance system. Operating the machine
with severe out-of-balance loads could result in personal
injury and serious equipment damage.
SAVE THESE INSTRUCTIONS
2

3
12
3
Technical data HF150, IHF150, IHF033, CHF150, CHF033
Technical data and dimensions
METRIC US
Capacity (dry weight) Ratio [kg/Lit]
1:11 13,2 kg 29.10 lb.
1:10 14,5 kg 31.97 lb.
1:9 16,1 kg 35.49 lb.
Cylinder
Diameter 680 mm 26.77 inch
Depth 400 mm 15.75 inch
Volume 145 Lit 5.12 ft³
Cabinet
Height 1378 mm 54.25 inch
Width 780 mm 30.71 inch
Depth 868 mm 34.17 inch
Front loading
Diameter door opening 400 mm 15.75 inch
Height under door 467 mm 18.39 inch
Height to doorhandle 757 mm 29.80 inch
Speed
Wash 10 - 50 tr/min - RPM
Distribution 85 tr/min - RPM
Spin 250 - 1000 tr/min - RPM
G-factor
High spin 380
Dynamic bottom load (N/Hz)
1010/16
Motor (3-phase)
4p. 1470 tr/min 2,2 kW / 2,95 HP
Drain valve
2"
Water supply
Hard, soft, warm water 3/4"
Steam connection
Steam connection 3/8"
Heating
Electrical 230/400 V 12 kW - 15 kW - 18 kW
Electrical 400V 21 kW - 24 kW
Steam 6 bar
Warm water (without additional heating) X
Warm water (with additional heating) X
Packing dimensions
(H x W x D) mm - inch 1500x850x950 mm - 59.06x33.46x37.40 inch
Weight
Net 368 kg 811.30 lb.
Gross 383 kg 844.37 Ib.

170 [6.69]
K
185 [7.29]
35 [1.38]
L
E
D
C
B
A
IG
F
109 [4.3]
1015 [39.96]
1066 [41.95]
1108 [43.6]
1141 [44.9]
105 [4.13]
704 [27.7]
332 [13.05]
267 [10.49]
202 [7.93]
1378 [54.25]
1350 [53.15]
780 [30.71]
680 [26.77]
467 [18.39]
868 [34.17]
858 [33.78]
772 [30.39]
770 [30.31]
858 [33.78]
13
3
Dimensions HF150, IHF150, IHF033, CHF150, CHF033
 A. Ventilation soap dispenser
 B. Liquid soap connections
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Connection clamps
G. Electrical connections
 I. Ventilation tub
K. Drain valve
 L. Steam connections
Legend: metric mm [inches]

14
3
METRIC US
Capacity (dry weight) Ratio [kg/Lit]
1:11 16,5 kg 36.38 lb.
1:10 18,1 kg 39.90 lb.
1:9 20,1 kg 44.31 lb.
Cylinder
Diameter 680 mm 26.77 inch
Depth 500 mm 19.69 inch
Volume 181 Lit 6.39 ft³
Cabinet
Height 1378 mm 54.25 inch
Width 780 mm 30.71 inch
Depth 970 mm 38.19 inch
Front loading
Diameter door opening 400 mm 15.75 inch
Height under door 467 mm 18.39 inch
Height to doorhandle 757 mm 29.80 inch
Speed
Wash 10 - 50 tr/min - RPM
Distribution 85 tr/min - RPM
Spin 250 - 1000 tr/min - RPM
G-factor
High spin 380
Dynamic bottom load (N/Hz)
1090/16
Motor (3-phase)
4p. 1470 tr/min 2,2 kW / 2,95 HP
Drain valve
2"
Water supply
Hard, soft, warm water 3/4"
Steam connection
Steam connection 3/8"
Heating
Electrical 230/400 V 12 kW - 15 kW - 18 kW
Electrical 400V 21 - 24 kW
Steam 6 bar
Warm water (without additional heating) X
Warm water (with additional heating) X
Packing dimensions
(H x W x D) mm - inch 1500x850x1020 mm - 59.06x33.46x40.16 inch
Weight
Net 391 kg 862.01 lb.
Gross 418 kg 921.53 Ib.
Technical data HF185, IHF185, IHF045, CHF185, CHF045

863 [33.98]
956 [37.64]
970 [38.19]
874 [34.41]
170 [6.69]
K
185 [7.29]
35 [1.38]
L
E
D
C
B
A
IG
F
109 [4.3]
1015 [39.96]
1066 [41.95]
1108 [43.6]
1141 [44.9]
105 [4.13]
704 [27.7]
332 [13.05]
267 [10.49]
202 [7.93]
1378 [54.25]
1350 [53.15]
780 [30.71]
680 [26.77]
467 [18.39]
15
3
Dimensions HF185, IHF185, IHF045, CHF185, CHF045
Legend: metric mm [inches]
 A. Ventilation soap dispenser
 B. Liquid soap connections
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Connection clamps
G. Electrical connections
 I. Ventilation tub
K. Drain valve
 L. Steam connections

16
3
METRIC US
Capacity (dry weight) Ratio [kg/Lit]
1:11 21,3 kg 46.96 lb.
1:10 23,4 kg 51.59 lb.
1:9 26 kg 57.32 lb.
Cylinder
Diameter 750 mm 29.53 inch
Depth 530 mm 20.87 inch
Volume 234 Lit 8.26 ft³
Cabinet
Height 1528 mm 60.14 inch
Width 900 mm 35.43 inch
Depth 1022 mm 40.24 inch
Front loading
Diameter door opening 400 mm 15.75 inch
Height under door 565 mm 22.24 inch
Height to doorhandle 855 mm 33.66 inch
Speed
Wash 10 - 50 tr/min - RPM
Distribution 85 tr/min - RPM
Spin 250 - 1000 tr/min - RPM
G-factor
High spin 419
Dynamic bottom load (N/Hz)
2300/15
Motor (3-phase)
4p. 1470 tr/min 3 kW / 4,02 HP
Drain valve
3"
Water supply
Hard, soft, warm water 3/4"
Steam connection
Steam connection 1/2"
Heating
Electrical 230/400 V 12 kW - 15 kW - 18 kW
Electrical 400V 21 kW - 24 kW
Steam 6 bar
Warm water (without additional heating) X
Warm water (with additional heating) X
Packing dimensions
(H x W x D) mm - inch 1700x970x1100 mm - 66.93x38.19x43.31 inch
Weight
Net 534 kg 1177.27 lb.
Gross 584 kg 1287.50 lb.
Technical data HF234, IHF234, IHF055, CHF234, CHF055

720 [28.35]
1266 [49.82]
1386 [54.57]
156 [6.12]
251 [9.88]
346 [13.62]
CDE
35 [1.38]
L
B
A
1126.9 [44.36]
105 [4.13]
165 [6.5]
K
116 [4.57]
G
I
1500 [59.05]
738 [29.05]
900 [35.43]
1528 [60.14]
565 [22.24]
H
946.5 [37.26]
1022 [40.24]
1002 [39.45]
940 [37.01]
3
F
H
17
Dimensions HF234, IHF234, IHF055, CHF234, CHF055
Legend: metric mm [inches]
 A. Ventilation soap dispenser
 B. Liquid soap connections
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Connection clamps
G. Electrical connections
H. Emergency button
 I. Ventilation tub
K. Drain valve
 L. Steam connections

18
3
METRIC US
Capacity (dry weight) Ratio [kg/Lit]
1:11 27,6 kg 60.85 lb.
1:10 30,4 kg 67.02 lb.
1:9 33,8 kg 74.52 lb.
Cylinder
Diameter 850 mm 33.46 inch
Depth 537 mm 21.14 inch
Volume 304 Lit 10.74 ft³
Cabinet
Height 1558 mm 61.32 inch
Width 1060 mm 41.73 inch
Depth 1160 mm 45.67 inch
Front loading
Diameter door opening 400 mm 15.75 inch
Height under door 570 mm 22.44 inch
Height to doorhandle 860 mm 33.86 inch
Speed
Wash 10 - 50 tr/min - RPM
Distribution 85 tr/min - RPM
Spin 250 - 1000 tr/min - RPM
G-factor
High spin 475
Dynamic bottom load (N/Hz)
2340/15
Motor (3-phase)
4p. 1470 tr/min 4 kW / 5,36 HP
Drain valve
3"
Water supply
Hard, soft, warm water 3/4"
Steam connection
Steam connection 1/2"
Heating
Electrical 230/400 V 18 kW
Electrical 400V 21 kW - 24 kW
Steam 6 bar
Warm water (without additional heating) X
Warm water (with additional heating) X
Packing dimensions
(H x W x D) mm - inch 1740x1120x1260 mm - 68.50x44.09x49.61inch
Weight
Net 731 kg 1611.58 lb.
Gross 781 kg 1721.81 lb.
Technical data HF304, IHF304, IHF075, CHF304, CHF075

247 [9.72]
1403 [55.24]
105 [4.13]
170 [6.69]
35 [1.38]
580 [22.83]
1312 [51.65] L
367.5 [14.47]
187 [7.36]
488 [19.21]
1167 [45.93]
IG
E
D
C
B
A
K
1530 [60.24]
865 [34.06]
1060 [41.73]
1558 [61.32]
570 [22.44]
1078 [42.44]
1160 [45.67]
1074 [42.28]
1158 [45.59]
HH
F
19
3
Dimensions HF304, IHF304, IHF075, CHF304, CHF075
Legend: metric mm [inches]
 A. Ventilation soap dispenser
 B. Liquid soap connections
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Connection clamps
G. Electrical connections
H. Emergency button
 I. Ventilation tub
K. Drain valve
 L. Steam connections

Label 1
1/2
1/2
1/3
Label 2
20
4

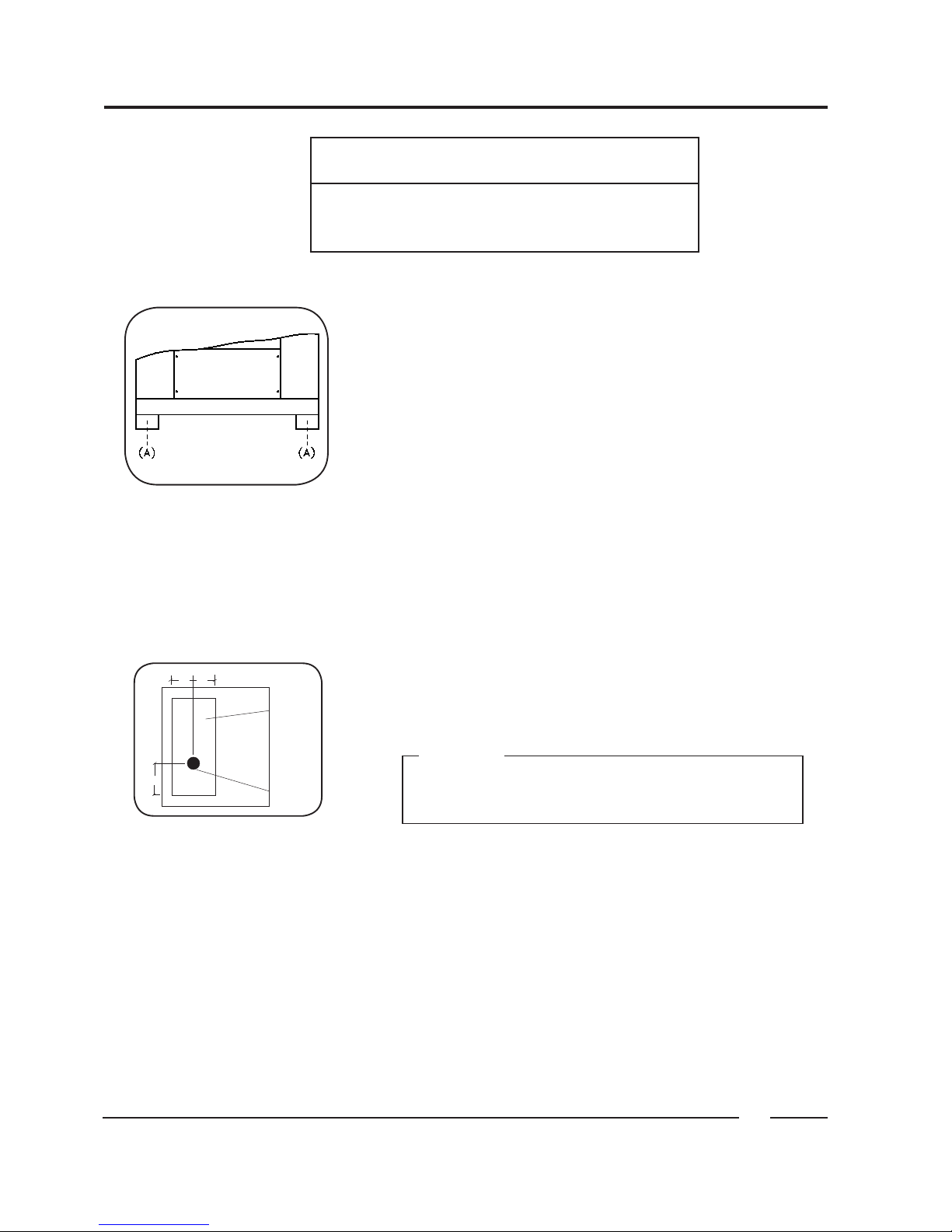

Installation and Connection Instructions
Surface
CAUTION
Ensure that the machine is installed on a level oor of
sufcient strength and that the recommended clearances
for inspection and maintenance are provided. Never allow
the inspection and maintenance space to be blocked.
The machine must be placed on a at, solid surface (metal base,
concrete or solid ground). When using a metal base or with machines with
steam heating, the machine must be anchored on the 4 provided
locations (A) (See Label 1) in the base. (See Mounting Bolt Hole
Locations). The height of the pad should not exceed 203 mm - 8 inch.
The machine must be placed entirely level. For easy maintenance it is
recommended to keep a minimal distance of 600 mm - 23.62 inch between
the wall and the back of the machine.
If several machines are placed next to each another, there should be a
minimal distance of 30 mm - 1.18 inch between each machine.
The out of balance switch is mounted on the solid part of the machine.
There is a window around the probe of the out of balance switch that is
mounted on the movable part of the machine.
When the machine goes out of balance by overloading or uneven
distribution of the linen, the out of balance switch will interrupt this action
to prevent damage to the machine.
Important
Out of balance switch
To guarantee good functioning, the probe should be centered
horizontally and vertically at 1/3 from the bottom of the out of
balance window (when machine drum is empty). (See Label 2)
Window
Probe
