Alliance Laundry Systems 9001014R7 Installation guide

Basic Installation/Operation
www.comlaundry.com
Washer-Extractors
Cabinet Freestanding
Part No. 9001014R7
June 2010
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2010, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
9001014 1
Basic Installation/Operation
Table of
Contents
Introduction......................................................................................... 2
Model Identification ............................................................................. 2
Safety Information.............................................................................. 3
Explanation of Safety Messages........................................................... 3
Important Safety Instructions ............................................................... 3
Safety Decals ........................................................................................ 5
Operator Safety..................................................................................... 6

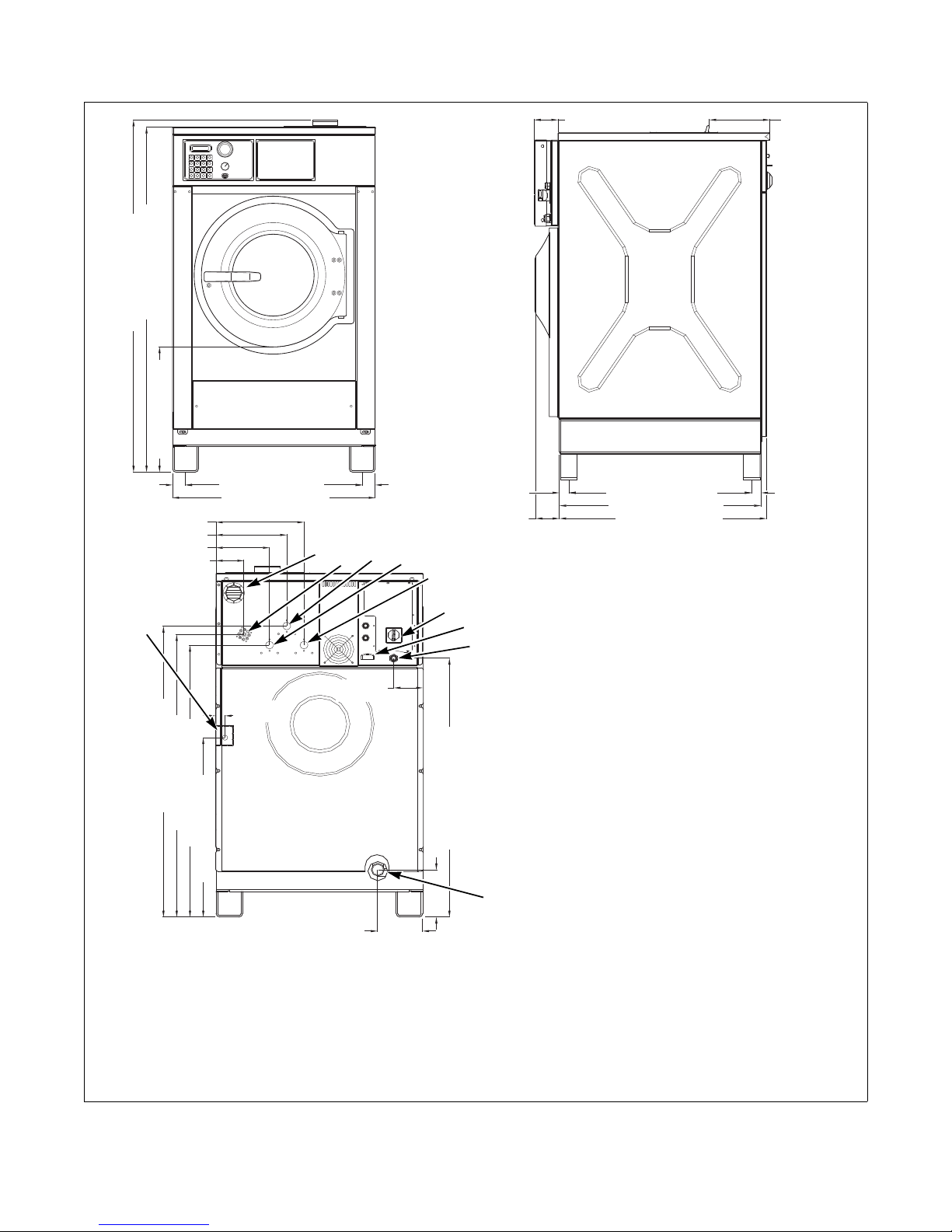

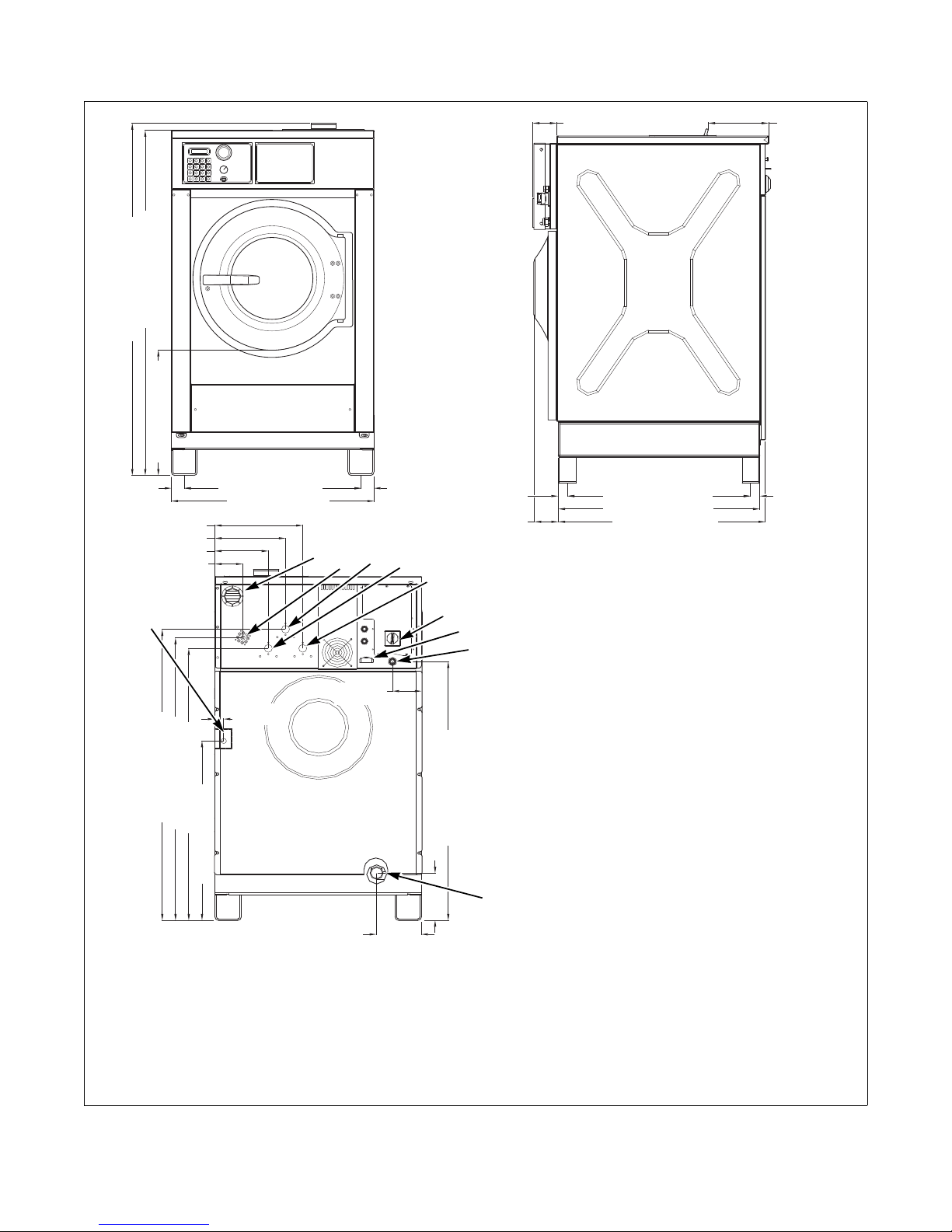

Specifications and Dimensions........................................................... 7
Installation........................................................................................... 22
Dimensional Clearances................................................................... 22
Machine Foundation ........................................................................ 23
Mechanical Installation......................................................................... 24
Frame Dimensions and Mounting Bolt Location
for 18, 25, 33, 35, 40, 55, 75, 100, 135, 165 and 200 Models........ 24
Mounting Bolt Installation (If Required).............................................. 27
Electrical Specifications ....................................................................... 28
Operation............................................................................................. 30
Control Identification............................................................................ 30
Load the Machine ................................................................................. 31
Disposal of Unit ................................................................................... 32

9001014
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
Introduction
Model Identification
Information in this manual is applicable to these
models:
HX18PV HX100PV SX25PV SX135PV UX33PV UX100PV
HX25PV HX135PV SX35PV SX165PV UX35PV UX135PV
HX35PV HX165PV SX55PV SX200PV UX40PV UX165PV
HX55PV HX200PV SX75PV UX18PV UX55PV UX200PV
HX75PV SX18PV SX100PV UX25PV UX75PV

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
9001014
Basic Installation/Operation
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
4
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotive parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc., or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a
qualified service person.
20. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
5
9001014
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance
are provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the
manufacturer immediately.
Use manufacturer-authorized spare parts to avoid
safety hazards.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty.
SW004
WARNING
Install the machine on a level floor of
sufficient strength. Failure to do so may
result in conditions which can produce
serious injury, death and/or property
damage.
W703
WARNING
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury.
SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched.
SW014
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
6
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a.Attempt to start the machine with the door
open. The machine should not start with the
door open.
b.Close the door without locking it and attempt to
start the machine. The machine should not
start with the door unlocked.
c.Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a.The door does not remain securely locked
during the entire cycle.
b.Excessively high water level is evident.
c.Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage.
SW039
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 7
9001014
Basic Installation/Operation
Specifications and Dimensions
† For Models with A or M in the 8th position in the model number (e.g. *X18PVXA6)
†† For Models with U in the 8th position in the model number (e.g *X18PVXU6)
(continued)
General Specifications
Model 1825333540
Overall Dimensions
Overall width 660 mm
(26 in.)
660 mm
(26 in.)
780 mm
(30.71 in.)
783 mm
(30.8 in.)
780 mm
(30.71 in.)
Overall height 1031 mm
(40.6 in.)
1031 mm
(40.6 in.)
1376 mm
(54.15 in.)
1194 mm
(47 in.)
1376 mm
(54.15 in.)
Overall depth 780 mm
(30.7 in.)
870 mm
(34.3 in.)
840 mm
(33.07 in.)
960 mm
(37.8 in.)
940 mm
(37.01 in.)
Weight and Shipping Information
Net weight † 211 kg
(465 lb.)
236 kg
(520 lb.)
368 kg
(811.30 lb.)
358 kg
(789 lb.)
391 kg
(862.01 lb.)
Net weight †† 236 kg
(520 lb.)
241 kg
(531 lb.) N/A 347 kg (765 lb.) N/A
Shipping weight † 233 kg
(514 lb.)
258 kg
(569 lb.)
383 kg
(844.37 lb.)
388 kg
(855 lb.)
418 kg
(921.53 lb.)
Shipping weight †† 283 kg
(624 lb.)
290 kg
(639.5 lb.) N/A 467 kg (1030 lb.) N/A
Shipping volume 0.8 m3
(22.5 ft.3)
0.9 m3
(24.5 ft.3)
1.21 m3
(42.83 ft.3)
1.3 m3
(34.7 ft.3)
1.3 m3
(45.98 ft.3)
Wash Cylinder Information
Cylinder diameter 530 mm
(20.9 in.)
530 mm
(20.9 in.)
680 mm
(26.77 in.)
650 mm
(25.6 in.)
680 mm
(26.77 in.)
Cylinder depth 345 mm
(13.6 in.)
440 mm
(17.3 in.)
400 mm
(15.75 in.)
500 mm
(19.7 in.)
500 mm
(19.69 in.)
Cylinder volume 76 l
(2.7 ft.3)
97 l
(3.43 ft.3)
145 l
(5.12 ft.3)
167 l
(5.9 ft.3)
181 l
(6.39 ft.3)
Perforation size 3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
Door Opening Information
Door opening size 300 mm
(11.8 in.)
300 mm
(11.8 in.)
400 mm
(15.75 in.)
300 mm
(11.8 in.)
400 mm
(15.75 in.)
Height of door bottom above floor 279 mm
(11 in.)
279 mm
(11 in.)
472 mm
(18.58 in.)
395 mm
(15.6 in.)
472 mm
(18.58 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
8
(continued)
General Specifications
Model 1825333540
Drive Train Information
Numberofmotorsindrivetrain 11111
Drive motor power 0.75 kW
(1 HP)
0.75 kW
(1 HP)
2.2 kW
(2.95 HP)
1.5 kW
(2 HP)
2.2 kW
(2.95 HP)
Cylinder Speeds
Wash/reverse speed 10-50 RPM 10-50 RPM 10-50 RPM 10-50 RPM 10-50 RPM
Distribution/drain speed 82 RPM 82 RPM 85 RPM 74 RPM 85 RPM
Extract speed 250-1000 RPM 250-1000 RPM 250-1000 RPM 250-1000 RPM 250-1000 RPM
Centrifugal Force Data
Wash/reverse centrifugal force 0.03-0.74 Gs 0.03-0.74 Gs 0.37-0.94 Gs 0.04-0.91 Gs 0.37-0.94 Gs
Extract centrifugal force 19-296 Gs 19-296 Gs 24-377 Gs 23-363 Gs 24-377 Gs
Balance Detection
Vibration safety switch installed Standard Standard Standard Standard Standard
Direct Steam Heating (Optional)
Steam inlet connection size 10 mm
(0.38 in.)
10 mm
(0.38 in.)
10 mm
(0.375 in.)
10 mm
(0.38 in.)
10 mm
(0.375 in.)
Numberofsteaminlets 11111
Electrical Heating (Optional)
Total electrical heating capacity 9 kW 9 kW 18 kW 18 kW 18 kW
Electricalheatingelements 33666
Electrical heat element size 3 kW 3 kW 3 kW 3 kW 3kW

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9
9001014
General Specifications
Model 55 75 100 135 165 200
Overall Dimensions
Overall width 900 mm
(35.4 in.)
1060 mm
(41.8 in.)
1200 mm
(47.3 in.)
1200 mm
(47.3 in.)
1300 mm
(51.8 in.)
1300 mm
(51.8 in.)
Overall height 1544 mm
(60.8 in.)
1560 mm
(61.4 in.)
1920 mm
(75.6 in.)
1920 mm
(75.6 in.)
2100 mm
(82.7 in.)
2100 mm
(82.68 in.)
Overall depth 1016 mm
(40 in.)
1168 mm
(46 in.)
1330 mm
(52.4 in.)
1500 mm
(59.1 in.)
1620 mm
(63.8 in.)
1808 mm
(71.18 in.)
Weight and Shipping Information
Net weight 570 kg
(1247 lb.)
865 kg
(1907 lb.)
1520 kg
(3351 lb.)
1645 kg
(3626 lb.)
2100 kg
(4630 lb.)
2900 kg
(6393.41 lb.)
Shipping weight 630 kg
(1380 lb.)
995 kg
(2194 lb.)
1697 kg
(3741 lb.)
1822 kg
(4017 lb.)
2319 kg
(5113 lb.)
3000 kg
(6613.86 lb.)
Shipping volume 1.5 m3
(54.9 ft.3)
2.1 m3
(74 ft.3)
3.3 m3
(115 ft.3)
3.7 m3
(131 ft.3)
4.4 m3
(162 ft.3)
6.17 m3
(217.89 ft.3)
Wash Cylinder Information
Cylinder diameter 750 mm
(29.5 in.)
850 mm
(33.5 in.)
980 mm
(38.6 in.)
980 mm
(38.6 in.)
1095 mm
(43.1 in.)
1095 mm
(43.1 in.)
Cylinder depth 530 mm
(20.9 in.)
537 mm
(21.1 in.)
597 mm
(23.5 in.)
775 mm
(30.5 in.)
775 mm
(30.5 in.)
957 mm
(37.68 in.)
Cylinder volume 234 l
(8.27 ft.3)
305 l
(10.76 ft.3)
451 l
(15.92 ft.3)
585 l
(20.66 ft.3)
730 l
(25.8 ft.3)
930 l
(31.748 ft.3)
Perforation size 3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
3 mm
(0.1 in.)
Door Opening Information
Door opening size 395 mm
(15.6 in.)
395 mm
(15.6 in.)
500 mm
(19.7 in.)
500 mm
(19.7 in.)
622 mm
(24.5 in.)
622 mm
(24.5 in.)
Height of door bottom above
floor
559 mm
(22 in.)
559 mm
(22 in.)
648 mm
(25.5 in.)
648 mm
(25.5 in.)
710 mm
(28 in.)
603 mm
(23.74 in.)
(continued)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
10
(continued)
General Specifications
Model 55 75 100 135 165 200
Drive Train Information
Number of motors in drive train 1 1 1 1 1 1
Drive motor power 3 kW
(4 HP)
4 kW
(5.4 HP)
5.5 kW
(7.4 HP)
7.5 kW
(10 HP)
11.5 kW
(15 HP)
15 kW
(20 HP)
Cylinder Speeds
Wash/reverse speed 10-50 RPM 10-50 RPM 10-50 RPM 10-50 RPM 10-50 RPM 10-50 RPM
Distribution/drain speed 69 RPM 65 RPM 61 RPM 61 RPM 100 RPM 80 RPM
Extract speed 250-1000
RPM
250-1000
RPM
250-800
RPM
250-800
RPM
250-750
RPM
250-750
RPM
Centrifugal Force Data
Wash/reverse centrifugal force 0.04-1.05
Gs
0.05-1.19
Gs
0.06-1.37
Gs
0.06-1.37
Gs
0.06-1.52
Gs
0.06-1.52
Gs
Extract centrifugal force 26-418 Gs 30-475 Gs 34-350 Gs 34-350 Gs 34-344 Gs 34-342 Gs
Balance Detection
Vibration safety switch installed Standard Standard Standard Standard Standard Standard
Direct Steam Heating (Optional)
Steam inlet connection size 10 mm
(0.38 in.)
10 mm
(0.38 in.)
10 mm
(0.38 in.)
10 mm
(0.38 in.)
10 mm
(0.38 in.)
19 mm
(0.75 in.)
Number of steam inlets 1 1 1 1 1 1
Electrical Heating (Optional)
Total electrical heating capacity 18 kW 18 kW 27 kW 27 kW N/A 36 kW
Electrical heating elements 6 6 9 9 N/A 9
Electrical heat element size 3 kW 3 kW 3 kW 3 kW N/A 4 kW

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
11
9001014
1Fill and Supply Ventilation 6External Liquid Supply Inlets
2Cold Water Inlet (Required) 7Electrical Power Input
3Hot Water Inlet (Required) 8External Supply Signal Input
4Cold Water Inlet (Required) 9Drain Outlet
5Flushing Supply Dispenser 10 Steam Connection Input (Optional)
Figure 1
CFD530 N
CFS464N
CFS465N
18 AND 25 POUND CAPACITY MODELS WITH U IN THE 8TH POSITION (E.G. *X18PVXU6)
1031 mm
(40.6 in.)
518 mm
(20.4 in.)
660 mm
(26 in.) CFD530N
CFS464N
CFS465N
229 mm
(9 in.)
152 mm
(6 in.)
74 mm
(2.9 in.)
140 mm
(5.5 in.)
780 mm
(30.7 in.)
742 mm
(29.2 in.)
41 mm
(1.6 in.) 389 mm
(15.3 in.)
158 mm
(6.2 in.)
51 mm
(2 in.)
181 mm
(7.1 in.)
1
46
3
2
10
279 mm
(11 in.)
18: 787 mm (31 in.)
25: 884 mm (34.8 in.)
881 mm
(34.7 in.)
7
9
5
486 mm
(19.13 in.) 18: 560 mm
(22.05 in.)
25: 660 mm
(25.98 in.)
8
1011 mm
(39.8 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
12
1Fill and Supply Ventilation 7Electrical Power Input
2Cold Water Inlet (Required) 8Drain Outlet
3External Liquid Supply Inlets 9Steam Connection Input (Optional)
4Hot Water Inlet (Required) 10 Cold Water Inlet (Required)
5Ventilation Tub 11 Flushing Supply Dispenser
6Main Switch
Figure 2
CFD528N
CFD521N
CFD522N
1038 mm (40.87 in.)
1011 mm (39.8 in.)
279 mm
(10.98 in.)
530 mm (20.87 in.)
65 mm
(2.56 in.) 660 mm (25.98 in.)
65 mm
(2.56 in.)
887 mm (34.92 in.)
791 mm (31.14in.)
485 mm (19.1 in.)
70 mm (2.76 in.)
44. mm
(1.73 in.)
180 mm (7.09 in.)
660 mm (25.98 in.)
11
10
4
2
1
9
33 mm
(1.3 in.)
18: 590 mm (23.23 in.)
25: 690 mm (27.16 in.)
747 mm (29.41 in.)
8
3
33 mm
(1.3 in.) 30 mm
(1.18 in.)
220 mm
(8.66 in.)
7
CFD521N
18: 670 mm (26.38 in.)
25: 770 mm (30.31 in.)
18: 727 mm (28.62 in.)
25: 827 mm (32.56 in.)
30 mm
(1.18 in.)
696,2 mm (27.41 in.)
109 mm
(4.3 in.)
226 mm (8.9 in.)
151 mm (5.94 in.)
75 mm (2.95 in.)
65 mm
(2.72 in.) CFD522N
6
5
18 AND 25 POUND CAPACITY MODELS WITH A OR M IN THE 8TH POSITION (E.G. *X18PVXM6)
CFD528N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
13
9001014
1Fill and Supply Ventilation 6Connection Clamps
2External Liquid Supply Inlets 7Ventilation Tub
3Cold Water Inlet (Required) 8Electrical Power Inputs
4Cold Water Inlet (Required) 9Drain Valve
5Hot Water Inlet (Required) 10 Steam Connection Input (Optional)
Figure 3
CFD539N
CFD539N
CFD537N
CFD538N
1376 mm (54.15 in.)
1348 mm (53.07 in.)
472 mm (18.58 in.)
680 mm (26.77 in.)
50 mm
(1.97 in.) 780 mm (30.71 in.)
50 mm
(1.97 in.)
1141 mm (44.9 in.)
1108 mm (43.6 in.)
704 mm (27.7 in.)
185 mm (7.29 in.)
170 mm (6.69 in.)
3
2
1
10
665 mm (26.18 in.)
1066 mm (41.95 in.)
9
4
86.5 mm
(3.41 in.)
220 mm
(8.66 in.)
7
CFD537N
34 mm
(1.34 in.)
1015 mm (39.96 in.)
1.38 in.
(35 mm)
332 mm (13.05 in.)
267 mm (10.49 in.)
202 mm (7.93 in.)
4.3 in.
(109 mm)
CFD538N
6
5
33 MODEL
88 mm
(3.47 in.)
34 mm
(1.34 in.)
733 mm (28.86 in.)
753 mm (29.65 in.)
105 mm (4.13 in.)
8

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
14
1Fill and Supply Ventilation 6External Liquid Supply Inlets
2Cold Water Inlet (Required) 7Electrical Supply Signal Input
3Hot Water Inlet (Required) 8External Supply Signal Input
4Cold Water Inlet (Required) 9Drain Outlet
5Flushing Supply Dispenser 10 Steam Connection Input (Optional)
Figure 4
CFD531N
CFS467N
CFD531N CFS467N
1194 mm
(47 in.)
620 mm
(24.4 in.)
782 mm
(30.8 in.)
CFS468N
328 mm
(12.9 in.)
264 mm
(10.4 in.)
934 mm
(36.75 in.)
960 mm
(37.8 in.)
155 mm
(6.1 in.)
889 mm
(35 in.)
203 mm
(8 in.)
1001 mm
(39.4 in.)
112 mm
(4.4 in.)
394 mm
(15.5 in.)
5
508 mm
(20 in.)
965 mm
(38 in.)
1041 mm
(41 in.)
89 mm
(3.5 in.)
1
32
4
8
7
9
10
6
639 mm
(25.16 in.)
770 mm
(30.31 in.)
35 POUND CAPACITY MODELS WITH U IN THE 8TH POSITION (E.G. *X35PVXU6)
1176 mm
(46.3 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
15
9001014
1Fill and Supply Ventilation 7Drain Outlet
2Hot Water Inlet (Required) 8Steam Connection Input (Optional)
3Cold Water Inlet (Required) 9External Liquid Supply Inlets
4Main Switch 10 Cold Water Inlet (Required)
5Ventilation Tub 11 Flushing Supply Dispenser
6Electrical Power Input
Figure 5
CFD524N
CFD525N
CFD529N
CFD524N
CFD525N
1202 mm (47.32 in.)
1176 mm (46.3 in.)
66 mm
(2.6 in.)
CFD529N
34 mm
(1.34 in.)
267 mm (10.49 in.)
893 mm (35.16 in.)
88 mm
(3.47 in.)
332 mm (13.05 in.)
530 mm (20.87 in.)
200 mm
(7.87 in.)
70 mm (2.76 in.)
843 mm (33.17 in.)
376 mm
(14.78 in.)
11
60 mm
(2.36 in.)
935 mm (36.81 in.)
968 mm (38.11 in.)
202 mm (7.93 in.) 1
3
2
4
7
910
6
648 mm (25.51 in.) 36.5 mm
(1.44 in.)
35 POUND CAPACITY MODELS WITH A OR M IN THE 8TH POSITION (E.G.. *X35PVXM6)
780 mm (30.71 in.)
66 mm
(2.6 in.)
34 mm
(1.34 in.)
220 mm
(8.66 in.)
36.5 mm
(1.44 in.) 765 mm (30.12 in.)
860 mm (33.86 in.)
916 mm (36.06 in.)
82 mm
(3.23 in.)
105 mm (4.13 in.)
109.2 mm
(4.3 in.)
85
35 mm (1.38 in.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
9001014
16
1Fill and Supply Ventilation 6Connection Clamps
2External Liquid Supply Inlets 7Ventilation Tub
3Cold Water Inlet (Required) 8Electrical Power Inputs
4Cold Water Inlet (Required) 9Drain Valve
5Hot Water Inlet (Required) 10 Steam Connection Input (Optional)
Figure 6
CFD539N
CFD539N
CFD537N
CFD538N
1376 mm (54.15 in.)
1348 mm (53.07 in.)
472 mm (18.58 in.)
680 mm (26.77 in.)
50 mm
(1.97 in.) 780 mm (30.71 in.)
50 mm
(1.97 in.)
1141 mm (44.9 in.)
1108 mm (43.6 in.)
704 mm (27.7 in.)
185 mm (7.29 in.)
170 mm (6.69 in.)
3
2
1
10
765 mm (30.12 in.)
1066 mm (41.95 in.)
9
4
86.5 mm
(3.41 in.)
220 mm
(8.66 in.)
7
CFD537N
34 mm
(1.34 in.)
1015 mm (39.96 in.)
35 mm
(1.38 in.)
332 mm (13.05 in.)
267 mm (10.49 in.)
202 mm (7.93 in.)
109 mm
(4.3 in.)
CFD538N
6
5
40 MODEL
88 mm
(3.47 in.)
34 mm
(1.34 in.) 833 mm (32.8 in.)
853 mm (33.58 in.)
105 mm (4.13 in.)
8

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
17
9001014
Figure 7
1Fill and Supply Ventilation 7Electrical Power Input
2Cold Water Inlet (Required) 8External Supply Signal Input
3Hot Water Inlet (Required) 9Drain Outlet
4Cold Water Inlet (Required) 10 Reuse Drain Outlet (Optional)
5Flushing Supply Dispenser 11 Steam Connection Input (Optional)
6External Liquid Supply Inlets
CFD509N
CFS470N
&)61
CFD509N
1544 mm
(60.8 in.)
859 mm
(33.8 in.)
900 mm
(35.43 in.)
1499 mm
(59 in.)
CFS470N
1016 mm
(40 in.)
CFS471N
55 MODEL
158 mm
(6.2 in.)
254 mm
(10 in.)
91 mm
(13.6 in.)
99 mm
(3.9 in.)
191 mm
(7.5 in.)
165 mm
(6.5 in.)
104 mm
(4.1 in.)
1389 mm
(54.7 in.)
721 mm
(28.4 in.)
36 mm
(1.4 in.)
1
34
9
11
559 mm
(22 in.)
5
2
104 mm
(4.1 in.)
165 mm
(6.5 in.)
1283 mm
(50.5 in.)
87
10
102 mm
(4 in.)
6
252 mm
(9.9 in.)
740 mm
(29.13 in.) 830 mm
(32.68 in.)

9001014
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Basic Installation/Operation
Figure 8
1Fill and Supply Ventilation 7Electrical Power Input
2Cold Water Inlet (Required) 8External Supply Signal Input
3Hot Water Inlet (Required) 9Drain Outlet
4Cold Water Inlet (Required) 10 Reuse Drain Outlet (Optional)
5Flushing Supply Dispenser 11 Steam Connection Input (Optional)
6External Liquid Supply Inlets
&)61
CFD510N
CFS473N
CFD510N
1575 mm
(62 in.)
853 mm
(33.6 in.) 1532 mm
(60.3 in.)
1168 mm
(46 in.)
CFS473N
CFS474N
75 MODEL
229 mm
(9 in.)
488 mm
(19.2 in.)
94 mm
(3.7 in.)
175 mm
(6.9 in.)
170 mm
(6.7 in.)
104 mm
(4.1 in.)
1407 mm
(55.4 in.)
582 mm
(22.9 in.)
43 mm
(1.7 in.)
234
9
11
5
102 mm
(4 in.)
559 mm
(22 in.)
1060 mm
(41.73 in.)
1
7
8
104 mm
(4.1 in.)
10
246 mm
(9.7 in.)
6
1315 mm
(51.75 in.)
870 mm
(34.25 in.)
960 mm
(37.8 in.)
366 mm
(14.4 in.)
