Alliance Laundry Systems A Series Owner's manual

Programming
www.comlaundry.com
Washer-Extractors
Cabinet Hardmount
A-Series Microcomputer
Prep for Coin, MDC Card Reader
and Central Remote Pay
2 Speed and Variable-Speed
Refer to Page 7 for Model Identification
CHM1759C
DOMESTIC MODELS
INTERNATIONAL MODELS
CHM1759C
Part No. F232197R4
July 2008
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
F232197 1
© Copyright 2008, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
Table of
Contents
Safety Information.............................................................................. 3
Explanation of Safety Messages........................................................... 3
Important Safety Instructions ............................................................... 3
Safety Decals ........................................................................................ 5
Operator Safety..................................................................................... 6
Introduction......................................................................................... 7
Model Identification ............................................................................. 7

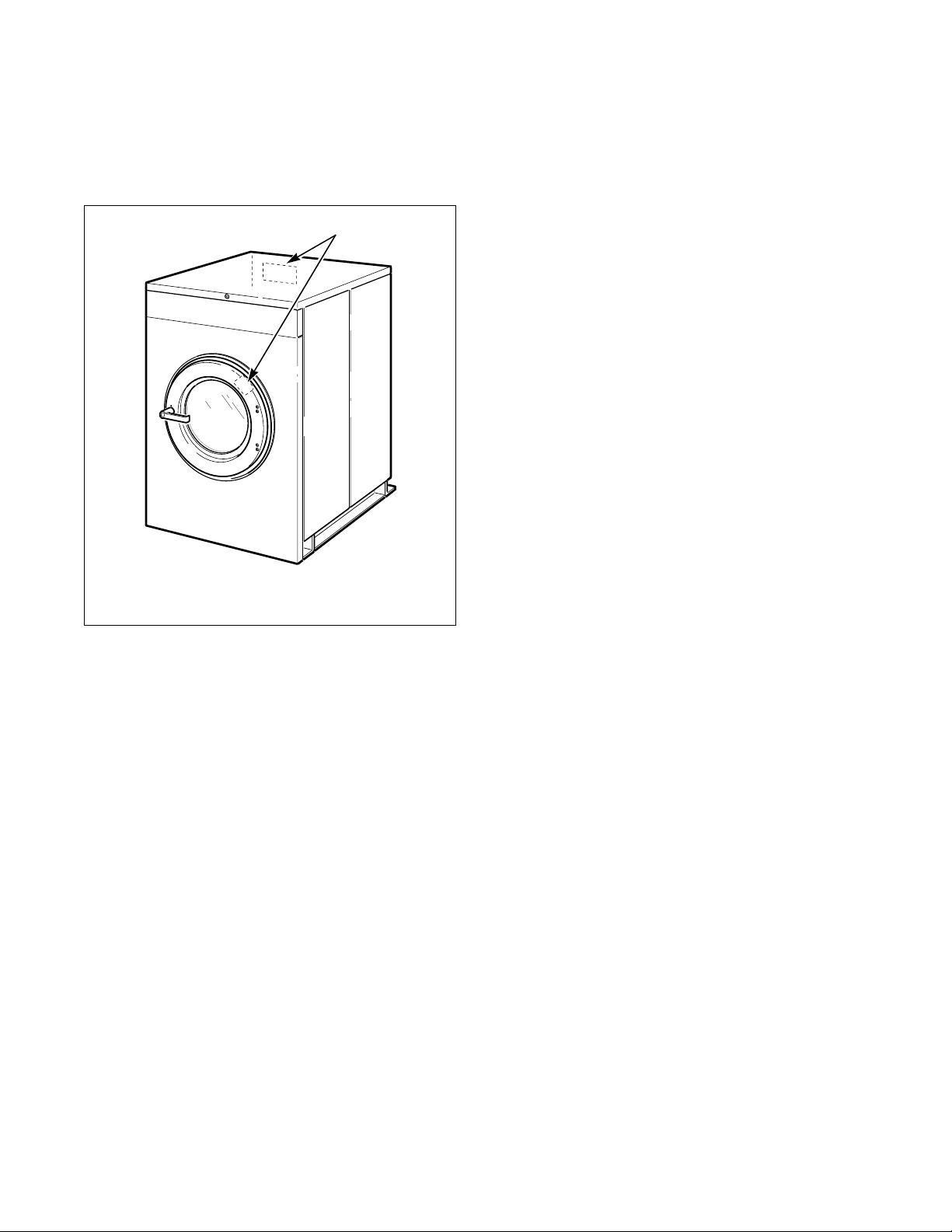

Nameplate Location.............................................................................. 8
Replacement Parts ................................................................................ 8
Customer Service.................................................................................. 8
Electronic Control Unit......................................................................... 9
Control Output Fuse Board................................................................... 9
Harnessing........................................................................................ 9
Communications................................................................................... 9
Central Pay System .......................................................................... 9
Third Party Card Reader .................................................................. 9
Download Device ................................................................................. 9
Programming ...................................................................................... 11
Entering Program Mode ....................................................................... 11
Determining Firmware ID Code........................................................... 11
Setup Mode for Coin and Central Remote Pay Models ....................... 12
Setup Mode for Card Reader Models ................................................... 15
Audit Mode (For Card Reader Models With Firmware
ID Code“A2CM” and “AVCM”)....................................................... 16
Audit Mode (For Coin or Central Pay Models With Firmware
ID Code “A2d9”, “A2di” and “Avd9”).............................................. 18
Audit Mode (For Earlier Coin and Central Pay Models) ..................... 20
Special Promotional Pricing Mode....................................................... 22
Rapid Advance (For Coin and Central Remote Pay Models
With Firmware ID Code “A2d9”, A2di” and “Avd9”)...................... 23
Enabling Rapid Advance ................................................................. 23
Programming Cycle Segments ............................................................. 23
Control Panel ........................................................................................ 24
Cycle Step Options ............................................................................... 26
Vend Step......................................................................................... 26
Agitation Cycle Step ........................................................................ 26
Wash 1 (Extra Wash) – Wash 4 Cycle Steps (Displayed as
USH1 – USH4)............................................................................... 26
Rinse 1 – Rinse 4 (Rinse 3 is Extra Rinse on Domestic Models)
Cycle Steps (Displayed as rIn1 – rIn4) .......................................... 27
Cycle Step Options ............................................................................... 28
Vend Step......................................................................................... 28
Agitation Cycle Step ........................................................................ 28
Wash 1 (Extra Wash) – Wash 4 Cycle Steps (Displayed as
USH1 – USH4)............................................................................... 28
Rinse 1 – Rinse 4 (Rinse 3 is Extra Rinse on Domestic Models)
Cycle Steps (Displayed as rIn1 – rIn4) .......................................... 29

2F232197
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
To Edit an Entire Wash Cycle Formula................................................ 30
Vend Amount................................................................................... 30
Agitation for the Cycle..................................................................... 30
Wash 1 – Wash 4 ............................................................................. 31
Rinse 1 – Rinse 4 ............................................................................. 32
Abnormal Conditions............................................................................ 33
Door Will Not Lock ......................................................................... 33
Door Will Not Unlock ..................................................................... 33
Door Open During Operation .......................................................... 33
Excessive Fill Time.......................................................................... 33
Drain Error (For Coin and Central Remote Pay Models with
Firmware ID Code “A2d9”, “A2di”and “Avd9”) .......................... 33
Out-of-Balance (Variable-Speed Models Only) .............................. 33
Clogged Filter (Inverter Drive Models Only).................................. 34
On Board Battery Problem............................................................... 34
Temperature Probe Malfunction ...................................................... 34
Time Countdown Stops During Cycle............................................. 34
Test Cycle ............................................................................................. 34
Permanent Factory Diagnostic Test Cycle....................................... 35
Cycle Charts.......................................................................................... 37
Default Washer-Extractor Settings ....................................................... 41
Domestic Default Settings ............................................................... 41
International Default Settings .......................................................... 41

3
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer, and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
IMPORTANT: The word “NOTE” is used to
communicate installation, operation, maintenance
or servicing information that is important but not
hazard related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION MANUAL for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, kerosene, waxes, cooking oils, dry-
cleaning solvents, or other flammable or
explosive substances as they give off vapors that
could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable; do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions: W023
WARNING

Safety Information
F232197
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. Never wash machine parts or automotove parts in
the machine. This could result in serious damage
to the basket.
15. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
16. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
17. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
18. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
19. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
20. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
21. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
22. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
23. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
24. Always follow the fabric care instructions
supplied by the textile manufacturer.
25. Never operate the washer with any guards and/or
panels removed.
26. DO NOT operate the washer with missing or
broken parts.
27. DO NOT bypass any safety devices.
28. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNINGS and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

Safety Information
5
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
IMPORTANT: Ensure that the recommended
clearances for inspection and maintenance
are provided. Never allow the inspection and
maintenance space to be blocked.
Safety Decals
Safety decals appear at crucial locations on the
machine. Failure to maintain legible safety decals
could result in injury to the operator or service
technician.
To provide personal safety and keep the machine in
proper working order, follow all maintenance and
safety procedures presented in this manual. If
questions regarding safety arise, contact the
manufacturer immediately.
Use manufacturer-authorized spare parts to avoid
safety hazards.
This machine must be installed, adjusted,
and serviced by qualified electrical
maintenance personnel familiar with the
construction and operation of this type of
machinery. They must also be familiar
with the potential hazards involved.
Failure to observe this warning may result
in personal injury and/or equipment
damage, and may void the warranty. SW004
WARNING
Install the machine on a level floor of
sufficient strength. Failure to do so may
result in conditions which can produce
serious injury, death and/or property
damage. W703
WARNING
Be careful around the open door,
particularly when loading from a level
below the door. Impact with door edges
can cause personal injury. SW025
CAUTION
Never touch internal or external steam
pipes, connections, or components.
These surfaces can be extremely hot and
will cause severe burns. The steam must
be turned off and the pipe, connections,
and components allowed to cool before
the pipe can be touched. SW014
WARNING

Safety Information
F232197
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operator Safety
To ensure the safety of machine operators, the
following maintenance checks must be performed
daily:
1. Prior to operating the machine, verify that all
warning signs are present and legible. Missing or
illegible signs must be replaced immediately.
Make certain that spares are available.
2. Check door interlock before starting operation of
the machine:
a. Attempt to start the machine with the door
open. The machine should not start with the
door open.
b. Close the door without locking it and attempt
to start the machine. The machine should not
start with the door unlocked.
c. Close and lock the door and start a cycle.
Attempt to open the door while the cycle is in
progress. The door should not open.
If the door lock and interlock are not functioning
properly, call a service technician.
3. Do not attempt to operate the machine if any of
the following conditions are present:
a. The door does not remain securely locked
during the entire cycle.
b. Excessively high water level is evident.
c. Machine is not connected to a properly
grounded circuit.
Do not bypass any safety devices in the machine.
NEVER insert hands or objects into
basket until it has completely stopped.
Doing so could result in serious injury.
SW012
WARNING
Never operate the machine with a
bypassed or disconnected balance
system. Operating the machine with
severe out-of-balance loads could result
in personal injury and serious equipment
damage. SW039
WARNING

7
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Introduction
Model Identification
Information in this manual is applicable to these models:
HC20AC2 HC25AY2 HC40AL2 HC60AX2 SC20AC2 SC25AY2 SC40AL2 SC60AX2
HC20ACV HC30AC2 HC40AX2 HC60AXF SC20ACV SC30AC2 SC40AX2 SC60AXF
HC20AL2 HC30ACV HC40AY2 HC60AY2 SC20AL2 SC30ACV SC40AY2 SC60AY2
HC20AX2 HC30AL2 HC40AYV HC60AYF SC20AX2 SC30AL2 SC40AYV SC60AYF
HC20AY2 HC30AX2 HC60AC2 HC60AYV SC20AY2 SC30AX2 SC60AC2 SC60AYV
HC20AYV HC30AY2 HC60ACF HC80ACV SC20AYV SC30AY2 SC60ACF SC80ACV
HC25AC2 HC30AYV HC60ACV HC80ALV SC25AC2 SC30AYV SC60ACV SC80ALV
HC25AL2 HC40AC2 HC60AL2 HC80AXV SC25AL2 SC40AC2 SC60AL2 SC80AXV
HC25AX2 HC40ACV HC60ALF HC80AYV SC25AX2 SC40ACV SC60ALF SC80AYV

Introduction
F232197
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Nameplate Location
The nameplate is located at the rear of the machine and
inside door. Always provide the machine’s serial
number and model number when ordering parts or
when seeking technical assistance.
Figure 1
Replacement Parts
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems at [phone]
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call [phone]
Ripon, Wisconsin.
CHM167R
1Nameplate
CHM167R
1

Introduction
9
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electronic Control Unit
The “A” electronic control is composed of the
electronic control unit and the control fuse board with
wiring harness. Only an authorized person should look
inside the control compartment. First TURN OFF
POWER, open lid and remove any cover present.
Make sure door lock circuit has fully discharged. The
door unlock capacitor can retain high electrical charge,
even when the machine’s electrical inputs are
disconnected, until it has discharged. Some machines
are equipped with an orange or red indicator light
facing upward in the control compartment. If this is
on, wait until light goes off (indicating when high
voltage in the door lock circuit has discharged). The
components are described below.
This portion of the control contains the “intelligence” –
the micro-controller and the miscellaneous components
on the printed circuit (PC) board. The board has a
metal cover, which MUST be in place at all times
during machine operation. Operation of the machine
without this cover installed will void the warranty.
The control unit monitors and responds to input, gives
information about the status of the washer and
monitors and responds to inputs from the user
interface (keypad). The control provides signals to the
control output unit, which in turn operates the
components that control the machine functions. This is
located behind the machine control panel.
Control Output Fuse Board
This portion of the control contains the power supply
for the control unit, and also the switching devices
which power the components in the machine, all of
which are on the output PC board. The switching
devices are controlled by the control unit, and are solid
state.
Harnessing
Wiring harnesses are modular – harnesses common to
various configurations are similar, while those specific
to a certain configuration can be added. There are
harnesses for inputs to the control unit, for outputs
from the control power/output unit to the machine
components, and for the main incoming power to the
control power/output unit.
Communications
Central Pay System
(Central Pay System Models Only)
The models are usually designated by the “Prep for
Central Pay” option. The model number will have an
“L” in the 6th digit (i.e. *C40AL2OU6001). Refer to
Nameplate Location. The control will accept a start
pulse from the central pay system and will give a
“machine available” signal.
* Denotes Brand
For detailed information on the Central Pay System
Communications, refer to the manufacturer.
IMPORTANT: For central pay systems that
provide a start pulse and that accept a “machine
available” signal, the A-Series Microcomputer
MUST be set up (prompted) for one vend price (“1
Pr”) and “CArd” in SETUP Mode. The vend
setting must be set equal to the card vend.
Third Party Card Reader
(Card Reader Models Only)
The models are usually designated by the “Prep for
Card Reader” option. The model number will have a
“Y” in the 6th digit (i.e. *C40AY2OU6001). Refer to
Nameplate Location. The control will accept
communications with a Card Reader in order to
perform vending transactions when a card is inserted
to pay for cycles.
* Denotes Brand
For detailed information on the Card Reader
Communications, refer to the manufacturer.
IMPORTANT: For card systems that provide a
start pulse and that accept a “machine busy”
signal, the A-Series Microcomputer MUST be set
up (prompted) for one vend price (“1 Pr”) and
“CArd” in SETUP Mode. The vend setting must be
set equal to the card vend.
Download Device
A download device, available at an extra cost, is a
portable device that allows the user to pre-program
customized cycle formulas, vends, special promotional
pricing, etc., for all A-Series Microcomputer washer-
extractors in a facility. The information is pre-
programmed into the device, the device is connected to
the washer-extractors needing updates, and the pre-
programmed information is downloaded into the
A-Series Microcomputer on the washer-extractor.

Introduction
F232197
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
* Denotes Brand
Figure 2
Model Number Familiarization Guide
Sample Model Number: *C40AY2OU60001
*C Model Number Prefix
40 Washer-Extractor Capacity (pounds dry weight of laundry)
AType of Electrical Control
YActuation (Y = Prep for Card Reader)
2Washer-Extractor Speed Capability (2 = 2 speed)
OElectrical Characteristics
U6 Design Series
0001 Option Identification (varies from machine to machine)
CHM2589N
CHM589N
*C40AY2OU60001
00000000000
500000
208 – 240
60 3 3
0
18
3
60
N/A N/A
470
7
EXAMPLE OF NAMEPLATE

11
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Programming
Entering Program Mode
NOTE: The machines are factory programmed
with basic cycles to make the units operational
without programming at installation.
1. Open machine lid.
2. Locate Program/Run switch on the computer
board. This is accessed through a cutout in the
metal control unit cover. This switch protrudes
from the rear of the electronic control unit cover.
3. Flip switch to the left (as seen from front of
machine) to enter PROGRAM Mode.
4. Display will show “tSFL” or temperature
(depending on version of the control).
Determining Firmware ID Code
(Coin and Central Remote Pay Models)
1. Turn on the main power source (circuit breaker or
cut-off switch on wall).
2. Display will show Firmware ID code (i.e.,
“A2d9”, “A2di” and “Avd9” etc…).
3. Record Firmware ID Code for future reference.

Programming
F232197
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Setup Mode for Coin and Central
Remote Pay Models
NOTE: In SETUP Mode, the following washer-
extractor options can be configured.
† Setting does not change length of cycle.
NOTE: Enter SETUP Mode while in PROGRAM
Mode.
Follow the steps below to configure washer-extractor
options.
1. Verify that display shows “tSFL” or temperature
in PROGRAM Mode.
2. Press Rugs/Blanket Cold (Domestic Models)/
Gentle 30°C (International Models) (*) keypad.
3. Display shows model number. If incorrect model
is displayed, press Extra Wash (∧) keypad until
correct model is displayed.
4. Press START keypad when correct model is
displayed.
NOTE: When A-Series Microcomputer is first
used, the model selection must be correct to ensure
proper machine operation and to ensure the
download device can identify the model correctly. If
a replacement control is installed, the washer-
extractor will not run if the Model option is not set
correctly.
5. Display shows “nOd1”for one second, “Add” for
one second, and then the vend price. The vend
price displayed is for additional vend amount
when Extra Wash is selected by the user. Press
the Extra Wash (∧) keypad to increase the vend
price amount. Press Extra Rinse/Reduced Spin
(∨) to decrease the vend price amount for the
Extra Wash cycle.
6. Press START keypad when desired vend price
amount is displayed.
Display Option Description
Model is displayed Model (This option must be set correctly for the proper operation of the washer-extractor options.
Replacement controls will not operate until the model option is set correctly.)
nOd1 Set additional vend amount for Extra Wash
nOd2 Set additional vend amount for Extra Rinse (Domestic Models) or Reduced Spin (International
Models)
FAr or CEL Degrees (Fahrenheit or Celsius)
HEAt or nOHt Heat/No Heat
nEFL or EFIL Extra fill valve/No extra fill valve
1 Pr or 6 Pr One global vend price or six vend prices (1 vend price per cycle)
COIn or CArd Coin or Card/Central Pay (Card and Central Pay only available if global vend price [1PR] is selected)
ASu or nASu Coin box audit switch enabled/disabled (when enabled, auditing before or during a cycle is allowed)
bEEP or nobP Beep enabled or disabled during supply 2 (bleach) and at end of cycle
ptIn† or EtinRemaining time in a cycle will display without fills and drains or will display with estimated fill and
drain times included
Con1 and dEno Coin 1 Denomination
Con2 and dEno Coin 2 Denomination (Dual coin drop only)
Strt and Ant One global vend price amount (1PR must be selected)
SPEC, Strt, and Ant Time of Day Special Promotional Pricing vend amount (global vend price must be enabled)
Sun, nOn, etc. Set current day (Sunday, Monday, etc.)
HHnn Set current military time (00:00-23:59)
Tab l e 1

Programming
13
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
7. Display shows “nOd2” for one second, “Add” for
one second, and then the vend price. The vend
price displayed is for additional vend amount
when Extra Rinse (Domestic Models) or
Reduced Spin (International Models) is selected
by the user. Press the Extra Wash (∧) keypad to
increase the vend price amount. Press Extra
Rinse/Reduced Spin (∨) keypad to decrease the
vend price amount for the Extra Rinse/Reduced
Spin cycle.
8. Press START keypad when desired vend price
amount is displayed.
9. Displays shows “FAr” for degrees displayed in
Fahrenheit or “CEL” for degrees displayed in
Celsius. Press Extra Wash (∧) keypad to select
the degree display.
10. Press START keypad when desired degree
display is displayed.
11. Display shows “HEAt” if heat is enabled or
“nOHt” if heat is disabled. Press Extra Wash (∧)
keypad to select between heat and no heat.
IMPORTANT: DO NOT select “HEAt” unless the
machine is equipped with heating elements or
steam heat.
12. Press START keypad when desired heat setting is
displayed.
13. Display shows “nEFL” for no extra fill valve or
“EFIL” if the machine is equipped with an
optional extra fill valve. Press Extra Wash (∧)
keypad to select correct option.
14. Press START keypad when correct fill valve
option is displayed.
15. Display shows “1 Pr” for one global vend price
for all cycles or “6 Pr” to give each cycle a
unique vend price. Press Extra Wash (∧) keypad
to change type of vend price.
NOTE: Always set “1 Pr” for START pulse, card
reader or central pay system.
16. Press START keypad when desired type of vend
price is displayed.
17. If “1 Pr” is selected, “COIn” or “CArd” (for card
and central pay systems) is displayed. Press Extra
Wash (∧) keypad to change pay source.
NOTE: If “6 Pr” was selected in step 15, this option
is not available.
18. Press START keypad when desired pay source is
displayed.
19. If display shows “bEEP” beeper is enabled to
beep during Add Bleach (supply 2) and at cycle
end. If display shows “nobP”, beeper is NOT
enabled to beep during Add Bleach (supply 2)
and cycle end.
Press (∧) or (∨) keypad to change “bEEP”/
“nobP” selection.
20. Press START keypad when “bEEP”/“nobP”
selection is set.
NOTE: “bEEP”/“nobP” does NOT affect the beep
if alarms occur when a keypad is pressed or when a
coin is added (coin meter models).
21. Display shows “ASU” for Audit Switch enabled
and “nASU” for Audit Switch disabled. If the
Audit Switch is enabled (coin box should be
present and an audit switch installed), the owner
is able to open the coin box to audit coin, cycle
and vend amounts while machine is in use.
NOTE: If audit switch is not present, “nASU” must
be selected.
22. Press START keypad when desired Audit Switch
option is displayed.
23. “PtIn” or “EtIn” will display. “PtIn” means the
control will display remaining time in a cycle
minus fills and drains. “EtIn” means the control
will display an estimated remaining time with
estimated fill and drain times included. Press the
(∧) or (∨) keypad to change “PtIn”/”EtIn”
selection.
24. Press START (enter) keypad to continue to the
next step.
25. Display shows “Con1” for one second, “dEno”
for one second and then an amount. The amount
displayed is the value of the currency for a single
coin drop or the first of the two currency amounts
for a dual coin drop.
For example, if machine has single coin US
quarter coin meter, the value would be set to
“25”. If the machine has a dual coin 100/600 yen
coin meter, the value would be set at “100” for
coin 1.
Press Extra Wash (∧) keypad to increase the coin
value. Press Extra Rinse/Reduced Spin (∨) to
decrease the coin value.
26. Press START keypad when desired coin value is
displayed.

Programming
F232197
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
27. If “CArd” was selected in step 17, display shows
“Strt” for one second, “PULS” for one second
and then an amount. The amount displayed is the
value of the vend deducted from each card start
pulse.
For example, if the start/pulse option is set at 300
and the vend is set at 300, the vend will be
satisfied after one start pulse.
If “COIn” was selected in step 17 or if “6 Pr” was
selected in step 15, display shows “COn2” for
one second, “dEno” for one second and then an
amount. The amount displayed is the value of the
currency for the second of the two currency
amounts for a dual coin drop.
For example, if the machine has a dual coin 100/
600 yen coin meter, the value would be set at
“600” for coin 2.
Press Extra Wash (∧) keypad to increase the coin/
pulse value. Press Extra Rinse/Reduced Spin (∨)
to decrease the coin/pulse value.
28. Press START keypad when desired coin value is
displayed.
29. If “1 Pr” was selected in step 15, the display
shows “Strt” for one second, “Ant” for one
second and then an amount. The amount
displayed is the vend price required to start any
cycle when the Special Promotional Pricing
option is disabled (refer to Special Promotional
Pricing Mode section for additional
information). Press the Extra Wash (∧) keypad to
increase the vend price. Press the Extra Rinse/
Reduced Spin (∨) keypad to decrease the vend
price.
NOTE: If “6 Pr” was selected in step 15, this option
is not available.
30. Press START keypad when desired vend price is
displayed.
31. If “1 Pr” was selected in step 15 and if the
Special Promotional Pricing option is enabled
(refer to Special Promotional Pricing Mode for
additional information), the display shows
“SPEC” for one second, “Strt” for one second,
“Ant” for one second and then an amount. The
amount displayed is the vend price required to
start any cycle when the Special Promotional
Pricing is enabled. Press Extra Wash (∧) keypad
to increase the vend price. Press Extra Rinse/
Reduced Spin (∨) to decrease the vend price.
NOTE: If “1 Pr” was selected in step 15 and Special
Promotional Pricing is disabled, this option is not
available.
32. Press START keypad when desired coin value is
displayed.
33. Display shows the current day of the week
(“Sun”, “nOn”, etc.). If the day is not correct,
press the Extra Wash (∧) keypad to change to the
current day.
34. Press START keypad when current day is
displayed.
35. Display shows “HHnn” with “nn” flashing and
representing the minutes of the current time (00-
59). Press the Extra Wash (∧) keypad to increase
the minutes. Press Extra Rinse/Reduced Spin (∨)
keypad to decrease the minutes.
36. Press START keypad when correct time in
minutes is displayed.
37. Display shows “HHXX” (XX will be minutes
selected in step 33) with “HH” flashing and
representing the hour, in military time (00-23).
Press Extra Wash (∧) keypad to increase the hour.
Press Extra Rinse/Reduced Spin (∨) keypad to
decrease the hour.
NOTE: Day and time are preset at the factory.
However, the time may need to be adjusted for
different time zones or if the on board lithium
battery has been replaced. The download device
also sets the current time. Therefore, it is important
to be certain the download device current time
setting is also correct.
38. Press START keypad when correct hour is
displayed. Control will revert back to
PROGRAM Mode.

Programming
15
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Setup Mode for Card Reader Models
NOTE: In SETUP Mode, the following washer-
extractor options can be configured.
NOTE: Enter SETUP Mode while in PROGRAM
Mode.
Follow the steps below to configure washer-extractor
options.
1. Verify that display shows “tSFL” or temperature
in PROGRAM Mode.
2. Press Rugs/Blanket Cold (Domestic Models)/
Gentle 30°C (International Models) (*) keypad.
3. Display shows model number. If incorrect model
is displayed, press Extra Wash (∧) keypad until
correct model is displayed.
4. Press START keypad when correct model is
displayed.
NOTE: When A-Series Microcomputer is first
used, the model selection must be correct to ensure
proper machine operation and to ensure the
download device can identify the model correctly. If
a replacement control is installed, the washer-
extractor will not run if the Model option is not set
correctly.
5. Vend price is not used with MDC card capable
machine. Press START keypad to continue.
6. Displays shows “FAr” for degrees displayed in
Fahrenheit or “CEL” for degrees displayed in
Celsius. Press Extra Wash (∧) keypad to select
the degree display.
7. Press START keypad when desired degree
display is displayed.
8. Display shows “HEAt” if heat is enabled or
“nOHt” if heat is disabled. Press Extra Wash (∧)
keypad to select between heat and no heat.
IMPORTANT: DO NOT select “HEAt” unless the
machine is equipped with heating elements or
steam heat.
9. Press START keypad when desired heat setting is
displayed.
10. Display shows “nEFL” for No Extra Fill Valve or
“EFIL” if the machine is equipped with an
Optional Extra Fill Valve. Press Extra Wash (∧)
keypad to select correct option.
11. Press START keypad when correct Fill Valve
option is displayed.
Displays “bEEp” if control is programmed to
sound at cycle end and during “add bleach”
(supply 2) or if “nobP” is disabled for these
times. Press ∧or ∨to change selection.
12. Press START keypad when desired pay source is
displayed.
13. Audit switches are not included on MDC models.
“nASU” should be selected.
Display Option Description
Model is displayed Model (This option must be set correctly for the proper operation of the washer-extractor options.
Replacement controls will not operate until the model option is set correctly.)
FAr or CEL Degrees (Fahrenheit or Celsius)
HEAt or nOHt Heat/No Heat
nEFL or EFIL Extra fill valve/No extra fill valve
bEEp/nobP Beeper enabled (bEEp) or disabled (nobP) at cycle end or add bleach.
Con1 and dEno Coin 1 Denomination (not used)
Con2 and dEno Coin 2 Denomination (not used)
Sun, nOn, etc. Set current day (Sunday, Monday, etc.)
HHnn Set current military time (00:00-23:59)
Tab l e 2

Programming
F232197
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
14. Continue pressing START keypad until display
shows day of week. If the day is not correct, press
the Extra Wash (∧) keypad to change to the
current day.
15. Press START keypad when current day is
displayed.
16. Display shows “HHnn” with “nn” flashing and
representing the minutes of the current time (00-
59). Press the Extra Wash (∧) keypad to increase
the minutes. Press Extra Rinse/Reduced Spin (∨)
keypad to decrease the minutes.
17. Press START keypad when correct time in
minutes is displayed.
18. Display shows “HHXX” (XX will be minutes
selected) with “HH” flashing and representing
the hour, in military time (00-23). Press Extra
Wash (∧) keypad to increase the hour. Press Extra
Rinse/Reduced Spin (∨) keypad to decrease the
hour.
NOTE: Day and time are preset at the factory.
However, the time may need to be adjusted for
different time zones or if the on board lithium
battery has been replaced. The download device
also sets the current time. Therefore, it is important
to be certain the download device current time
setting is also correct.
19. Press START keypad when correct hour is
displayed. Control will revert back to
PROGRAM Mode.
Audit Mode (For Card Reader
Models With Firmware ID Code
“A2CM” and “AVCM”)
Audit information can be accessed in PROGRAM
Mode by performing the steps below.
1. Display shows “tSFL” or temperature. Press the
START keypad until “CYC” is displayed (C1 and
C2 are not used for MDC card reader machine).
2. Display shows “CYC” for Cycle Counter. Press
START keypad.
3. Display shows number of all completed cycles
(interrupted cycles are not counted). Press
START keypad twice (“SP” is not used for MDC
card reader).
4. Display shows the number of all completed
cycles (interrupted cycles are not counted). Press
START keypad.
5. Display shows “Ant” for the Total Accumulated
Vend Amount (total revenue from all cycles
combined). Press START keypad.
6. Display shows either one or two values. When
one value appears, the total amount displayed is
9999 or less ($99.99 or less). When two values
appear (amount is greater than $99.99), the first
value will display for approximately two seconds
to show the first part of the total and will be
followed by a second value to show the second
part of the total.
For example, if display shows “14” as first value
and “3550” as second value, the total collected is
$1435.50 for all combined cycles since count was
last reset.
7. Press START keypad.

Programming
17
F232197 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
8. Display shows “VEnd” for one second and
“StAt” for one second to show Vend Statistics.
The owner can examine a breakdown, by cycle,
of the total accumulated vend. The total of all
individual cycle vend breakdowns will equal the
amount shown in step 5.
Press desired cycle keypad, with an Extra Wash
option or Extra Rinse/Reduced Spin option
keypad if desired, to see the actual total revenue
for the cycle. There are 24 different cycle
combinations that are available.
For example, on Domestic Models, the Normal/
Hot cycle could have 4 combinations as shown
below:
●Normal/Hot cycle
●Normal/Hot cycle with Extra Wash option
●Normal/Hot cycle with Extra Rinse option
●Normal/Hot cycle with Extra Wash and Extra
Rinse options
Display shows either one or two values. When
one value appears, the total amount displayed is
9999 or less ($99.99 or less). When two values
appear (amount is greater than $99.99), the first
value will display for approximately two seconds
to show the first part of the total and will be
followed by a second value to show the second
part of the total.
For example, if display shows “01” as first value
and “1250” as second value, the total collected
for that cycle is $112.50.
To check revenue for other cycle combinations,
press the corresponding cycle/option keypads.
Press the START keypad when all desired Vend
Statistics have been displayed.
NOTE: When not in PROGRAM Mode, if Audit
Switch is present, coin box is open and START
keypad is pressed, the display shows the audit
selections (without information displayed) with
each press of the START keypad (Vend Statistics
[step 12] are only available in PROGRAM Mode).
To exit AUDIT Mode, the coin box must be closed.

Programming
F232197
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Audit Mode (For Coin or Central Pay
Models With Firmware ID Code
“A2d9”, “A2di” and “Avd9”)
Audit information can be accessed in PROGRAM
Mode by performing the steps below.
1. Display shows “tSFL” or temperature. Press the
START keypad.
2. Display shows “Erdn” (indicates Drain Error
count).
3. Press START (enter) keypad. Display shows a
number (2 or 3 digits) showing how many drain
errors have occurred. This number can range
from ‘00’ to ‘255’, and cannot be set to zero.
4. Press START (enter) keypad. Display show
“ErFL” (indicates Fill Error count).
5. Press START (enter) keypad. Display shows a
number (2 or 3 digits showing how many fill
errors have occurred. This number can range
from ‘00’ to ‘255’, and cannot be set to zero.
6. Display shows “C1” (indicates coin box of single
coin drop machine and the first location of the
coin box for dual coin drop machines). Press
START keypad.
7. For Coin Models, display shows amount of coins
in coin box of single coin drop machine and first
location of coin box for dual coin drop machines.
For example, if 319 coins have been entered into
coin box, the display will show “319”.
Press START keypad.
8. Display shows “00” for single coin drop
machines or “C2” for dual coin drop machines to
show the second location of the coin box. Press
START keypad.
9. For Coin Models, display shows amount of coins
in second location of coin box for dual coin drop
machines. Press START keypad.
10. Display shows “CYC” for Cycle Counter. Press
START keypad.
11. Display shows number of all completed cycles
(interrupted cycles are not counted). Press
START keypad.
12. Display shows “SP” for Start Pulses received
from a single vend external pay system (central
pay system). Press START keypad.
NOTE: This option is not available if “6 Pr” was
selected in step 15 of SETUP Mode or “COIn” was
selected in step 17 of SETUP Mode.
13. Display shows the number of all completed
cycles (interrupted cycles are not counted). Press
START keypad.
14. Display shows “Ant” for the Total Accumulated
Vend Amount (total revenue from all cycles
combined). Press START keypad.
15. Display shows either one or two values. When
one value appears, the total amount displayed is
9999 or less ($99.99 or less). When two values
appear (amount is greater than $99.99), the first
value will display for approximately two seconds
to show the first part of the total and will be
followed by a second value to show the second
part of the total.
For example, if display shows “14” as first value
and “3550” as second value, the total collected is
$1435.50 for all combined cycles since count was
last reset.
16. Press START keypad.
