Alliance Laundry Systems UX55PVXF6 Owner's manual

Programming
www.comlaundry.com
Washer-Extractors
Cabinet Freestanding
WE-8 Computer
Part No. 9002101R2
July 2011
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

19002101
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover
all possible conditions and situations that may occur. It must be understood that common sense, caution,
and carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by
the person(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not
understand.
Failure to install, maintain, and/or operate this machine according to the manufacturer's
instructions may result in conditions which can produce bodily injury and/or property
damage. W030
WARNING

© Copyright 2011, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002101
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Programming ...................................................................................... 4
Setup of the Machine............................................................................ 4
Version of Control................................................................................ 7
Language on Display
(Version 1.15 and later ONLY)...................................................... 7
Setup of the Chemical Hold Feature
(Version 1.11 and later ONLY) ....................................................... 7
Program Storing Mode ......................................................................... 7
Explanation of the Step Functions........................................................ 8
Example: Making a New Program ....................................................... 14
Edit a Cycle........................................................................................... 18
Change a Complete Step.................................................................. 18
Changing the Time of a Step ........................................................... 20
Delete a Step.................................................................................... 22
Insert a Step...................................................................................... 23
Delete a Cycle....................................................................................... 25
Reloading Previous Settings................................................................. 26
Cycle Count.......................................................................................... 27
Reading Cycle Count....................................................................... 27
Calibration of the Machine................................................................... 28
Speed Calibration.................................................................................. 29
Inverter Drive Error Codes............................................................... 49

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
9002101
Introduction
Model Identification
Information in this manual is applicable to these
models:
UX55PVXF6 UX055PVXF7
UX55PVXF7

9002101
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Programming
Setup of the Machine Turn key from Run to Program
To go to the main setup of the machine, press
“Auxiliary”, “2”, “9”.
To change the machine type, press the “Advance”
button. The following types are possible:
_X18PV _X55PV _X135PV
_X25PV _X75PV _X165PV
Press the “Advance” button until the right type of
machine is selected. Press the “Enter” button.
Select the desired units.
NOTE: English means level in inch and
temperature in °F. Metric means level in cm and
temperature in °C.
Press the “Advance” button to change the units.
Press the “Enter” button.
Select the type of drain valve.
Press “1” to change drain 1 to pump or valve.
Press “2” to change drain 2 to pump, valve or none.
Program Cycle 00
Units: English
System Program
_X18PV
System Program
_X25PV
Units: Metric
Drain 1 : Valve
Drain 2 : None
Drain 1 : Pump
Drain 2 : None
RUN PROGRAM

Programming
5
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

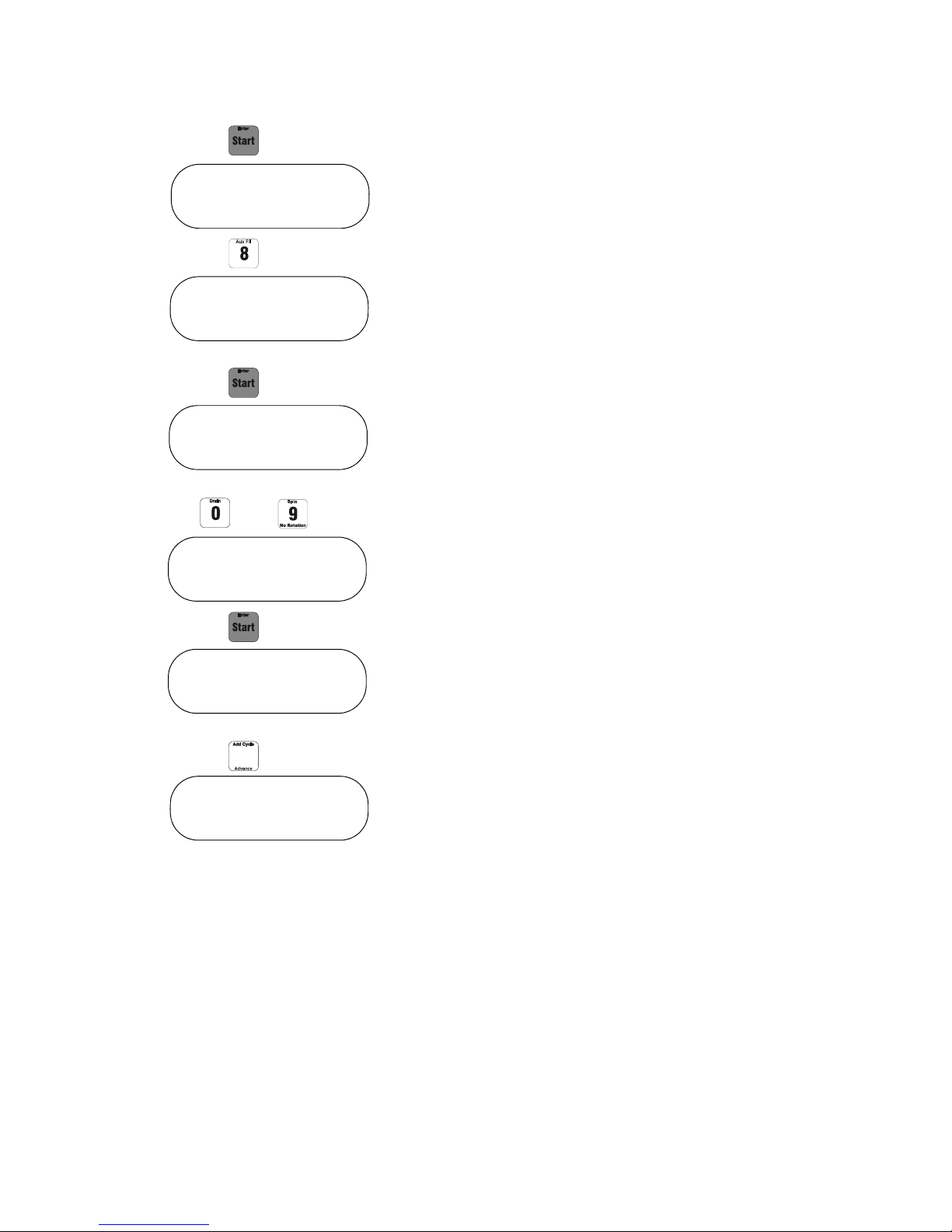

Press the “Enter” button to select options.
Press the “Aux Fill” button for auxiliary fill option or
press “Enter” for heating.
If heating is selected, the user can fill in the kW of the
electrical heating (example: 9 kW).
Press “0”, “9”.
Press “Enter” to select advance mode in run mode yes
or no.
Press “Advance” to change between yes and no.
Options :
Advance : Yes
Advance : No
Options :
Aux Fill
Heating : 6 kW
Heating : 9 kW

Programming
9002101
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Press “Enter” to set the hysteresis level (level at which
water drops before it senses it must refill).
If English is selected for units, this value will be in
inches. If Metric is selected for units, this value will be
in cm.
Select between 1 to 9 cm or inches.
Press “Enter” to select the temperature hysteresis
(level at which temperature drops before machine
senses it must reheat).
If English is selected for units, this value will be in °F.
If Metric is selected for units, this value will be in °C.
Select 1 to 9 °C or °F.
Press the “Enter” button to set the spin retries.
Select 1 to 9 spin retries.
Press “Enter” to set the network address of the
machine. If this is not used, press “Enter”.
The address of the machine has to be set if you
network the machine. Each machine should have a
different address.
Fill in between 00 and 99.
Press “Enter” to finish the settings.
Press “Enter” to save the settings or press “Stop” to
exit without saving.
Level : hyst 2"
Enter to save ?
Program Cycle 00
Temp : hyst 3°F
Spin retries : 5
Address : 0

Programming
7
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Version of Control
To determine control version, apply power to machine.
Control will display version of control (i.e., 1.15).
Language on Display (Version 1.15 and
later ONLY)
To set a different language on the WE-8 display:
1. Turn key from RUN to PROGRAM.
2. Press “Auxiliary”, “2” and “9” to enter set-up
mode.
3. English will display. Press “Advance” until
desired language displays (French, Italian,
Spanish and German).
4. Press “Enter” keypad.
5. Press “Enter” to advance through set-up mode.
6. Wait until information is saved.
7. Turn key from PROGRAM to RUN.
8. Display will read language chosen for all cycles.
Setup of the Chemical Hold Feature
(Version 1.11 and later ONLY)
•At power up, verify that model is at least
version 1.11. Refer to version of Control Section.
Earlier versions do not have this chemical hold
feature.
•Insert key into key switch and turn to Program.
•Push the Auxiliary key, the 2 key, and the 9 key
in succession to enter System Program Mode.
•Push the Start key 10 times to arrive at the
Chemical hold choice.
•Push the Add Cycle/Advance key to toggle the
Chemical hold feature either Yes (on) or No (off).
•Push the Start key twice to save changes and exit
System Program Mode.
•Turn key switch to Run.
NOTE: If chemical hold is on, then a switch
closure/opening between pins 1 and 4 of the COIN
header on the output board will control supplies 4
through 9. A closure will turn the programmed
supply/ies on and count down the time for the
supply to be on. An opening will turn the
programmed supply/ies off and halt the time for
the supply to be on.
NOTE: If chemical hold is off, then supplies 4
through 9 are controlled exactly like supplies 1
through 3. A switch closure/opening between pins 1
and 4 of the COIN header on the output board will
have no effect.
Program Storing Mode
The WE-8 control is capable of 99 total Cycles. One
cycle contains 1 or more steps.
One step is a function of the wash program
(example: heat).
Choose between the following functions:
Fill: To fill the machine with water.
Wash: Wash action of the machine.
Supply: To add detergent to the wash (liquid or
powder).
Cooldown: Cool to programmed temperature.
Heat: To heat the water.
Soak: The wash will be soaked for a
programmed time and a programmed
temperature.
Aux: A relay contact will close for a
programmed time.
Spin: To spin the machine for a programmed
time and RPM.
Drain: To drain the water from the machine.

Programming
9002101
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Explanation of the Step Functions

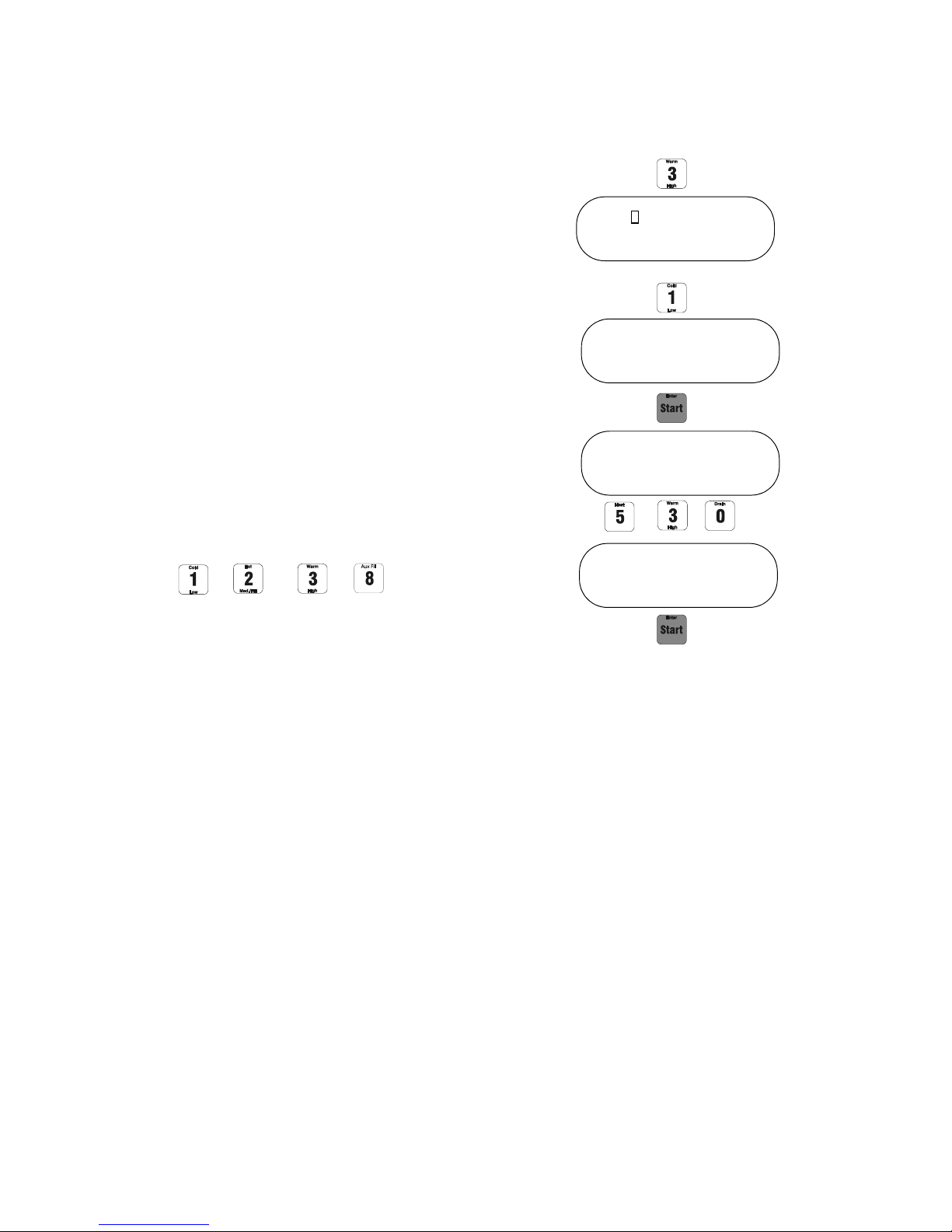

Fill:
Choose between 4 water inlet configurations and
3waterlevels.
Water Inlet Configurations:
Cold: Only opens the cold water valve.
Hot: Only opens the hot water valve.
Warm: Opens the cold and hot water valves.
Aux Fill: Opens an auxiliary water valve
if installed.
Water Levels:
Low: Low water level.
Med: Medium water level.
High: High water level.
The inlet configurations and the fill levels appear on
the keypad, keys 1, 2, 3 and 8.
Be sure to select first the inlet configuration and then
the water level.
Then you will be asked for the step time limit.
Example: Warm Low (time limit 5 minutes
30 seconds)
NOTE: If a fill error occurs, then machine has
2 minutes to finish filling. If after 2 minutes it has
not finished filling, cycle is aborted.
Step XX Cycle XX
Warm
Step XX Cycle XX
Warm Low
Step XX Cycle XX
0 min
Step XX Cycle XX
5 min 30 sec

Programming
9
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
It is possible to more accurately control the
temperature of water coming in to the machine during
a fill step. This does not apply to “Aux Fill” step. The
control will mix the hot and cold water inlet to the
temperature programmed in the fill function. To fill in
the temperature, select the water inlet type and the
water level. Press the “Heat” button and the control
will ask the temperature. In this way the water inlet
type selected is of no use because the control will mix
between the cold and hot water inlet to reach the
temperature.
Example: Fill to low level and 95°F (step time limit:
5 minutes 30 seconds).
Step XX Cycle XX
Warm
Step XX Cycle XX
Warm Low
Step XX Cycle XX
0°F
Step XX Cycle XX
95°F
Step XX Cycle XX
95°F Low
Step XX Cycle XX
0 min
Step XX Cycle XX
5 min 30 sec

Programming
9002101
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

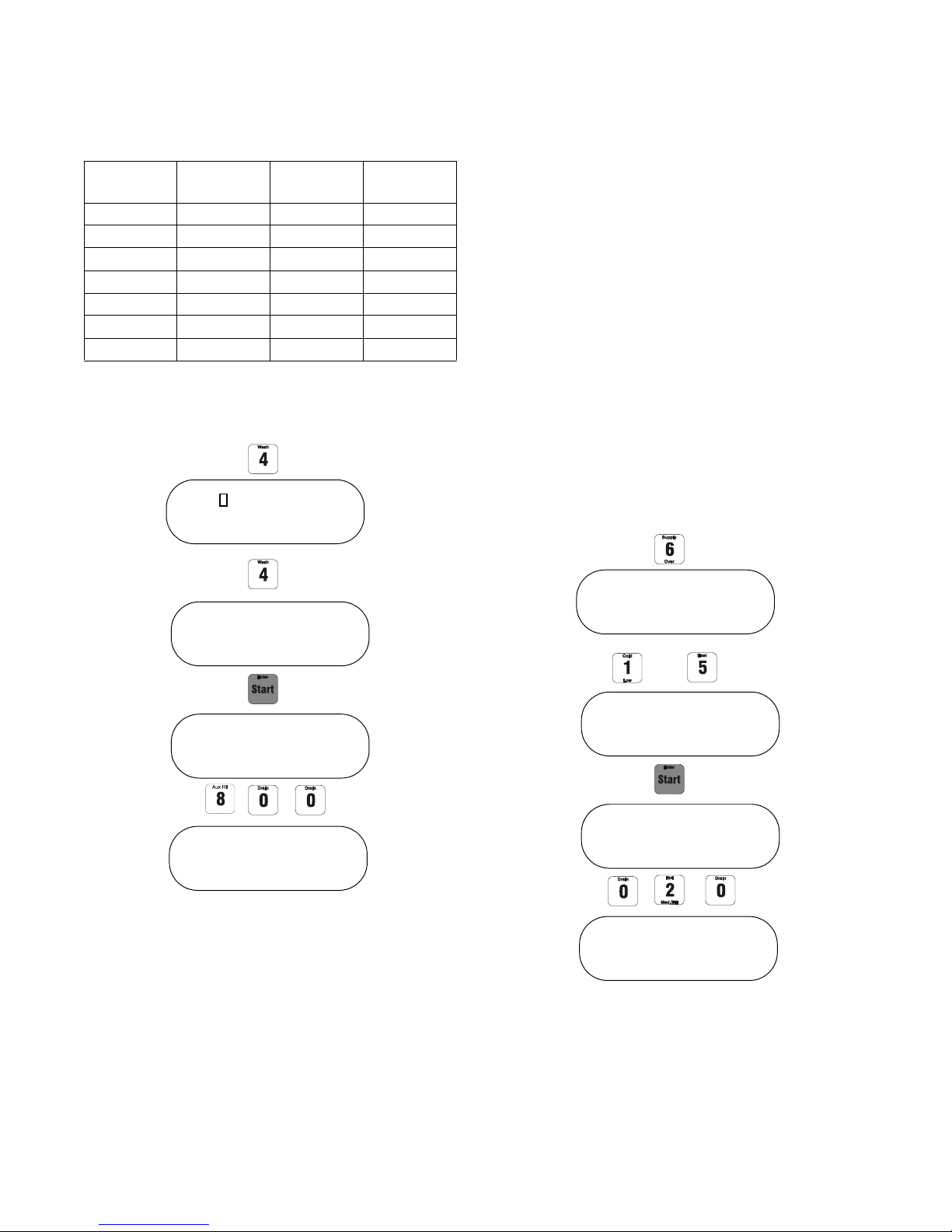

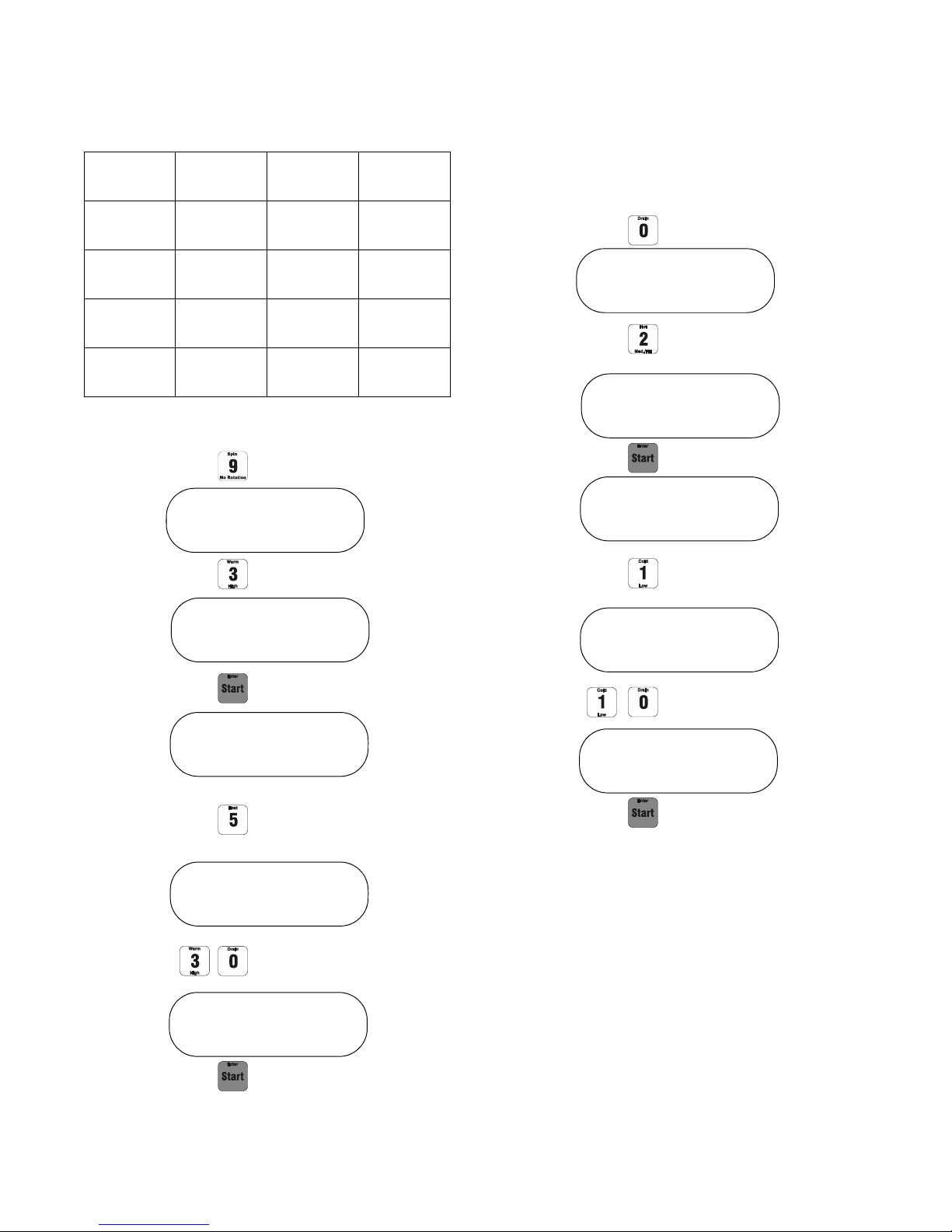

Wash:
Choose between 7 different preset wash actions.
The “Wash” button is button 4 on the display.
Example: Wash 4 for 8 minutes 00 seconds.
* Refer to section on Wash 5 Thermal Cool-Down.
Supply:
Choose between 9 different supplies.
Supply 1: Turns on the water valve in compartment
A of the supply box.
Supply 2: Turns on the water valve in compartment
B of the supply box.
Supply 3: Turns on the water valve in compartment
C of the supply box.
Supply 4: Activates supply pump 1.
Supply 5: Activates supply pump 2.
Supply 6: Activates supply pump 3.
Supply 7: Activates supply pump 4.
Supply 8: Activates supply pump 5.
Supply 9: Activates supply pump 6.
The Supply button is button 6.
Example: Supply 1 and 5 for 20 seconds.
Action Time
(sec) Stop Time (sec) G-force
Wash 1 18 3 0.5
Wash 2 3 27 0.5
Wash 3 0 0 0
Wash 4 10 20 0.5
Wash 5* 18 3 0.5
Wash 6 4 56 0.5
Wash 7 0 0 0
Step XX Cycle XX
Wash
Step XX Cycle XX
Wash 4 10/20
Step XX Cycle XX
0 min
Step XX Cycle XX
8 min 00 sec
Step XX Cycle XX
Supply
Step XX Cycle XX
Supply 1 5
Step XX Cycle XX
0 min
Step XX Cycle XX
0 min 20 sec
Heat:

Programming
11
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Chemical Hold Feature
Chemical supply injection can be paused. Refer to
Setup of Chemical Hold Feature.

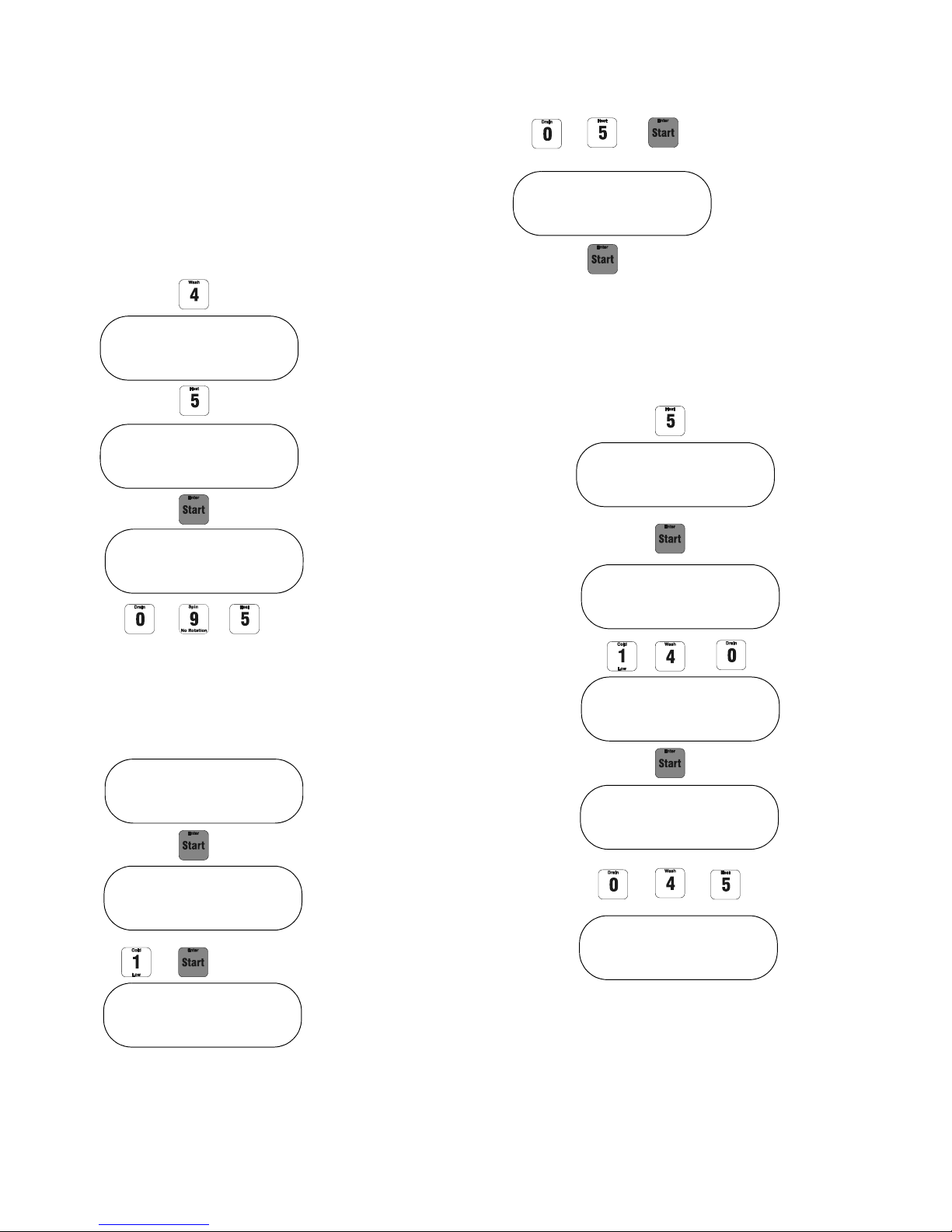

Wash 5 Thermal Cool-Down
Immediately after a heat step, a temperature-controlled
thermal cool-down may be programmed to prevent
fiber shock from sudden cool-down.
The “Heat” button is number 5.
Example: Heat up to 140°F with the time limit of
45 minutes.
Step XX Cycle XX
Wash
Step XX Cycle XX
0°F (or 0°C)
Step XX Cycle XX
Wash 5
Enter desired temperature for load to
cool down to. Three digits must be used
for temperature. If Fahrenheit, the valid
temperature range is 80° – 200°F. If
Celcius, valid temperature range is
25° – 90°C (example: 95°F).
Step XX Cycle XX
95°F
Step XX Cycle XX
0 hours
Step XX Cycle XX
1 hours 00 min
Thermal Cool-Down
is Wash 5.
Step XX Cycle XX
1 hours 05 min
Enter time in minutes
and press “Enter”
(example: 5 min).
Step XX Cycle XX
Heat
Step XX Cycle XX
0°F
Step XX Cycle XX
140°F
Step XX Cycle XX
0 hours 45 min
Step XX Cycle XX
0 hours

Programming
9002101
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

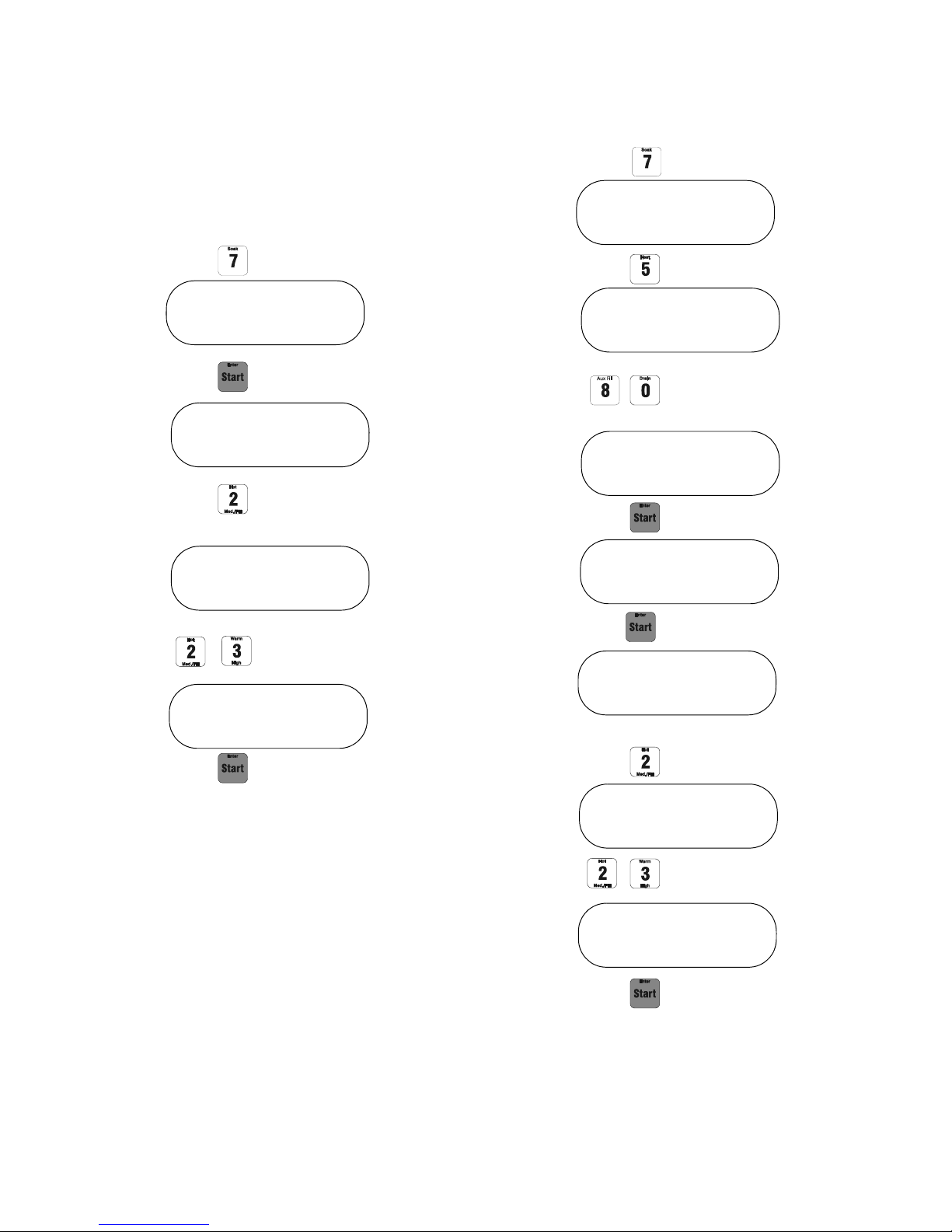

Soak:
Button 7 is the “Soak” button.
By pressing button 7, “Soak” will appear on the
display. Press “Enter” to fill in the soak time.
Example: Soak for 2 hours.
The temperature of the soak will be the temperature
programmed in the previous step. You can also change
the temperature by pressing first “Soak” and then
“Heat”.
Example: Soak time of 2 hours with 32°F.
Step XX Cycle XX
Soak
Step XX Cycle XX
0 hours
Step XX Cycle XX
2 hours 00 min
Step XX Cycle XX
2 hours 23 min
Use the key pad to fill in
the hours of the soak time
(example: 2 hours).
Now you can fill in the
minutes (example:
23 minutes).
Press “Enter”.
Step XX Cycle XX
Soak
Step XX Cycle XX
0°F
Step XX Cycle XX
32°F
Step XX Cycle XX
2 hours 00 min
Step XX Cycle XX
Soak 32°F
Use the key pad to fill in
the soak temperature
(example: 32°F).
Fill in the minutes
(example: 23 minutes).
Press “Enter”.
Step XX Cycle XX
2 hours 23 min
Step XX Cycle XX
0 hours
Use the key pad to fill in
the hours of the soak time
(example: 2 hours).

Programming
13
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Spin:
Choose between 4 preset spin speeds.
“Spin” is button 9.
Drain:
This function drains the water.
If you have 2 drains, select which drain has to be
opened.
NOTE: With the WE-8 control, it is NOT necessary
to program a drain step before spin. The spin step
incorporates the balancing routine and draining
before beginning high speed spin (as a sub part of
the spin step). A programmed drain step will be
skipped if spin step is programmed immediately
after it.
18-75
Models 100/135 Models 165 Models
Spin 1
RPM 500 500 500
Spin 2
RPM 650 650 650
Spin 3
RPM 800 800 750
Spin 4
RPM 1000 80 750
Step XX Cycle XX
Spin
Step XX Cycle XX
Spin 3
Step XX Cycle XX
0 min
Step XX Cycle XX
5 min 30 sec
Step XX Cycle XX
5 min 00 sec
Select the spin number
(example: 3).
Enter the spin time. Enter
minutes first and then
seconds (example:
5 minutes 30 seconds).
Step XX Cycle XX
Drain
Step XX Cycle XX
Drain 2
Step XX Cycle XX
0 min
Step XX Cycle XX
1 min 10 sec
Step XX Cycle XX
1 min 00 sec
Select Drain 1 or 2.
If you only have 1 drain,
you can only select 1.
Enter the drain time
(example: 1 minute
10 seconds).

Programming
9002101
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Example: Making a New Program
Program 51
Step 1: Fill warm water to low level
(5 minutes 30 seconds time limit)
Step 2: Supply 1 and 5 for 20 seconds
Step 3: Heat up to 140°F (45 minutes time limit)
Step 4: Wash action 4 for 8 minutes 00 seconds
Step 5: Drain 1 for 1 minutes 25 seconds
Step 6: Spin 3 for 8 minutes 30 seconds
To program or edit cycles turn the key into the
Program Mode.
“Program Cycle xx” will be shown on the display.
Program Cycle 00
Program Cycle 51
Step 01 Cycle 51
Add Cycle 51

Programming
15
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

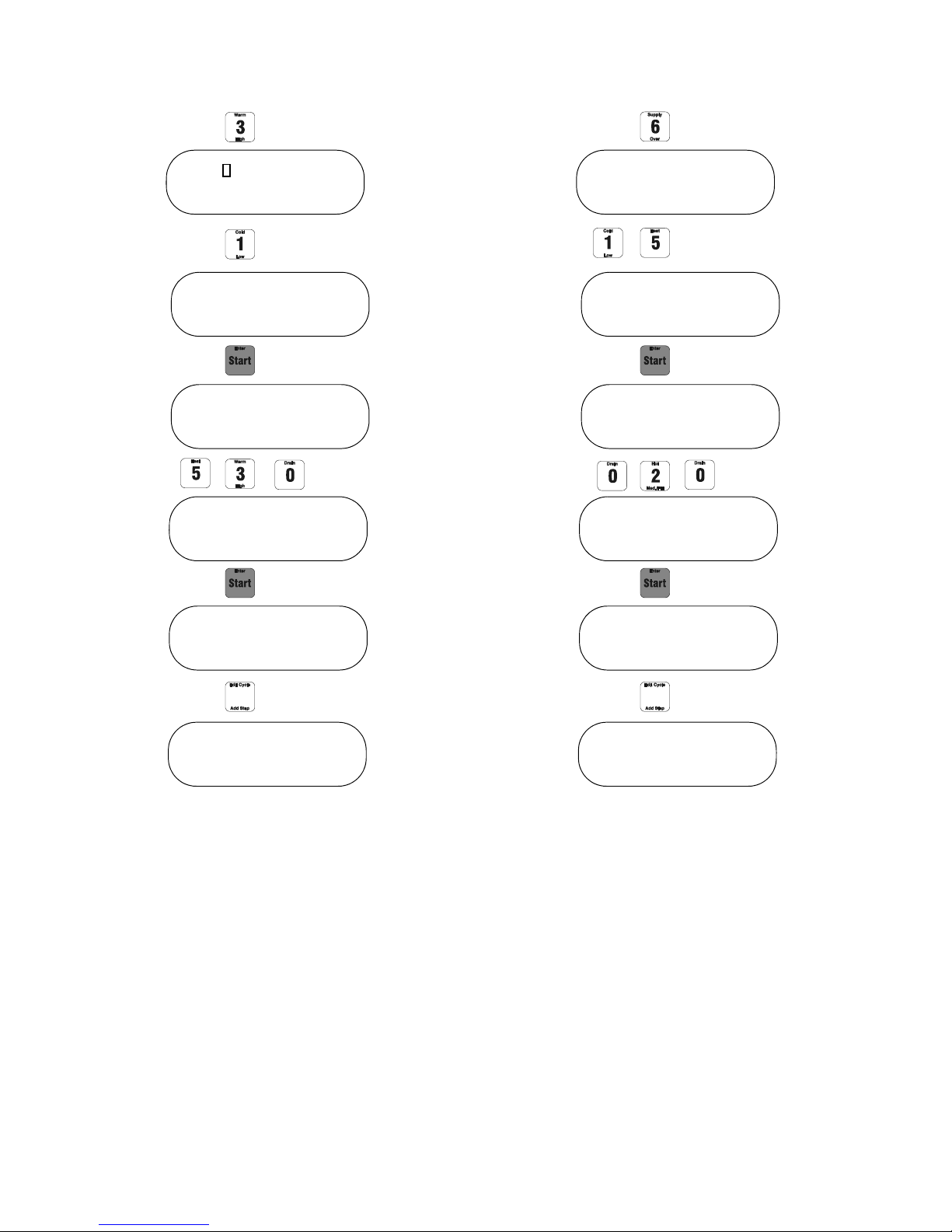

Step 01 Cycle 51
Warm
Step 01 Cycle 51
Warm Low
Step 01 Cycle 51
0 min
Step 01 Cycle 51
5 min 30 sec
End Cycle 51
Step 02 Cycle 51
Step 02 Cycle 51
Supply
Step 02 Cycle 51
Supply 1 5
Step 02 Cycle 51
0 min
Step 02 Cycle 51
0 min 20 sec
End Cycle 51
Step 03 Cycle 51

Programming
9002101
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Step 03 Cycle 51
Heat
Step 03 Cycle 51
0°F
Step 03 Cycle 51
140°F
Step 03 Cycle 51
0 hours
Step 03 Cycle 51
0 hours 45 min
Step 04 Cycle 51
End Cycle 51
Step 04 Cycle 51
Wash
Step 04 Cycle 51
Wash 4 10/20
Step 04 Cycle 51
0 min
Step 04 Cycle 51
8 min 00 sec
End Cycle 51
Step 05 Cycle 51
Step 05 Cycle 51
0 min
Step 05 Cycle 51
Drain 1
Step 05 Cycle 51
1 min 25 sec

Programming
17
9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

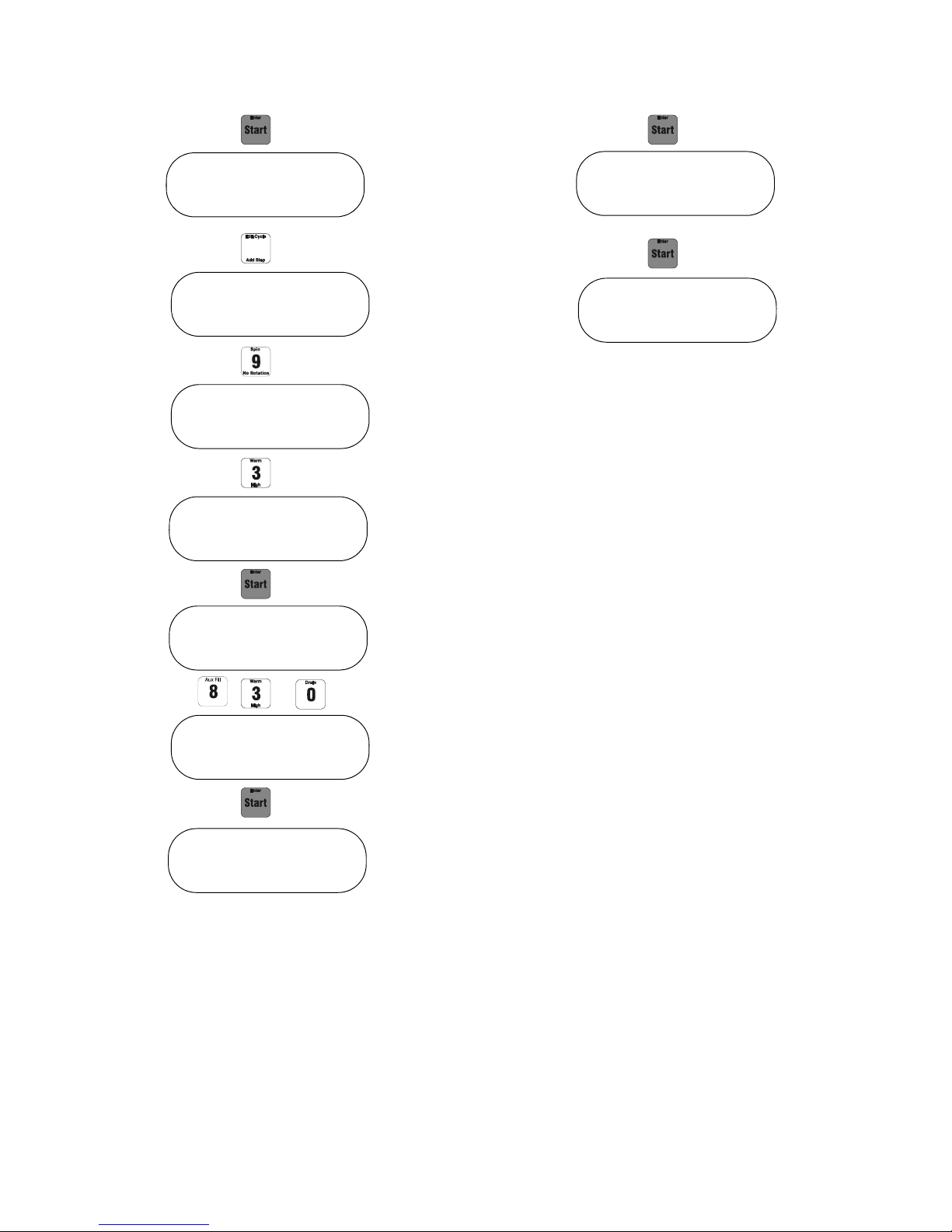

End Cycle 51
Step 06 Cycle 51
Step 06 Cycle 51
Spin 1
Step 06 Cycle 51
Spin 3
Step 06 Cycle 51
0 min
End Cycle 51
Step 06 Cycle 51
8 min 30 sec
Enter to save ?
Program Cycle 51

Programming
9002101
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

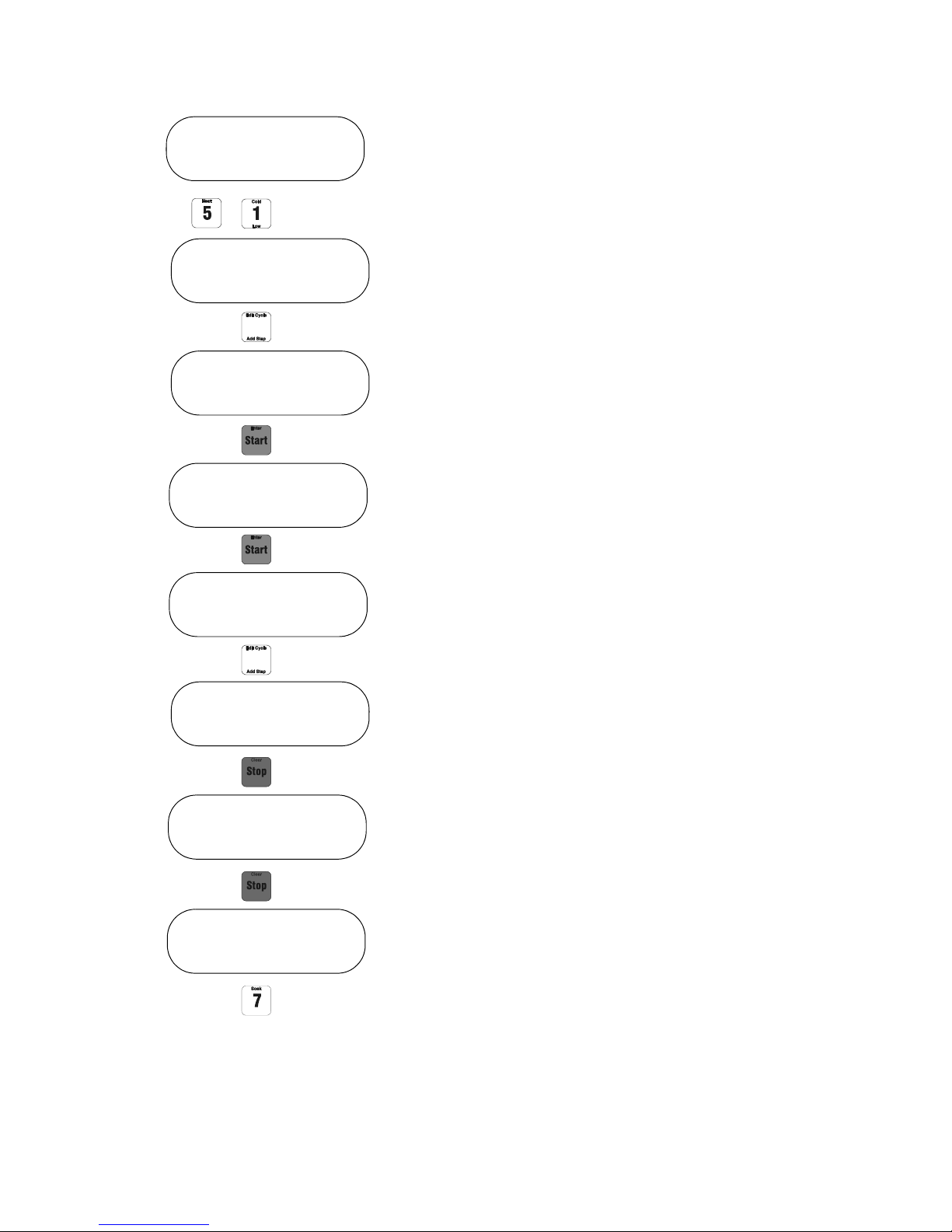

Edit a Cycle
Change a Complete Step
To edit a cycle enter the cycle number
(example: cycle 51).
Press the “Edit Cycle” button.
Press the “Enter” button to edit the cycle.
Press “Enter” to continue.
The first step of cycle 51 will display.
Select the step being edited by using the “Advance”
button to go to the next step or the “Previous” button
to go to the previous step.
If you would like to change the step, press the “Clear”
button.
Select another wash action or press the “Clear” button
to change the function.
Fill in the function desired (example: soak for 1 hour
30 minutes).
Press the “Soak” button.
Program Cycle 00
Program Cycle 51
Edit Cycle 51
Name Cycle 51:
Cycle 51
Step 01 Cycle 51
Warm Low
Step 02 Cycle 51
Wash
Step 02 Cycle 51
Wash 1 18/3
Step 02 Cycle 51
