Allnet ALL7950 Instruction manual

Allnet
ALL7950 SIP Phone
Quick User Guide
Version 1.01

Revision Control
Versionscontrol: Contains all available versions of the document
Datei: ALL7950 Manual_english V1.01.doc
Datum Version Name Status
22.12.04 0.01 Jörg Wagenlehner Draft
26.12.04 0.02 Jörg Wagenlehner Formatting, graphics, corrections
12.01.05 1.00 Jörg Wagenlehner Initial Release, multinational F/W
04.04.05 1.01 Jörg Wagenlehner Description for new firmware features added
Allnet ALL7950 User Manual 2

TABLE OF CONTENTS
1.0 INTRODUCTION .................................................................................................. 5
2.0 PACKAGE CONTENT.......................................................................................... 5
3.0 LIST OF FIGURES ............................................................................................... 5
3.0 LIST OF FIGURES ............................................................................................... 6
4.0 SUMMARY OF KEY FUNCTIONS ....................................................................... 7
5.0 CONNECTING THE IP PHONE ........................................................................... 8
6.0 IP PHONE SETUP ............................................................................................... 9
6.1 MENU SUMMARY ................................................................................................. 9
6.2 DISPLAY NAME.................................................................................................. 11
6.3 ADSL DIALUP................................................................................................... 11
6.4 DHCP (DYNAMIC HOST CONFIGURATION PROTOCOL) ......................................... 12
6.5 SNTP SERVER IP ............................................................................................. 14
6.6 DO NOT DISTURB .............................................................................................. 15
6.7 CF (CALL FORWARD) UNCONDITIONAL ................................................................ 15
6.8 CF (CALL FORWARD) USER BUSY ....................................................................... 15
6.9 CF (CALL FORWARD) NO ANSWER...................................................................... 15
6.10 ANONYMOUS CALL ............................................................................................ 16
6.11 ANONY CALL REJ (ANONYMOUS CALL REJECTION) .............................................. 16
6.12 RINGING TYPE................................................................................................... 16
6.13 MAC ADDRESS................................................................................................. 17
6.14 VERSION........................................................................................................... 17
6.15 LANGUAGE SELECTION ...................................................................................... 18
6.16 TIME FORMAT ................................................................................................... 18
6.17 VOLUME ADJUSTMENT ....................................................................................... 18
6.17.1 Ringer Volume ......................................................................................... 18
6.17.2 Speaker Volume ...................................................................................... 19
6.17.3 Handset Volume ...................................................................................... 19
7.0 USING THE CONFIGURATION MENU ............................................................. 20
7.1 ACCESSING CONFIGURATION MENU .................................................................... 20
7.2 BASIC SETTINGS ............................................................................................... 21
7.3 NETWORK SETTINGS – DHCP ........................................................................... 22
7.4 NETWORK SETTINGS – PPPOE.......................................................................... 22
7.5 NETWORK SETTINGS – STATIC IP....................................................................... 23
7.6 SIP SETTINGS – SIP PHONE SETTINGS, REGISTRAR AND PROXY SERVER ............ 24
7.7 SIP SETTINGS – MESSAGE SERVER ................................................................... 25
7.8 SIP SETTINGS – OTHERS .................................................................................. 26
7.9 SIP USER SETTINGS ......................................................................................... 27
7.10 STUN & UPNP SETTINGS................................................................................. 28
7.11 AUDIO SETTINGS AND QOS ................................................................................ 30
Allnet ALL7950 User Manual 3

7.12 PHONE SETTINGS – PHONE SETTINGS ................................................................ 31
7.13 PHONE SETTINGS – TIMER................................................................................. 32
7.14 SYSTEM LOG..................................................................................................... 33
7.15 PHONE BOOK.................................................................................................... 34
7.16 ONE TOUCH DIAL .............................................................................................. 34
7.17 FACTORY SETTINGS .......................................................................................... 35
7.18 FIRMWARE UPDATE ........................................................................................... 35
7.19 REBOOT SYSTEM .............................................................................................. 36
7.20 SUPPORT.......................................................................................................... 36
8.0 OPERATING THE PHONE................................................................................. 37
8.1 DIALING ............................................................................................................ 37
8.1.1 IP Address ............................................................................................... 37
8.1.2 SIP Number ............................................................................................. 37
8.1.3 SIP Number From Distinctive SIP Account .............................................. 38
8.2 SPEED DIALING ................................................................................................. 39
8.3 ANSWERING A PHONE CALL ............................................................................... 39
8.4 SWITCHING TO ANOTHER LINE ............................................................................ 39
8.5 MUTE ............................................................................................................... 39
8.6 CALL TRANSFER................................................................................................ 40
8.7 REDIAL ............................................................................................................. 40
8.7.1 Last Dialed Number ................................................................................. 40
8.7.2 Through Call History ................................................................................ 41
8.8 ON HOLD.......................................................................................................... 41
8.9 CALL FORWARD ................................................................................................ 41
8.10 THREE WAY CONFERENCE................................................................................. 42
9.0 USING THE PHONEBOOK................................................................................ 43
9.1 DIALING FROM THE PHONEBOOK ......................................................................... 43
9.2 STORING A NUMBER .......................................................................................... 43
9.3 EDITING A NUMBER............................................................................................ 44
9.4 DELETING A NUMBER ......................................................................................... 44
10.0 TROUBLESHOOTING ...................................................................................... 45
11.0 SPECIFICATION ALL7950 SIP PHONE ........................................................... 47
12.0 CE APPROVAL ................................................................................................. 49
Allnet ALL7950 User Manual 4

1.0 INTRODUCTION
Voice over IP (also known as Internet Phone) is a technology that allows anyone to
make a telephone call over the Internet. This is a quick user guide for the ALL7950 SIP
Phone. It is intended to help you configure the telephone and have it ready to run within
a few minutes. Please follow the user guide carefully as troubleshooting the telephone
can be very difficult and time consuming.
2.0 PACKAGE CONTENT

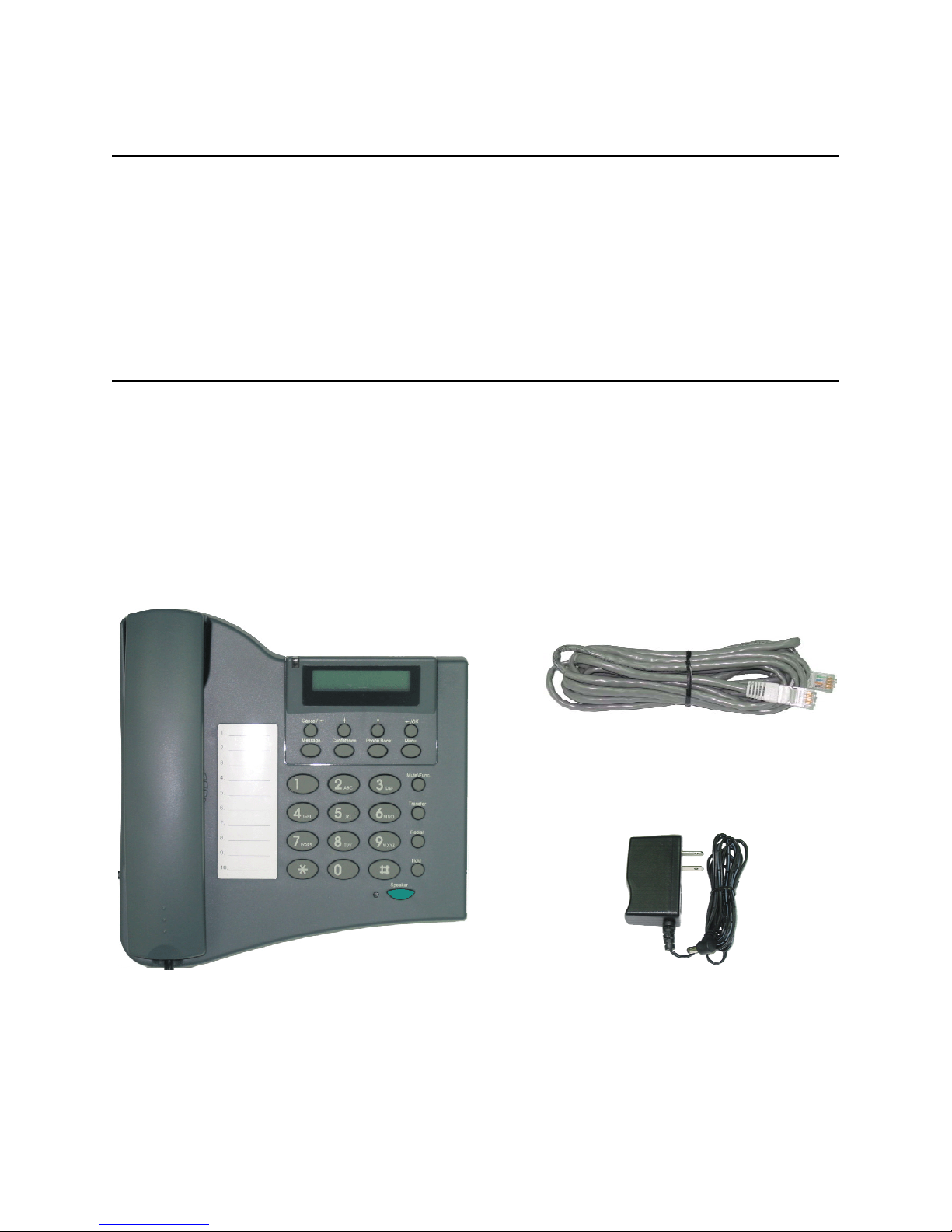

The following materials are included in the package. Please check the package to
ensure that all the materials are listed below. Contact your supplier immediately if an
item is missing.
Ethernet Cable (1.8 meter)
Power Adaptor (5V DC, 1.4A)
IP Phone ALL7950
Allnet ALL7950 User Manual 5

3.0 LIST OF FIGURES
Diagram for Allnet SIP Phone (Model: ALL7950)
(6) Redial/Call History
(7) Hold
(5) Transfer
(4) Mute/Function
(16) Numeric
Keypad
(1) 2 x 16 Characters
LCD Display
(14) 3-Way
Conference
(13) Voice
(2) OK / Right
(12) Cancel /
Left
(15) Phone
Book
(3) Menu
(8) Speaker Phone
(9) Speaker
Phone
(11) Up
(10) Down
Allnet ALL7950 User Manual 6

4.0 SUMMARY OF KEY FUNCTIONS
Keys Functions
(1) LCD Display Displays menu, time, clock, name, phone number, call
status
(2) OK/Right Confirm setting change, exit menu, dial, save changes
(3) Menu Access the phone menu

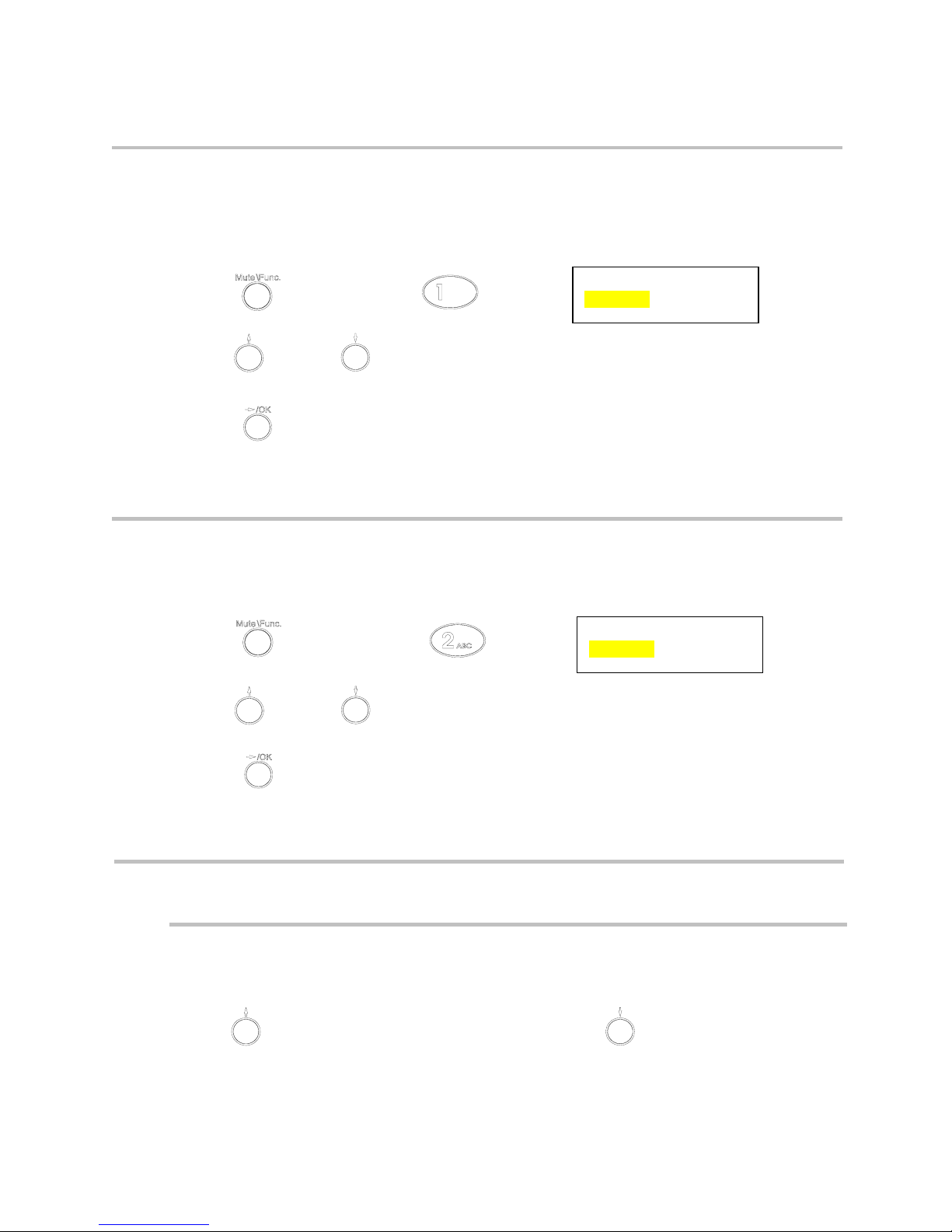

(4) Mute/Function Disable user’s microphone so that the person on the
other line can not hear anything, access the language
selection, access the time format
(5) Transfer Transfer the person you are currently having a
conversation to another line
(6) Redial/Call History Redial last dialed number, access redial menu
(7) Hold Place the person on the other line on hold, answer call
waiting
(8) Speaker Phone Enable user to use the phone without using the handset
(9) Speaker Phone
Indicator
Indicates that phone is currently in speaker phone mode
(10) Down Cycle through the phone menu, adjust volume
(11) Up Cycle through the phone menu, adjust volume
(12) Cancel/Left Deny changes, cancel phone calls, ignore phone calls,
backspace
(13) Voice Message Check voice message
(14) 3-Way Conference Enable 3-way conference
(15) Phonebook Access the phonebook
(16) Numeric Keypad Input IP/phone number/alphabet characters
Allnet ALL7950 User Manual 7

5.0 CONNECTING THE IP PHONE

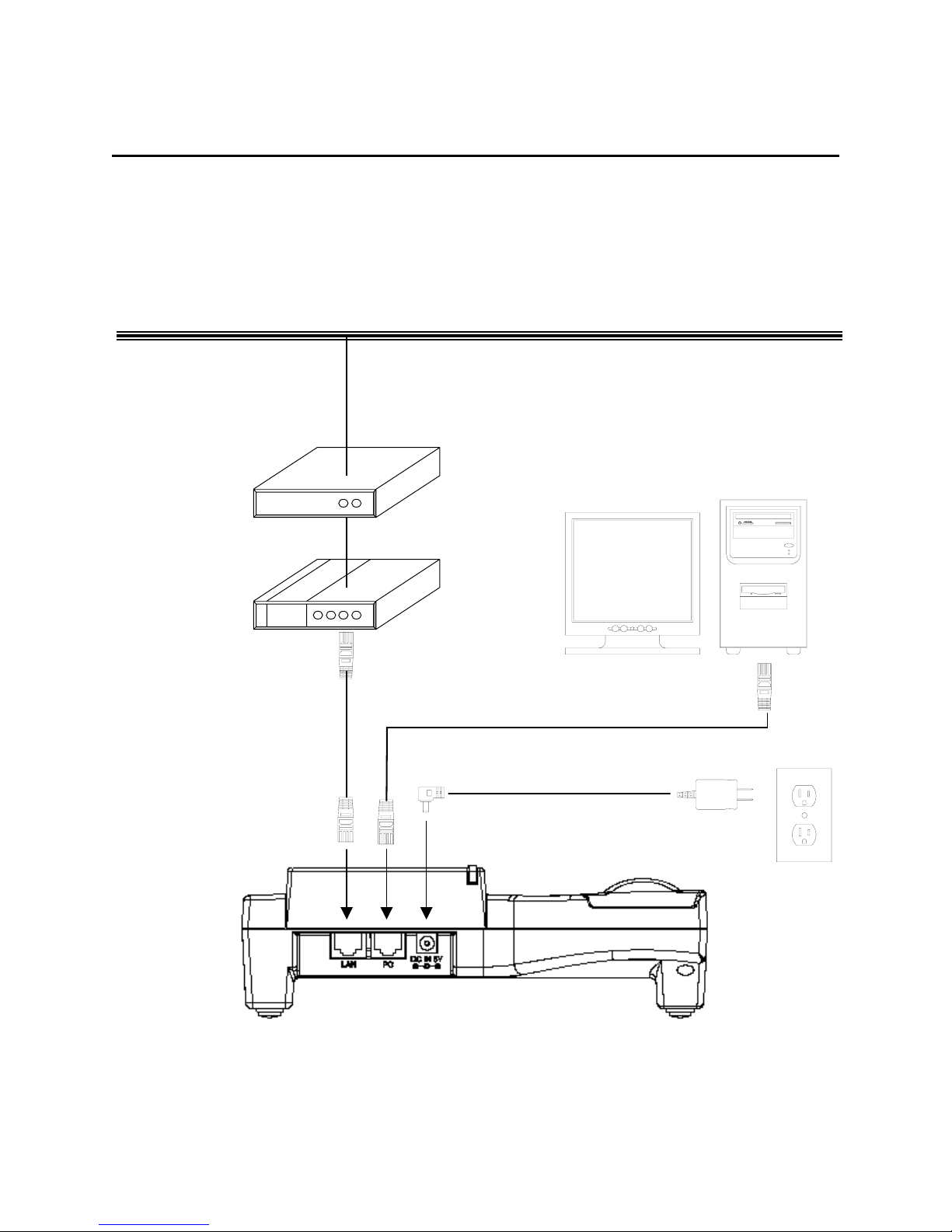

Connect the IP Phone as the following diagram:
Wide Area Network / Internet
Cable/xDSL Modem
Power Adapter
Router/HUB
Ethernet Cable Ethernet Cable
Allnet ALL7950 User Manual 8

6.0 IP PHONE SETUP

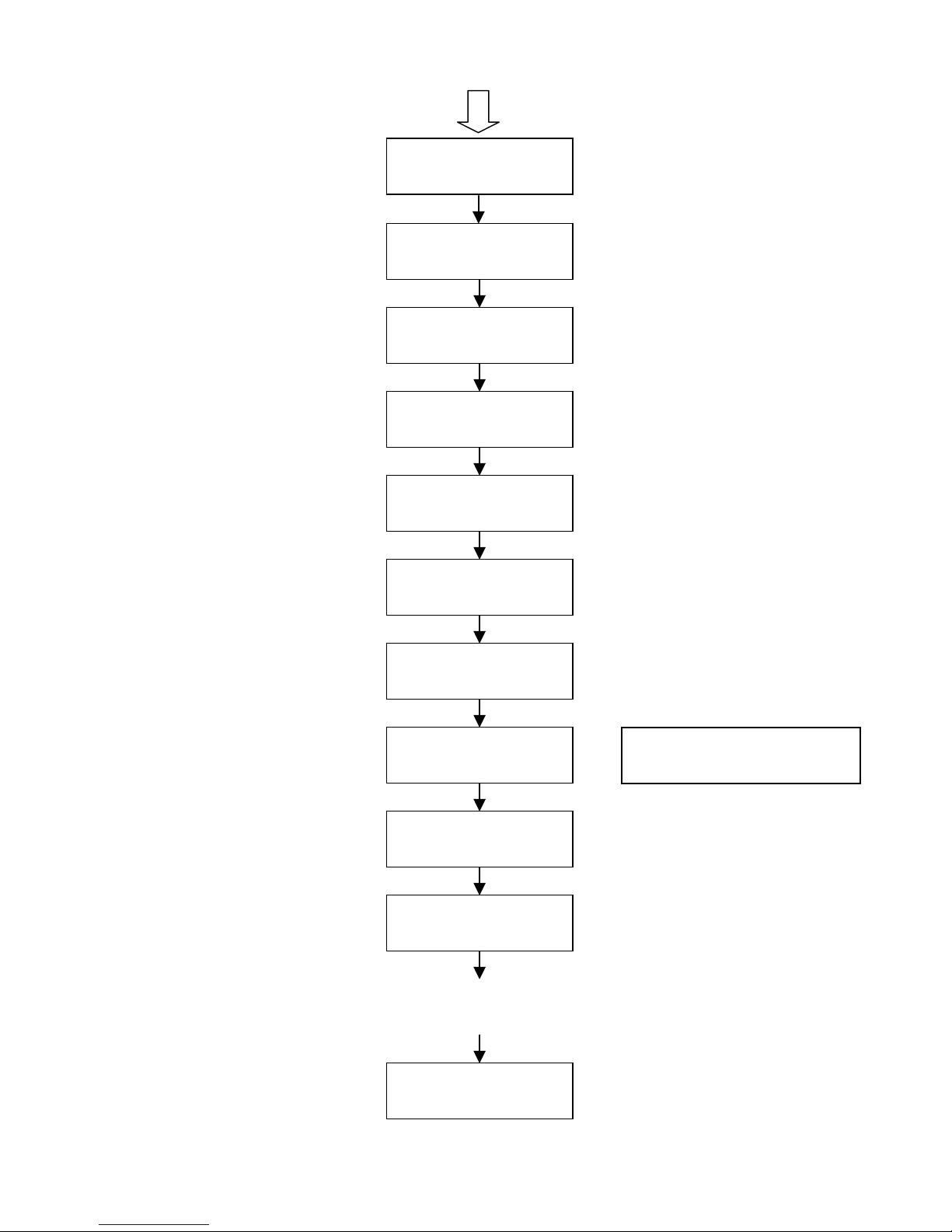

6.1 Menu Summary
Enable Disable
DisableEnable
Press the MENU key
Display Name:
Allnet_45
A
DSL DIALUP:
ENABLE/DISABLE
A
DSL DIALUP:
ENABLE
A
DSL DIALUP:
DISABLE
A
DSL ID:
02…[email protected]
A
DSL Password:
********
DHCP:
ENABLE/DISABLE
IP Address:
AUTO
IP Address:
192.168.001.151
Subnet Mask:
AUTO
Router IP:
AUTO
Subnet Mask:
255.255.255.000
Router IP:
061.063.083.254
DNS Server IP:
AUTO
DNS Server IP:
217.237.151.097
SNTP Server IP:
192.53.103.103
ENABLE/DISABLE – select
enable or disable
A
UTO – IP address given by
the router or ISP
Allnet ALL7950 User Manual 9

CF Unconditional:
ENABLE/DISABLE
CF User Busy:
ENABLE/DISABLE
CF No Answer:
ENABLE/DISABLE
A
nonymous Call:
ENABLE/DISABLE
A
nony Call Rej:
ENABLE/DISABLE
Ringing Type:
Ringing1/2/3/4
M
AC Address:
00D0E90137DB
V
ersion:
V: 02.09.21
Press the MENU key
UPDATE CHANGES?
<OK> OR <CANCEL>
Do Not Disturb:
ENABLE/DISABLE
SNTP Cycle:
01
Ringing1/2/3/4 - select
ringing1, 2, 3 or 4
Allnet ALL7950 User Manual 10

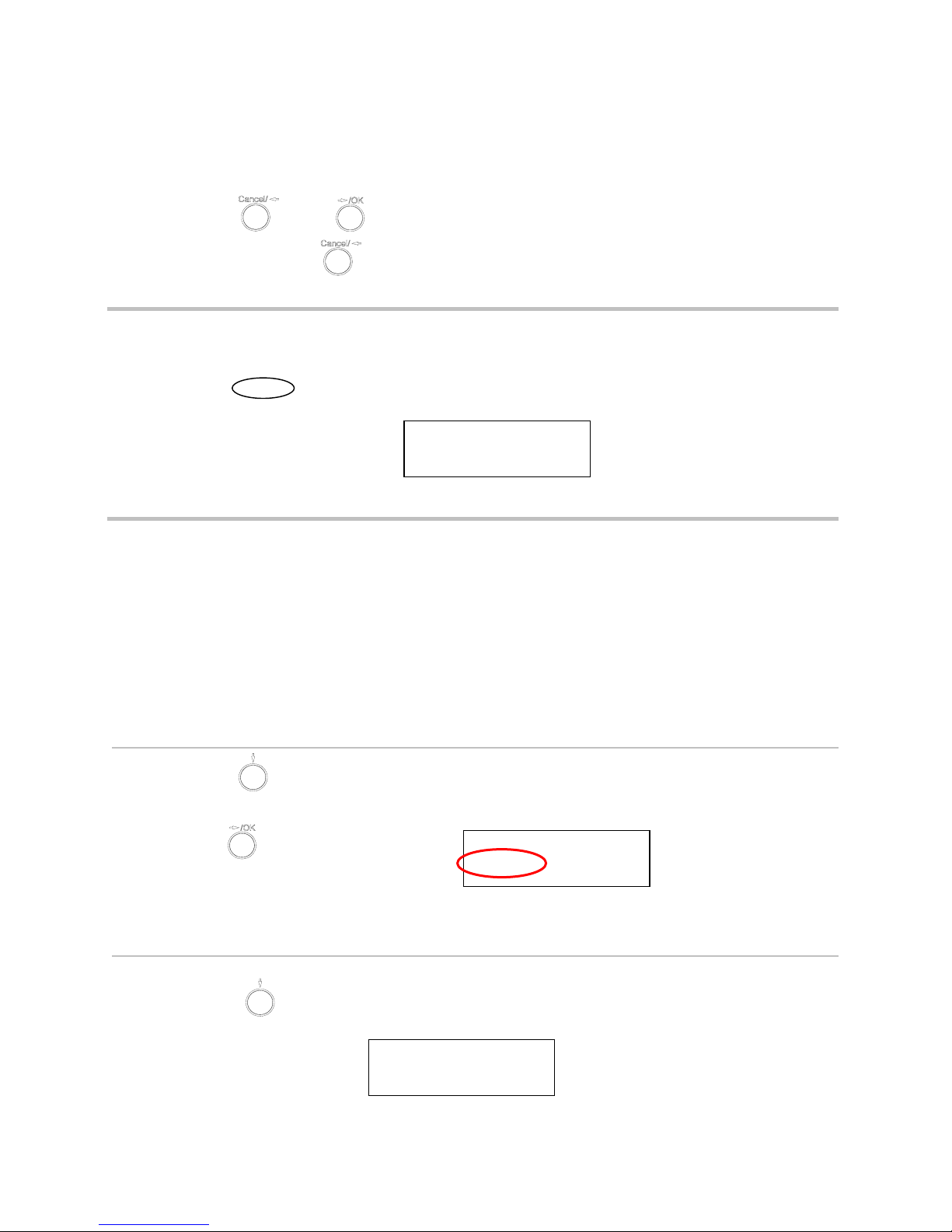

NOTE 1: If you made any modifications, you may quit setup at any time by pressing
MENU + OK to save and exit or MENU + CANCEL to quit without saving. The phone
will automatically exit from the menu screen if there are no inputs from the user.
NOTE 2: Use or to select ENABLE or DISABLE.
NOTE 3: Left arrow key can be used as Backspace key.

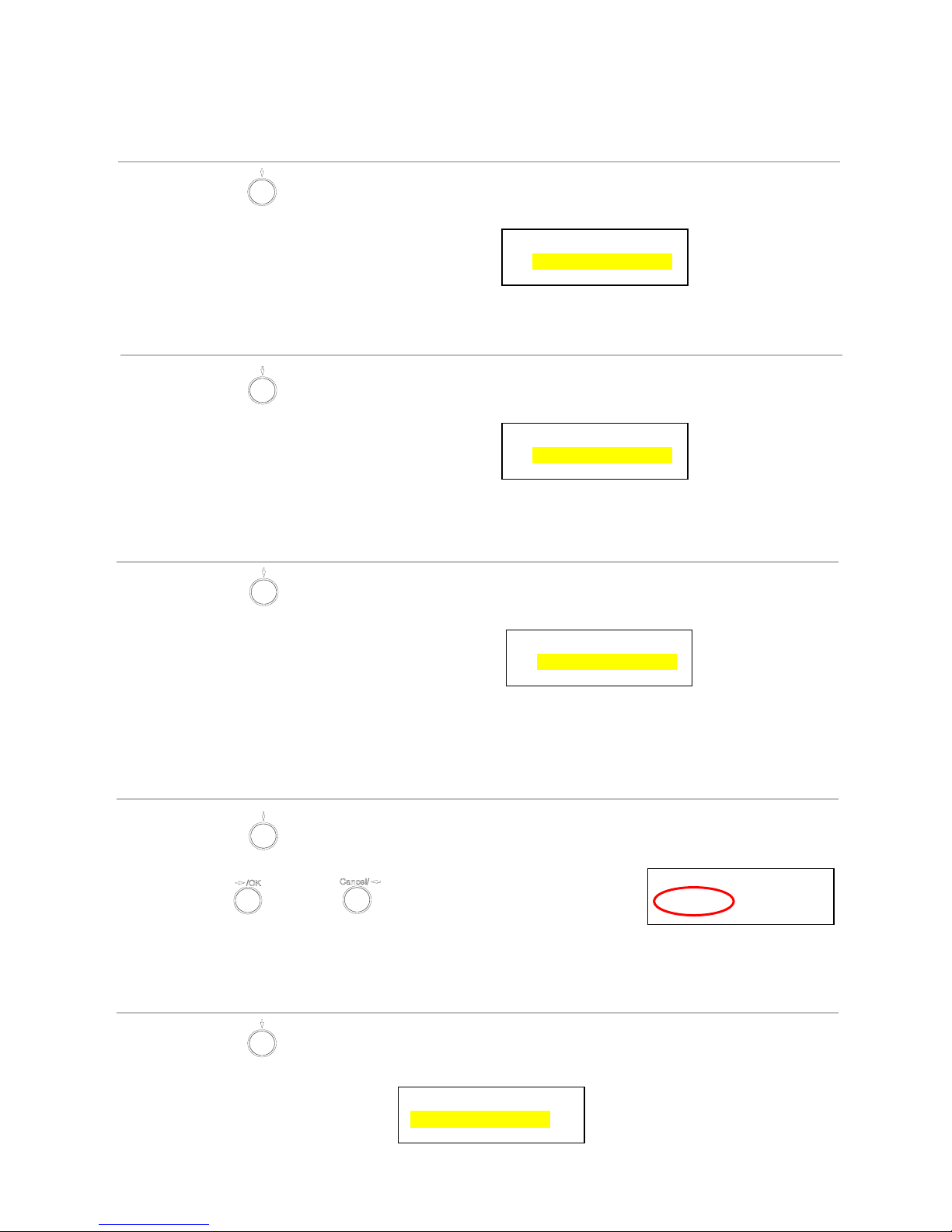

6.2 Display Name
• Press
• Enter the display name Display Name:
Allnet_45
MENU
6.3 ADSL Dialup
Some Internet Service Provider (mostly ADSL) uses PPPoE which requires that the
user enter an ID and a password to access the Internet. In this case, enable ADSL
DIALUP and enter the PPPoE ID and PPPoE password.
ENABLE ADSL Dialup
1
2
• Press
• Use to select ENABLE
• Press
• Enter the ADSL ID
ADSL ID:
provider_ID
ADSL DIALUP:
ENABLE
Allnet ALL7950 User Manual 11

3
• Press
• Enter ADSL password ADSL Password:
*******
DISABLE ADSL Dialup
• Press
• Press to select DISABLE ADSL DIALUP:
DISABLE
6.4 DHCP (Dynamic Host Configuration Protocol)
DHCP allows the network administrator to distribute IP addresses when a computer is
plugged into a different place in the network. If your ISP provides static IP address, you
must disable DHCP and enter the IP address provided.

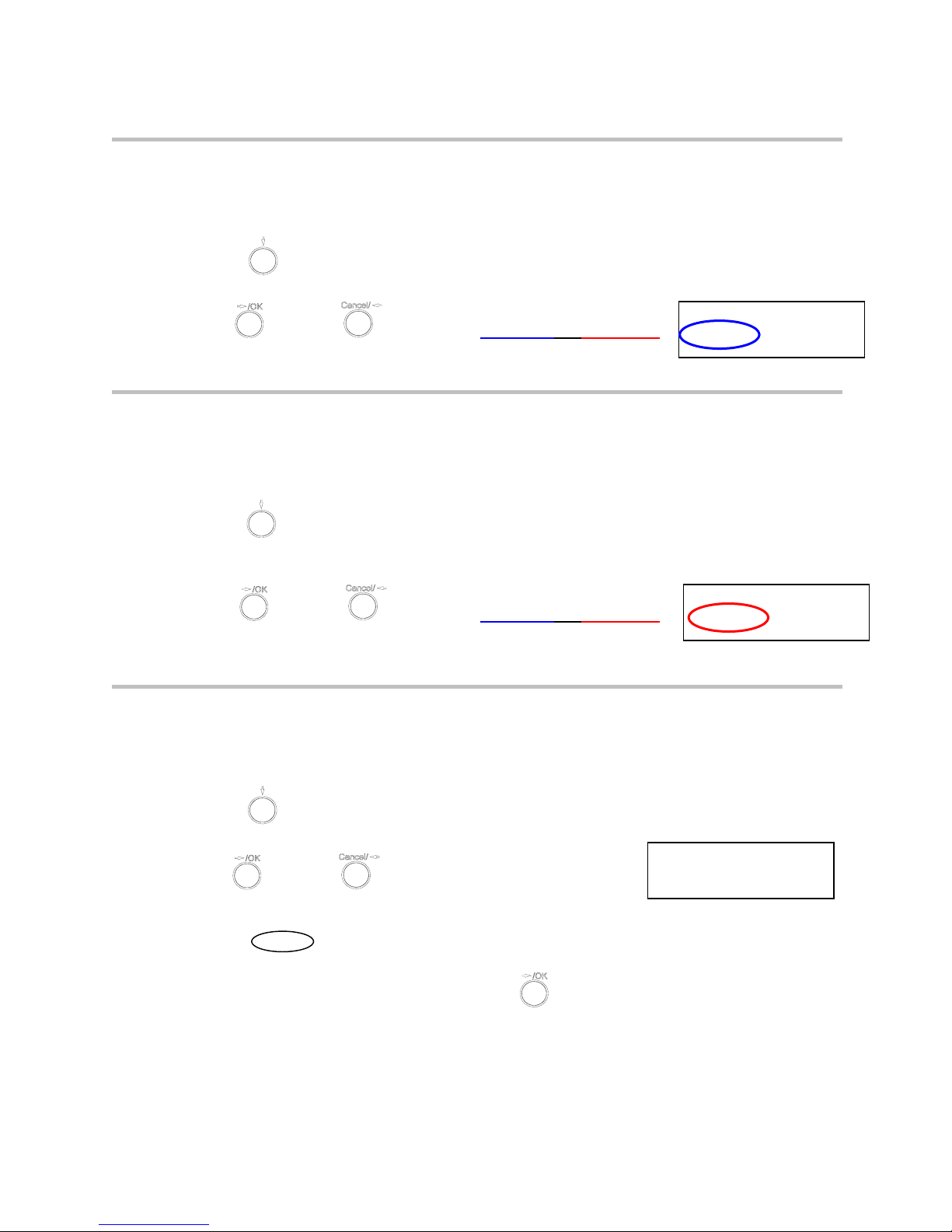

ENABLE DHCP
1
2
• Press
• Use or to set DHCP to ENABLE
• Press
• IP address automatically acquired
DHCP:
ENABLE
IP Address:
192.168.001.161
Allnet ALL7950 User Manual 12

3
4
5
DISABLE DHCP
1
2
• Press
• Subnet mask automatically acquired Subnet Mask:
255.255.255. 0
• Press
• Use or to set DHCP to DISABLE
• Press
• Enter the IP address
• Press
• Router IP automatically acquired
Router IP:
192.168.001.161
DHCP:
DISABLE
IP Address:
192.168.001.161
• Press
• DNS Server IP automatically acquired DNS Server IP:
217.237.151.097
Allnet ALL7950 User Manual 13

3
4
• Press
• Enter the subnet mask
• Press
• Enter the router IP address
Subnet Mask:
255.255.255.000
Router IP:
192.168.001.001
5
• Press
• Enter the DNS Server IP DNS Server IP:
217.237.151.097
6.5 SNTP Server IP
Simple Network Time Protocol (SNTP) is a protocol used to help match your system
clock with an accurate time source. If you do not know your SNTP Server IP, please
ignore this section.
SNTP Server IP address can be either URL or IP.
SNTP Server IP:
216.133.140.78
• Press
• Enter SNTP server IP or URL
Allnet ALL7950 User Manual 14

6.6 Do Not Disturb
This setting allows the user to reject all incoming phone calls.
6.7 CF (call forward) Unconditional
Enable CF Unconditional to forward all the incoming calls to another number. Otherwise
set to disable. You will need to use a web-browser to input the forwarded phone
number. Refer to section 7.0 for more information on call forwarding.
6.8 CF (call forward) User Busy
Forward all the incoming calls to another number when user is busy on the phone.
6.9 CF (call forward) No Answer
Forward all incoming calls to another phone number after a certain number of rings.
Allnet ALL7950 User Manual 15
CF No Answer:
ENABLE
• Press
• Use or to select ENABLE or DISABLE
• Press
• Use or to select ENABLE or DISABLE
• Press
• Use or t to select ENABLE or DISABLE
• Press
• Use or to select ENABLE or DISABLE
Do Not Disturb:
DISABLE
CF Unconditional:
DISABLE
CF User Busy:
DISABLE

6.10 Anonymous Call
Enables the caller (user) to hide the name and phone number from the receiver.
6.11 Anony Call Rej (Anonymous Call Rejection)
Reject any anonymous incoming calls.
• Press
• Use or to select ENABLE or DISABLE
• Press
• Use or to select ENABLE or DISABLE
Anonymous Call:
ENABLE
Anony Call Rej:
DISABLE
6.12 Ringing Type
Select the ring tone. There are four ring tones in total.
NOTE: At this point, you may save the settings and exit. The next two sections explain
how to obtain the MAC address and firmware version.
• Press
• Use or to select the ring type
Ringing Type:
Ringing4
• Press to exit menu
• When asked to save or cancel, press to SAVE
MENU
Allnet ALL7950 User Manual 16

6.13 MAC Address
This menu displays the MAC address. User cannot modify MAC address.
• Press
• MAC address is displayed on the screen MAC Address:
000FC9017D4B
6.14 Version
Version menu displays the firmware version. You cannot modify the version number.
Version:
V: 02.09.22
• Press
• Firmware version is displayed on screen
NOTE: You can also display the current IP-address of the ALL7950 IP-phone at any
time, if you press the Func.-key followed by the number 9.
Allnet ALL7950 User Manual 17

6.15 Language Selection
The VoIP Phone (model no. ALL7950) supports four languages:
English, German, Spanish and Italian language on the display and configuration-pages.
6.16 Time Format
You may select the 12hr or 24hr time format.
6.17 Volume Adjustment
• Press followed by
• Use or to select the preferred language
• Press when done
• Press followed by
• Use or to select the time format
• Press when done
Time Format:
24Hours
Language:
English
6.17.1 Ringer Volume
While the handset is in place,
Press to increase the ringer volume and to decrease the
ringer volume.
Allnet ALL7950 User Manual 18

6.17.2 Speaker Volume
While the handset is in place,
• Press
• Press to increase the speaker volume and to decrease the
speaker volume
6.17.3 Handset Volume
• Pick up the handset and press to increase the volume or press
to decrease the volume
Allnet ALL7950 User Manual 19

7.0 USING THE CONFIGURATION MENU
The configuration menu can be accessed using a web browser. Some advanced
features such as CF Unconditional, CF User Busy and CF No Answer must be setup
from the web browser.
7.1 Accessing Configuration Menu
• Open the web browser (ie. Internet
Explorer, Netscape…)
• Type in the IP Address of the
phone followed by :9999
IP address is provided by your Internet Service Provider (ISP). If your ISP supports
DHCP, you may obtain the IP address from you phone. Press MENU and scroll down to
IP address.
• Enter User Name
and Password
(leave User Name
and Password
blank if you are
installing the
phone for the first
time).
• Click OK
Allnet ALL7950 User Manual 20
