ALL-SG8308PM
Smart Managed 8 Port PoE+
Gigabit Switch
User Manual

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
2
Content
Content…………………………………………………………………………………2
Introduction…………………………………………………………………………..5
Product Overview……………………………………………………………………….5
Web Management Features………………………………………………………….5
Specifications…………………………………………………………………………..6
Mechanical……………………………………………………………………………....6
Performance……………………………………………………………………………..7
Package Contents……………………………………………………………………...7
Hardware Description……………………………………………………………..8
Physical Dimensions / Weight………………………………………………………...8
Front Panel……………………………………………………………………………...8
LED Indicators…………………………………………………………………………..8
Rear Panel………………………………………………………………………………9
Hardware Installation………………………………………………………………..9
UL Warning…………………………………………………………………………..9
Software Description……………………………………………………………..10
Login…………………………………………………………………………………..10
Configuration…………………………………………………………………………11
System ..………………………………………………………………………….....11
System Configuration……………………………………………...…………...11
Ports ………….…………………………………………………..………………..12
Port Configuration ……………………...……………….………………..12
Vlan…………………………………….……………………….…………………...14

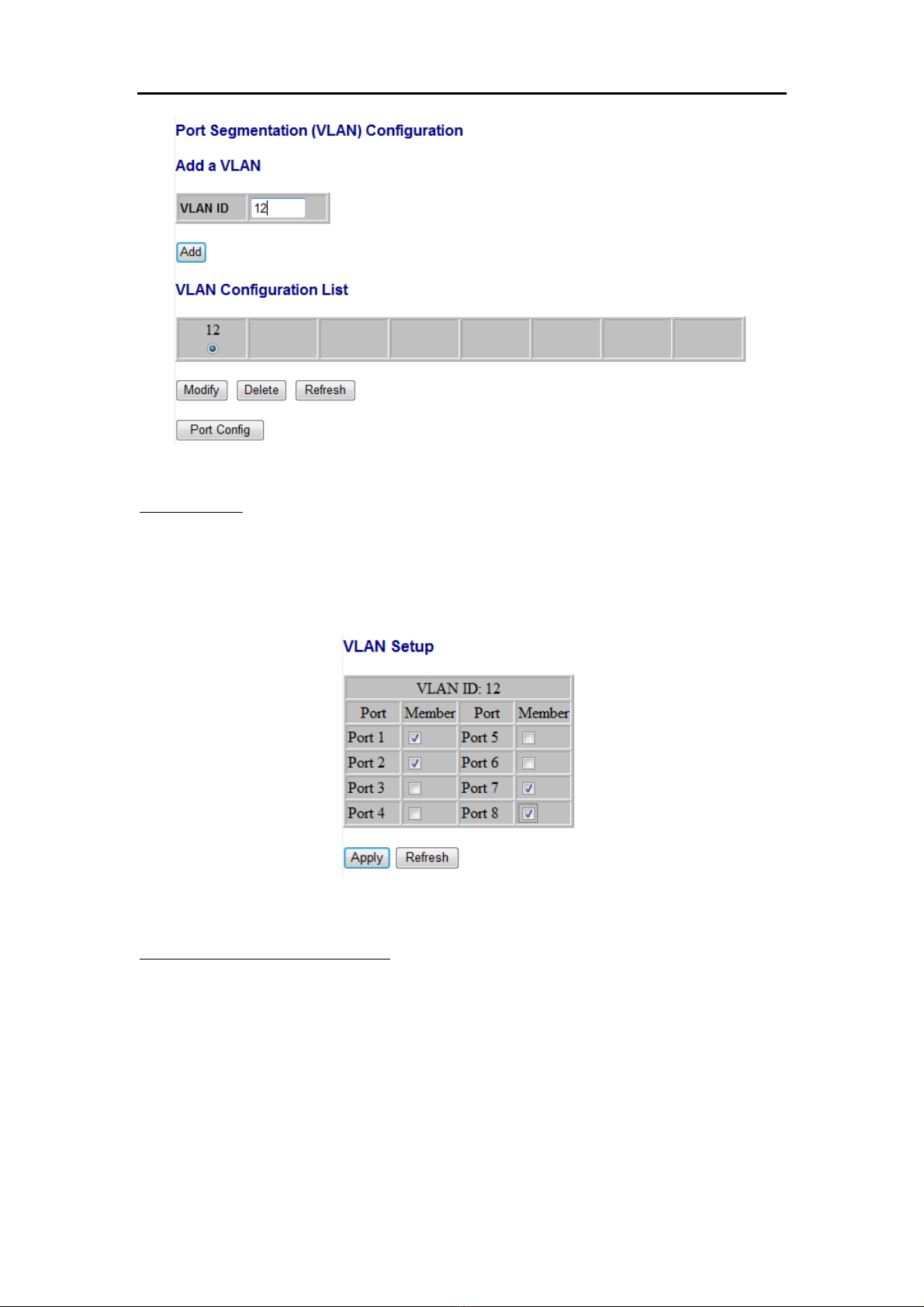

Port Segmentation (VLAN) Configuration……………….………………...14
Add a Vlan………………………………………………….……………...……15
VLAN Configuration List………………………………….………………..….15
VLAN Setup……………………………………………….…...……………….15

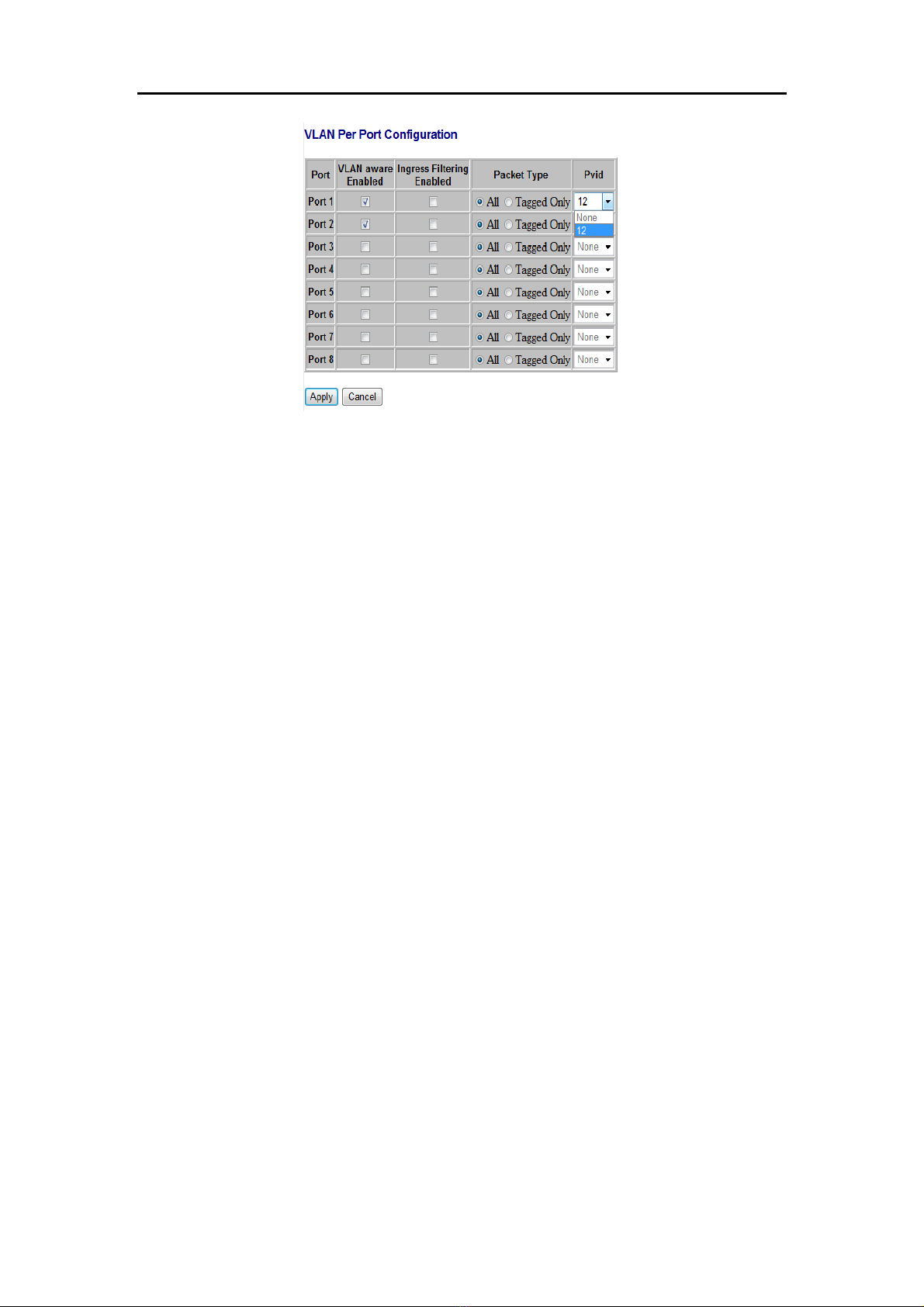

VLAN Per Port Configuration…………………………...……………………15
Aggregation…………………………………………………………………….….17
Aggregation / Trunking Configuration…………………………………....17
LACP……………………………………………………………………….……….17
LACP Port Configuration……………………………………...………………18

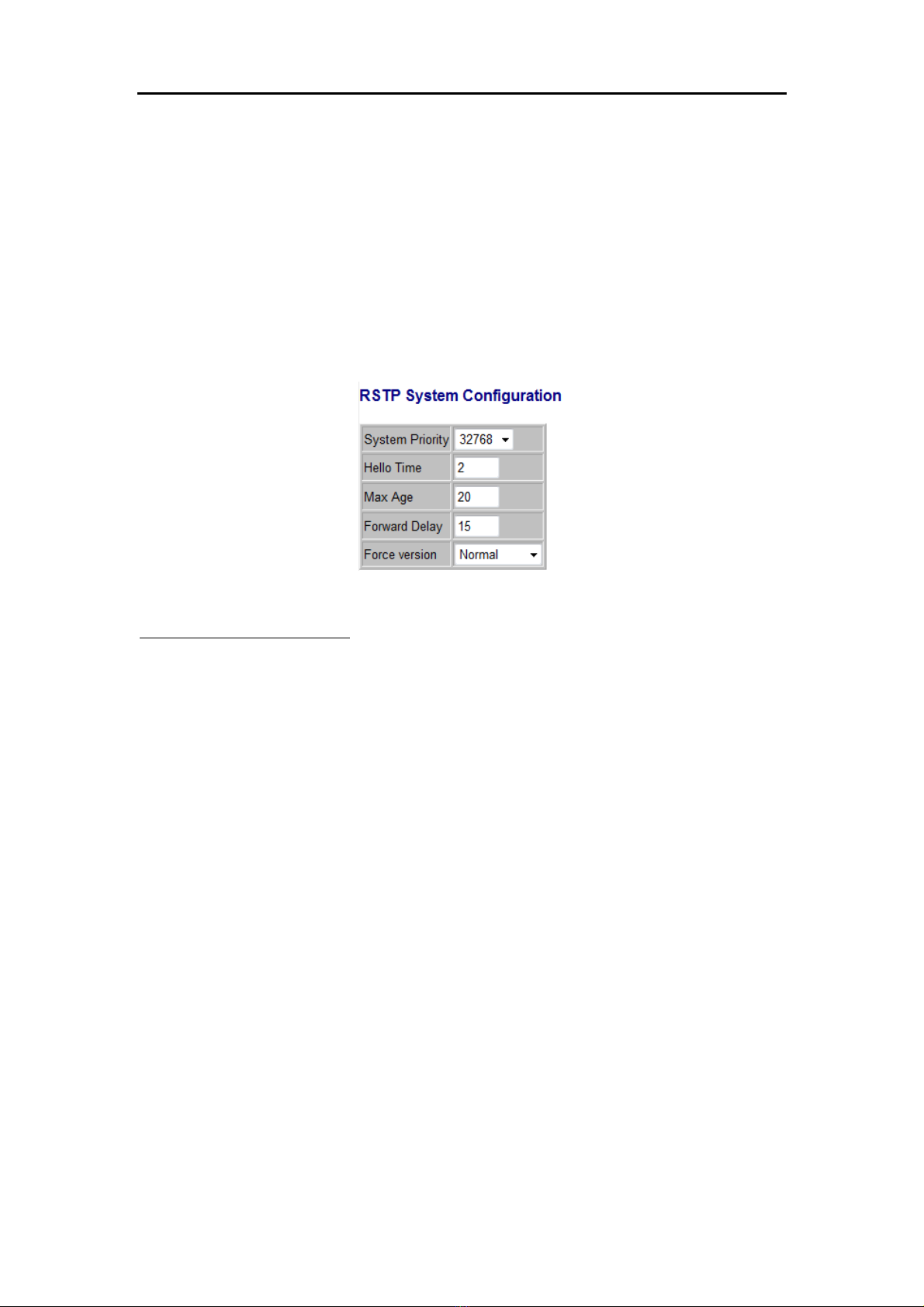

RSTP………………………………………………………………………………..18
RSTP System Configuration……………….………………………………...18
RSTP Port Configuration………….………………………………………….19

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
3
IGMP Snopping…………………………………………………………………….21
IGMP Configuration……………………………………………………………21
Mirroring…………………………………………………………………………22
Mirroring Configuration…………………………………………………...22
QoS……………………………………………………………………………….23
QoS Configuration……………………………………………………………..23
QoS Mode: QoS Disabled…………………………………………………….24
QoS Mode: 802.1p……………………………………………………………..24
QoS Mode: DSCP……………………………………………………………...25
Power over Ethernet……………………………………………………………………….26
PoE Configuration……………………………………..……………………..27
Storm Control………………………………………………………………………27
Storm Control Configuration……………………………………………….28
Monitoring…………………………………………………………………………...28
Statistic Overview………………………………………………………………… 28
Detailed Statistic…………………………………………………………………..29
LACP Status………………………………………………………………………. 29
LACP Aggregation Overview………………………………………………....29
LACP Port Status………………………………………………………………30
RSTP Status………………………………………………………………………..30
RSTP VLAN Bridge Overview………………………………………………..30
RSTP Port Status……………………………………………………………....31
IGMP Status………………………………………………………………………..32
IGMP Status…………………………………………………………………….32
VeriPHY……………………………………………………………………………..32
VeriPHY Cable Diagnostics........................................................................32
Ping………………………………………………………………………………....33
Ping Parameters………………………………………………………………...33
Maintenance…………………………………………………………………………...35
Warm Restart……………………………………………………………………....35
Factory Default…………………………………………………………………….35
Software Upload…………………………………………………………………..35
Configuration File Transfer……………………………………………………...35
Logout………………………………………………………………….…………36
Safety Warning………………………………………………………………………38
CE Declaration of Conformity……………………………………………………39

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
4
Default-IP
192.168.2.1
Username & Password:
admin

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
5
Introduction
Product Overview
This switch is a Web Smart Switch equipped with 8-ports
10/100/1000BaseT(X) with 8 PoE+ Ports. It is designed for easy
installation and high performance in an environment where traffic is on
the network and the number of users increased continuously. The
compact rigid 11” rack-mount size is specifically designed for small to
medium workgroups. It can be installed where space is limited; moreover,
it provides smooth network migration and is easy to upgrade the
network capacity.
In addition, the switch features comprehensive and useful functions,
such as: QoS (Quality of Service), Spanning Tree, VLAN, Power over
Ethernet (PoE), Link Aggregation, SNMP/RMON, IGMP Snooping
capability via the intelligent software. It is suitable for both metro-LAN
and office application.
Web Management Features
Configuration
System
Ports
VLANs
Aggregation
LACP
RSTP
IGMP Snooping
Mirroring
Quality of Service
Power over Ethernet
Storm Control
Monitoring
Statistics Overview

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
6
Detailed Statistics
LACP Status
RSTP Status
IGMP Status
VeriPHY
Ping
Maintenance
Warm Restart
Factory Default
Software Upload
Configuration File Transfer
Logout
Specifications
Standard
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3ad Link Aggregation
IEEE 802.1Q VLAN
IEEE 802.1d Spanning tree protocol
IEEE 802.1w Rapid Spanning tree protocol
IEEE 802.1p QoS
Number of Port
8-port 10/100/1000BaseT(X) with 8-port PoE+
Mechanical
LED Indicator
Port 1~8: Link/ Act, 1000M.
Port 1~8: PoE
Per Unit: Power
Power Consumption: 130 Watts (Max), 30 Watts (Max) per port

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
7
Power Input: 100~240V/AC, 50~60HZ
Product Dimensions/ Weight: 266 × 160 × 44 mm (L × W ×H) / 1.6kg
Performance
MAC Address & Multicast group: 8K
Buffer Memory: 176 KB
Jumbo Frames: 9.6K
Transmission Method: Store and Forward
Package Contents
Before you start to install this switch, please verify your package that
contains the following items:
One PoE Gigabit Ethernet Switch
One AC Power Cord
One User Manual

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
8
Hardware Description
This part primarily presents hardware of this switch, physical dimensions
and functional overview would be described.
Physical Dimensions/ Weight
266 × 160 × 44 mm (L × W ×H) / 1.6kg

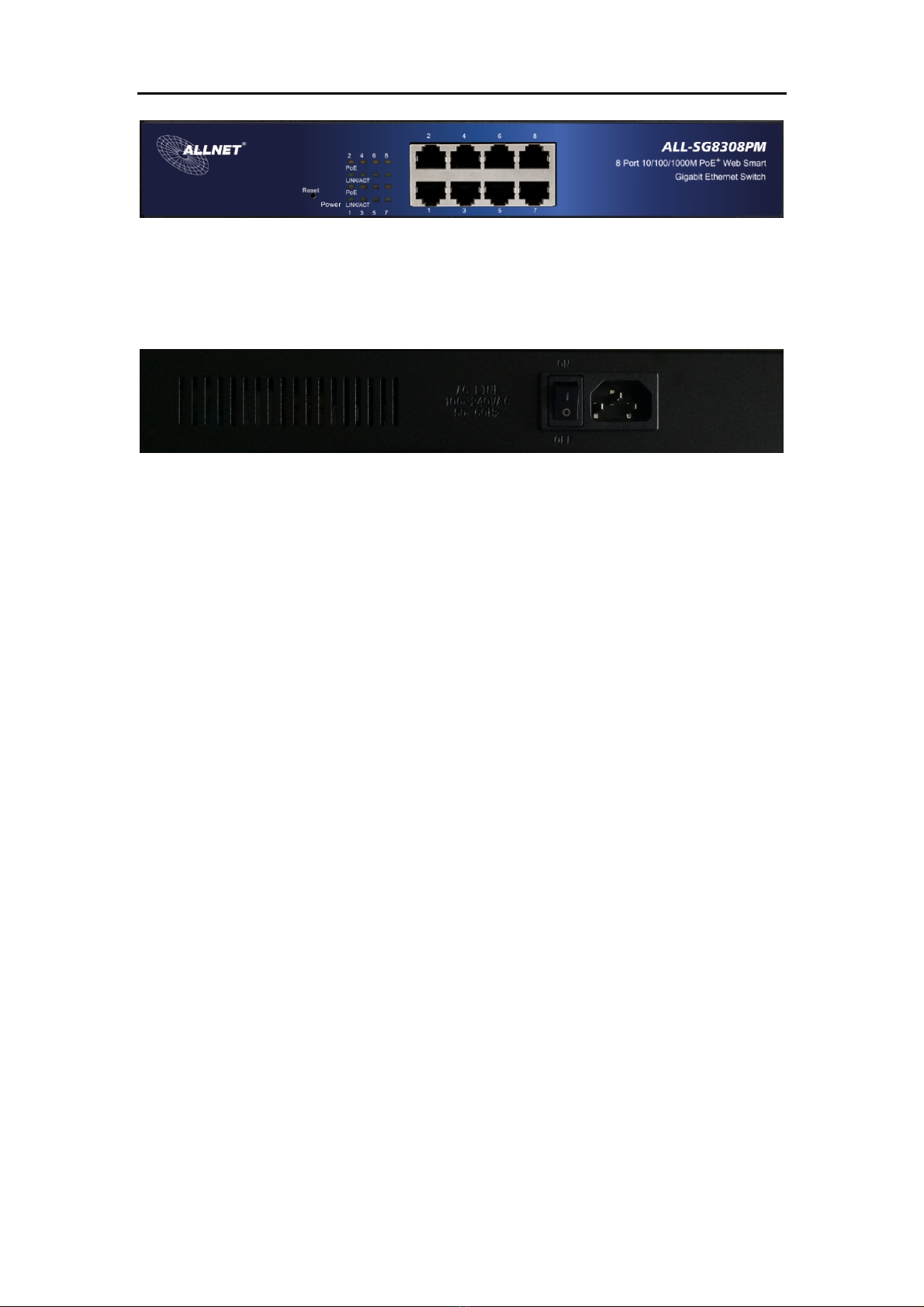

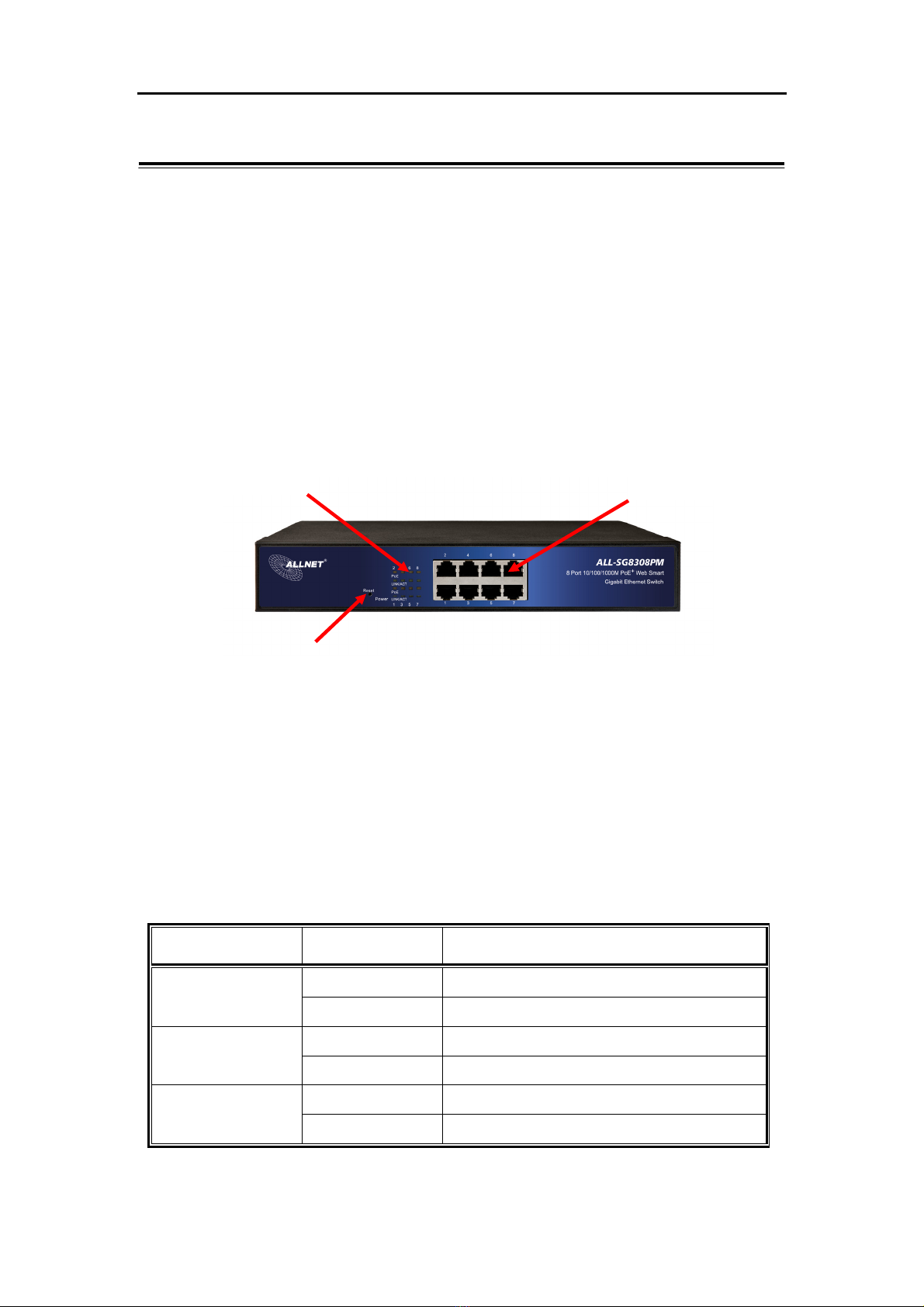

Front Panel
The front Panel of the Web Smart Switch consists of 8 gigabit RJ-45 ports.
The LED Indicators are also located on the front panel.
LED Indicators
The LED Indicators present real-time information of systematic operation
status. The following table provides description of LED status and their
meaning.
Table 1-1 LED Indicators
LED Status Description
Power On Power is on.
Off Power is off.
Link/ACT
Port 1~8
On 10/100/1000 Link is connected
Off 10/100/1000 Link is disconnected
PoE
Port 1~8
On providing the power
Off not providing the power
LED Display RJ-45 Port
Reset

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
9
Rear Panel
The 3-pronged power plug is placed at the rear panel of the switch right
side shown as below.
Hardware Installation
Set the switch on a large flat space with a power socket close by. The flat
space should be clean, smooth, level and sturdy. Make sure there is
enough clearance around the switch to allow attachment of cables, power
cord and allow air circulation. The last, use twisted pair cable to connect
this switch to your PC then user could start to operate the switch.
UL Warning
"The equipment is designed for building installation and not intended to
be connected to exposed (outside plant) networks including campus
environment and the ITE is to be connected only to PoE networks without
routing to the outside plant."

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
10
Software Description
This part instructs user how to set up and manage the switch through the
web user interface. Please follow the description to understand the
procedure.
At the first, open the web browser, and go to 192.168.2.1 site then the
user will see the login screen. Just clicks the Apply then the login process
is completed and comes out the sign “Password successfully entered”.
Figure 1-1
After the user login, the left side of website shows all functions as Fig. 1-2.
Figure 1-2

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
11
Configuration
System

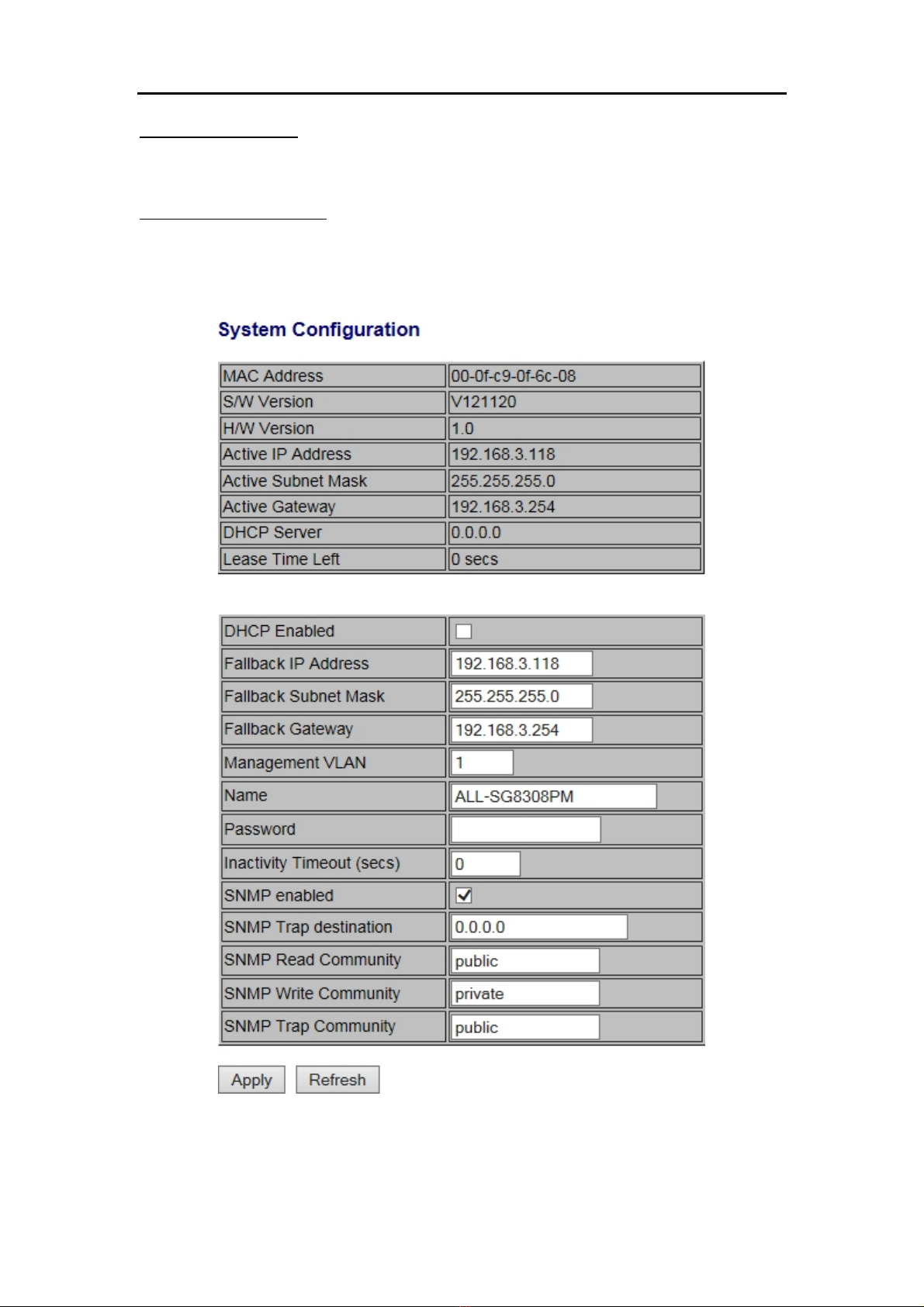

System Configuration
This page shows system configuration information. User can configure lots
of information as Fig. 1-3:
Figure 1-3

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
12
MAC Address: Displays the unique hardware address assigned by
manufacturer (default).
S/W Version: Displays the switch’s firmware version.
H/W Version: Displays the switch’s Hardware version.
DHCP Enabled: Click the box to enable DHCP
Fallback IP address: Manually assign the IP address that the network is
using. The default IP is 192.168.2.1
Fallback Subnet Mask: Assign the subnet mask to the IP address
Fallback Gateway: Assign the network gateway for industrial switch.
The default gateway is 0.0.0.0.
Management VLAN: ID of a configured VLAN (1-4096) through which
you can manage the switch. By default, all ports on the switch are
members of VLAN 1. However, if the management VLAN is changed,
the management station must be attached to a port belonging to this
VLAN.
Name: Type in the new user name (The default value is ‘admin’).
Password: Type in the new password (The default value is ‘admin’).
SNMP Enabled: Enables or disables SNMP on the switch. Supports SNMP
version 1and 2c management clients.
SNMP Trap Destination: IP address of the trap manager to receive
notification messages from this switch. Traps indicating status changes
are issued by the switch to specified trap managers. You must specify
trap managers so that key events are reported by this switch to your
management station.
SNMP Read Community: A community string that acts like a password
and permits access to the SNMP database on this switch. Authorized
management stations are only able to retrieve MIB objects.
SNMP Trap Community: Community string sent with the notification
operation.
Ports
Port Security ensures access to a switch port based on MAC address, limits
the total number of devices from using a switch port, and protects against
MAC flooding attacks.

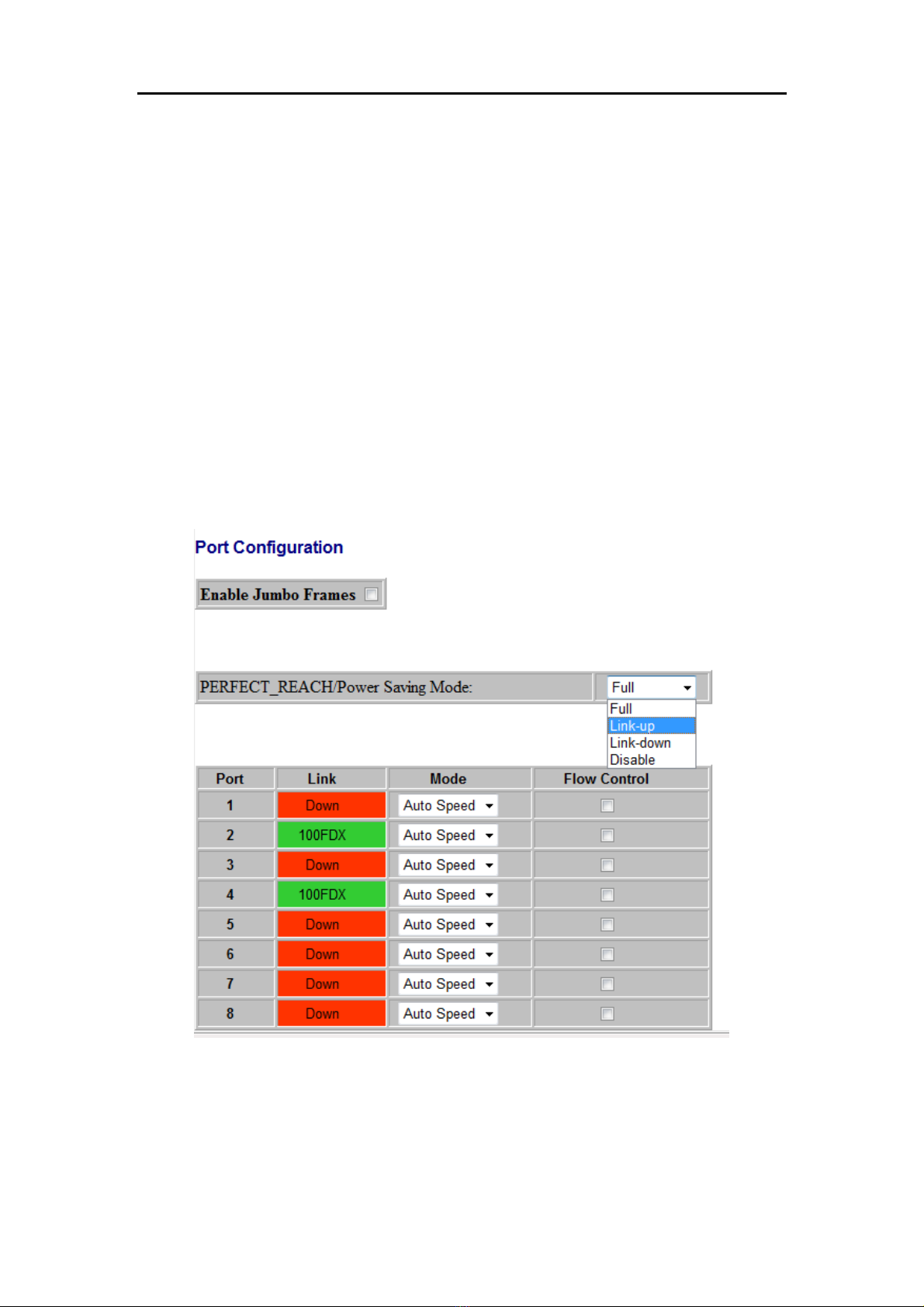

Port Configuration

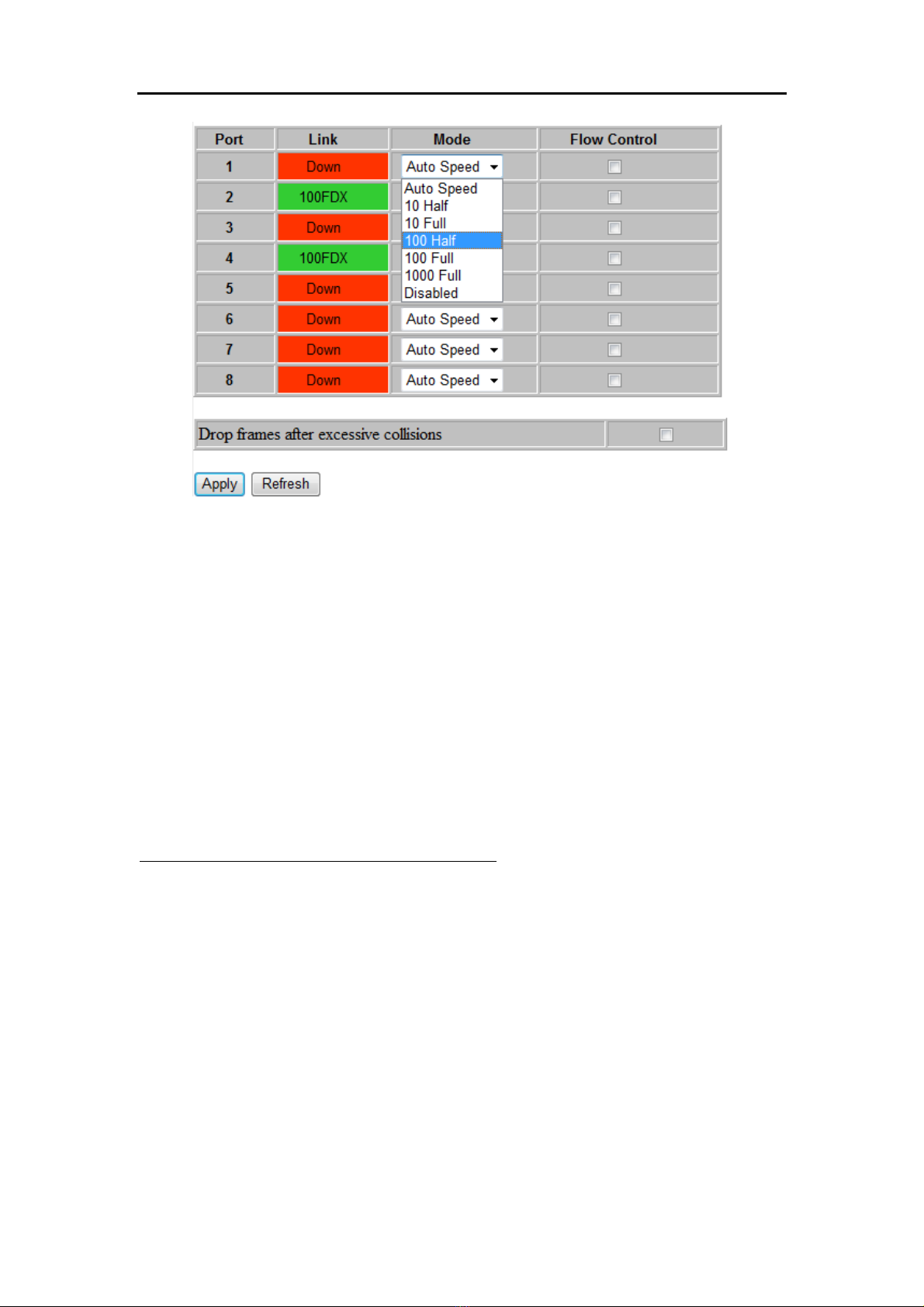

In Port Configuration, you can set and view the operation mode for each
port.

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
13
Enable Jumbo Frames:This switch provides more efficient throughput
for large sequential data transfers by supporting jumbo frames on
Gigabit Ethernet ports up to 9.6 KB. Compared to standard Ethernet
frames that run only up to 1.5 KB, using jumbo frames significantly
reduces the per-packet overhead required to process protocol
encapsulation fields.
Power Saving Mode:Adjusts the power provided to ports based on the
length of the cable used to connect to other devices. Only sufficient
power is used to maintain connection requirements.
Mode: allow user to manually set the port speed such as Auto, 10 half,
10 Full, 100 Half, 100 Full, 1000 Full or Disabled. User may press Apply
button to complete the configuration procedure.
Figure 1-4-1

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
14
Figure 1-4-2
VLAN
A Virtual LAN (VLAN) is a logical network grouping that limits the
broadcast domain, which would allow you to isolate network traffic, so
only the members of the same VLAN will receive traffic from the ones of
the same VLAN. Basically, creating a VLAN from a switch is logically
equivalent of reconnecting a group of network devices to another Layer 2
switch. However, all the network devices are still plugged into the same
switch physically.
Port Segmentation (VLAN) Configuration
VLAN ID: ID of configured VLAN (1-4096, no leading zeroes).
VLAN Configuration List: Lists all the current VLAN groups created for
this system. Up to 16 VLAN groups can be defined. VLAN 1 is the default
untagged VLAN.

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
15
Figure 1-5-1
VLAN Setup
The switch supports up to 16 VLANs based on 802.1Q standard. From the
VLAN Membership page you can create and delete VLANs, and change the
VLAN port membership.
Figure 1-5-2
VLAN Per Port Configuration
The 802.1Q Per Port Configuration page allows you to change the VLAN
parameters for individual ports or trunks. You can configure VLAN
behavior for
specific interfaces, including the accepted frame types and default VLAN
identifier (PVID). Each row of the table corresponds to one port or trunk;
trunked ports cannot be configured individually; configure the trunk
instead.

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
16
Figure 1-5-3
Port/Trunk: The port number of the port or the ID of a trunk.
VLAN Aware Enabled: VLAN aware ports are able to use VLAN tagged
frames to determine the destination VLAN of a frame. (Default:
Enabled)
VLAN aware ports will strip the VLAN tag from received frames and
insert the tag in transmitted frames (except for the PVID). VLAN
unaware ports will not strip the tag from received frames or insert the
tag in transmitted frames.
Ingress Filtering Enabled: If enabled, incoming frames for VLANs which
do not include this ingress port in their member set will be discarded.
(Default: Disabled)
Packet Type: Sets the interface to accept all frame types, including
tagged or untagged frames, or only tagged frames. (Default: All) If the
Packet Type is set to “All,” the port can accept incoming tagged and
untagged packets. Any received packets that are untagged are assigned
to the default VLAN. Any tagged packets will be dropped unless the
port is a member of the VLAN identified by the VLAN tag in the packet.
If the Packet Type is set to “Tagged Only,” the port will drop untagged
packets and will only receive tagged packets. Tagged packets will be
dropped unless the port is a member of the VLAN identified by the
VLAN tag in the packet. Switches should be connected to each other
with the Packet Type set to “Tagged Only.”
PVID: The PVID (Port VLAN ID) is associated with untagged, ingress
packets. It is assigned to untagged frames received on the specified
interface. The PVID has no effect on ports that have Packet Type set to
“Tagged Only.” (Default PVID: 1) It is not possible to remove a port

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
17
from VLAN 1 unless its PVID has been changed to something other than
1. Outgoing packets are tagged unless the packet’s VLAN ID is the same
as the PVID. When the PVID is set to “None,” all outgoing packets are
tagged.
Note: If you select “Tagged Only” mode for a port, we recommend
setting the PVID to “None” as the standard configuration.
Aggregation
Port trunk allows multiple links to be bundled together and act as a single
physical link for increased throughput. It provides load balancing, and
redundancy of links in a switched inter-network. Actually, the link does
not have an inherent total bandwidth equal to the sum of its component
physical links. Traffic in a trunk is distributed across an individual link
within the trunk in a deterministic method that called a hash algorithm.
The hash algorithm automatically applies load balancing to the ports in
the trunk. A port failure within the trunk group causes the network traffic
to be directed to the remaining ports. Load balancing is maintained
whenever a link in a trunk is lost or returned to service.
Aggregation / Trunking Configuration
To assign a port to a trunk, click the required trunk number, and then click
Apply.
Figure 1-6
LACP
IEEE 802.3ad Link Aggregation Control Protocol (LACP) increases
bandwidth by automatically aggregating several physical links together as

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
18
a logical trunk and providing load balancing and fault tolerance for uplink
connections.
LACP Port Configuration
Port: The port number.
Enabled: Enables LACP on the associated port.
Key Value: Configures a port's LACP administration key. The port
administrative key must be set to the same value for ports that belong
to the same link aggregation group (LAG). If this administrative key is
not set when an LAG is formed (i.e., it has the null value of 0), this key
will automatically be set to the same value as that used by the LAG.
Figure 1-7
RSTP
IEEE 802.1w Rapid Spanning tree protocol (LACP) provides a loop-free
network and redundant links to the core network with rapid convergence
to ensure faster recovery from failed links, enhancing overall network
stability and reliability.
RSTP System Configuration
System Priority: This parameter configures the spanning tree priority
globally for this switch. The device with the highest priority becomes
the STP root device. However, if all devices have the same priority, the
device with the lowest MAC address will then become the root device.
Hello Time: Interval (in seconds) at which the root device transmits a
configuration message (BPDU frame). Number between 1-10 (default is
2).

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
19
Max Age – The maximum time (in seconds) a device can wait without
receiving a configuration message before attempting to reconfigure.
That also means the maximum life time for a BPDU frame. Number
between 6-40 (default is 20).
Forward Delay: The maximum time (in seconds) the root device will wait
before changing states (i.e., discarding to learning to forwarding).
Number between 4 – 30 (default is 15).
Force Version: Set and show the RSTP protocol to use. Normal - use RSTP,
Compatible - compatible with STP.
Figure 1-8-1
RSTP Port Configuration
Port: The port ID. It cannot be changed. Aggregations mean any
configured trunk group.
Enabled: Click on the tick-box to enable/disable the RSTP protocol for
the port.
Edge: Expect the port to be an edge port (linking to an end station) or a
link to another STP device.
Path Cost: This parameter is used by the STP to determine the best path
between devices. Therefore, lower values should be assigned to ports
attached to faster media, and higher values assigned to ports with
slower media. Set the RSTP pathcost on the port. Number between 0 -
200000000. 0 means auto generated pathcost.

ALL-SG8308PM - User Manual

ALLNET GmbH Computersysteme 2015 – All rights reserved
20
Figure 1-8-2
Figure 1-8-3
Figure 1-8-4
