Allnet ALL4806W User manual

ALL4806W
24 Ports Gigabit Web Smart Switch with 4 ports mini-GBIC
User’s Manual

2
Table of Contents
Unpacking Information ...................................................................... 5
Introduction.............................................................................. 5
General Description ...................................................................5
Key Features.............................................................................6
The Front Panel .........................................................................6
LEDs Definition ......................................................................6
The Rear Panel ..........................................................................8
Installation ............................................................................... 9
Desktop Installation...................................................................9
Rack-mount Installation ............................... .. ..............................9
Installing Network Cables ......................................................... 10
Functional Description ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 11
Jumbo Frame .......................................................................... 11
Flow Control and Back Pressure................................................. 11
Mirror..................................................................................... 11
VLAN..................................................................................... 11
Trunk (Aggregation) ................................................................ 11
Quality of Service (QoS) ........................................................... 11
SNMP ..................................................................................... 11
Management guide ........................................................................... 12
Access the management interface of the Switch ...............................12
Manage the device via command line interface .............................12
Manage the device via WEB browser ................................................12

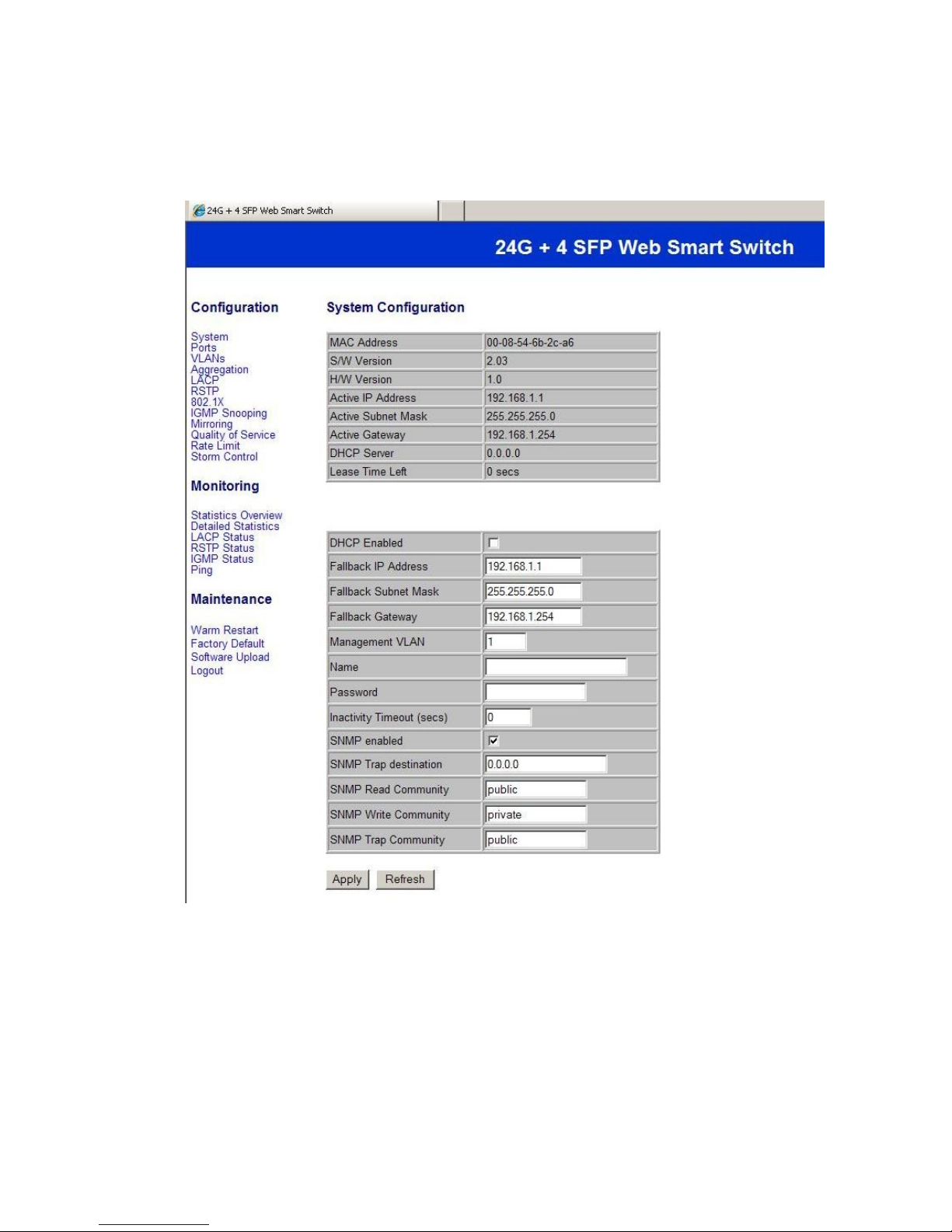

System ..................................................................................14
Port .......................................................................................................................16
VLAN ............................................................................................. 17

3
PVID ........................................................................................................... 19
Aggregation1 Trunk Configuration ...............................................................20
LACP ........................................................................................................... 21
RSTP....................................................................................................... 22
802 .1x .......................................................................................... 24
IGMP Snooping............................................................................... 27
Quality of Service .........................................................................................28
Mirror.......................................................................................................... 30
Rate Limit.................................................................................... 31
Storm Control .....................................................................................32
Statistics Overview ...........................................................................................32
Detailed Statistics..............................................................................................33
LACP Status ................................................................................ 34
RSTP Status ............................................................................. 35
IGMP Status ................................................................................ 36
Ping............................................................................................................................. 37
Warm Restart........................................................................... 38
Factory Default ............................................................................ 38
Software Upload ......................................................................... 38
Product Specifications ................................ ............................. 39
Appendix- Command Line Interface........................................... 40
Start-up and Terminal configuration .....................................................40
Login1Logout Procedures ............................. .................................40
Command Hierarchy ..................................................................... 41
Entering Commands ............................................................................41
Command Description ................................................................................42
System Commands ................................................................. 42
Console Commands .....................................................................45
Port Commands ............................................................................ 46

4
MAC Commands ...........................................................................48
VLAN Commands .........................................................................50
Aggregation Commands ........................................................................52
LACP Commands.....................................................................................53
RSTP Commands .................................................................................... 54
User Group Commands ......................................................................57
QoS Commands ...........................................................................58
Mirror Commands ...................................................................................61
IP Commands ..............................................................................62
Dot1x Commands ................................................................................... 64
IGMP Commands .................................................................................... 66
Debug Commands ..................................................................................67

5
Unpacking Information
Thank you for purchasing the 24-Port Gigabit Web Smart Switch with
4-Port mini-GBIC. Before you start, please verify that your package contains
the following items:
1. One 24-Port Gigabit Web Smart Switch with 4-Port mini-GBIC.
2. One power cord.
3. Rack-mount brackets and screws (optional).
4. Manual CD.
Introduction
General Description
Easily boosting your networking throughput, the 24-Ports Gigabit Web
Smart Switch provides you 24 10/100/1000 Mbps gigabit ports that lead
you to a real gigabit connection. Users are now able to transfer high
bandwidth-demanded files faster and get a real efficiency improvement with
the user-friendly Web-based management interface. This product also
equips 4 mini GBIC slots for your flexible fiber connection. Use of the
mini-GBIC port disables the connection of its corresponding copper port
automatically.
The management functionalities provide efficient network usage. VLAN
reduces the collisions from widely broadcasting. Port Aggregation enlarges
the bandwidth of backbone connection. QoS is supported to secure the
bandwidth for some bandwidth-demanded applications including VoIP or
videoconference. The 802.3x and backpressure flow control mechanisms
are also supported to ensure the correctness of data transmitting.

6
Key Features
 24 fixed 10/100/1000 Mbps Gigabit Ethernet ports for easy network
connecting application.
 Equips 4 SFP ports for optional fiber connection.
 Supports auto-detection for mini-GBIC module inset.
 Supports Port Mirror.
 Supports 8 groups aggregation.
 Supports QoS function, tag base, DSCP priority.
 Supports Rate Limit (ICMP Rate, Broadcast Rate, Multicast Rate,
Ingress1Egress Rate).
 Supports full duplex flow control and half duplex back pressure.
 Non-blocking wire-speed switching performance.
 Provides 8K MAC address entries and 16 groups VLAN table.
 Supports firmware upgrade, SNMP.
 Supports Jumbo frame 9600 bytes.
 Supports 500K bytes buffer Memory.
 Supports Web-based management interface.
 FCC, CE, VCCI Class A. Meet RoHS.
The Front Panel
The front panel consists of the ports and LED indicators. Please refer to the
following paragraph for information.
LEDs Definition
LED for the device:
The switch provides a power LED for the device.
LED Status Operation
Power
Steady Green
The switch is powered on
Off
The switch is powered off

7
LED for each port:
The switch provides one "1000M" LED and one "10/100M" LED for each port.
000M LED: Shows the current transmitting1receiving speed of the port.
0/ 100M LED: Shows the link status and the activities on the port.
LED Status Operation
Green The port is connected at 1000 Mbps.
000M
Blinking Green
A valid link is established, and there is data
transmitting1receiving.
Off
No valid link on this port or the port is connected
at 10/100 Mbps.
0/ 100M
Steady Green
A valid link is established, and there is no data
transmitting1receiving.
Blinking Green
A valid link is established, and there is data
transmitting1receiving.
Off
No valid link on this port or the port is connected
at 1000 Mbps.
Port Operation
The auto-negotiation feature allows those ports running at one of the
following operation modes:
Media
Speed
Duplex Mode
10/100/1000 Mbps(copper)
10 Mbps
Full Duplex
Half Duplex
100 Mbps
Full Duplex
Half Duplex
1000 Mbps
Full Duplex
1000 Mbps(Fiber)
(mini-GBIC required)
1000 Mbps
Full Duplex
Note: For the last port, when both the fiber and cooper interfaces are
connected, the system adapts the fiber interface and disables the relevant
cooper port automatically.
Attention : The Mini GBIC slot shares the same LED indicator with the
last 4 RJ-45 (copper) ports.

8
Restore Default Button
You can use this button to reset the switch or restore factory default settings.
To reset the switch, press the button once.
To restore factory default settings, press and hold the button for three
seconds.
The Rear Panel
The rear panel of the switch:
Power Receptacle
To be compatible with the electric service standards around the world, the
switch is designed to afford the power supply in the range from 100 to 240
VAC, 50160 Hz. Please make sure that your outlet standard to be within this
range.
To power on the switch, please plug the female end of the power cord firmly
into the receptacle of the switch and the other end into an electric service
outlet. After the power cord installation, please check if the power LED is lit
for a normal power status.

9
Installation
This switch can be placed on your desktop directly, or mounted in a rack.
Please refer to the instructions for installation.
Before installing the switch, we recommend:
1. The switch is placed with appropriate ventilation environment. A
minimum 25 mm space around the unit is recommended.
2. The switch and the relevant components are away from sources of
electrical noise such as radios, transmitters and broadband amplifiers
3. The switch is away from environments beyond recommend moisture
Desktop Installation
1. Install the switch on a level surface that can support the weight of the
unit and the relevant components.
2. Plug the switch with the female end of the provided power cord and plug
the male end to the power outlet.
Rack-mount Installation
The switch may be standalone, or mounted in a rack. Rack mounting
facilitate to an orderly installation when you are going to install series of
networking devices.
Procedures to Rack-mount the Switch:
1. Disconnect all the cables from the switch before continuing.
2. Place the unit the right way up on a hard, flat surface with the front
facing you.
3. Locate a mounting bracket over the mounting holes on one side of the
unit.
4. Insert the screws and fully tighten with a suitable screwdriver.
5. Repeat the two previous steps for the other side of the unit.
6. Insert the unit into the rack and secure with suitable screws (optional).
7. Reconnect all the cables.

10
Installing Network Cables
1. Crossover or straight-through cable: All the ports on the switch
support Auto-MDI1MDI-X functionality. Both straight-through or
crossover cables can be used as the media to connect the switch with
PCs as well as other devices like switches, hubs or router.
2. Category 3, 4, 5 or 5e, 6 UTP/STP cable: To make a valid connection
and obtain the optimal performance. An appropriate cable that
corresponds to different transmitting1receiving speed is required. To
choose a suitable cable, please refer to the following table.
Media
Speed
Wiring
10/100/1000
Mbps copper
10 Mbps
Category 3,4,5 UTP1STP
100 Mbps
Category 5 UTP1STP
1000 Mbps
Category 5e,6 UTP1STP
1000 Mbps Fiber
(mini-GBIC
required)
1000 Mbps
The cable type differs from the
mini-GBIC you choose. Please refer to
t h e i n s t r u c t i o n c a m e w i t h y o u r
mini-GBIC.
