Alpina Bali EH900 User manual

Electric PatioHeater
Model EH900
Model EH901
Please readthisinstructionmanual beforeusingtheheater
Keepthemanual safeforfuturereference

(GB)
2
Specifications
Model EH900 EH901
Rated power Max:2000W Max:2000W+900W=2900W
Rated voltage 220-240 V~ 220-240 V~
Rated frequency 50 Hz 50 Hz
Class: I I
IPrate IP34 IP34
Circuitdiagram
Important safetyinstructions
WARNING-Whenusing electricalappliances,basicsafetyprecautionsshouldalwaysbefollowed. Failureto
complywith theseinstructionsmaycauseafire, electricalshocksor other injuryto personsor property
WARNING:SOMEPARTSOFTHEHEATERWILLBEVERYHOT,DONOTTOUCHWHENTHE
HEATINGISWORKING.
WARNINGS:
In order to avoid overheating, do notcover theheater.
Thefireguardof thisheater isintended to preventdirectaccess to heating elementsand mustbein place
whentheheaterisinuse;Thefireguard doesnotgivefull protection for young childrenandfor infirm
persons.
Donotusethisheater intheimmediate surroundingsofabath, ashoweroraswimming pool.
WARNINGS:
Thisheater isnotequippedwith adeviceto controltheroomtemperature.
Donotusethisheaterinsmallroomswhentheyareoccupiedbypersonsnotcapable of leavingthe
roomon their own, unlessconstantsupervision isprovided.
Childrenof less than3yearsshould bekeptawayunlesscontinuouslysupervised. Children aged from3
yearsand less than8yearsshall onlyswitchon/offtheapplianceprovidedthatithasbeenplacedor
installedinitsintendednormaloperating position and theyhavebeengivensupervisionor instruction
concerning useof theappliancein asafewayand understand thehazardsinvolved.
Childrenagedfrom3yearsand lessthan8yearsshall notplug in, regulateand cleantheapplianceor
performusermaintenance.
Thisappliancecanbeusedby children agedfrom8yearsand aboveand personswithreduced physical,
sensoryormentalcapabilitiesor lack of experienceandknowledgeif theyhavebeengivensupervision
or instruction concerning useof theapplianceinasafeway andunderstand thehazardsinvolved.
Children shall notplaywith theappliance.Cleaning andusermaintenanceshall notbemadeby
childrenwithoutsupervision.
Somepartsof thisproductcanbecome veryhotand causeburns.Particularattention hastobegiven

(GB)
3
wherechildren andvulnerable peoplearepresent.
1. Removeproduct fromthepackaging and ensureit isin good condition.
2. DONOTlet childrenplaywith thepackaging,for example plastic bags.
3. Checkthatthevoltageand frequencyof your appliancematchyour mainsvoltagebeforepluggingin.
4. Thisheaterishotwheninuse.ToavoidburnsDONOTtouchthegrillesor heating elementduring use
or attempttomovetheheater.
5. DONOTtouchtheheater withwethands
6. DONOToperateanyheaterwithadamagedcableorplug,oraftertheheatermalfunctions,hasbeen
dropped,ordamagedinanymanner.Returntheheatertoanauthorizedservicefacilityforexamination
and repair.
7. DONOTattemptto repair oradjustanyelectrical or mechanical functionsasthismay void warranty.
8. DONOTinsertor allowobjectstotouchtheheating elementandneverplaceanythingon theheater
safetyguard (e.g. towels), asthismaydamagetheheaterand couldcauseanelectrical shockor fire.
Never useyour heater to drywashing.
9. Iftheheating elementhasstoppedglowing it maystillbelive,pleasecheckthat theheat setting
indicatestheheaterisoff. Alwaysdisconnect your appliancefromthemainsbeforeanycleaningor
replacing tubes.
10. DONOTusetheheater inareaswherepetrol, paint, or other flammablesubstancesarestored.
11. Alwaysunplug theheaterwhennotinuse.Todisconnect fromthepowersupply,griptheplug and pull
fromthepower socket. Never pull bythecable.
12. DONOTdirecttheheatertowardscurtains,furnitureorotherflammable objectsand ensurethat thereis
aminimumdistance fromobjectsaround.
13. Donotusethisheaterinconjunction withatimerdeviceor anyotherdevice,whichfacilitates
unattendedswitch on.
14. Donotpull thepower cableor thedeviceitself to unplug itfromthesocket;pull theplug directly.
15. Donotletchildren orincompetentpeopleusedevicewithoutsupervision.
16. Thepower cable mustbefullyunwound beforeuse.
17. If theapplianceisnotused for along period, disconnect it fromthepower supply.
18. ifthesupplycableisdamaged,it mustbereplacedbythemanufactory,itsserviceagentor similarly
qualifiedperson in order toavoid ahazard
19. Thisproduct isnotdesignedfor usebypersons(includingchildren) who havereducedphysical,sensory
or mentalcapacitiesor personswith no experience orknowledge, unlesstheyareinstructed and
supervised in theuseof theappliancebyaperson responsiblefor theirsafety.
20. Childrenshould besupervised to ensurethat theydonotplaywith appliance.
21. Thisheatershould beplacedon aflat levelfloor ,
22. Theheater mustnotbelocatedimmediately belowasocketoutlet.
23. Donotusethisheaterwithaprogrammer,timer,separateremote-controlsystemoranyotherdevice
thatswitchestheheateronautomatically,sinceafireriskexistsiftheheateriscoveredor positioned
incorrectly.
24. Toprotect againsttheriskofelectrical shock,do notimmersetheunit,cord or plug inwaterorother
liquid.
Installation instruction
Precaution:
Installation shouldalwaysbecarried outbyaqualified electrician oracompetentperson
Theenergysupplymustbedonethroughaproperlygrounded socket.

(GB)
4
Minimumdistancesshouldalwaysbecomplied with(fromtop:60 cm, fromsides:150 cm.)
Theheater shouldnotbefacing inflammable substances.
Theheatermustbeinstalledsoastopreventthat theswitchescanbetouchedfromthosewho areinthe
shower.
Donotusetheheaterdirectly near abathtub, ashower, aswimming pool.
Ensurethatthereisnopossibilityof inflammablematerialcomingintocontactwiththeheater,orlies
near theheater.
Heatersshouldnotbeinstalled in areaswherehazardousvapoursmaybepresent.Defined inBS5345.
Theheatersarefittedwithsafetyguards.Theseareintendedonlytostoplargeobjectsfromhittingthe
emitters. On noaccountshouldtheheater beoperatedwith theguard removed.

(GB)
5
EH900
Partslist:
PartNo. Partname QTY Pictures
HeaterBody 1
2 2
3 2
4 1
5 1
9 M4 10 screw 6
10 Washer 2
11 ST3.5 12screw 2
12 M6×50
Hexagon head bolts 4
13 Remote controlunit 1
14 Castor 2
15 Footsheath 2
16 BaseFoot 2

(GB)
6
EH901
Partslist:
PartNo. Partname QTY Pictures
Upper Heaterbody 1
2 Lower heater body 2
3 Basecover 2
4 Base 1
5 M4 10screw 6
6 Washer 2
7 ST3.5 12screw 2
8 M6 50
Hexagon head bolts 4
9 Remote controlunit 1
10 Castor 2
11 Footsheath 2
12 BaseFoot 2

(GB)
7

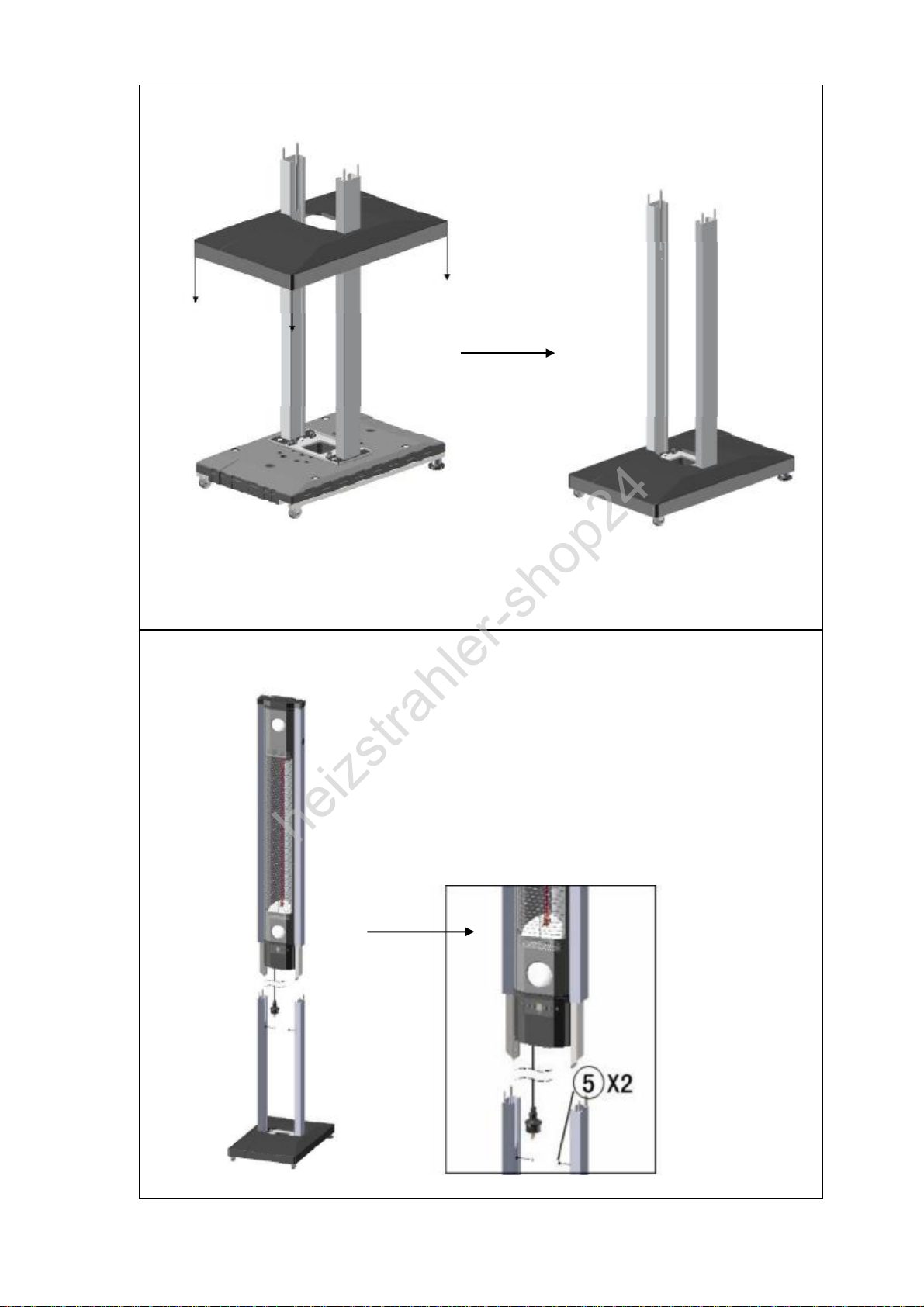

AssemblyinstructionforEH900
1
2

(GB)
8
3
4

(GB)
9
5
6
7

(GB)
10
8
9

(GB)
11

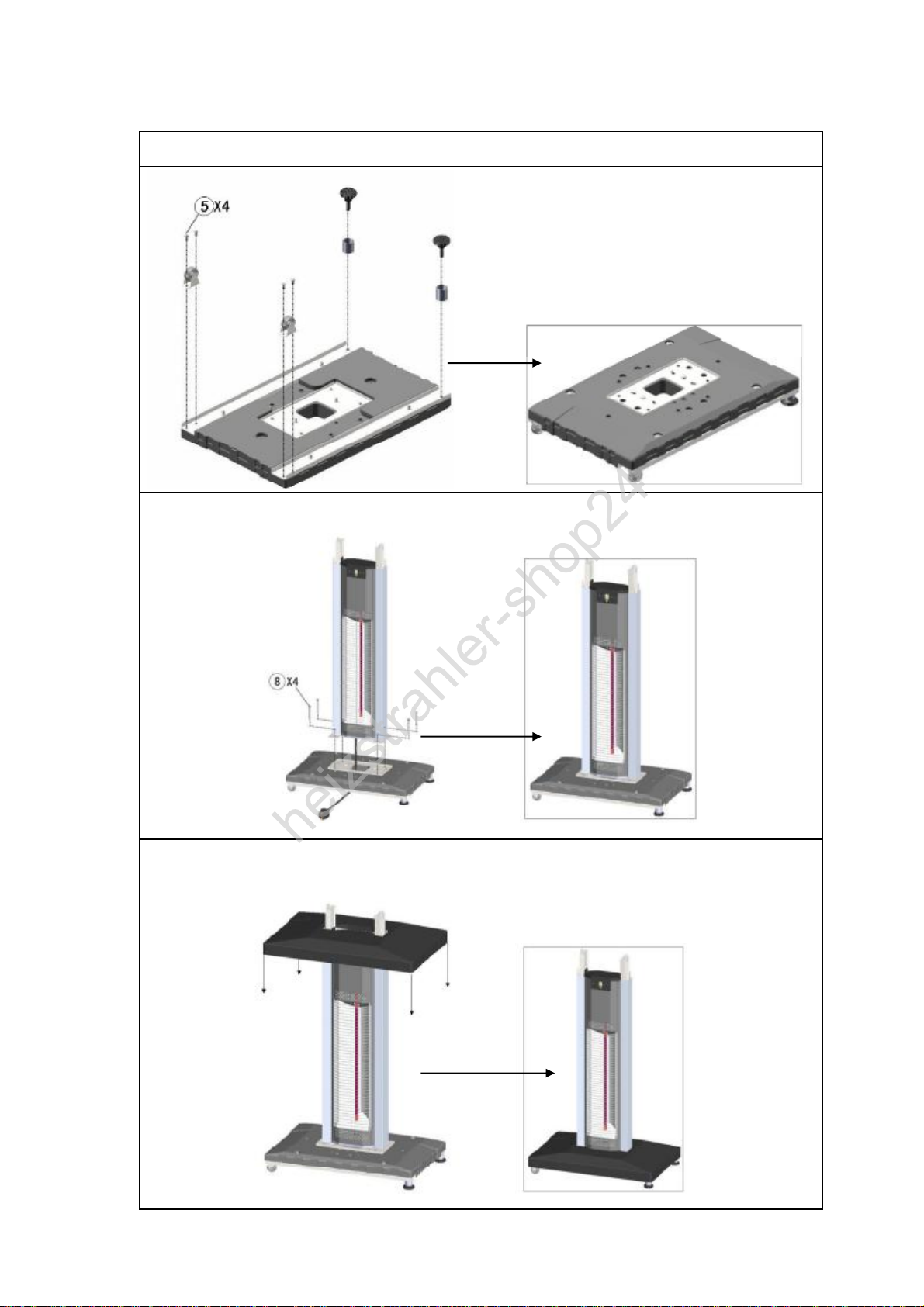

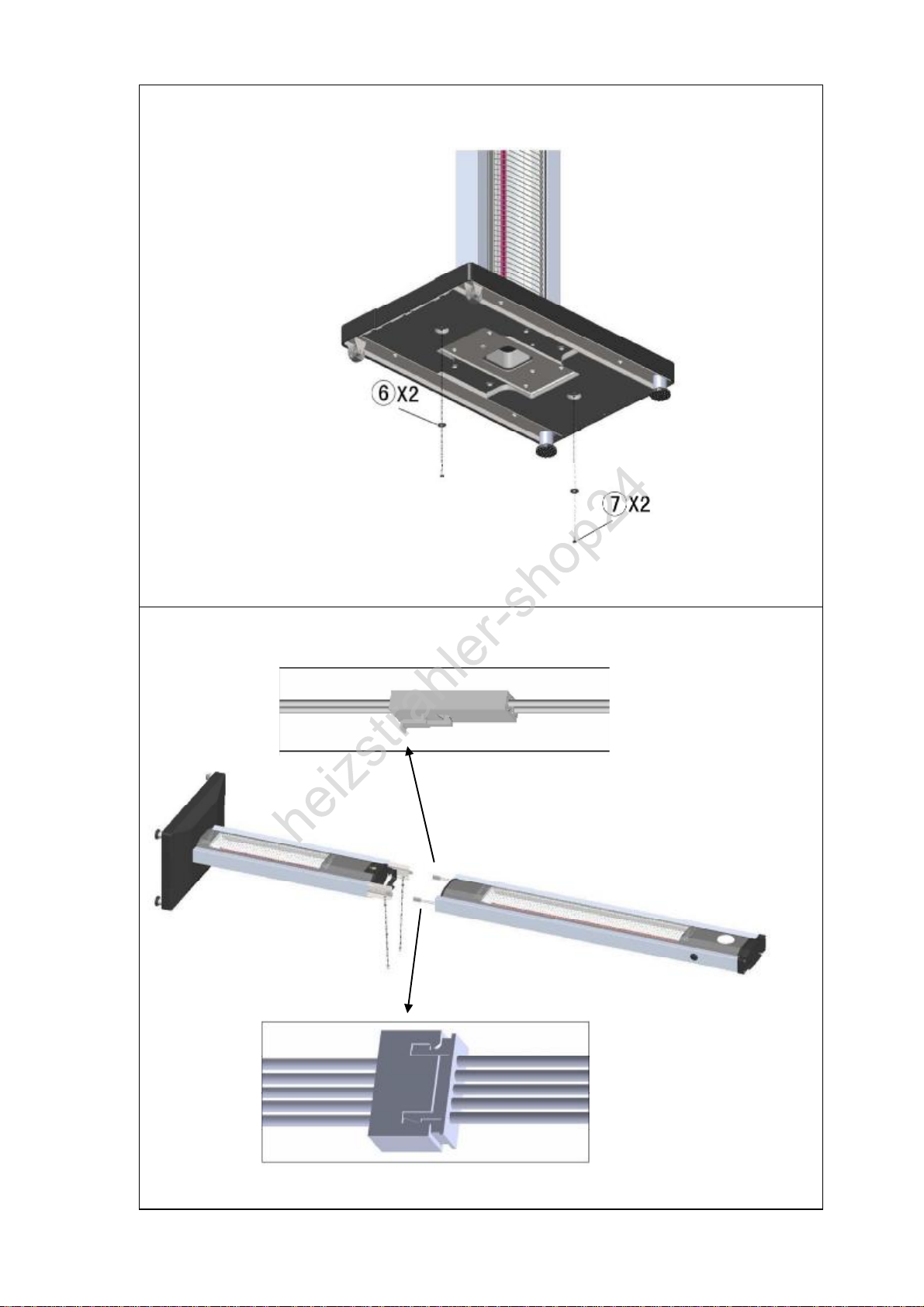

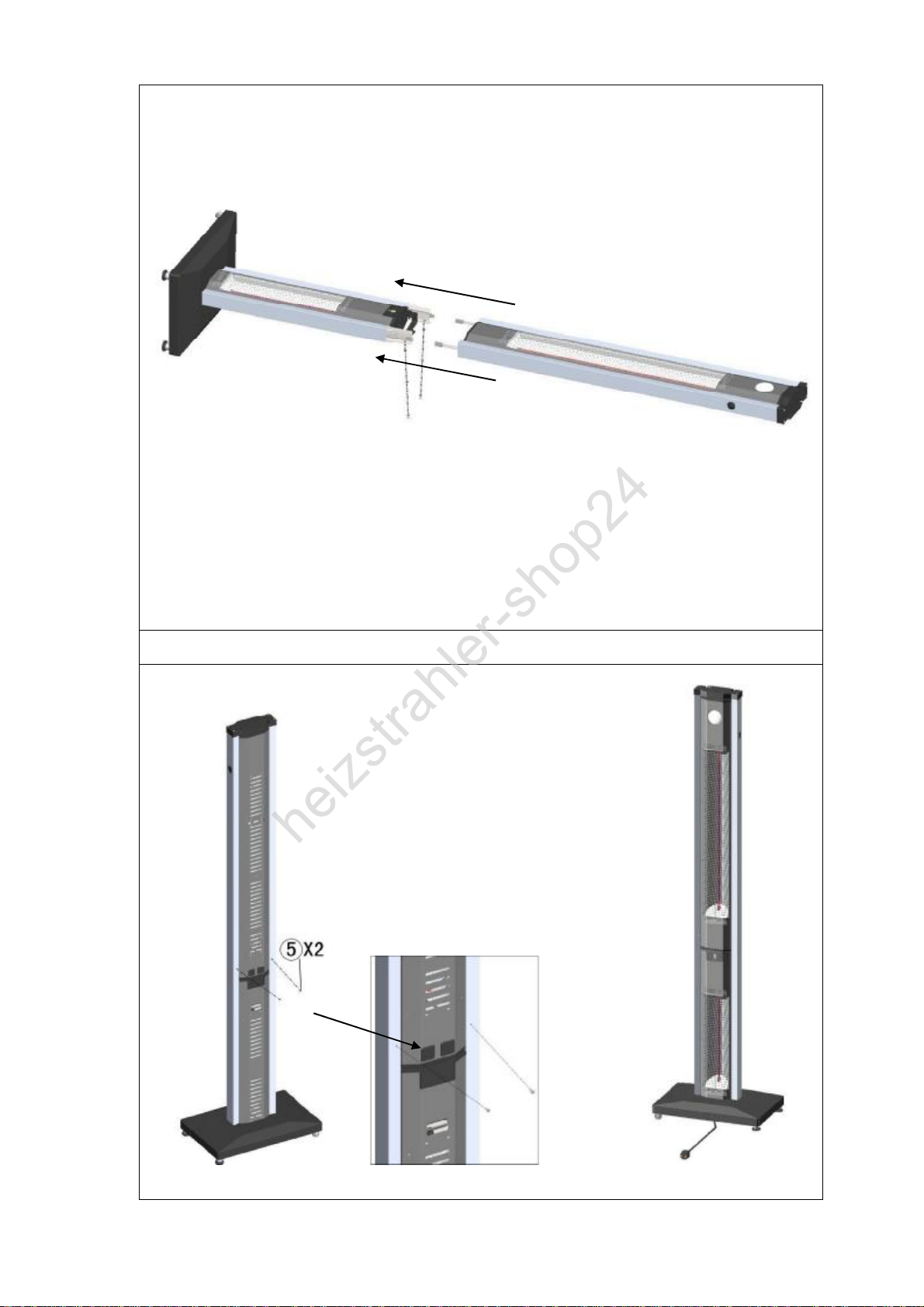

AssemblyinstructionforEH901
1
2
3

(GB)
12
4
5

(GB)
13
6
7

(GB)
14
Using theheater:
Warning:
Minimumdistances(fromtop:60cm,fromsides:150 cm) mustalwaysbecompliedwhen
theheatingarmisinhorizontalor verticalposition,thedistanceshouldbemeasured
fromtheambientobjectsto theclosestpointof theheater
Alwayskeep theflammable material awayfromtheheater.
Warning:
1. Do nottwistor bend thepower cable.
2. ThisheaterisIP34protection,andcan beusedindoorsoroutdoors.Ifusing outdoorsandyou need a
extendsocket, thecable and thesocketsystemmustbewaterproof.
ControlPanel on theheater
Symbol Button function
ON/OFF button:Turn on andTurn offthewhole heater
Upper tubebutton:Select and turn On/Off theupper heating
tube, andalso adjustitspower, thereare5 powerssettings,
loopsfrom1 to 5.
Lowertubebutton:Select and turn On/Off thelower heating
tube, and also adjustitspower,thereare5 powerssettings,
loopsfrom1 to 5. (Thisbutton isonlyforModel EH901)
Lightbutton:Select and turn On/Off theLEDlight, and also
adjustitspower, thereare5 powerssettings, loopsfrom1 to 5.
Digital displayer:Displaythepower settingof theworking
component.Italwaysdisplaysthepowersetting of theupper
tubeif theupper tubeisturnedon.

(GB)
15
RemotecontrolUnit
Buttonshavethesamefunction asthoseinthecontrolpanel
Operation Instruction:
Warning:
Donotusetheheater directlynear abathtub, ashower, aswimming pool.
Never turnon or off theswitchwithwethands
Alwaysunplug theheater whenisnotused.

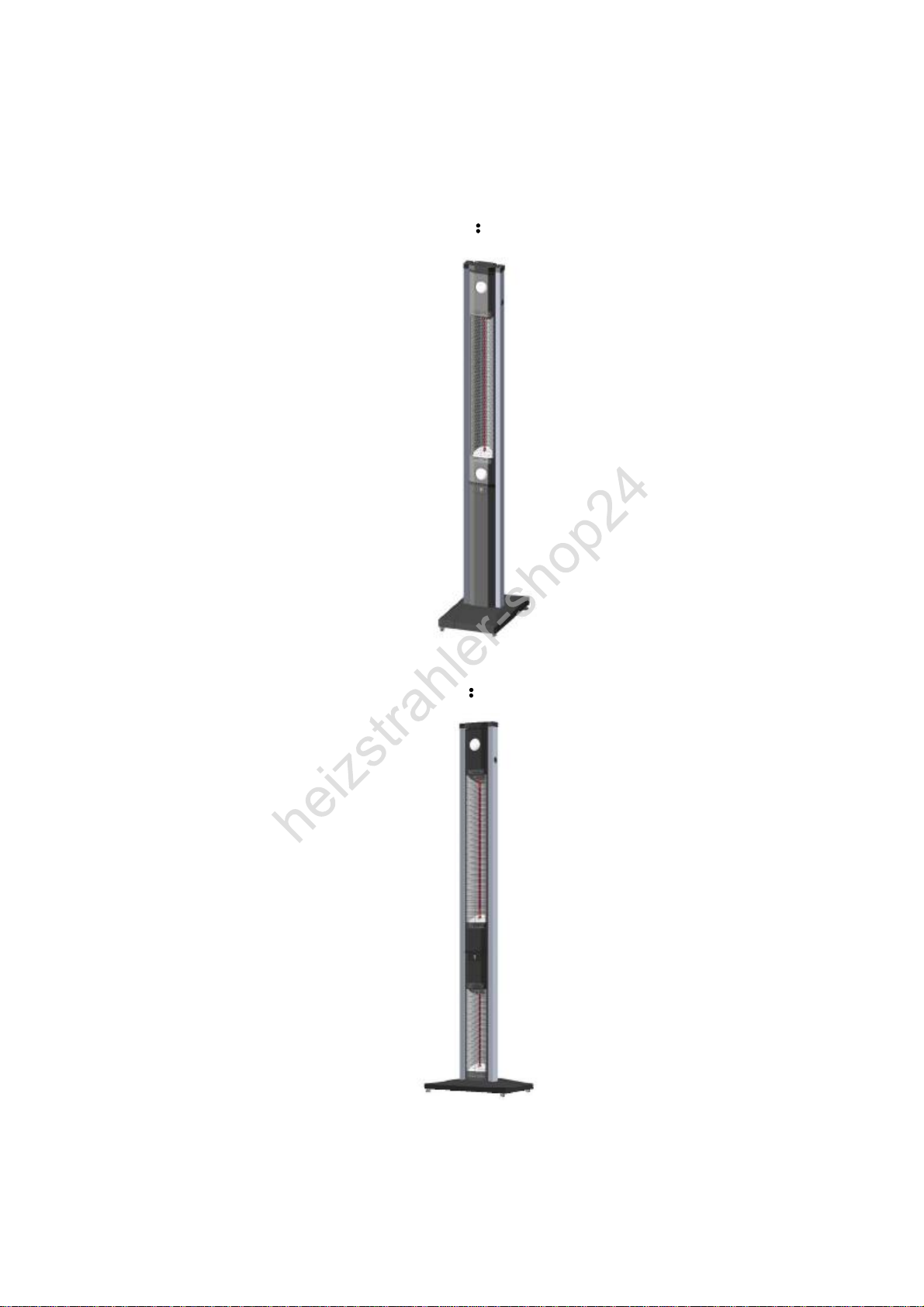

EH900 EH901
Precaution:Takeoff all protection piecesfortheheatingtubebeforeswitching theheateron.

(GB)
16

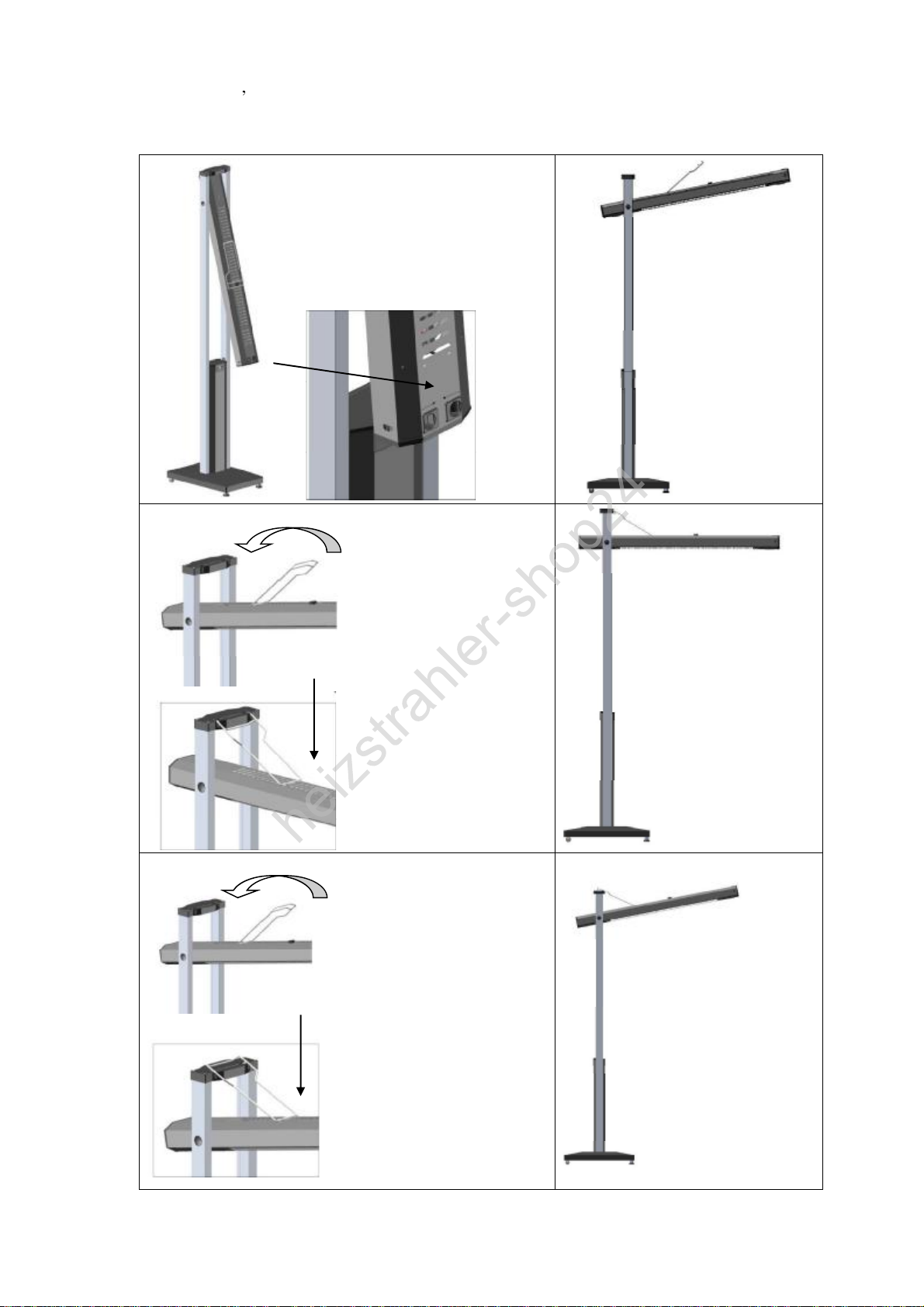

ModelEH900 sheatingarmcan work in verticalor horizontalposition.
Opentheheatingarm(Onlyfor ModelEH900)asfollowing instructions,and closeit inthe
reversedirection.

(GB)
17
Operation:
1. Pluginthepowdercable,a Beep soundisheard. Theheaterisin Stand By status,theON/OFFisa
bluelight.
2. PresstheON/OFFbutton andthelightwill bewhite,andtheheaterswitchtoaworking status.The
heatingtubeandtheLEDlightarepresetin power 3.
3. Press thetubeorlightbutton,therelativetubeor lightand thedigitaldisplayerwillflashfor 5seconds,
pressthesame button toadjusttheheatingor lightpowerwhilethepowersection isshowedinthe
displayer.Theflashing will stop after 5 secondsand theadjustmentisfinish.
4. Ifyouwanttoturn offonlyonetubeorlight,presstherelativebutton and pressON/Offbutton
immediately.To turn thetubeor thelighton again, pushtherelativebutton.
5. Turn off all tubesand lightby pressing ON/Off button , theheater turnsto Stand By status
Warning:Alwaysunplug theheaterwhenitisnotinuse.
Note:
1. When all tubesandlightareon, thedigitaldisplayerdisplaysonlythepowersectting of theupper
heatingtube.Iftheupperheatingtubeisoff, it displaysthatoflowerheatingtube,ifall heating
tubesareoff, it displaysthatof theLEDlight.
2. OnlymodelEH901 hasalower heating tube.

(GB)
18
Maintenance- TURN ITOFFAND UNPLUGFIRST
Thisheatercontainsno movingparts,it needsverylittlemaintenances.However,whentheheaterbuildsup
heavydirt, useasoftcloth to wipeit off.
Warning: Beforecleaningunplug fromthepower supplyand wait for someminutesto cooldown.
Heatingelement replacement
If theheating elementbreaksor anyhasmalfunction, it should beonlychanged byitsserviceagent
WasteElectricProductsshould notbedisposed of with household
waste,
Pleaserecyclewherefacilitiesexist.
Checkwith your Local Authorityof retailer for recyclingadvice.
Menenstreet459-4638560Wevelgem Belgium
[e-mail]
www.infralia.com
