TY2-72 SERIES
TY2SYS-72 SERIES
HEATED DISPLAY SYSTEMS
ITEM NO. _______________________
HEATED DISPLAY CASE
The display case is constructed of 18 gauge, non-magnetic stainless steel. A tempered glass front encloses the display
case and can be lifted to a 90 degree angle for easy cleaning. Removable, sliding glass doors on the operator side are
included. Sliding door tracks have a “clean sweep” cutout allowing for easy cleaning and crumb removal. Framed end
glass with rubber gasket material protects glass edges from chipping and breakage. Two (2) 125V plug outlets are
included on 120/208-240V units only. Counter-top display cases include one set of 4" (102mm) legs.
■■TY2-72 - 72” (1829mm) length
■■TY2SYS-72 - 72” (1829mm) length, with base
■■TY2-72/P - 72” (1829mm) length, 71-5/16” (1811mm) self-service opening across full length of case front
■■TY2SYS-72/P - 72” (1829mm) length, with base, 71-5/16” (1811mm) self-service opening across full length of case front
■■TY2-72/PL - 72” (1829mm) length, 23-3/4” (603mm) self-service opening on left side of case front
■■TY2SYS-72/PL - 72” (1829mm) length, 23-3/4” (603mm) with base, self-service opening on left side of case front
■■TY2-72/PR - 72” (1829mm) length, 23-3/4” (603mm) self-service opening on right side of case front
■■TY2SYS-72/PR - 72” (1829mm) length, with base, 23-3/4” (603mm) self-service opening on right side of case front
● HALO HEAT … a controlled, uniform heat source that gently
holds and surrounds food for better appearance, taste, and longer
holding life.
● Holds and displays hot food fresh and moist for hours —
without adding water.
● Expandable system to meet your specific requirements.
● Matches profile of leading heated display case.
● HOT DISPLAY CASE
— Curved glass styling.
— Displays hot food without condensation on glass.
— Thermostatically controlled heat source radiates from the
base of the display case in multiple heat zones.
— Overhead light zones with shatterproof coated bulbs.
— Holds a full range of standard (gastronorm) pan sizes, full-size
or half-size sheet pans.
— Tempered sliding glass doors reflect heat back into the products
and mirror the display to enhance merchandising effect.
●DECORATOR BASE
— Standard black painted front and end panels.
●SELF-SERVICE HOT DISPLAY
— Customer self-service opening is available on right side, left side,
or across the full length of case.
— Front mounted heat-guard provides customer protection.
W164 9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHO E: 262.251.3800 800.558.8744 U.S.A./CA ADA FAX: [phone].329.8744 U.S.A. O LY
WEBSITE: www.alto-shaam.com
®
P R N T E D N U .S.A.D U E T O O N G O N G P R O D U C T D E V E L O P M E N T, S P E C F C A T O N S A R E S U B J E C T T O C H A N G E W T H O U T N O T C E . #55 - 07/07

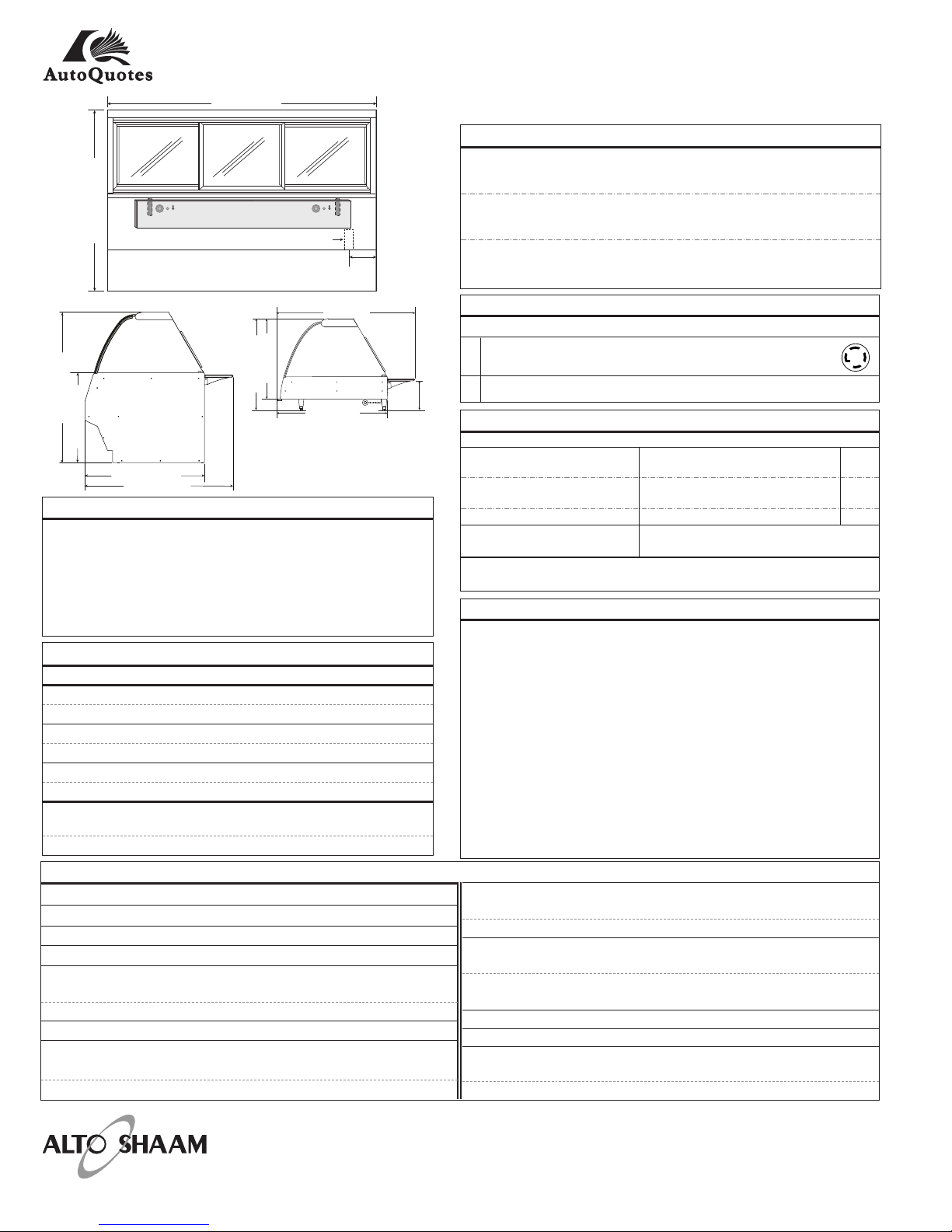

TY2-72
TY2SYS-72
FACTORY INSTALLED OPTIONS
●The system base is not sold as a separate
item. Order the full TY2SYS model to
receive the base.
●Panel Color Choices
➥Specify color choice:
■■Black, standard
■■Stainless Steel, optional
■■Custom Color, optional
ANSI/NSF 4

TY2-72 SERIES
TY2SYS-72 SERIES
HEATED DISPLAY SYSTEMS
D I M E N S I O N S (HXWXD)
EXTERIOR, COU TER-TOP MODEL WITH LEGS:
33-11/16" x 72" x 39-1/2"
(830mm x 1829mm x 1004mm)
EXTERIOR, WITH BASE:
52-3/16" x 72" x 41-7/16"
(1325mm x 1829mm x 1053mm)
WELL DIME SIO S (WXLXD ):
27-3/16" x 69-5/16" x 4-1/2"
(690mm x 1760mm x 114mm)
I N S TA L L AT I O N R E Q U I R E M E N T S
Display case must be installed level. The display case
must not be installed in any area where it may be
affected by steam, grease, dripping water, high
temperatures, or any other severely adverse conditions.
Do not install a heated display case near a cold air source
such as a freezer, air conditioning vents, or in any area
where outside air fluctuation can affect performance.
ELECTRICAL
CORD
96" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
52-3/16" (1325mm)
48" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
52-3/16" (1325mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
72" (1829mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
52-3/16" (1325mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
TY2SYS Side Profile
TY2SYS-72
TY2SYS-48
TY2SYS-96
29-5/8" (753mm)
39-1/2" (1004mm)
49" (1242mm)
33-11/16" (830mm)
11-1/2"
(293mm)
TY2 Side Profile
51-5/16" (1304mm)
41-7/16" (1053mm)
52-3/16" (1325mm)
31-3/16" (792mm)
W164 9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHO E: 262.251.3800 800.558.8744 U.S.A./CA ADA FAX: [phone].329.8744 U.S.A. O LY
WEBSITE: www.alto-shaam.com
®
WEIGHT
MODEL ET SHIP
TY2-72 385 lb (175 kg) 600 lb (272 kg)
TY2SYS-72 621 lb (282 kg) 721 lb (327 kg)
TY2-72/P 360 lb (163 kg) 575 lb (261 kg)
TY2SYS-72/P 660 lb (299 kg) 760 lb (345 kg)
TY2-72/PL; /PR 435 lb (197 kg) 650 lb (295 kg)
TY2SYS-72/PL; /PR 700 lb (318 kg) 800 lb (363 kg)
CRATED DIME SIO S (EST.): HXWXD
TY2-72: 45" x 85" x 55" (1143mm x 2159mm x 1397mm)
TY2SYS-72: 65" x 85" x 55" (1651mm x 2159mm x 1397mm)
ELECTRICAL
CORD
96" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
52-3/16" (1325mm)
48" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
52-3/16" (1325mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
72" (1829mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
52-3/16" (1325mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
TY2SYS Side Profile
TY2SYS-72
TY2SYS-48
TY2SYS-96
29-5/8" (753mm)
39-1/2" (1004mm)
49" (1242mm)
33-11/16" (830mm)
11-1/2"
(293mm)
TY2 Side Profile
51-5/16" (1304mm)
41-7/16" (1053mm)
52-3/16" (1325mm)
31-3/16" (792mm)
Tyler Huss.eps
revised 5/30/02
added L14-20P Plug Configuration
E L E C T R I C A L
VOLTAGE PHASE CYCLE/HZ AMPS kW
at 208 1 50/60 20.0 4.8 NEMA L14-30P
at 240 1 50/60 20.0 4.8 30A, 250V PLUG
230 1 50/60 20.0 4.5 BARE END, NO PLUG
208-240
230
PA N C O N F I G U R AT I O N
PA SIZE DIME SIO S QTY.
FULL-S ZE & ONE-TH RD**: 12" x 20" x 2-1/2" (GN 1/1) 5
12" x 6" x 2-1/2" (GN 1/3) 5
HALF-S ZE & ONE-TH RD**: 12" x 10" x 2-1/2" (GN 1/2) 10
12" x 6" x 2-1/2" (GN 1/3) 5
FULL-S ZE SHEET PANS: 18" x 26" x 1" 3
MAX. CAPACITY/VOLUME:80 lbs (36 kg)
50.5 QUARTS (60 L TERS)
* Pans are not included with display case.
** Will also accept 4" (100mm) deep pans.
S P E C I F I C AT I O N S
●Ten (10) overhead lights with two (2) light zones.
●Two (2) base heat zones with two (2) adjustable
thermostats with a range of 1 through 10, and two (2)
heat-on indicator lights.
●Three (3) tinted, reflective, tempered glass sliding doors
on operator side.
●One (1) 10" x 60" (254mm x 1524mm) operator-side
work shelf.
●Self-serve model TY2-72/P has a self-serve pan insert
26-7/16" x 69-3/16" x 2" (672mm x 1757mm x 51mm) and
includes three (3) Wire Pan Grids.
●Self-serve models TY2-72/PL and TY2-72/PR have
a self-serve pan insert 21-5/8" x 26-7/16" x 2"
(549mm x 672mm x 51mm) and includes one (1) Wire
Pan Grid.
ELECTRICAL
CORD
96" (2438mm)
CUTTING BOARD IN “DOWN” POSITION CUTTING BOARD IN “DOWN” POSITION
6-3/4"
(172mm)
ON
OFF
ON
OFF
ON
OFF
52-3/16" (1325mm)
48" (1219mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
52-3/16" (1325mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
72" (1829mm)
CUTTING BOARD IN “DOWN” POSITION
ON
OFF
ON
OFF
52-3/16" (1325mm)
ELECTRICAL
CORD
6-3/4"
(172mm)
TY2SYS Side Profile
TY2SYS-72
TY2SYS-48
TY2SYS-96
29-5/8" (753mm)
39-1/2" (1004mm)
49" (1242mm)
33-11/16" (830mm)
11-1/2"
(293mm)
TY2 Side Profile
51-5/16" (1304mm)
41-7/16" (1053mm)
52-3/16" (1325mm)
31-3/16" (792mm)
TY2SYS-72
TY2SYS Profile
TY2 Profile
#55 - 07/07 D U E T O O N G O N G P R O D U C T D E V E L O P M E N T , S P E C F C A T O N S A R E S U B J E C T T O C H A N G E W T H O U T N O T C E .P R N T E D N U .S.A.
O P T I O N S & A C C E S S O R I E S
■■CARVI G STATIO 5001874
■■CUTTI G BOARD W/ GRAVY LA E 5005639
■■GAUGE, I TERIOR AMBIE T TEMP. GU-33384
■■GLASS, TEMPERED DIVIDER GL-22719
GLASS, TEMPERED E D PA E, BRO ZE
■■LEFT-SIDE GL-26777
■■RIGHT-SIDE GL-26778
■■I DEPE DE T ELECTRICAL OUTLET 5001781
PA EL KIT, COU TER TOP
■■BRUSHED STAI LESS STEEL 5004566
■■CUSTOM COLOR 5004625
PA EL KIT, SYSTEM
■■BRUSHED STAI LESS STEEL 5004568
■■CUSTOM COLOR 5004627
PA EL KIT, SYSTEM E D PA EL
■■BLACK, 1" (25mm) LAMI ATE 5004570
■■BRUSHED STAI LESS STEEL EXTERIOR
WITH MIRRORED I TERIOR 5004571
■■PA , SELF-SERVICE 4" (102mm) DEEP 1001991
■■PLATFORM SCALE - 120/208-240V ONLY 55265
SHEET PA DIVIDER BAR PACKAGE
■■TY2-72, -72/P5002803
■■TY2-72/PL, -72/PR 5002804
