AR-7E
ELECTRIC ROTISSERIE
ITEM NO. _______________________
®
DUE TO ONGOING PRODUCT DEVELOPMENT,S P E C I F I C A T I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A. #52 - 07/07
W164 N9221 Water Street • P Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PH NE: 262.251.3800 • 800.558.8744 U.S.A./CANADA FAX: [phone] • 800.329.8744 U.S.A.NLY
WEBSITE: www.alto-shaam.com
®
ANSI/NSF 4
●Cook and hold in a single, counter-top rotisserie that
features a combination of convection and radiant heat.
●A choice of one or two cooking stages for an improved
finished product.
●Solid state electronic control has a clear, easy-to-read LED
display to cook by time and features an automatic
temperature reduction to a holding mode where product
can remain until needed.
●Programmable control option with a seven program
memory for both the cooking and holding function.
●Solid stainless steel back prevents further heat loss.
●The rotisserie can be stacked with an identical rotisserie
oven or with a matching holding cabinet.
●Interior drip strips channel drippings into a bottom drip
pan for convenient removal.
●Spits, rotating disks, drip strips are also removable for
easy cleaning.
●Interior lighting is recessed to protect from breakage.
The Alto-Shaam electric rotisserie is constructed of a heavy gauge, non-magnetic stainless steel with a sealed cooking
chamber for heat retention. Low-e glass on front includes a handle with magnetic door latch. Spit rotation is controlled
by one (1) 1/2 hp motorized disk that provides an incremental rotation jog and automatic stop when door is opened. The
cook temperature range is from 250° to 425°F (121° to 218°C). Additional electronic control features include temperature
display in Fahrenheit or Celsius; a product hold key with a temperature range of 140° to 210°F (60° to 99°C), cooking
set-points from 1 minute to 4 hours; and emergency stop. The rotisserie has a stainless steel exterior finish and is
furnished with 4-inch legs.
■■M DEL AR-7E: Electric Rotisserie Oven, Reach-in with single pane, flat glass
■■M DEL AR-7E: Electric Rotisserie Oven, Reach-in with double pane, curved glass
■■Deluxe programmable control lets the operator
set up to seven cooking programs for both
cooking and holding functions.
● Panel Color Choices
➥Specify color choice:
■■Stainless Steel, standard
■■Black, optional
■■Burgundy, optional
■■Custom Color, optional
● Reach-in compartment is standard.
➥Specify pass-through
design as a special order.
■■Single pane, flat glass door
■■Double pane, curved glass door
● Right-hand door swing is standard
■■Specify left-hand door as a special order
■■Ventless Hood
• Multipurpose wire basket option handles
irregular size products, denser items, or heavier
products that require additional support.
• Optional handle on non-control side for
pass-through use.
• Stackable options available.

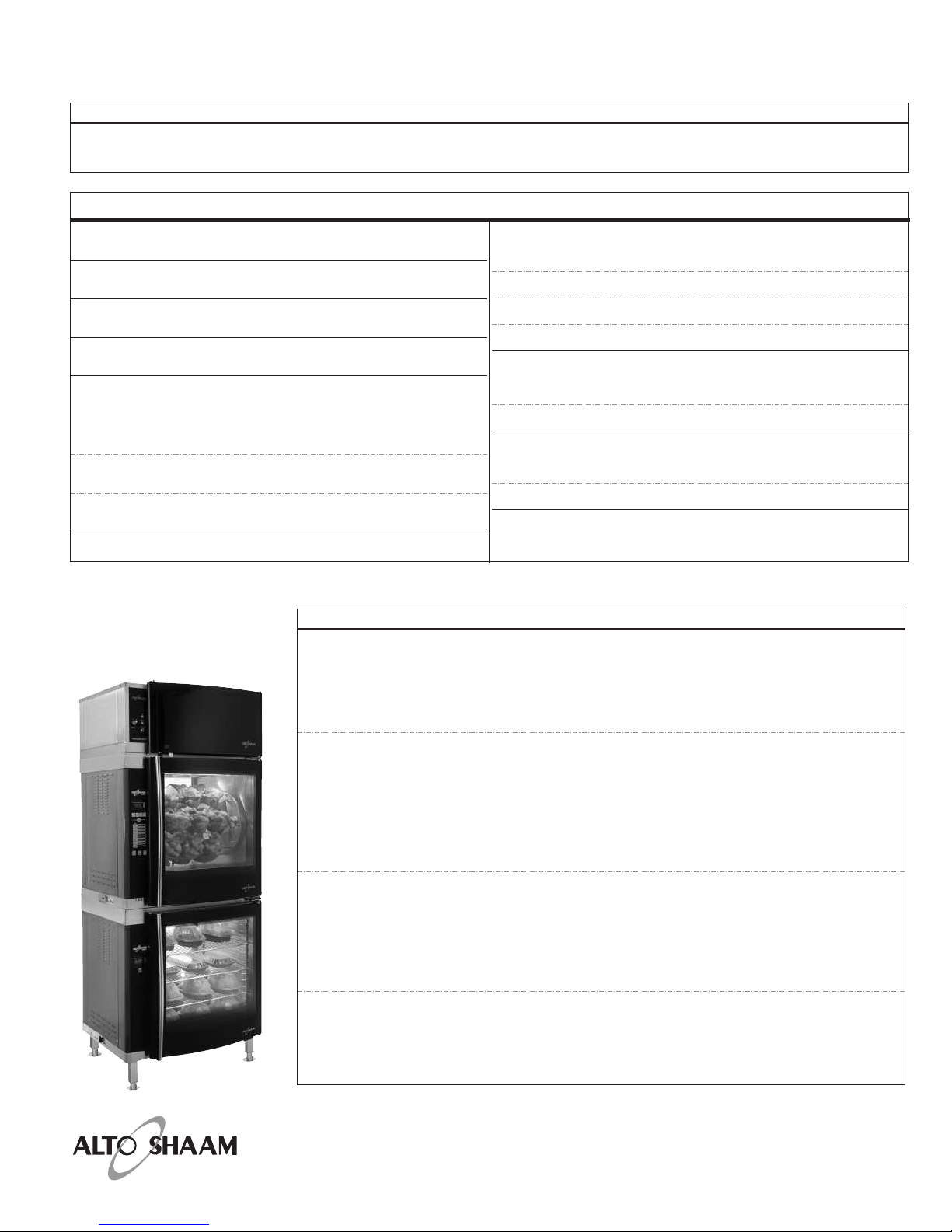

AR-7E SHOWN WITH DOUBLE PANE,
CURVED GLASS DOORS AND OPTIONAL
NON-CONTROL SIDE PASS-THROUGH DOOR
FACT RY INSTALLED PTI NS
ADDITI NAL FEATURES

ELECTRIC ROTISSERIE AR-7E
DUE TO ONGOING PRODUCT DEVELOPMENT, S P E C I F I C A T I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E .PRINTED IN U.S.A.#52 - 07/07
W164 N9221 Water Street • P Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PH NE: 262.251.3800 • 800.558.8744 U.S.A./CANADA FAX: [phone] • 800.329.8744 U.S.A. NLY
WEBSITE: www.alto-shaam.com
®
PRO D U C T CA PA C ITY
98 lb (44 kg) MAXIMUM
ANGLED SPITS (STANDARD):
Up to twenty-one (21) 3-1/2 lb chickens (1,6 kg)
Up to twenty-eight (28) 2-1/2 to 3 lb chickens (1,1 to 1,4 kg)
PIERCING SPITS (PTI NAL):
Up to twenty-eight (28) 2-1/2 to 3-1/2 lb chickens (1,1 to 1,6 kg)
TURKEY SPIT (PTI NAL):
One (1) Turkey up to 25 lb (11 kg)
CLEA R A N CE R E Q U IRE M E N TS
6" (152mm) left, right, and rear sides
INS TA L LAT I O N REQ U I R EMEN T S
●Oven must be installed level.
●Exhaust ventilation is required
●Install on a non-combustible surface only
●The oven must not be installed in any area where
it may be affected by steam, grease, dripping
water, high temperatures, or any other severely
adverse conditions.
●In order to maintain NSF standards, counter models
must be sealed at the bottom by an NSF approved
sealant or equipped with 4" (102mm) legs.
WEIGHT
NET: 361 lb (164 kg)
SHIP: 540 lb (245 kg)
CRATE 49" X50" X45" EST.
DIMENSI NS:(1245mm x 1270mm x 1143mm)
ELE C T R I CAL
V LTAGE PHASE CYCLE/HZ AMPS kW
208/220 1 50/60 40.0 8.3 NO PLUG
240 1 38.0 8.8
208/220 3 50/60 33.0/ph 8.3 NO PLUG
240 3 32.0/ph 8.8
380/415 3 22.0/ph 8.8 NO CORD
MAX NO PLUG
37-1/8" (942mm)
38-1/16" (966mm)
Electrical Connection
34-1/4" (869mm)
36-3/16" (919mm)
57-1/16" (1449mm)
C
LElectrical Connection
at base of unit
Steam Vent
at top
30-3/8" (722mm)
32-1/16" (814 mm)
25-1/2" (649mm)
58-11/16" (1491mm)
Pass-Through Option
88-11-/16" (2252mm)
61-3/16" (1554mm)
(w/ optional pass-through door)
25-1/2" (649mm)
NOTE — HEIGHT DI ME NS ION VA RI ANCE:
2" (51mm) rubber feet add 2-1/8" (54mm) (CE ONLY)
4" (102mm) legs add 4-3/8" (111mm)
5" (127mm) casters add 6-3/8" (162mm)
6" (152mm) legs add 6-3/8" (162mm)
(H x W x D)
DIMENSIONS:: H x W x D
D UBLE PANE, CURVED GLASS
REACH-IN EXTERI R:
36-3/16" x 38-1/16" x 32-1/16" (919mm x 966mm x 814mm)
PASS-THR UGH EXTERI R (PTI N):
36-3/16" x 38-1/16" x 34-1/2" (919mm x 966mm x 876mm)
SINGLE PANE, FLAT GLASS
REACH-IN EXTERI R:
36-3/16" x 38-1/16" x 32-1/8" (919mm x 966mm x 816mm)
PASS-THR UGH EXTERI R (PTI N):
36-3/16" x 38-1/16" x 31-13/16" (919mm x 966mm x 808mm)
37-1/8" (942mm)
38-1/16" (966mm)
Electrical Connection
34-1/4" (869mm)
36-3/16" (919mm)
57-1/16" (1449mm)
C
LElectrical Connection
at base of unit
Steam Vent
at top
30-3/8" (722mm)
32-1/16" (814 mm)
25-1/2" (649mm)
58-11/16" (1491mm)
Pass-Through Option
88-11-/16" (2252mm)
61-3/16" (1554mm) (w/ optional pass-through door)
25-1/2" (649mm)

ELECTRIC ROTISSERIE AR-7E
DUE TO ONGOING PRODUCT DEVELOPMENT, S P E C I F I C A T I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A. #52 - 07/07
W164 N9221 Water Street • P Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PH NE: 262.251.3800 • 800.558.8744 U.S.A./CANADA FAX: [phone] • 800.329.8744 U.S.A. NLY
WEBSITE: www.alto-shaam.com
®
OPT I O N S & A C C E SSO R I E S
■■Casters, 5" (127mm) 4007
■■Door Handle, N N-C NTR L SIDE HD-26900
■■Drip Pan with drain 5001094
■■Feet, Rubber, 2" (51mm) CE ONLY 5001614
Legs
■■Legs, 4" (102mm) Assembly 5001765
■■Legs, 6" (152mm) Assembly 5001414
■■Legs, 6" (152mm) Assembly, flanged feet 5001761
■■Multi-Purpose Wire Basket (.50 dia. pin) BS-26019
Spits
■■Angled Spit, Stainless Steel SI-25934
■■Piercing Spit, Stainless Steel SI-25729
■■Turkey Spit, Stainless Steel SI-26980
■■Angled Spit, Teflon Coated 5001335
Stacking Assembly
■■AR-7E over AR-7E 5006291
■■AR-7E over AR-7H NONE REQUIRED
Stand, Stainless Steel
■■With Storage Shelf FR-26550
■■Open (AR-7E over 750-S) 5002058
Teflon®Coated Accessories - C MMERCIAL GRADE
■■INCLUDES DISKS, DRIP TRAY AND 7 ANGLED SPITS 5001302
STA C K I NG C O M BINAT I O NS
AR-7VH ventless hood over AR-7E rotisserie
Requires 4" (102mm) legs for counter top applications. Free standing floor
installations require 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007.
HxWxD = 54-7/16" x 38-1/16" x 34-1/2" (1384mm x 966mm x 876mm)
AR-7E rotisserie over AR-7E rotisserie
Requires 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007
and stacking assembly 5006291 for applications within the United States.
Applications outside the U.S. requires 6" (152mm) legs with flanged feet 5001761
bolted to the floor.
HxWxD = 76-3/4" x 38-1/16" x 34-1/2" (1950mm x 966mm x 876mm)
AR-7E rotisserie over AR-7H companion holding cabinet
Requires 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007 for
applications within the United States. Applications outside the U.S. requires
6" (152mm) legs with flanged feet 5001761 bolted to the floor.
HxWxD = 76-3/4" x 38-1/16" x 34-1/2" (1950mm x 966mm x 876mm)
AR-7VH ventless hood over AR-7E rotisserie over AR-7H companion holding cabinet
Requires 6" (152mm) legs with flanged feet 5001761 bolted to the floor.
HxWxD = 90-11/16" x 38-1/16" x 34-1/2" (2304mm x 966mm x 876mm)
STACKING COMBINATION
AR-7VH VENTLESS HOOD OVER
AR-7E ROTISSERIE OVER
AR-7H COMPANION HOLDING CABINET
STA N D A RD A C C ESSO R I E S
●Seven (7) removable stainless steel angled spits
●One (1) removable stainless steel drip pan, 2" (51mm) deep
●Two (2) removable stainless steel angled drip strips
●Six (6) 20 watt recessed bulbs

AR-7VH
ROTISSERIE VENTLESS HOOD
®
DUE TO ONGOING PRODUCT DEVELOPMENT, S P E C I F I C A T I O N S A R E S U B E C T T O C H A N G E W I T H O U T N O T I C E .PRINTED IN U.S.A.#52 - 07/07
W164 N9221 Water Street • P Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PH NE: 262.251.3800 • 800.558.8744 U.S.A./CANADA FAX: [phone] • 800.329.8744 U.S.A. NLY
WEBSITE: www.alto-shaam.com
®
DIM E N S I ONS : H x W x D
15-7/8" x 37-1/16" x 33-5/8"
(404mm x 942mm x 855mm)
ELE C T R I CAL
V LTAGE PHASE CYCLE/HZ AMPS kW
208-240 1 50/60 1.0 .2
WEIGHT
NET: 120 lb (54 kg)
SHIP: 175 lb (79 kg) ADDITIONAL SHIP WEIGHT
FACTORY INSTALLED OVER AR-7E ROTISSERIE
CRATE DIMENSI NS:62" X50" X45" EST.
(1575mm x 1270mm x 1143mm)
(H x W x D)
OPT I O N S & A C C E SSO R I E S
Replacement Filters
■■Grease Filter FI-25867
■■Charcoal Filter FI-25866
AIR M O V EME N T
530 cfm (15m3)
CLEA R A N CE R E Q U IRE M E N TS
6" (152mm)
left, right, and rear sides
INS TA L LAT I O N REQ U I R EMEN T S
FACT RY INSTALLATI N NLY
The ventless hood must not be installed in any area where it
may be affected by steam, grease, dripping water, high
temperatures, or any other severely adverse conditions.
LISTED
COOKING APPLIANCE
WITH INTEGRAL S STEMS
FOR LIMITING THE EMISSION
OF GREASE LADEN AIR
1P35
ALSO CLASSIFIED B
UNDERWRITERS
LABORATORIES INC.®
IN ACCORDANCE WITH
NSF4 - 2002
AR-VH
25-1/2"(649mm)
33-5/8"(855mm)
88-1/4"(2243mm)
37-1/8" (942mm)
14-3/4"
(375mm)
15-7/8"
(404mm)
AR-VH
27-1/4" (692mm)
31-1/8" (791mm)
AR-7VH VENTLESS HOOD
INSTALLED DIRECTLY ON THE TOP OF
ELECTRIC ROTISSERIE MODEL AR-7E
