AR-7E
ELECTRIC ROTISSERIE
ITEM NO. _______________________
#52 - 01/09
ANSI/NSF 4
●Operating at only 8.3 kilowatts, the Alto-Shaam
rotisserie with EcoSmart™ technology uses very little
electricity to cook a full load of delicious food.
●Temperature-dropping hold mode further saves on
energy costs.
●Solid stainless steel back prevents further heat loss.
●Cook and hold in a single, counter-top rotisserie that
features a combination of convection and radiant heat.
●A choice of one or two cooking stages for an improved
finished product.
●Solid state electronic control has a clear, easy-to-read ED
display to cook by time and features an automatic
temperature reduction to a holding mode where product
can remain until needed.
●Programmable control option with a seven program
memory for both the cooking and holding function.
●The rotisserie can be stacked with an identical rotisserie
oven or with a matching holding cabinet.
●Interior drip strips channel drippings into a bottom drip
pan for convenient removal.
●Spits, rotating disks, drip strips are also removable for
easy cleaning.
●Interior lighting is recessed to protect from breakage.
The Alto-Shaam electric rotisserie is constructed of a heavy gauge, non-magnetic stainless steel with a sealed cooking chamber
for heat retention. ow-e glass on front includes a handle with magnetic door latch. Spit rotation is controlled by one (1) 1/2 hp
motorized disk that provides an incremental rotation jog and automatic stop when door is opened. The cook temperature range
is from 250° to 425°F (121° to 218°C). Additional electronic control features include temperature display in Fahrenheit or
Celsius; a product hold key with a temperature range of 140° to 210°F (60° to 99°C), cooking set-points from 1 minute to 4
hours; and emergency stop. The rotisserie has a stainless steel exterior finish and is furnished with 4-inch legs.
■■MODEL AR-7E: Electric Rotisserie Oven, Single pane, flat door, solid back
■■MODEL AR-7E: Electric Rotisserie Oven, Double pane, curved glass, solid back
■■Deluxe programmable control lets the operator
set up to seven cooking programs for both
cooking and holding functions.
● Panel Color Choices
➥Specify color choice:
■■Stainless Steel, standard
■■Black, optional
■■Burgundy, optional
■■Custom Color, optional
● Reach-in compartment is standard.
➥Specify pass-through
design as a special order.
■■Single pane, flat glass door
■■Double pane, curved glass door
● Right-hand door swing is standard
■■Specify left-hand door as a special order
■■Ventless Hood
(NOT AVAI AB E ON TWO STACKED ROTISSERIES)
• Multipurpose wire basket option handles
irregular size products, denser items, or heavier
products that require additional support.
• Optional handle on non-control side for
pass-through use.
• Stackable options available.
AR-7E SHO N ITH DOUBLE PANE,
CURVED GLASS DOORS AND OPTIONAL
NON-CONTROL SIDE PASS-THROUGH DOOR
FACTORY INSTALLED OPTIONS
ADDITIONAL FEATURES
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FA : 262.251.7067 800.329.8744 U.S.A. ONLY
www.alto-shaam.com
DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.PRINTED IN U.S.A.

ELECTRIC ROTISSERIE AR-7E
PRODUC T C A PAC ITY
98 lb (44 kg) MAXIMUM
ANGLED SPITS (STANDARD):
Up to twenty-one (21) 3-1/2 lb chickens (1,6 kg)
Up to twenty-eight (28) 2-1/2 to 3 lb chickens (1,1 to 1,4 kg)
PIERCING SPITS (OPTIONAL):
Up to twenty-eight (28) 2-1/2 to 3-1/2 lb chickens (1,1 to 1,6 kg)
TURKEY SPIT (OPTIONAL):
One (1) Turkey up to 25 lb (11 kg)
CLEA R A N C E R E Q U I R E M E N T S
6" (152mm) left, right, and rear sides
INSTA LLATION REQUIREM E N T S
●Oven must be installed level.
●Exhaust ventilation is required
●Install on a non-combustible surface only
●The oven must not be installed in any area where
it may be affected by steam, grease, dripping
water, high temperatures, or any other severely
adverse conditions.
●In order to maintain NSF standards, counter models
must be sealed at the bottom by an NSF approved
sealant or equipped with 4" (102mm) legs.
WEIGHT
NET: 361 lb (164 kg) SHIP: 540 lb (245 kg)
CRATE DIMENSIONS: (H x W x D)
49" X50" X45" EST. (1245mm x 1270mm x 1143mm)
37-1/8" (942mm)
38-1/16" (966mm)
38-7/8" (859mm)
35-13/16" (909mm)
57-1/16" (1449mm)
C
LElectrical Connection
at base of unit
Steam Vent
at top
30-3/8" (722mm)
32-1/16" (814 mm)
WITH SOLID BACK
25-1/2" (649mm)
58-3/4" (1492mm)
WITHSOLID BACK
PASS-THROUGH OPTION
88-11-/16" (2252mm) WITHPASS-THROUGHOPTION
61-3/16" (1554mm) WITHPASS-THROUGH OPTION
25-7/16" (646mm)
34-1/2" (876 mm)
WITHPASS-THROUGH OPTION
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
32-7/16"(824mm) 50-5/16"
(516mm)
NOTE — HEIGHT DIMENSION VARIANCE:
2" (51mm) rubber feet add 2-1/8" (54mm) CE ON Y
(FOR COUNTER TOP UNITS ON Y)
4" (102mm) legs add 4-3/8" (111mm)
5" (127mm) casters add 6-3/8" (162mm)
6" (152mm) legs add 6-3/8" (162mm)
37-1/8" (942mm)
38-1/16" (966mm)
38-7/8" (859mm)
35-13/16" (909mm)
57-1/16" (1449mm)
C
LElectrical Connection
at base of unit
Steam Vent
at top
30-3/8" (722mm)
32-1/16" (814 mm)
WITH SOLID BACK
25-1/2" (649mm)
58-3/4" (1492mm)
WITHSOLID BACK
PASS-THROUGH OPTION
88-11-/16" (2252mm) WITHPASS-THROUGHOPTION
61-3/16" (1554mm) WITHPASS-THROUGH OPTION
25-7/16" (646mm)
34-1/2" (876 mm)
WITHPASS-THROUGH OPTION
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
32-7/16"(824mm) 50-5/16"
(516mm)
E L E C T R I C A L
VOLTAGE PHASE CYCLE/HZ AMPS KW
208 1 60 40.0 8.3
BARE END
NO PLUG
230 1 60 42.0 9.0
240 1 60 38.0 8.8
208 3 60 33.0/ph 8.3 BARE END
NO PLUG
230 3 60 35.0/ph 9.0
240 3 60 32.0/ph 8.8
380-415 3 50/60 24.0/ph
MA
8.8
MA
NO CORD
NO PLUG
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FA : 262.251.7067 800.329.8744 U.S.A. ONLY
www.alto-shaam.com
DUE TO ONGOING PRODUCT IMPROVEMENT, S P E C I F I C A T I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
#52 - 01/09
25-1/2" (649mm)
88-3/4" (2255mm) WITHPASS-THROUGH OPTION
57-1/16" (1449mm)
32-7/16" (824mm)
WITH PASS-THROUGH OPTION
PASS-THROUGH OPTION
58-3/4" (1492mm) WITHSOLID BACK
30-3/8" (722mm)
32" (813mm)
WITH SOLID BACK
59-3/16" (1504mm) WITH PASS-THROUGH OPTION
37-1/8" (942mm)
38-1/16" (966mm)
38-7/8" (859mm)
35-13/16" (909mm)
25-7/16" (646mm)
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
C
LElectrical Connection
at base of unit
Steam Vent
at top
32-7/16"(824mm) 50-5/16"
(516mm)
DIMENSIONS: H x W x D
SINGLE PANE, FLAT GLASS
EXTERIOR:
40-3/16" x 38-1/16" x 32"
(1020mm x 966mm x 813mm)
PASS-THROUGH EXTERIOR (OPTION):
40-3/16" x 38-1/16" x 32-7/16"
(1020mm x 966mm x 824mm)
DOUBLE PANE, CURVED GLASS
EXTERIOR:
40-3/16" x 38-1/16" x 32-1/16"
(1020mm x 966mm x 814mm)
PASS-THROUGH EXTERIOR (OPTION):
40-3/16" x 38-1/16" x 34-1/2"
(1020mm x 966mm x 876mm)
37-1/8" (942mm)
38-1/16" (966mm)
38-7/8" (859mm)
35-13/16" (909mm)
57-1/16" (1449mm)
C
LElectrical Connection
at base of unit
Steam Vent
at top
30-3/8" (722mm)
32-1/16" (814 mm)
WITH SOLID BACK
25-1/2" (649mm)
58-3/4" (1492mm)
WITHSOLID BACK
PASS-THROUGH OPTION
88-11-/16" (2252mm) WITHPASS-THROUGHOPTION
61-3/16" (1554mm) WITHPASS-THROUGH OPTION
25-7/16" (646mm)
34-1/2" (876 mm)
WITHPASS-THROUGH OPTION
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
40-3/16"(1020mm)
38-3/16" (970mm)
4-3/8" (111mm)
32-7/16"(824mm) 50-5/16"
(516mm)
AR-7E WITH FLAT DOOR
AR-7E WITH CURVED DOOR
FRONT VIEW
SIDE VIEW - DOUBLE PANE,
CURVED DOOR, SOLID BACK

ELECTRIC ROTISSERIE AR-7E

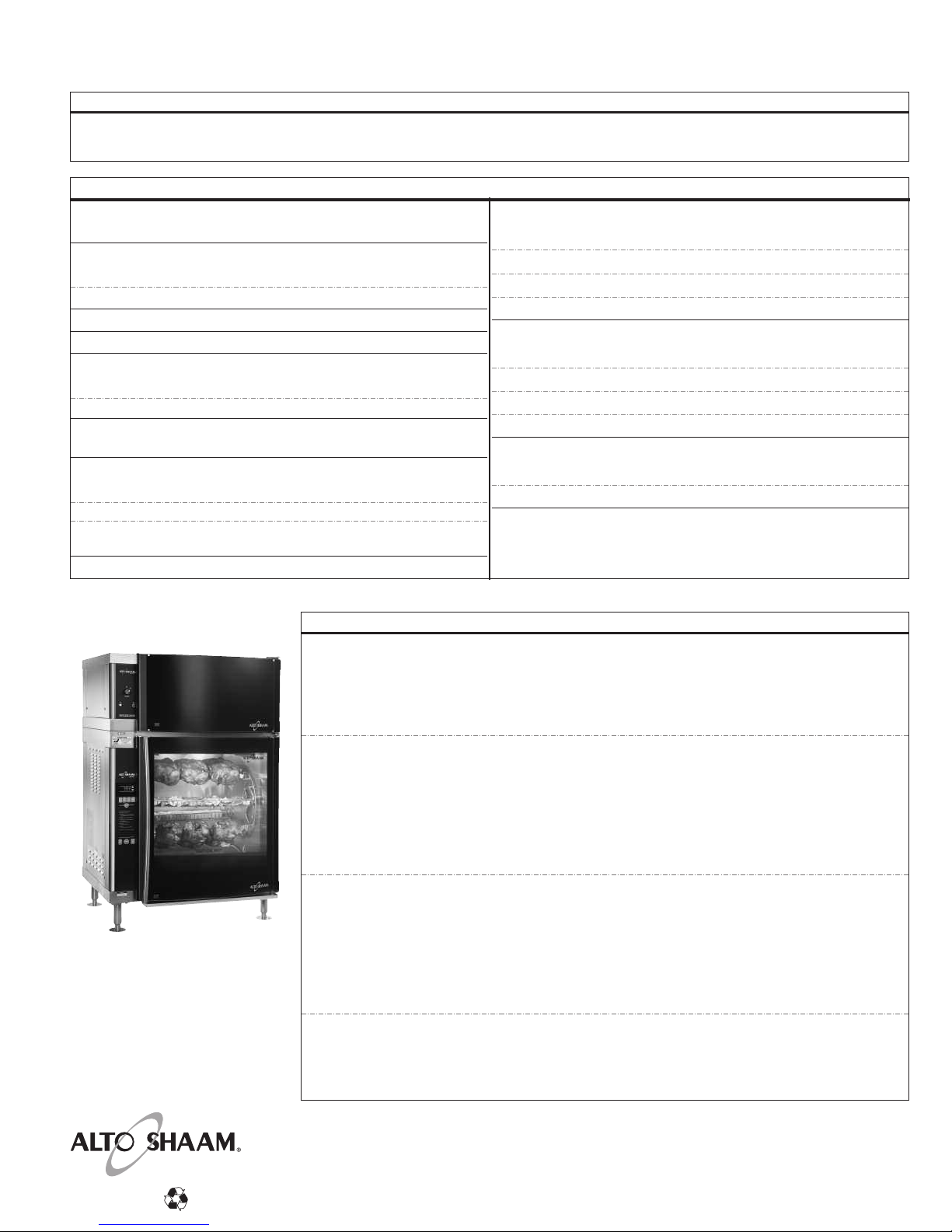

STA C KING CO M B I N ATION S (FACTORY INSTALLED)
AR-7VH ventless hood over AR-7E rotisserie
Requires 4" (102mm) legs for counter top applications. Free standing floor
installations require 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007.
(OVERALL HEIGHT: 54-7/16")
AR-7E rotisserie over AR-7E rotisserie
Requires 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007
and stacking assembly 5006291 for applications within the United States.
Applications outside the U.S. requires 6" (152mm) legs with flanged feet 5001761
bolted to th e floor.
(OVERALL HEIGHT: 76-7/8")
AR-7E rotisserie over AR-7H companion holding cabinet
Requires 6" (152mm) leg assembly 5001414 or 5" (127mm) casters 4007 and
stacking assembly (5008787, 5008948 or 5008922 - depending on voltage - see list
above) for applications within the United States. Applications outside the U.S.
requires 6" (152mm) legs with flanged feet 5001761 bolted to the floor.
(OVERALL HEIGHT: 76-7/8")
AR-7VH ventless hood over AR-7E rotisserie over AR-7H companion holding cabinet
Requires 6" (152mm) legs with flanged feet 5001761 bolted to the floor.
(OVERALL HEIGHT: 90-13/16")
STACKING COMBINATION
AR-7VH VENTLESS HOOD OVER
AR-7E ROTISSERIE
STA N DARD AC C E S S O R I E S
●Seven (7) removable stainless steel angled spits
●One (1) removable stainless steel drip pan with drain, 2" (51mm) deep
●Two (2) removable stainless steel angled drip strips
●Six (6) 20 watt recessed bulbs
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FA : 262.251.7067 800.329.8744 U.S.A. ONLY
www.alto-shaam.com
DUE TO ONGOING PRODUCT IMPROVEMENT, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.PRINTED IN U.S.A.
#52 - 01/09
OPTION S & A C C E S S O R I E S
■■CASTERS, 5" (127mm) 4007
NOT AVAI AB E WITH VENT ESS HOOD STACKED UNITS
DOOR OPTIONS
■■SING E PANE F AT G ASS WITH HAND E 5007012
■
■SING E PANE F AT G ASS WITHOUT HAND E 5007013
■■DOOR HANDLE, NON-CONTRO SIDE HD-26900
■■DRIP PAN, STAIN ESS STEE 1001976
DRIP PAN TRAY, DOOR MOUNTED
■■F AT G ASS DOOR 5004859
■■CURVED G ASS DOOR 1002598
■■FEET, RUBBER, 2" (51mm) CE ON Y 5001614
FOR COUNTER TOP UNITS ON Y
LEGS
■■4" (102mm) ASSEMB Y 5001765
■■6" (152mm) ASSEMB Y 5001414
■■6" (152mm) ASSEMB Y, F ANGED FEET 5001761
REQUIRED FOR STACKING UNITS.
■■MULTI-PURPOSE WIRE BASKET (.50 dia. pin)BS-26019
SPITS
■■ANG ED SPIT, STAIN ESS STEE SI-25934
■■PIERCING SPIT, STAIN ESS STEE SI-25729
■■TURKEY SPIT, STAIN ESS STEE SI-26980
■
■ANG ED SPIT, TEF ON COATED 5001335
STACKING ASSEMBLY (FACTORY INSTALLED)
■■AR-7E OVER AR-7E (208-240V, 1PH) 5006291
■■AR-7E OVER AR-7H (208-240V, 1PH) 5008787
■■AR-7E OVER AR-7H (208-240V, 3PH) 5008948
■■AR-7E OVER AR-7H (380-415V) 5008922
STAND, STAINLESS STEEL
■■WITH STORAGE SHE F FR-26550
■■OPEN (AR-7E OVER 750-S) 5002058
TEFLON®COATED ACCESSORIES -
COMMERCIAL GRADE
■■INC UDES DISKS, DRIP TRAY AND 7 ANG ED SPITS 5001302

AR-7VH
ROTISSERIE VENTLESS HOOD
#52 - 01/09
ELECTRIC A L
VOLTAGE PHASE CYCLE/HZ AMPS kW
208-240 1 50/60 1.0 .2
WEIGHT
NET:120 lb (54 kg)
SHIP: 175 lb (79 kg) ADDITIONA SHIP WEIGHT
FACTORY INSTA ED OVER AR-7E ROTISSERIE
CRATE DIMENSIONS:62" X50" X45" EST.
(1575mm x 1270mm x 1143mm)
(H x W x D)
OPTION S & A C C E S S O R I E S
Repla ement Filters
■■Grease Filter FI-25867
■■Charcoal Filter FI-25866
AIR MO V E M E N T
530 cfm (15m3)
CLEA R A N C E R E Q U I R E M E N T S
6" (152mm) at top, back and both sides
INSTA LLATION REQUIREM E N T S
FACTORY INSTALLATION ONLY
The ventless hood must not be installed in any area where
it may be affected by steam, grease, dripping water, high
temperatures, or any other severely adverse conditions.
(NOT AVAI AB E ON TWO STACKED ROTISSERIES)
LISTED
COOKING APPLIANCE
ITH INTEGRAL SYSTEMS
FOR LIMITING THE EMISSION
OF GREASE LADEN AIR
1P35
ALSO CLASSIFIED BY
UNDER RITERS
LABORATORIES INC.®
IN ACCORDANCE ITH
NSF4 - 2002
AR-7VH VENTLESS HOOD
INSTA ED DIRECT Y ON THE TOP OF
EECTRIC ROTISSERIE MODE AR-7E
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE: [phone].558.8744 U.S.A./CANADA FA : 262.251.7067 800.329.8744 U.S.A. ONLY
www.alto-shaam.com
DUE TO ONGOING PRODUCT IMPROVEMENT, S P E C I F I C A T I O N S A R E S U B J E C T T O C H A N G E W I T H O U T N O T I C E .P R I N T E D I N U .S.A.
DIMENSIONS: H x W x D
FLAT GLASS CURVED GLASS
EXTERIOR:
16" x 37-1/8" x 27-7/8"
(404mm x 942mm x 707mm)
PASS-THROUGH EXTERIOR:(OPTION)
16" x 37-1/8" x 30-1/4"
(404mm x 942mm x 767mm)
EXTERIOR:
16" x 37-1/8" x 29-9/16"
(404mm x 942mm x 750mm)
PASS-THROUGH EXTERIOR:(OPTION)
16" x 37-1/8" x 33-5/8"
(404mm x 942mm x 853mm)
37-1/8"(942mm)
16"(404mm)
30-1/4"(767mm)
WITHPASS-THROUGH OPTION
27-7/8"(707mm)
WITH SOLID BACK
87-7/16"(2221mm)WITHPASS-THROUGHOPTION
56-1/2"(1434mm)WITHSOLIDBACK
27-7/8" (707mm)
WITH SOLID BACK
25-1/2" (646mm)
30-1/4" (767mm)
WITHPASS-THROUGH OPTION
58-13/16"(1494mm)
WITHPASS-THROUGHOPTION
PASS-THROUGH OPTION
57" (1447mm) WITH SOLID BACK
88-7/16" (2246mm) WITH PASS-THROUGH OPTION
16"(404mm)
37-1/8" (942mm)
33-5/8" (853mm)
WITHPASS-THROUGHOPTION
29-9/16" (750mm)
WITHSOLIDBACK
PASS-THROUGH OPTION
29-9/16" (750mm)
WITH SOLID BACK
61" (1549mm)
WITH PASS-THROUGH OPTION
25-1/2" (646mm)
33-5/8" (853mm)
WITH PASS-THROUGH OPTION
57" (1447mm)WITH SOLID BACK
88-7/16" (2246mm)WITH PASS-THROUGH OPTION
16"(404mm)
37-1/8"(942mm)
33-5/8"(853mm)
WITHPASS-THROUGH OPTION
29-9/16"(750mm)
WITH SOLID BACK
PASS-THROUGH OPTION
29-9/16" (750mm)
WITH SOLID BACK
61" (1549mm)
WITH PASS-THROUGH OPTION
25-1/2" (646mm)
33-5/8" (853mm)
WITH PASS-THROUGH OPTION
57" (1447mm) WITH SOLID BACK
88-7/16" (2246mm) WITH PASS-THROUGH OPTION
16"(404mm)
37-1/8" (942mm)
33-5/8" (853mm)
WITHPASS-THROUGH OPTION
29-9/16" (750mm)
WITHSOLIDBACK
PASS-THROUGH OPTION
29-9/16" (750mm)
WITH SOLID BACK
61" (1549mm)
WITH PASS-THROUGH OPTION
25-1/2" (646mm)
33-5/8" (853mm)
WITH PASS-THROUGH OPTION
AR-7VH WITH FLAT DOOR
AR-7VH WITH CURVED DOOR
FRONT VIEW
37-1/8" (942mm)
16" (404mm)
30-1/4" (767mm)
WITH PASS-THROUGH OPTION
27-7/8"(707mm)
WITH SOLID BACK
87-7/16" (2221mm) WITH PASS-THROUGH OPTION
56-1/2" (1434mm) WITH SOLID BACK
27-7/8" (707mm)
WITH SOLID BACK
25-1/2" (646mm)
30-1/4" (767mm)
WITHPASS-THROUGH OPTION
58-13/16" (1494mm)
WITH PASS-THROUGH OPTION
PASS-THROUGH OPTION
SIDE VIEW
SIDE VIEW
