Alto-Shaam 300-TH User manual

alto-shaam.com
Service Manual
Cook & Hold Ovens
Smoker Ovens
Deluxe Control
300-TH
500-TH
750-TH
1000-TH
1200-TH
1750-TH
750-SK
1000-SK
1200-SK
1750-SK
MN-46712-EN
REV.01
11/20
EN

Manufacturer’s Information
Copyright © Copyright 11/20 by Alto-Shaam, Inc.
All rights reserved.
This manual or any portion thereof may not be reproduced or used in any
manner whatsoever without the express written permission of Alto-Shaam, Inc.
Trademarks All trademarks referenced in this documentation are the property of their
respective owners.
Manufacturer Alto-Shaam, Inc.
P.O. Box 450
W164 N9221 Water Street
Menomonee Falls, WI 53052
Original instructions The content in this manual is written in American English.

FOREWORD
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
3
FOREWORD
Alto-Shaam 24/7 Emergency Repair Service
Call Call 800-558-8744 to reach our 24-hour emergency service call center for
immediate access to local authorized service agencies outside standard business
hours. The emergency service access is provided exclusively for Alto-Shaam
equipment and is available throughout the United States through Alto-Shaam’s
toll free number.
Availability Emergency service access is available seven days a week, including holidays.

FOREWORD
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
4
This page intentionally left blank.

TABLE OF CONTENTS
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
5
TABLE OF CONTENTS
Manufacturer’s Information . . . . . . . . . . . . . . . . . . . . . . . . 2
Foreword 3
Alto-Shaam 24/7 Emergency Repair Service . . . . . . . . . . . . . . . 3
Table of Contents 5
Safety 7
The Meaning of Signal Words . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation 11
How to Turn On and Turn Off the Oven . . . . . . . . . . . . . . . . . 11
How to View and Set up WiFi Connection. . . . . . . . . . . . . . . . . 12
How to Set up an Ethernet Connection . . . . . . . . . . . . . . . . . . 15
How to Update Software with a USB Drive . . . . . . . . . . . . . . . . 17
Components 19
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . 19
Front Panel Identification . . . . . . . . . . . . . . . . . . . . . . . . . 20
Back Panel Identification . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Component Access Panels Identification . . . . . . . . . . . . . . . . . 22
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Interface Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
300-TH—Electrical Component Identification . . . . . . . . . . . . . . 25
500-TH, 750-TH, 1000-TH—Electrical Component Identification. . . . 26
1250-TH, 1750-TH—Electrical Component Identification . . . . . . . . 27
Internal Components Identification. . . . . . . . . . . . . . . . . . . . 38
Internal Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Maintenance 41
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
How to Clean the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Troubleshooting 45
Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
High Limit Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
The Display does not Illuminate . . . . . . . . . . . . . . . . . . . . . . 47
The Oven does not Heat . . . . . . . . . . . . . . . . . . . . . . . . . . 49
The Product Probe does not Work . . . . . . . . . . . . . . . . . . . . 50
The Smoke Function does not Operate . . . . . . . . . . . . . . . . . . 51
The Screen is not Responsive/Incorrect
Response to the Selected Icon . . . . . . . . . . . . . . . . . . . . . . . 53
The Oven Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

TABLE OF CONTENTS
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
6
Cheflinc.alto-shaam.com is Not Available on Your Device . . . . . . . 56
Cannot Connect to cheflinc.alto-shaam.com . . . . . . . . . . . . . . 57
The Oven is not Displayed on the Dashboard . . . . . . . . . . . . . . 58
Unable to Assign Recipes from the Dashboard to Ovens in the Field 59
Schematics 61

SAFETY
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
7
SAFETY
The Meaning of Signal Words
This manual contains signal words where needed. These signal words must be
obeyed to reduce the risk of death, personal injury, or equipment damage. The
meaning of these signal words is explained below.
DANGER
Danger indicates a hazardous situation which, if not avoided,
will result in serious injury or death.
WARNING
Warning indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION
Caution indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
Notice indicates a situation which, if not avoided, could result
in property damage.
NOTE: Note indicates additional information that is important to a
concept or procedure.

SAFETY
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
8
Safety Precautions
Before you begin Read and understand all instructions in this manual.
Electrical precautions Obey these electrical precautions when using the appliance:
▪Connect the appliance to a properly grounded outlet. Do not use the appliance if
it is not properly grounded. Consult an electrician if there is any doubt that the
outlet used is properly grounded.
▪Keep the cord away from hot surfaces.
▪Do not attempt to service the appliance or its cord and plug.
▪Do not operate the appliance if it has a damaged cord or plug.
▪Do not immerse the cord or plug in water.
▪Do not let the cord hang over the edge of a table or counter.
▪Do not use an extension cord.
Usage precautions Obey these usage precautions when using the appliance:
▪Only use this appliance for its intended use of heating or cooking.
▪Always keep liquids, or foods that can become liquid when heated, level and at or
below eye level where they can be seen.
▪Always open the appliance door very slowly. Escaping hot vapors or steam can
cause serious injury.
▪Use utensils and protective clothing such as dry oven mitts when loading and
unloading the appliance.
▪Use caution when using the appliance. Floors adjacent to the appliance may
become slippery.
▪Do not cover or block any of the openings of this appliance.
▪Do not cover shelves or any other part of this appliance with metal foil.
▪Do not use this appliance near water such as a sink, in a wet location, near a
swimming pool, or similar locations.
Maintenance
precautions
Obey these maintenance precautions when maintaining the appliance:
▪Obey precautions in the manual, on tags, and on labels attached to or shipped
with the appliance.
▪Only clean the appliance when the oven is disconnected from the power source.
▪Do not store the appliance outdoors.
▪Do not clean the appliance with metal scouring pads.
▪Do not use corrosive chemicals when cleaning the appliance.
▪Do not use a hose or water jet to clean the appliance.
▪Do not use the appliance cavity for storage.
▪Do not leave flammable materials, cooking utensils, or food inside the appliance
when it is not in use.
Continued on next page

SAFETY
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
9
Continued from previous page
Operator training All personnel using the appliance must have proper operator training. Before
using the appliance:
▪Read and understand the operating instructions contained in all the
documentation delivered with the appliance.
▪Know the location and proper use of all controls.
▪Keep this manual and all supplied instructions, diagrams, schematics, parts lists,
notices, and labels with the appliance if the appliance is sold or moved to another
location.
▪Contact Alto-Shaam for additional training if needed.
Operator
qualifications
Only trained personnel with the following operator qualifications are permitted
to use the appliance:
▪Have received proper instruction on how to use the appliance.
▪Have demonstrated their ability with commercial kitchens and commercial
appliances.
The appliance must not be used by:
▪Persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given
supervision concerning use of the appliance by person responsible for their
safety.
▪People impaired by drugs or alcohol.
▪Children should be supervised to ensure that they do not play with the appliance.
▪Children shall neither clean nor maintain the appliance.
Condition of
appliance
Only use the appliance when:
▪All controls operate correctly.
▪The appliance is installed correctly.
▪The appliance is clean.
▪The appliance labels are legible.
Servicing the
appliance
▪Only trained personnel are permitted to service or repair the appliance. Repairs
that are not performed by an authorized service partner or trained technician will
void the warranty and relieve Alto-Shaam of all liability.
▪To prevent serious injury, death or property damage, have the appliance
inspected and serviced at least every twelve (12) months by an authorized service
partner or trained technician.
▪Contact Alto-Shaam for the authorized service partner in your area.

SAFETY
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
10
Personal Protective
Equipment (PPE)
Wear the following Personal Protective Equipment (PPE) while cleaning the
appliance:
▪Protective gloves
▪Protective clothing
▪Eye protection
▪Face protection
Use of restraining
devices
A restraining device (tether) must be installed to any appliance that is hard-wired
and mounted on casters. The tether must:
▪Be secured to the building’s structure.
▪Limit the movement of the appliance so that no stress is transmitted to the
electrical conduit.
A connection point for the tether is located on the back of the appliance.
A tether is not supplied by nor available from the manufacturer.
Service Technician
Training
Only trained personnel are permitted to service or repair the appliance. Service
technicians must be knowledgeable in current codes and standards as stated by the
appropriate agencies, such as:
▪The National Fire Protection Association (NFPA)
▪National Electrical Code (NEC)
▪The Service Technician’s employer

OPERATION
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
11
OPERATION
How to Turn On and Turn Off the Oven
Before you begin The oven must be connected to electric power.
Turning on the oven To turn on the oven, do the following.
Step Action
1. Set the power switch a to the ON position (300-TH only).
Touch and hold the ON/OFF button b for two (2) seconds.
The oven is now on.
Turning off the oven 2. To turn off the oven, do the following.
Touch and hold the ON/OFF button for 5 seconds. The Shut Down Options
screen displays.
3. Choose the desired shut-down option. On 300-TH ovens, set the power
switch to the OFF position.
Result The oven is now off.
300-TH
a
b
TH-TS-007487_Deluxe
LED
TH-TS-011417
Standby Restart Shut down
Shut down options
To cancel and return to previous screen, press
“Power” button again.

OPERATION
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
12

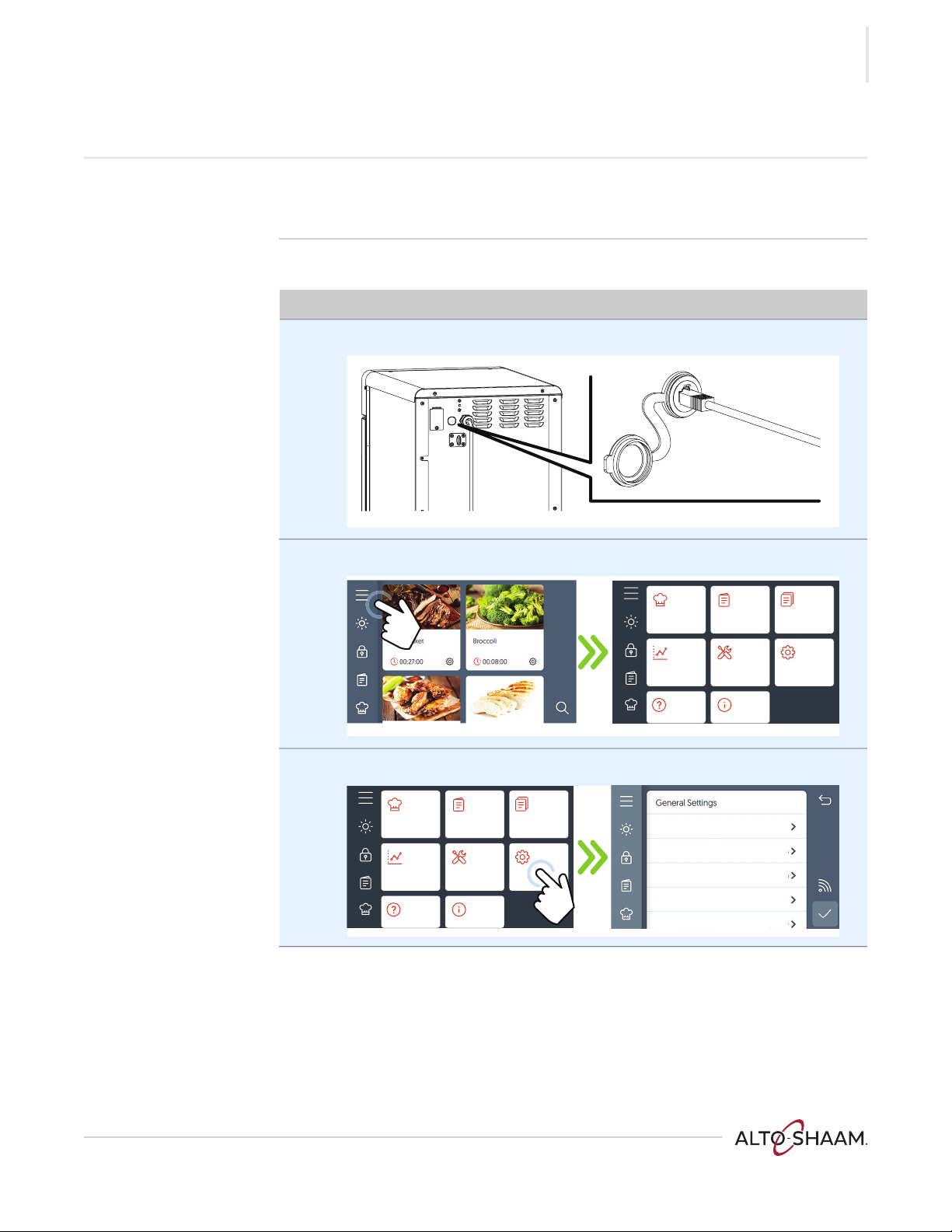

How to View and Set up WiFi Connection
Before you begin ▪The facility must have WiFi.
▪Do not connect to a guest network.
Procedure To set up WiFi, do the following.
Step Action

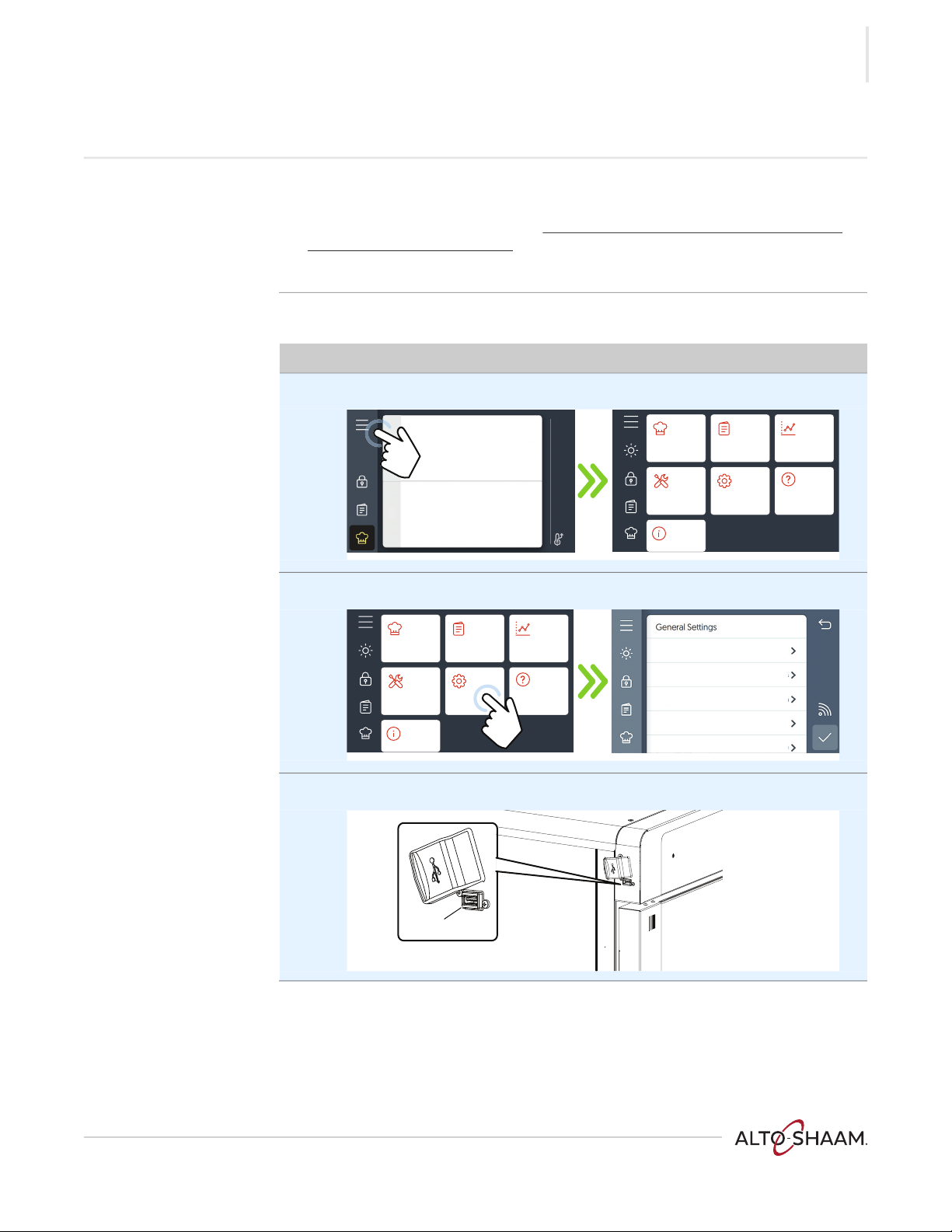

1. Touch the menu icon a. The menu screen displays.
2. Touch the settings icon b. The general settings screen displays.
3. Touch the WiFi icon c. The Network Status screen displays.
Continued on next page
Action needed
1
2
1
TH-TS-009945
Available
Available
a
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
TH-TS-011442
b
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
AS-TS-009332
c
Network Status
Connection type Wifi
Internet Connected
Cloud Connected
Update Server Connected
XXXX xxx

OPERATION
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
13
Continued from previous page
4. Scroll to “Connection settings”. Touch the Setup Network icon d.
5. Touch the WiFi icon e.
The available networks will show on the screen. The color of the network
icon indicates the strength of the signal for each network.
Green = strong
Yellow = medium
Red = weak
Continued on next page
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX
TH-TS-011444
XXX
XXX
XXX
Connections Settings
MAC
SSID
Setup Network
IP
Install certificates
XX
d
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
AS-TS-009332
c
Network Status
Connection type Wifi
Internet Connected
Cloud Connected
Update Server Connected
XXXX xxx
AS-TS-008285
Add network

OPERATION
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
14
Continued from previous page
6. If the network is not displayed, touch the “Add network” icon f.
Enter the SSID using the keypad. Then, touch the arrow key.
Enter the security type. Then, touch the check mark.
Enter the password using the keypad. Then, touch the arrow key.
Touch the check mark when finished.
Result The procedure is now complete.
TH-TS-011446
Add network
f

OPERATION
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
15
How to Set up an Ethernet Connection
Before you begin ▪The facility must have an Ethernet port.
▪You will need an Ethernet cable.
Procedure To set up an Ethernet connection, do the following.
Step Action
1. Plug the Ethernet cord into the Ethernet port on the oven and the wall outlet.
2. Touch the menu icon a. The menu screen displays.
3. Touch the settings icon b. The general settings screen displays.
Continued on next page
TH-TS-011438
VMC-TS-006259
a
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
VMC-TS-006262
b

OPERATION
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
16
Continued from previous page
4. Touch the WiFi icon c. The Network Status screen displays.
5. Scroll to “Connection settings”. Touch the Setup Network icon d.
6. Touch the Ethernet icon e. Follow any prompts.
Result The Ethernet connection is now set up.
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
AS-TS-009332
c
Network Status
Connection type Wifi
Internet Connected
Cloud Connected
Update Server Connected
XXXX xxx
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX
TH-TS-011444
XXX
XXX
XXX
Connections Settings
MAC
SSID
Setup Network
IP
Install certificates
XX
d
TH-TS-011434
Select Connections Type
WiFi
Ethernet
Off
XXX
Ethernet
XXX
XXX
Network Status
Update Server
Internet
Coection type
Cloud
e

OPERATION
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
17
How to Update Software with a USB Drive
Before you begin ▪You will need a USB drive with the updated software. To download the most up to
date oven software and register for email notifications when new software
versions are released, please visit https://www.alto-shaam.com/en/customer-
support/software-downloads.
▪Do not remove the USB drive during the update process.
Procedure To update the software, do the following.
Step Action
1. Touch the menu icon a. The menu screen displays.
2. Touch the Settings icon b. The general settings screen displays.
3. Plug the USB drive into the port c.
Continued on next page
Action needed
1
2
1
TH-TS-009945
Available
Available
a
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
XXXXX XXXXX
TH-TS-009947
b
Manual cooking HACCP data
Service Settings Help
My recipe
library
TH-TS-009951
c

OPERATION
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
18
Continued from previous page
4. Scroll to System Backup & Update.
Touch the Update system software d setting.
Touch Control Board (CB) to update the control board. The oven loads the
selected software. The oven verifies the file and then updates the CB.
Touch Front End to update the user interface software. The oven loads the
selected software.
Touch Back End to update the supporting software between the control
board (CB) and interface board (IB). The oven loads the selected software.
5. Touch the green check mark when the update is complete to restart the
oven.
6. Remove the USB drive.
Result The software has now been updated.
NOTICE
Do not remove the USB drive during the update
process.
TH-TS-009967
d
TH-TS-009969

COMPONENTS
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
19
COMPONENTS
Component Identification

COMPONENTS
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
20
Front Panel Identification
TH-PHD-011505
13
2
Ref. Description
1ON/OFF button
2USB port
3Control panel display
