Alto-Shaam 6 10 User manual

MN-28897 • 02/12
printed i n u.s.a.
Combitherm®
Combination
Oven / Steamer
ES ELECTRIC
6•10
10•10
7•14
10•18
12•20
20•20
VHes-5
VHes-10
  •InstallatIon
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: [phone] • 800.558.8744 usa/caNada FaX: [phone] • 800.329.8744 u.s.a. ONly
www.altO-sHaaM.cOM

i
Delivery 1
Unpacking 1
Safety Procedures and Precautions 2
Installation
Site Requirements 3
Ventilation Requirements 3
Positioning on Site 4
Lifting Instructions 5
Leveling 6
Stand Installation 6
Accessories 7

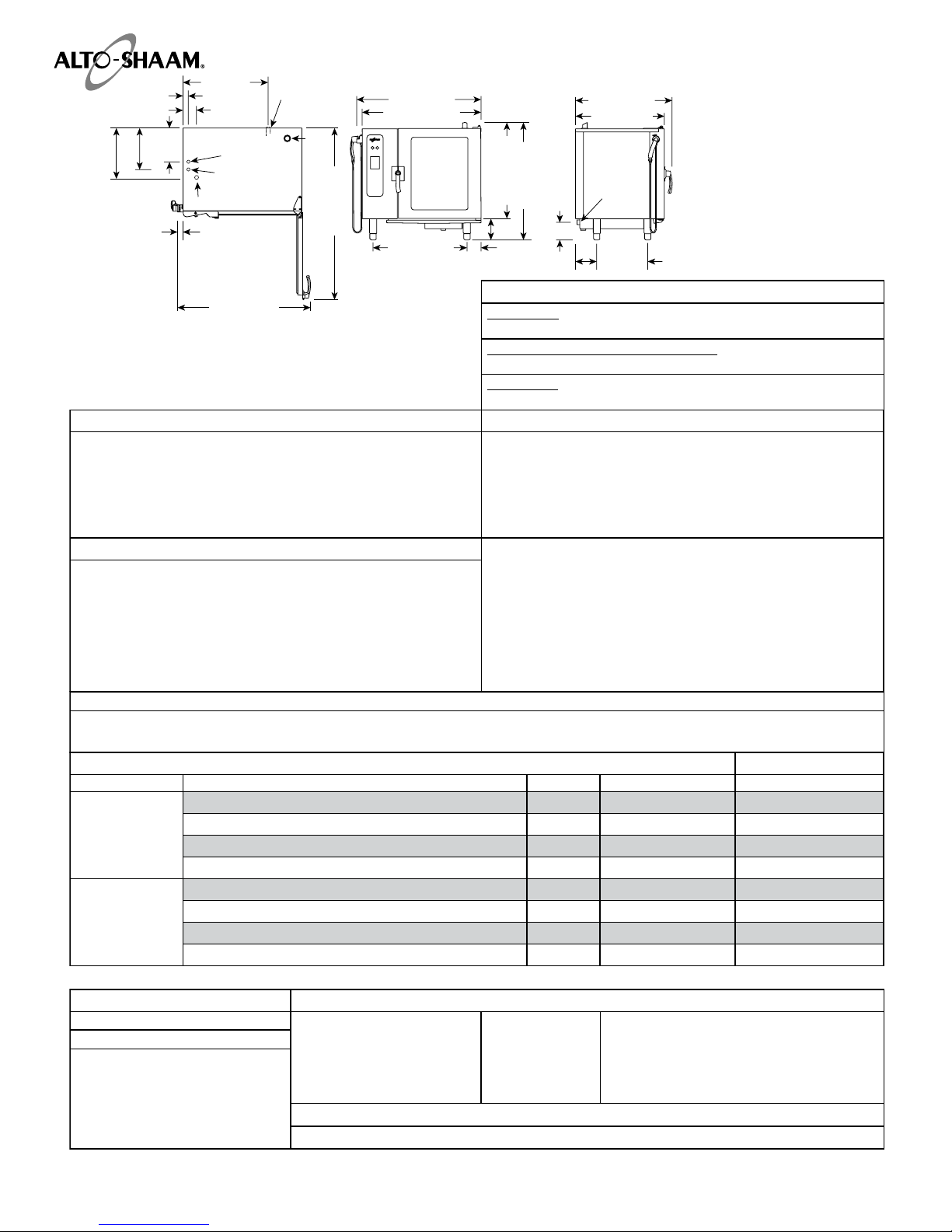

Specifications, 6•10es 8

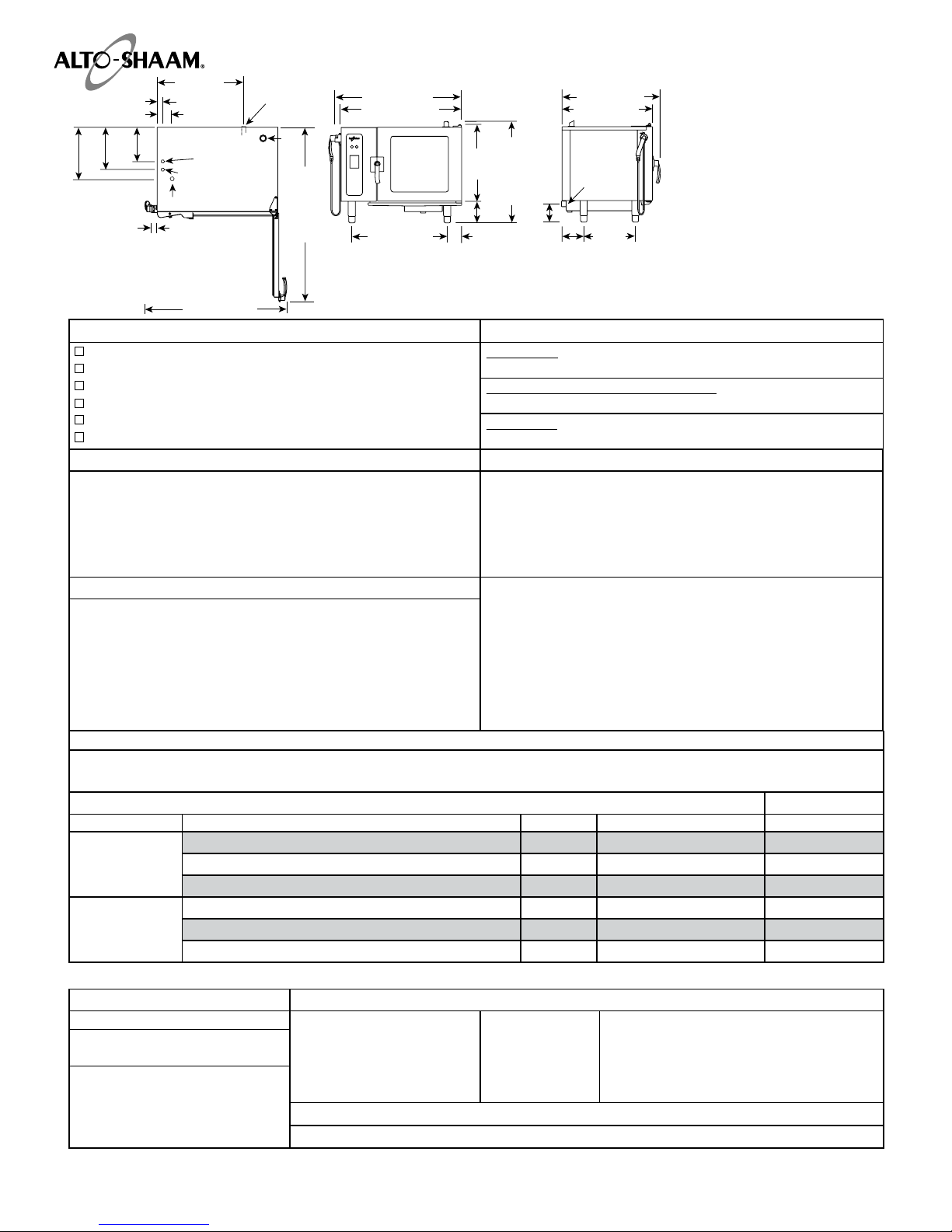

Specifications, 6•10esi 9

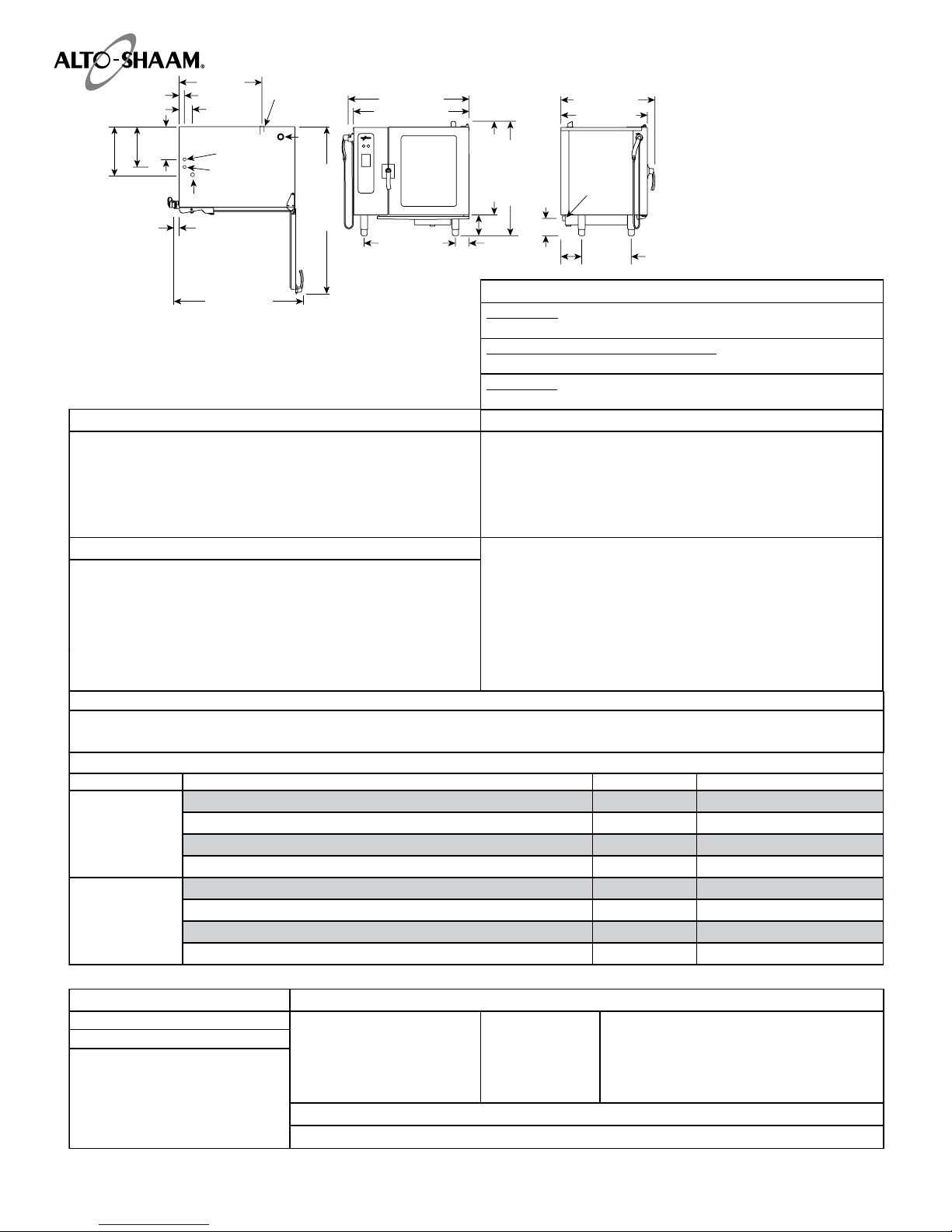

Specifications, 6•10esiN 10

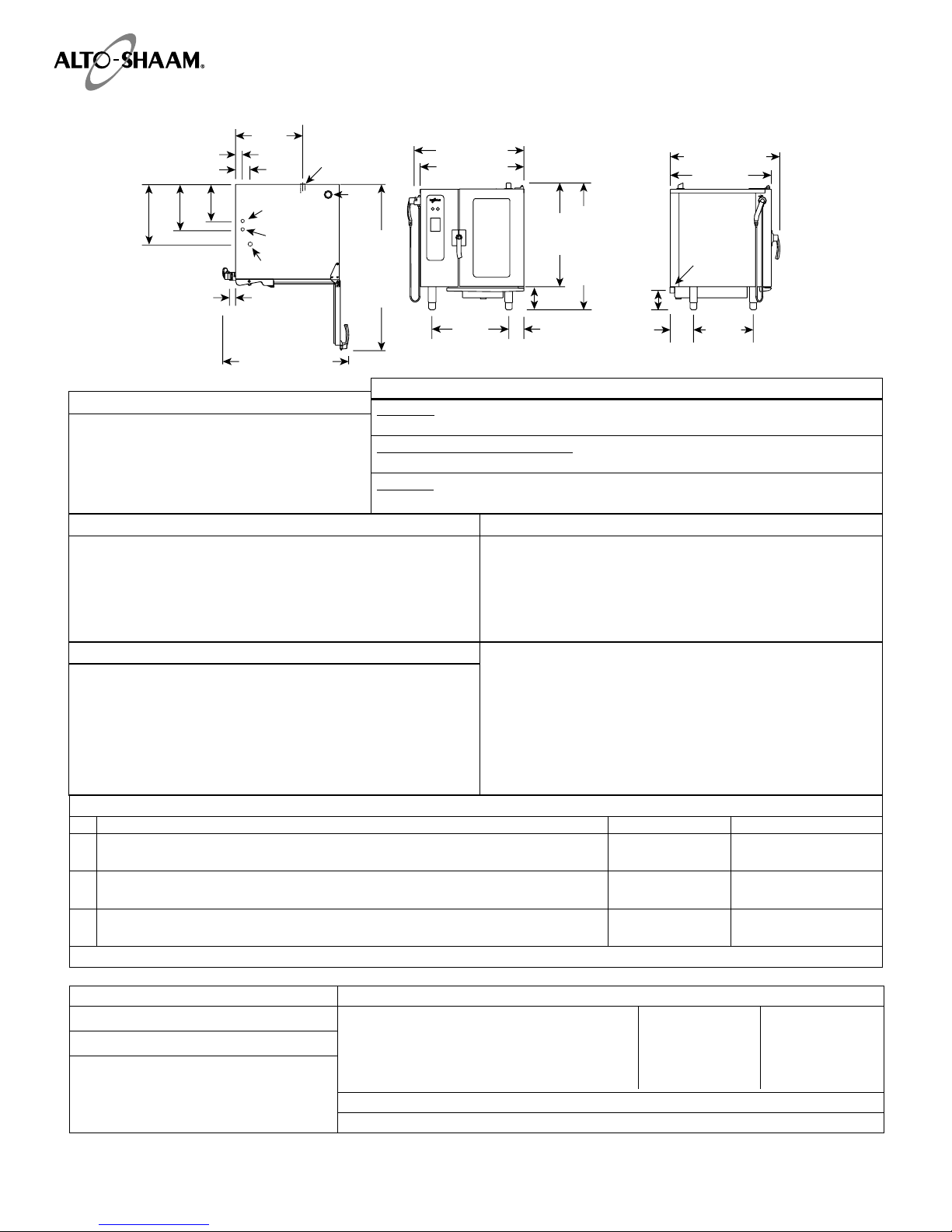

Specifications, 10•10es 11
Specifications, 10•10esi 12
Specifications, 10•10esiN 13
Specifications, 7•14es 14
Specifications, 7•14esi 15

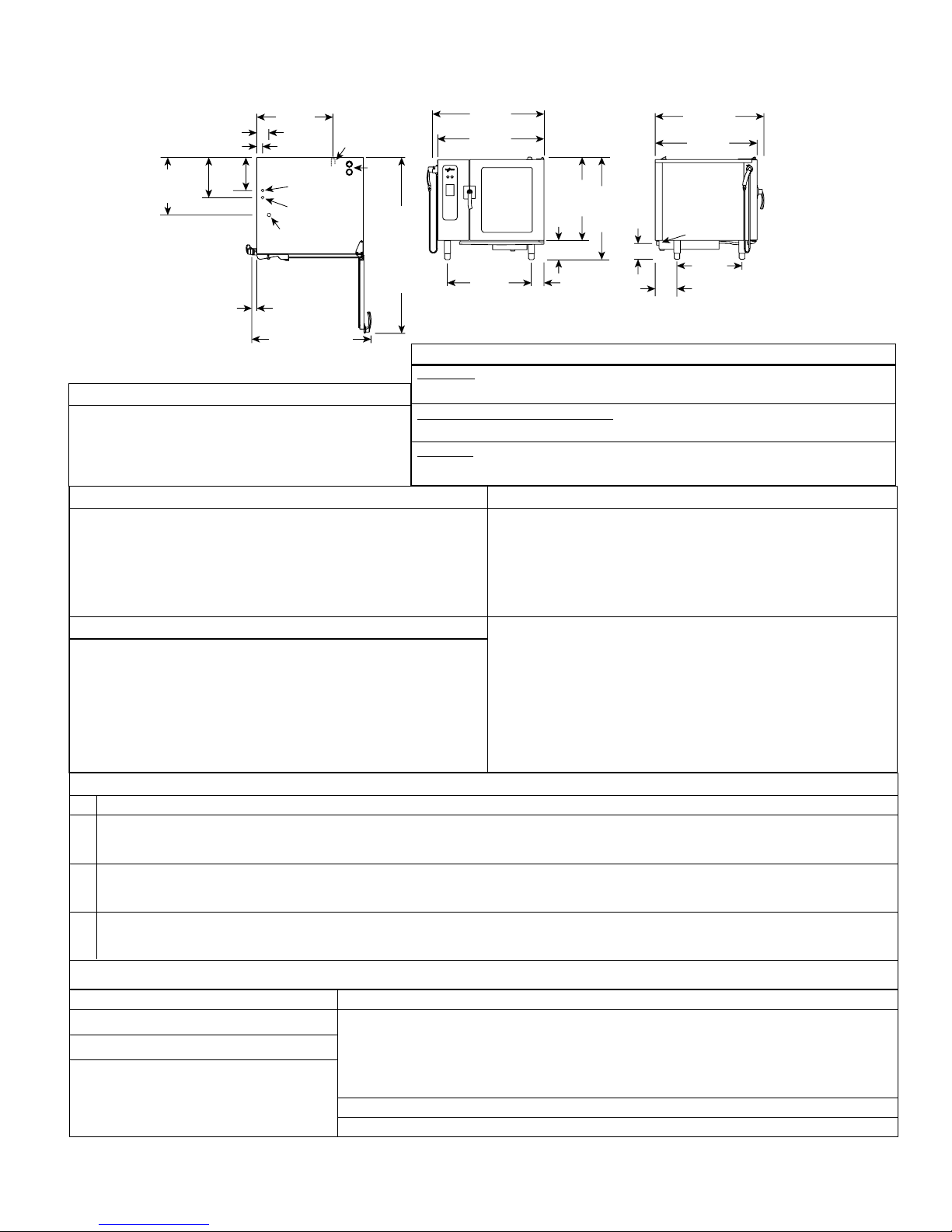

Specifications, 10•18es 16
Specifications, 10•18esi 17
Specifications, 12•20es 18
Specifications, 12•20esi 19
Specifications, 20•20es 20
Specifications, 20•20esi 21
Electrical Connection 22
Motor Rotation 24
Mobile Equipment Restraint 25
Water Quality Requirement 26
Water Connections 27
Water Drainage 28
Installation Checklist 29
Control Reset 30
Error Codes 30
Ventless Hood Option
Condensate Drain 34
Filter Door Latch 34
Operation 35
Warranty
Original Equipment Limited Warranty 36
Transportation Damage and Claims 37

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 1.
DELIVERY
This Alto-Shaam appliance has been
thoroughly tested and inspected to ensure only
the highest quality unit is provided. Upon
receipt, check for any possible shipping damage
and report it at once to the delivering carrier.
See Transportation Damage and Claims section
located in this manual.
This appliance, complete with unattached
items and accessories, may have been delivered
in one or more packages. Check to ensure that all
standard items and options have been received
with each model as ordered.
Save all the information and instructions
packed with the appliance. Complete and return
the warranty card to the factory as soon as
possible to ensure prompt service in the event of a
warranty parts and labor claim.
This manual must be read and understood
by all people using or installing the equipment
model. Contact the Alto-Shaam Tech Team Service
Department if you have any questions concerning
installation, operation, or maintenance.
NOTE: All claims for warranty must include the
full model number and serial number of
the unit.
UNPACKING
1. Carefully remove the
appliance from the
carton or crate.
NOTE: Do not discard the
carton and other
packaging material
until you have
inspected the unit
for hidden damage
and tested it for
proper operation.
2. Read all instructions in this manual carefully
before initiating the installation of this appliance.
DO NOT DISCARD THIS MANUAL.
This manual is considered to be part of the
appliance and is to be provided to the owner
or manager of the business or to the person
responsible for training operators. Additional
manuals are available from the Alto-Shaam
Tech Team Service Department.
3. Remove all protective plastic film, packaging
materials, and accessories from the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®
LES INFORMATIONS CONTENUES DANS
CE MANUEL SONT IMPORTANTES POUR
L’INSTALLATION L’UTILISATION ET
L’ENTRETIEND DE CE FOUR. S’IL VOUS
PLAIT LISEZ-LE TRES ATTENTIVEMENT ET
CONSERVEZ-LE.
LA NON-APPLICATION DE CES CONSIGNES
ANNULE TOUTES GARANTIES.
THE INFORMATION CONTAINED IN THIS
MANUAL IS IMPORTANT FOR THE PROPER
INSTALLATION OF THIS OVEN. PLEASE
READ CAREFULLY AND RETAIN FOR
FUTURE REFERENCE.
IMPROPER CONNECTION OF THIS
APPLIANCE WILL NULLIFY ALL
WARRANTIES.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 2.
CAUTION
Used to indicate the presence of a hazard that
can or will cause minor personal injury, property
damage, or a potential unsafe practice if the
warning included with this symbol is ignored.
CAUTION
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injury or property
damage if the warning included with
this symbol is ignored.
DANGER
Used to indicate the presence of
a hazard that WILL cause severe
personal injury, death, or substantial
property damage if the warning
included with this symbol is ignored.
WARNING
Used to indicate the presence of
a hazard that CAN cause personal
injury, possible death, or major
property damage if the warning
included with this symbol is ignored.
1. This appliance is intended to cook, hold
or process foods for the purpose of human
consumption. No other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are
familiar with the purpose, limitations, and
associated hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
3. Any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by qualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
NOTE: Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
SAFETY PROCEDURES
AND PRECAUTIONS
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
equipment. In accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
NOTE
For equipment delivered for use
in any location regulated by the
following directive:
DO NOT DISPOSE OF ELECTRICAL
OR ELECTRONIC EQUIPMENT WITH
OTHER MUNICIPAL WASTE.
CAUTION
WHEN WELDING ANY STAINLESS
STEEL COMPONENTS ON THIS
APPLIANCE, THE ELECTRONIC
CONTROL BOARDS MUST BE
ISOLATED FROM THE APPLIANCE.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 3.
SITE INSTALLATION
INSTALLATION
DANGER
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
DANGER
DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
DANGER
AVERTISSEMENT : UNE INSTALLATION,
UN AJUSTEMENT, UNE ALTÉRATION,
UN SERVICE OU UN ENTRETIEN NON
CONFORME AUX NORMES PEUT CAUSER
DES DOMMAGES À LA PROPRIÉTÉ, DES
BLESSURES OU LA MORT.
LIRE ATTENTIVEMENT LES DIRECTIVES
D’OPÉRATION ET D’ENTRETIEN
AVANT DE FAIRE L’INSTALLATION, OU
L’ENTRETIEN DE CET ÉQUIPEMENT.
SITE INSTALLATION
INSTALLATION CODES
& STANDARDS
The following codes and standards are required
for installation of this oven: AIR SUPPLY,
ELECTRICAL CONNECTIONS, WATER
CONNECTIONS, AND WASTE WATER
DISCHARGE.
NOTE:
Where automatically operated appliances are
vented through a ventilating hood or exhaust
system equipped with a damper or with a power
means of exhaust, provisions shall be made to
allow the equipment to operate only when the
damper is open to a position to properly vent the
appliance and when the power means of exhaust
is in operation.
IN ACCORDANCE WITH NFPA 54
COMMONWEALTH OF MASSACHUSETTS ONLY.
VENTILATION REQUIREMENTS
A steam ventilation hood is mandatory for the
operation of the oven. The ventilation hood must
be installed in accordance with local building codes
for the steam exhaust and must protrude 12-inches
to 20-inches (300 to 500mm) over the front side of
the oven. A grease filter must be located in the
protruding area of the hood. Grease filters should
be thoroughly cleaned on a regular basis following
manufacturer's instruction. Ventilation hoods must
ensure an adequate amount of incoming air during
operation and must be operated whenever the
combination oven/steamer is used in order to avoid
the accumulation of condensation in the hood area.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 4.
NOTE: Note dimensions required for doorways
and aisles for access of the oven and
pallet to the installation site. Transport
the oven in an upright and level position
only. Do not tilt the oven.
®
SITE INSTALLATION
INSTALLATION
POSITIONING ON SITE
Stand the oven in a level position. Use the
adjustable feet to overcome an uneven floor and
ensure that the unit is level.
It is strongly recommended that table top models be
mounted on a factory supplied stand or a stand that
is stable, open, and level. Recommended height is
23-inches (584mm).
Adjust the height of floor models for smooth access
of the trolley or cart. When positioning the oven,
observe the minimum space allocation requirements
shown.
To insure proper operation, the installation of this
oven must be completed by qualified technicians in
accordance with the instructions provided in this
manual. Failure to follow the instructions provided
may result in damage to the oven, building, or cause
personal injury to personnel.
MINIMUM CLEARANCE REQUIREMENTS
left side 6" (152mm) minimum
18" (457mm) service access recommended
20" (508mm) from heat producing equipment
right side 4" (102mm)
back 4" (102mm) for plumbing
top 20" (508mm) for air movement
NOTE: Additional clearance is needed for
service access. A minimum distance of 18-inches
is strongly recommended. If adequate service
clearance is not provided, it will be necessary to
disconnect the gas, water, and drain to move the
oven with a fork lift for service access. Charges
in connection with inadequate service access is
not covered under warranty.
NOTE: To avoid equipment damage, observe
attention label on oven for area to avoid
with lifting fork.
CAUTION
THE APPLIANCE MUST REMAIN ON
THE PALLET WHILE BEING MOVED
TO THE INSTALLATION SITE BY FORK
LIFT OR PALLET LIFT TRUCK.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 5.
SITE INSTALLATION
INSTALLATION

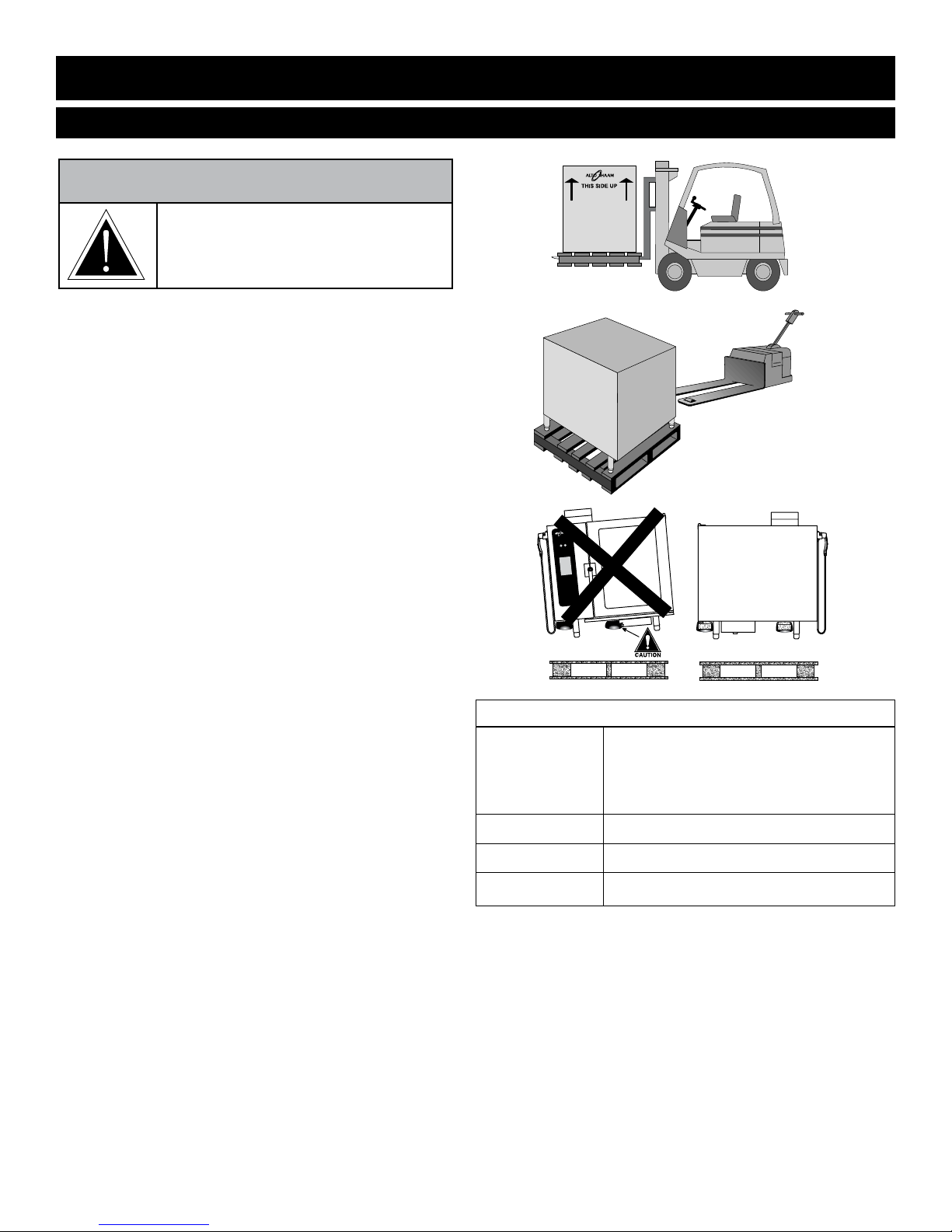

Lifting Instructions
Do not lift in
this area!
Damage to the
components
will result.
Center
of
Gravity
Front View
Top View
(Front)
Leg
24”
Spacer
Board
Remove banding before lifting.
Place a spacer board(s) 24” in
length, with a minimum height
of 1-1/2” (mobile base units
require 2-1/4” minimum
height), on each fork to prevent
damaging the door drip tray.
Lift the unit from the front
only, never from the side.
Adjust the forks so that
they do not damage
any of the components
under the unit. The left
fork should be located
between the left legs
and the door handle.
The right fork should
be located as close to
the right legs as
possible. Lift the unit
high enough to remove
the wooden pallet.
Have a second person
hold the unit from
shifting. When moving
the unit, drive slowly,
keep it low to the
ground, and use
extreme caution.
Fork
Door Handle
32”
Max.
Fork
Depth
Leg
Leg
Leg
Fork
Fork
Fork
LA-29642
24”
Spacer
Boards
24”
Spacer
Board

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 6.
SITE INSTALLATION
INSTALLATION
POSITIONING REQUIREMENTS
q In order to ensure proper ventilation, a minimum
distance of at least 6-inches (152mm) must be kept
from the control panels side (left) of the oven and any
adjoining surfaces.
NOTE: Additional clearance is needed for service
access. A minimum distance of 18-inches is strongly
recommended. If adequate service clearance is not
provided, it will be necessary to disconnect the
electrical, water, and drain to move the oven with a
fork lift for service access. Charges in connection with
inadequate service access is not covered under warranty.
q Allow a minimum of 4-inches (102mm) from the right
side of the oven to allow the door to open to at least a
90° angle. Fully opened, the door will extend up to a
225° angle If the oven is furnished with the retractable
door option, allow a minimum clearance of
6-1/2 inches (165mm).
q Allow a minimum clearance of 4-inches (102mm) from
the back of the oven for plumbing connections.
q Allow a 20-inch (500mm) clearance at the top of the
oven for free air movement and for the steam vent(s)
located at the top.
q Do not install the oven adjacent to heat producing
equipment such as fryers, broilers, etc. Heat from such
appliances may cause damage to the controls of the
Combitherm. Minimum clearance recommended:
20-inches (500mm)
Place the Combitherm oven on a stable, non-combustible
level horizontal surface. For countertop
models, the oven stand must be level. Level
from front-to-back and side-to-side by means
of the adjustable legs. In addition, the overall
height of the oven should be positioned so the operating
controls and shelves may be conveniently reached from
the front.
When placing a countertop model on an oven stand,
position the oven legs on the outside of the
positioning pins.
Positioning
Pins
Positioning
Pins

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 7.
ACCESSORIES
CombiClean®Tablets — CE-28892
sPEcially FOrMulatEd FOr cOMbitHErM OvENs
➥ twO (2) cONtaiNErs/bOX, 90 PackEts EacH cONtaiNEr
Combitherm Cleaning Liquid — CE-24750
sPEcially FOrMulatEd FOr cOMbitHErM OvENs
➥ twElvE (12) cONtaiNErs/casE, 1 quart (c. 1 litEr) EacH
CombiGuard™ BWS Blended Water System
(iNcludEs 50 gallON taNk, 1 MEMbraNE & 3 FiltErs)FI-28727
CombiGuard™ BWS Replacement Filter
Cartridge AMS-QT FI-29316
CombiGuard™ BWS Replacement Filter
Cartridge SCLX2-Q FI-29317
CombiGuard™ BWS Replacement Prefilter
Filter Cartridge CTO-Q FI-29318
CombiGuard™ Triple-Guard Water Filtration System
(iNcludEs 1 cartridgE)
6•10, 7•14, 10•18 (CombiGuard™ 10) FI-23014
12•20 (CombiGuard™ 20) FI-28728
CombiGuard™ Triple-Guard Replacement Filter
6•10, 10•10, 7•14, 10•18 (CombiGuard™ 10) FI-26356
12•20, 20•20 (CombiGuard™ 20) FI-28744
Fry Basket, 12" X 20" (325mm x 530mm) BS-26730
Grilling Grate, 12" X 20" (325mm x 530mm) SH-26731
Probe, Sous Vide PR-34747
Scale Free™ cE-27889
(citrus basEd, NON-cOrrOsivE dEliMiNg PrOduct)
casE = FOur 4-lb bOttlEs; 4-lb bOttlE MakEs 10 gallONs
Service Start-Up Check sPEciFy as rEquirEd
availablE tHrOugH tHE altO-sHaaM tEcH tEaM sErvicE
depar tment
Shelf, Stainless Steel Wire
6•10, 10•10 SH-2903
7•14, 10•18 SH-22584
12•20, 20•20 SH-22473
Six (6) Poultry Roasting Rack
(PaN NOt iNcludEd) SH-23000
Fry Basket BS-26730
Grilling Grate SH-26731
Ten (10) Poultry Roasting Rack
SH-22634
INSTALLATION
Six (6) Poultry Roasting Rack
(Fits iN sidE rails) 5014438

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 8.

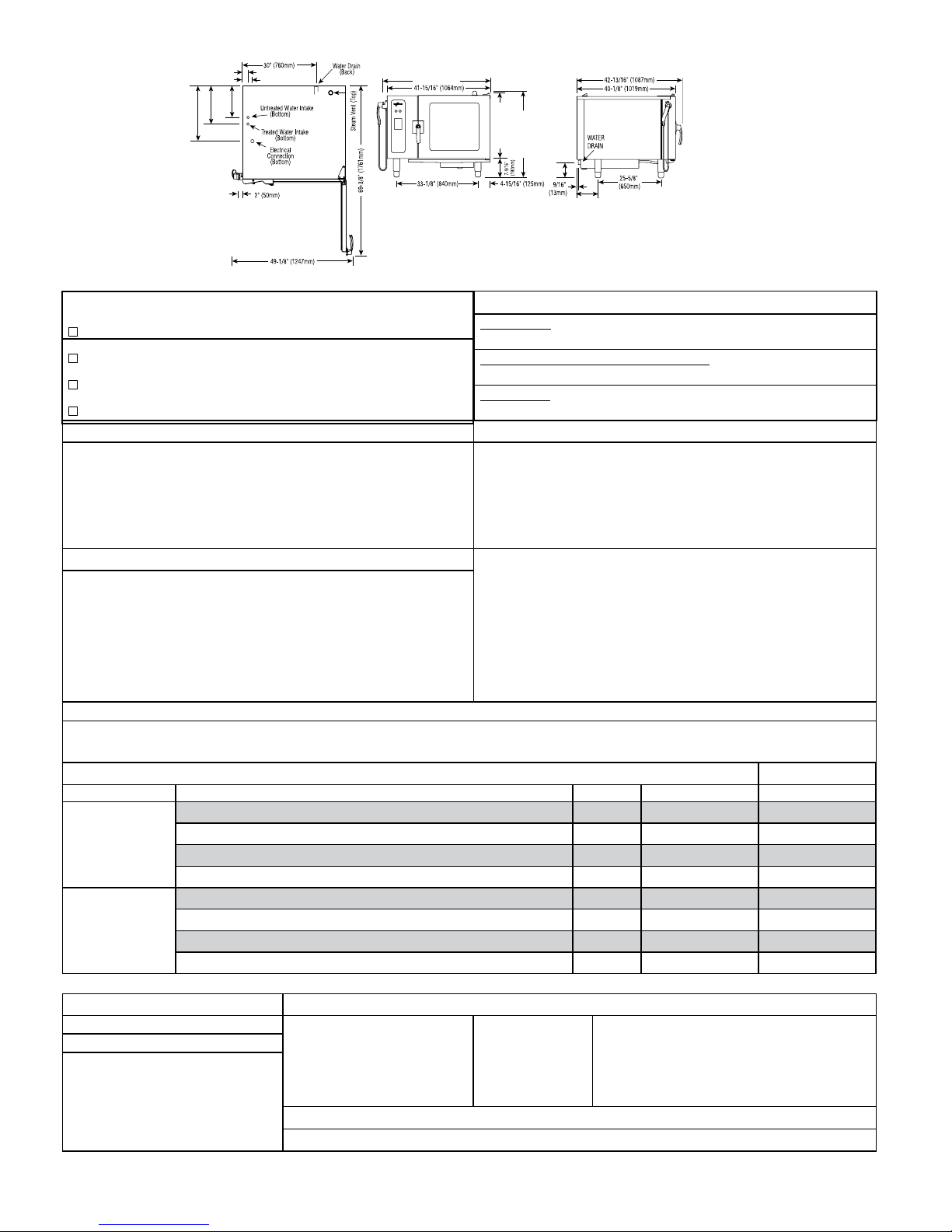

6•10es
31-3/8" (796mm)
34-1/16" (864mm)
17-15/16"
(456mm)
7-9/16"
(191mm)
WATER
DRAIN
33-1/8" (840mm) 4-15/16"
(125mm)
Steam Vent (Top)
60-9/16" (1538mm)
Water Drain
(Back)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
Electrical Connection
(Bottom)
30" (761mm)
3-3/4" (95mm)
2-3/16" (56mm)
(283mm)
6-3/8" (161mm)
41-15/16" (1064mm)
43-7/8" (1114mm)
2" (50mm)
49-1/8" (1247mm)
15-7/8"
(403mm)
13-1/2"
(343mm)
35-3/16" (893mm)
26-1/2"
(673mm)
7-9/16"
(192mm)
11-1/8"
WEIGHT CAPACITY
NET 285 lb (129 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Six (6)
SHIP 465 lb (211 kg) GN 1/1:
GN 2/1:
530 x 325 x 65mm
650 x 530 x 65mm
Six (6)
Three (3)
CRATE DIMENSIONS: (L x W x H)
53" x 45" x 49"
(1346 x 1143 x 1245mm)
HALF-SIZE SHEET PANS:* 18" x 13" x 1" Six (6)
ON WIRE SHELVES ONLY
72 lb (33 kg) MAXIMUM
VOLUME MAXIMUM: 45 quarts (57 liters)
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
ELECTRICAL (DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG
6•10ES Touch 208 – 240 1* 60 44.0 - 50.0 9.1 - 12.0 AWG 6 no cord or plug
208 – 240 360 25.2 - 28.4/ph 9.1 - 11.7 AWG 8 no cord or plug
380 – 415 350 14.0 - 16.3/ph 9.0 - 11.7 AWG 12 no cord or plug
6•10ES 208 – 240 1* 60 40.8 - 47.0 8.5 - 11.2 AWG 6 no cord or plug
208 – 240 360 23.5 - 27.0/ph 8.5 - 11.2 AWG 8 no cord or plug
380 – 415 350 13.0 - 16.0/ph 8.5 - 11.2 AWG 12 no cord or plug
*ELECTRICAL SERVICE CHARGE APPLIES
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
35-3/16" x 43-7/8" x 34-1/16" (893mm x 1114mm x 864mm)
EXTERIOR WITH RECESSED DOOR:
35-3/16" x 47-7/8" x 34-1/16" (893mm x 1216mm x 864mm)
INTERIOR:
17-3/4" x 23-1/2" x 21-1/16" (450mm x 597mm x 535mm)
STACKING COMBINATION DIMENSIONS: H x W x D
6.10es over 6.10es 66-3/4" x 44" x 36-5/8" (1693 x 1115 x 930mm)
6.10es over 10.10es 73-1/8" x 44" x 36-5/8" (1857 x 1115 x 930mm)
6.10es over 7.14es 67" x 44" x 43" (1701 x 1115 x 1090mm)
6.10es over 10.18es 72-3/4" x 44" x 43" (1845 x 1115 x 1090mm)
Mobile option with 5" (127mm) casters will add 2" (51mm) to the overall height
6.10es over ASC-4E 74" x 44" x 44-1/2" (1878 x 1115 x 1130mm)

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 9.

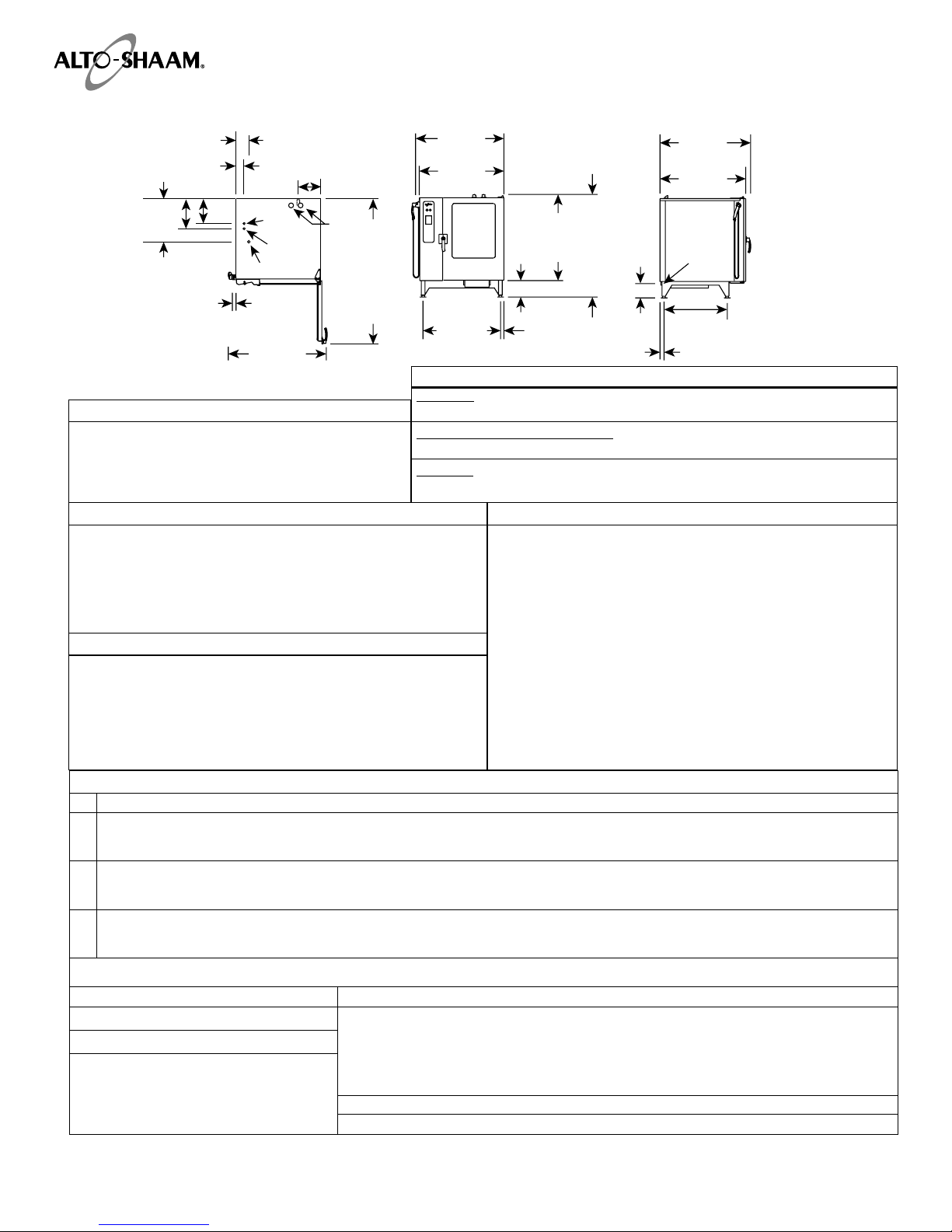

6•10esi
31-3/8" (796mm)
34-1/16" (864mm)
17-15/16"
(456mm)
7-9/16"
(191mm)
WATER
DRAIN
33-1/8" (840mm) 4-15/16"
(125mm)
Steam Vent (Top)
60-9/16" (1538mm)
Water Drain
(Back)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
Electrical Connection
(Bottom)
30" (761mm)
3-3/4" (95mm)
2-3/16" (56mm)
(283mm)
6-3/8" (161mm)
41-15/16" (1064mm)
43-7/8" (1114mm)
2" (50mm)
49-1/8" (1247mm)
15-7/8"
(403mm)
13-1/2"
(343mm)
35-3/16" (893mm)
26-1/2"
(673mm)
7-9/16"
(192mm)
11-1/8"
WEIGHT CAPACITY
NET 285 lb (129 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Six (6)
SHIP 415 lb (188 kg) GN 1/1:
GN 2/1:
530 x 325 x 65mm
650 x 530 x 65mm
Six (6)
Three (3)
CRATE DIMENSIONS: (L x W x H)
53" x 45" x 49"
(1346 x 1143 x 1245mm)
HALF-SIZE SHEET PANS:* 18" x 13" x 1" Five (5)
ON WIRE SHELVES ONLY
72 lb (33 kg) MAXIMUM
VOLUME MAXIMUM: 45 quarts (57 liters)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
ELECTRICAL (DEDICATED CIRCUIT REQUIRED) CombiSmoker®
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG Additional kW
6•10ESi Touch 208 – 240 1* 60 44.0 - 50.0 9.1 - 12.0 AWG 6 no cord or plug + .7 kw
208 – 240 360 25.2 - 27.0/ph 9.1 - 11.3 AWG 8 no cord or plug + .7 kw
380 – 415 350 14.0 - 16.3/ph 9.0 - 11.7 AWG 12 no cord or plug + .7 kw
6•10ESi 208 – 240 1* 60 43.4 - 48.7 9.0 - 11.7 AWG 6 no cord or plug + .7 kw
208 – 240 360 25.0 - 28.2/ph 9.0 - 11.7 AWG 8 no cord or plug + .7 kw
380 – 415 350 14.0 - 16.3/ph 9.0 - 11.7 AWG 12 no cord or plug + .7 kw
*ELECTRICAL SERVICE CHARGE APPLIES
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
35-3/16" x 43-7/8" x 34-1/16" (893mm x 1114mm x 864mm)
EXTERIOR WITH RECESSED DOOR:
35-3/16" x 47-7/8" x 34-1/16" (893mm x 1216mm x 864mm)
INTERIOR:
17-3/4" x 23-1/2" x 21-1/16" (450mm x 597mm x 535mm)
STACKING COMBINATION DIMENSIONS: H x W x D
6.10es over 6.10es 66-3/4" x 44" x 36-5/8" (1693 x 1115 x 930mm)
6.10es over 10.10es 73-1/8" x 44" x 36-5/8" (1857 x 1115 x 930mm)
6.10es over 7.14es 67" x 44" x 43" (1701 x 1115 x 1090mm)
6.10es over 10.18es 72-3/4" x 44" x 43" (1845 x 1115 x 1090mm)
Mobile option with 5" (127mm) casters will add 2" (51mm) to the overall height
6.10es over ASC-4E 74" x 44" x 44-1/2" (1878 x 1115 x 1130mm)

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 10.
6•10esiN
32-15/16" (835mm)
35-9/16" (903mm)
21-11/16"
(550mm)
5-3/8"
(137mm)
6-3/8" (161mm)
WATER
DRAIN
33-7/8" (859mm)
35-13/16" (909mm)
2" (50mm)
41-1/16" (1042mm)
Water Drain
(Side Back)
Steam Vent
(Top)
Electrical Connection
(Bottom)
21-7/8"
(555mm)
3-5/8" (92mm)
2-1/4" (57mm)
19-1/2"
(495mm)
12-5/16"
(312mm)
9-9/16"
(242mm)
25"
(635mm)
5"
(126mm)
35-3/16" (893mm)
54-1/8" (1374mm)
26-3/4"
(679mm)
7-9/16"
(192mm)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
WEIGHT CAPACITY
NET 285 lb (129 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Six (6)
SHIP 415 lb (188 kg) GN 1/1: 530 x 325 x 65mm Six (6)
CRATE DIMENSIONS: (L x W x H) HALF-SIZE SHEET PANS:* 18" x 13" x 1" Six (6)
53" x 45" x 49" ON WIRE SHELVES ONLY
(1346 x 1143 x 1245mm) 72 lb (33 kg) MAXIMUM
VOLUME MAXIMUM: 45 quarts (57 liters)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
ELECTRICAL (DEDICATED CIRCUIT REQUIRED) CombiSmoker®
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG Additional kW
6•10ESiN Touch 208 – 240 1* 60 44.0 - 50.0 9.1 - 12.0 AWG 6 no cord or plug + .7 kw
208 – 240 360 25.2 - 27.0/ph 9.1 - 11.3 AWG 8 no cord or plug + .7 kw
380 – 415 350 14.0 - 16.3/ph 9.0 - 11.7 AWG 12 no cord or plug + .7 kw
6•10ESiN 208 – 240 1* 60 43.4 - 48.7 9.0 - 11.7 AWG 6 no cord or plug + .7 kw
208 – 240 360 25.0 - 28.2/ph 9.0 - 11.7 AWG 8 no cord or plug + .7 kw
380 – 415 350 14.0 - 16.3/ph 9.0 - 11.7 AWG 12 no cord or plug + .7 kw
*ELECTRICAL SERVICE CHARGE APPLIES
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
35-3/16" x 35-13/16" x 35-9/16" (893mm x 909mm x 903mm)
EXTERIOR WITH RECESSED DOOR:
35-3/16" x 39-13/16" x 35-9/16" (893mm x 1011mm x 903mm)
INTERIOR:
17-3/4" x 13-1/4" x 26-1/4" (450mm x 387mm x 665mm)
STACKING COMBINATION DIMENSIONS: H x W x D
6.10esiN over 6.10esiN 67" x 35-13/16" x 38-3/16" (1690 x 909 x 970mm)
6.10esiN over 10.10esiN 73-1/8" x 35-13/16" x 38-3/16" (1856 x 909 x 970mm)
6.10esiN over 7.14es 67" x 44" x 43" (1701 x 1117 x 1090mm)
6.10esiN over 10.18es 73-1/8" x 44" x 43" (1856 x 1117 x 1090mm)
Mobile option with 5" (127mm) casters will add 2" (51mm) to the overall height
6.10esiN over ASC-2E 71" x 35-13/16" x 36" (1803 x 909 x 914mm)
6.10esiN over ASC-4E 71" x 35-13/16" x 35-9/16" (1803 x 909 x 903mm)
6.10esiN over ASC-4G 73-1/4" x 38" x 44-5/8" (1860 x 966 x 1134mm)

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 11.
10•10es
33-1/16" (840mm) 4-15/16"
(125mm)
41-1/2" (1053mm)
33-15/16" (861mm)
7-9/16" (192mm)
60-9/16" (1538mm)
Water Drain
(Back)
30" (761mm)
2" (50mm)
49-1/8" (1247mm)
43-7/8" (1114mm)
31-3/8" (796mm)
34-1/16" (865mm)
17-15/16"
(456mm)
7-9/16"
(191mm)
Water Drain
6-1/4" (158mm)
41-15/16" (1064mm)
Steam Vent (Top)
Electrical Connection (Bottom)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
2-1/8" (53mm)
3-3/4" (95mm)
11-1/8"
(283mm)
15-3/4"
(400mm)
13-1/2"
(343mm)
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
WEIGHT CAPACITY
NET 385 lb (175 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Ten (10)
SHIP 525 lb (238 kg) GN 1/1: 530 x 325 x 65mm Ten (10)
CRATE DIMENSIONS: (L x W x H) GN 2/1: 650 x 530 x 65mm Five (5)
53" x 45" x 49" HALF-SIZE SHEET PANS:* 18" x 13" x 1" Ten (10)
(1346 x 1143 x 1245mm) ON WIRE SHELVES ONLY
120 lb (54 kg) MAXIMUM
VOLUME MAXIMUM: 75 quarts (95 liters)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
ELECTRICAL (DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG
10•10ES Touch 208 – 240 1* 60 70.0 - 79.2 14.5 - 19.0 AWG 3 no cord or plug
208 – 240 360 40.2 - 45.7/ph 14.4 - 19.0 AWG 6 no cord or plug
380 – 415 350 22.1 - 26.5/ph 14.5 - 19.0 AWG 10 no cord or plug
440 – 480 3* 60 19.0 - 22.8/ph 14.4 - 19.0 AWG 8 no cord or plug
10•10ES 208 – 240 1* 60 67.0 - 77.0 13.9 - 18.4 AWG 3 no cord or plug
208 – 240 360 38.5 - 44.0/ph 13.9 - 18.4 AWG 6 no cord or plug
380 – 415 350 21.5 - 25.6/ph 14.0 - 18.4 AWG 10 no cord or plug
440 – 480 3* 60 20.0 - 22.0/ph 15.4 - 18.4 AWG 8 no cord or plug
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
41-1/2" x 43-7/8" x 34-1/16" (1053mm x 1114mm x 865mm)
EXTERIOR WITH RECESSED DOOR:
41-1/2" x 47-7/8" x 34-1/16" (1053mm x 1216mm x 865mm)
INTERIOR:
27" x 23-1/2" x 21-1/16" (685mm x 597mm x 535mm)

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 12.
10•10esi
33-1/16" (840mm) 4-15/16"
(125mm)
41-1/2" (1053mm)
33-15/16" (861mm)
7-9/16" (192mm)
60-9/16" (1538mm)
Water Drain
(Back)
30" (761mm)
2" (50mm)
49-1/8" (1247mm)
43-7/8" (1114mm)
31-3/8" (796mm)
34-1/16" (865mm)
17-15/16"
(456mm)
7-9/16"
(191mm)
Water Drain
6-1/4" (158mm)
41-15/16" (1064mm)
Steam Vent (Top)
Electrical Connection (Bottom)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
2-1/8" (53mm)
3-3/4" (95mm)
11-1/8"
(283mm)
15-3/4"
(400mm)
13-1/2"
(343mm)
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
WEIGHT CAPACITY
NET 385 lb (175 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Ten (10) Eight (8)
SHIP 525 lb (238 kg) GN 1/1: 530 x 325 x 65mm Ten (10) Eight (8)
CRATED DIMENSIONS: (L x W x H) GN 2/1: 650 x 530 x 65mm Five (5) Four (4)
53" x 45" x 49" HALF-SIZE SHEET PANS:* 18" x 13" x 1" Ten (10) Nine (9)
(1346 x 1143 x 1245mm)
ON WIRE SHELVES ONLY
120 lb (54 kg) MAXIMUM
VOLUME MAXIMUM: 75 quarts (95 liters)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
ELECTRICAL (DEDICATED CIRCUIT REQUIRED)
CombiSmoker®
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG Additional kW
10•10ESi Touch 208 – 240 1* 60 77.0 18.4 AWG 3 no cord or plug + .5 kW
208 – 240 360 44.3/ph 18.4 AWG 6 no cord or plug + .5 kW
380 – 415 350 25.6/ph 18.4 AWG 10 no cord or plug + .5 kW
440 – 480 3* 60 22.0/ph 18.4 AWG 8 no cord or plug + .5 kW
10•10ESi 208 – 240 1* 60 77.0 18.4 AWG 3 no cord or plug + .5 kW
208 – 240 360 44.3/ph 18.4 AWG 6 no cord or plug + .5 kW
380 – 415 350 25.6/ph 18.4 AWG 10 no cord or plug + .5 kW
440 – 480 3* 60 22.0/ph 18.4 AWG 8 no cord or plug + .5 kW
*electrical service charge applies
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
41-1/2" x 43-7/8" x 34-1/16" (1053mm x 1114mm x 865mm)
EXTERIOR WITH RECESSED DOOR:
41-1/2" x 47-7/8" x 34-1/16" (1053mm x 1216mm x 865mm)
INTERIOR:
27" x 23-1/2" x 21-1/16" (685mm x 597mm x 535mm)

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 13.
19-1/2"
(495mm)
12-5/16"
(312mm)
9-9/16"
(242mm)
35-7/8" (910mm)
33-7/8" (860mm) 33" (837mm)
2" (50mm)
35-11/16" (905mm)
25"
(635mm)
7-9/16"
(191mm)
5" (126mm)
Water Drain
(Rear)
Steam
Vent
(Top)
21-15/16"
(557mm)
41-1/16" (1043mm)
Electrical Connection(Bottom)
54-1/8" (1375mm)
7-9/16" (192mm)
33-7/8"
(859mm)
41-3/8" (1050mm)
Treated Water
Intake (Bottom)
Untreated Water Intake
(Bottom)
WATER
DRAIN
3-5/8" (92mm)
2-1/16" (52mm)
21-11/16"
(550mm)
6-3/8" (161mm)
DIMENSIONS:H x W x D
EXtEriOr:
41-3/8" x 35-7/8" x 35-11/16" (1050mm x 910mm x 905mm)
EXtEriOr witH rEcEssEd dOOr:
41-3/8" x 39-7/8" x 35-11/16" (1050mm x 1012mm x 905mm)
interior:
27" x 13-1/4" x 26-1/4" (685mm x 387mm x 665mm)
*additiONal wirE sHElvEs rEquirEd FOr MaXiMuM caPacity
INSTALLATION REQUIREMENTS
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-ow
preventer.
10•10esiN
CAPACITY
FULL-SIZE PANS: 20" x 12" x 2-1/2" Ten (10) Eight (8)
GN 1/1: 530 x 325 x 65mm Ten (10) Eight (8)
HALF-SIZE SHEET PANS:* 18" x 13" x 1" Ten (10) Nine (9)
on wire shelves only
120 lb (54 kg) MaXiMuM
vOluME MaXiMuM: 75 quarts (95 liters)
WEIGHT
net 385 lb (175 kg)
ship 495 lb (225 kg)
cratE diMENsiONs: (l X w X H)
53" X 45" X 49"
(1346 x 1143 x 1245mm)
ELECTRICAL (dedicated circuit required) 10•10e s iN 10•10e s iN/sk
vOltagE PHasE cyclE/Hz awg aMPs kW amps kW
at 208 1* 60 2 Wire plus ground 67.0 13.9 69.2 14.4
at 240 AWG 3 77.0 18.4 79.0 18.9
at 208 3 60 3 Wire plus ground 38.6/ph 13.9 40.0/ph 14.4
at 240 AWG 6 44.3/ph 18.4 45.5/ph 18.9
at 380 3 50 4 Wire plus ground 21.1/ph 13.9 22.0/ph 14.4
at 415 AWG 10 25.6/ph 18.4 26.3/ph 18.9
* ElEctrical sErvicE cHargE aPPliEs
208-240 208-240
380-415
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 14.
7•14es
TOP VIEW
FRONT VIEW SIDE VIEW
A
rial MT
Condensed Light
8 pt
43-3/4" (1111mm)
8-1/2" (216mm)
26-1/2" (672mm)
6-1/4" (159mm)
35-7/16" (899mm)
13"
(330mm)
15-3/4"
(400mm)
22-5/8" (576mm)
3-3/4" (95mm)
2-5/16" (58mm)
WEIGHT CAPACITY
NET 405 lb (184 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Fourteen (14)
SHIP 540 lb (245 kg) GN 1/1: 530 x 325 x 65mm Fourteen (14)
CRATE DIMENSIONS: (L x W x H) GN 2/1: 650 x 530 x 65mm Seven (7)
53" x 45" x 49" FULL-SIZE SHEET PANS:* 18" x 26" x 1" Seven (7)
(1346 x 1143 x 1245mm) ON WIRE SHELVES ONLY
168 lb (76 kg) MAXIMUM
VOLUME MAXIMUM: 105 quarts (133 liters)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
ELECTRICAL (DEDICATED CIRCUIT REQUIRED)
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG
7•14ES Touch 208 – 240 1* 60 70.0 - 79.2 14.5 - 19.0 AWG 3 no cord or plug
208 – 240 360 40.2 - 45.7/ph 14.4 - 19.0 AWG 6 no cord or plug
380 – 415 350 22.1 - 26.5/ph 14.5 - 19.0 AWG 10 no cord or plug
440 – 480 3* 60 19.0 - 22.8/ph 14.4 - 19.0 AWG 8 no cord or plug
7•14ES 208 – 240 1* 60 67.0 - 77.0 13.9 - 18.4 AWG 3 no cord or plug
208 – 240 360 38.5 - 44.0/ph 13.9 - 18.4 AWG 6 no cord or plug
380 – 415 350 21.5 - 25.6/ph 14.0 - 18.4 AWG 10 no cord or plug
440 – 480 3* 60 20.0 - 22.0/ph 15.4 - 18.4 AWG 8 no cord or plug
*ELECTRICAL SERVICE CHARGE APPLIES
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
35-7/16" x 43-3/4" x 42-13/16" (899mm x 1111mm x 1087mm)
EXTERIOR WITH RECESSED DOOR:
35-7/16" x 47-3/4" x 42-13/16" (899mm x 1213mm x 1087mm)
INTERIOR:
20-5/16" x 23-1/2" x 28-7/8" (515mm x 596mm x 722mm)
STACKING COMBINATION DIMENSIONS: H x W x D
6.10es over 7.14es 67" x 43-7/8" x 42-15/16" (1701 x 1114 x 1090mm)
7.14es over 7.14es 67" x 43-7/8" x 45-1/4" (1701 x 1114 x 1150mm)
7.14es over ASC-4E 73-5/8" x 41-7/8" x 46-9/16" (1869 x 1064 x 1182mm)
Mobile option with 5" (127mm) casters will add 2" (51mm) to the overall height.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 15.
7•14esi
TOP VIEW
FRONT VIEW SIDE VIEW
A
rial MT
Condensed Light
8 pt
43-3/4" (1111mm)
8-1/2" (216mm)
26-1/2" (672mm)
6-1/4" (159mm)
35-7/16" (899mm)
13"
(330mm)
15-3/4"
(400mm)
22-5/8" (576mm)
3-3/4" (95mm)
2-5/16" (58mm)
WEIGHT CAPACITY
NET 405 lb (184 kg) FULL-SIZE PANS: 20" x 12" x 2-1/2" Fourteen (14)
SHIP 540 lb (245 kg) GN 1/1: 530 x 325 x 65mm Fourteen (14)
CRATE DIMENSIONS: (L x W x H)
GN 2/1: 650 x 530 x 65mm Seven (7)
53" x 45" x 49" FULL-SIZE SHEET PANS:* 18" x 26" x 1" Seven (7)
(1346 x 1143 x 1245mm) ON WIRE SHELVES ONLY
168 lb (76 kg) MAXIMUM
VOLUME MAXIMUM: 105 quarts (133 liters)
*ADDITIONAL WIRE SHELVES REQUIRED FOR MAXIMUM CAPACITY
INSTALLATION REQUIREMENTS
• Oven must be installed level. • Hood installation is required.
• Water supply shut-off valve and back-flow preventer when required by local code.
ELECTRICAL (DEDICATED CIRCUIT REQUIRED) CombiSmoker
®
MODEL VOLTAGE PH HZ AMPS kW AWG CORD & PLUG Additional kW
7•14ESi Touch 208 – 240 1* 60 70.0 - 79.2 14.5 - 19.0 AWG 3 no cord or plug + .7 kw
208 – 240 360 40.3 - 46.0/ph 14.5 - 19.0 AWG 6 no cord or plug + .7 kw
380 – 415 350 22.0 - 26.3/ph 14.4 - 18.9 AWG 10 no cord or plug + .7 kw
440 – 480 3* 60 19.0 - 22.8/ph 14.4 - 19.0 AWG 8 no cord or plug + .7 kw
7•14ESi 208 – 240 1* 60 69.2 - 79.0 14.4 - 18.9 AWG 3 no cord or plug + .7 kw
208 – 240 360 40.0 - 45.5/ph 14.4 - 18.9 AWG 6 no cord or plug + .7 kw
380 – 415 350 22.0 - 26.3/ph 14.4 - 18.9 AWG 10 no cord or plug + .7 kw
440 – 480 3* 60 21.0 - 23.0/ph 15.9 - 18.9 AWG 8 no cord or plug + .7 kw
*ELECTRICAL SERVICE CHARGE APPLIES
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.
DIMENSIONS: H x W x D
EXTERIOR:
35-7/16" x 43-3/4" x 42-13/16" (899mm x 1111mm x 1087mm)
EXTERIOR WITH RECESSED DOOR:
35-7/16" x 47-3/4" x 42-13/16" (899mm x 1213mm x 1087mm)
INTERIOR:
20-5/16" x 23-1/2" x 28-7/8" (515mm x 596mm x 722mm)
STACKING COMBINATION DIMENSIONS: H x W x D
6.10es over 7.14es 67" x 43-7/8" x 42-15/16" (1701 x 1114 x 1090mm)
7.14es over 7.14es 67" x 43-7/8" x 45-1/4" (1701 x 1114 x 1150mm)
7.14es over ASC-4E 73-5/8" x 41-7/8" x 46-9/16" (1869 x 1064 x 1182mm)
Mobile option with 5" (127mm) casters will add 2" (51mm) to the overall height.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 16.
30"
(760mm)
4-11/16" (120mm)
2-5/16" (58mm)
22-3/8"
(568mm)
15-1/2"
(393mm)
12-3/4"
(323mm)
Electrical Connection
(Bottom)
2" (50mm)
46-7/8" (1190mm)
43-7/8"
(1114mm)
41-15/16"
(1064mm) 40-1/8"
(1019mm)
25-5/8"
(650mm)
8-11/16"
(219mm)
6-1/4" (158mm)
Water Drain
(Bottom)
42-13/16"
(1087mm)
33-1/8"
(840mm)
4-15/16"
(125mm)
Steam
Vents
(Top)
Water Drain
(Back)
69-3/8" (1761mm)
7-9/16" (192mm)
40-7/16"
(1026mm)
32-7/8"
(834mm)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
DIMENSIONS:H x W x D
EXtEriOr:
40-7/16" x 43-7/8" x 42-13/16" (1026mm x 1114mm x 1087mm)
EXtEriOr witH rEcEssEd dOOr:
40-7/16" x 47-7/8" x 42-13/16" (1026mm x 1216mm x 1087mm)
interior:
30-3/4" x 23-1/2" x 28-7/16" (781mm x 596mm x 722mm)
*additiONal wirE sHElvEs rEquirEd FOr MaXiMuM caPacity
INSTALLATION REQUIREMENTS
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-ow preventer.
10•18es
CAPACITY
FULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty (20)
GN 1/1: 530 x 325 x 65mm Twenty (20)
GN 2/1: 650 x 530 x 65mm Ten (10)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Ten (10)
on wire shelves only
240 lb (109 kg) MaXiMuM
vOluME MaXiMuM: 150 quarts (190 liters)
WEIGHT
ne t 514 lb (233 kg)
ship 650 lb (295 kg)
cratE diMENsiONs: (l X w X H)
53" X 45" X 49"
(1346 x 1143 x 1245mm)
ELECTRICAL (dedicated circuit required)
vOltagE PHasE cyclE/Hz awg aMPs kW
at 208 3 60 3 Wire plus ground 61.3/ph 22.0
at 240 AWG 2 70.0/ph 29.2
at 380 3 50 4 Wire plus ground 33.5/ph 22.0
at 415 AWG 6 40.7/ph 29.2
at 440 3* 60 3 Wire plus ground 36.0/ph 27.2
at 480 AWG 6 43.5/ph 36.1
* ElEctrical sErvicE cHargE aPPliEs
208-240
380-415
440-480
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 17.
30"
(760mm)
4-11/16" (120mm)
2-5/16" (58mm)
22-3/8"
(568mm)
15-1/2"
(393mm)
12-3/4"
(323mm)
Electrical Connection
(Bottom)
2" (50mm)
46-7/8" (1190mm)
43-7/8"
(1114mm)
41-15/16"
(1064mm) 40-1/8"
(1019mm)
25-5/8"
(650mm)
8-11/16"
(219mm)
6-1/4" (158mm)
Water Drain
(Bottom)
42-13/16"
(1087mm)
33-1/8"
(840mm)
4-15/16"
(125mm)
Steam
Vents
(Top)
Water Drain
(Back)
69-3/8" (1761mm)
7-9/16" (192mm)
40-7/16"
(1026mm)
32-7/8"
(834mm)
Treated Water
Intake (Bottom)
Untreated Water
Intake (Bottom)
DIMENSIONS:H x W x D
EXtEriOr:
40-7/16" x 43-7/8" x 42-13/16" (1026mm x 1114mm x 1087mm)
EXtEriOr witH rEcEssEd dOOr:
40-7/16" x 47-7/8" x 42-13/16" (1026mm x 1216mm x 1087mm)
interior:
30-3/4" x 23-1/2" x 28-7/16" (781mm x 596mm x 722mm)
*additiONal wirE sHElvEs rEquirEd FOr MaXiMuM caPacity
INSTALLATION REQUIREMENTS
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-ow preventer.
10•18esi
CAPACITY
FULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty (20) Eighteen (18)
GN 1/1: 530 x 325 x 65mm Twenty (20) Eighteen (18)
GN 2/1: 650 x 530 x 65mm Ten (10) Eight (8)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Ten (10) Nine (9)
on wire shelves only
240 lb (109 kg) MaXiMuM
vOluME MaXiMuM: 150 quarts (190 liters)
WEIGHT
net 455 lb (206 kg)
ship 585 lb (265 kg)
cratE diMENsiONs: (l X w X H)
53" X 45" X 49"
(1346 x 1143 x 1245mm)
ELECTRICAL (dedicated circuit required) 10•18e s i 10•18e s i/sk
voltage phase cycle/hz awg amps kW amps kW
at 208 3 60 3 Wire plus ground 61.1/ph 22.0 62.5/ph 22.5
at 240 AWG 2 70.3/ph 29.2 71.5/ph 29.7
at 380 3 50 4 Wire plus ground 33.5/ph 22.0 34.2/ph 22.5
at 415 AWG 8 40.7/ph 29.2 41.4/ph 29.7
at 440 3* 60 3 Wire plus ground 35.7/ph 27.2 36.4/ph 27.7
at 480 AWG 8 43.5/ph 36.1 44.0/ph 36.6
* electrical service charge applies
208-240
380-415
440-480
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR
GAP INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
COUNTER-TOP INSTALLATIONS MUST MAINTAIN 4" (102mm) MINIMUM
CLEARANCE FROM COUNTER SURFACE
* Can manifold off of
one 3/4" line.

COMBITHERM® ES SERIES • ELECTRIC INSTALLATION MANUAL #MN-28897 • 18.
46-3/4"
(1186mm)
44-3/4"
(1136mm)
40-15/16"
(1039mm)
1-13/16"
(46mm)
48"
(1218mm)
45-5/16"
(1151mm)
33-1/2"
(851mm)
2-1/16" (52mm)
Water Drain
(Bottom)
51-15/16"
(1319mm)
2" (50mm)
76-15/16" (1954mm)
8-15/16"
(226mm)
7-11/16" (195mm)
46-1/2"
(1155mm)
54-3/8" (1381mm)
13-1/16" (331mm)
15-13/16" (401mm)
22-11/16"
(576mm)
11-7/8"
(302mm)
Water Drain
(Back)
Steam
Vents
(Top)
4-1/4"
(106mm)
Treated Water
Intake (Bottom)
Untreated Water
Intake
(Bottom)
Electrical
Connection (Bottom)
6-11/16"
(169mm)
DIMENSIONS:H x W x D
EXtEriOr:
54-3/8" x 46-3/4" x 48" (1381mm x 1186mm x 1218mm)
EXtEriOr witH rEcEssEd dOOr:
54-3/8" x 50-3/4" x 48" (1381mm x 1288mm x 1218mm)
interior:
38-11/16" x 26-1/4" x 32-11/16" (983mm x 667mm x 830mm)
*additiONal wirE sHElvEs rEquirEd FOr MaXiMuM caPacity
INSTALLATION REQUIREMENTS
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-ow preventer.
12•20es
CAPACITY
FULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty-four (24)
GN 1/1: 530 x 325 x 65mm Twenty-four (24)
GN 2/1: 650 x 530 x 65mm Twelve (12)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Twelve (12)
ON wirE sHElvEs ONly
288 lb (131 kg) MaXiMuM
vOluME MaXiMuM: 180 quarts (228 liters)
WEIGHT
ne t 665 lb (302 kg)
ship 891 lb (404 kg)
cratE diMENsiONs: (l X w X H)
53" X 53" X 87"
(1346 x 1346 x 2210mm)
ELECTRICAL (dedicated circuit required)
vOltagE PHasE cyclE/Hz awg aMPs kW
at 208 3 60 3 Wire plus ground 75.6/ph 27.2
at 240 AWG 2 87.0/ph 36.1
at 380 3 50 4 Wire plus ground 41.4/ph 27.2
at 415 AWG 6 36.1/ph 36.1
at 440 3* 60 3 Wire plus ground 36.0/ph 27.2
at 480 AWG 6 43.5/ph 36.1
* ElEctrical sErvicE cHargE aPPliEs
208-240
380-415
440-480
WATER REQUIREMENTS WATER QUALITY MINIMUM STANDARDS
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2" CONNECTION WITH A 2" MINIMUM AIR GAP
INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM’S MINIMUM
WATER QUALITY STANDARDS WILL VOID THIS WARRANTY.
It is the responsibility of the purchaser to ensure that incoming water supply is
compliant with the speci cations listed through adequate treatment measures.
Installation of the CombiGuardTM Water Filtration System is recommended, but
this system may not address all water quality issues present.
CLEARANCE REQUIREMENTS Contaminant
Free Chlorine
Hardness
Chloride
pH
Alkalinity
Silica
Total Dissolved Solids (tds)
Inlet Water Requirements (untreated water)
Less than 0.1 ppm (mg/L)
Less than 3 gpg (52 ppm)
Less than 30 ppm (mg/L)
7.0 to 8.5
Less than 50 ppm (mg/L)
Less than 12 ppm (mg/L)
Less than 60 ppm
LEFT 6" (152mm) RECOMMENDED SERVICE ACCESS: 18" (457mm)
20" (508mm) FROM HEAT PRODUCING EQUIPMENT
RIGHT 4" (102mm) TOP: 20" (508mm) FOR AIR MOVEMENT
BACK 4" (102mm) BOTTOM: 5-1/8" (130mm) FOR LEGS
* Can manifold off of
one 3/4" line.
