ALUZ A1-ZYZY-SQR User manual

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 1 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Overview
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
GENERAL FEATURES
Applications Surface Mount Direct View
Lens 100% Frosted (No Pixelation: Line of Light)
Length
Built to Order: Custom lengths up to 8’ (No Seams)
Specify Overall Length (Minimum: 2’, Maximum: 8’)
Example: 7’8” = One 7’8” luminaire (Custom Length)
Example: 3’2” = One 3’2” luminaire (Custom Length)
Example: 13’6” = 8’ + 5’6”
Example: 23’8” = 8’ + 8’ + 7’8”
Construction Aluminum Extrusion
Weight 1.09 lbs per foot
Mounting Mounting Plates (Sold Separately)
Listing
Dry, Damp, or Wet Location
UL1598, CSA C22.2#250.0
UL8750, CSA250
UL2108, CSA C22.2 #9
Driver Integral (Driver on Board)
Temperature
Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)
Installation Link
PRODUCT INFORMATION
• Lighting for direct view and accent lighting.
• Line Voltage 120-277V (UNV) integral drivers .
• Long life, energy efficient LEDs.
• Choose from a variety of LED colors and whites.
• Can be ordered to specific lengths for when exact dimensions are known.
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
INSTALLATION TOOLS REQUIRED
ELECTRICAL REQUIREMENTS
• Line voltage luminaires do not require a remote driver
• Maximum load per line voltage luminaire is 320 watts per circuit
ELECTRICAL
Dimming 0-10V, DMX, DALI
Maximum Run
(Class 1 Line Voltage
Integral Driver)
40’ (4W, 5W, 6W, 8W), 26’ (12W)
Luminaire Voltage 120V - 277V (UNV)
END VIEWS / DIMENSIONS
Dry or Damp Location
(No Visible Screws)
3.44”
1.87”
3.44”
1.87”
Wet Location
(Visible Screws)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 2 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Product Care & Maintenance

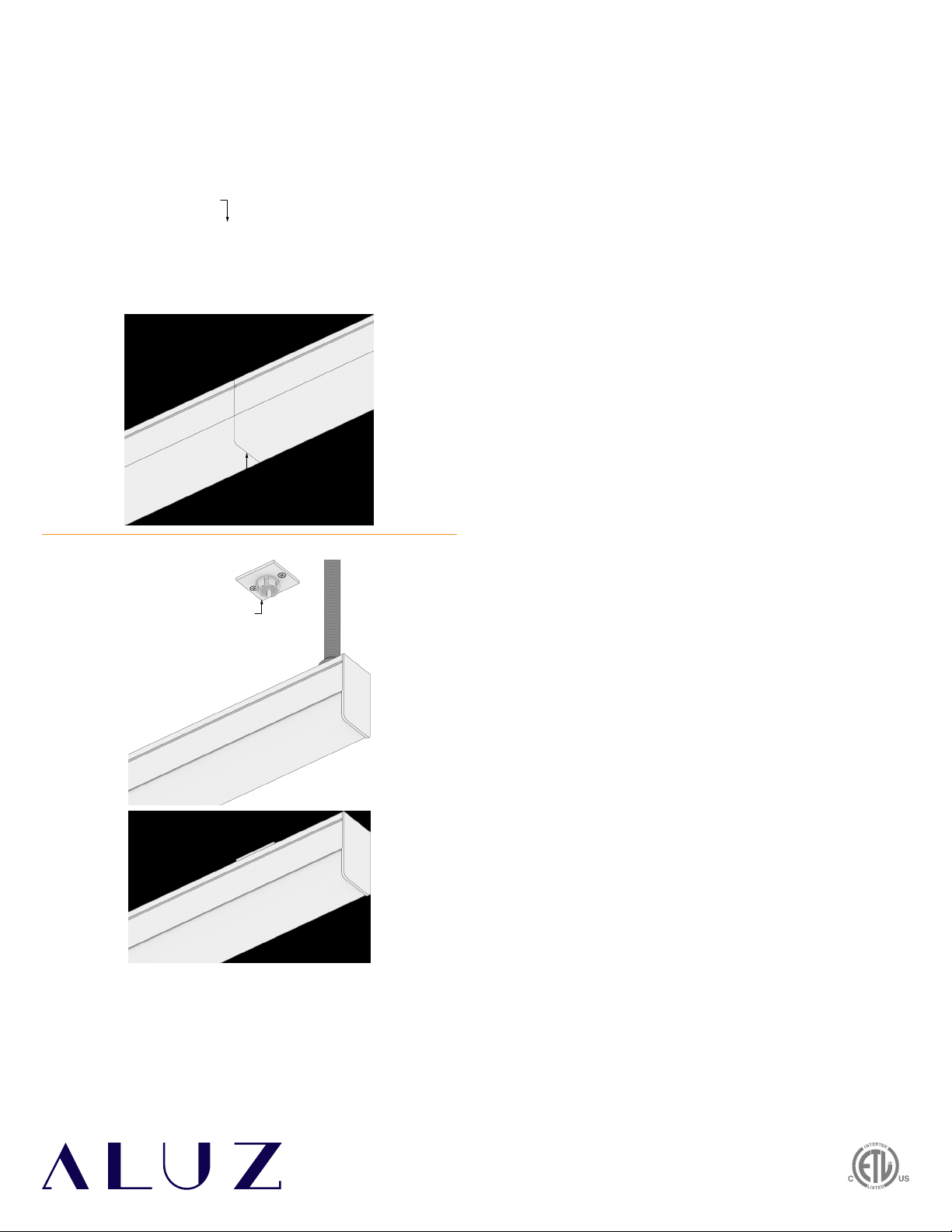

FIGURES
Fig. 1 Fig. 2 Fig. 3
Fig. 4 Fig. 5
Fig. 6
Mounting Clip
Set Screw
Fig. 7
When using alumLEDs for any application, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and personal injuries.
AlumLEDs must be installed in accordance with the NEC or CEC as applicable.
ALUZ will not be responsible for any damage or malfunction caused by the
following:
• Ensure power is off before installation begins, during replacements, additions,
or repairs.
• Do not use luminaires if damaged, such as broken boards, loose connections, or
frayed wire insulation. Inspect before installing.
• Do not install luminaires in hazardous locations.
• Do not cover luminaires with any material. Covering may cause LEDs to overheat,
melt, or ignite.
• Do not paint on or over fixture lens or LEDs.
Paint or any other substance on lens or LEDs will cause a shift in color temperature.
• Soffit must be evenly painted with a neutral white to avoid color shift.
• Do not modify luminaires in the field.
• Do not overlap luminaires in any way.
(Fig. 1)
• Luminaires have line voltage risk of shock. Consult factory for any malfunctions.
Do not attempt to repair.
• Only use luminaire with specified rated voltages. Do not exceed the specified
voltage for any luminaire.
• Do not use extrusion as a raceway for additional wire. Non-factory feed through
wires inside luminaire will void warranty.
• Ground Fault Circuit Interrupter (GFCI) protections should be provided on circuits
or outlets when luminaire is used for outdoor applications.
• Surge protector must be set up for electrical power system to avoid damaging
lighting system.
• Do not connect wires together, follow provided wiring diagrams.
• Do not cut wire while energized.
(Fig. 2)
• Do not exceed maximum run lengths.
• Do not secure luminaire with nails or like means that might damage the wiring
inside. Only secure by using mounting clips.
• Do not mount luminaire inside tanks or enclosures of any kind.
• Do not install downward facing luminaires without set screws.
• Do not use improper screw head type on mounting clips. It will cause the
mounting clip to open up and become dysfunctional.
• Do not modify mounting clips.
• Do not mount fixture with less than the minimum number of mounting clips
required. See mounting clips section for details.
• Do not force luminaire into a space that is too small.
• Do not force luminaire with cord grip into soffit.
(Fig. 3)
• Do not install luminaire at an angle within a cove. Only install fixtures straight
within a cove. (Fig. 4)
• Do not bend extrusion around radius.
• Do not submerge dry or wet location luminaire in any liquid.
• Do not install wet location in outdoor coves without proper drainage.
(Fig. 5)
• Do not install luminaire in any area that is continuously exposed to flowing or
pooling water, such as underneath drain pipes, sprinklers, fountains, misters, etc.
• Do not cut, puncture, or penetrate aluminum housing, end caps, or lens covers.
• Do not drop, bang, or rest weight upon luminaire.
• Do not apply excessive pressure to any part of luminaire.
• Do not remove end caps from luminaire.
• Do not bend power cord or continuous connector past permitted bend radius.
Bending past permitted bend radius will break the seal of the cordgrip or
damage the insulation. (Fig. 6)
Wet Location: 3.5” minimum bend radius
Dry Location: 1.5” minimum bend radius
• Do not install in places where the power cord is subject to continuous flexing.
• Do not twist continuous connector or power cord.
• Do not hold, carry, or suspend luminaire by the power cord.
• Do not install on ceilings without mounting clips and set screws.
(Fig. 7)
WARNING
The use of solvents and/or cleaners which are not compatible with polycarbonate
will result in the softening, crazing, and/or cracking of the plastic part. This is
especially true of polycarbonate lamps and mounting bases which may be under
stress in their normal applications.
CLEANING MATERIALS
• Mild soap and water
• Mineral Spirits
• Isobutyl alcohol
• VM and P Naphtha
• Varsol No.2
• Mexane
• Freone TF and TE-35
• Ethanol
• Dirtex
• 2% Sol. Reg. Joy
• 10% Sol Bon Ami
• White Kerosene
• Methyl alcohol
• Heptane
• Petroleum Ether/65 degrees C
• Isopropyl alcohol
• Lacryl PCL-2035 polycarbonate
cleaner
COMPATIBLE WITH POLYCARBONATE
• Trichlor
• Gasoline
• Liquid Detergents
• Acetone
• Carbon Tetrachloride
• Pink Lux (Phosphate free)
• Triclene
• Chlorinated Hydrocarbons
• #1 & #3 denatured alcohol
• Methyl Ethyl Keytone (MEK)
• Texize-8006, 8129, 8758
• MIBK
• Liquid Cleaner – 8211
• Toluol
• Agitene
• Benzol
• Ajax
• Kleenol Plastics
• Lysol
• Stanisol Naphtha
• Oils
• Lemon Joy (phosphate free)
• Diversol
• Lestoil
NOT COMPATIBLE WITH POLYCARBONATE

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 3 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY

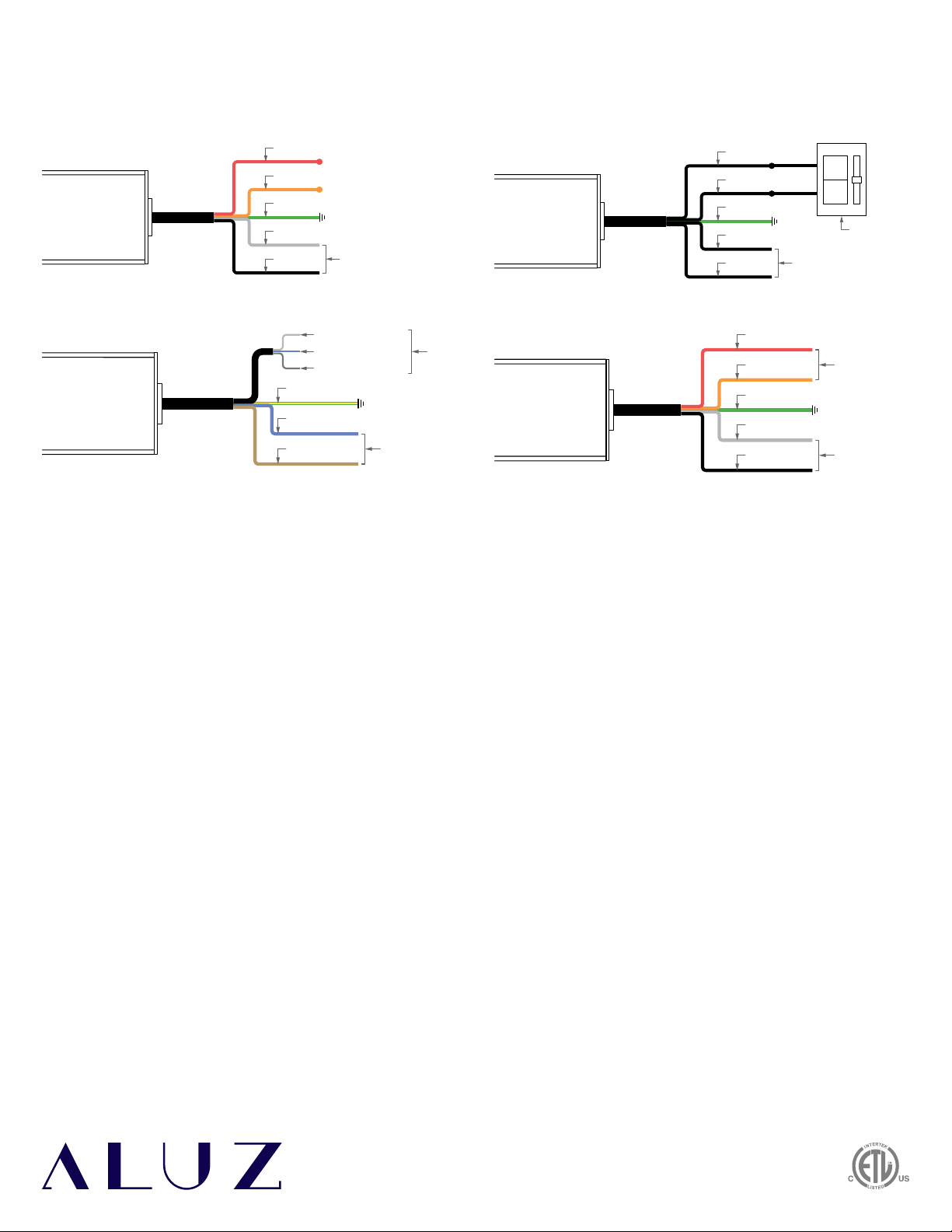

A1-ZYZY-SQR Wiring Diagrams
Ch- (Orange)
Neutral (White)
Hot (Black)
Ground (Green)
Ch+ (Red)
Primary Voltage
120-277V AC
0-10V WIRING DIAGRAM (Dry Location Only)
• Consult third party DMX commissioner to modify at time of installation.
• Connection from DMX controller to luminaire must be made using a proper daisy
chain connection per DMX-512 / RDM standards.
• Do not make DMX wiring connections in parallel.
• When connecting DMX Shield to a DMX controller terminal, ensure that it is not
connected to or touching earth ground, chassis ground, and/or DC power (-) return.
Neutral (Blue)
Hot (Brown)
Ground (Green / Yellow)
Primary Voltage
120-277V AC
DMX
Signal
DMX+ (White)
DMX Shield (Sleeve)
DMX- (Blue)
DMX WIRING DIAGRAM
(Dry Location Only)
DIM- (Wire 4)
Neutral (Wire 2)
Hot (Wire 1)
Ground (Green)
DIM+ (Wire 3)
Primary Voltage
120-277V AC
0-10V Dimmer
(By Others)
0-10V WIRING DIAGRAM (Dry or Damp Location)
• DALI commissioning to be performed by a third party at time of installation.
ALUZ does not provide DALI commissioning.
DALI- (Orange)
Neutral (White)
Hot (Black)
Ground (Green)
DALI+ (Red)
Primary Voltage
120-277V AC
To DALI Controls
DALI WIRING DIAGRAM (Dry or Damp Location)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 4 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY

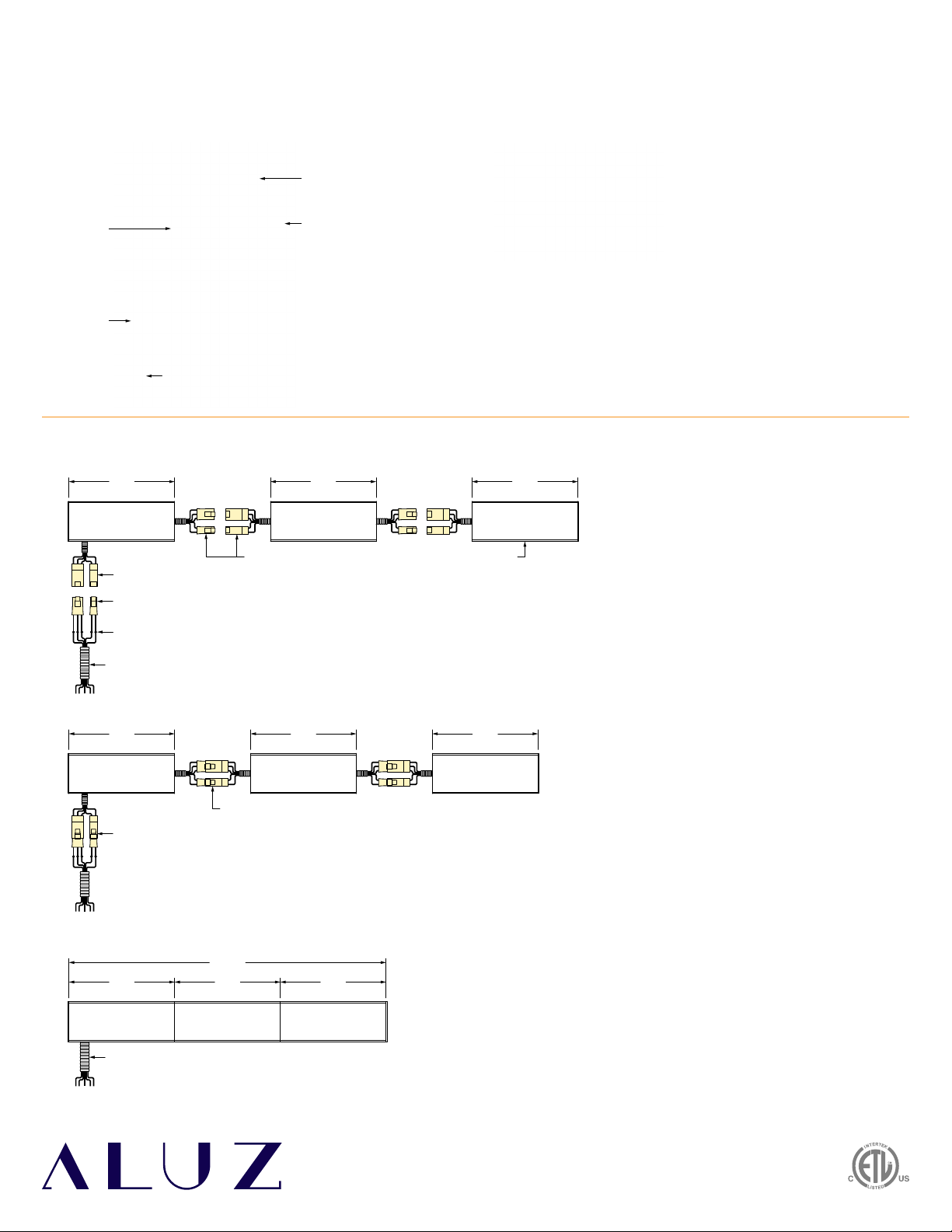

A1-ZYZY-SQR Configurations
8’ 8’ 6’4”
Flexible Conduit
(By Others)
Splice Connectors or Wire Nuts
(By Others)
Hardwire Connector
(ALS500T-SMR-HWC)
Luminaire Disconnects
Continuous Run Disconnects ALS500T-SMR
8’ 8’ 6’4”
Connect disconnects between fixtures,
then push together leaving no gaps
Connect Hardwire Connector
disconnects, then place into luminaire housing
8’
22’4”
8’ 6’4”
Secure conduit to luminaire using Conduit Fitting (By Others)
CONTINUOUS CONNECTIONS
(Dry or Damp Location Only)
FEED POINT ASSEMBLY (Exploded View)
• Installer must drill a hole in the Bottom Cap to access driver wiring. Make wiring
connections through hole to conduit (by others), secured with a conduit fitting
rated for the application (by others).
Note:
Size, style, and location of conduit and conduit fitting to be determined by
installer. Remove bottom cap before drilling. Do not use Mounting Plate holes for
conduit. Ensure conduit fitting will not interfere with driver or Mounting Plates.
Always use outdoor rated hardware for Wet Located rated luminaires.
• A conduit feed point is required at the beginning of each Dry Location run.
• A conduit feed point is required for each Wet Location luminaire.
• Luminaires may be daisy chained up to max run length.
FEED POINT ASSEMBLY (Assembled View)
1
Arrange luminaire segments in desired pattern.
Example: 22’4” (8’ + 8’ + 6’4”)
2
Connect disconnects between luminaire segments.
3
Push luminaire segments together and snap into mounting plates.
Note: Refer to Mounting Plates page for details on mounting.
Splice Connector
(By Others)
Conduit Fitting
(By Others)
Driver
(Included)
Bottom Cap
(Included)
Flexible Conduit
(By Others)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 5 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY

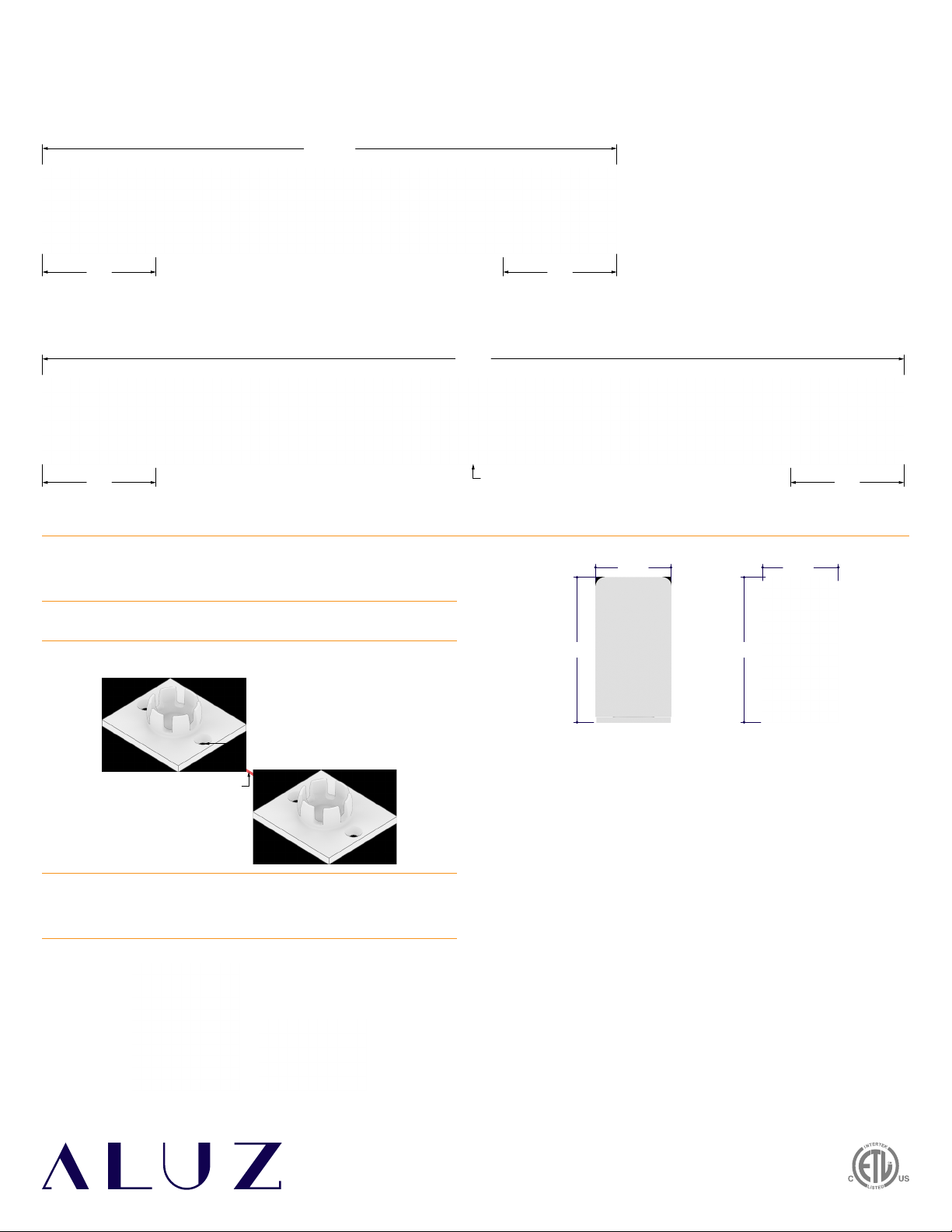

A1-ZYZY-SQR Mounting Plates
2’ - 5’11”
10”10”
6’ - 8’
10”10”
Centered
• For luminaires up to 5’11” in length, use 2 mounting plates.
• Each luminaire ships with holes pre-drilled for attaching the mounting plates.
Each hole is 10” from the end of luminaire to the center of the hole.
• For luminaires 6’ - 8’ in length, use 3 mounting plates.
• Each luminaire ships with holes pre-drilled for attaching the mounting plates.
Two holes are 10” from the end of fixture to the center of the hole, the third hole is centered on the luminaire.
MOUNTING GUIDELINES
Mounting Plate
Laser Line aligned with mounting holes
Laser Line
1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting plates. Mark location where each mounting plate will be installed
along reference line.
4Lay mounting plates and pre-drill using an appropriate drill bit for surface
material and screw size. Each mounting plate must be secured to a solid
surface such as a wall stud or secured to drywall using drywall anchors.
Note: Only install Mounting Plates on flat, even surfaces.
5Screw Mounting Plates to surface, then snap luminaire into mounting plates.
2Determine number of mounting plates needed for each run. Refer to next
page to ensure correct number of mounting plates are used.
3Mark location where mounting plates will be installed along laser line.
Note: Holes on mounting plates must be aligned with direction of luminaire.
ASSEMBLED DIMENSIONS
3.59”
1.87”
Dry or Damp Location
3.59”
1.87”
Wet Location

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 6 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Dry or Damp Location Mounting (1 of 2)
Mounting Plate
Laser Line aligned with mounting holes
Laser Line
1Measure area where luminaire will be installed.
Use a laser line to ensure a straight installation.
Example: 22’4” Run (8’ + 8’ + 6’4”).
8Making wiring connections from conduit to driver using splice connectors.
Use Hardwire Connector or cut off yellow disconnects if applicable. Stagger
the splice connectors to save space inside the extrusion. Use a weatherproof
Conduit Fitting (by others) to secure conduit to Bottom Cap.
Note: Refer to Wiring Diagrams before connecting wires.
2
Determine number of Mounting Plates needed for each run. Refer to
Mounting Guidelines to ensure correct number of Mounting Plates.
3
Mark location where Mounting Plates will be installed along laser line.
Note: Mounting holes on Mounting Plates must be aligned with direction of
luminaire.
4
Lay Mounting Plates and pre-drill using proper drill bit for surface and screw
size. Each mounting plate must be secured to a solid surface such as a wall
stud or secured to drywall using drywall anchors. Only install Mounting
Plates on flat, even surfaces.
Note: Use #8 flat head countersink screw.
6
Determine location where conduit power feed will be fed through the
mounting surface. Drill a hole in mounting surface in line with the Mounting
Plates, then pull conduit through.
Note: Size of hole to be determined by installer.
7
Remove Bottom Cap from luminaire and drill a hole where power will be fed
to luminaire.
Note: Refer to Feed Point Assembly for details.
5
Screw Mounting Plates to surface.
9Replace Bottom Cap onto luminaire.
Remove Bottom Cap
Hole for Mounting Plate
Hole for Conduit
(Made by installer)
Input Wiring to Driver
Splice Connector
(By Others)
Flex Conduit
(By Others)
Conduit Fitting
(By Others)
Assembled Conduit Fitting
Snap Bottom Cap onto extrusion

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 7 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Overview
10 If applicable, connect disconnects between luminaires and push together,
leaving no gap.
12 Perform a continuity test before connecting luminaire to power source.
11
Snap luminaires into Mounting Plates after connecting disconnects.
Connect disconnects
between luminaires
Push together, leaving no gap
Mounted Mounting Plate
Luminaire mounted to surface

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 8 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Wet Location Mounting (1 of 2)
Mounting Plate
Laser Line aligned with mounting holes
Laser Line
1Measure area where luminaire will be installed. Use a laser line to ensure a
straight installation.
Example: 22’4” Run (8’ + 8’ + 6’4”).
Note: To retain Wet Location, luminaire may not be mounted with the lens
facing upwards.
8Making wiring connections from conduit to driver using splice connectors.
Use Hardwire Connector or cut off yellow disconnects if applicable. Stagger
the splice connectors to save space inside the extrusion. Use a weatherproof
Conduit Fitting (by others) to secure conduit to Bottom Cap.
Note: Refer to Wiring Diagrams before connecting wires.
2
Determine number of Mounting Plates needed for each run.
Refer to Mounting Guidelines to ensure correct number of Mounting Plates.
3
Mark location where Mounting Plates will be installed along laser line.
Note: Mounting holes on Mounting Plates must be aligned with direction of
luminaire.
4
Lay Mounting Plates and pre-drill using proper drill bit for surface and screw
size. Each mounting plate must be secured to a solid surface such as a wall
stud or secured to drywall using drywall anchors. Only install Mounting
Plates on flat, even surfaces.
Note: Use #8 flat head countersink screw.
6
Determine location where conduit power feed will be fed through the
mounting surface. Drill a hole in mounting surface in line with the Mounting
Plates, then pull conduit through.
Note: Size of hole to be determined by installer.
7
Remove Bottom Cap from luminaire and drill a hole where power will be fed
to luminaire.
Note: Refer to Feed Point Assembly for details.
5
Screw Mounting Plates to surface.
9Replace Bottom Cap onto luminaire.
Remove Bottom Cap
Hole for Mounting Plate
Hole for Conduit
(Made by installer)
Input Wiring to Driver
Splice Connector
(By Others)
Flex Conduit
(By Others)
Conduit Fitting
(By Others)
Assembled Conduit Fitting
Snap Bottom Cap onto extrusion

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 9 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Wet Location Mounting (2 of 2)
10 If applicable, connect disconnects between luminaires and push together,
leaving no gap. For Wet Location applications, use the concepts from step
7 - 9 to create a conduit jumper between luminaire segments.
11
Snap luminaires into Mounting Plates after connecting luminaire segments.
Mounted Mounting Plate
Luminaire mounted to surface
Conduit Jumper
Hole for Mounting Plate
Push together, leaving no gap

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 10 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY
A1-ZYZY-SQR Driver Replacement
Bottom Cap
Hex Nut Assembly
Terminal Block
Driver
1In the event of a driver failure, the luminaire is easily opened to replace
defective driver.
4Loosen hex nut assembly using an 11/32 socket, then slide away from slot to
release driver. Repeat for other side of driver.
Do not disassemble hex nut assembly.
2
Unmount luminaire from mounting clips and remove bottom cap. Use a
flathead screwdriver to gently pry bottom cap from extrusion.
5Remove defective driver from extrusion and replace with a new, compatible
driver. Mount driver to extrusion using hex nut assemblies, then reconnect wires.
Note: Consult factory if unsure about driver compatibility.
3
Push on buttons on terminal block to release wires, then remove wires.
Note: Do not bend, deform, or pull wires.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 11 of 11
9 / 1 / 2021 / Rev 0
Square
ZYZY

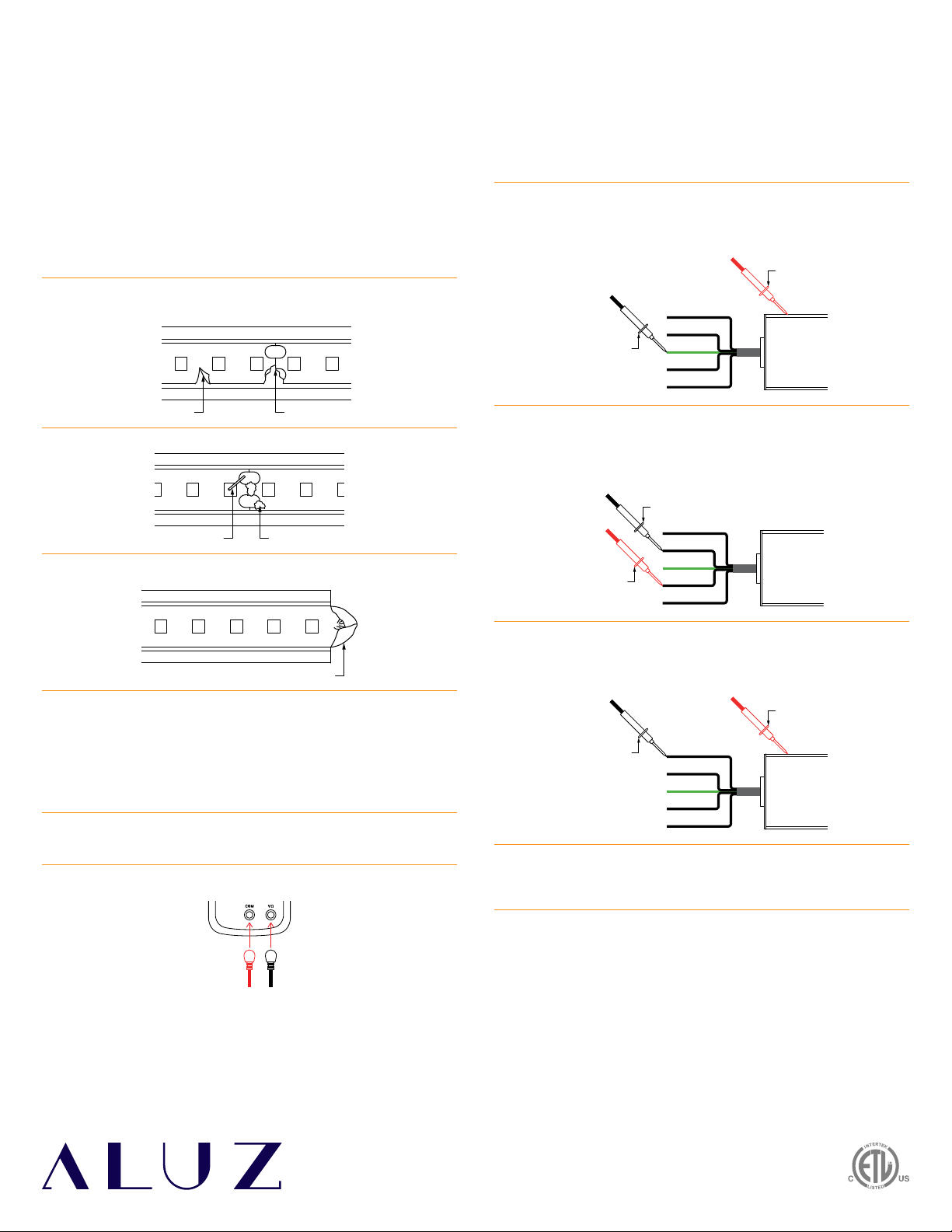

A1-ZYZY-SQR Troubleshooting & Continuity Test
1
2
3
4
5
Red Probe
Black Probe
1
2
3
4
5
Red Probe
Black Probe
1
2
3
4
5
Red Probe
Black Probe
Frayed End
Metal Flakes
Foreign Object
Damaged LightstripTorn Lightstrip
TROUBLESHOOTING TIPS
• Do not reset the breaker multiple times.
• If the unit is overloaded, the breaker will trip, shutting off the driver and lights.
• If the breaker reset button has been held down by hand or any type of pressure,
such as duct tape, or if the breaker has been reset multiple times without
troubleshooting, the unit will:
- Burn the driver bobbin.
- Burn the thermal or magnetic breaker.
- Burn the driver lead wires due to high amperage caused by overload.
- Short circuit in line which will not allow the breaker to reset.
- Damage the lighting.
CONTINUITY TEST
A continuity test is performed to determine if electricity can pass through
two points on an electrical circuit. This helps identify shorts or malfunctions
in the luminaire. Use a multimeter or continuity tester to perform the steps below.
• Always perform a continuity test before connecting to power source.
• Malfunctions are not always as obvious as the lights not turning on.
• A short or malfunction in the line or luminaire will cause damage over time,
irreparably damaging the lighting and voiding warranty.
12
3Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment
of mounting channels. Mark location where mounting channels will be
installed along reference line.
2
Check for metal particles or other foreign objects causing the short.
3
Check to make sure cuts in the lightstrip are clean and not frayed, causing
positive and negative copper pads to touch.
1
Turn off power before beginning. Verify power is off by using a non-contact
circuit tester (by others). Touch the probe of the tester to the positive wire of
the power source. The tester will light up if an electrical current is detected.
2
Setup your multimeter tester (by others). First, insert the black probe lead
into the COM jack, then insert the red probe lead into the VΩjack.
1
Turn off power before beginning. Check for any twisting or damage to the
circuit in the LED lightstrip. If there is excessive damage and the circuit is
broken, the lightstrip must be replaced.
4Touch the red probe to the luminaire extrusion and the black probe to the
ground wire (green). If the luminaire is properly grounded, the multimeter
will beep, flash, or read 0Ω(ohms). If there is no conductive path, the
multimeter will not show any feedback. Troubleshoot to identify the
malfunction in the ground wire.
5Touch the red probe to any wire and the black probe to each other wire.
Repeat process for each wire. If a conductive path is formed between any of
the wires, the multimeter will beep, flash, or read 0Ω(ohms). Troubleshoot
to identify the malfunction in the line. If there is no conductive path, the
multimeter will not show any feedback.
Example: Check for continuity between Wire 2 and Wire 4
6Touch the red probe to the luminaire housing and the black probe to each
wire except ground. If a conductive path is formed between the housing
and any of the wires, the multimeter will beep, flash, or read 0Ω(ohms).
Troubleshoot to identify the malfunction in the line. If there is no conductive
path, the multimeter will not show any feedback.
7Set multimeter to AC voltage and test power source. Confirm the correct
voltage before connecting luminaire to power source. If the voltage reading
is more than 1 volt greater than the marked output voltage, there is a
problem with the power source or driver.
8Connect luminaire to power source. If LEDs do not turn on, troubleshoot to
find the problem in the line.
