ALUZ A8-ZIZA-SOP User manual

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 1 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Overview
GENERAL FEATURES
Applications Accent, Decorative, Surface, Recess, Pendant Lighting
Lens Clear, 50% Semi-Frosted, or 100% Frosted
Viewing Angle 15°, 30°, 45°, 60°, 120°, or Asymmetric Optics
Length Built to Order (+/- 1/8” Tolerance)
Construction Aluminum Extrusion
Weight 0.271 lbs per foot
Mounting Mounting Channel or Mounting Clips (Sold Separately)
Listing
Dry, Wet, or IP67 Location
UL2108, CSA C22.2 #9
UL8750, CSA250
Driver Remote (Sold Separately)
Temperature
Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)
Installation Link
END VIEWS / DIMENSIONS
.78”
.64”
Clear Lens (CL)
50% Semi-Frosted Lens (SF)
100% Frosted Lens (F)
Optic Lens (15D, 30D, 45D, 60D)
.78”
.69”
Asymmetric Lens (ASM)
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
ELECTRICAL
Dimming DMX
Maximum Run
(Class 1 Applications)
21’ (5.5W)
26’ (4.5W)
Maximum Run
(Class 2 Applications)
17’ (5.5W)
21’ (4.5W)
Luminaire Voltage 24V DC
PRODUCT INFORMATION
• For accent, decorative, surface, recessed, or pendant lighting.
• 24 Volts DC for easy and safe installation.
• Long life, energy efficient LEDs.
• Can be ordered to specific lengths for when exact dimensions are known
Example: 10 x 10’6”
• Plug and light system.
• Lead wires are typically 36” long and exit on one end.
ELECTRICAL REQUIREMENTS
• Luminaires require a 24 Volt DC remote driver.
• To calculate driver size, determine Watts per Foot.
Example: 4.5W per Foot
• Determine Length in Feet.
Example: 10’
• Calculate Load: Multiply Watts per Foot x Length in Feet
Example: 4.5W x 10’= 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37’ from driver to first LED.
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
INSTALLATION TOOLS REQUIRED
INSTALLATION RECOMMENDATIONS
• Luminaires must be mechanically attached directly to mounting surface using
mounting clips, channels, or other appropriate means. Refer to installation step
by step pages for details.
• Conduit raceway should be sleeved at one end for low voltage wires going to
driver.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 2 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Product Care & Maintenance
Fig. 1 Fig. 2
Fig. 12
Fig. 3
Fig. 13
Fig. 4
<1.5”
Fig. 9
Fig. 14
Fig. 10
Fig. 15
Fig. 11
Fig. 7
Fig. 8
Fig. 5 Fig. 6
FIGURES
CLEANING MATERIALS
The use of solvents and/or cleaners which are not compatible with polycarbonate
will result in the softening, crazing, and/or cracking of the plastic part. This is
especially true of polycarbonate lamps and mounting bases which may be under
stress in their normal applications.
COMPATIBLE WITH POLYCARBONATE
• Mild soap and water
• Mineral Spirits
• Isobutyl Alcohol
• VM and P Naphtha
• Varsol No.2
• Mexane
• Freone TF and TE-35
• Ethanol
• Dirtex
• 2% Sol. Reg. Joy
• 10% Sol Bon Ami
• White Kerosene
• Methyl Alcohol
• Heptane
• Petroleum Ether / 65°C
• Isopropyl Alcohol
• Lacryl PCL-2035
Polycarbonate Cleaner
NOT COMPATIBLE WITH POLYCARBONATE
• Trichlor
• Gasoline
• Liquid Detergents
• Acetone
• Carbon Tetrachloride
• Pink Lux (Phosphate free)
• Triclene
• Chlorinated Hydrocarbons
• #1 & #3 Denatured Alcohol
• Methyl Ethyl Keytone (MEK)
• Texize-8006, 8129, 8758
• MIBK
• Liquid Cleaner – 8211
• Toluol
• Agitene
• Benzol
• Ajax
• Kleenol Plastics
• Lysol
• Stanisol Naphtha
• Oils
• Lemon Joy (phosphate free)
• Diversol
• Lestoil
WARNING
When using LED Lightstrip for any application, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and personal
injury. LED Lightstrip must be installed in accordance with the NEC or CEC as
applicable. ALUZ will not be responsible for any damage or malfunction caused
by the following:
• Ensure power is off before installation begins, during replacements, additions,
or repairs.
• Do not use LED Lightstrip if damaged, such as broken boards, loose connections,
or frayed wire insulation. Inspect before installing.
• Do not install LED Lightstrip in hazardous locations.
• Do not cover LED Lightstrip with any material, as it may cause LEDs to overheat,
melt, or ignite. (Fig. 1)
• Do not paint on or over fixture lens or LEDs.
Paint or any other substance on lens or LEDs will cause a shift in color
temperature.
• Soffit must be evenly painted with a neutral white to avoid color shift.
• Do not modify LED Lightstrip in the field.
• Do not overlap LED Lightstrip luminaires in any way.
• Only use LED Lightstrip with specified rated voltages. Do not exceed the specified
voltage for any LED Lightstrip luminaire.
• Do not use LED Lightstrip extrusion as a raceway for additional wire. Non-factory
feed through wires inside LED Lightstrip will void warranty.
• Ground Fault Circuit Interrupter (GFCI) protections should be provided on circuits
or outlets when LED Lightstrip is used for outdoor applications.
• Surge protector must be set up for electrical power system to avoid damaging
LED Lightstrip lighting system.
• Do not connect wires together, follow provided wiring diagrams.
• Do not cut wire while energized.
• Do not connect LED Lightstrip lightstrip to power source while spooled or
coiled. (Fig. 2)
• Do not exceed maximum run lengths.
• Do not mount LED Lightstrip with staples, nails, or like means that might
damage the insulation.
Mount with double-sided tape and mounting clips.
• Do not install mounting clips over LED diodes.
(Fig. 3)
• Do not penetrate LED Lightstrip lightstrip with any foreign object.
(Fig. 4)
• Do not mount LED Lightstrip inside tanks or enclosures of any kind.
• Do not use improper screw head type on mounting clips. It will cause the
mounting clip to open up and become dysfunctional.
• Do not modify mounting clips.
• Do not mount fixture with less than the minimum number of mounting
clips required.
See mounting clips section for details.
• Do not force LED Lightstrip into a space that is too small.
• Do not force LED Lightstrip with cord grip into soffit.
• Do not install LED Lightstrip at an angle within a cove. Only install fixtures
straight within a cove.
• Do not bend extrusion around radius.
• Do not submerge dry or wet location LED Lightstrip in any liquid.
• Do not install wet location in outdoor coves without proper drainage.
(Fig. 5)
• Do not install LED Lightstrip in any area that is continuously exposed to flowing
or pooling water, such as underneath drain pipes, sprinklers, fountains, misters, etc.
• Do not install connectors without shrink tube for wet location.
(Fig. 6)
• Do nut use a lighter or open flame to heat shrink tube.
(Fig. 7)
• Do not cut, puncture, or penetrate LED Lightstrip aluminum housing, end caps, or
lens covers.
• Do not drop, bang, or rest weight upon LED Lightstrip.
• Do not apply excessive pressure to any part of LED Lightstrip lightstrip or LEDs.
(Fig. 8)
• Do not bend LED Lightstrip power cord or continuous connector past permitted
bend radius.
Bending past permitted bend radius will break the seal of the cordgrip or
damage the insulation. 1.5” minimum bend radius. (Fig. 9)
• Do not install LED Lightstrip lightstrip in a zig zag fashion.
(Fig. 10)
• Do not fold, crease, or twist LED Lightstrip lightstrip.
(Fig. 11)
• Do not bend lightstrip along a horizontal plane.
(Fig. 12)
• Do not overlap LED Lightstrip at any location.
(Fig. 13)
• Do not cross or overlap extrusions and twist lightstrip to overlap.
(Fig. 14)
• Do not install LED Lightstrip in places where the power cord is subject to
continuous flexing.
• Do not twist continuous connector or power cord.
• Do not hold, carry, or suspend LED Lightstrip by the power cord.
• Do not install LED Lightstrip on ceilings without mounting clips.
(Fig. 15)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 3 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP
Figure 1 Figure 2 Figure 3

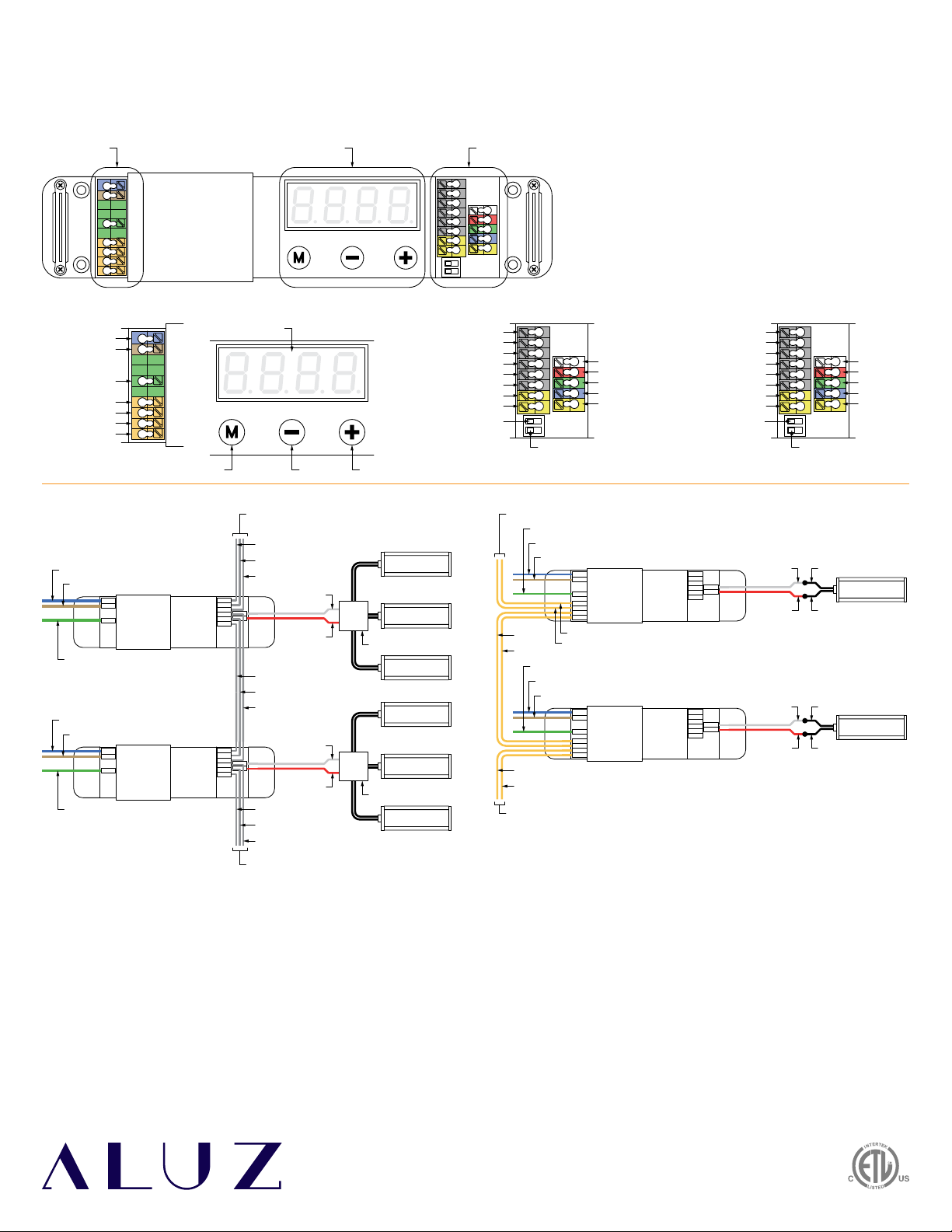

DIAGRAM OF DRIVER
Neutral (Blue)
Line / Hot (Brown)
Ground (Green)
DALI+
DALI-
DALI-
DALI+
FIGURE 1 (INPUT)
Control Interface
Mode (-) (+)
FIGURE 2 (INTERFACE)
DIP Switch 1
(Set to left for 24V)
DMX+ Input
DMX- Input
DMX Ground / Shield Input
DMX+ Output
DMX- Output
DMX Ground / Shield Output
EXT+ Input
EXT- Input
Common (+)
Channel 1 (- / Red)
Channel 2 (Green)
Channel 3 (Blue)
Channel 4 (White)
Not Used
FIGURE 3 (DMX OUTPUT)
DIP Switch 1
(Set to left for 24V)
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
EXT+ Input
EXT- Input
Common (+)
Channel 1 (-)
Not Used
Not Used
Not Used
Not Used
FIGURE 4 (DALI OUTPUT)
LED Lighting
LED Lighting
LED Lighting
LED Lighting
LED Lighting
LED Lighting
Neutral (Blue)
Line / Hot (Brown)
DMX-
DMX+
DMX Ground / Shield
DMX-
DMX+
DMX Ground / Shield
DMX Input
(from control system, by others)
Ground (Green)
J-Box (by others)
Common +
Channel 1 -
Neutral (Blue)
Line / Hot (Brown)
Ground (Green)
J-Box (by others)
Common +
Channel 1 -
DMX-
DMX+
DMX Ground / Shield
DMX Output
(to next driver, if applicable)
TYPICAL DAISY CHAIN LAYOUT (DMX STATIC COLOR)
LED Lighting
LED Lighting
Ground (Green)
Line / Hot (Brown)
Neutral (Blue)
V+
V-
Common +
Channel 1 -
Ground (Green)
Line / Hot (Brown)
Neutral (Blue)
V+
V-
Common +
Channel 1 -
DALI Output
(to next driver, if applicable)
DALI Input (from control system, by others)
DALI-
DALI+
DALI-
DALI+
DALI+
DALI-
TYPICAL DAISY CHAIN LAYOUT (DALI STATIC COLOR)
• DALI commissioning to be performed by a third party at time of installation.
ALUZ does not provide DALI commissioning.
• Wire colors on diagram correspond to colors of driver terminals.
• Driver load not to exceed 100W.
It is recommended to only load drivers to 80% for best dimming performance.
• A DALI Control System (by others) must be used to operate the drivers.
• Ensure DIP Switch 1 is set to ON (Left) to activate 24V operation.
• DALI Address must be set for each driver.
• Up to 28 drivers may be daisy chained together using shielded cable specified for
DALI wiring.
NOTES (DALI)
NOTES (DMX)
• Default DMX address of each luminaire is 001. Consult third party DMX
commissioner to modify at time of installation. ALUZ does not provide DMX
commissioning.
• DMX Address must be set for each driver. Default DMX address for each driver is 001.
• A DMX Control System (by others) must be used to operate the system.
• The last driver in a daisy chain sequence must be terminated.
• Up to 28 drivers may be daisy chained together using shielded cable specified for
DMX wiring.
• Wire colors on diagram correspond to colors of driver terminals.
• Driver load not to exceed 96W.
It is recommended to only load drivers to 80% for best dimming performance.
• Ensure DIP Switch 1 is set to ON (Left) to activate 24V operation.
Dimming Protocol & Wiring Diagrams (DMX & DALI Driver - DRV100-E)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 4 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP
SET MODE
(HOLD 5 SEC.)
COLR
SHOW
DMX
DALI
DISPLAY OFF
1-1L RGB
2-2L RGBW
3-3L RGBA
4-4L RRGB
2-4L RGGB
1-4L CCWW
CWWW
LOG
LIN
LED GROUPS
EXTERNAL INPUT
DIMMING CURVE
DISPLAY OFF
OFF
POTM
10V
SWIT
MODE OF OPERATION
SET LED GROUPS
STANDALONE OPERATION (Color / Show)
STANDALONE OPERATION (Network Operation)
HUE
0 - 1535
WHITE
0 - 510
INTENSITY
0 - 255
DISPLAY OFF
Color
SHOW
00 - 20
SPEED
-99 - 99
INTENSITY
0 - 255
DISPLAY OFF
Show
DMX ADDRESS
NETWORK RESOLUTION
DMX TERMINATION
NETWORK SETUP
INTERPOLATION
1 - 512
8 BT
16 BT
YES
NO
AUTO
MANU
OFF
VID
COLR
WHIT
GLOW
DISPLAY OFF
Set DMX Address
NO ADDRESS ADDRESS SET
NO. OF BALLASTS
DISPLAY OFF
Set DALI Address
OTHER FUNCTIONS
NO
SOFT
HARD
LOCK DRIVER
DISPLAY OFF
(HOLD 5 SEC.)
Lock Driver
TEST
DISPLAY OFF
R 1 SEC
G 1 SEC
B 1 SEC
B 1 SEC
W 1 SEC
RGBW 1 SEC
R 1 SEC
G 1 SEC
B 1 SEC
W 1 SEC
RGBW 1 SEC
Visual Test
RESET
PRESS MENU
(HOLD 5 SEC.)
DISPLAY OFF
Reset
Driver Functions (DMX & DALI Driver - DRV100-E)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 5 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Application Guidelines
Apply pressure to lightstrip,
ensuring adherence to extrusion
45°
One person applies pressure to lightstrip, securing it to extrusion Another person unreels lightstrip from spool, holding at a 45° angle.
Remove adhesive backing
Installers must wear gloves to protect LEDs
Feed from wire puller stand
LED LIGHTSTRIP
• Extrusions are shipped to exact length of specified measurements.
• Due to cut increment restrictions (2”,+/- 0.125” Tolerance), lightstrip is shipped
to the closest measurement ordered. The lightstrip must be centered inside the
extrusion.
NOTE
• Follow the below diagrams and steps if applicable to your installation.
• LED lightstrip and modules require a team effort to ensure a secure and correct
installation.
• Use a wire puller stand to prevent tangles, twists, and snags when installing.
• For Mud-In applications, start lightstrip from power source side and allow up to
2” of excess lightstrip to exit through end cap.
APPLICATION GUIDELINES
Mat Knife
Remove encapsulation
from solder pads
Cut to size Cut to size
Weller 0.50” solder wire
Solder covering
wire and pads
Weller 0.50” solder wire
Solder covering
wire and pads
Cover connections
with silicone
SOLDERING GUIDE
1
Cut lightstrip to desired length. Include both sets of solder pads by cutting to
the left or right of designated markings, allowing more space for soldering. 4Solder lead wires to solder pads on the end of lightstrip. Solder the positive wire (Red or Black with ridged jacket) to the pad marked “+24V”. Solder the
neutral wire (White or Black with smooth jacket) to the pad marked “-”.
Note: Solder iron not to exceed 720°F. Heat joint with tip of iron. Heat both
the solder pad and the wire. Add a small drop of solder on the tip of solder
iron to transfer the heat to joint quickly; it should melt and flow smoothly,
covering the wire and pad. Remove iron once enough solder has been added
to the components. Allow 5 seconds for the joint to cool.
3
If applicable, use a mat knife to remove encapsulation from the section of
lightstrip with solder pads. If lightstrip is not encapsulated, skip this step.
Note: Appearance of lightstrip may differ from example shown.
Refer to wiring diagrams before soldering any wires.
2
Prepare wires by stripping 1/8” from the end of each wire, then tin the tips of
the wire with solder. Apply heat to stripped portion of wire, then add a small
amount of solder until stripped portion of wire is fully covered in solder.
5If applicable, apply silicone over soldered connections. All connections must
be completely covered with silicone to create weatherproof seal. Only use
outdoor rated silicone. If lightstrip is not encapsulated, skip this step.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 6 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Mounting Clips
8’
3” Gap Mounting Clip Junction between luminaire segments
20’
8’ 4’ 8’
3” Gap Mounting Clip Junction between luminaire segments
20’
8’ 4’
1
Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting clips. Mark location where each mounting clip will be installed
along reference line.
2
Use 1 mounting clip every 2’, rounded up. Use a minimum of 2 mounting clips
per luminaire segment. For vertical applications, create a stopper at the
bottom of the run to prevent sliding.
5
Screw mounting clips to surface, then snap luminaire into mounting clips.
3
Use a mounting clip at the junction between two luminaire segments.
Example: 20’ Run.
4
Lay mounting clips along reference line and pre-drill using an appropriate
drill bit for surface material and screw size. Typical screw size is 8/32 x 1”.
Note: Allow 1/4” clearance on each side of mounting clip to account for
lateral expansion. Only install mounting clips on flat, even surfaces.
3Space mounting clips evenly throughout the run.
Example: 20’ Run.
2
Use 1 mounting clip every 2’, rounded up. Use a minimum of 2 mounting clips
per luminaire segment. For vertical applications, create a stopper at the
bottom of the run to prevent sliding.

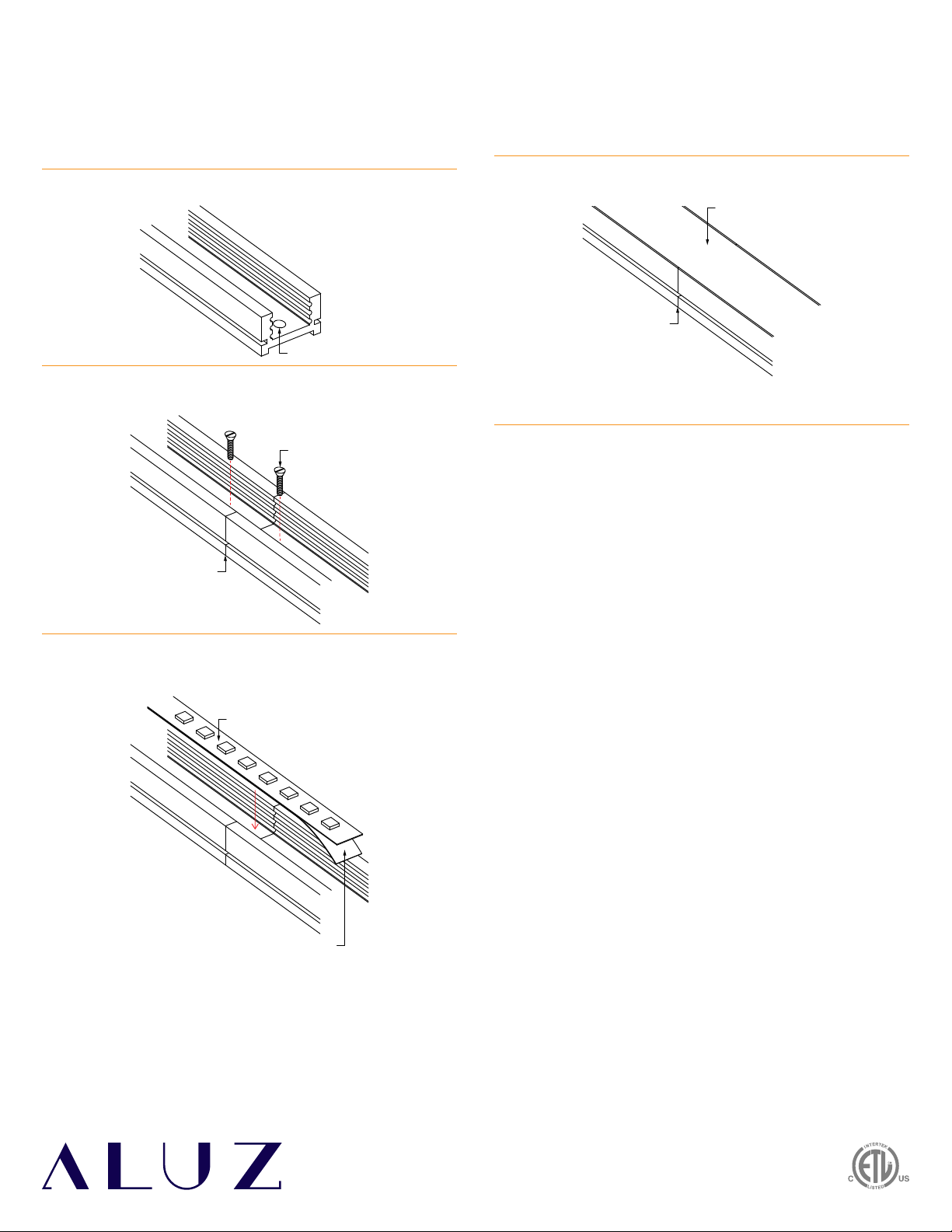

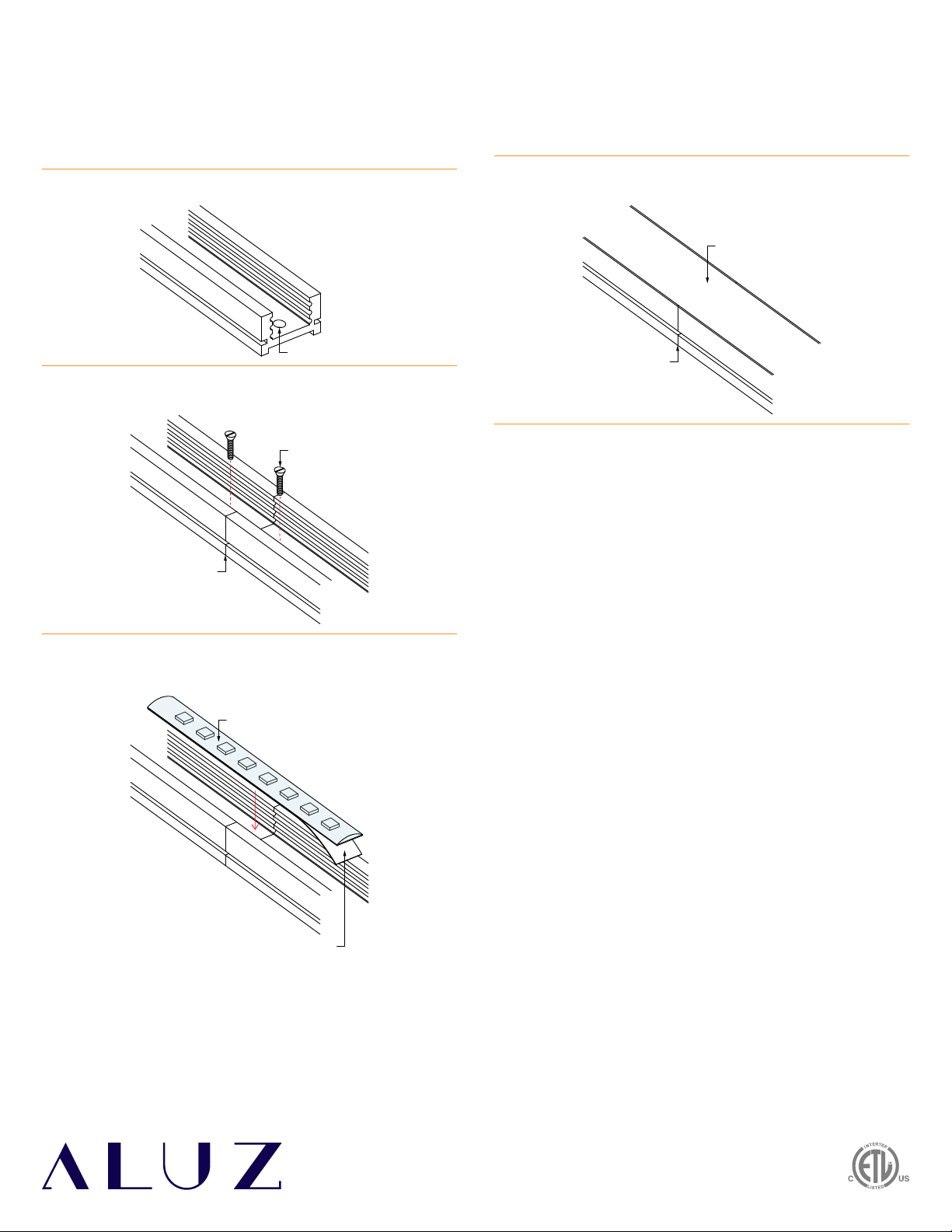

1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting clips. Mark location where each mounting clip will be installed
along reference line.
UNASSEMBLED APPLICATIONS ASSEMBLED APPLICATIONS
a
Screw MC mounting clips to surface, then snap fixture into mounting clips.
Note: This mounting clip is not suitable for outward, downward, or vertical
applications.
c
Screw MC-2 mounting clips to surface, then snap fixture into mounting clips.
c
Screw MC-1 mounting clips to surface, then snap fixture into mounting clips.
fScrew MC-ADJ mounting clips to surface, then snap fixture into mounting clips.
eScrew MC-4 mounting clips to surface, then snap fixture into mounting clips.
d
Screw MC-3 mounting clips to surface, then snap fixture into mounting clips.
ASSEMBLED DIMENSIONS
.84”
.90”
MC
1.97”
1.50”
MC-3
.88”
.94”
MC-1
1.43”
.94”
MC-ADJ
.93”
1.46”
MC-2
.93”
X”
MC-4-X

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 7 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Mounting Fixture (Dry Location Mounting Channel)
Countersink hole
Lens overlapping
Two extrusions meet
Countersink screw
Extrusions aligned
Remove adhesive backing
Install lightstrip into extrusions
1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting channels.
3
Screw extrusions to surface using countersink screws.
Note: Ensure extrusions are aligned. Misalignment will prevent lens from
snapping in.
2
Lay extrusions along chalk line and drill at least 3 countersink holes per
extrusion. Drill additional holes as needed.
4
After all extrusions have been securely mounted, remove adhesive backing
from lightstrip and adhere in place along extrusion channel, ensuring
lightstrip is secure inside extrusion.
Note: Refer to Application Guidelines to ensure correct installation.
5If applicable, connect disconnects between luminaires or solder connectors
using the steps from Application Guidelines.
7Perform a continuity test before connecting luminaire to power source.
6Install lens into extrusion, overlapping where two extrusions meet. Plan
your cuts so that the lens will always overlap where two extrusions meet.
Overlapping lenses helps keep extrusions aligned and prevents light leaks.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 8 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Mounting Fixture (Dry Location Mounting Clips)
MC
Remove adhesive backing
Install lightstrip into extrusions
Lens overlapping
Two extrusions meet
1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting clips. Mark location where each mounting clip will be installed
along reference line.
3
Lay mounting clips along reference line and pre-drill using an appropriate
drill bit for surface and screw size. Recommendation: 8/32 x 1” screw.
Note: Allow 0.25” clearance for lateral expansion of assembled mounting clips.
Only install mounting clips on flat, even surfaces.
2
Mark location where mounting clips will be installed.
Note: The number of required mounting clips differs for dry and wet location
products. Verify number of mounting clips is appropriate for installation
environment before installing. Do not install luminaires with inadequate
number of mounting clips.
4Screw mounting clips to surface, then snap extrusions into mounting clips.
Note: Ensure extrusions are aligned. Misalignment will prevent lens from
snapping in.
5
After all extrusions have been securely mounted, remove adhesive backing
from lightstrip and adhere in place along extrusion channel, ensuring
lightstrip is secure inside extrusion.
Note: Refer to Application Guidelines to ensure correct installation.
6If applicable, connect disconnects between luminaires or solder connectors
using the steps from Application Guidelines.
8Perform a continuity test before connecting luminaire to power source.
7Install lens into extrusion, overlapping where two extrusions meet. Plan
your cuts so that the lens will always overlap where two extrusions meet.
Overlapping lenses helps keep extrusions aligned and prevents light leaks.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 9 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Mounting Fixture (Wet Location)
1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting clips. Mark location where each mounting clip will be installed
along reference line.
3
Lay mounting clips along reference line and pre-drill using an appropriate
drill bit for surface and screw size. Recommendation: 8/32 x 1” screw.
Note: Allow 0.25” clearance for lateral expansion of assembled mounting clips.
Only install mounting clips on flat, even surfaces.
2
Mark location where mounting clips will be installed.
Note: The number of required mounting clips differs for dry and wet location
products. Verify number of mounting clips is appropriate for installation
environment before installing. Do not install luminaires with inadequate
number of mounting clips.
4
Screw mounting clips to surface, then snap luminaires into mounting clips.
5If applicable, position jumper wires between luminaire segments as needed.
7
Perform a continuity test before connecting luminaire to power source.
6If applicable, connect disconnects between luminaires or solder connectors
using the steps from Application Guidelines.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 10 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Mounting Fixture (Wet Location Unassembled Mounting Channel)
Countersink hole
Lens overlapping
Two extrusions meet
Countersink screw
Extrusions aligned
Remove adhesive backing
Install lightstrip into extrusions
1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting channels.
3
Screw extrusions to surface using countersink screws.
Note: Ensure extrusions are aligned. Misalignment will prevent lens from
snapping in.
2
Lay extrusions along chalk line and drill at least 3 countersink holes per
extrusion. Drill additional holes as needed.
4
After all extrusions have been securely mounted, remove adhesive backing
from lightstrip and adhere in place along extrusion channel, ensuring
lightstrip is secure inside extrusion.
Note: Refer to Application Guidelines to ensure correct installation.
6Install lens into extrusion, overlapping where two extrusions meet. Plan
your cuts so that the lens will always overlap where two extrusions meet.
Overlapping lenses helps keep extrusions aligned and prevents light leaks.
7
Perform a continuity test before connecting luminaire to power source.
5If applicable, connect disconnects between luminaires or solder connectors
using the steps from Application Guidelines.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 11 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP Mounting Fixture (Wet Location Unassembled Mounting Clips)
MC
Remove adhesive backing
Install lightstrip into extrusions
Lens overlapping
Two extrusions meet
1Measure area where luminaire will be installed. Use a laser line to create
a reference line along installation area, ensuring consistent alignment of
mounting clips. Mark location where each mounting clip will be installed
along reference line.
3
Lay mounting clips along reference line and pre-drill using an appropriate
drill bit for surface and screw size. Recommendation: 8/32 x 1” screw.
Note: Allow 0.25” clearance for lateral expansion of assembled mounting clips.
Only install mounting clips on flat, even surfaces.
2
Mark location where mounting clips will be installed.
Note: The number of required mounting clips differs for dry and wet location
products. Verify number of mounting clips is appropriate for installation
environment before installing. Do not install luminaires with inadequate
number of mounting clips.
4
Screw mounting clips to surface, then snap extrusions into mounting clips.
Note: Ensure extrusions are aligned. Misalignment will prevent lens from
snapping in.
5
After all extrusions have been securely mounted, remove adhesive backing
from lightstrip and adhere in place along extrusion channel, ensuring
lightstrip is secure inside extrusion.
Note: Refer to Application Guidelines to ensure correct installation.
7Install lens into extrusion, overlapping where two extrusions meet. Plan
your cuts so that the lens will always overlap where two extrusions meet.
Overlapping lenses helps keep extrusions aligned and prevents light leaks.
8
Perform a continuity test before connecting luminaire to power source.
6If applicable, connect disconnects between luminaires or solder connectors
using the steps from Application Guidelines.

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 12 of 12
9 / 1 / 2021 / Rev 0
Standard Optic
ZIZA
A8-ZIZA-SOP
Black Probe RGBW Lighting
Red Probe
Frayed End
Damaged LightstripTorn Lightstrip
TROUBLESHOOTING TIPS
• Do not reset the breaker multiple times
• If the unit is overloaded, the breaker will trip, shutting off the transformer and lights
• If the breaker reset button has been held down by hand or any type of pressure,
such as duct tape, or if the breaker has been reset multiple times without
troubleshooting, the unit will:
- Burn the transformer bobbin
- Burn the thermal or magnetic breaker
- Burn the primary or secondary wires due to high amperage caused by overload
- Short circuit in line which will not allow the breaker to reset
- Damage the lighting
CONTINUITY TEST
A continuity test is performed to determine if electricity can pass through two
points on an electrical circuit. This helps identify shorts or malfunctions in the line
or fixture. Use a multimeter or continuity tester to perform the steps below.
• Always perform a continuity test before connecting lighting to power source.
• Malfunctions are not always as obvious as the lights not turning on.
• A short or malfunction in the line or fixture will cause damage over time,
ultimately damaging the lighting and voiding warranty.
1
Turn off power before beginning. Check for any twisting or damage to the
circuit in the LED lightstrip. If there is excessive damage and the circuit is
broken, the lightstrip must be replaced.
2
Check for metal particles or other foreign objects causing the short.
3
Check to make sure cuts in the lightstrip are clean and not frayed, causing
positive and negative copper pads to touch.
1
Turn power off before beginning. Verify power is turned off by using a
non-contact circuit tester. Touch the probe of the tester to positive wire of
the power source. The tester will light up if an electrical current is detected.
2
Setup your tester. First insert the black probe lead into the COM jack, then
insert the red probe lead into the VΩjack.
Metal Flakes
Foreign Object
12
(-)
(+)
Black Probe
Red Probe
V
AC
Black
Black Probe
Red Probe
RGBW Lighting
Black
Black Probe
RGBW Lighting
Red Probe
3Verify that your tester is functional by touching probes together. The tester
should light up, beep, or read 0Ω(ohms) of resistance.
4Touch the red probe to the black wire and the black probe to each colored
wire. If a conductive path is formed between the black wire and any other
wire, the multimeter will beep, flash, or read 0Ω(ohms). Troubleshoot
to identify the malfunction in the line. If there is no conductive path, the
multimeter will not show any feedback.
5Touch the red probe to the fixture extrusion and the black probe to the
black wire. If a conductive path is formed between the extrusion and the
black wire, the multimeter will beep, flash, or read 0Ω(ohms). Troubleshoot
to identify the malfunction in the line. If there is no conductive path, the
multimeter will not show any feedback.
6Touch the red probe to the fixture extrusion and the black probe to the
each colored wire. If a conductive path is formed between the extrusion
and any colored wire, the multimeter will beep, flash, or read 0Ω(ohms).
Troubleshoot to identify the malfunction in the line. If there is no
conductive path, the multimeter will not show any feedback.
7Set voltmeter to DC voltage and test power source. Confirm the correct
voltage before connecting lighting to power source. If voltage reading is
more than 1 volt higher than the marked output voltage, there is a problem
with the power source or driver.
8
Connect power connector to power source. If LEDs do not turn on, flip polarity
(+ -) or power source connection to power connector.
Troubleshooting
