ALUZ ZIBI A1 Series User manual

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 1 of 11
Overview
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
Clear Lens (CL)
50% Semi-Frosted Lens (SF)
100% Frosted Lens (F)
1.03”
.87”
1.03”
.96”
Optic Lens
(15D, 30D, 45D, 60D)
Asymmetric Lens
(ASM)
1.03”
.96”
END VIEWS / DIMENSIONS
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
INSTALLATION TOOLS REQUIRED
LED Board
(Included)
100% Frosted Lens
(A1-ZUCO-PVT-F)
Aluminum Extrusion
(A1-ZUCO-PVT)
Dry Power Connector w/ Black Jacket
(A1-ZUCO-PVT-PC-DRY-BK)
Mounting Clip
(A1-ZUCO-PVT-MC-1)
PRODUCT INFORMATION
• Lighting for accent, cove, edge, under cabinet lighting
• 24 Volts DC for easy and safe installation
• BIOS Illuminated LEDs
• Can be ordered to specific lengths for when exact dimensions are known
Example: 10 x 10’6”
• Product is shipped in 8’ max luminaires
• Different mounting options available (custom mounting available upon request)
GENERAL FEATURES
Applications Accent, Cove, Under Cabinet Lighting
Lens Clear, 50% Semi-Frosted, or 100% Frosted
Optics & Asymmetric 15°, 30°, 45°, 60°, 120°, or Asymmetric Optics
Length Built to Order (+/- 1.8” Tolerance)
See Length Restrictions Table for details
Construction Aluminum Extrusion
Weight 0.32 lbs per foot
Mounting Mounting Clips (Sold Separately)
Listing
Dry or Damp Location
UL1598, CSA C22.2#250.0
UL8750, CSA250
UL2108, 67.1.9, 60.4, CSA C22.2 #9
Driver Remote
Temperature Ratings Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)
Installation Link
ELECTRICAL
Dimming 0-10V, DMX, DALI
Luminaire Voltage 120V - 277V (UNV)
MINIMUM & MAXIMUM RUNS
Wattage 1.5W 2W 3W 4W 5W 6W 8W 10W 12W
0-10V & DALI
Minimum Run 4’ 3’ 2’ 2’ 2’ 1’ 1’ 1’ 1’
0-10V & DALI
Maximum Run 39’ 27’ 19’ 14’ 11’ 9’ 7’ 6’ 5’
DMX
Minimum Run 4’ 3’ 2’ 2’ 2’ 1’ 1’ 1’ 1’
DMX
Maximum Run 26’ 18’ 13’ 9’ 8’ 6’ 4’ 4’ 3’
• Luminaires require a 24 Volt DC remote driver.
• To calculate driver size, determine Watts per Foot.
Example: 1.5W per Foot
• Determine Length in Feet.
Example: 30’
• Calculate Load: Multiply Watts per Foot x Length in Feet
Example: 1.5W x 30’= 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37’ from driver to first LED.
ELECTRICAL REQUIREMENTS

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 2 of 11
Product Care & Maintenance
• Ensure power is off before installation begins, during replacements, additions,
or repairs.
• Do not use luminaires if damaged, such as broken boards, loose connections, or
frayed wire insulation. Inspect before installing.
• Do not install luminaires in hazardous locations.
• Do not cover luminaires with any material. Covering may cause LEDs to overheat,
melt, or ignite.
• Do not paint on or over fixture lens or LEDs.
Paint or any other substance on lens or LEDs will cause a shift in color temperature.
• Soffit must be evenly painted with a neutral white to avoid color shift.
• Do not modify luminaires in the field.
• Do not overlap luminaires in any way.
(Fig. 1)
• Luminaires have line voltage risk of shock. Consult factory for any malfunctions.
Do not attempt to repair.
• Only use luminaire with specified rated voltages. Do not exceed the specified
voltage for any luminaire.
• Do not use extrusion as a raceway for additional wire. Non-factory feed through
wires inside luminaire will void warranty.
• Ground Fault Circuit Interrupter (GFCI) protections should be provided on circuits
or outlets when luminaire is used for outdoor applications.
• Surge protector must be set up for electrical power system to avoid damaging
lighting system.
• Do not make wiring connections without referring to wiring diagrams.
• Do not cut wire while energized.
(Fig. 2)
• Do not exceed maximum run lengths.
• Always follow sequence labeling for continuous runs. Continuous run segments
are labeled in alphabetical order.
• Polarity of continuous run segments must be aligned.
• Do not assemble continuous runs prior to installing into mounting clips.
Each segment must be installed one by one into mounting clips. The weight of
the assembled segments will put strain on junctions, causing the board, pin, or
terminals to break.
• Do not install continuous runs without a mounting clip at each junction between
two segments.
• Do not secure luminaire with nails or like means that might damage the wiring
inside. Only secure by using mounting clips.
• Do not mount luminaire inside tanks or enclosures of any kind.
• Do not install downward facing luminaires without set screws.
• Do not use improper screw head type on mounting clips. It will cause the
mounting clip to open up and become dysfunctional.
• Do not modify mounting clips.
• Do not weld mounting clips to surface. Mounting clips must be mechanically
attached with screws appropriate for mounting surface and weight of luminaire.
• Do not mount fixture with less than the minimum number of mounting clips
required. See mounting clips section for details.
• Do not install mounting clips on uneven surfaces. Use shims to level out height
of mounting clips if necessary.
• Do not install mounting clips after luminaires have been assembled.
Install mounting clips first, then install luminaire into mounting clips.
• Do not force luminaire into a space that is too small.
• Do not force luminaire with cord grip into soffit.
(Fig. 3)
• Do not install luminaire at an angle within a cove. Only install fixtures straight
within a cove. (Fig. 4)
• Do not bend extrusion around radius.
• Do not submerge dry or wet location luminaire in any liquid.
• Do not install wet location in outdoor coves without proper drainage.
(Fig. 5)
• Do not install luminaire in any area that is continuously exposed to flowing or
pooling water, such as underneath drain pipes, sprinklers, fountains, misters, etc.
• Do not cut, puncture, or penetrate aluminum housing, end caps, or lens covers.
• Do not drop, bang, or rest weight upon luminaire.
• Do not apply excessive pressure to any part of luminaire.
• Do not remove end caps from luminaire.
• Do not bend power cord or continuous connector past permitted bend radius.
Bending past permitted bend radius will break the seal of the cordgrip or
damage the insulation. (Fig. 6)
Wet Location: 3.5” minimum bend radius
Dry Location: 1.5” minimum bend radius
• Do not install in places where the power cord is subject to continuous flexing.
• Do not twist continuous connector or power cord.
• Do not hold, carry, or suspend luminaire by the power cord.
• Do not install on ceilings without mounting clips and set screws.
(Fig. 7)
When using luminaires for any application, basic safety precautions
should always be followed to reduce the risk of fire, electric shock, and
personal injury. Luminaires must be installed in accordance with the
NEC or CEC as applicable. ALUZ will not be responsible for damage or
malfunction caused by the following:

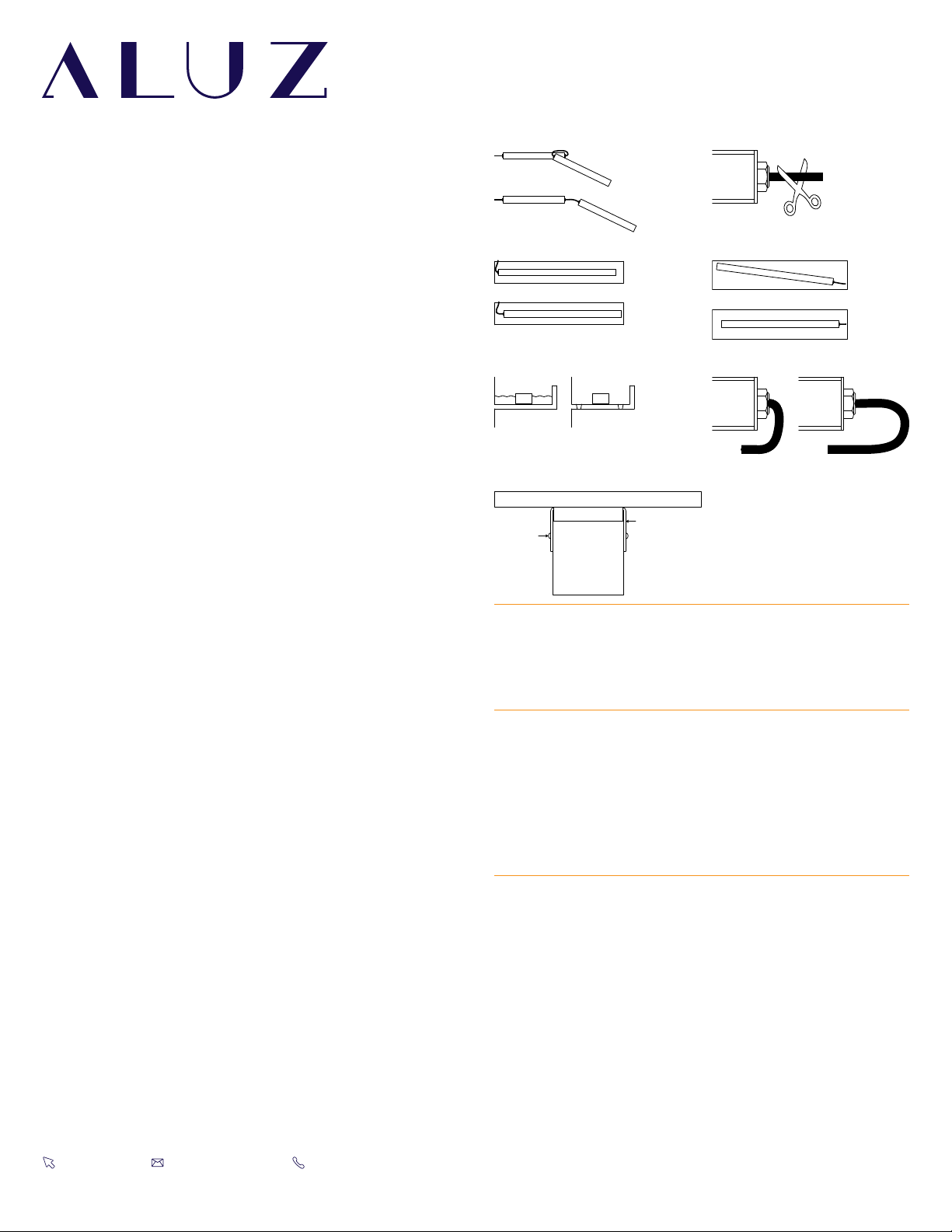

WARNING FIGURES
INCORRECT
CORRECT
Figure 1
INCORRECT CORRECT
Figure 5
INCORRECT CORRECT
Figure 6
MOUNTING CLIP
SET SCREW
Figure 7
Figure 2
INCORRECT
CORRECT
Figure 3
INCORRECT
CORRECT
Figure 4
CLEANING MATERIALS
The use of solvents and/or cleaners which are not compatible with
polycarbonate will result in the softening, crazing, and/or cracking
of the plastic part. This is especially true of polycarbonate lamps
and mounting bases which may be under stress in their normal
applications.
COMPATIBLE WITH POLYCARBONATE
• Mild soap and water
• Mineral Spirits
• Isobutyl Alcohol
• VM and P Naphtha
• Varsol No.2
• Mexane
• Freone TF and TE-35
• Ethanol
• Dirtex
• 2% Sol. Reg. Joy
• 10% Sol Bon Ami
• White Kerosene
• Methyl Alcohol
• Heptane
• Petroleum Ether / 65°C
• Isopropyl Alcohol
• Lacryl PCL-2035
Polycarbonate Cleaner
NOT COMPATIBLE WITH POLYCARBONATE
• Trichlor
• Gasoline
• Liquid Detergents
• Acetone
• Carbon Tetrachloride
• Pink Lux (Phosphate free)
• Triclene
• Chlorinated Hydrocarbons
• #1 & #3 Denatured Alcohol
• Methyl Ethyl Keytone (MEK)
• Texize-8006, 8129, 8758
• MIBK
• Liquid Cleaner – 8211
• Toluol
• Agitene
• Benzol
• Ajax
• Kleenol Plastics
• Lysol
• Stanisol Naphtha
• Oils
• Lemon Joy (phosphate free)
• Diversol
• Lestoil

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 3 of 11
BIOS Wiring Diagrams
REMOTE DRIVER WIRING
WIRING DETAILS
BIOS LIGHTING
BIOS 10V
DRIVER
DIMMER/CONTROLS
(BY OTHERS)
PRIMARY
VOLTAGE
120
-277VAC
10V+ 10V-
GROUND
HOTNEUTRAL
BS-
+
D-
DETAIL E
DETAIL D
DETAIL A
0-10V Wiring
BIOS 10V
DRIVER BIOS LIGHTING
BIOS 10V
DRIVER BIOS LIGHTING
BIOS 10V
DRIVER BIOS LIGHTING
0-10V DIMMER
(BY OTHERS)
WIRED IN
PARALLEL
0-10V Typical Layout
BIOS LIGHTING
BIOS DMX
DRIVER
DMX
CONTROLS
(BY OTHERS) DMX SIGNAL OUTPUT
(TO NEXT DRIVER)
DMX
GROUND
BS-
+
D-
DMX+
DMX-
PRIMARY
VOLTAGE
120-277VAC
GROUND
HOTNEUTRAL
DETAIL E
DETAIL C
DETAIL D
DMX Dimming
BIOS DMX
DRIVER BIOS LIGHTING
BIOS DMX
DRIVER BIOS LIGHTING
BIOS DMX
DRIVER BIOS LIGHTING
DAISY
CHAIN
DMX CONTROLLER
(BY OTHERS)
DMX Typical Layout
BIOS LIGHTING
BIOS DALI
DRIVER
BS-
+
D-
PRIMARY
VOLTAGE
120-277VAC
GROUND
HOTNEUTRAL
DIMMER/CONTROLS
(BY OTHERS)
DALI+ DALI-
DALI SIGNAL OUTPUT
(TO NEXT DRIVER)
DETAIL E
DETAIL B
DETAIL D
DALI Wiring
BIOS DALI
DRIVER BIOS LIGHTING
BIOS DALI
DRIVER BIOS LIGHTING
BIOS DALI
DRIVER BIOS LIGHTING
DAISY
CHAIN
DALI CONTROLS
(BY OTHERS)
DALI Typical Layout
BIOS 10V
DRIVER
PRIMARY
VOLTAGE
120-277VAC
TO 0-10V
CONTROLS
(BY OTHERS)
GROUND (GREEN) NEUTRAL (WHITE)
HOT (BLACK)
10V- (PINK)
10V+ (PURPLE)
Detail A: 10V Driver Input
BIOS DALI
DRIVER
TO DALI
CONTROLS
(BY OTHERS)
GROUND (GREEN) NEUTRAL (WHITE)
HOT (BLACK)
DALI+ (ORANGE)
DALI- (ORANGE)
DALI+ (ORANGE)
DALI- (ORANGE)
PRIMARY
VOLTAGE
120-277VAC
Detail B: DALI Driver Input
BIOS DMX
DRIVER
DMX INPUT
(FROM DMX CONTROLS)
DMX OUTPUT
(TO NEXT DRIVER)
GROUND (GREEN) NEUTRAL (WHITE)
HOT (BLACK)
DMX+ (COLOR)
DMX- (COLOR)
DMX+ (COLOR)
DMX- (COLOR)
DMX GROUND (COLOR)DMX GROUND (COLOR)
PRIMARY VOLTAGE
120-277VAC
Detail C: DMX Driver Input
BIOS
DRIVER
BS- (BLACK)
+ (RED)
D- (WHITE)
Detail D: Driver Output
+ (RED)
D- (WHITE)
BS- (BLACK)
Detail E: Fixture Wiring

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 4 of 11
Mounting Clips
8’
20’
8’ 4’
3” Gap Mounting Clip Junction between luminaire segments
8’
20’
8’ 4’
3” Gap Mounting Clip Junction between luminaire segments
1
Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
1Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
2
Use 1 mounting clip every 2’, rounded up. Use a minimum of 2
mounting clips per fixture segment. For vertical applications, create
a stopper at the bottom of the run to prevent sliding.
2Use 1 mounting clip every 2’, rounded up. Use a minimum of 2
mounting clips per fixture segment. For vertical applications, create
a stopper at the bottom of the run to prevent sliding.
3
Use a mounting clip at the junction between two fixture segments.
Example: 20’ Run.
5Screw mounting clips to surface, then snap fixture into mounting clips.
4
Lay mounting clips along reference line and pre-drill using an
appropriate drill bit for surface material and screw size.
Typical screw size is 8/32 x 1”.
Note: Allow 1/4” clearance on each side of mounting clip due to
lateral expansion. Only install mounting clips on flat, even surfaces.
3Space mounting clips evenly throughout the run.
Example: 20’ Run.
DRY LOCATION APPLICATIONS WET LOCATION APPLICATIONS
a
Screw MC-1 to surface, then snap luminaire into mounting clips.
b
Screw MC-2 to surface, then snap luminaire into mounting clips.
c
Screw MC-3 to surface, then snap luminaire into mounting clips.
d
Screw MC-4 to surface, then snap luminaire into mounting clips.
MC-1 ASSEMBLED DIMENSIONS
1.39”
.99”
Clear Lens (CL)
50% Semi-Frosted Lens (SF)
100% Frosted Lens (F)
1.39”
1.14”
Optic Lens
(15D, 30D, 45D, 60D)
1.39”
1.14”
Asymmetric Lens
(ASM)
MC-3 ASSEMBLED DIMENSIONS
2.11”
1.39”
1.50”
Clear Lens (CL)
50% Semi-Frosted Lens (SF)
100% Frosted Lens (F)
2.26”
1.39”
1.50”
Optic Lens
(15D, 30D, 45D, 60D)
2.26”
1.39”
1.50”
Asymmetric Lens
(ASM)
MC-2 ASSEMBLED DIMENSIONS
1.89”
1.06”
Clear Lens (CL)
50% Semi-Frosted Lens (SF)
100% Frosted Lens (F)
1.89”
1.21”
Optic Lens
(15D, 30D, 45D, 60D)
1.89”
1.21”
Asymmetric Lens
(ASM)
MC-4 ASSEMBLED DIMENSIONS
1.06”
1.45”
X
Clear Lens (CL)
50% Semi-Frosted Lens (SF)
100% Frosted Lens (F)
1.21”
1.45”
X
Optic Lens
(15D, 30D, 45D, 60D)
1.21”
1.45”
X
Asymmetric Lens
(ASM)

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 5 of 11
Dry Location Mounting
1Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
2
Mark location where mounting clips will be installed.
Note: The number of required mounting clips differs for dry and wet
location products. Verify number of mounting clips is appropriate
for installation environment before installing. Do not install
luminaires with inadequate number of mounting clips.
3
Lay mounting clips along reference line and pre-drill using an
appropriate drill bit for surface and screw size.
Recommendation: 8/32 x 1” countersink screw.
Note: Allow 1/4” clearance for lateral expansion of assembled
mounting clips. Only install mounting clips on flat, even surfaces.
8Continue mounting and connecting segments until entire run has
been mounted.
5
Ensure segments are aligned with mounting clips per the mounting
diagrams. Make any necessary adjustments to mounting clip
positions, then screw mounting clips to surface.
Note: Allow 1/4” clearance on each side of mounting clip to account for
lateral expansion. Only install mounting clips on flat, even surfaces.
MALE END FEMALE END
4
Each luminaire segment has a male and female end used for
continuous connections. Lay out each segment next to the
mounting clips where they will be installed. Position the segments
as follows: power lead end, female end, male end, and so on.
6
Snap luminaire segments into mounting clips. Position each
segment end with a continuous connection end halfway across the
mounting clip.
MOUNTING CLIP
LUMINAIRE
SEGMENT
7Snap the next segment into mounting clips, then slide towards the
previously mounted segment. Ensure female and male pins are
aligned before applying force. Push segments together until they fit
snugly with no gaps.
MOUNTING CLIP
ALIGN PINS

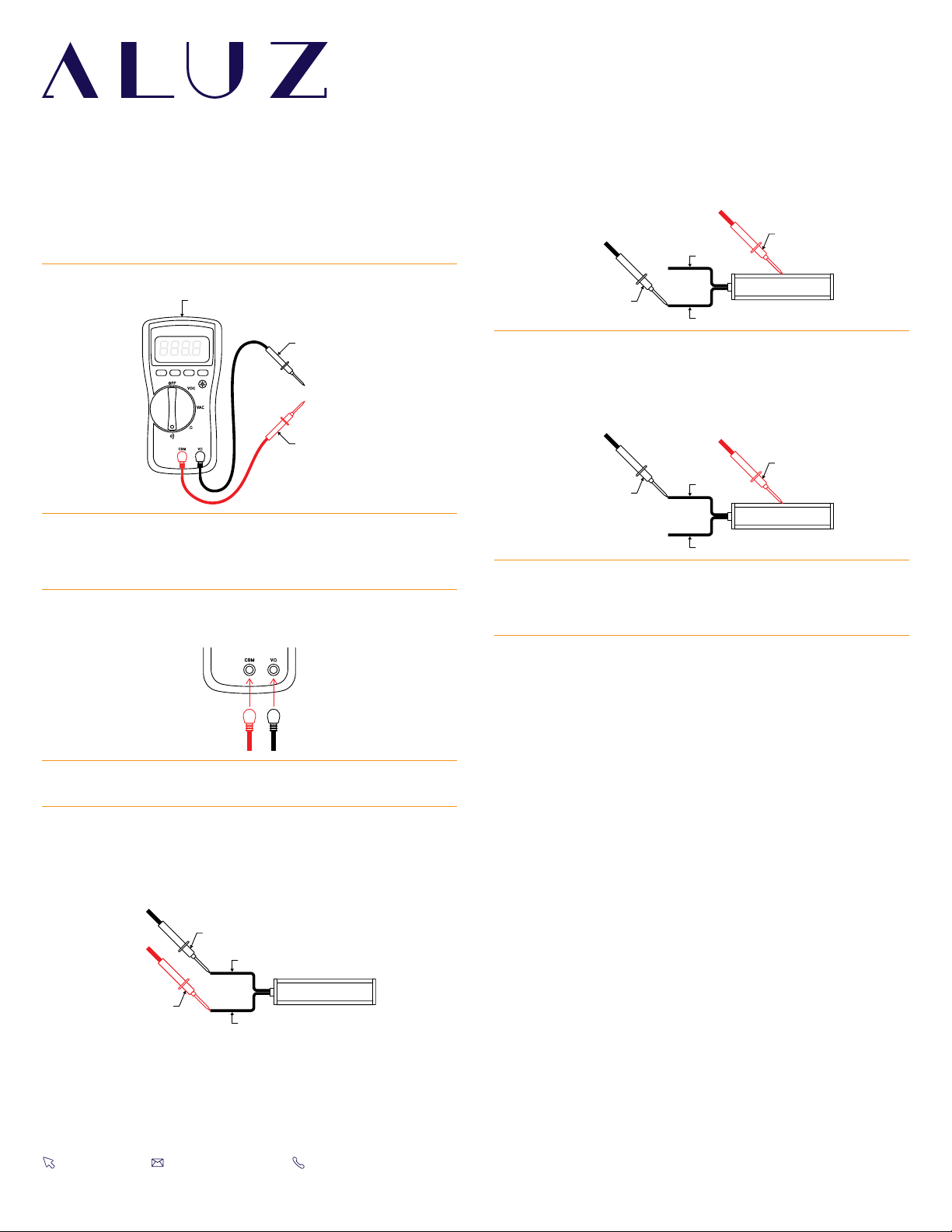

9Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
10 If applicable, install End Caps at the end of each run. Feed the
power lead through end cap exit and connect to power source.

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 6 of 11
Wet Location Mounting
5If applicable, make connections between fixture segments using
wet location splice connectors.
1Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
2
Mark location where mounting clips will be installed.
Note: The number of required mounting clips differs for dry and wet
location products. Verify number of mounting clips is appropriate
for installation environment before installing. Do not install
luminaires with inadequate number of mounting clips.
3
Lay mounting clips along reference line and pre-drill using an
appropriate drill bit for surface and screw size.
Recommendation: 8/32 x 1” countersink screw.
Note: Allow 1/4” clearance for lateral expansion of assembled
mounting clips. Only install mounting clips on flat, even surfaces.
4
Screw mounting clips to surface, then snap fixtures into mounting clips.
Note: Ensure fixture segments are aligned.
6Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
SPLICE BUTTONS
SILICONE GELCONTACTS
3/4”
SHRINK
TUBE
APPLY
HEAT
SEALED
CONNECTOR
SHRINK TUBE
INSERT WIRES
CENTER
PUSH DOWN
SEVERED WIRES
bPush wires into connector until they stop at the center point.
Repeat process for the other side.
Note: The positive wire (+) has a ribbed wire jacket, the negative
wire (-) has a smooth wire jacket.
cUse pliers to push splice buttons down completely until they sever
the wire and snap into place.
dSlide shrink tube over connector and apply heat. The shrink tube
will shrink down around the connector. Apply silicone around the
ends to create a stronger seal.
Note: Do not use an open flame such as a lighter or torch to heat
shrink tube.
aSlide shrink tube over wires and connector.
Part wires 3/4” for insertion into the wet splice connector.
ePosition connection as needed. Maintain a gap of no more than
1/2” for continuous runs to retain even illumination.

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 7 of 11

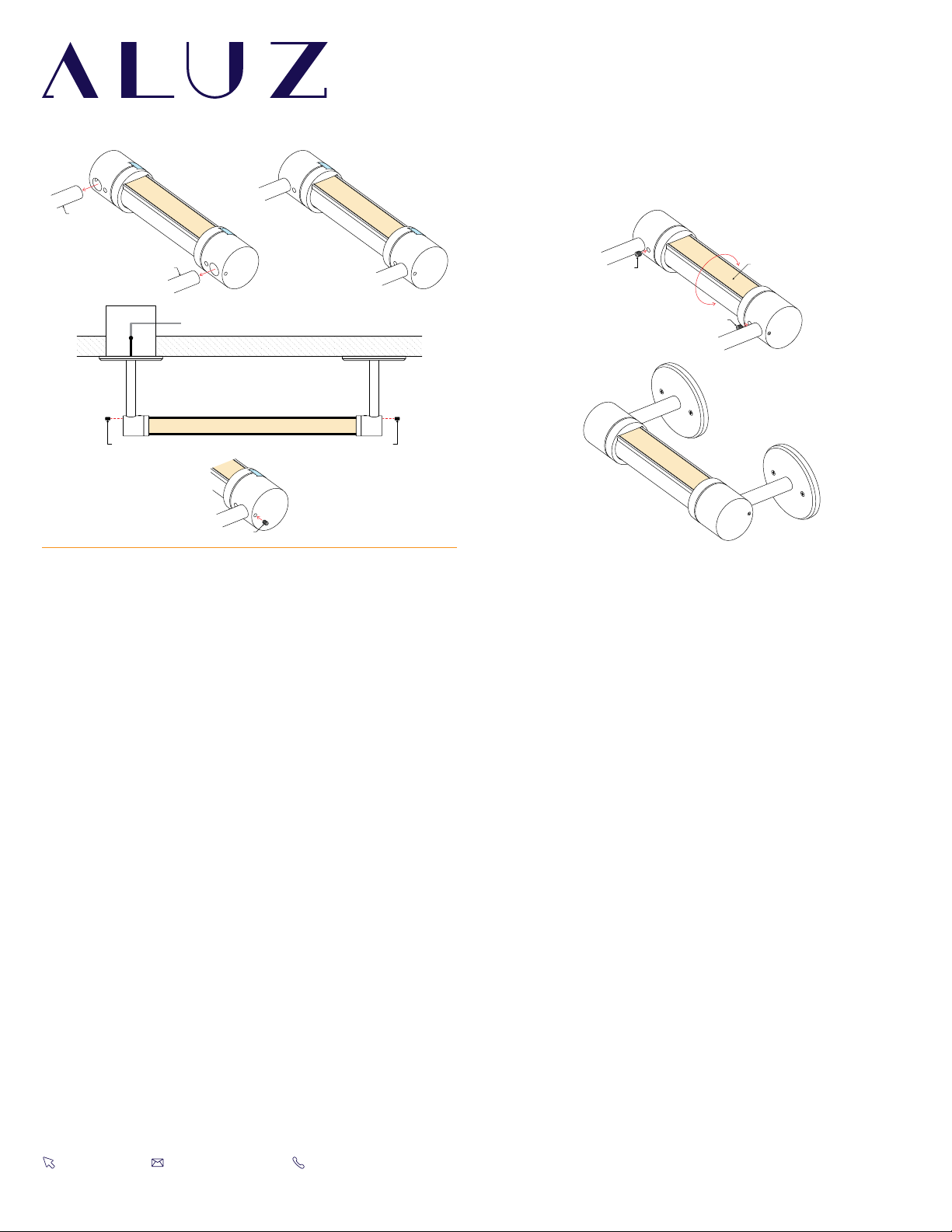

Mounting Arm (1 of 2)
(A1-ZUCO-PVT-EC-AA-X)
Note: Assemble the parts per the diagrams below. Feed power lead
through each part into a junction box (by others) for the powered arm.
4
Place Pivot Cap on the end of luminaire and secure with set screw.
Repeat process for the other end of luminaire.
5Place Pivot Head onto Pivot Cap and secure with blue tape to hold
in place. Repeat process for the other end of luminaire.
LUMINARE
PIVOT CAP
PIVOT HEAD
ROD
COVER PLATE
POWER LEAD
TO J-BOX
(BY OTHERS)
PLACE PIVOT CAP
INSTALL SET SCREW
LUMINAIRE WITH
ASSEMBLED PIVOT CAPS
PLACE PIVOT HEAD
BLUE TAPE
LUMINAIRE WITH
ASSEMBLED PIVOT CAPS
& PIVOT HEADS
1
Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting arms. Mark location where each mounting
arm will be installed along reference line.
2
Mark location where each mounting arm will be installed. Install an
outdoor rated 4” octagonal j-box (by others) at each location that
requires a power lead. The cover plate mounts directly to the j-box.
Cover plates without a j-box must be mounted by other means.
3
Screw the Rods into the Cover Plates by turning clockwise.
MOUNTING SURFACE
J-BOX
(BY OTHERS) COUNTERSINK SCREW
LOCATION OF
UNPOWERED ARM
LOCATION OF
POWERED ARM
ROD
COVER PLATE
Note: Steps 7 and 8 require two or more people to complete.
6Mount the unpowered arm to the mounting surface. Only mount
the assembled Plate and Rod. Ensure the part is securely mounted
to a solid surface such as wood, concrete, or metal. Use mounting
hardware (by others) appropriate for the surface material and
weight of the luminaire.
UNPOWERED ARM
COUNTERSINK SCREW
7Feed lead wires through Mounting Arm parts per the assembly
diagram, then make wiring connections inside a j-box (by others).
Once wiring connections are made, push excess wire into j-box and
mount Cover Plate.
Note: Ensure all excess wire is pushed into j-box and no wires are
pinched between assembly parts.
TO REMOTE DRIVER
MAKE WIRING CONNECTIONS
COUNTERSINK SCREW
POWER LEAD

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 8 of 11
Mounting Arm (2 of 2)
(A1-ZUCO-PVT-EC-AA-X)
TILT TO
DESIRED ANGLE
INSTALL
SET SCREW
INSTALL
SET SCREW
9
Connect luminaire to remote driver power source and test that
lighting is in working order.
10 After lighting is securely mounted and confirmed to be working,
adjust to desired angle. Remove blue tape and tilt luminaire to
desired angle, then secure on both sides with set screws. Use an
angle finder to ensure accuracy across installation.
Note: Tighten set screws to secure luminaire angle. Do not remove
or over-tighten set screws.
PLACE ONTO ROD
PLACE ONTO ROD
INSTALL
SET SCREW
INSTALL SET SCREW INSTALL SET SCREW
8After wiring connections are made and Cover Plate with Rod is
mounted, insert luminaire onto the arms and secure with set screws.

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 9 of 11
Troubleshooting
Damaged LED
Poor Quality Cut
Damaged Connection
Broken Solder Connection
Foreign Object Metal Flakes
Damaged Board
• Do not reset the breaker multiple times.
• If the unit is overloaded, the breaker will trip, shutting off the driver and lights.
• If the breaker reset button has been held down by hand or any type of pressure,
such as duct tape, or if the breaker has been reset multiple times without
troubleshooting, the unit will:
- Burn the driver bobbin.
- Burn the thermal or magnetic breaker.
- Burn the driver lead wires due to high amperage caused by overload.
- Short circuit in line which will not allow the breaker to reset.
- Damage the lighting.
TROUBLESHOOTING TIPS
1
Turn off power before beginning. Verify power is off by using a not contact
circuit tester (by others).
2
Check the board for damage, such as cuts, punctures, twisting, or crushing.
If there is excessive damage to the board, it must be replaced.
3
Check the run for any particles that may cause a short. Check the end cap,
power connector, and board for any metal flakes or shavings. Clear the run of
any shavings or particles if present, then perform a continuity test to confirm
the short has been eliminated.
4
Check board cuts to ensure they are clean. Frayed, split, or sloppily cut boards
can damage the circuit, resulting in flickering, dimness, or LED outages.
5
Check terminal connections between LED boards. If a terminal is loose,
damaged, or absent, the board must be replaced. Check soldered
connections to LED boards, if applicable.
6
Check connections in the line. Ensure all splice connections are secure and
properly sealed with shrink tube and silicone for outdoor applications.
Ensure that wiring is not bent past the permitted wiring bend radius (1.5”).
7
Check the run for any water inside end cap, power connector, or lightstrip.
If water or condensation is present, the lightstrip must be replaced.

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 10 of 11
Continuity Test
24VDC LED LIGHTING
V-
V+
RED PROBE
BLACK PROBE
24VDC LED LIGHTING
BLACK PROBE
RED PROBE
V-
V+
24VDC LED LIGHTING
BLACK PROBE
RED PROBE
V-
V+
CONTINUITY TEST
A continuity test is performed to determine if electricity can pass
through two points on an electrical circuit. This helps identify shorts or
malfunctions in the line or luminaire. Use a multimeter or continuity
tester to perform the steps below.
• Always perform a continuity test before connecting to power source.
• Malfunctions are not always as obvious as the lights not turning on.
• A short or malfunction in the line or luminaire will cause damage over
time, irreparably damaging the lighting and voiding warranty.
EXAMPLE OF MULTIMETER (BY OTHERS)
V
AC
BLACK PROBE
RED PROBE
MULTIMETER
12
1
Turn off power before beginning. Verify power is off by using a non-
contact circuit tester (by others). Touch the probe of the tester to
the positive wire of the power source. The tester will light up if an
electrical current is detected.
2
Setup your multimeter tester (by others). First, insert the black
probe lead into the COM jack, then insert the red probe lead into
the VΩjack.
3
Verify multimeter is functional by touching probes together.
The multimeter should beep, flash, or read 0Ω(ohms) of resistance.
4
Touch the red probe to the positive (+) wire and the black probe to
the negative (-) wire of the luminaire. If a conductive path is formed
between the positive and negative wires, the multimeter will beep,
flash, or read 0Ω(ohms) of resistance. Troubleshoot to identify the
malfunction in the line. If there is no conductive path formed, the
multimeter will not show any feedback.
5Touch the red probe to the luminaire extrusion and the black probe
to the positive (+) wire. If a conductive path is formed between the
extrusion and the positive wire, the multimeter will beep, flash, or
read 0Ω(ohms). Troubleshoot to identify the malfunction in the
line. If there is no conductive path, the multimeter will not show
any feedback.
6
Touch the red probe to the luminaire extrusion and the black probe
to the negative (-) wire. If a conductive path is formed between the
extrusion and the negative wire, the multimeter will beep, flash,
or read 0Ω(ohms). Troubleshoot to identify the malfunction in the
line. If there is no conductive path, the multimeter will not show
any feedback.
7Set multimeter to DC voltage and test power source. Confirm the
correct voltage before connecting luminaire to power source. If the
voltage reading is more than 1 volt greater than the marked output
voltage, there is a problem with the power source or driver.
8Connect luminaire to power source via power connector. If LEDs do
not turn on, flip the polarity (+/-) or power source connection to
power connector.

Installation Instructions
8 / 9 / 2023 / Rev 0
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A1 Series |Surface
ZUCO Pivot BIOS Illuminated
(A1-ZUCO-PVT-BIOS)
Page 11 of 11
Surge Protector
SURGE PROTECTOR SPECIFICATIONS
Model Input Voltage Surge Protection Level Mounting Enclosure Material Input Needs Input Frequency
ALS-P 120V - 277V 0kV, 10kA, ANSI C62.41 Category C SnapLOCK / Footed Polycarbonate 6”, 18AWG stranded, 105°C stripped, 3/8” tinned 60Hz
0-10V WIRING DIMMING DIAGRAM
LED LIGHTING
ELECTRONIC
DRIVER
POWER SOURCE
(120 - 277V AC)
HOT (BLACK)
NEUTRAL (WHITE)
DIM+
DIM- 0-10V DIMMER
(BY OTHERS)
GROUND (GREEN)
V-
V+
HOT GROUND
NEUTRAL
SURGE PROTECTOR
FORWARD / REVERSE PHASE DIMMING WIRING DIAGRAM
LED LIGHTING
ELECTRONIC DRIVER
POWER SOURCE
(120-277VAC)
CAP OFF 10V DIMMING WIRES
HOT (BLACK)NEUTRAL (WHITE)
FORWARD OR REVERSE
PHASE DIMMER
(BY OTHERS)
LINE HOT
NEUTRAL
GROUND (GREEN)
GROUND
DIM+
DIM-
V+
V-
SURGE PROTECTOR
1.0”
1.52”
.26”
.26”
.25”ø 1.14”
.41”
2.91”
1.91”
1.16”
.09”
.58”
CASE DIMENSIONS
The Surge Series are 3-leaded devices that protect Line-Ground, Line-
Neutral, and Neutral-Ground in accordance with IEEE / ANSI C62.41.2
guidelines. Protects against surges according to IE EE C62.41.2 C High
(10kA and 10kV). Surge current rating = 10,000 Amps using industry
standard 8/20 �Sec wave. Surge Location Rated Category C3. UL
Recognized Component in the United States and Canada (UL1449).
Type 4 Surge Protection Device. High temperature, flame retardant
plastic enclosure, 85°C maximum surface temperature rating. Thermally
Protected Transient Over-voltage Circuit.
PRODUCT FEATURES
The Surge series of products are designed to be used in conjunction
with LED Drivers and fixtures to provide an additional level of
protection against powerline disturbances in industrial, commercial
and residential applications where surge protection to IEEE C62.41.2 is
required.
PRODUCT SPECIFICATIONS
