ALUZ A8-ZIZA-TAPE User manual

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 1 of 11
9 / 1 / 2021 / Rev 0
Tape
ZIZA
A8-ZIZA-TAPE Overview
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
ELECTRICAL
Dimming DMX
Maximum Run
(Class 1 Applications)
21’ (5.5W)
26’ (4.5W)
Maximum Run
(Class 2 Applications)
17’ (5.5W)
21’ (4.5W)
Luminaire Voltage 24V DC
PRODUCT INFORMATION
• For accent, decorative, surface, recessed, or pendant lighting.
• 24 Volts DC for easy and safe installation.
• Long life, energy efficient LEDs.
• Can be ordered to specific lengths for when exact dimensions are known
Example: 10 x 10’6”
• Plug and light system.
• Lead wires are typically 36” long and exit on one end.
ELECTRICAL REQUIREMENTS
• Luminaires require a 24 Volt DC remote driver.
• To calculate driver size, determine Watts per Foot.
Example: 4.5W per Foot
• Determine Length in Feet.
Example: 10’
• Calculate Load: Multiply Watts per Foot x Length in Feet
Example: 4.5W x 10’= 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37’ from driver to first LED.
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
INSTALLATION TOOLS REQUIRED
INSTALLATION RECOMMENDATIONS
• Luminaires must be mechanically attached directly to mounting surface using
mounting clips, channels, or other appropriate means. Refer to installation step
by step pages for details.
• Conduit raceway should be sleeved at one end for low voltage wires going to
driver.
GENERAL FEATURES
Applications Accent, Decorative, Surface, Recessed, Pendant Lighting
Viewing Angle 120°
Length Built to Order (+/- 1/8” Tolerance)
Construction Flexible LED Tape
Weight 0.016 lbs per foot
Mounting Mounting Channel or Mounting Clips (Sold Separately)
Listing
Dry or Wet (IP67) Location
UL2108, CSA C22.2 #9
UL8750, CSA250
Driver Remote (Sold Separately)
Temperature
Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)
Installation Link
END VIEWS / DIMENSIONS
.46”
.09”
Dry Location
(All Wattages)
.47”
.36”
Wet Location
(4.5W)
.78”
.75”
Wet Location
(5.5W)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 2 of 11
9 / 1 / 2021 / Rev 0
Tape
ZIZA
A8-ZIZA-TAPE Product Care & Maintenance
Fig. 1 Fig. 2
Fig. 12
Fig. 3
Fig. 13
Fig. 4
<1.5”
Fig. 9
Fig. 14
Fig. 10
Fig. 15
Fig. 11
Fig. 7
Fig. 8
Fig. 5 Fig. 6

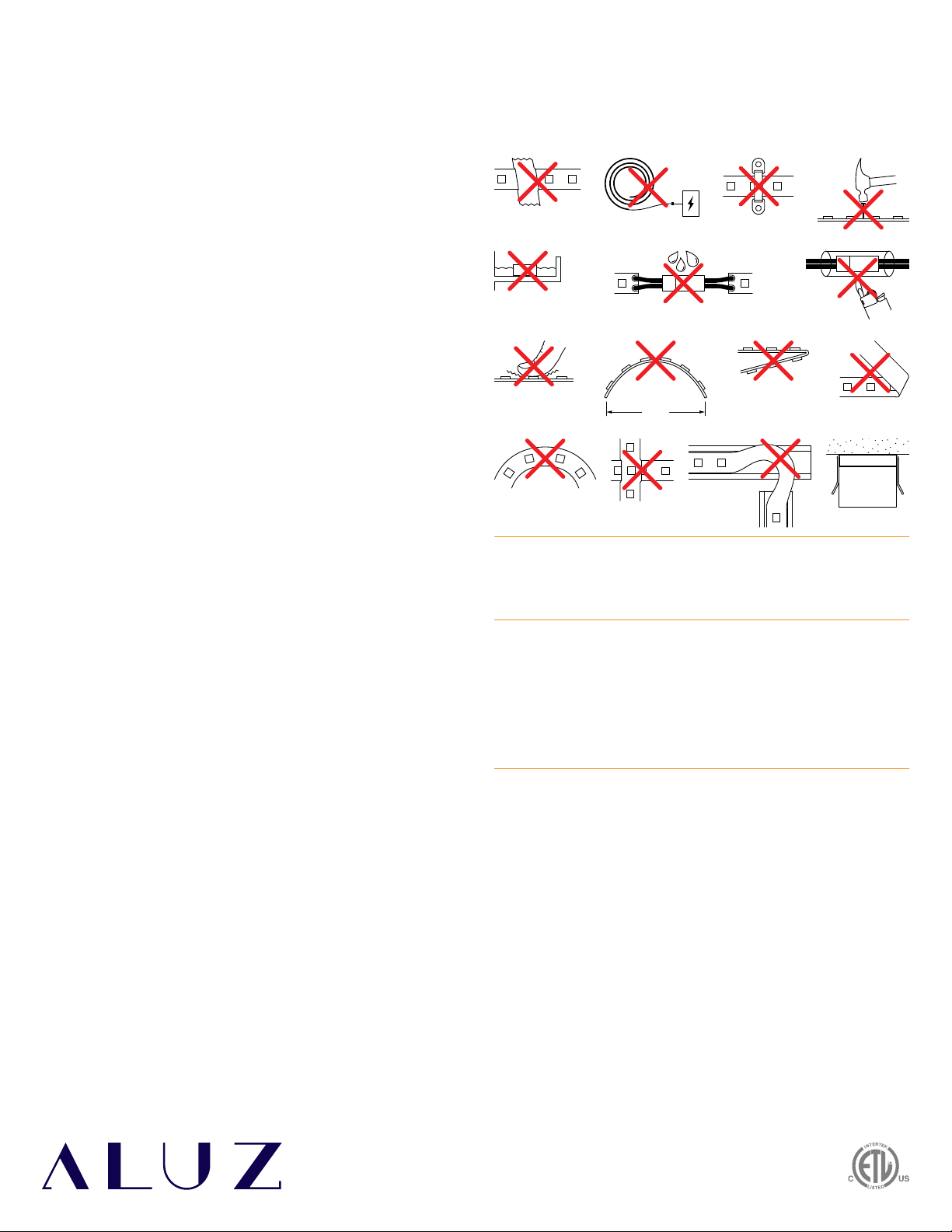

FIGURES
CLEANING MATERIALS
The use of solvents and/or cleaners which are not compatible with polycarbonate
will result in the softening, crazing, and/or cracking of the plastic part. This is
especially true of polycarbonate lamps and mounting bases which may be under
stress in their normal applications.
COMPATIBLE WITH POLYCARBONATE
• Mild soap and water
• Mineral Spirits
• Isobutyl Alcohol
• VM and P Naphtha
• Varsol No.2
• Mexane
• Freone TF and TE-35
• Ethanol
• Dirtex
• 2% Sol. Reg. Joy
• 10% Sol Bon Ami
• White Kerosene
• Methyl Alcohol
• Heptane
• Petroleum Ether / 65°C
• Isopropyl Alcohol
• Lacryl PCL-2035
Polycarbonate Cleaner
NOT COMPATIBLE WITH POLYCARBONATE
• Trichlor
• Gasoline
• Liquid Detergents
• Acetone
• Carbon Tetrachloride
• Pink Lux (Phosphate free)
• Triclene
• Chlorinated Hydrocarbons
• #1 & #3 Denatured Alcohol
• Methyl Ethyl Keytone (MEK)
• Texize-8006, 8129, 8758
• MIBK
• Liquid Cleaner – 8211
• Toluol
• Agitene
• Benzol
• Ajax
• Kleenol Plastics
• Lysol
• Stanisol Naphtha
• Oils
• Lemon Joy (phosphate free)
• Diversol
• Lestoil
WARNING
When using LED Lightstrip for any application, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and personal
injury. LED Lightstrip must be installed in accordance with the NEC or CEC as
applicable. ALUZ will not be responsible for any damage or malfunction caused
by the following:
• Ensure power is off before installation begins, during replacements, additions,
or repairs.
• Do not use LED Lightstrip if damaged, such as broken boards, loose connections,
or frayed wire insulation. Inspect before installing.
• Do not install LED Lightstrip in hazardous locations.
• Do not cover LED Lightstrip with any material, as it may cause LEDs to overheat,
melt, or ignite. (Fig. 1)
• Do not paint on or over fixture lens or LEDs.
Paint or any other substance on lens or LEDs will cause a shift in color
temperature.
• Soffit must be evenly painted with a neutral white to avoid color shift.
• Do not modify LED Lightstrip in the field.
• Do not overlap LED Lightstrip luminaires in any way.
• Only use LED Lightstrip with specified rated voltages. Do not exceed the specified
voltage for any LED Lightstrip luminaire.
• Do not use LED Lightstrip extrusion as a raceway for additional wire. Non-factory
feed through wires inside LED Lightstrip will void warranty.
• Ground Fault Circuit Interrupter (GFCI) protections should be provided on circuits
or outlets when LED Lightstrip is used for outdoor applications.
• Surge protector must be set up for electrical power system to avoid damaging
LED Lightstrip lighting system.
• Do not connect wires together, follow provided wiring diagrams.
• Do not cut wire while energized.
• Do not connect LED Lightstrip lightstrip to power source while spooled or
coiled. (Fig. 2)
• Do not exceed maximum run lengths.
• Do not mount LED Lightstrip with staples, nails, or like means that might
damage the insulation.
Mount with double-sided tape and mounting clips.
• Do not install mounting clips over LED diodes.
(Fig. 3)
• Do not penetrate LED Lightstrip lightstrip with any foreign object.
(Fig. 4)
• Do not mount LED Lightstrip inside tanks or enclosures of any kind.
• Do not use improper screw head type on mounting clips. It will cause the
mounting clip to open up and become dysfunctional.
• Do not modify mounting clips.
• Do not mount fixture with less than the minimum number of mounting
clips required.
See mounting clips section for details.
• Do not force LED Lightstrip into a space that is too small.
• Do not force LED Lightstrip with cord grip into soffit.
• Do not install LED Lightstrip at an angle within a cove. Only install fixtures
straight within a cove.
• Do not bend extrusion around radius.
• Do not submerge dry or wet location LED Lightstrip in any liquid.
• Do not install wet location in outdoor coves without proper drainage.
(Fig. 5)
• Do not install LED Lightstrip in any area that is continuously exposed to flowing
or pooling water, such as underneath drain pipes, sprinklers, fountains, misters, etc.
• Do not install connectors without shrink tube for wet location.
(Fig. 6)
• Do nut use a lighter or open flame to heat shrink tube.
(Fig. 7)
• Do not cut, puncture, or penetrate LED Lightstrip aluminum housing, end caps, or
lens covers.
• Do not drop, bang, or rest weight upon LED Lightstrip.
• Do not apply excessive pressure to any part of LED Lightstrip lightstrip or LEDs.
(Fig. 8)
• Do not bend LED Lightstrip power cord or continuous connector past permitted
bend radius.
Bending past permitted bend radius will break the seal of the cordgrip or
damage the insulation. 1.5” minimum bend radius. (Fig. 9)
• Do not install LED Lightstrip lightstrip in a zig zag fashion.
(Fig. 10)
• Do not fold, crease, or twist LED Lightstrip lightstrip.
(Fig. 11)
• Do not bend lightstrip along a horizontal plane.
(Fig. 12)
• Do not overlap LED Lightstrip at any location.
(Fig. 13)
• Do not cross or overlap extrusions and twist lightstrip to overlap.
(Fig. 14)
• Do not install LED Lightstrip in places where the power cord is subject to
continuous flexing.
• Do not twist continuous connector or power cord.
• Do not hold, carry, or suspend LED Lightstrip by the power cord.
• Do not install LED Lightstrip on ceilings without mounting clips.
(Fig. 15)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 3 of 11
9 / 1 / 2021 / Rev 0
Tape
ZIZA
A8-ZIZA-TAPE
Figure 1 Figure 2 Figure 3

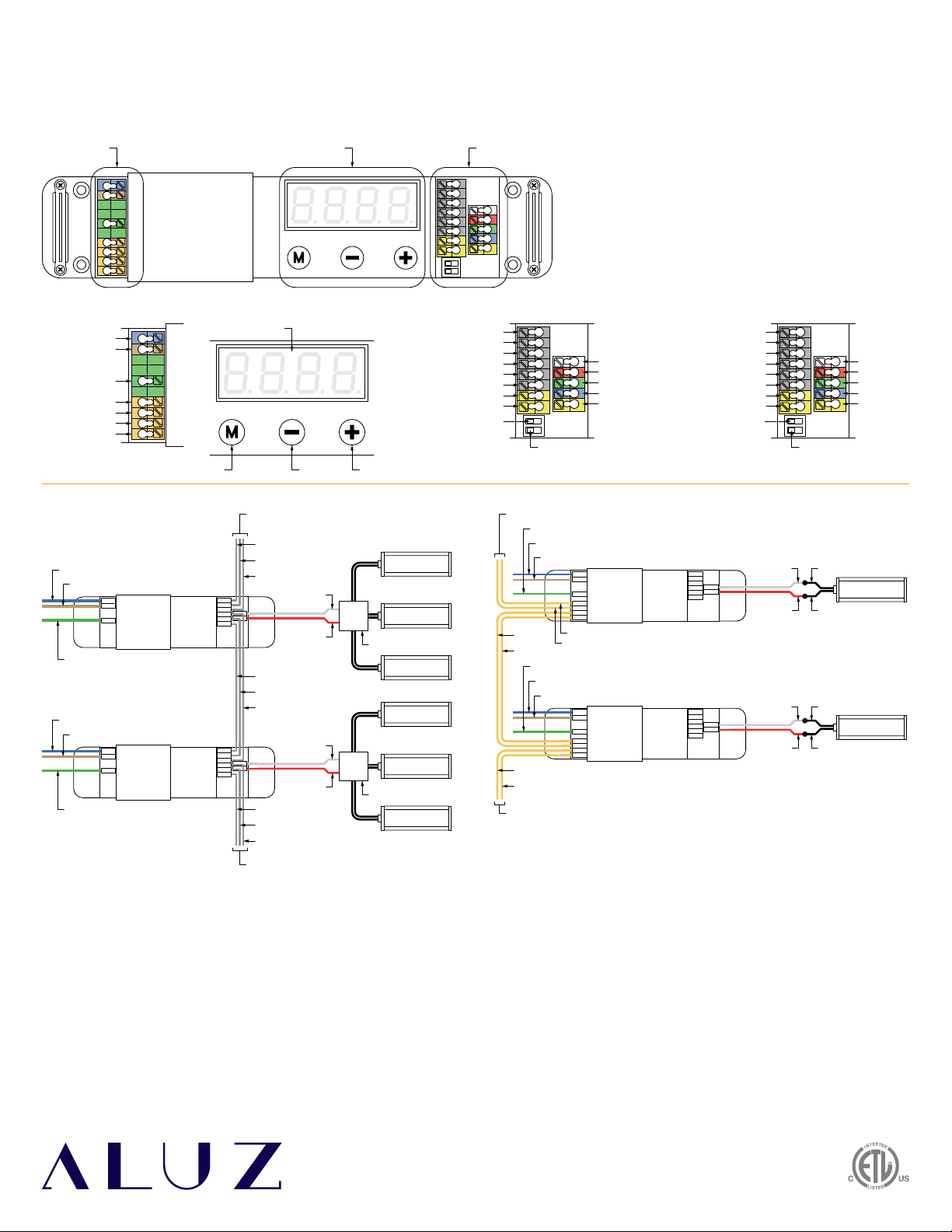

DIAGRAM OF DRIVER
Neutral (Blue)
Line / Hot (Brown)
Ground (Green)
DALI+
DALI-
DALI-
DALI+
FIGURE 1 (INPUT)
Control Interface
Mode (-) (+)
FIGURE 2 (INTERFACE)
DIP Switch 1
(Set to left for 24V)
DMX+ Input
DMX- Input
DMX Ground / Shield Input
DMX+ Output
DMX- Output
DMX Ground / Shield Output
EXT+ Input
EXT- Input
Common (+)
Channel 1 (- / Red)
Channel 2 (Green)
Channel 3 (Blue)
Channel 4 (White)
Not Used
FIGURE 3 (DMX OUTPUT)
DIP Switch 1
(Set to left for 24V)
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
EXT+ Input
EXT- Input
Common (+)
Channel 1 (-)
Not Used
Not Used
Not Used
Not Used
FIGURE 4 (DALI OUTPUT)
LED Lighting
LED Lighting
LED Lighting
LED Lighting
LED Lighting
LED Lighting
Neutral (Blue)
Line / Hot (Brown)
DMX-
DMX+
DMX Ground / Shield
DMX-
DMX+
DMX Ground / Shield
DMX Input
(from control system, by others)
Ground (Green)
J-Box (by others)
Common +
Channel 1 -
Neutral (Blue)
Line / Hot (Brown)
Ground (Green)
J-Box (by others)
Common +
Channel 1 -
DMX-
DMX+
DMX Ground / Shield
DMX Output
(to next driver, if applicable)
TYPICAL DAISY CHAIN LAYOUT (DMX STATIC COLOR)
LED Lighting
LED Lighting
Ground (Green)
Line / Hot (Brown)
Neutral (Blue)
V+
V-
Common +
Channel 1 -
Ground (Green)
Line / Hot (Brown)
Neutral (Blue)
V+
V-
Common +
Channel 1 -
DALI Output
(to next driver, if applicable)
DALI Input (from control system, by others)
DALI-
DALI+
DALI-
DALI+
DALI+
DALI-
TYPICAL DAISY CHAIN LAYOUT (DALI STATIC COLOR)
• DALI commissioning to be performed by a third party at time of installation.
ALUZ does not provide DALI commissioning.
• Wire colors on diagram correspond to colors of driver terminals.
• Driver load not to exceed 100W.
It is recommended to only load drivers to 80% for best dimming performance.
• A DALI Control System (by others) must be used to operate the drivers.
• Ensure DIP Switch 1 is set to ON (Left) to activate 24V operation.
• DALI Address must be set for each driver.
• Up to 28 drivers may be daisy chained together using shielded cable specified for
DALI wiring.
NOTES (DALI)
NOTES (DMX)
• Default DMX address of each luminaire is 001. Consult third party DMX
commissioner to modify at time of installation. ALUZ does not provide DMX
commissioning.
• DMX Address must be set for each driver. Default DMX address for each driver is 001.
• A DMX Control System (by others) must be used to operate the system.
• The last driver in a daisy chain sequence must be terminated.
• Up to 28 drivers may be daisy chained together using shielded cable specified for
DMX wiring.
• Wire colors on diagram correspond to colors of driver terminals.
• Driver load not to exceed 96W.
It is recommended to only load drivers to 80% for best dimming performance.
• Ensure DIP Switch 1 is set to ON (Left) to activate 24V operation.
Dimming Protocol & Wiring Diagrams (DMX & DALI Driver - DRV100-E)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 4 of 11
9 / 1 / 2021 / Rev 0
Tape
ZIZA
A8-ZIZA-TAPE
SET MODE
(HOLD 5 SEC.)
COLR
SHOW
DMX
DALI
DISPLAY OFF
1-1L RGB
2-2L RGBW
3-3L RGBA
4-4L RRGB
2-4L RGGB
1-4L CCWW
CWWW
LOG
LIN
LED GROUPS
EXTERNAL INPUT
DIMMING CURVE
DISPLAY OFF
OFF
POTM
10V
SWIT
MODE OF OPERATION
SET LED GROUPS
STANDALONE OPERATION (Color / Show)
STANDALONE OPERATION (Network Operation)
HUE
0 - 1535
WHITE
0 - 510
INTENSITY
0 - 255
DISPLAY OFF
Color
SHOW
00 - 20
SPEED
-99 - 99
INTENSITY
0 - 255
DISPLAY OFF
Show
DMX ADDRESS
NETWORK RESOLUTION
DMX TERMINATION
NETWORK SETUP
INTERPOLATION
1 - 512
8 BT
16 BT
YES
NO
AUTO
MANU
OFF
VID
COLR
WHIT
GLOW
DISPLAY OFF
Set DMX Address
NO ADDRESS ADDRESS SET
NO. OF BALLASTS
DISPLAY OFF
Set DALI Address
OTHER FUNCTIONS
NO
SOFT
HARD
LOCK DRIVER
DISPLAY OFF
(HOLD 5 SEC.)
Lock Driver
TEST
DISPLAY OFF
R 1 SEC
G 1 SEC
B 1 SEC
B 1 SEC
W 1 SEC
RGBW 1 SEC
R 1 SEC
G 1 SEC
B 1 SEC
W 1 SEC
RGBW 1 SEC
Visual Test
RESET
PRESS MENU
(HOLD 5 SEC.)
DISPLAY OFF
Reset
Driver Functions (DMX & DALI Driver - DRV100-E)

ALUZ
1170 North Red Gum Street, Anaheim, CA 92806
Phone: [phone] or 714 535 7900 | Fax: [phone] | [email protected] | aluz.lighting
©ALUZ All rights reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
Installation Instructions
Page 5 of 11
9 / 1 / 2021 / Rev 0
Tape
ZIZA

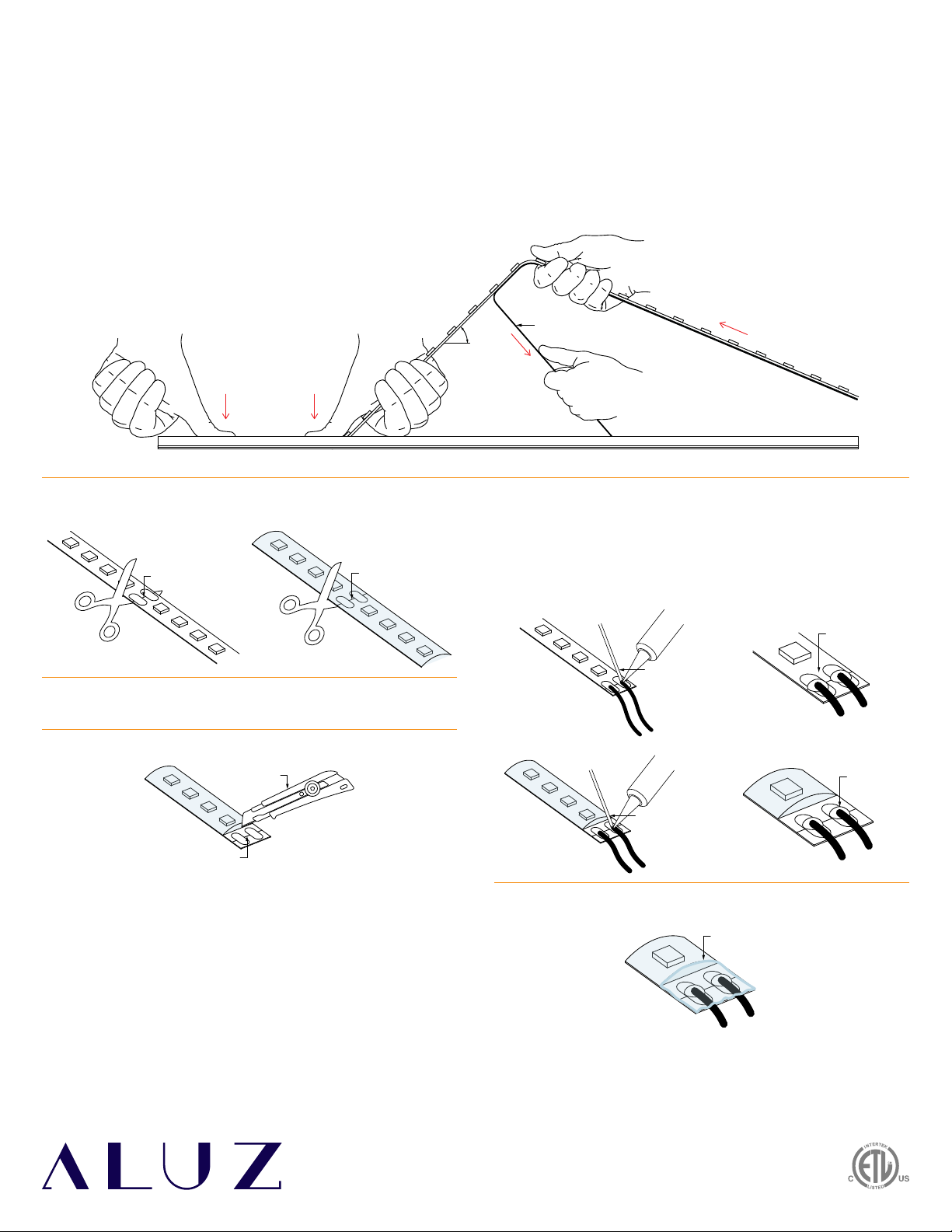

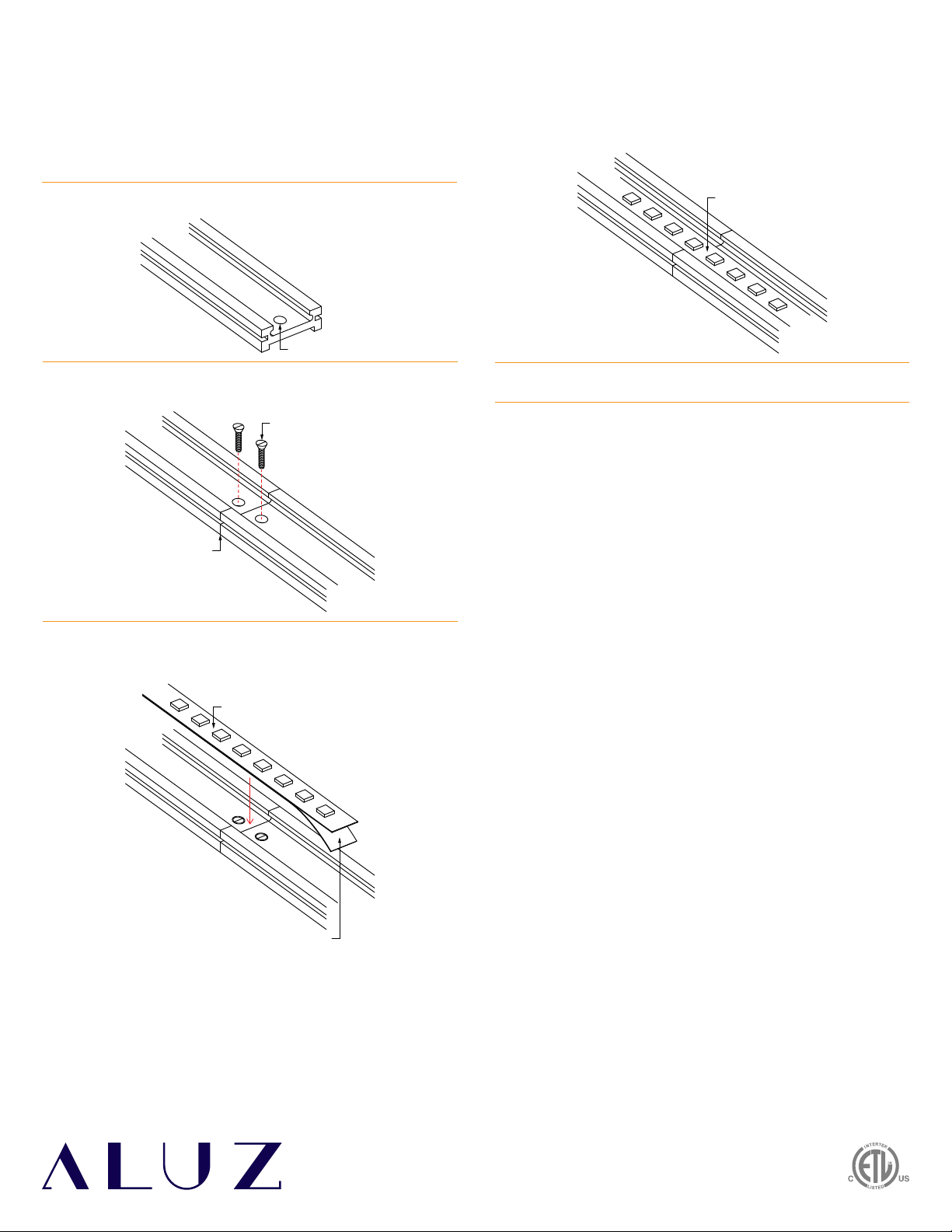

A8-ZIZA-TAPE Application Guidelines
Apply pressure to lightstrip,
ensuring adherence to extrusion
45°
One person applies pressure to lightstrip, securing it to extrusion Another person unreels lightstrip from spool, holding at a 45° angle.
Remove adhesive backing
Installers must wear gloves to protect LEDs
Feed from wire puller stand
LED LIGHTSTRIP
• Extrusions are shipped to exact length of specified measurements.
• Due to cut increment restrictions (2”,+/- 0.125” Tolerance), lightstrip is shipped
to the closest measurement ordered. The lightstrip must be centered inside the
extrusion.
NOTE
• Follow the below diagrams and steps if applicable to your installation.
• LED lightstrip and modules require a team effort to ensure a secure and correct
installation.
• Use a wire puller stand to prevent tangles, twists, and snags when installing.
• For Mud-In applications, start lightstrip from power source side and allow up to
2” of excess lightstrip to exit through end cap.
APPLICATION GUIDELINES
Mat Knife
Remove encapsulation
from solder pads
Cut to size Cut to size
Weller 0.50” solder wire
Solder covering
wire and pads
Weller 0.50” solder wire
Solder covering
wire and pads
Cover connections
with silicone

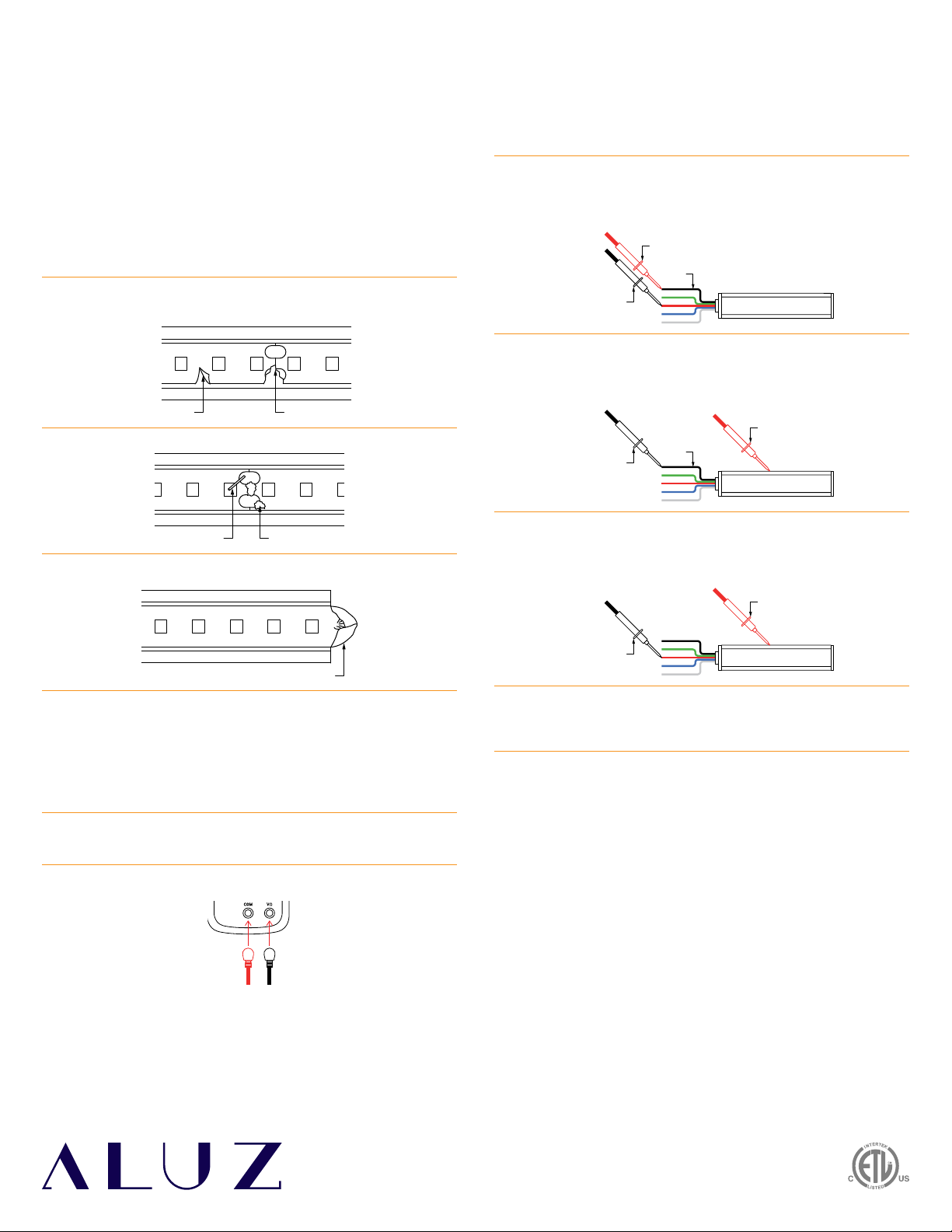

SOLDERING GUIDE
1
Cut lightstrip to desired length. Include both sets of solder pads by cutting to
the left or right of designated markings, allowing more space for soldering. 4Solder lead wires to solder pads on the end of lightstrip. Solder the positive wire (Red or Black with ridged jacket) to the pad marked “+24V”. Solder the
neutral wire (White or Black with smooth jacket) to the pad marked “-”.
Note: Solder iron not to exceed 720°F. Heat joint with tip of iron. Heat both
the solder pad and the wire. Add a small drop of solder on the tip of solder
iron to transfer the heat to joint quickly; it should melt and flow smoothly,
covering the wire and pad. Remove iron once enough solder has been added
to the components. Allow 5 seconds for the joint to cool.
3
If applicable, use a mat knife to remove encapsulation from the section of
lightstrip with solder pads. If lightstrip is not encapsulated, skip this step.
Note: Appearance of lightstrip may differ from example shown.
Refer to wiring diagrams before soldering any wires.
2
Prepare wires by stripping 1/8” from the end of each wire, then tin the tips of
the wire with solder. Apply heat to stripped portion of wire, then add a small
amount of solder until stripped portion of wire is fully covered in solder.
5If applicable, apply silicone over soldered connections. All connections must
be completely covered with silicone to create weatherproof seal. Only use
outdoor rated silicone. If lightstrip is not encapsulated, skip this step.
