ALUZ A8 Series User manual

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 1 of 13
Overview
READ ENTIRE GUIDE BEFORE STARTING INSTALLATION
Important Notice: Verify correct luminaire was received with correct
color temperature, voltage, and wattage before cutting or installing.
ALUZ will not be responsible if incorrect luminaire is installed.
ELECTRICAL
Dimming DMX
Maximum Run
(Class 1 Applications)
21’ (5.5W)
26’ (4.5W)
Maximum Run
(Class 2 Applications)
15’ (5.5W)
18’ (4.5W)
Luminaire Voltage 24VDC
PRODUCT INFORMATION
• For accent, decorative, surface, recessed, or pendant lighting.
• 24 Volts DC for easy and safe installation.
• Long life, energy efficient LEDs.
• Can be ordered to specific lengths for when exact dimensions are known
Example: 10 x 10’6”
• Plug and light system.
• Lead wires are typically 36” long and exit on one end.
ELECTRICAL REQUIREMENTS
• Luminaires require a 24 Volt DC remote driver.
• To calculate driver size, determine Watts per Foot.
Example: 4.5W per Foot
• Determine Length in Feet.
Example: 10’
• Calculate Load: Multiply Watts per Foot x Length in Feet
Example: 4.5W x 10’= 45W
• Choose a driver from catalog.
Example: 60 Watt Driver
• Determine maximum driver distance using Maximum Wire Length Table on
drivers page.
Example: 45 watts is between 40W and 60W. Using #14 wire, maximum distance
is 37’ from driver to first LED.
• Electric Hammer Drill
• 14.4 to 28 Volt Cordless Drill
• Phillips Bits
• Utility Knife
• Electrical Cord
• Marker
• Wire Stripper
• Long Nose Pliers
• Drill Bits - Concrete or Wood
• Electrical Three Ways
• Safety Glasses
• Measuring Tape
• Laser Line or Chalk Line
INSTALLATION TOOLS REQUIRED
INSTALLATION RECOMMENDATIONS
• Luminaires must be mechanically attached directly to mounting surface using
mounting clips, channels, or other appropriate means.
Refer to installation step by step pages for details.
• Conduit raceway should be sleeved at one end for low voltage wires going to driver.
.46”
.09”
Dry Location
.78”
.75”
Wet Location
END VIEWS / DIMENSIONS
Dry Power Connector
20/5 Gauge Wire
(A8-PC-5P-DRY)
Surface Mount LED
(Included)
Adhesive Backing
(Included)
LED Lightstrip
1.5 Minimum Bend Radius
(A8-ZIZA-TAPE)
GENERAL FEATURES
Applications Accent, Decorative, Surface, Recessed, Pendant Lighting
Viewing Angle 120°
Length Built to Order (+/- 1/8” Tolerance)
Construction Flexible LED Tape
Assembly Increment 4”
Field Cutting Dry Location Only
Weight 0.016 lbs per foot
Mounting Mounting Channel or Mounting Clips (Sold Separately)
Listing
Dry or Wet (IP67) Location
UL2108, 67.1.9, 60.4, CSA C22.2 #9
UL8750, CSA250
Driver Remote (Sold Separately)
Temperature Ratings Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)
Installation Link

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 2 of 13
Product Care & Maintenance
Fig. 1 Fig. 2
Fig. 12
Fig. 3
Fig. 13
Fig. 4
<1.5”
Fig. 9
Fig. 14
Fig. 10
Fig. 15
Fig. 11
Fig. 7
Fig. 8
Fig. 5 Fig. 6
FIGURES
CLEANING MATERIALS
The use of solvents and/or cleaners which are not compatible with polycarbonate
will result in the softening, crazing, and/or cracking of the plastic part. This is
especially true of polycarbonate lamps and mounting bases which may be under
stress in their normal applications.
COMPATIBLE WITH POLYCARBONATE
• Mild soap and water
• Mineral Spirits
• Isobutyl Alcohol
• VM and P Naphtha
• Varsol No.2
• Mexane
• Freone TF and TE-35
• Ethanol
• Dirtex
• 2% Sol. Reg. Joy
• 10% Sol Bon Ami
• White Kerosene
• Methyl Alcohol
• Heptane
• Petroleum Ether / 65°C
• Isopropyl Alcohol
• Lacryl PCL-2035
Polycarbonate Cleaner
NOT COMPATIBLE WITH POLYCARBONATE
• Trichlor
• Gasoline
• Liquid Detergents
• Acetone
• Carbon Tetrachloride
• Pink Lux (Phosphate free)
• Triclene
• Chlorinated Hydrocarbons
• #1 & #3 Denatured Alcohol
• Methyl Ethyl Keytone (MEK)
• Texize-8006, 8129, 8758
• MIBK
• Liquid Cleaner – 8211
• Toluol
• Agitene
• Benzol
• Ajax
• Kleenol Plastics
• Lysol
• Stanisol Naphtha
• Oils
• Lemon Joy (phosphate free)
• Diversol
• Lestoil

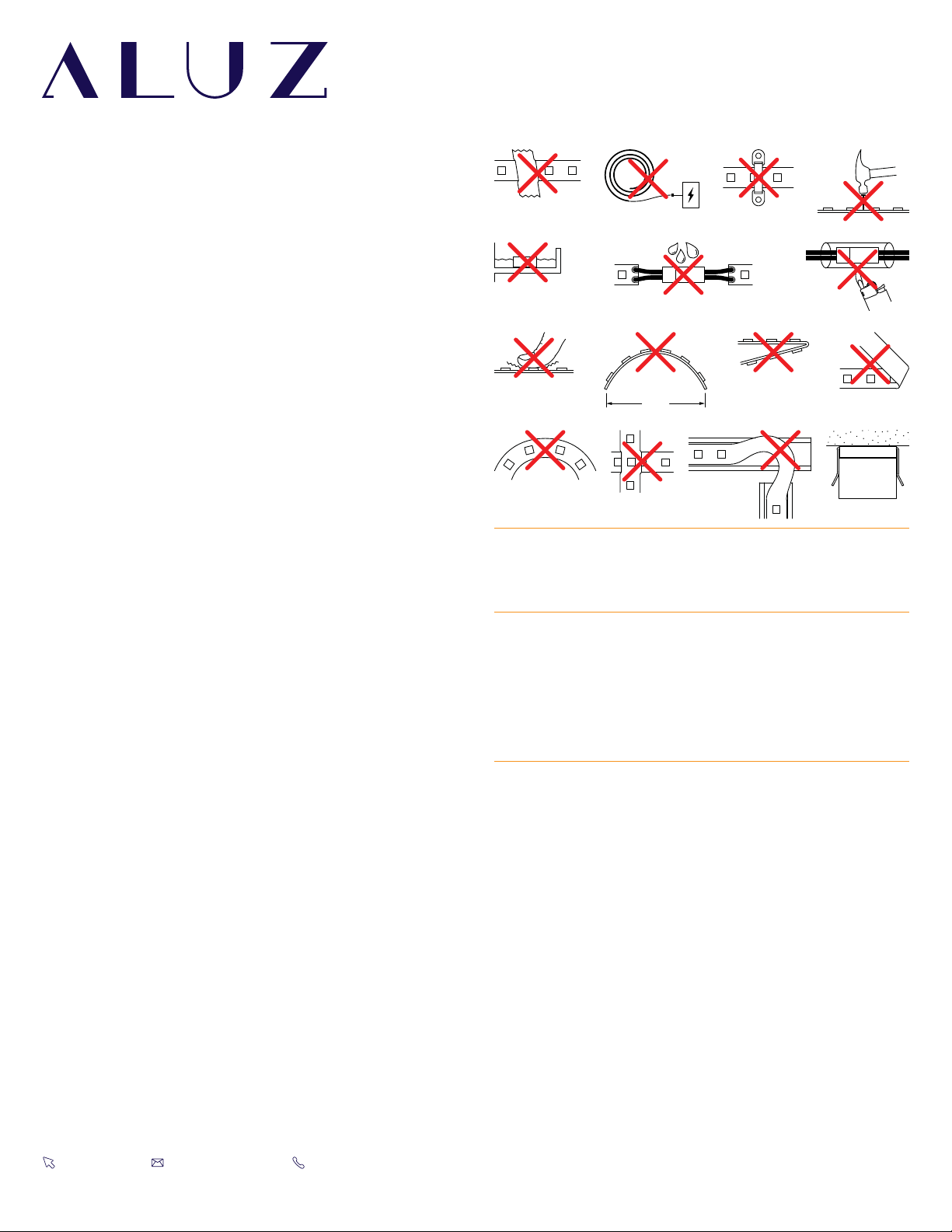

WARNING
When using LED Lightstrip for any application, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and personal
injury. LED Lightstrip must be installed in accordance with the NEC or CEC as
applicable. ALUZ will not be responsible for any damage or malfunction caused
by the following:
• Ensure power is off before installation begins, during replacements, additions,
or repairs.
• Do not use LED Lightstrip if damaged, such as broken boards, loose connections,
or frayed wire insulation. Inspect before installing.
• Do not install LED Lightstrip in hazardous locations.
• Do not cover LED Lightstrip with any material, as it may cause LEDs to overheat,
melt, or ignite. (Fig. 1)
• Do not paint on or over fixture lens or LEDs.
Paint or any other substance on lens or LEDs will cause a shift in color
temperature.
• Soffit must be evenly painted with a neutral white to avoid color shift.
• Do not modify LED Lightstrip in the field.
• Do not overlap LED Lightstrip luminaires in any way.
• Only use LED Lightstrip with specified rated voltages. Do not exceed the specified
voltage for any LED Lightstrip luminaire.
• Do not use LED Lightstrip extrusion as a raceway for additional wire. Non-factory
feed through wires inside LED Lightstrip will void warranty.
• Ground Fault Circuit Interrupter (GFCI) protections should be provided on circuits
or outlets when LED Lightstrip is used for outdoor applications.
• Surge protector must be set up for electrical power system to avoid damaging
LED Lightstrip lighting system.
• Do not connect wires together, follow provided wiring diagrams.
• Do not cut wire while energized.
• Do not connect LED Lightstrip to power source while spooled or
coiled. (Fig. 2)
• Do not exceed maximum run lengths.
• Do not mount LED Lightstrip with staples, nails, or like means that might
damage the insulation.
Mount with double-sided tape and mounting clips.
• Do not install mounting clips over LED diodes.
(Fig. 3)
• Do not penetrate LED Lightstrip with any foreign object.
(Fig. 4)
• Do not mount LED Lightstrip inside tanks or enclosures of any kind.
• Do not use improper screw head type on mounting clips. It will cause the
mounting clip to open up and become dysfunctional.
• Do not modify mounting clips.
• Do not mount fixture with less than the minimum number of mounting
clips required. See mounting clips section for details.
• Do not force LED Lightstrip into a space that is too small.
• Do not force LED Lightstrip with cord grip into soffit.
• Do not install LED Lightstrip at an angle within a cove. Only install fixtures
straight within a cove.
• Do not bend extrusion around radius.
• Do not submerge dry or wet location LED Lightstrip in any liquid.
• Do not install wet location in outdoor coves without proper drainage.
(Fig. 5)
• Do not install LED Lightstrip in any area that is continuously exposed to flowing
or pooling water, such as underneath drain pipes, sprinklers, fountains, misters, etc.
• Do not install connectors without shrink tube for wet location.
(Fig. 6)
• Do nut use a lighter or open flame to heat shrink tube.
(Fig. 7)
• Do not cut, puncture, or penetrate LED Lightstrip aluminum housing, end caps, or
lens covers.
• Do not drop, bang, or rest weight upon LED Lightstrip.
• Do not apply excessive pressure to any part of LED Lightstrip or LEDs.
(Fig. 8)
• Do not bend LED Lightstrip power cord or continuous connector past permitted
bend radius. Bending past permitted bend radius will break the seal of the
cordgrip or damage the insulation. 1.5” minimum bend radius. (Fig. 9)
• Do not install LED Lightstrip in a zig zag fashion.
(Fig. 10)
• Do not fold, crease, or twist LED Lightstrip.
(Fig. 11)
• Do not bend lightstrip along a horizontal plane.
(Fig. 12)
• Do not overlap LED Lightstrip at any location.
(Fig. 13)
• Do not cross or overlap extrusions and twist lightstrip to overlap.
(Fig. 14)
• Do not install LED Lightstrip in places where the power cord is subject to
continuous flexing.
• Do not twist continuous connector or power cord.
• Do not hold, carry, or suspend LED Lightstrip by the power cord.
• Do not install LED Lightstrip on ceilings without mounting clips.
(Fig. 15)

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 3 of 13
Dimming Protocol
& Wiring Diagrams
(DMX & DALI Driver - DRV100-E)
• Wire colors on diagram correspond to colors of driver terminals.
• DALI commissioning to be performed by a third party at time of
installation. ALUZ does not provide DALI commissioning.
• DALI Address must be set for each driver.
• A DALI Control System (by others) must be used to operate the lighting.
• Driver load not to exceed 100W.
• For best dimming performance, it is recommended to load drivers to a
minimum of 50% (50W) and a maximum of 80% (80W).
• Up to 28 drivers may be daisy chained together using shielded cable
specified for DALI wiring.
• Ensure DIP Switch 1 is set to ON (Left) to activate 24V operation.
NOTES (DALI)
DALI OUTPUT
(TO NEXT DEVICE, IF APPLICABLE)
DALI INPUT
(FROM CONTROL SYSTEM, BY OTHERS)
TO LED LIGHTING
TO LED LIGHTING
INPUT VOLTAGE
INPUT VOLTAGE
DALI Daisy Chain
NOTES (DMX)
• Wire colors on diagram correspond to colors of driver terminals.
• Default DMX address of each luminaire is 001. Consult a third party
DMX commissioner to modify at time of installation. ALUZ does not
provide DMX commissioning.
• DMX Address must be set for each driver. Default DMX address is 001.
• A DMX Control System (by others) must be used to operate the lighting.
• The last driver in a daisy chain sequence must be terminated.
• Driver load not to exceed 100W.
• For best dimming performance, it is recommended to load drivers to a
minimum of 50% (50W) and a maximum of 80% (80W).
• Up to 28 drivers may be daisy chained together using shielded cable
specified for DMX wiring.
• Ensure DIP Switch 1 is set to ON (Left) to activate 24V operation.
DIGITAL INTERFACE
DISPLAY
MODE PLUS +MINUS -
DMX+ INPUT (GRAY)
DMX- INPUT (GRAY)
DMX GROUND INPUT (GRAY)
LED SYNC+ OUTPUT (GRAY)
LED SYNC- OUTPUT (GRAY)
LED SYNC GROUND OUTPUT (GRAY)
COMMON / V+
(WHITE)
CHANNEL 1 / -
(RED)
DMX Wiring: Static White
LED SUPPLY / +
(WHITE)
LED OUTPUT 1/ R
(RED)
LED OUTPUT 2/ G
(GREEN)
LED OUTPUT 3 / B
(BLUE)
LED OUTPUT 4
/ W
(YELLOW)
DMX+ INPUT (GRAY)
DMX- INPUT (GRAY)
DMX GROUND INPUT (GRAY)
LED SYNC+ OUTPUT (GRAY)
LED SYNC- OUTPUT (GRAY)
LED SYNC GROUND OUTPUT (GRAY)
DMX Wiring: RGBW
DMX+ INPUT (GRAY)
DMX- INPUT (GRAY)
DMX GROUND INPUT (GRAY)
LED SYNC+ OUTPUT (GRAY)
LED SYNC- OUTPUT (GRAY)
LED SYNC GROUND OUTPUT (GRAY)
COMMON / +
(WHITE)
CHANNEL 1 / WARM WHITE
(RED)
CHANNEL 2 / COOL WHITE
(GREEN)
DMX Wiring: Dynamic White (DWH)
DMX OUTPUT
(TO NEXT DEVICE, IF APPLICABLE)
DMX INPUT
(FROM CONTROL SYSTEM, BY OTHERS)
INPUT VOLTAGE
INPUT VOLTAGE
TO LED LIGHTING
TO LED LIGHTING
DMX Daisy Chain
DIAGRAM OF DRIVER
NEUTRAL (BLUE)
LINE / HOT (BROWN)
GROUND (GREEN)
DMX+ INPUT (GRAY)
DMX- INPUT (GRAY)
DMX GROUND INPUT (GRAY)
DALI+ (ORANGE)
DALI- (ORANGE)
COMMON + (WHITE)
CHANNEL 1- (RED)
CHANNEL 2- (GREEN)
DALI+ (ORANGE)
DALI- (ORANGE)
LEDSYNC GROUND OUTPUT (GRAY)
EXT+ INPUT (YELLOW)
LEDSYNC- OUTPUT (GRAY)
LEDSYNC+ OUTPUT (GRAY)
EXT- INPUT (YELLOW)
CHANNEL 3- (BLUE)
CHANNEL 4- (YELLOW)
INPUT VOLTAGE
120V - 277VAC

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 4 of 13
Driver Functions
(DMX & DALI Driver - DRV100-E)
STANDALONE OPERATION (Network Operation)
OTHER FUNCTIONS
SET MODE
(HOLD 5 SEC.)
COLR
SHOW
DMX
DALI
DISPLAY OFF
MODE OF OPERATION
• Set Mode to DMX or DALI
1-1L
2-2L
3-3L
4-4L
2-4L
1-4L
RGB
RGBW
RGBA
RRGB
RGGB
CCWW
CWWW
LOG
LIN
LED GROUPS
EXTERNAL INPUT
DIMMING CURVE
DISPLAY OFF
OFF
POTM
10V
SWIT
SET LED GROUPS
• Set LED Groups to RGBW for RGBW lighting.
• Set LED Groups to CCWW for Dynamic White lighting.
• Set External Input to OFF.
• Set Dimming Curve to Linear.
STANDALONE OPERATION (Color / Show)
HUE
0 - 1535
WHITE
0 - 510
INTENSITY
0 - 255
DISPLAY OFF
Color
SHOW
00 - 20
SPEED
-99 - 99
INTENSITY
0 - 255
DISPLAY OFF
Show
• Standalone Operation should only be used when a control system is
not present to control the lighting (not recommended).
DMX ADDRESS
NETWORK RESOLUTION
DMX TERMINATION
NETWORK SETUP
INTERPOLATION
1 - 512
8 BT
16 BT
YES
NO
AUTO
MANU
OFF
VID
COLR
WHIT
GLOW
DISPLAY OFF
NO ADDRESS ADDRESS SET
NO. OF BALLASTS
DISPLAY OFF
Set DMX Address Set DALI Address
• Consult with a third-party DMX or DALI professional to determine
which settings are best for your application. ALUZ does not provide
DMX or DALI commissioning.
NO
SOFT
HARD
LOCK DRIVER
DISPLAY OFF
(HOLD 5 SEC.)
Lock Driver
TEST
DISPLAY OFF
R 1 SEC
G 1 SEC
B 1 SEC
B 1 SEC
W 1 SEC
RGBW 1 SEC
R 1 SEC
G 1 SEC
B 1 SEC
W 1 SEC
RGBW 1 SEC
Visual Test
RESET
PRESS MENU
(HOLD 5 SEC.)
DISPLAY OFF
Reset Settings
• Always perform the visual test function after wiring to ensure all
channels are behaving appropriately.
• Reset driver to factory settings if necessary. It is recommended to reset
each driver before adjusting settings for the first time.
• Lock driver if applicable (not recommended).

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 5 of 13
Application Guidelines
45°
ANOTHER PERSON UNREELS LIGHTSTRIP FROM SPOOL, HOLDING AT A 45° ANGLE.
FEED FROM WIRE PULLER STAND
INSTALLERS MUST WEAR GLOVES TO PROTECT LEDS
ONE PERSON APPLIES PRESSURE TO LIGHTSTRIP, SECURING IT TO EXTRUSION
APPLY PRESSURE
TO LIGHTSTRIP,
ENSURING ADHERENCE
TO EXTRUSION
REMOVE ADHESIVE BACKING
LED LIGHTSTRIP
• Extrusions are shipped to exact length of specified measurements.
• Due to cut increment restrictions (4”,+/- 0.125” Tolerance), the lightstrip is shipped to
the closest measurement ordered. The lightstrip must be centered in the extrusion.
• Remove adhesive backing completely to allow heat transfer tape to make
contact with the aluminum extrusion.
• Improper field cutting or soldering of lightstrip will void warranty. The below
steps must be followed and performed properly to retain warranty. Field cutting
& soldering is only applicable to Dry, Damp, and Wet Locations. IP67 rated
products are not field cuttable.
NOTE
• Follow the below diagrams and steps if applicable to your installation.
• LED lightstrip and modules require a team effort to ensure a secure and correct
installation.
• Use a wire puller stand to prevent tangles, twists, and snags.
• For Mud-In applications, start lightstrip from power source side and allow up to
2” of excess lightstrip to exit through end cap.
APPLICATION GUIDELINES
REMOVE ENCAPSULATION
FROM SOLDER PADS
MAT KNIFE
CUT TO SIZE CUT TO SIZE
WELLER 0.50”
SOLDER WIRE
SOLDER COVERING
WIRE AND PADS
WELLER 0.50”
SOLDER WIRE
SOLDER COVERING
WIRE AND PADS
COVER CONNECTIONS
WITH SILICONE
SOLDERING GUIDE
1
Cut lightstrip to desired length. Include both sets of solder pads by
cutting to the left or right of designated markings, allowing more
space for soldering.
2
Prepare wires by stripping 1/8” from the end of each wire, then tin
the tips of the wire with solder. Apply heat to stripped portion of
wire, then add a small amount of solder until stripped portion of
wire is fully covered in solder.
3
If applicable, use a mat knife to remove encapsulation from
the section of lightstrip with solder pads. If lightstrip is not
encapsulated, skip this step.
5If applicable, apply silicone over soldered connections. All
connections must be completely covered with silicone to create
weatherproof seal. Only use outdoor rated silicone. If lightstrip is
not encapsulated, skip this step.
Note:
Appearance of lightstrip may differ from example shown.
Refer to wiring diagrams before soldering any wires.
4Solder lead wires to solder pads on the end of lightstrip.
• Solder the Black wire to the pad marked “+24V”.
• Solder the Green wire to the pad marked “G”.
• Solder the Red wire to the pad marked “R”.
• Solder the Blue wire to the pad marked “B”.
• Solder the White wire to the pad marked “W”.
Note: Solder iron not to exceed 720°F. Heat joint with tip of iron.
Heat both the solder pad and the wire. Add a small drop of solder
on the tip of solder iron to transfer the heat to joint quickly; it
should melt and flow smoothly, covering the wire and pad.
Remove iron once enough solder has been added to the
components. Allow 5 seconds for the joint to cool.

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 6 of 13
Mounting Clips

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 7 of 13

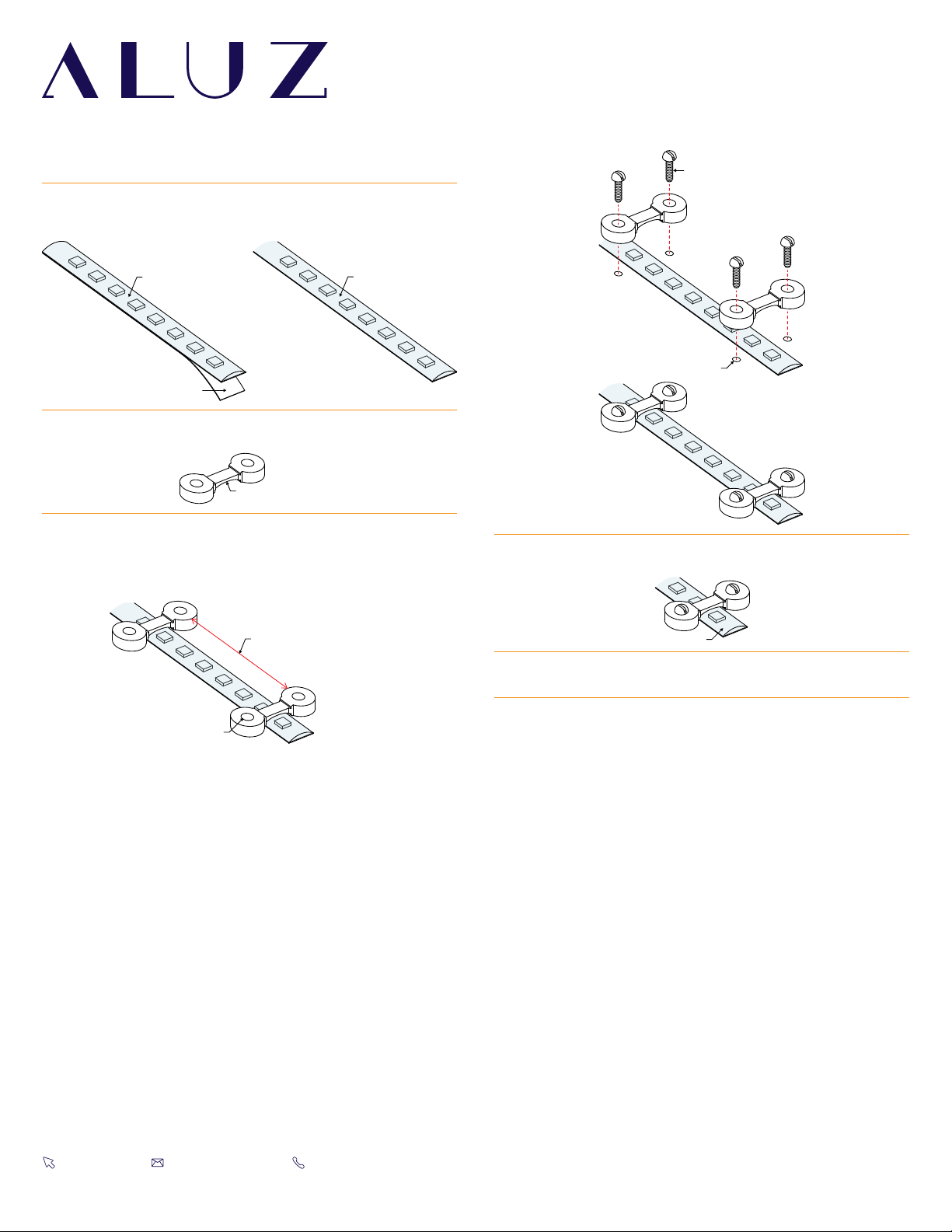

Mounting Lightstrip
(Dry Location Mounting Clips)
8Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
7If applicable, connect disconnects between luminaires or solder
connectors using the steps on Application Guidelines.
REMOVE ADHESIVE BACKING
LED LIGHTSTRIP ENSURE LIGHTSTRIP
IS SECURELY MOUNTED
6” FOR STANDARD APPLICATIONS
4” IF FACING OUT OR DOWN
PRE-DRILL HOLES
WHERE SCREWS
WILL BE INSTALLED
PRE-DRILLED HOLE
8/32 SCREW
END OF RUN
FLAT SIDE DOWN
1Measure area where lightstrip will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
5Screw mounting clips to surface, securing lightstrip to surface.
Note: Do not install clips over LED diodes.
2
Remove adhesive backing from lightstrip and stick in place along
reference line, ensuring lightstrip is securely mounted and free of
twists, tangles, creases, bumps, or overlaps.
3
For Dry Location applications, only use the mounting clip with the
flat side facing down.
6Always use a mounting clip at the very beginning and very end of
each run.
4
Use 1 mounting clip every 6”, rounded up. Use 1 mounting clip every
4”, rounded up if application is downward facing, outward facing,
or vertically mounted. Lay mounting clips and pre-drill using an
appropriate drill bit for surface material and screw size.
Recommendation: 8/32 x 1” screw.

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 8 of 13
Mounting Lightstrip
(Wet Location Mounting Clips
for Encapsulated Lightstrip)
8Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
7If applicable, connect disconnects between luminaires or solder
connectors using the steps on Application Guidelines.
ENCAPSULATED
LED LIGHTSTRIP
REMOVE ADHESIVE BACKING
ENSURE LIGHTSTRIP
IS SECURELY MOUNTED
6” FOR STANDARD APPLICATIONS
4” IF FACING OUT OR DOWN
PRE-DRILL HOLES
WHERE SCREWS
WILL BE INSTALLED
PRE-DRILLED HOLE
8/32 SCREW
END OF RUN
CURVED SIDE DOWN
1Measure area where lightstrip will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
5Screw mounting clips to surface, securing lightstrip to surface.
Note: Do not install clips over LED diodes.
2
Remove adhesive backing from lightstrip and stick in place along
reference line, ensuring lightstrip is securely mounted and free of
twists, tangles, creases, bumps, or overlaps.
3
For Wet Location applications, only use the mounting clip with the
curved side facing down.
4
Use 1 mounting clip every 6”, rounded up. Use 1 mounting clip every
4”, rounded up if application is downward facing, outward facing,
or vertically mounted. Lay mounting clips and pre-drill using an
appropriate drill bit for surface material and screw size.
Recommendation: 8/32 x 1” screw.
6Always use a mounting clip at the very beginning and very end of
each run.

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 9 of 13
Mounting Lightstrip
(Wet Location Mounting Clips
for Lightstrip in Square Tube)
8Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
7If applicable, connect disconnects between luminaires or solder
connectors using the steps on Application Guidelines.
ADHESIVE SURFACE
REMOVE ADHESIVE BACKING

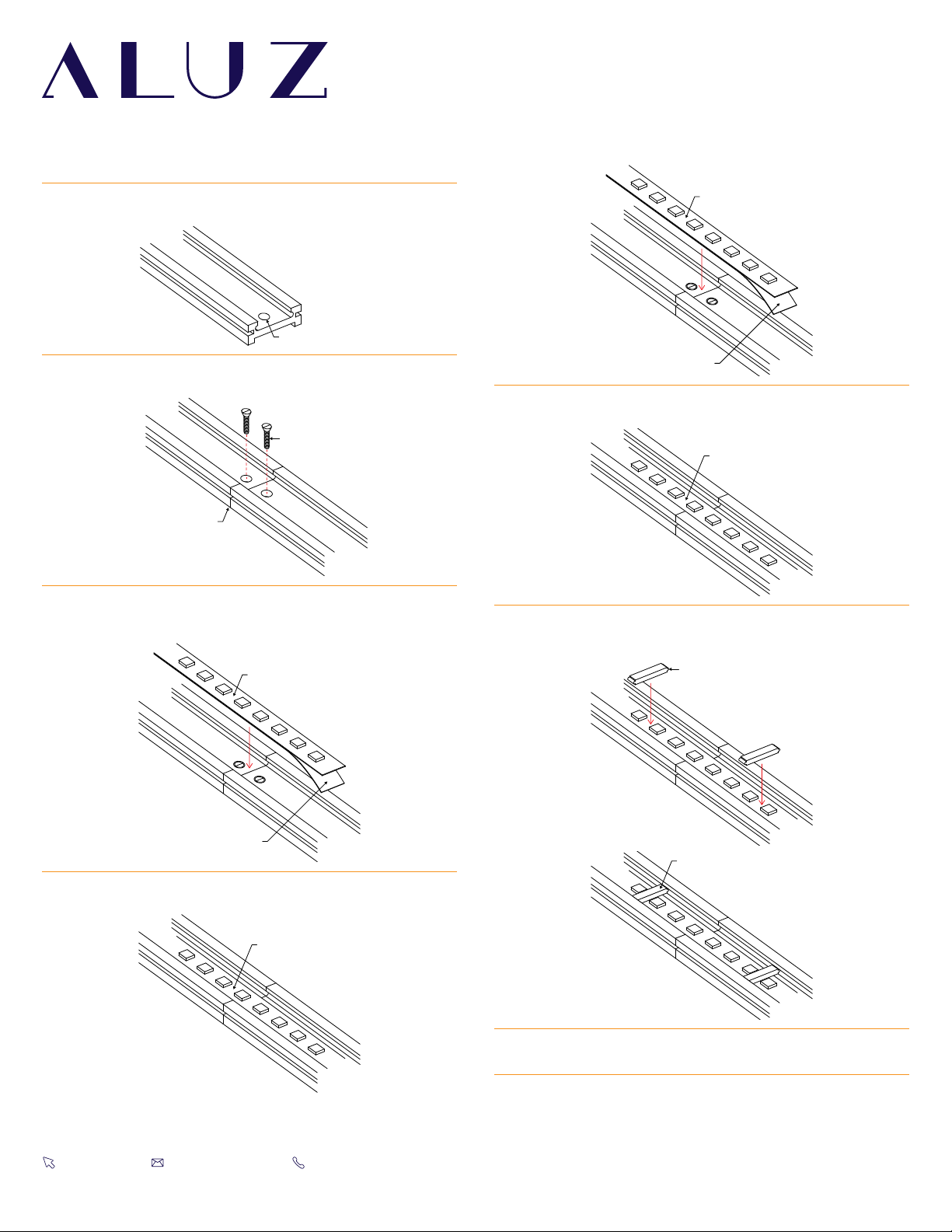

1Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting clips. Mark location where each mounting
clip will be installed along reference line.
2
Use 1 mounting clip every 6”, rounded up. Use a minimum of 2
mounting clips per luminaire segment. For vertical applications,
create a stopper at the bottom of the run to prevent sliding.
3
Prepare for mounting by removing backing from double sided tape,
exposing adhesive surface on the underside of mounting clips.
4
Adhere mounting clips to surface.
5
After all mounting clips have been securely installed, install tubes
into clips.
6Ensure tubes are secured in place.
INSTALL SQUARE TUBE
INTO MOUNTING CLIPS
ENSURE TUBE IS
SECURED IN PLACE

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 10 of 13
Mounting Lightstrip
(Mounting Channel)
COUNTERSINK HOLE
COUNTERSINK SCREW
EXTRUSIONS ALIGNED
INSTALL LIGHTSTRIP
INTO EXTRUSIONS
REMOVE ADHESIVE BACKING
ENSURE LIGHTSTRIP
IS SECURED IN PLACE
1Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting channels. Mark location where each
channel will be installed along reference line.
4
After all mounting channels have been securely installed, remove
adhesive backing from lightstrip and stick in place along channel,
ensuring lightstrip is flat and secure.
2
Lay mounting channels along reference line and drill at least 3
countersink holes per channel. Drill additional holes as needed.
3
Screw mounting channels to surface using countersink screws.
Note: Ensure channels are aligned.
5
Ensure lightstrip is secured in place and is free of twists, tangles,
creases, bumps, or overlaps.
INSTALL LIGHTSTRIP
INTO EXTRUSIONS
REMOVE ADHESIVE BACKING
ENSURE LIGHTSTRIP
IS SECURED IN PLACE
CHANNEL CLIP
CHANNEL CLIP SECURED
BETWEEN DIODES
6After all mounting channels have been securely installed, remove
adhesive backing from lightstrip and stick in place along channel,
ensuring lightstrip is flat and secure.
8After all mounting channels have been securely installed, remove
adhesive backing from lightstrip and stick in place along channel,
ensuring lightstrip is flat and secure.
7Ensure lightstrip is secured in place and is free of twists, tangles,
creases, bumps, or overlaps.
10 Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
9If applicable, connect disconnects between luminaires or solder
connectors using the steps on Application Guidelines.

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 11 of 13
Mounting Lightstrip
(Wet Location Mounting Channel
for Lightstrip in Square Tube)
COUNTERSINK HOLE
COUNTERSINK SCREW
EXTRUSIONS ALIGNED
1Measure area where luminaire will be installed. Use a laser line to
create a reference line along installation area, ensuring consistent
alignment of mounting channels. Mark location where each
channel will be installed along reference line.
4After all mounting channels have been securely installed, install
tubes into channels, overlapping where two channels meet.
Overlapping tubes help keep channels aligned.
2
Lay mounting channels along reference line and drill at least 3
countersink holes per channel. Drill additional holes as needed.
3
Screw mounting channels to surface using countersink screws.
Note: Ensure channels are aligned.
5Ensure tubes are secured in place.
INSTALL SQUARE TUBE
INTO EXTRUSIONS
ENSURE TUBE IS
SECURED IN PLACE
7Perform a continuity test before connecting to power source.
Refer to Continuity Test for details.
6If applicable, connect disconnects between luminaires or solder
connectors using the steps on Application Guidelines.

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 12 of 13
Troubleshooting
FRAYED END
TORN LIGHTSTRIP DAMAGED LIGHTSTRIP
TROUBLESHOOTING TIPS
• Do not reset the breaker multiple times.
• If the unit is overloaded, the breaker will trip, shutting off the driver
and lighting.
• If the breaker reset button has been held down by hand or any type of
pressure, such as duct tape, or if the breaker has been reset multiple
times without troubleshooting, the unit will:
- Burn the driver bobbin.
- Burn the thermal or magnetic breaker.
- Burn the driver lead wires due to high amperage caused by overload.
- Short circuit in line which will not allow the breaker to reset.
- Damage the lighting.
FOREIGN OBJECT METAL FLAKES
1
Turn off power before beginning. Verify power is off by using a non-
contact circuit tester (by others).
2
Check lightstrip for damage, such as cuts, punctures, twisting, or
crushing. If there is excessive damage to the lightstrip, the lightstrip
must be replaced.
3
Check the run for any particles that may cause a short. Check the
end cap, power connector, and lightstrip for any metal flakes or
shavings. Clear the run of any shavings or particles if present, then
perform a continuity test to confirm the short has been eliminated.
4
Check lightstrip cuts to ensure they are clean. Frayed, split, or
sloppily cut lightstrip can cause the positive and negative contacts
to touch, causing a short.
5
Check connections in the line. Ensure all splice connections are
secure and properly sealed with shrink tube and silicone for
outdoor applications. Ensure that wiring is not bent past the
permitted wiring bend radius (1.5”).
6
Check the run for any water inside end cap, power connector, and
lightstrip. If water or condensation is has caused damage, the
lightstrip must be replaced.

Installation Instructions
8 / 11 / 2023 / Rev 2
1170 N Red Gum St, Anaheim, CA 92806
© ALUZ All Rights Reserved. ALUZ reserves the right to make changes or withdraw specifications without prior notice.
[email protected]aluz.lighting 866.ALUZ.LTG | 714.535.7900
A8 Series |LED Tape
ZIZA Tape
(A8-ZIZA-TAPE)
Page 13 of 13
Continuity Test
24VDC LED LIGHTING
BLACK PROBE
RED PROBE
BLACK (V+)
24VDC LED LIGHTING
BLACK PROBE
RED PROBE
BLACK (V+)
24VDC LED LIGHTING
BLACK PROBE
RED PROBE
CONTINUITY TEST
A continuity test is performed to determine if electricity can pass
through two points on an electrical circuit. This helps identify shorts or
malfunctions in the line or luminaire. Use a multimeter or continuity
tester to perform the steps below.
• Always perform a continuity test before connecting to power source.
• Malfunctions are not always as obvious as the lights not turning on.
• A short or malfunction in the line or luminaire will cause damage over
time, irreparably damaging the lighting and voiding warranty.
EXAMPLE OF MULTIMETER (BY OTHERS)
V
AC
BLACK PROBE
RED PROBE
MULTIMETER
12
1
Turn off power before beginning. Verify power is off by using a non-
contact circuit tester (by others). Touch the probe of the tester to
the positive wire of the power source. The tester will light up if an
electrical current is detected.
2
Setup your multimeter tester (by others). First, insert the black
probe lead into the COM jack, then insert the red probe lead into
the VΩjack.
3
Verify multimeter is functional by touching probes together.
The multimeter should beep, flash, or read 0Ω(ohms) of resistance.
4
Touch the red probe to the black wire and the black probe to each
colored wire. If a conductive path is formed between the black wire
and any other wire, the multimeter will beep, flash, or read 0Ω
(ohms). Troubleshoot to identify the malfunction in the line. If there
is no conductive path, the multimeter will not show any feedback.
5Touch the red probe to the fixture extrusion and the black probe to
the black wire. If a conductive path is formed between the extrusion
and the black wire, the multimeter will beep, flash, or read 0Ω
(ohms). Troubleshoot to identify the malfunction in the line. If there
is no conductive path, the multimeter will not show any feedback.
6
Touch the red probe to the fixture extrusion and the black probe to
the each colored wire. If a conductive path is formed between the
extrusion and any colored wire, the multimeter will beep, flash, or
read 0Ω(ohms). Troubleshoot to identify the malfunction in the
line. If there is no conductive path, the multimeter will not show
any feedback.
7Set multimeter to DC voltage and test power source. Confirm the
correct voltage before connecting luminaire to power source. If the
voltage reading is more than 1 volt greater than the marked output
voltage, there is a problem with the power source or driver.
8Connect luminaire to power source via power connector. If LEDs
do not turn on, there is an issue with the wiring. Troubleshoot to
identify the problem.
