Alva GHP20 User manual

IMPORTANT SAFETY INFORMATION
As with all gas appliances, misuse of this appliance or failure
to fully follow these instructions may cause re, injury or death.
Please read all the instructions before using your gas heater.
• THIS UNIT MUST BE THOROUGHLY CHECKED BEFORE
USE.
• Ensure that all the gas ttings are correctly and rmly tted
before every use.
• Remove all packaging materials before assembling.
• For OUTDOOR USE ONLY. Not for commercial use.
• For use with LP gas only
• DO NOT use within 1m of any ammable surfaces
• DO NOT use this patio heater if you do not clearly understand
the instructions and/or how to operate the controls.
• Phone the customer care line at 086 100 ALVA (2582) or email
[e-mail] for assistance.
• DO NOT store ammable materials or another cylinder near the
patio heater.
• DO NOT leave the heater unattended while in use.
• Ensure that the gas supply is turned OFF at the cylinder after
use and while the heater is unattended.
• DO NOT move the heater while in use.
• DO NOT place objects on or against the heater.
• DO NOT use a naked ame to test for leaks. Follow the Leak
Testing procedure outlined under ‘LEAK TEST’.
• Leak test the patio heater every year or if you ever smell gas
• NEVER use this heater with a cylinder other than the size
recommended.
• DO NOT unscrew the regulator while the patio heater is on or if
the cylinder valve is open.
• DO NOT use a patio heater you suspect is faulty.
• For safety reasons, only a qualied technician may execute
maintenance and repairs.
• The guarantee for the patio heater will be rendered void if the
patio heater is serviced or repaired by any one other than an
Alva appointed technician.
• The patio heater should be inspected once a year by a qualied
technician, to make sure the unit is safe and fault free.
• The operator is responsible for the safety of all third parties
while the heater is in use.
• DO NOT use in windy or gusty conditions.
• Accessible parts may get very hot during operation. Keep young
children at a safe distance.
• Clean with warm soapy water only after the heater has cooled
down.
• Keep the burner unit clear of spider webs or other obstructions.
• Close the gas cylinder valve off after use.
• Any modication of this heater is dangerous.
• If you smell gas close the cylinder valve immediately.
Please read the
instructions carefully
before use.
Retain this manual for
future reference.

1
1
2
3
4
5
5
12
12
13
14
14
15
16
17
17
18
INDEX
INDEX
WARRANTY
GENERAL INFORMATION
PARTS DIAGRAM
EXPLODED VIEW
PARTS LISTING AND TOOLS REQUIRED
ASSEMBLY
HEATER SET UP
LOCATION
LEAK TEST
USING YOUR HEATER
FLASHBACK (Flames in the burner tube)
CHANGING YOUR CYLINDER
MAINTENANCE
FREQUENTLY ASKED QUESTIONS
TROUBLE SHOOTING GUIDE
SPECIFICATIONS
AFTER SALES SERVICE
KEY
Important information
Cautions and
warnings.
Danger
Contact an approved
ALVA technician.
Do It Yourself
Instructional
video available

WARRANTY
PLEASE RETAIN YOUR PROOF OF PURCHASE FOR
WARRANTY CLAIMS.
ALVA warrants this appliance to be free of defects in material and
quality for a period of 12 months from date of original purchase.
This warranty covers the intended use of this appliance – within
a domestic setting and not for commercial or industrial purposes.
Any damage caused by willful abuse, tampering, modication or
unauthorized repair will not be warranted.
Please retain all packaging material, as items returned without
original packaging material may be subject to a withholding fee.
Where this appliance is found to be defective, damaged, broken,
or does not work correctly for the intended purpose, you must
return the appliance to the retailer from where it was purchased.
The warranty will only be effected with valid proof of purchase.
Failure to provide the proof of purchase will most likely result in
the repair or service required being chargeable.
If you have any questions while setting up or using this heater,
please visit www.alva.co.za or call 086 100 ALVA (2582) or e-mail
[e-mail]
GENERAL INFORMATION
Before using this heater, please read through this manual and
make sure you understand everything. If you are not sure, call
086 100 ALVA (2582) or visit www.alva.co.za for help. This
heater is a safe and efcient form of heating when used accord-
ing to these instructions.
Reading and understanding this manual should give you a good
indication of what to expect from your Alva gas heater. If this
product is not what you want or need, please help Alva and
the environment by not damaging or destroying any part of the
packaging, the manual or the Styrofoam inserts. Always keep
your proof of purchase. Keep these instructions for future use. If
you lose this copy, you can obtain a new copy from your dealer
or online at www.alva.co.za.
This appliance operates on a 2.8kPa SANS 1237 approved regu-
lator. Regulator and hose included.
Thank you for your
purchase of this
instant infrared heater.
Please read these
instructions carefully
before use and keep
them in a safe place,
for future reference.
Not using gas and/
or gas appliances
according to the
instructions is
extremely dangerous
and can lead to
property damage,
injury or death.
For outdoor use only.
For use with LPG only
DO NOT use within
1m of any ammable
surfaces.
Always turn OFF the
gas supply at the
cylinder after use.
DO NOT store
ammable materials or
another cylinders near
the heater.
1

•
PARTS DIAGRAM 1
2 Flame
Screen /
3 Glass
Tube
4 Protective
Guard
5 Upper
Support
6 Front
Panel
7 Side
Panel
8 Lower
Support
9 Bottom
plate
Refer to your ‘Key’ on
the index page.
2
2
1
4
3
6
5
8
7
9
2270 mm
900 mm
650 mm
730 mm

•
EXPLODED VIEW
3
A
B
C
D
E
F
G
H
L
K
J
I
M
N

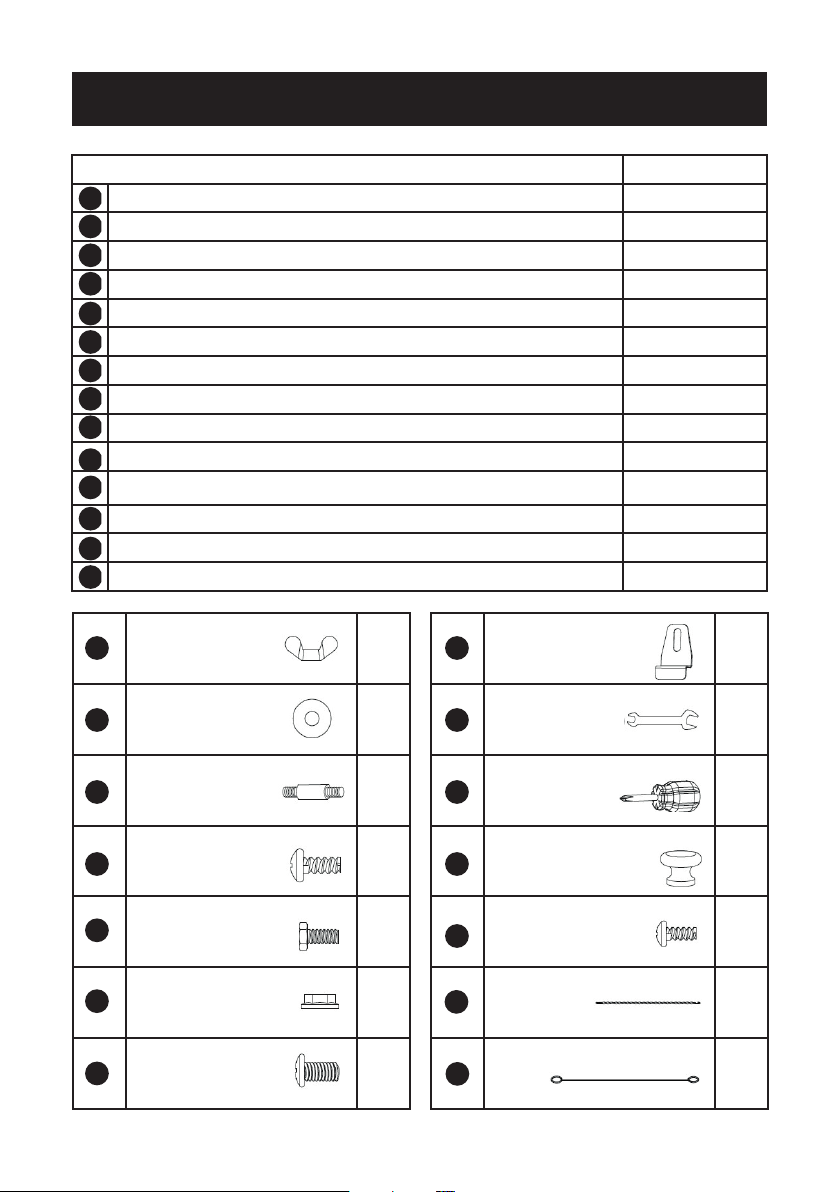

PARTS LISTING AND TOOLS REQUIRED
PARTS SUPPLIED QUANTITY
Reector x1
Flame Screen x1
Upper Glass Tube x1
Upper Support x4
Protective Guard x4
Black Silicone Ring x1
Side Panel x3
Front Panel x1
Gas Hose and Regulator x1
Control Box Assy x1
Lower Support x4
Block Belt x1
Wheel Assembly x1
Bottom plate x1
4
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Wing Nut x3
Small at washer
ø6 x6
Stud x3
3/16” Screw x38
Bolt M6x10 x4
M6 Flange Nut x4
M5x12 Screw x10
Fixing Bracket x4
Wrench x1
Philips
Screwdriver x1
Knob x1
M4x10 Screw x1
Chain x1
Long
Stem
Lighter
x1
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN

ASSEMBLY
Remove all packaging materials before assembling the patio
heater.
Before Assembly:
• Please read all instructions thoroughly before proceeding
with the appliance assembly.
• Find a large clean area in which to assemble the patio
heater.
• Please refer to the parts list and diagrams. (see page 2)
• Assembly of the heater involves large components and it is
advisable to have two people to assemble the unit.
This patio heater makes use of an
industrial cylinder (9kg ALVA cylin-
der recommended) with a 5/8” BSP
thread; horizontal exit valve.
The Bullnose regulator supplied
with the heater tightens to the left
hand side (anti-clockwise). (Figure
A).
If you have bought a new gas cylinder, the cylinder needs to be
purged (emptied out), before it’s rst use. If it is not purged of air,
the heater will not work properly. This should happen at the gas
lling station when you ll up the cylinder. Always check this with
your gas supplier.
HEATER SET UP
1. Before removing this heater from the packaging, read this
manual in full and make sure that it is what you want /need.
2. Remove the heater from the packaging
3. Check if the nose cone sealing washer is in place, secure
and in good condition. (Figure B)

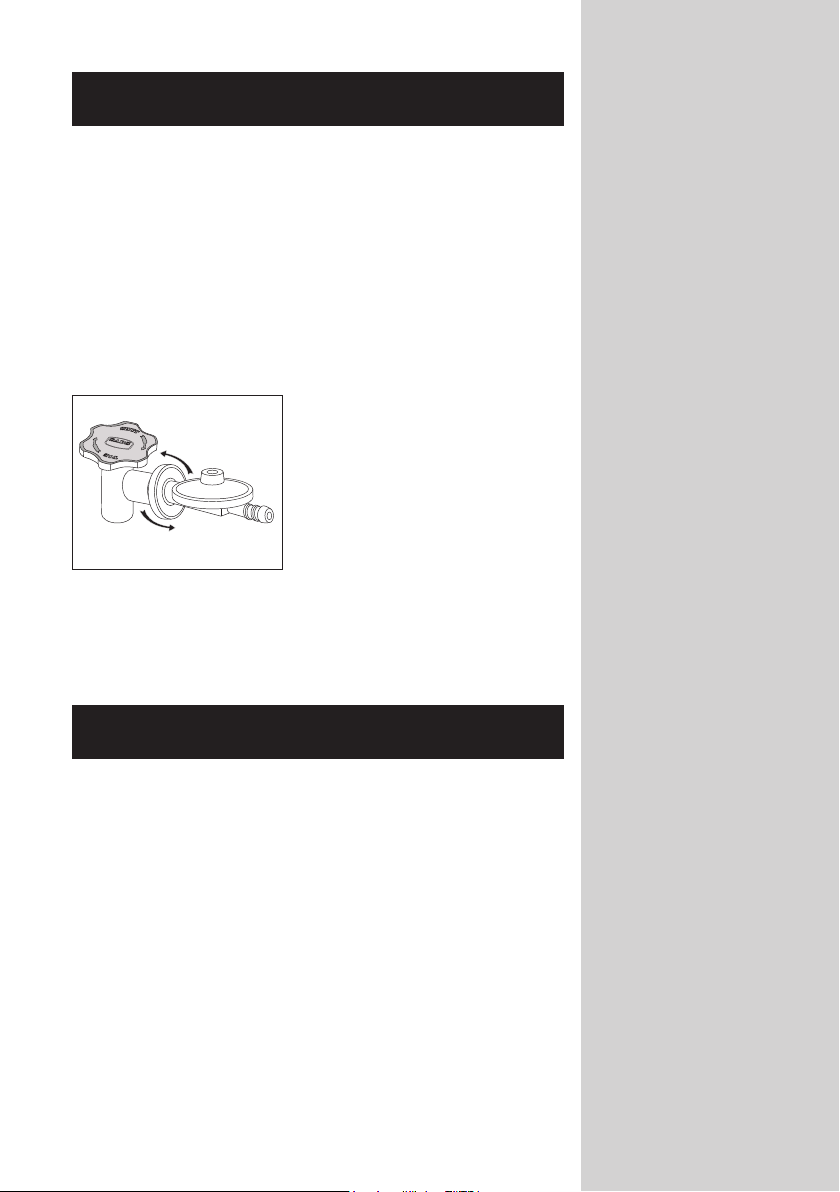

4. The regulator goes directly into the cylinder valve. Always
ensure that the regulator is correctly and rmly fastened in
place. The use of any adaptors is illegal.
5
Fig.A

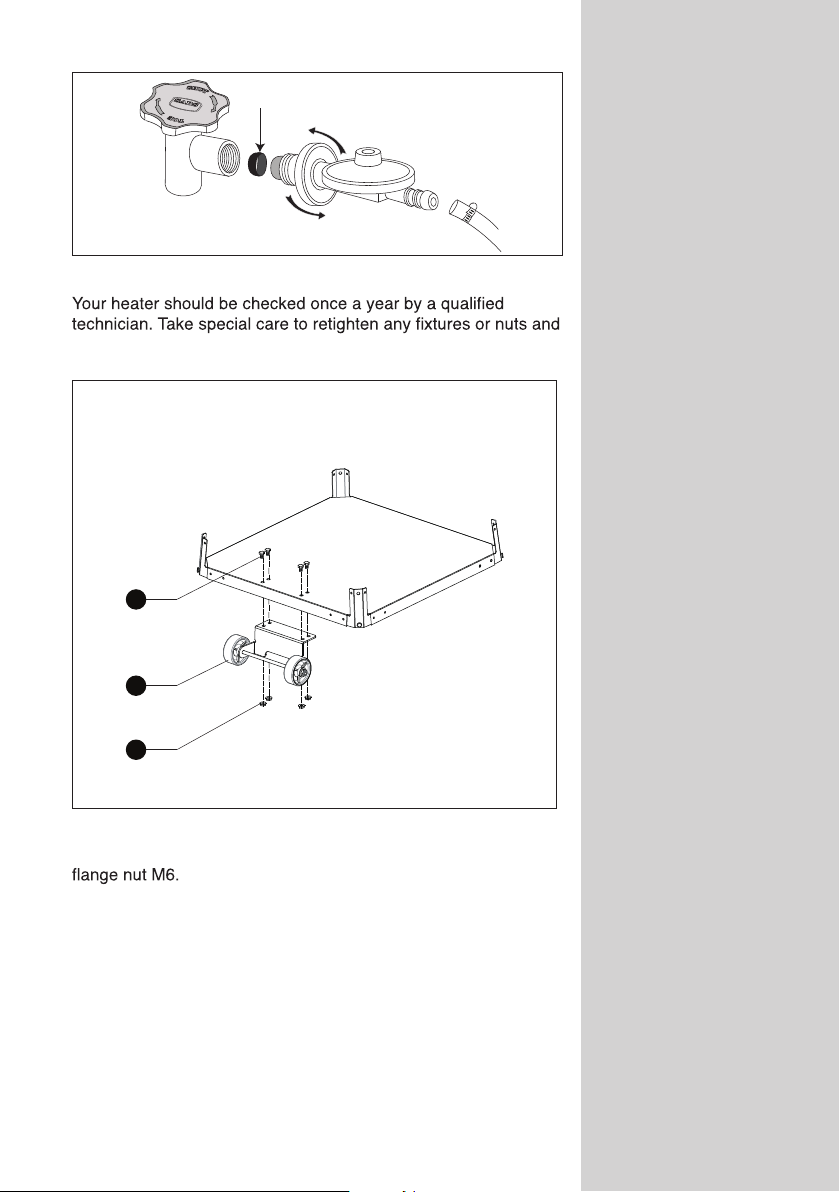

bolts that have come loose.
Assemble the wheel assembly to the bottom plate. Fix the wheel
assembly to the bottom plate using 4pcs bolt M6X12 and 4pcs
6
Fig.B
Nose cone
sealing washer
STEP 1
M
EE
FF

Insert the pins of the base to the holes of lower support, press
to secure the pins. Using 4pcs screw M5x12 to secure the lower
support and base. Insert the pins of the control box assy to the
holes of upper support, press to secure the pins. Using 4pcs
screw 3/16” screw to secure the upper support and control box
assembly.
Assemble block belt. Fix the block belt to the 2pcs of lower
support behind the front door,using 2pcs screw M5X12.
7
STEP 2
STEP 3
J
K
DD
GG
L
GG

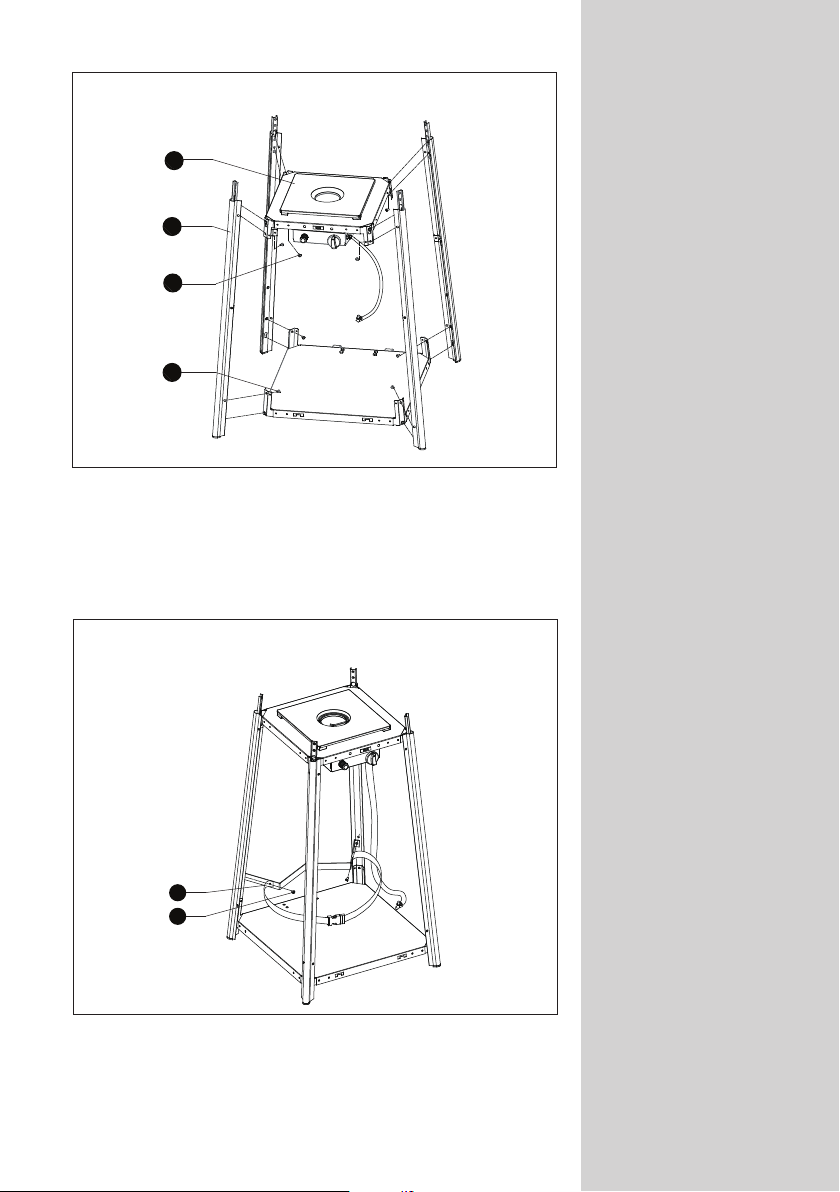

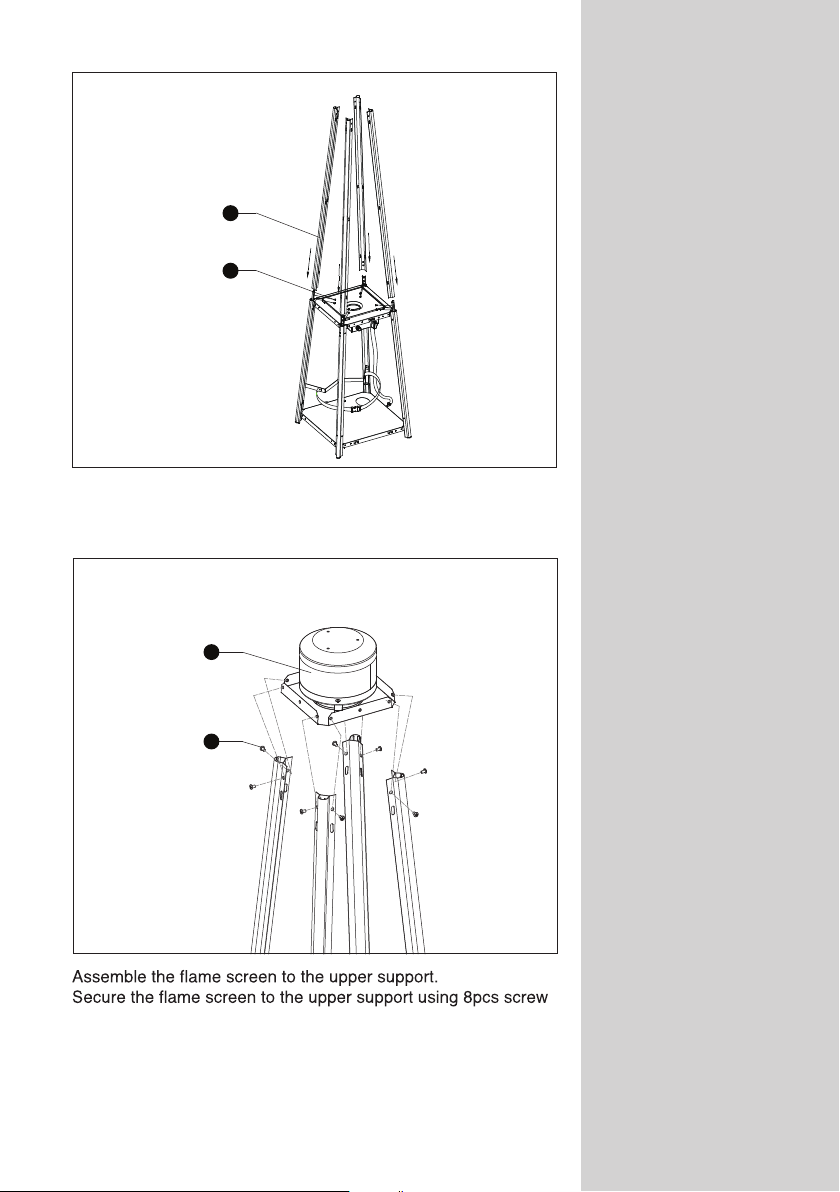

Assemble the middle support.
Insert the 4pcs upper support to the lower
support. Secure them with 8pcs screw 3/16”.
3/16”.
8

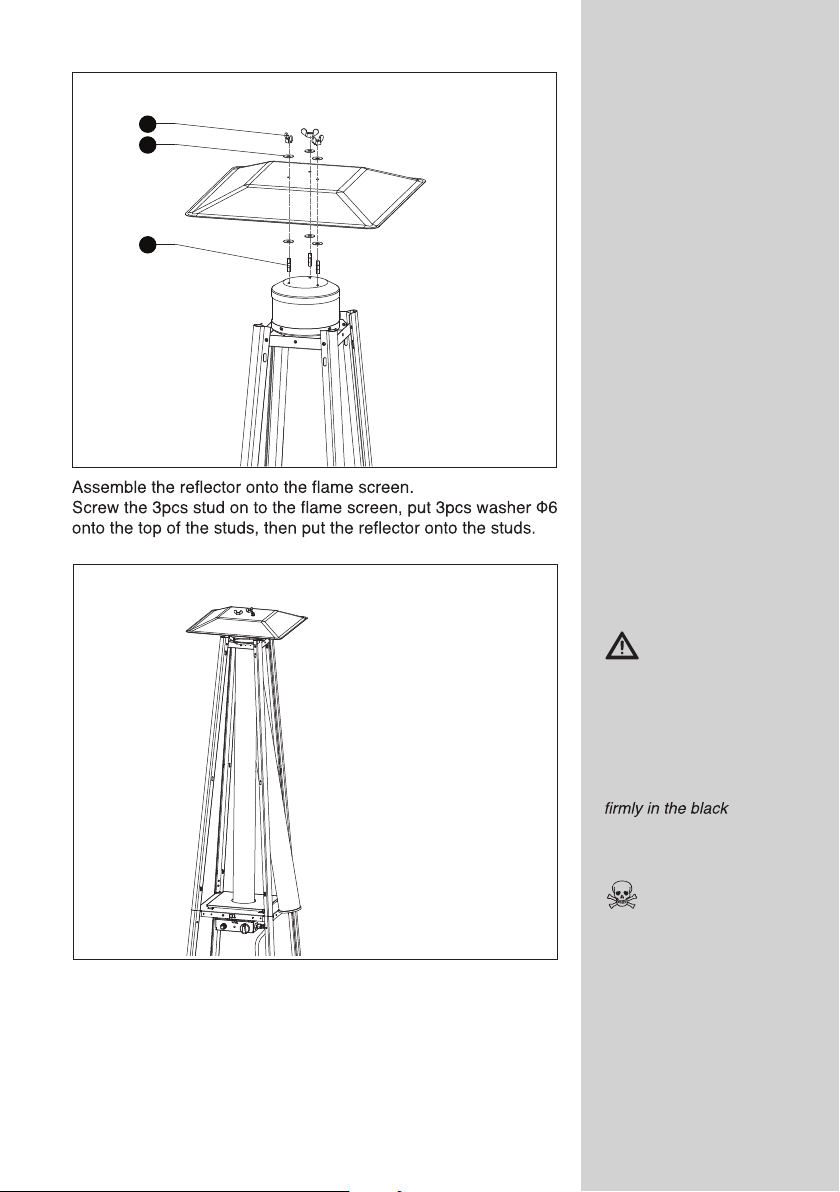

STEP 4
STEP 5
D
DD
B
DD

Secure them with 3pcs washer Φ6 and 3pcs wing nut.
Carefully install the glass tube by lifting up and inserting it
through the center hole in the upper plate. Ensure the black
silicone ring is attached to the lower edge of the glass tube as
illustrated above. Slide the glass tube through the hole of the
lower plate cover and onto the middle plate. Check and ensure
that the glass tube is positioned properly and is completely
covering the center hole of the middle plate.
STEP 6
STEP 7
9
To aid in installation
place black silicone
ring on the middle
plate and then
install glass tube.
Ensure the rim of
the glass tube sits
silicone ring.
WARNING!
The black silicone
ring must be in place
prior to operating the
heater.
Black Silicone Ring
AA
BB
CC

Assemble the protective guard. Hang the hooks of the protec-
tive guard onto the holes in the supports. Secure the protective
Attach the three side panels to the heater using 18pcs
3/16” screws.
10
STEP 8
STEP 9 Note :
Do not cover the front
side where the control
knob is.
E
DD
HH
DD

Place the control knob onto the M4x10 screw. Hang the chain to
the hole on the control box assembly and align the hooks of the
front panel to the holes in the bottom plate.
Place the gas cylinder inside the heater. Secure the cylinder with
the block belt tightly. Perform a leak test before use.
11
STEP 10

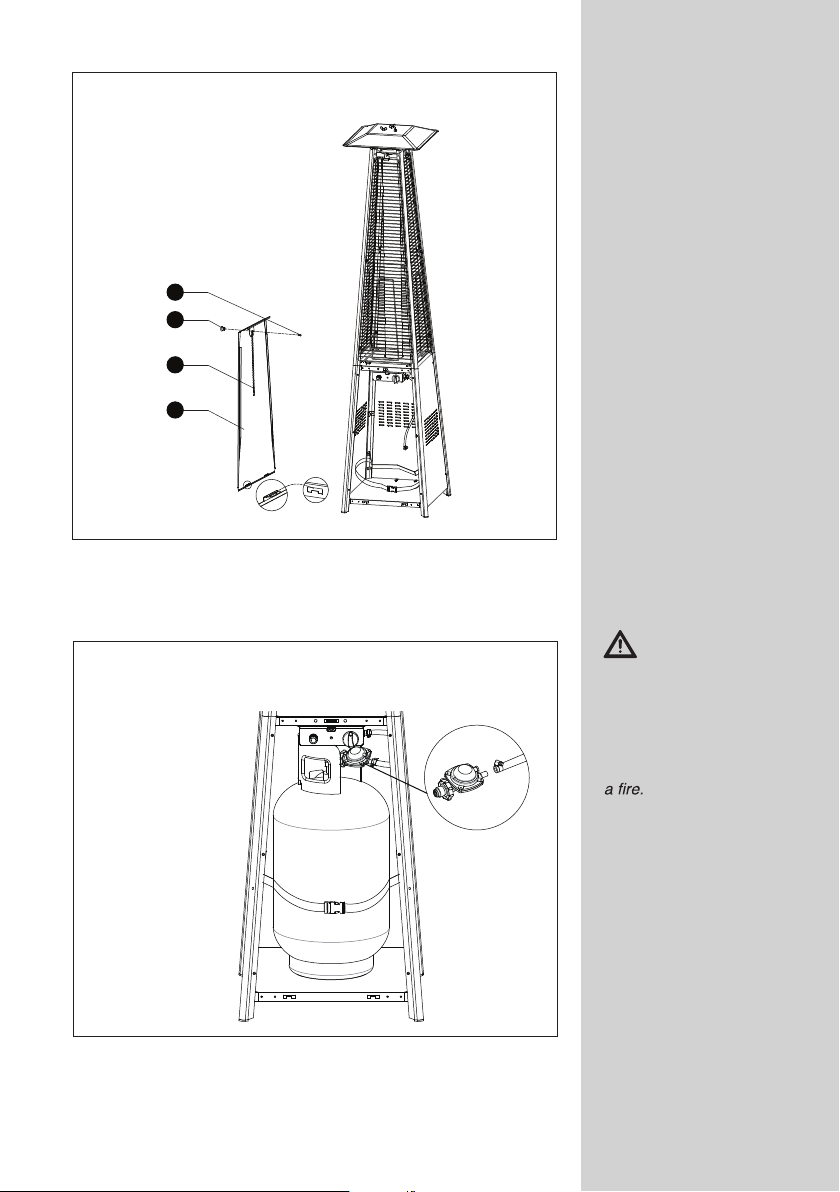

STEP 11 Warning :
Ensure the hose does
not make contact with
any high temperature
surfaces, or it may
melt and leak causing
The LP regulator/hose
assembly must be
located out of path-
ways where people
may trip over it or in
an area where the
hose will not be
subject to accidental
damage.
KK
LL
H
MM

LOCATION
• FOR OUTDOOR USE ONLY.
Always ensure adequate
ventilation is provided.
• Maintain proper clearance
from combustible materials i.e.
100cm from the sides and top
• Heater must be placed on level
rm ground.
• NEVER operate the heater
in the vicinity of combustible
materials.
• Use base screws to anchor the
unit if there is a possibility of
strong wind.
LEAK TEST
The leak test must be carried out in a well-ventilated area, free
from any ames or other sources of ignition.
• With the cylinder connected to
the heater. Open the cylinder
valve.
• Brush the connections (heater
to cylinder) with a solution of
equal parts soap and water
(make sure it’s foamy).
• A stream of bubbles forming in-
dicates a gas leak. (See Fig.J)
• If bubbles appear, turn the
cylinder valve OFF (clockwise)
and disconnect the heater from
the gas cylinder.
• Tighten the connection and
retry the leak test.
• If you are unsure or if you
cannot tighten the connection,
place the cylinder outside in a
cool, well-ventilated area and
contact Alva on 086 100 ALVA
(2582).
• A leak between the heater and
cylinder can lead to a high
pressure re, which is very
dangerous and can result in
extensive injury or even death.
Fig.J
Foamy
bubbles
indicate a
leak
Connection
in assembly
Connections to be leak tested
Regulator into cylinder
Hose to regulator
Hose to appliance
12
FOR YOUR SAFETY
IF YOU SMELL GAS
• Turn off the gas
supply at the
bottle.
• Extinguish all
naked ames.
DO NOT operate
any electrical
appliances.
• Ventilate the
area.
• Check for leaks
(see LEAK TEST)
• If odour per-
sists, contact
your dealer or
local gas supplier
immediately.
Before proceeding to
ignite the heater, make
sure you understand
the “IMPORTANT
SAFETY
INFORMATION”
section of this manual.
http://www.
youtube.com
/watch?v=8L
pZ1B0m23Y
&feature=plcp
How to do
a leak test


USING YOUR HEATER
Lighting of the Patio Heater:
1. Check all the connections for leaks or damage prior to each
use.
2. Open the gas cylinder valve 1½ turns (anti-clockwise).
3. Press down the variable control knob and hold for 30 sec-
onds. While holding down the variable control knob, press
the igniter button several times until the pilot ame lights.
Release the variable control knob after the pilot ame lights.
Note:
• If a new tank has just been connected, please allow at
least one minute for the air in the gas pipeline to purge out
through the pilot hole.
• When lighting the pilot ame make sure that the variable
control knob is continuously pressed down while pressing
the igniter button. Variable control knob can be released
after the pilot ame lights.
• After the pilot ame lights, turn the variable control knob to
maximum position and leave it there for 5 minutes or more
before turning the knob to desired temperature position.
4. Gently push in the control knob on the heater and turn it to
the “PILOT” position. (Counter clockwise 90°)
5. After the pilot ame lights, turn the variable control knob to
maximum position and leave it there for 5 minutes or more
before turning the knob to desired temperature position.
6. If the heater does not ignite the rst time, wait for 5 minutes
and repeat the lighting instructions. If you still experience
ignition problems, contact 086 100 ALVA (2582) for assis-
tance.
Turning the Patio Heater Off:
1. Turn the variable control knob to PILOT position.
2. Press and turn the variable control knob to OFF position.
3. Close the cylinder valve (clockwise).
4. DO NOT attempt to relight the heater for at least 10 minutes.
Smoke and odour
caused by the heating
of oils used during
manufacturing will
occur when lighting
the heater for the rst
time. This is normal
and there is no
reason for alarm.
Avoid inhaling the
fumes!
The smoke and odour
should dissipate within
3 - 4 minutes.
Check the heater
immediately if any of
the following occurs:
• The heater does
not reach tem-
perature.
• The burner
makes popping
noise during use
(a slight noise is
normal when the
burner is extin-
guished).
• Smell of gas in
conjunction with
extreme yellow
tipping of the
burner ames.
13


FLASHBACK(amesintheburnertube)
If a ash back occurs (indicated by a roaring noise), immediately
close the cylinder valve.
• Turn the heater OFF at the control knob.
• Disconnect the regulator and allow the heater to cool.
• Check for blockages in the burner head. Clean with com-
pressed air, a small soft brush or pipe cleaners.
• If the problem persists, have the heater checked by a
qualied technician.
CHANGING YOUR CYLINDER
Make sure you cylinder valve is closed (by turning it clockwise).
Allow the heater to fully cool before replacing the cylinder. Open
the heater to expose the cylinder.
Remove and replace the cylinder.
ALWAYS check that the regulator-sealing washer (nose cone) is
intact and in place before reattaching the
regulator to a cylinder. (Figure B - Page 6)
DO NOT attempt to remove the regulator while the heater is on
or if the cylinder valve is not closed.
14

MAINTENANCE
• Always make sure the heater is OFF and cool, with the cyl-
inder valve closed, before conducting any maintenance.
• Your heater should be checked once a year by a qualied
technician.
• If faults are suspected or detected, stop using the heater
and contact ALVA.
• Clean the exterior and storage area of your heater when
required to remove dust.
• DO NOT use abrasive products to clean the heater; these
may damage the paint work.
• Check the burner and remove any debris, dirt, spider webs
or wasp nests from the burner ports by using compressed
air or a pipe cleaner. DO NOT clean the burner with water
or tamper with the jets. If a jet is blocked it must be replaced
with an original manufacturer marked jet.
• Replace parts and allow the heater to dry properly before
storing.
• If the gas control or ignitor is exposed to water or gets wet,
dry it properly before attempting to light the heater. You
might have to replace the parts if the heater does not ignite.
• The airow must not be obstructed. Keep the controls and
burner passage clean.
Clean with a soft brush or blow clean with compressed air.
If any part of the heater is in need of replacing, use only original
Alva parts. Using any other spare parts is dangerous and will
void the warranty.
When the heater is not in use for extended periods ,always keep
the burner head covered.
Your heater should be checked once a year by a qualied
technician. Take special care to retighten any xtures or nuts and
bolts that have come loose.
Signs of a blockage:
1. Gas odour with extreme yellow tipping of the ame
2. Heater does not reach the desired temperature
3. Heater glow is excessively uneven
4. Heater making popping sounds
5. Heater ‘Flashes back’ in burner tube
Cleaning and care
• Wipe off all surfaces with a soft, moist rag. DO NOT clean
the heater with combustable or corrosive cleaners.
• Remove debris from the burner to keep it clean and safe for
use.
15

• In order to prolong the life of your heater we recommend
oiling all stainless surfaces, with exception of the reector,
ame screen and burner base, on a regular basis. This is
especially important near the coast.
Storage
• Always close the gas valve of the gas cylinder after use or in
case of a disturbance.
• Remove the pressure regulator and the hose.
• Check the tightness of the gas valve and for damage. If you
suspect a damage, have it changed by your gas dealer.
• Never store liquid gas cylinder in a sub-terrain, or at places
without adequate air ventilation.
Store the heater in a cool dry place. If in a coastal area extra
care must be taken in selecting the storage area as rust will
occur if exposed to the elements. Disconnect the cylinder and
store seperately in a protected dry and cool place.
Alva recommends that you cover your heater.
FREQUENTLY ASKED QUESTIONS
Q: WhyisthereanodourwhenIuseagasheater?
A: All gas appliances give off an odour. This could be
harmful if inhaled for extended periods of time. This
“smell” is normal, and it does not mean that you have
a gas leak. The smell of raw gas (just before you ignite
the appliance) differs to the smell coming from the
heater when it is in use. The odour is added to allow
easy gas detection.
Q: Whymusttherebeventilationwhenusingagas
 heater?
A: Whenever fuel (LP Gas in this case) is burned,
ventilation is needed. Any re needs oxygen to burn.
Think of a replace, you require a chimney or ue for
the smoke to exit the house. Even though a gas heater
does not generate smoke, it still generates carbon
monoxide and carbon dioxide, which can be dangerous
if not diluted by fresh air. Always ensure adequate
ventilation by leaving a door or window open in the
same room.
Q: WhatdoIdoifIhaveanover-lledcylinder?
A: The best method to determine if your cylinder is over-
lled is to weigh it. Subtract the ‘tare’ mass from the
cylinder weight – this gives you the weight of your gas.
If this gas weight exceeds your cylinder design weight
(9kg) then return the cylinder to your gas supplier.
16

Q: Howlongwillthegasinmycylinderlast?
A: This depends on how you use your heater. It is easy to
calculate your gas consumption. Take the capacity of
the gas cylinder in grams (i.e. 9000g for a 9kg
cylinder) and divide it by the gas consumption of the
heater, on your desired setting (refer to the Technical
Data section in this manual (page 13). The answer to
the calculation is the approximate number of hours that
your heater will burn for.
TROUBLE SHOOTING GUIDE
Burner will
not light
Pressure is low
Opening blocked
Control not ON
Thermocouple bad
Not in correct
location
Tank near empty. Rell
LPG tank.
Remove and clean
Turn valve to ON
Replace thermocouple
Position properly and
retry
SPECIFICATIONS
Model ALVA GHP20
Type of Gas LPG
Operating pressure 2.8kPa
Injector size 1.65mm (Main burner)
0.18mm (Pilot burner)
Gas Consumption 945gr/hr at MAX
Heat output 13kW
This appliance operates with a Bullnose 5/8” BSP
left hand thread with a 2.8kPa SANS 1237
approved 1kg/hr ow rate regulator.
Regulator supplied.
17
http://www.
youtube.com/
watch?v=Ya
vsYE8nzCw
&feature=plcp
How to test if
your cylinder
is overfilled
