ALVEO3D ALVEOPRO - M100 User manual

ALVEO3D
INSTRUCTIONS
MANUAL
v1.0 EN
ALVEOPRO - M100
Filtering system for 3D printer - HEPA14 & active carbon
Find all assembly resources
www.alveo3d.com/en/assembly-alveopro/
and download contents
www.alveo3d.com/en/download-alveopro/

PROVIDED ELEMENTS p. 3
STEP 6 - DISPLAY INTERFACE p. 10
STEP 7 - FAN CONTROL p. 11
ALVEOPRO - M100 p. 4
STEP 8 - TIMER SETTINGS p. 12
NOTES p. 16
STEP 2 - ASSEMBLY TOP COVER p. 6
STEP 9 - FILTER CHANGE p. 13
STEP 3 - MOUNT EXTENSIBLE HOSE p. 7
STEP 10 - ONLINE SUPPORT p. 14
STEP 4 - CONNECT TO ENCLOSURE p. 8
STEP 5 - CONNECTIVITY & START p. 9
STEP 1 - POSITION FILTER p. 5
TABLE OF CONTENTS p. 1
SAFETY p. 2
STEP 11 - ALERT & ERROR LIST p. 15
TABLE OF CONTENTS
01

SAFETY
Read all instructions before using
3D printer enclosures contain harmful emissions from 3D
printing. It is advised to always turn the filtering system on
during the printing process.
The filtering system is powered by a high-pressure fan. Do not
turn on the fan before full assembly is done with the protective
grid and the P3D filter. Failure to comply with this instruction
can cause injuries.
Please use recommended electrical voltages to power electronic
board, as indicated in the assembly instructions to prevent
damage.
Do not touch the electronic board in operation.
Before each print, make sure the extensible hose is well
connected to both connectors from AlveoPRO top cover and
enclosure panel.
Filter operational range 0-60°C max
02

PROVIDED ELEMENTS
Provided elements with ALVEOPRO - M100
Allen key 2.5mm
4x Black countersunk M3 screw 10 mm
4x Black countersunk M4 screw 16 mm
4x Black countersunk M4 screw 20 mm
4x Hexagonal nut M3
4x Hexagonal nut M4
USB cable
Top cover adaptator - 2 elements
4 x knurled screw
Extensible hose 3 meters
Enclosure connector - 2 elements
Power supply 24v EU plug
Filter M100 with a sealable plastic bag

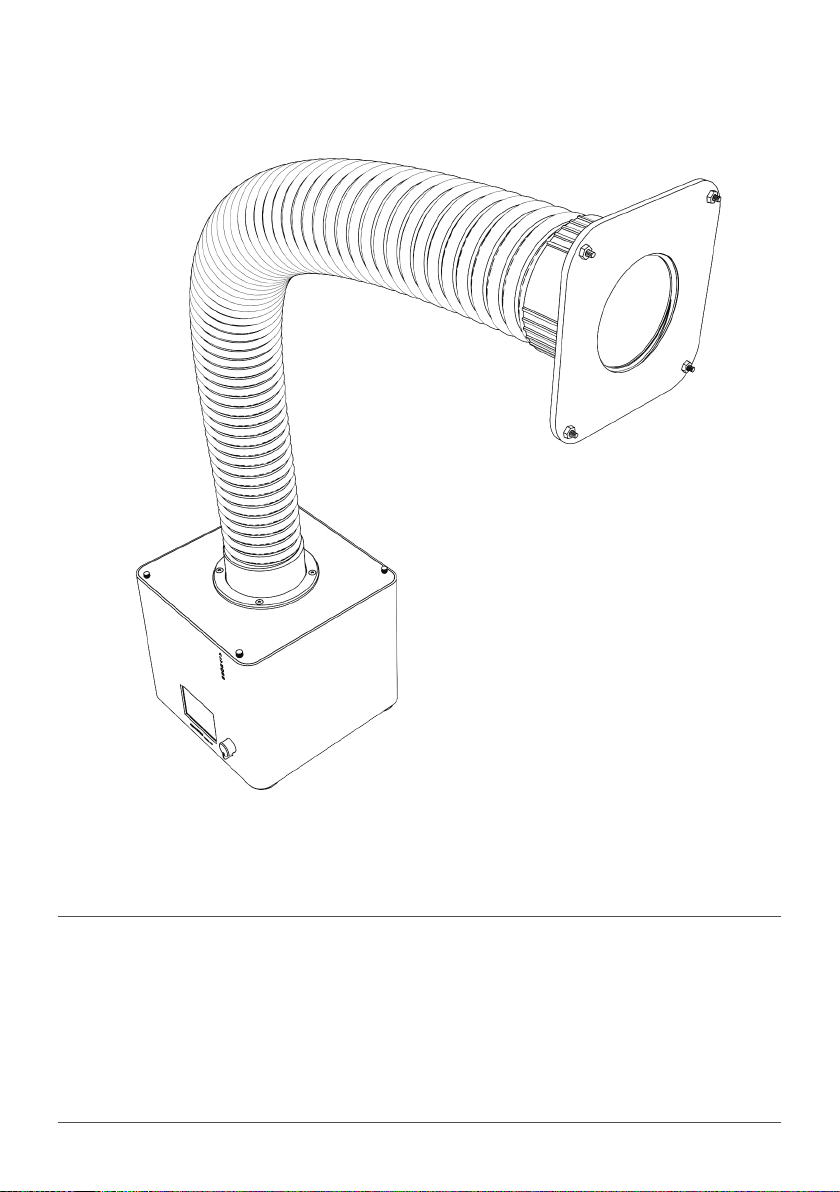

ALVEOPRO - M100 assembled
03

04
ALVEOPRO - M100
Enclosure connector
Cone
Enclosure connector
Clamp ring
Top cover connector
Top cover connector
Clamp ring
AlveoPRO
Rotary encoder
Filter M100
Extensible hose

05
Take the filter out of the sealable plastic bag, remove the protective transparent
film. Use the handles to position the filter between the guides. HEPA surface
(white surface) still remain visible. Use handles to take the filter out of the
alveoPRO case. Keep the sealable plastic bag for used filters.
STEP 1 . POSITION FILTER
Guides
Handles

06
Put the hexagonal nuts in their slots on the clamp ring. Then assemble on both
sides of the top cover the clamp ring and the top cover connector with the
black countersunk M3 screw 10 mm.
STEP 2 . ASSEMBLY TOP COVER
Clamp ring
Top cover
Top cover connector
Hexagonal nut M3
Black countersunk M3
screw 10 mm

07

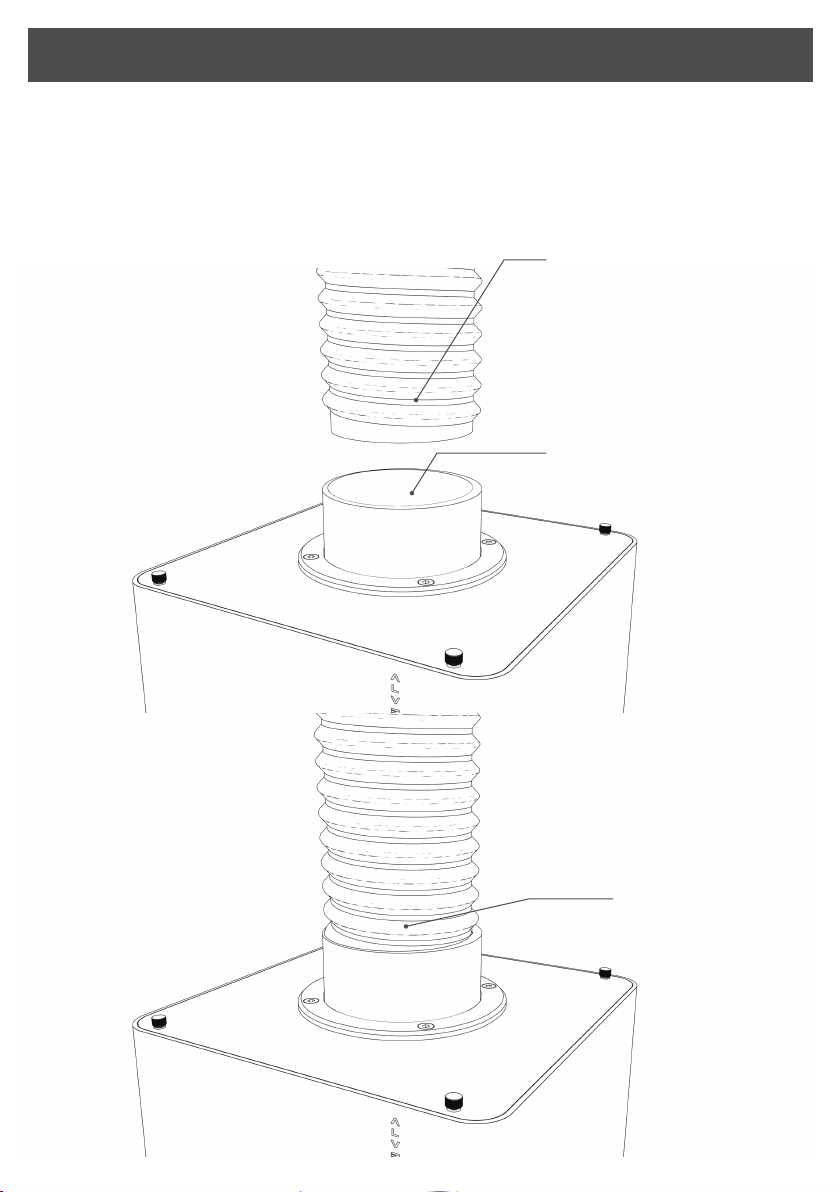

Extend one end of the hose then plug it into the top cover connector by
rotating the hose in the threading.
STEP 3 . MOUNT EXTENSIBLE HOSE
The hose goes inside
the top cover
connector
extended hose
Threading to screw
the hose

08
Extend the other one end of the hose by 10 cm.
Use the countersunk M4 screw 16 mm for panel thickness from 2 to 7 mm.
Use the countersunk M4 screw 20 mm for panel thickness from 8 to 12 mm.
STEP4 . CONNECT TO ENCLOSURE
Place the clamp ring on
the extended hose.
The tighten frame must be
inside the enclosure.
Tighten the clamp ring on
the enclosure connector.
Insert hexagonal M4 nuts
in the tighten frame and
tighten the screws to hold
the enclosure connector
on the panel.
1.
2.
3.

09

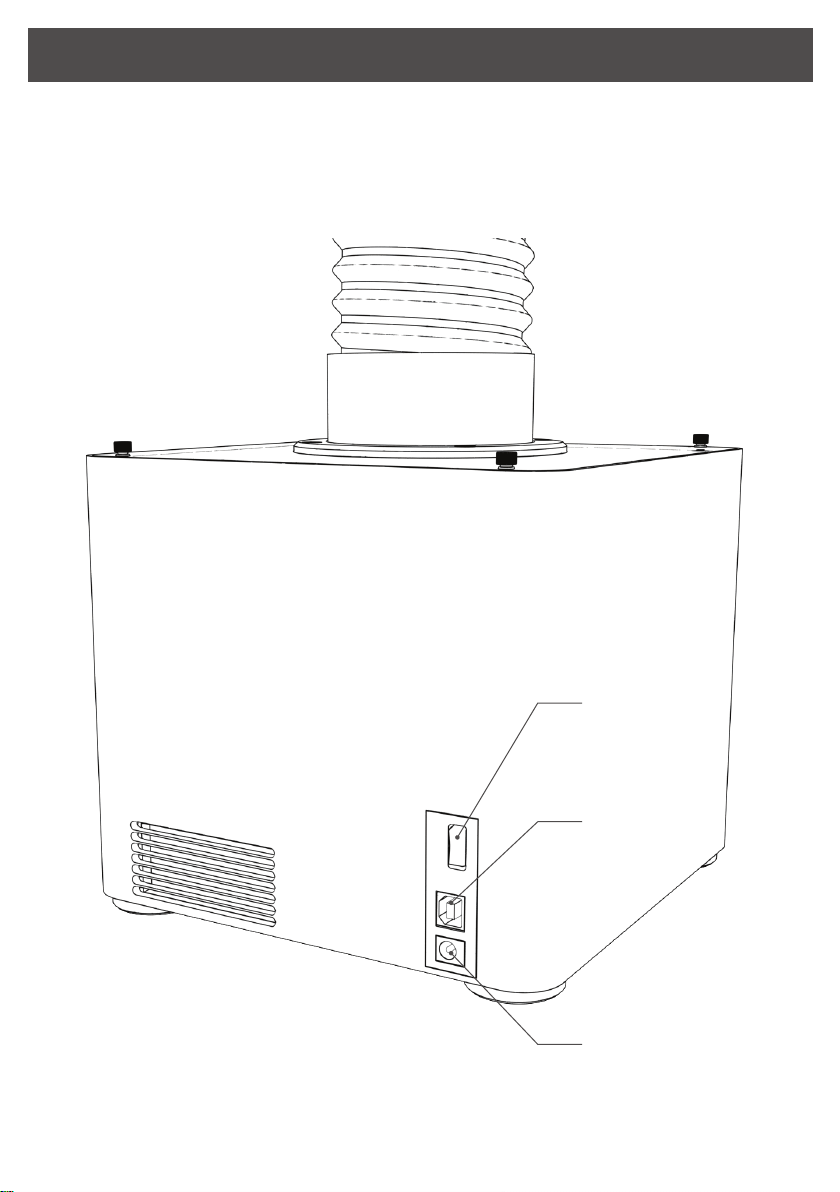

plug the power supply on the backside of the device, then press the ON/OFF
switch to turn it ON or OFF. The USB connector will be used to update the
device firmware and remote control function.
STEP 5 . CONNECTIVITY & START
Switch
ON/OFF
Connector
USB type B
Connector
Power supply 24v

28%
LOADING ...
SN: M100-S6SN: M100-S6
VS 1 .0 .0
ALVEOPRO - M100
28%
LOADING ...
SN: M100-S6SN: M100-S6
VS 1 .0 .0
ALVEOPRO - M100
0%
ALVEOPRO
START INFOSSETTINGS FILTER
00:00 10%
1
10
AlveoPRO software interface is composed of 4 main menus :
- START : Manage fan and timer
- SETTINGS : Device settings
- FILTER : Settings and information regarding the filter
- INFOS : General information and technical support
STEP 6 . DISPLAY INTERFACE
Firmware version number Rotary encoder
Wifi (option available from firmware version : VS 1.1.0)
USB connected
Filter initialization failed
Error detected
Buzzer is activated
Number of printer extruders (must be same as your printer)
00:00
Countdown
10%
Fan PWM
signal power
Percentage
filter saturation
0%

ALVEOPRO
1ALVEOPRO
00: 00: 00
0%
10%
PL AY TIMER MENUFANSTOP
ALVEOPRO
1ALVEOPRO
00: 00: 00
0%
10%
PL AY TIMER MENUFANSTOP
ALVEOPRO
1ALVEOPRO
10
940
35.533
25.7
RPM
PA
°C
%
FAN PWM
ALVEOPRO
1ALVEOPRO
42
1760
53.120
25.8
RPM
PA
°C
%
FAN PWM
11

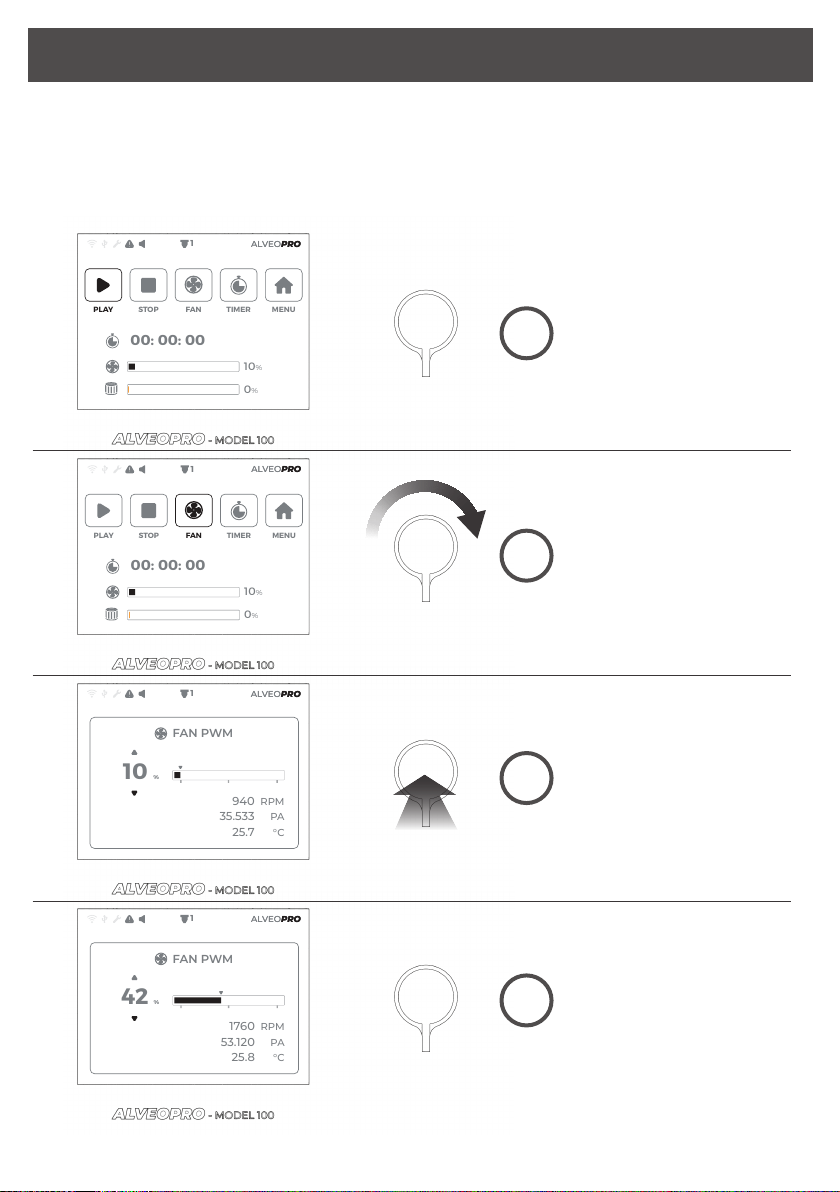

In the menu START, fan speed can be manageg as well as the timer. With the
timer, you can set the end of the countdown at the right time.
STEP 7 . FAN CONTROL
PLAY starts filtration
STOP stops filtration
FAN control PWM signal power
(fan speed)
TIMER set the countdown
MENU return to home screen
Rotate the selector to select the
icon FAN then press it to validate
your choice
Rotate the selector to choose the
fan PWM signal power then press
to validate
On the FAN menu
RPM : fan speed
PA : Differential air pressure
(filter autodetection)
°C : temperature inside the
alveoPRO (for security
purposes)
1.
2.
3.
4.

ALVEOPRO
1ALVEOPRO
01 :
CANCEL
H19 MIN
FAN TIMER
OK
ALVEOPRO
1ALVEOPRO
00: 00: 00
0%
42%
PL AY TIMER MENUFANSTOP
ALVEOPRO
1ALVEOPRO
00: 01: 19
0%
42%
PL AY TIMER MENUFANSTOP
ALVEOPRO
1ALVEOPRO
00 :
CANCEL
H00MIN
FAN TIMER
OK
ALVEOPRO
1ALVEOPRO
01 :
CANCEL
H00MIN
FAN TIMER
OK
ALVEOPRO
1ALVEOPRO
01 :
CANCEL
H00MIN
FAN TIMER
OK
ALVEOPRO
1ALVEOPRO
01 :
CANCEL
H05 MIN
FAN TIMER
OK
ALVEOPRO
1ALVEOPRO
01 :
CANCEL
H19 MIN
FAN TIMER
OK
12
TIMER settings (countdown) manage the filtering time and let you set it to
follow the printing time and hotbed cooldown.
Select the TIMER icon then validate by pressing the rotary encoder.
STEP 8 . TIMER SETTINGS
1. Select TIMER icon
2. Press the encoder to select «hours»
3. Set the time by rotating the encoder then validate
4. Select «minutes» with the selector
5. Set the minutes by rotating the encoder
6. Press the selector to validate your choice
7. Finally click on «OK» to validate
8. Timer saved, countdown starts

13
Filter M100 replacement comes with a new initialization process through the
display interface:
Follow the steps below :
STEP 9 . FILTER CHANGE
In the main menu select « FILTER»
then get access to filter
management option.
Scroll down to select REPLACE
FILTER then start the process by
pressing the rotary encoder.
Follow all displayed instructions
on the screen.
100%
ALVEOPRO
START INFOSSETTINGS FILTER
00:00 10%
1
ALVEOPRO
1
RETURN
REPLACE FILTER
FILTER SATURATION
TIME LEFT
TOTAL TIME
FILTER TYPE
0000h
1500h00
M100-H14
98%

14
A detailed interface manual will be soon available on the support page and
extra 3D files will be shared as well.
AlveoPRO firmware will be seasonally updated to bring new functionalities.
To install incoming updates, go to www.alveo3d.com with the link below :
The enclosure connector is available in STEP format on the support page (link
above) in order to let you modify it easily to fit with your enclosure shape.
STEP 10 . ONLINE SUPPORT
https://www.alveo3d.com/en/alveopro-support/
Enclosure connector
for fan 120x120mm
and fan 90x90mm
Enclosure connector
for AlveoONE cutout

15
When an error or alert popups on the screen, check in the description below to
know how to deal with it :
N° TYPE VS (version) DESCRIPTION & SOLUTION
#100 ERROR
BOOTLOADER 1.0.0 Press the rotary encoder
Update the firmware
#101 ERROR
BOOTLOADER 1.0.0 EEPROM not responding
& FIRMWARE 1.0.0 Reboot the device
#102 ERROR
FIRMWARE 1.0.0 SRAM not responding
Reboot the device
#103 ERROR
FIRMWARE 1.0.0 SDP not responding
Reboot the device
#104 ERROR Tachymeter not responding
FIRMWARE 1.0.0 Fan working but the screen displays 0 RPM
Contact the Alveo3D technic support
#105 ERROR
FIRMWARE 1.0.0 Low pressure (small airdrop)
Check if the filter is well positioned
#106 ERROR
FIRMWARE 1.0.0 High pressure (PWM:10% & PDIFF>80Pa)
Too much air drop (displayed if fan speed : 10%)
Check nothing block the airflow to the filter
in the hose or between the filter and fan
#107 ALERT 1.0.0 Filter saturation high ( >= 90% )
Monitor the filter replacement time
#108 ALERT 1.0.0 Filter saturation very high ( >= 98% )
Change the filter
STEP 11 . ALERT & ERROR LIST

16
NOTES
HEPA Filter P3D lifetime:
Filter working life is associated with many factors including filament type, melting
temperature, the concentration of nanoparticles and VOCs, ambient humidity...
We suggest replacing HEPA filter P3D according to the following table:
We do not recommend going above 1500 hours of use before to replace the filter.
Intensive use Occasional use
Filter replacement
6 months 12 months
Filter replacement tracking:
Date of purchase
Date
Replacement 1
Replacement 2
Replacement 3
Replacement 4
Replacement 5
Replacement 6
Replacement 7
Replacement 8
Replacement 9
Replacement 10

NOTES :
17

NOTES :
18

ALVEO3D by
FLEXEE SYSTEM SAS
386 Rue de la Curiaz
73290 La Motte-Servolex
www.alveo3d.com
[email protected]
Breath ! You are filtering !
Share your experience on www.facebook.com/alveo3d/
Designed & assembled in France
