ALZA BFH-A User manual

QUARTZ GLASS TUBE PATIO
HEATER BFH-A
USER MANUAL

2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before using for the first time and keep this user manual for future reference. Pay
particular attention to the safety instructions. If you have any questions or comments
about the device, please contact the customer line. Customer line, availability 24 hours a
day: 225 340 111, www.alza.cz.
Importer: Alza.cz a.s. Jankovcova 1522/53, Holešovice 170 00 Prague 7 www.alza.cz
SAFETY WARNINGS
Read these safety rules before operating the product!
If you smell gas:
•Shut off the gas in the appliance.
•Extinguish any open flame.
•If the odor persists, contact your gas supplier or fire department immediately.
For your safety:
1) Do not store or use gasoline or other flammable liquids and vapors near this or
any other equipment.
2) An LP bottle that is not connected for use must not be stored near this or any
other device．
WARNING
1) The product is intended for use outdoors or in well-ventilated areas.
2) A sufficiently ventilated area is one where at least 25% of the area is open and
ventilated.
3) The surface area is the sum of the wall surfaces.
Improper installation, adjustment, modification, service, or maintenance can
cause injury or property damage. Read the installation, operation, and
maintenance instructions carefully before installing or servicing this equipment.

3
Read the following instructions before installation and use
•This appliance must be installed and the gas cylinder must be stored in
accordance with the applicable regulations.
•Do not cover the ventilation holes of the cylinder housing.
•Do not move the device while it is in operation.
•Close the valve on the gas cylinder or regulator before moving the appliance.
•The tubing or the flexible hose must be changed within the prescribed intervals.
•Use only the type of gas and the type of cylinder specified by the manufacturer.
•The LP tank used with the heater must meet the following requirements:
oBuy LP tanks only with the following required dimensions:
▪(31.8 cm) (diameter) × (58 cm) (height) with a maximum capacity of
15 kg.
•In case of strong wind, special attention must be paid to tilting the device. Keep
the appliance at least 1 m away from the gas cylinder.
•The injector in this device is not removable and the injector is only installed by
the manufacturer. It is forbidden to convert from one gas pressure to another in
this device.
•Do not connect the gas cylinder directly to the appliance without the regulator.
Use only the type of gas and type of cylinder specified in the instructions.
Regulator (compliant with EN16129: 2013 and national regulations) with the correct
pressure corresponding to the appliance category.
Use a 30mbar regulator for butane / propane under the category I3B/P(30).
It's recommended to use flexible hose that approved by EN16436.

4
WARNING
PLEASE READ THE FOLLOWING SAFETY GUIDELINES CAREFULLY BEFORE OPERATION.
•Do not use the patio heater for indoors, as it may cause personal injury or
property damage.
•This outdoor heater is not intended to be installed on recreational vehicles
and/or boats.
•Installation and repair should be done by a qualified service person.
•Improper installation, adjustment, alteration can cause personal injury or
property damage.
•Do not attempt to alter the unit in any manner.
•Never replace or substitute the regulator with any regulator other than the
factory-suggested replacement.
•Do not store or use gasoline or other flammable vapors or liquids in the heater
unit.
•The whole gas system, hose, regulator, pilot or burner should be inspected for
leaks or damage before use, and at least annually by a qualified service person.
•All leak tests should be done with a soap solution. Never use an open flame to
check for leaks.
•Do not use the heater until all connections have been leak tested.
•Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve
OFF. If the leak is at the Hose/Regulator connection: tighten connection and
perform another leak test. If bubbles continue appearing, the product should be
returned to hose’s place of purchase. If the leak is at the Regulator/Cylinder Valve
connection: disconnect, reconnect, and perform another leak check. If you
continue to see bubbles after several attempts, the cylinder valve is defective and
should be returned to the cylinder’s place of purchase.
•Do not transport heater while it’s operating.
•Do not move the heater after it has been turned off until the temperature has
cooled down.
•Keep the ventilation opening of the cylinder enclosure free and clear of debris.
•Do not paint the radiant screen, control panel or top canopy reflector.
•Control compartment, burner and circulation air passageways of the heater must
be kept clean. Frequent cleaning may be required as necessary.
•The LP tank should be turned off when the heater is not in use.
•Check the heater immediately if any of the following occurs:
oThe heater does not reach temperature.
oThe burner makes popping noise during use (a slight noise is normal
when the burner is extinguished).
oSmell of gas in conjunction with extreme yellow tipping of the burner
flames.

5
•The LP regulator/hose assembly must be located out of pathways where people
may trip over it or in area where the hose will not be subject to accidental
damage.
•Any guard or other protective device removed for servicing the heater must be
replaced before operating the heater.
•Adults and children should stay away from high temperature surfaces to avoid
burns or clothing ignition.
•Children should be carefully supervised when they are in the area of the heater.
•Clothing or other flammable materials should not be hung on the heater or
placed on or near the heater.
•Change the gas cylinder in a amply ventilated area, away
from any ignition source (candle, cigarettes, other flame
producing appliances, ...).

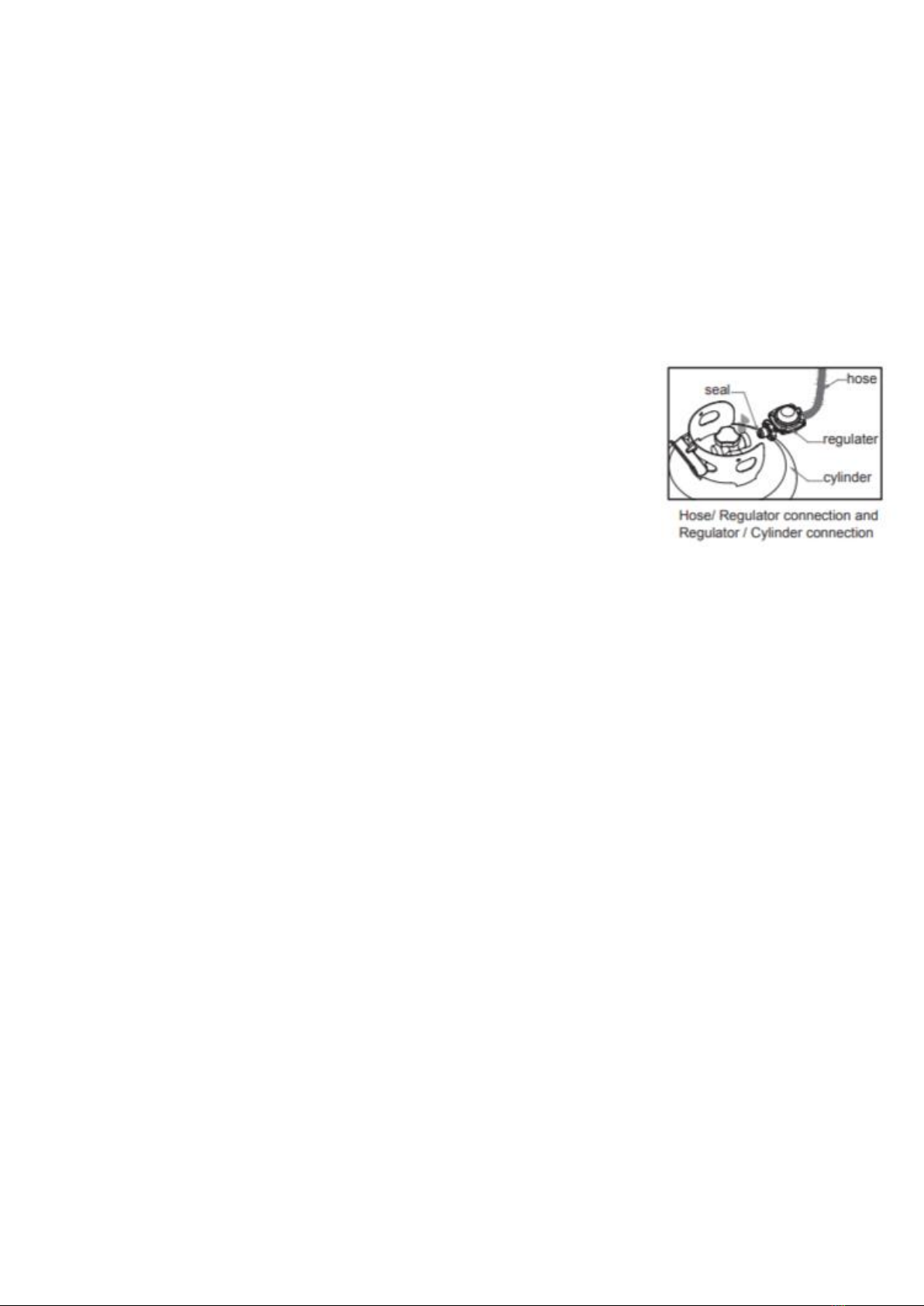

•To check that the regulator seal is correctly fitted and able to
fulfill its function, check the appliance as shown in the
picture on the right.
•Do not obstruct the ventilation holes of the cylinder housing.
•Close the gas supply at the valve of the gas cylinder or the
regulator after use.
•In the event of gas leakage, the appliance shall not be used or if alight, the gas
supply shall be shut off and the appliance shall be investigated and rectified
before it is used again.
•Check the hose at least once per month, each time the cylinder is changed，or
each time before a long time of no use. If it shows signs of cracking, splitting or
other deterioration, it shall be exchanged for new hose of the same length and of
the equivalent quality.
•The use of this appliance in enclosed areas can be dangerous and is PROHIBITED.
•Read the instructions before using this appliance. The appliance must be
installed in accordance with the instructions and local regulations.

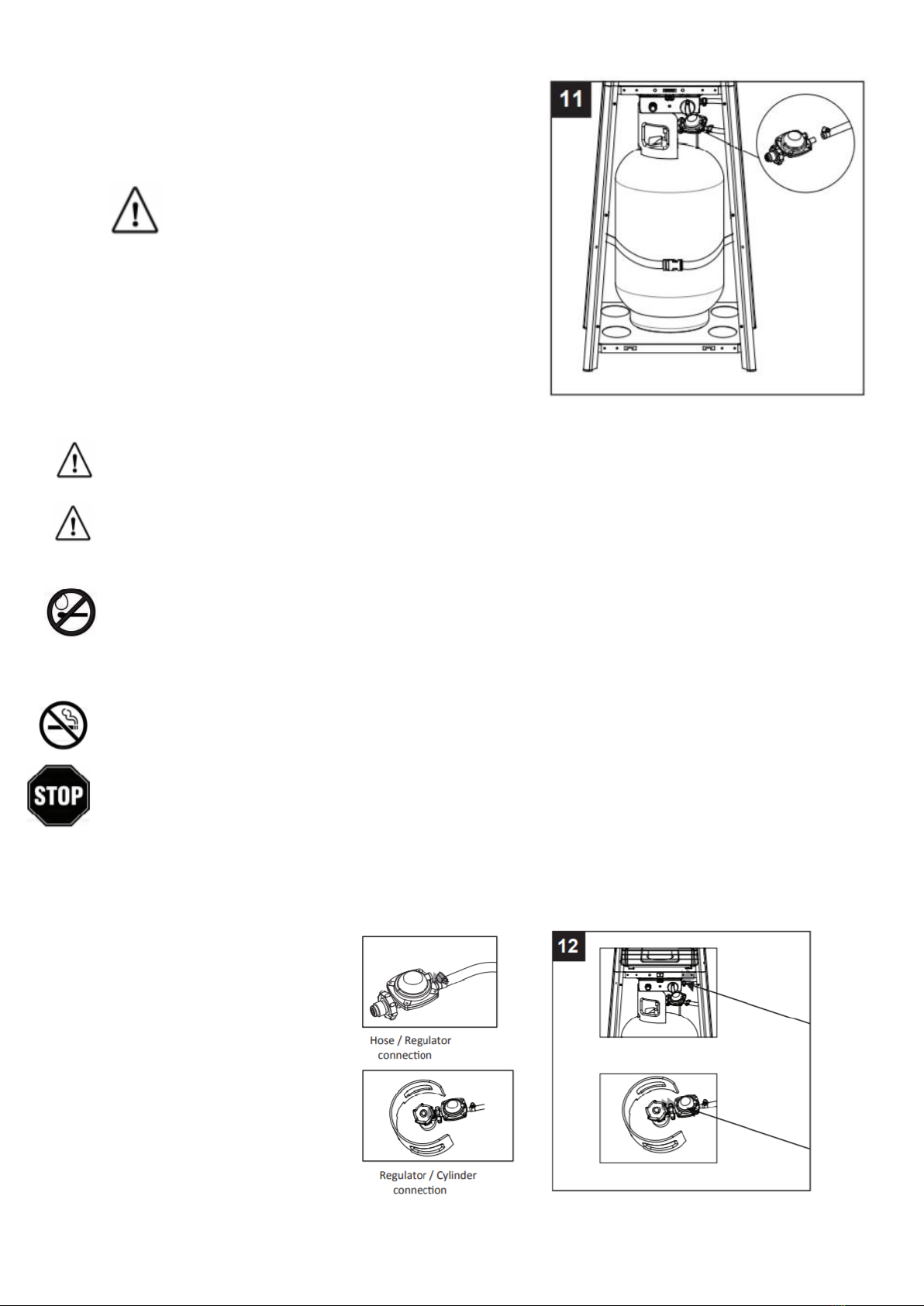

•For connection of hose and regulator,and connection of regulator and hose,
please refer to photo showed above.
•This product contains small batteries. Ingestion of small batteries may present a
CHOKING HAZARD. If batteries are swallowed or inhaled, seek medical attention
immediately. Keep children away from small batteries.
•Do not block the vents of the storage space for the gas cylinder.

6
HEATER STAND AND LOCATION
•The heater is primarily for outdoor use only. Always ensure that
adequate fresh air ventilation is provided.

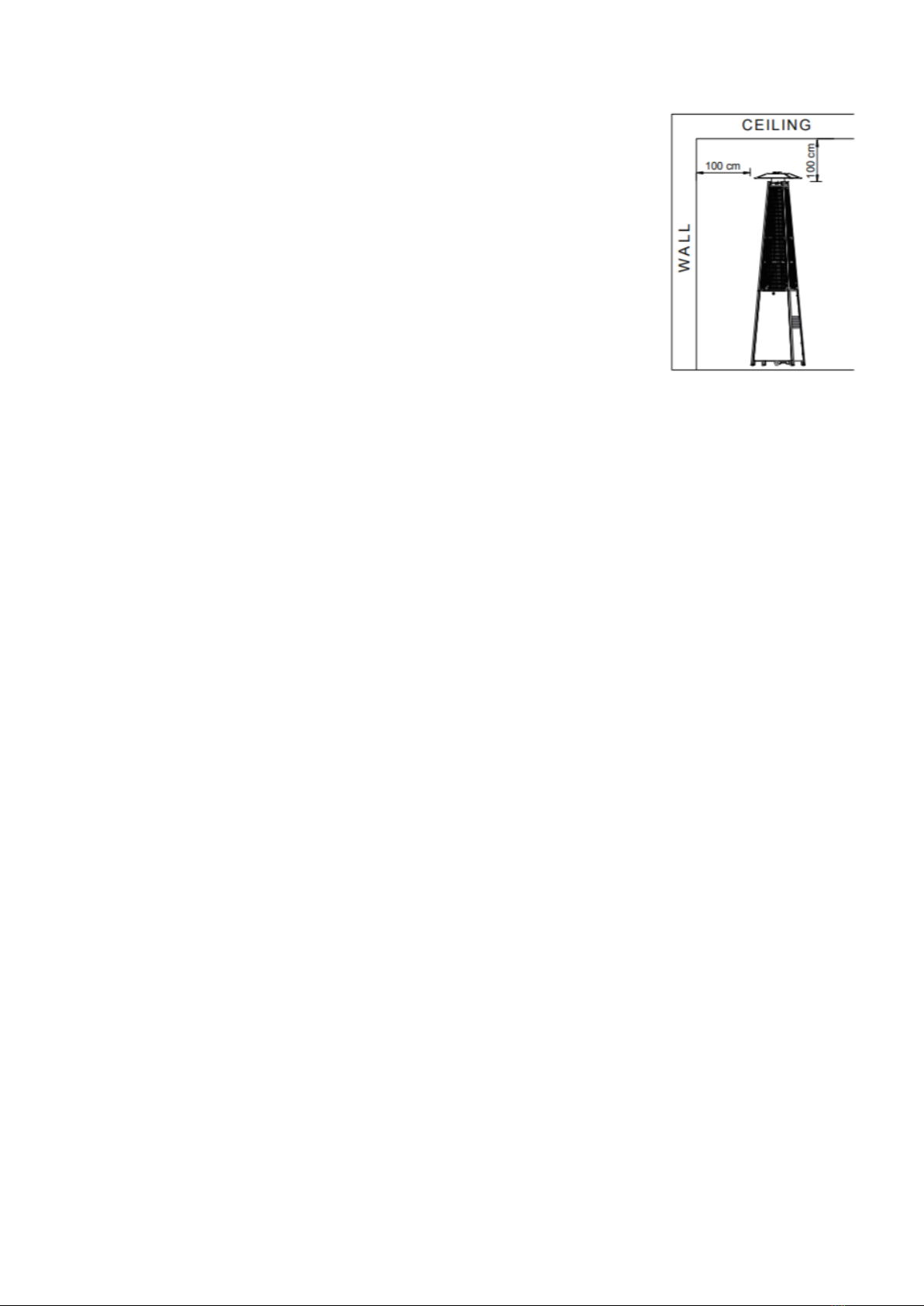

•Always maintain proper clearance to non protected combustible
materials i.e. top 100 cm and sides 100 cm minimum).
•Heater must be placed on level, firm ground.
•Never operate heater in an explosive atmosphere, such as in
areas where gasoline or other flammable liquids or vapors are
stored.
•To protect heater from strong wind, anchor the base securely to
the ground with screws.
GAS REQUIREMENTS
•Use propane, butane or their mixture gas only.
•The pressure regulator and hose assembly to be used must conform to local
standard codes.
•The installation must conform to local codes, or in the absence of local codes, with
the standard for the storage and handling of liquid petroleum gases.
•A dented, rusted or damaged tank may be hazardous and should be checked by your
tank supplier. Never use a tank with a damaged valve connection.
•The tank must be arranged to provide for vapor withdrawal from the operating
cylinder.
•Never connect an unregulated tank to the heater.
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A
complete gas tightness check must be performed at the installation site due to possible
mishandling in shipment or excessive pressure being applied to the heater.
•Make a soap solution of one part liquid detergent and one part water. The soap
solution can be applied with a spray bottle, brush or rag. Soap bubbles will appear in
case of a leak.
•The heater must be checked with a full cylinder.
•Make sure the safety control valve is in the OFF position.
•Turn the gas supply ON.
•In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the
gas supply on and recheck.
•Never leak test while smoking.

7
OPERATION AND STORAGE

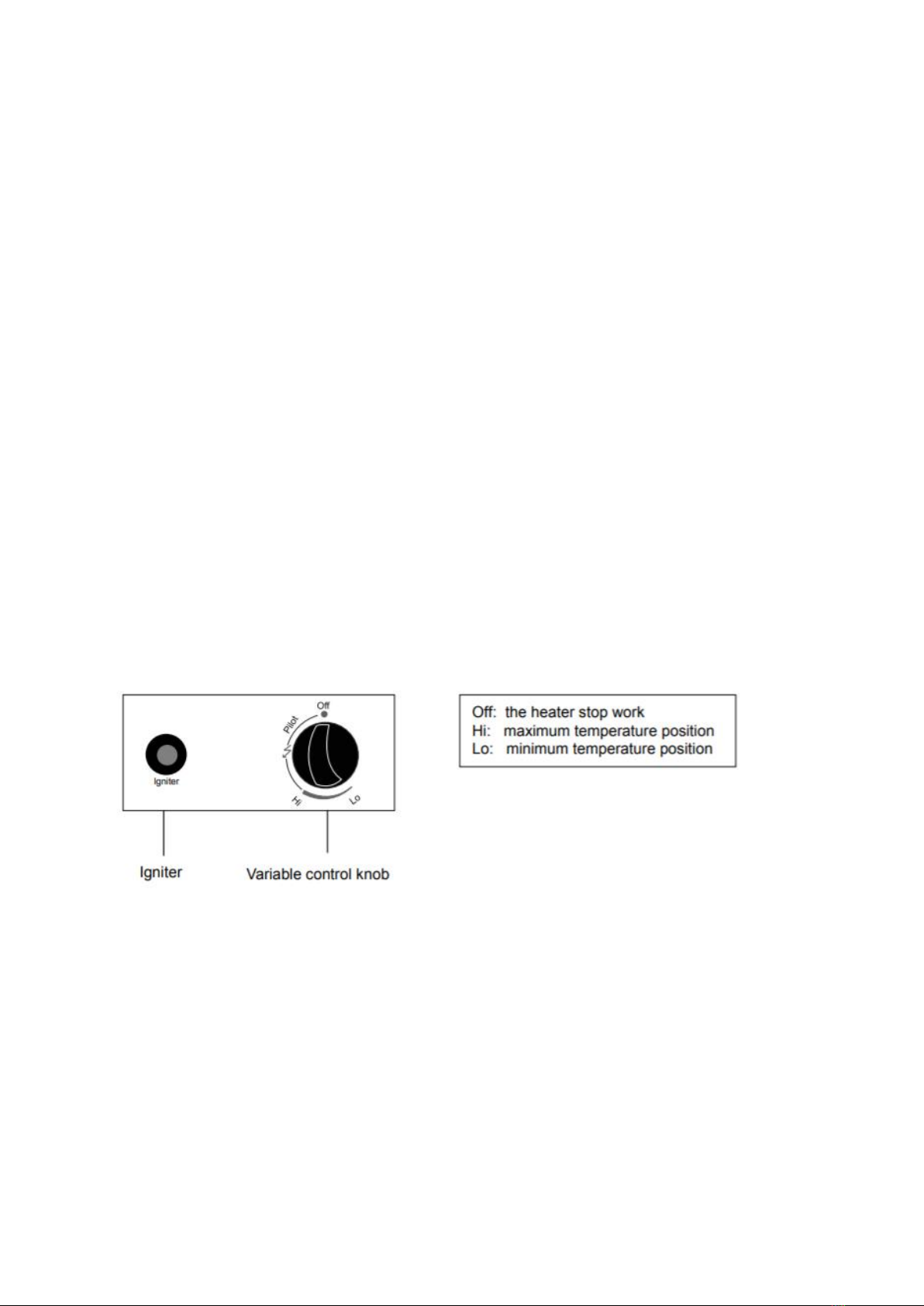

TO TURN ON THE HEATER
1. Turn on the valve on the gas supply cylinder completely.
2. Press and turn the variable control knob to PILOT position (counter-clockwise 90°).
3. Press down the variable control knob and hold for 60 seconds. While holding down
the variable control knob, press the igniter button several times until the pilot flame
lights. Release the variable control knob after the pilot flame lights.
NOTES:
•If a new tank has just been connected, please allow at least one minute for the air
in the gas pipeline to purge out through the pilot hole.
•When lighting the pilot flame, make sure that the variable control knob can be
released after the pilot flame lights.
•If the pilot flame does not light or it goes out, repeat step 3.
4. After the pilot flame lights, turn the variable control knob to maximum position and
leave it there for 5 minutes or more before turning the knob to your desired
temperature position.
WARNING: check that the glass is not broken before operation.
TO TURN OFF THE HEATER
1. Turn the variable control knob to PILOT position.
2. Press and turn the variable control knob to OFF position.
3. Turn off the valve on the gas supply cylinder completely.
STORAGE
1. Always close the gas valve of the gas cylinder after use or in case of a disturbance.
2. Remove the pressure regulator and the hose.
3. Check the tightness of the gas valve, and check for damage. If you suspect damage,
have the parts changed or repaired by your gas dealer.
4. Never store liquid gas cylinders in a sub-terrain, or at places without adequate air
ventilation.

8
CLEANING AND CARE
•Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with
cleaners that are combustible or corrosive.
•Remove debris from the burner to keep it clean and safe for use.
•Cover the burner unit with the optional protective cover when the heater is not in
use.

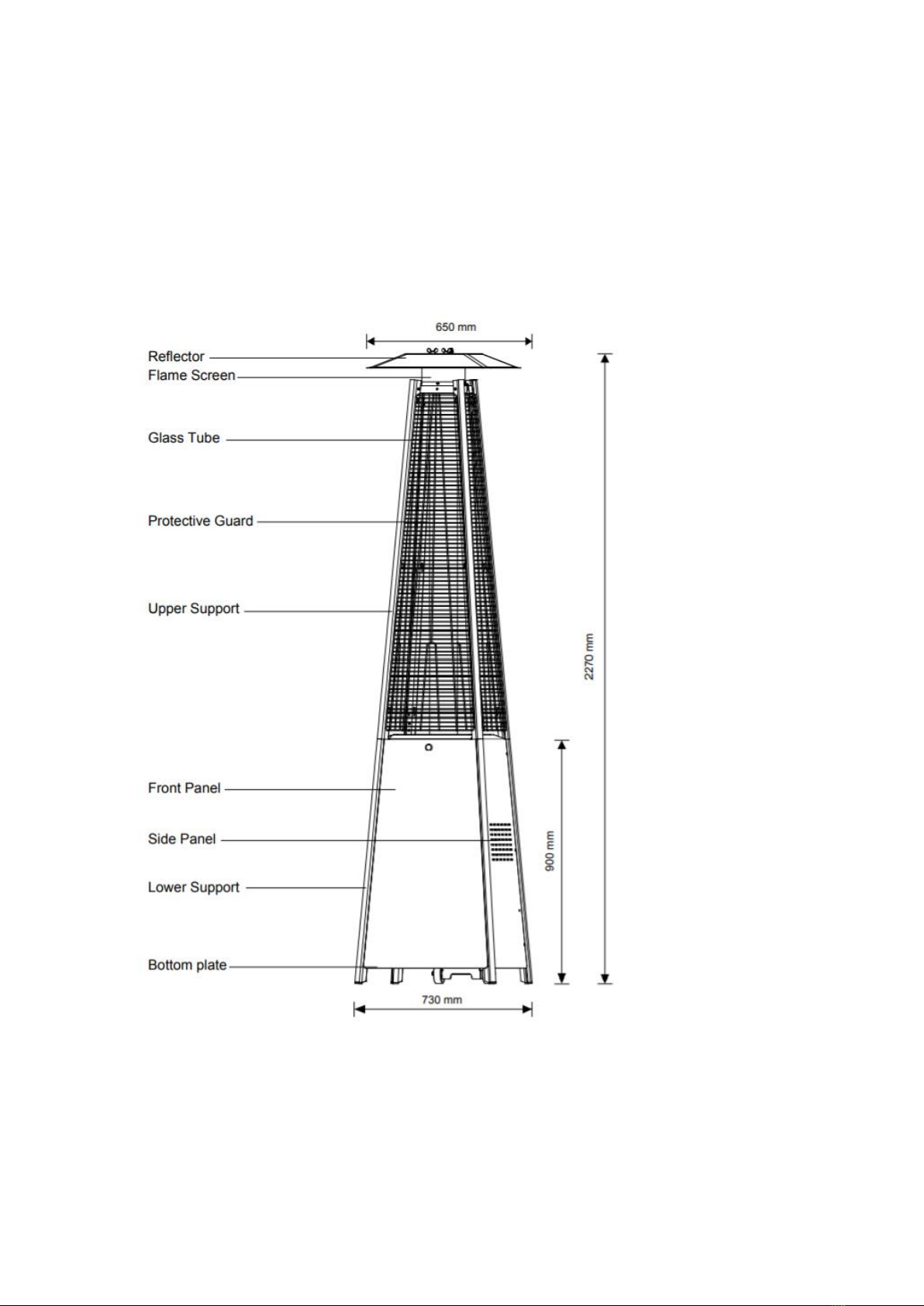

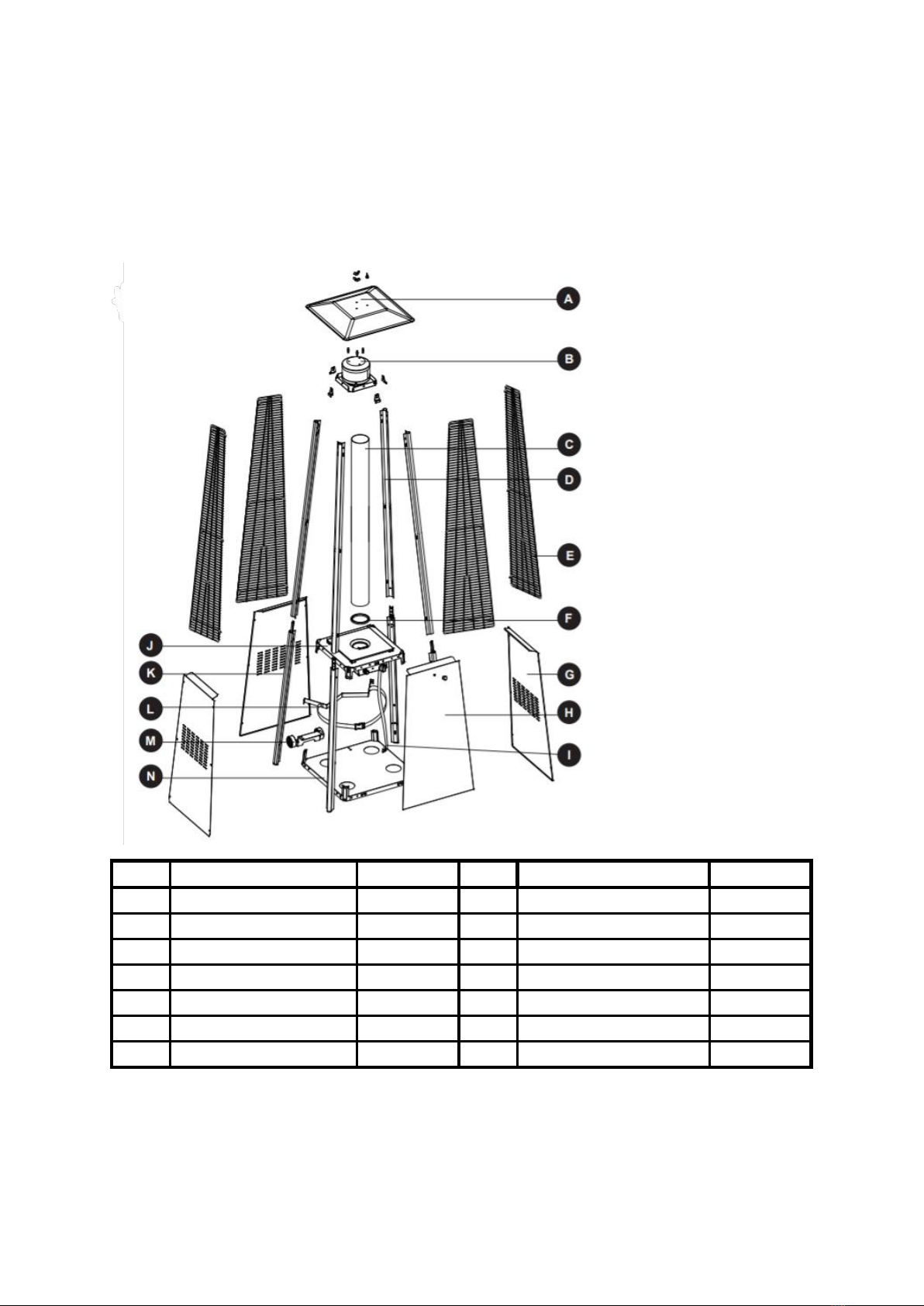

PARTS AND SPECIFICATIONS

9
A. CONSTRUCTION AND CHARACTERISTICS
•Transportable terrace/garden heater with tank housing.
•Casing in steel with powder-coating or in stainless steel.
•Gas hose connections with metal clamp (screw caps for Germany).
•Heat emission from reflector.
B. SPECIFICATIONS
•Use propane,butane or their mixtures gas only.
•Max. wattage: 13000 watts
•Min. wattage: 5000 watts
•Consumption:
APPLIANCE
CATEGORY:
I3B/P(30)
TYPES OF GAS:
Butane, propane or their mixtures
GAS PRESSURE:
30 mbar
OUTLET
PRESSURE OF
REGULATOR:
30 mbar
•Using the proper regulator according to outlet pressure of regulator as showed in
the table above.

10
C. TABLE OF INJECTOR
APPLIANCE
CATEGORY: I3B/P(30)
TYPES OF GAS:
Butane, propane or their mixtures.
GAS PRESSURE: 30 mbar
TOTAL HEAT
INPUT
(Hs) : (Qn)
13kW (G30:945g/h; G31:929g/h)
INJECTOR SIZE:
1,88 mm for main burner
0,18 mm for pilot burner
The marking, for example, 1.88 on the injector,
indicates that the size of injector is 1.88mm
The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B.
Specification.
The appliance requires approved hose in 0.6m length.
Destination
Countries：CZ/SK/HU

11
ASSEMBLY PARTS
Tools needed:
•Philips screwdriver w/ medium blade.
•Spray bottle of soap solution for leakage test.
Parts List:
ČÁST
POPIS
KVANTITA
ČÁST
POPIS
KVANTITA
A
Reflector
1
H
Front Panel
1
B
Flame Screen
1
I
Gas Hose
1
C
Glass Tube
1
J
Control Box Assy
1
D
Upper Support
4
K
Lower Support
4
E
Protective Guard
4
L
Block Belt
1
F
Black Silicone Ring
1
M
Wheel Assembly
1
G
Side Panel
3
N
Bottom Plate
1

12

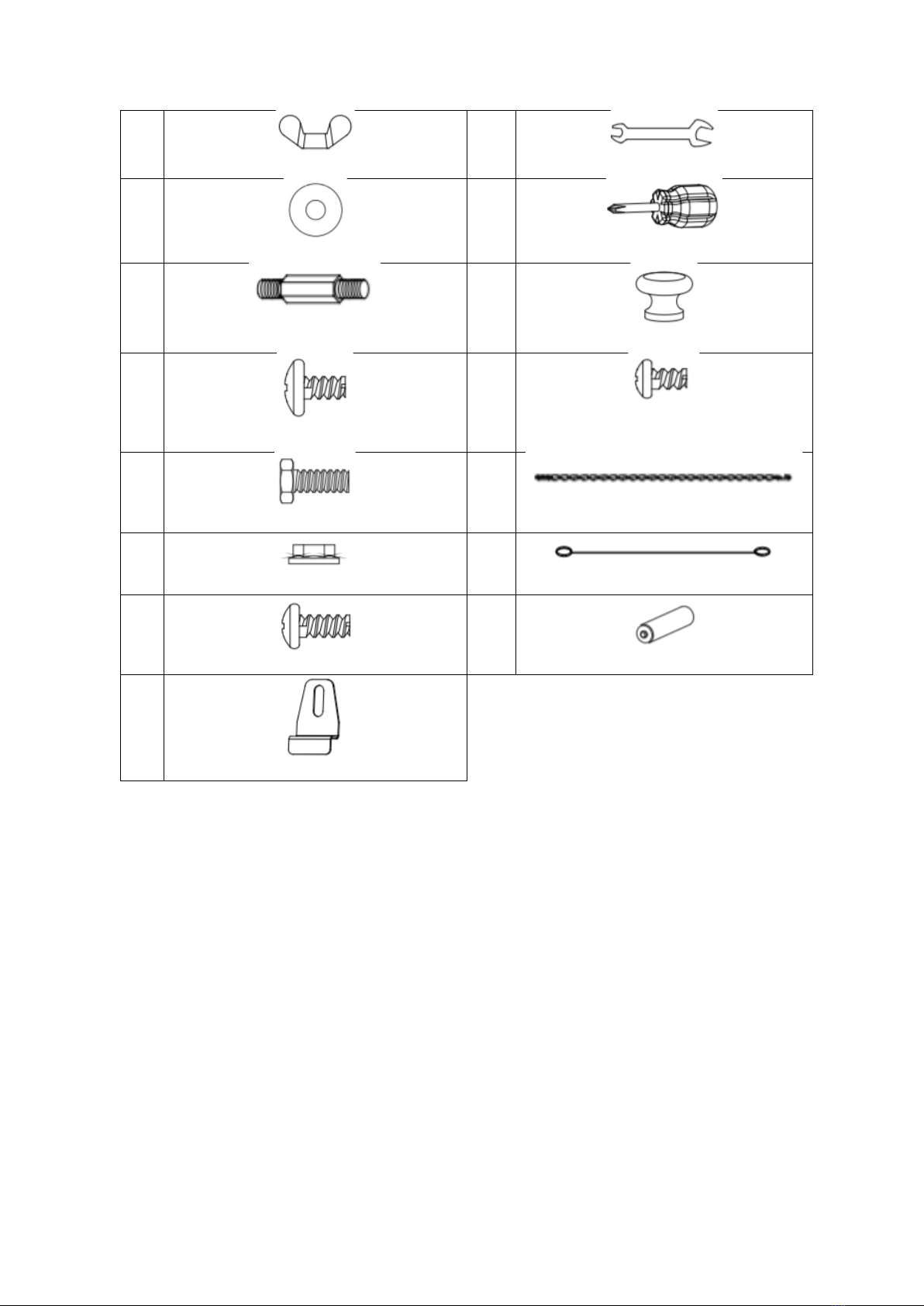

AA
Wing nut × 3
II
Wrench × 1
BB
Small flat washer Φ6 × 6
JJ
Philips screwdriver × 1
CC
Stud × 3
KK
Knob × 1
DD
Screw 3/16” × 42
LL
Screw M4 X 6 × 1
EE
Screw M6 X 12 × 4
MM
Chain × 1
FF
M6 Flange nut × 4
NN
Long stem lighter × 1
GG
Screw M5 X 12 × 6
OO
AA Battery (1,5 V) × 1
HH
Fixing bracket × 4

13

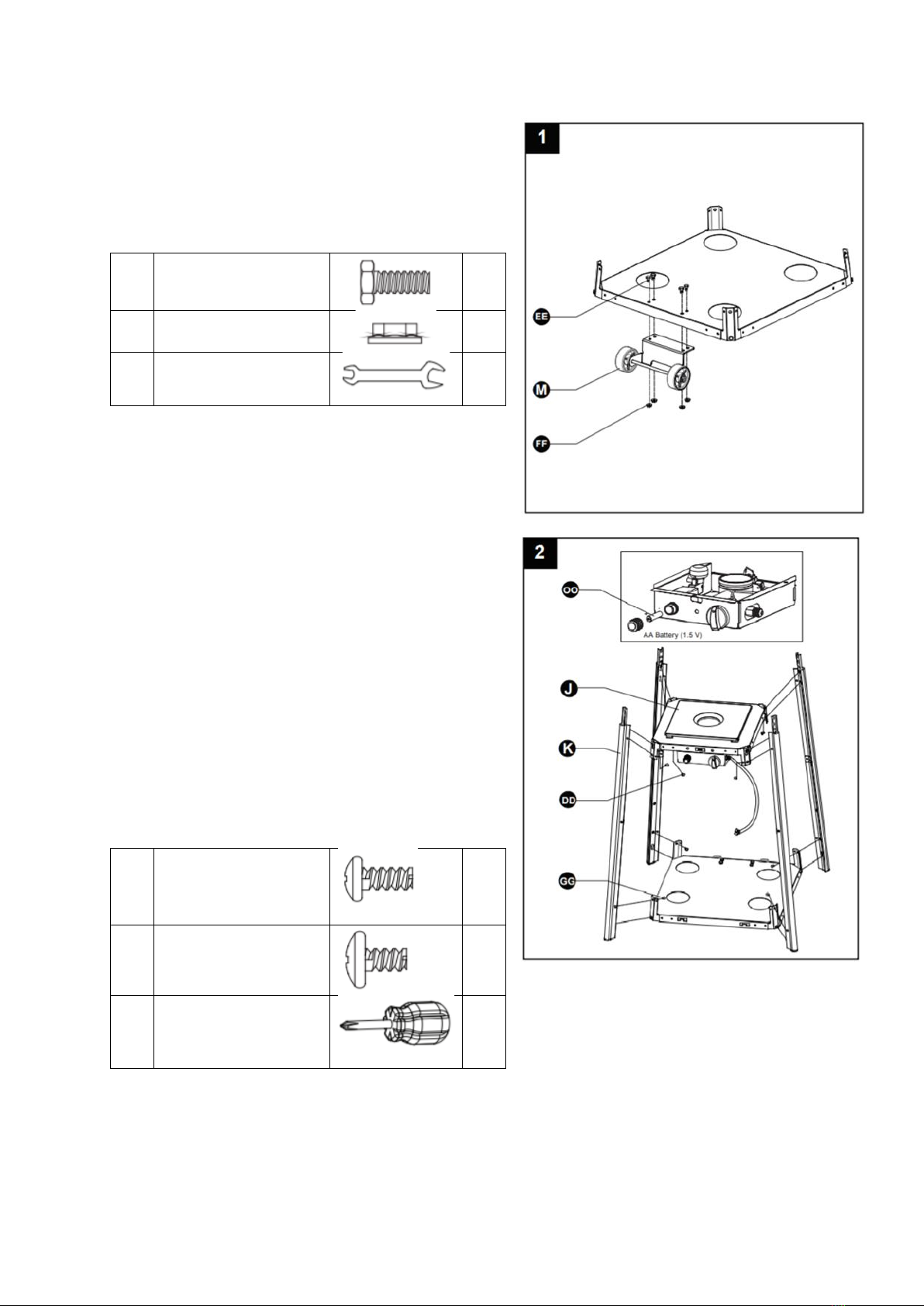

ASSEMBLY PROCEDURES
1. Assemble the wheel assembly to the bottom
plate. Fix the wheel assembly to the bottom plate
using 4pcs bolt M6X12 and 4pcs flange nut M6.
Hardware Used:
2-1. Unscrew the switch button, load small 2
battery, tighten the switch button.
2-2. Insert the pins of the base to the holes of
lower support, press to secure the pins. Using
4pcs screw M5X12 to secure the lower support
and base.
Insert the pins of the control box assy to the
holes of upper support, press to secure the pins.
Using 4pcs screw 3/16” screw to secure the upper
support and control box assy.
Hardware Used:
EE
Screw M5 X 12
x 4
FF
M6 Flange nut
x 4
II
Wrench
x 1
GG
Screw M5 X 12
x 4
DD
Screw 3/16”
x 4
JJ
Philips
screwdriver
x 1

14
3. Assemble block belt. Fix the block belt to the
2pcs of lower support behind the front door, using
2pcs screw M5X12.
Hardware Used:
4. Assemble the middle support. Insert the 4pcs
upper support to the lower support. Secure them
with 8pcs screw 3/16”.
Hardware Used:
GG
Screw M5 X 12
x 2
JJ
Philips
screwdriver
x 1
DD
Screw 3/16”
x 8
JJ
Philips
screwdriver
x 1

15
5. Assebmle the flame screen to the upper support.
Secure the flame screen to the upper support using
8pcs screw 3/16”.
Hardware Used:
6. Assemble the reflector onto the flame screen.
Screw the 3pcs stud on the flame screen, put 3pcs
washer Φ6 onto the top of stud, then put the reflector
onto the stud, secure them with 3pcs washer Φ6 and
3pcs wing nut.
Hardware Used:
DD
Screw 3/16”
x 8
JJ
Philips
screwdriver
x 1
AA
Wing nut
x 3
BB
Small flat washer
Φ6
x 6
CC
Stud
x 3

16
7. Carefully install the glass tube by lifting up and
inserting through the center hole in the upper plate.
Ensure the black silicone ring is attached to the
lower edge of the glass tube as illustrated. Slide the
glass tube through the hole of the lower plate cover
and onto the middle plate. Check and ensure that
the glass tube is positioned properly and is
completely covering the center hole of the middle
plate.
WARNING! The black silicone ring must be in
place prior to operating the heater.
8. Assembly the protective guard. Hang the hooks
of the protective guard onto the holes in supports.
Secure the protective guards with fixing brackets
with 4pcs 3/16" screws.
Hardware Used:
DD
Screw 3/16”
x 4
JJ
Philips
screwdriver
x 1
HH
Fixing bracket
x 4

17
9. Attach the three side panels to the heater using
18pcs screw 3/16”.
Note: Do not cover the front side where the control
knob is.
Hardware Used:
10. Install the knob to M4X6 screw. Hang the chain
to the hole on the control box assy and put the
pothook of front panel to the holes of bottom plate.
Hardware Used:
DD
Screw 3/16”
x 18
JJ
Philips
screwdriver
x 1
KK
Screw M5 X 12
x 1
LL
Screw M4 X 6
x 1
MM
Chain
x 1
JJ
Philips
screwdriver
x 1

18
11. Connect the gas hose and regulator after that
connect the regulator to the gas cylinder.
Warning! Ensure the hose does not contact
any high temperature surfaces, or it may
melt and leak causing a fire.
After the cylinder is placed inside the heater, secure
the cylinder with block belt tightly.
12. Leak Check.
WARNING! A leak test must be performed annually and each time a cylinder is hooked
up or if a part of the gas system is replaced.
WARNING! Never use an open flame to check for gas leaks. Be certain no sparks or
open flames are in the area while you check for leaks. Sparks or open flames will result
in a fire or explosion, damage to property, serious bodily injury, or death.
Leak testing: This must be done before initial use, annually,and whenever any gas
Components are replaced or serviced. Do not smoke while performing this test, and
remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all
burner controls to the off position. Turn gas supply valve on.
Brush a half-and-half solution of liquid soap and water onto all joints and connections of
the regulator, hose, manifolds and valves.
Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced
with one recommended by the Customer Care department and have the patio heater
inspected by a certified gas installer.
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it,and
have the patio heater inspected by a certified gas installer or dealer. Do not use the
patio heater until the leak has been corrected.

19
PROBLEM CHECK LIST
PROBLEM
PROBABLE CAUSE
SOLUTION
Pilot will not light
•Gas valve may be OFF
•Tank fuel empty
•Opening blocked
•Air in supply system
•Loose connections
•Turn the gas valve ON
•Refill LPG tank
•Clean or replace
opening
•Purge air from lines
•Check all fittings
Pilot will not stay
on
•Debris around pilot
•Loose connections
•Thermocouple bad
•Gas leak in line
•Lack of fuel pressure
•Clean dirty area
•Tighten connection
•Replace thermocouple
•Check connections
•Tank near empty. Refill
LPG tank.
Burner will not light
•Pressure is low
•Opening blocked
•Control not ON
•Thermocouple bad
•Pilot light assembly bent
•Not in correct location
•Tank near empty. Refill
LPG tank.
•Remove and clean
•Turn valve to ON
•Replace thermocouple
•Place pilot properly
•Position properly and
retry
If the appliance is in case of any defaults or problems of assembly or use, please don’t
try to modify it by yourself, contact your supplier or distributor to solve it.

20
WARRANTY CONDITIONS
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase..
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (eg during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.
