Amana AP077R User manual

PORTABLE AIR CONDITIONER
CLIMATISEUR PORTATIF
ACONDICIONADOR DE AIRE PORTATIL
Model#
Modèle#
Modelo# AP077R
ROOM AIR CONDITIONING AND DEHUMIDIFIER PRODUCTS

A Word From Amana
Product Registration
TABLE
RECEPTACLE AND FUSE TYPES
RATED VOLTS
AMPS
WALL OUTLET
FUSE SIZE
TIME DELAY FUSE
(or circuit braker)
125/60 250/60
15 20 15 20 30
15 20 15 20 30
Plug Plug
Plug
Thank you for buying a dependable, energy saving and easy-to-operate AMANA air
conditioner. This manual contains useful information for you to maintain, operate, install and
safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in
your room to provide you with the ultimate level of comfort.
Please read instructions carefully before using the product. Also, do not forget to fill out and
mail the Product Registration Card.
Record Your Model and Serial Number.
Attach the sales receipt to this guide and keep for future reference. Model and serial number
can be obtained from the serial label, which is on your air conditioner. For all your service calls
during the warranty period the following information will be needed:
Model Number:...................................................................................................................
Serial Number:....................................................................................................................
Date of Purchase:................................................................................................................
Dealer’s Name:...................................................................................................................
Dealer’s Address: ................................................................................................................
Dealer’s Phone Number: .....................................................................................................
(1)
English

SAFETY PRECAUTIONS
WARNING: Following these basic precautions will reduce the risk of fire, electrical shock,
injury or death when using your air conditioner.
1) Air conditioner must be connected to proper electrical outlet with the correct electrical
supply. (see table previous page)
2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR
REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle
outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Avoid using
it if there are cracks or abrasion damage along the length, plug connector or if the unit
malfunctions or is damaged in any manner. Contact an authorized service technician for
examination, repairs or adjustments.
4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5) Do not block airflow around the air conditioner. The exhaust hose should be free of any
obstructions.
6) Always unplug the air conditioner before servicing it or moving it.
7) Do not install or use the air conditioner in any area where the atmosphere contains
combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming
in contact with your air conditioner.
8) Do not place any object on the top of the unit.
9) Never operate the air conditioner without the filters in place.
10) Do not use the air conditioner near a bathtub, shower or wash basin.
SAVE THESE INSTRUCTIONS
(2)
English

Table Of Contents
Page
(3)
English
Advantages of this Model
1. This model is easy to operate. The electronic control air conditioner has a 24-hour timer,
thermostat, three cooling speeds, three fan speeds and one speed dehumidification
function (dry).
2. The unit has a unique design which evaporates water. Therefore no condensation tank is
necessary, and the bucket does not need to be emptied overnight.
3. An easy-to-install window kit is included, which consists of the exhaust hose, 2 hose
adapters, the window panel kit and window panel adapter.
4. Full-directional casters in the front are included so the unit is easy to move.
5. The filter screen is designed for easy accessibility of the filter.
6. Portable air conditioners are easy to store when not in use.
A Word From Amana..............................................................................................................1
Product Registration...............................................................................................................1
Safety Precautions..................................................................................................................2
Advantages .............................................................................................................................3
Parts and Features .................................................................................................................4
Assembly and Installation.....................................................................................................5
Operation.............................................................................................................................6-7
Product Specification..............................................................................................................8
Care and Cleaning .................................................................................................................8
Storage ....................................................................................................................................8
Troubleshooting......................................................................................................................9
Warranty Information ..........................................................................................................10

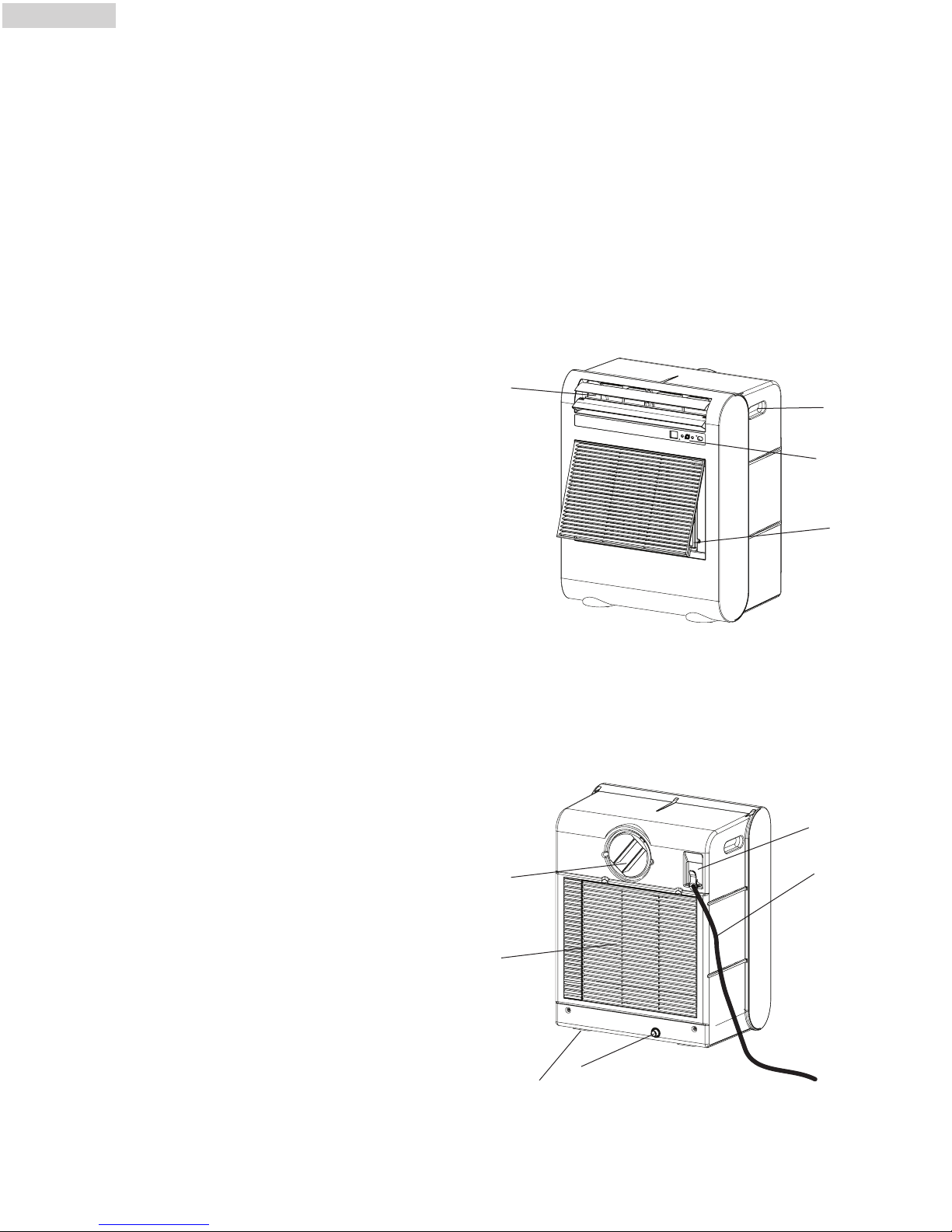

Parts and Features
(4)
English
1. Control Panel
2. Air Outlet
3. Handle hole
4. Caster
5. Air Filter
6. Air Outlet (Heat Exchange)
7. Air Intake (Condenser)
8. Built-in Cable Storage
9. Water Outlet Drain
10. Power Supply Cord
1
2
3
4
5
7
6
9
8
10
Front
Rear

12 4
Exhaust Hose
Hose Connector Duct Connector
65
3
Fig.1
Fig.2
Fig.3
(5)
English

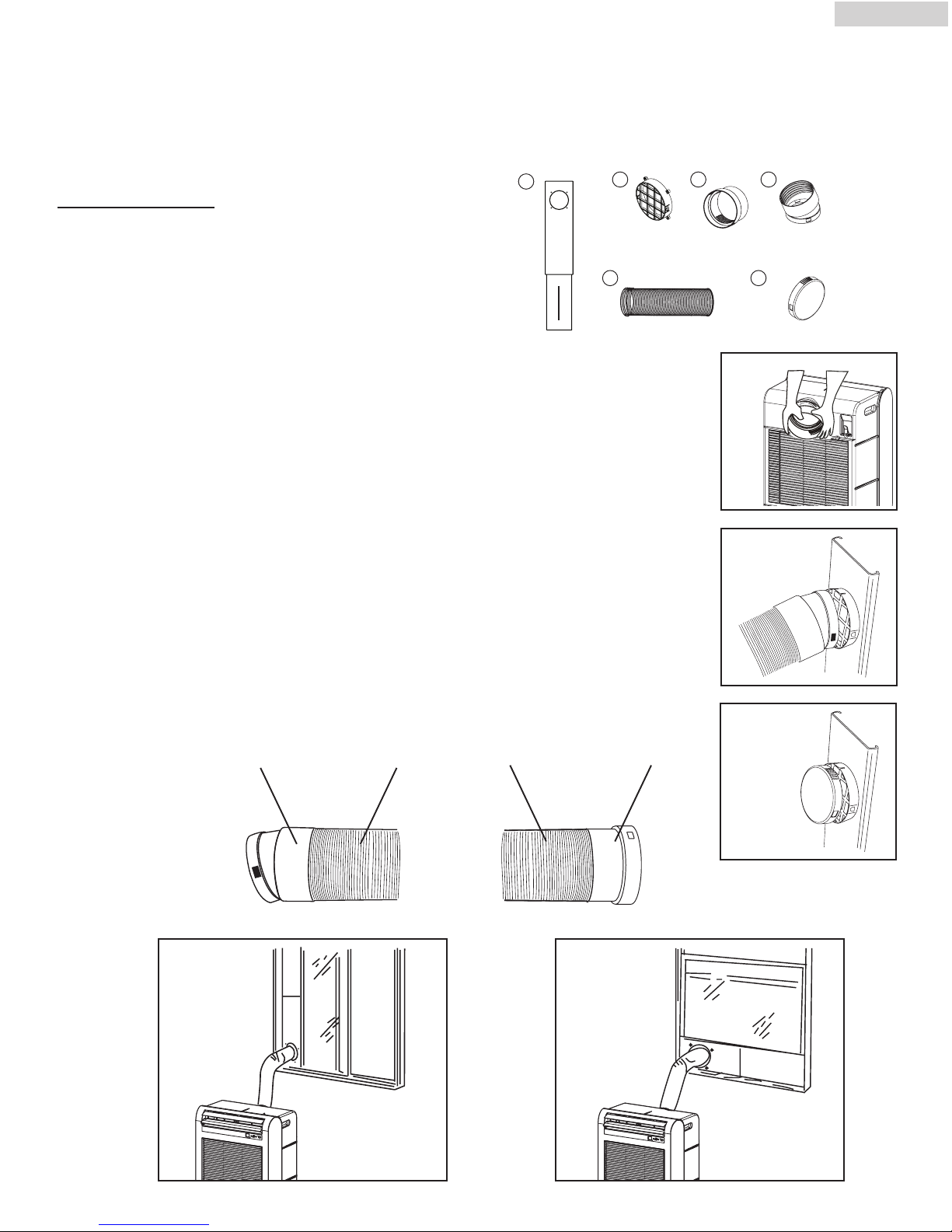

Assembly and Installation
1.Adjust the plastic panel to the width or height of your window and tighten
the 2 screws that are attached to the panel.
2.Push the round window panel adapter through the rear of the plastic panel.
Line up the holes and tighten the adapter with 4 screws that are included
in the kit. (Tighten screws from the front.)
3.Install the window plastic panel into the window. If necessary use duct
tape to better secure the panel.
4.Connect exhaust hose to the unit by inserting the duct connector that is
attached to the hose into the exhaust. Turn Adapter clockwise until it locks.
(See Fig.1)
5.Move the unit to the window, extend the hose and attach the other end of
the hose to the window. Align the tabs on the hose and window panel
adapters and fasten them together. (See Fig.2)
6.A cover can be installed on the window panel adapter when the air
conditioner is not in use.(See Fig.3)
Accessories Include
1. Window slider kit - 1 set
2. Fixture - 1 piece
3. Heat exhaust duct connector - 1 piece
4. Heat exhaust hose connector - 1 piece
5. Heat exhaust hose - 1 piece
6. Cover - 1 piece

(6)
English
Power Control
The power control turns the unit on and off.
When you press power control, the unit begins to
operate. Its initial operation mode is auto and fan
speed is auto.
Warning Light
Condensed water may accumulate in the unit.
If the internal tank becomes full, the Warning
Light will shine and the unit will not operate until
it has been drained.
Operating mode indicator
Indicator color of operating mode and LED:
• When cooling mode is selected, the indicator
light will be blue.
• When dehumidify mode is selected, the
indicator light will be yellow.
• When fan mode is selected, the indicator light
will be green.
Temperature and time setting indicator
• Indicator displays:
a. When unit turns on, it will display
"temperature at present."
b. When setting the temperature, it will display
"set temperature."
c. When setting time, it will display "set time" and
the indicator will flash.
d. 5 seconds after set temperature and set time, it
will go back to "temperature at present."
e. It will display "set temperature" or "remaining
set time" when the buttons "set temperature"
and "set time" are pressed.
f. Temperature display ranges from 64ºF~89ºF.
g. When the environmental temperature is higher
than the temperature display range, it shows
"HI."
h. When the environmental temperature is lower
than the temperature display range, it shows
"LO."
• When indicator lights go off, the unit
stops operating.

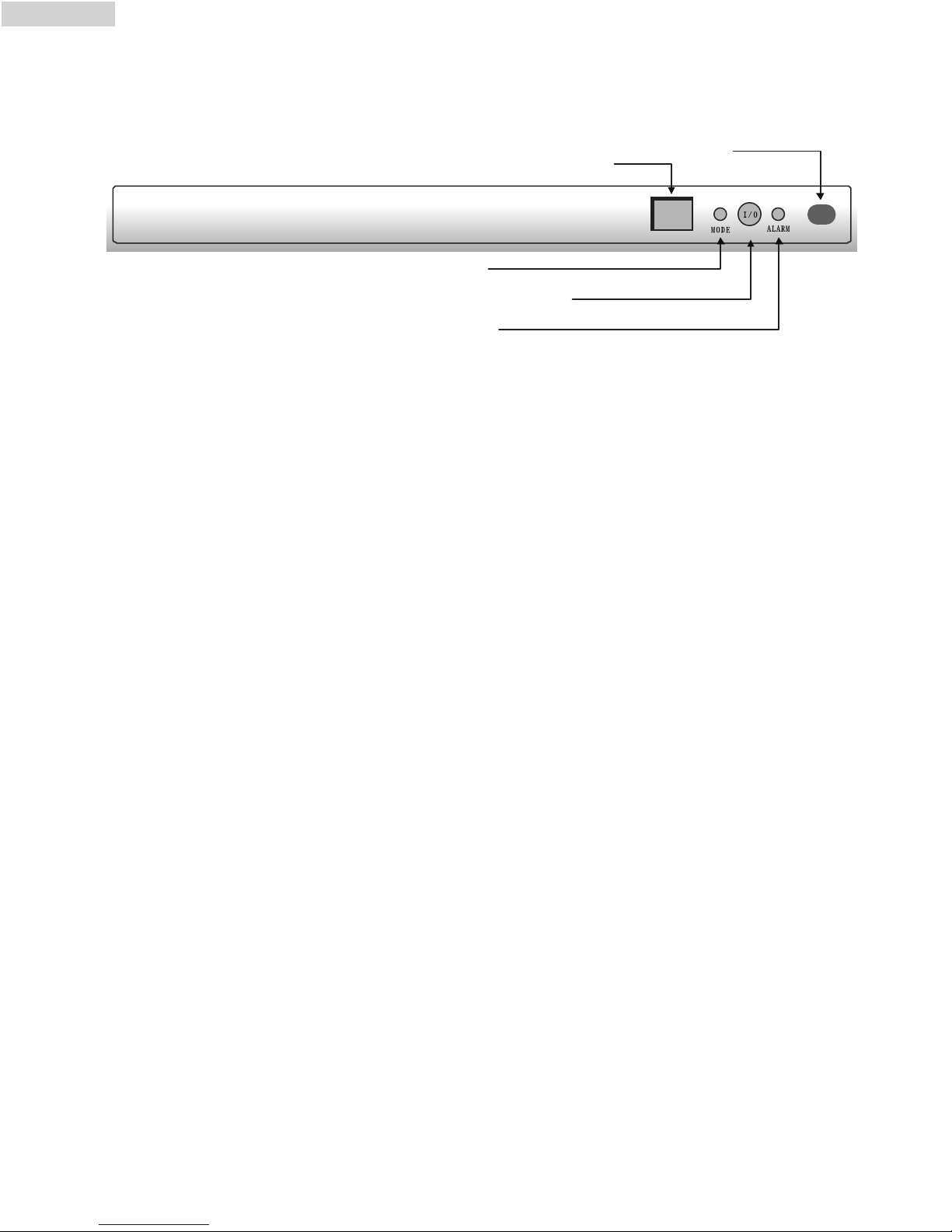

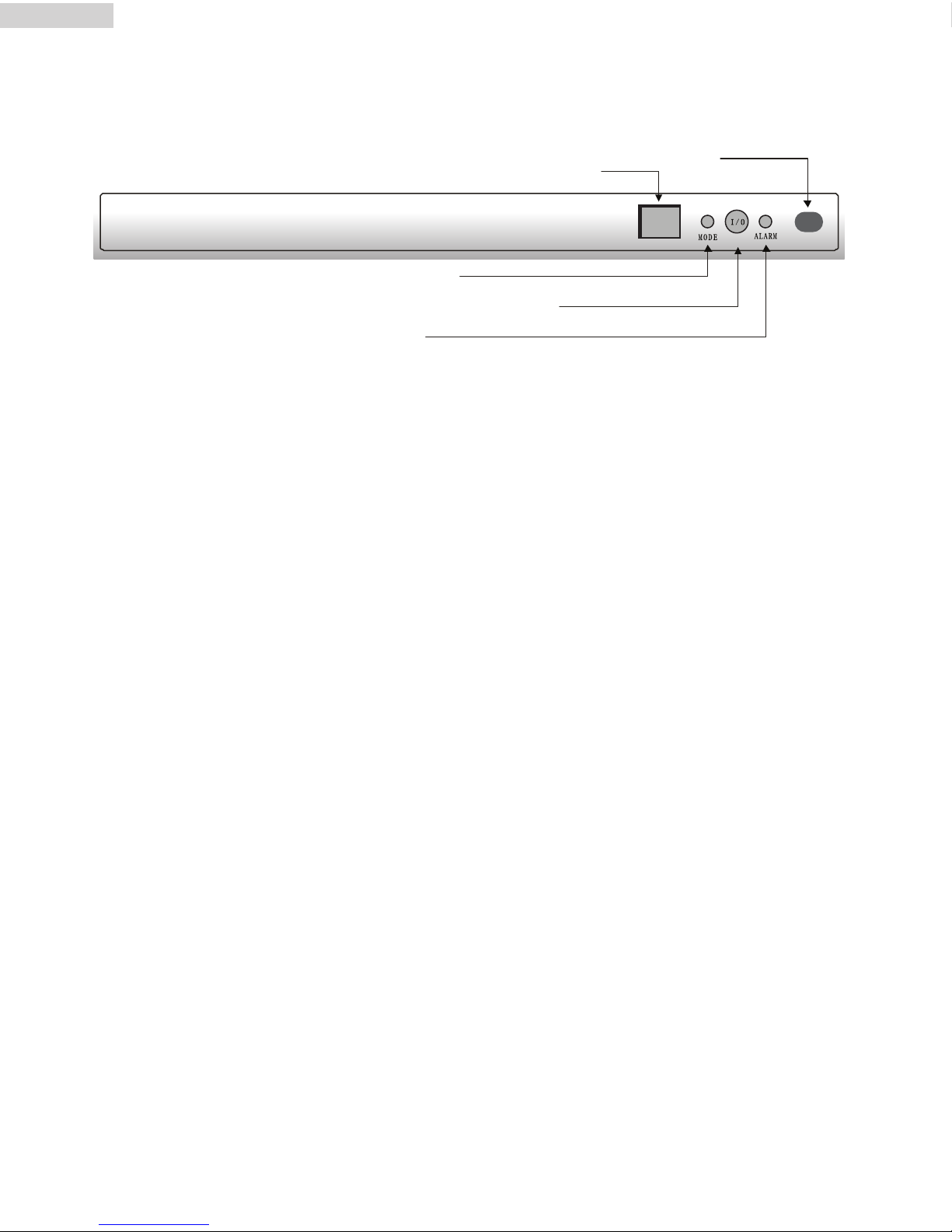

Operation Control Panel
Warning Light
Power Control (Emergency)
Mode Control
Receiving sensor
Temp. and time setting indicator

Operation
(7)
English
Power Control
The power control turns the unit on and off.
Mode Control
The Mode Control has 3 settings:
•Cool • Dehumidify • Fan
The settings are adjusted by Mode Control
button.
• Cooling Mode
During the cooling mode the air is cooled and
hot air is exhausted to the outside through the
exhaust tube. Adjust fan speed and air
temperature to suit your desired comfort level.
Note: The air exchange hoses must vent
outside the room when using Cool Mode.
• Dehumidify Mode
Air is dehumidified when the unit is not in full
cooling mode. If room temperature is greater
than 25 degrees Celsius, fan speed can be
adjusted; otherwise fan speed is fixed to" low."
Note: Air exchange hoses must vent inside
when in Dehumidify Mode; otherwise some
cooling will occur.
• Fan Mode
Air is circulated throughout the room with
no cooling.
Note: Unit does not need to be vented in
Fan Mode.
Fan Speed Control
The Fan Speed Control has 4 settings: Auto,
High, Medium, and Low.
Temp Set Controls
Press "Up" or "Down" to set temperature,
The setting range is from 64ºF~89ºF.
Note: When choose DEHUMIDIFITY or FAN
MODE, temperature setting button is invalid.
Fahrenheit/Celsius Selector
When you press the ºC/ºF switch buttons, the unit
will switch between of ºC and ºF.
Note: Initial setting is ºF
Timer Setting Control
•Press timer setting button during unit operation
to set shut-off time. The timer setting button will
set the timer to turn off the unit.
• Press timer setting button during unit standby
to set turn-on time. The timer setting button will
set the timer to turn on the unit.
• If you press the ON/OFF button when the timer
is set, the timer function is cancelled.
• Timer setting range is 1-24 hours.
Timer Cancel Control
If you press the "Timer Cancel Button," the timer
setting is cancelled.

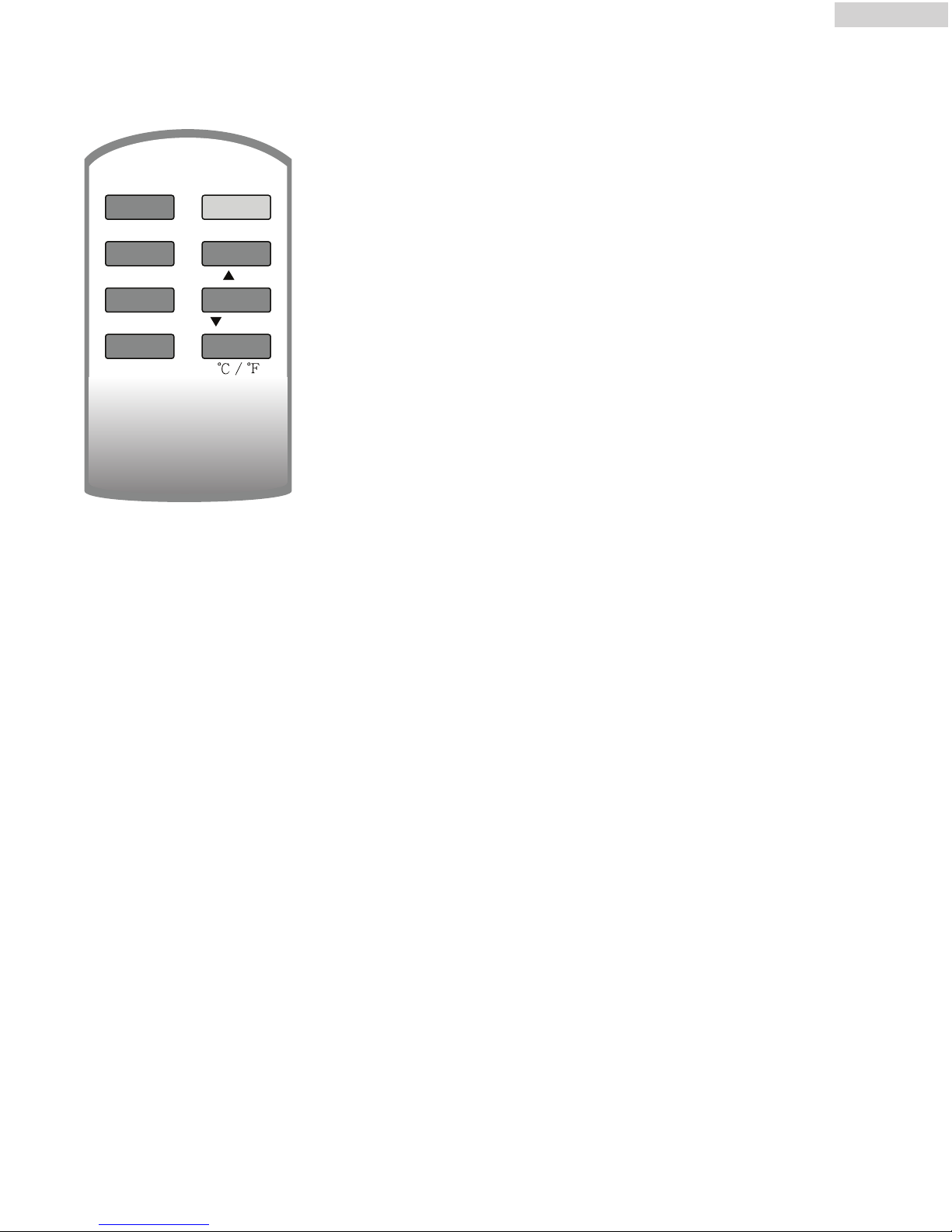

MODE
SPEED
TIMER
ON/OFF
CANCEL
UP
DOWN

• Always unplug your air conditioner before cleaning.
• Air filter needs to be cleaned at least once a week for your unit to operate at
optimum efficiency. Slide out the filter from the back by pulling on the tab. The filter
may be washed or vacuumed. Remove the excess water from the filter by
gently shaking the filter. This will remove dust and particles trapped in the filter.
After cleaning, reinstall the filter. DO NOT use your air conditioner without the air
filter in place.
• To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine,
bleach, concentrated detergents, solvents or metal scouring pads. Some of these
chemicals may dissolve, damage and/or discolor your air conditioner.
• Always use a soft cloth dampened with water or a mild soap and water solution to
wipe the front of the cabinet. Wipe dry with a soft cloth.
• To store your air conditioner when not being used for a long period of time, drain
condensed water using the drain pipe. Remove exhaust hose, clean the filters, cover
with plastic bag and store.
Care and Cleaning Guide
Storage
(8)
English
Product Specification
Voltage and Frequency 115V / 60Hz
Input Power 800 W
Cooling Capacity 7000 BTU
Moisture Removal (pints/day) 70
Coolant R22
Timer 24 Hours
Operating Temperature Range 64˚F - 100˚F
Unit Dimensions (WxDxH) (inches) 17 15/16" x 13 1/8" x 24 3/8"
Net Weight approximate 55.1 lbs.
Exhaust Hose 5 Feet

(9)
English
If air conditioner does not operate:
• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall receptacle is the proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in “Off” mode.
• If the warning light is on, drain the water drain pipe by removing the plug.
Air conditioner working but room not cooling:
• Room may have appliances that produce heat. Use an exhaust fan to remove excess heat.
• Check exhaust hose for proper installation.
• Redirect the airflow. Remove any obstacles.
• All doors and windows need to be closed so that cool air does not escape the room.
• Air filter may be blocked or may need cleaning.
• Unit BTU may be too low for the required cooling area.
• On extremely hot & humid days, air conditioners may take a little longer to cool.
• Drain the water drain pipe by removing the plug.
• Unit may be in fan or dry mode. Put air conditioner in cool mode.
Troubleshooting
