INSTALLATIONANDOPERATIONINSTRUCTIONSFOR
50-TRU-VIEW-XL
60-TRU-VIEW-XL
72-TRU-VIEW-XL
SAFETYINFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHISMANUALWITH THEAPPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTUREREFERENCE.

2
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................3
GROUNDING APPLIANCE.........................................................................................................................................3
LOCATINGTHEFIREPLACE.....................................................................................................................................4
50-TRU-VIEW-XL.........................................................................................................................................................5
60-TRU-VIEW-XL.........................................................................................................................................................6
72 TRU-VIEW-XL.......................................................................................................................................................7
SAFETYDRILLSCREWAREA..................................................................................................................................14
HARD-WIRE INSTALLATION.................................................................................................................................15

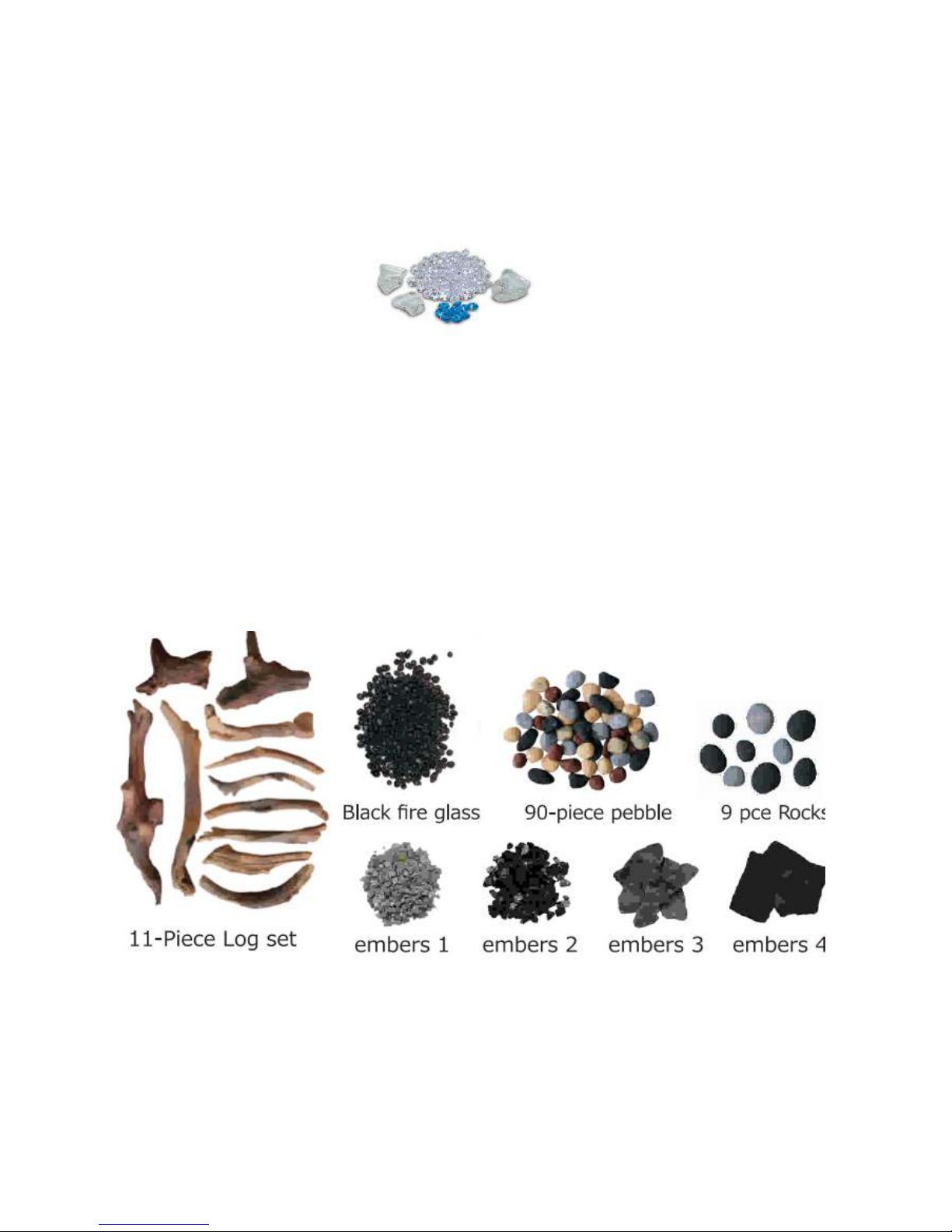

MEDIAOPTIONS.......................................................................................................................................................17
OPERATION................................................................................................................................................................19
INSTALLING WALLTHERMOSTAT........................................................................................................................21
REPLACEMENTPARTS............................................................................................................................................22
EXPLODEDVIEW......................................................................................................................................................23
TROUBLESHOOTING..............................................................................................................................................25
SERVICE HISTORY....................................................................................................................................................26
WARRANTY...............................................................................................................................................................27
INSTALLATION...........................................................................................................................................................8
FOR BATHROOM USE ...............................................................................................................................................14
MEDIAOPERATION..................................................................................................................................................18
REMOTE CONTROL OPERATION .......................................................................................................................... .20
WIRING DIAGRAM ..................................................................................................................................................24
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
OUTDOOR INSTALLATIONS ..................................................................................................................................16

3
IM PORTANT INSTRUCTIONS
1. Read all instructionsbeforeinstallingorusingthisheater.
2. Keepcombustiblematerials, suchas furniture,pillows, bedding, papers, clothesandcurtainsat
least 3feetfromthefront oftheheater;keepthemawayfromsidesandrear as well.
3. Alwaysunplugheaterwhenit snot in use.
4. Donotoperatethefireplaceifithasadamagedcordorplug,afterit hasmalfunctioned,orifthe
unithasbeendroppedordamaged in anyway.
5. Neverplacetheheaterwhereit mayfall into abathtuborotherwatercontainers.
6. Donotrun thecordundercarpeting.Donotcoverthecordwiththrowrugs, runnersoranything
else.Arrangethecordawayfromtrafficareas whereit couldnotbetripped over.
7. To disconnecttheheater,turnthecontrolsto"OFF" beforeremovingtheplugfromtheoutlet.
8. Donotinsertorallowforeignobjectstoenteranyventilationorexhaustopening,as thismay
causeanelectricshock,fireordamagetotheheater.
9. To prevent apossiblefire,donotblockair intakesin anymanner.
10. Aheaterhashotand arcingorsparkingpartsinside.Donotuseitinareaswheregasoline,paint
orflammableliquidsareusedorstored.
11. Usethisheateronlyas describedinthismanual.Anyotherusenot recommendedbythe
manufacturermaycausefire,electricshockorinjurytopersons.
12. Avoidtheuseofanextensioncordbecausetheextension cordmayoverheat andcauseafire.
13. Alwaysuseproperlygroundedfused andpolarized outlets.
14. Alwaysusegroundfault protection whereitis requiredbyelectrical codes.
15. Alwaysdisconnectthepowerbeforeperforminganycleaning,maintenanceorrelocationofthe
heater.
16. To prevent apossiblefire,donotburn wood orothermaterials inthis heater.
17. Topreventelectricshockorfire,alwaysuseacertifiedelectrician,shouldnewcircuitsor
outletsberequired.
18. Whentransportingorstoringtheheater,keepit in adryplace,freefromexcessivevibration.

4
UNPACKINGANDTESTINGAPPLIANCE
Carefullyremovetheappliancefromthebox. Priortoinstallingtheappliance,testtomakesurethe
applianceoperatesproperlybypluggingthepowersupplycordintoaconvenientlylocated120Volt
groundedoutlet.
GROUNDINGAPPLIANCE
This applianceis foruseon 120Volts.Thecordhasaplugasshownin(A). Anadapterasshownin(C)
is availableforconnectingthree-bladegroundingtypeplugstotwo-slotreceptacles.Thegreen
groundinglugextendingfromtheadaptermustbeconnectedtoapermanentground suchasa
properlygroundedoutletbox. Theadaptershouldnotbeusedifathree-slotgroundedreceptacleis
available.
To disconnectappliance,turn controls to off,then removeplugfromoutlet.
LOCATINGTHEFIREPLACE
Planwhere tolocateandframethefireplace.This will savetimeandmoneylaterwhenyouinstall
thefireplace.Beforeinstallationconsiderthefollowing:
1. Where thefireplaceis locatedmust allowforwallandceilingclearances(see INSTALLATION)
2. Consideralocationwhere thefireplacescreenwill notbeexposedtodirectsunlight from
windowsordoors.
3. A15 ampere,120 Volt,60 Hz branchcircuit with properground mustbeavailableatthelocation.
Preferablyadedicatedbranchcircuitshouldbeprovidedtoavoidcircuitbreakerstotripoffuses
toblow.

5
50-TRU-VIEW-XL
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTORHEATER 19W
ApplianceWidth 53 1/4”or135.2cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 123.5lbsor56kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 53 3/4”27 5/8“or
136.5cm 70.2 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.

6
60-TRU-VIEW-XL
ModelNumber Build-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTORHEATER 19W
ApplianceWidth 63 1/4”or160.6cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 141lbsor64kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 63 3/4”27 5/8”or
161.9 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.
70.2 cm

7
72 TRU-VIEW-XL
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTORHEATER 19W
ApplianceWidth 75 1/4”or191cm
ApplianceHeight 26 5/8”or67.7 cm
ApplianceDepth 14 1/4”or36.3 cm
Gross Weight 165lbsor75kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 75 3/4”27 5/8”or
192.4cm 70.2 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.

8
1.Productis fixedwith fendingbarsand panels
ontheleft andright side.
2.Takeoff thefendingbarsandpanels ifyou
want to viewthefire fromthreeangles.
3.Fixbackthefendingbarafterthepanelis
removed.
4.Removetheframingplatesfromthefireplace
and fixthemasthepictureshows.
Note:Afterremovingframingplatesontheleft
and right sides, screwbackthescrews.
INSTALLATION
The TRU-VIEW-XLmodels are designed to be built-in and allow for the finishing material (drywall,
stone, tile, etc) to be built right down to the glass edge.
Theroughwall openingsizeofthefireplace:
W(＂)D(＂) H(＂)
50-TRU-VIEW-XL 53 3/414 3/4" 271/8
60-TRU-VIEW-XL 63 3/414 3/4" 271/8
72-TRU-VIEW-XL 753/414 3/4" 271/8
fending bar
fending panel

9

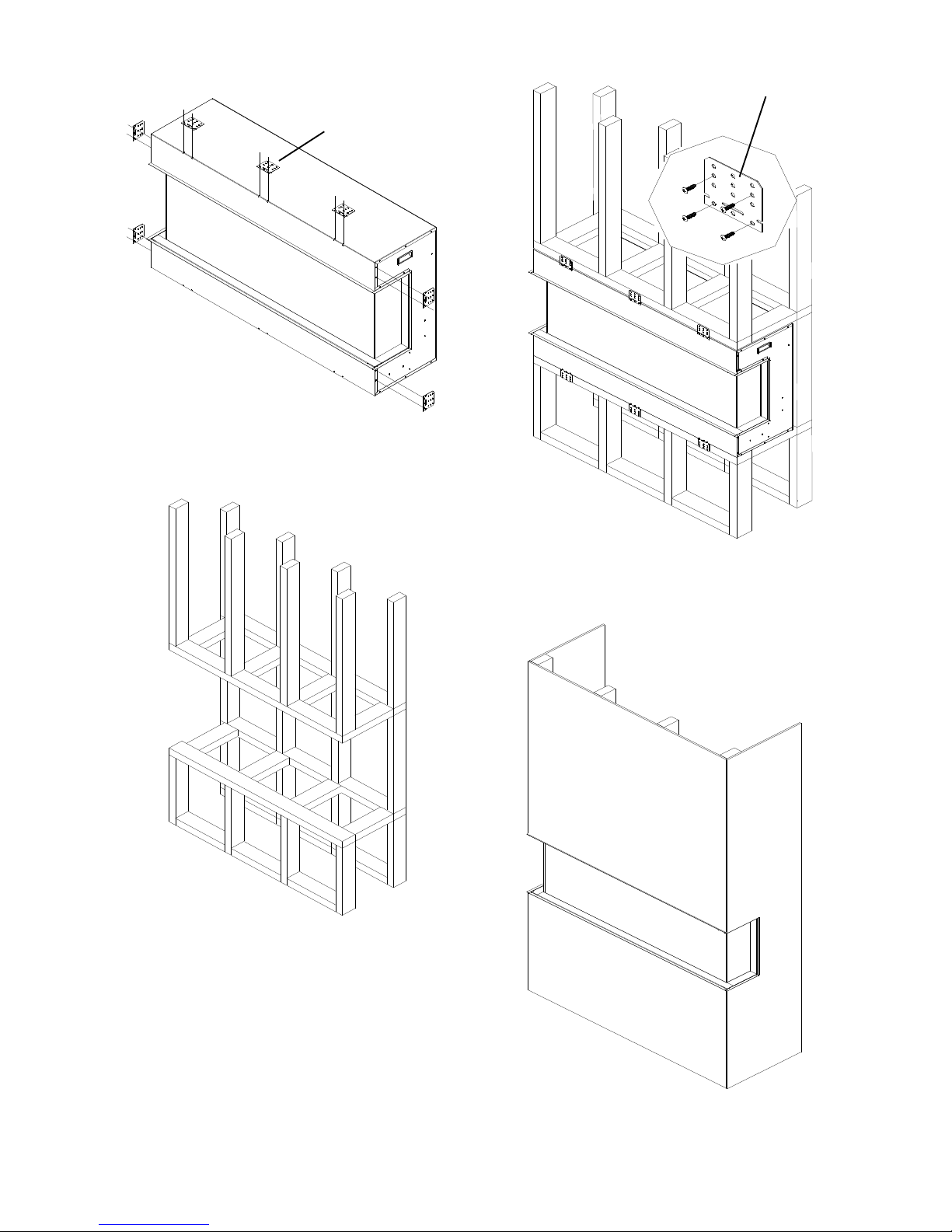

5.Makeanopeningforthefireplaceaccording
torequestedmeasurement.
framing plate
framing plate
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install polywood.
6.Insertthefireplaceintothewall opening.
Drivethemountingscrewsintotheframeplates
ontheunitandthewall studs. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

10
8.Decoratethepolywoodwithglazedtile,
wallpaper,etc.
3.Afterthefendingpanelisremoved,screw
backthebar.
4.Removetheframingplatesfromthefireplace
and fixthemasthepictureshows.
Note:Afterremovingframingplatesontheleft
and right sides, screwbackthescrews.

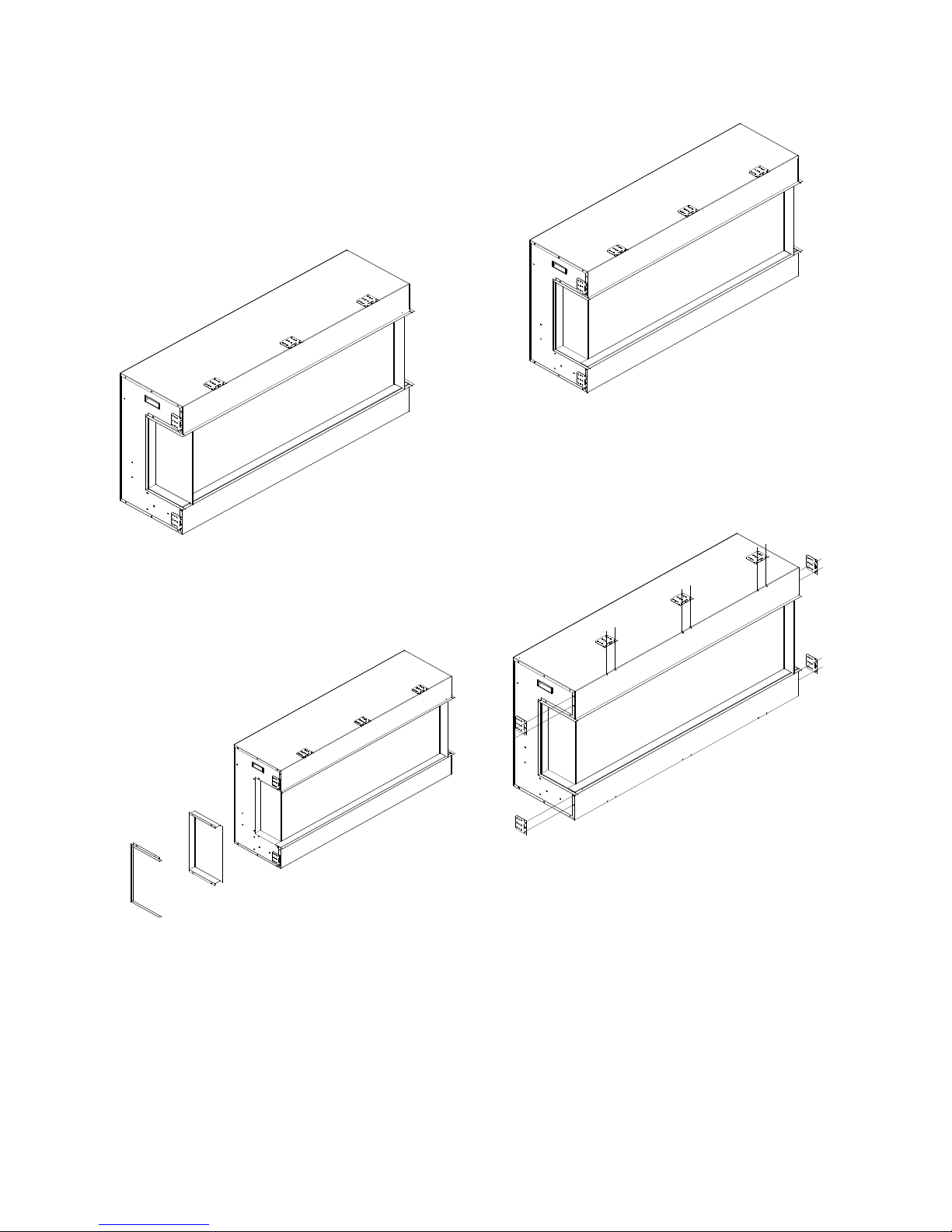

InstallationforFrontand RightSide
Viewing
1.Toinstall thefireplacewheretheleft sideis
closetoawall, andyouwanttoviewthefire
fromfrontand right side,takeoffthefending
panelontheright.
fendingbarand panel.
2.Unscrew7screwsontheright sidethatfix
thefendingbar andpanelandthentakeoffthe

11
8.Decoratethepolywoodwithglazedtile,
wallpaper,etc.

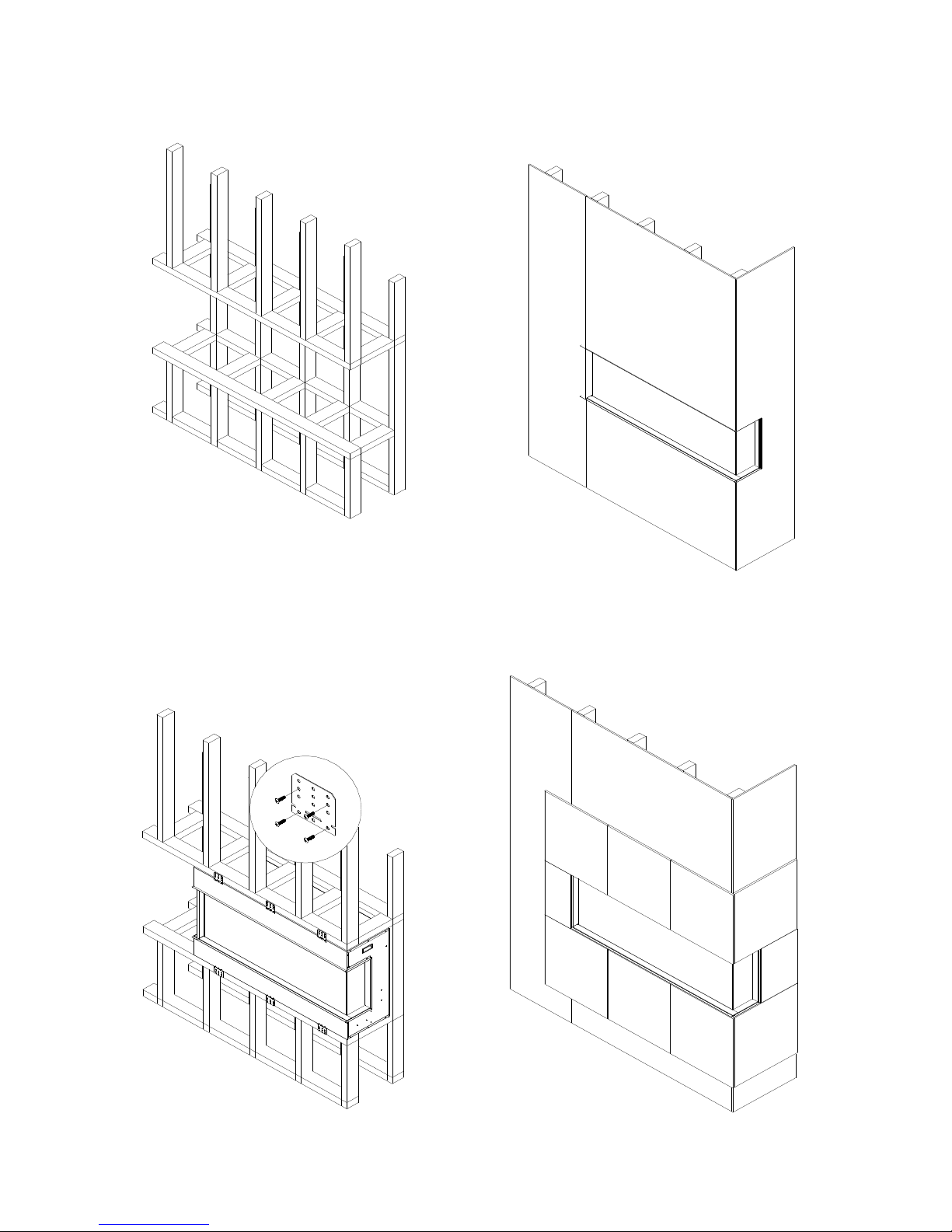

5.Makeanopeningforthefireplaceaccording
torequestedmeasurement. 7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install polywood.
6.Insertthefireplaceintothewall opening.
Drivethemountingscrewsintotheframeplates
ontheunitandthewall studs. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

12
3.Afterthefendingpanelisremoved,screw
backthebar.
4.Removetheframingplatesfromthefireplace
and fixthemasthepictureshows.
Note:Afterremovingframingplatesontheleft
and right sides, screwbackthescrews.
InstallationforFrontandLeftSide
Viewing
1.Install thefireplacewheretherightsideis
closetoawall, andyouwanttoviewthefire
fromfront andleftside,takeoffthefending
panelontheleft.
5.Makeanopeningforthefireplaceaccording
torequestedmeasurement.
2.Unscrew7screwsontheright sidethatfix
thefendingbar andpanelandthentakeoffthe
fendingbarand panel.

13
8.Decoratethepolywoodwithglazedtile,
wallpaper,etc.
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install polywood.
6.Insertthefireplaceintothewall opening.
Drivethemountingscrewsintotheframeplates
ontheunitandthewall studs. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

14
SAFETYDRILLSCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
ForBathroomUse
Ifthisunit isinstalled inabathroomit mustbe protectedbyaGFIreceptacleorcircuit.Ifreceptacleisused it must
be readilyaccessible.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
Topreventelectricalshock,pleasebe awarethatthisunit isan electricalappliance thatis NOT watertightand must
be installed astopreventwaterfromentering unit.Thismustbe installed awayfromshowers,tubs,etc. Neverlocate
fireplace where it mayfall into a bathtub orotherwatercontainer.

15
HARD-WIREINSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessarytohardwirethisappliance,aqualifiedelectricianmustremovethecordconnection,
and wiretheappliancedirectlyto thehousehold wiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
CanadaorthecurrentANSI/NFPA70 NATIONALELECTRICALCODEintheUnited States.
1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoes into the "L", the
neutral wire into "N" and the ground wire into "G".
3. Puttheplatebackandscrew back.

Side of FireplaceABThe overhang (A) must extend at least 1/2 the roof-line height (B).Height is measured from the base of the fireplace.For example: if the roof-line (B) is 8’ above the base of the fireplace,the overhang (A) must be at least 4’.TRU-VIEW-XL, BI-DEEP & BI-SLIM electric fireplaces are suitable for installaon in outdoor areas protected from direct water impingement. In addion to maintaining the listed mantel and combusbles clearances, a rain protecon overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. See illustraon below. All wiring connecons to line power shall be in accordance with local building code requirements. 16
OUTDOOR INSTALLATIONS

17
Media Options
The 50-TRU-VIEW-XL and 60-TRU-VIEW-XL are shipped with 2 sets of FI-109-DIAMOND, 72-TRU-VIEW-
-XLis shipped with 3 sets of FI-109-DIAMOND.
FI-109-DIAMOND
3 glass nuggets, 1 bag of clear, 1 bag of small
clear, 1 bag of clear diamond and 1 bag of blue
diamond.
The TRU-VIEW models also come with the DESIGN-MEDIA-11PCEKit featuring an 11 pcs deluxe log set,
pebbles, stones, black glass and an assortment of vermiculite embers. The DESIGN-MEDIA kits come in
a separate box.

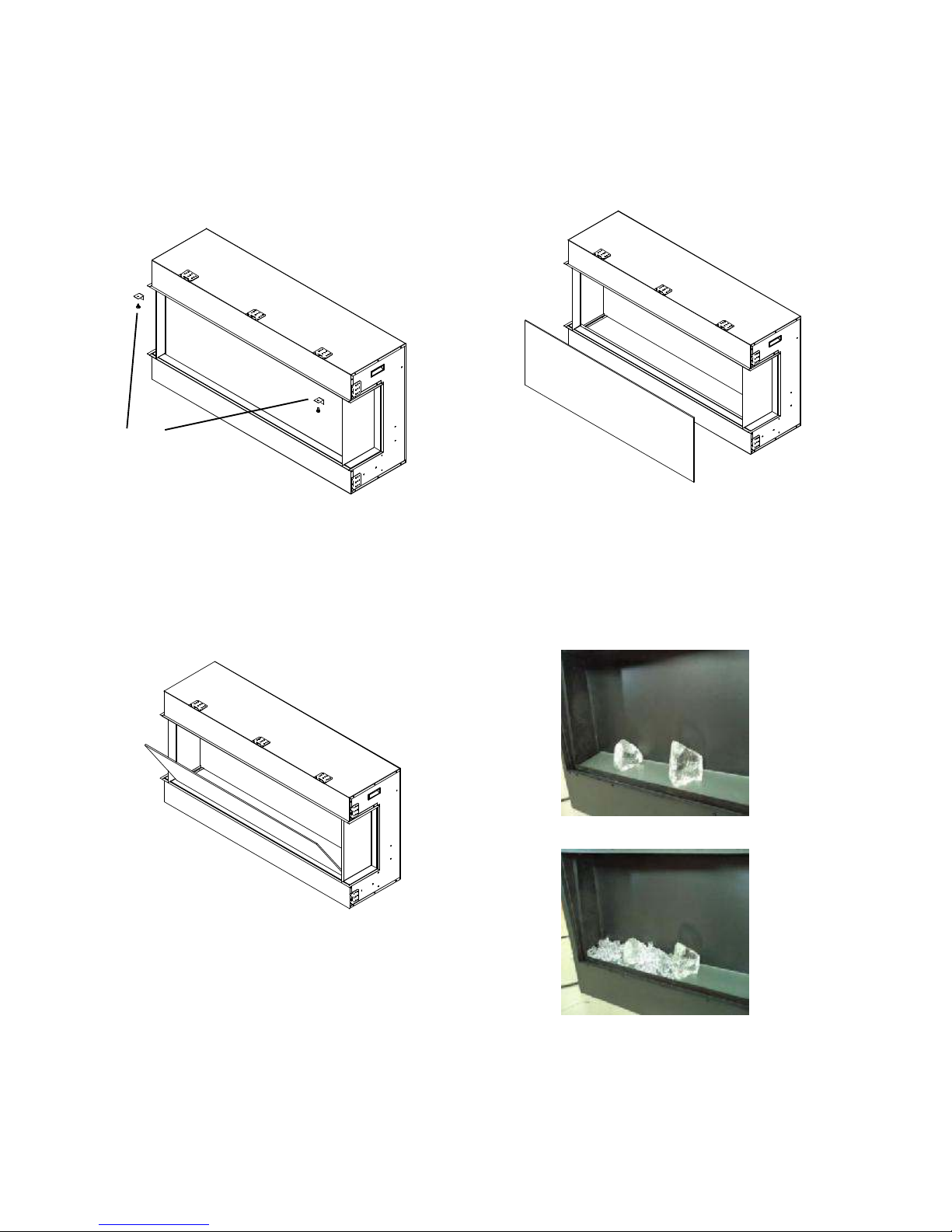

4. Installingthefireglass media.Pourthefire
glass media intothetrayasshownbelow.
Feelfreetouseanycombination of fireglass
mediathatyoufind mostappealing.
5.Put backthefrontglass and screwbackthe
bracket.
3. Takeoff thefront glasspanel and put it in safe place.
1. Unscrew 2 screwsand takeoff two bracketswhich
arefendingthefront glasspanel.
Screwsand brackets
2. After thebracketsareremoved,the front glasspanel
will fall down automatically.
M edia Operation
18

19
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bottomofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUALOPERATION
1. ThemainpowerON/OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFFswitchis at position I,thefireplaceisreadyto use.
3. Press the buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowsthecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOMODE
AUTO MODE
Underthis modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72 ℉). Whentheroomtemperatureis between
22-25 (72-77℉)theheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebuttonmarked toadjusttheflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebuttonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwith asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvents). Forsafetyreasons, thefireplacewill NOT automaticallyreset.
lToresettheappliance,disconnecttheappliancefromthemainsupplyforatleast10minutes.
Reconnect the main power supply and put the main power switch to the ON position.

20
REMOTECONTROLOPERATION
Forremotetofunctionmakesuretheheateris pluggedinand mainpowerswitchlocatedonthe
bottomleft handsideis at position I.
Whenoperatingtheremotemakesureyoupointtheremotetothecentreofthefireplaceand make
sure eachtimeyoupressthebutton.Thebuzzerinsidetheunitwill beeponce.Ittakessometimefor
thereceivertorespondtothetransmitter.DonotPRESS thebuttonsmorethanoncewithintwo
secondsforcorrectoperation.
Poweron button:Thepower-onbuttonattopleftcorneroftheremoteisthemainON/OFF
powerbutton.This will turnoff all thefunctionsand thefireplacewill bein standbymode.
DISPLAYON/OFF button:SwitchingthefireplaceflameandtraylightON/OFF.Ithasfunctionsof
settingmemory.
DISPLAYBLUE button:Adjust the blue colorbrightness offlameandtray.
DISPLAYYELLOWbutton:Adjust the yellowcolorbrightness offlameandtray.
DISPLAYORANGE button:Adjust the orangecolorbrightness offlameandtray.
MOODLIGHTON/ OFFbutton:Switchingthemood light ON/OFF.
ADJUST button:Switchingthecolorofthemoodlight.
FLASHbutton:Switches mood light into flash mode, this cycles through all mood light colors.
HEATERON/OFF button: Switchingthe heaterON/OFF. It hasfunctionsof settingmemory.
HIGHTbutton: Press the highbutton toswitchtheheatertohighheat setting1500W.
LOWbutton: Press thelowbuttontoswitchthe heatertolowheat setting750W.
TEMP. button: Press the TEMP.buttontoswitchtheheatertoAUTO mode.Underthismode
the heaterwill operateinsimilarwayasexplained aboveforthemanualoperation.
