Amantii BI-30-XTRASLIM User manual

SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorot herflammablevapors
and liquidsint hevicinity oft hisorany otherappliance.
INSTALLER:LEAVETHIS MANUALW ITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.
INSTALLATIONANDOPERATIONINSTRUCTIONS FOR
BI-40-XTRASLIM
BI-50-XTRASLIM
BI-60-XTRASLIM
BI-30-XTRASLIM

2
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided int hismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
IMPORTANTINSTRUCTIONS................................................................................................................................... 3
UNPACKING ANDTESTINGAPPLIANCE.............................................................................................................. 6
GROUNDING APPLIANCE........................................................................................................................................ 6
LOCATINGTHEFIREPLACE.................................................................................................................................... 6
BI-40-XTRASLIM ....................................................................................................................................................... 8
BI-50-XTRASLIM ....................................................................................................................................................... 9
BI-60-XTRASLIM ...................................................................................................................................................... 10
SAFETYDRILLSCREWAREA................................................................................................................................
OUTDOOR INSTALLATIONS .................................................................................................................................
11
13
MEDIAOPTIONS.......................................................................................................................................................23
OPERATION................................................................................................................................................................24
INSTALLING WALLTHERMOSTAT........................................................................................................................26
REPLACEMENTPARTS............................................................................................................................................27
WIRING DIAGRAM ...................................................................................................................................................29
TROUBLESHOOTING..............................................................................................................................................30
SERVICE HISTORY....................................................................................................................................................31
WARRANTY...............................................................................................................................................................32
INSTALLATION.........................................................................................................................................................14
INSTALLATION BUILT-IN ...................................................................................................................................... 14
INSTALLATION WALL-MOUNT............................................................................................................................ 18
EXPLODEDVIEW......................................................................................................................................................28
HARD-WIRE INSTALLATION..................................................................................................................................11
FOR BATHROOM USE ..............................................................................................................................................12
BI-30-XTRASLIM ....................................................................................................................................................... 7

3
IMPORTANT INSTRUCTIONS
1. Read all instructions before installing or using this heater.
2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet from the front, sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or
if the unit has been dropped or damaged in any way.
5. Do not use the heater outdoors.
6. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or
anything else. Arrange the cord away from traffic areas where it could not be tripped over.
7. To disconnect the heater, turn the controls to "OFF" before removing the plug from the
outlet.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this
may cause an electric shock, fire or damage to the heater.
9. To prevent a possible fire, do not block air intakes in any manner.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint or flammable li uids are used or stored.
11. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
12. Avoid the use of an extension cord, the extension cord will overheat and cause a fire. This
heater is not to be used with an extension cord.
13. Always use properly grounded fused and polarized outlets.
14. Always use ground fault protection where it is re uired by electrical codes.
15. Always disconnect the power before performing any cleaning, maintenance or relocation
of the heater.
16. To prevent a possible fire, do not burn wood or other materials in this heater.
17. To prevent electric shock or fire, always use a certified electrician, should new circuits or
outlets be re uired.
18. When transporting or storing the heater, keep it in a dry place, free from excessive
vibration.
19. This appliance should not be modified under any circumstances.
20. Packaging material should be kept away from children and be disposed of in a safe
manner. Plastic bags are not toys and should be kept away from children and infants.
21. Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
22. If the glass is damaged, do not use the heater in order to avoid a hazard.
23. Do not leave children unsupervised where heater is turned on.
24. CAUTION Some parts of this product can become very hot and cause burns. Particular
attention has to be given where children and vulnerable people are present.

4
25. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

Cautions
Do’s
·Always install the heater in accordance with this guide. If in
doubt obtain expert advice.
·Always make sure the electrical socket is accessible and located
adjacent to, but not above the heater.
·Always disconnect the heater from the electrical supply before
moving it, or carrying out cleaning, maintenance.
·Always make sure the heater is firmly secured to prevent it from
being tipped over.
·Always use a fireguard when young children and infirm persons
can come into contact with the heater.
Don’ts
·Never leave children unsupervised in a room where the heater is
ON and unguarded.
·Never obstruct or cover the fan outlet or force items into heater
openings.
·Never use aerosols or steam cleaners on or around the heater.
·Never route the mains supply cable under carpet etc.
·Never install the heater close to curtains or combustible
materials.
·Never use the heater to dry clothes etc.
·Never sit or stand on the heater.
5

6
UNPACKINGAND TESTINGAPPLIANCE
GROUNDINGAPPLIANCE

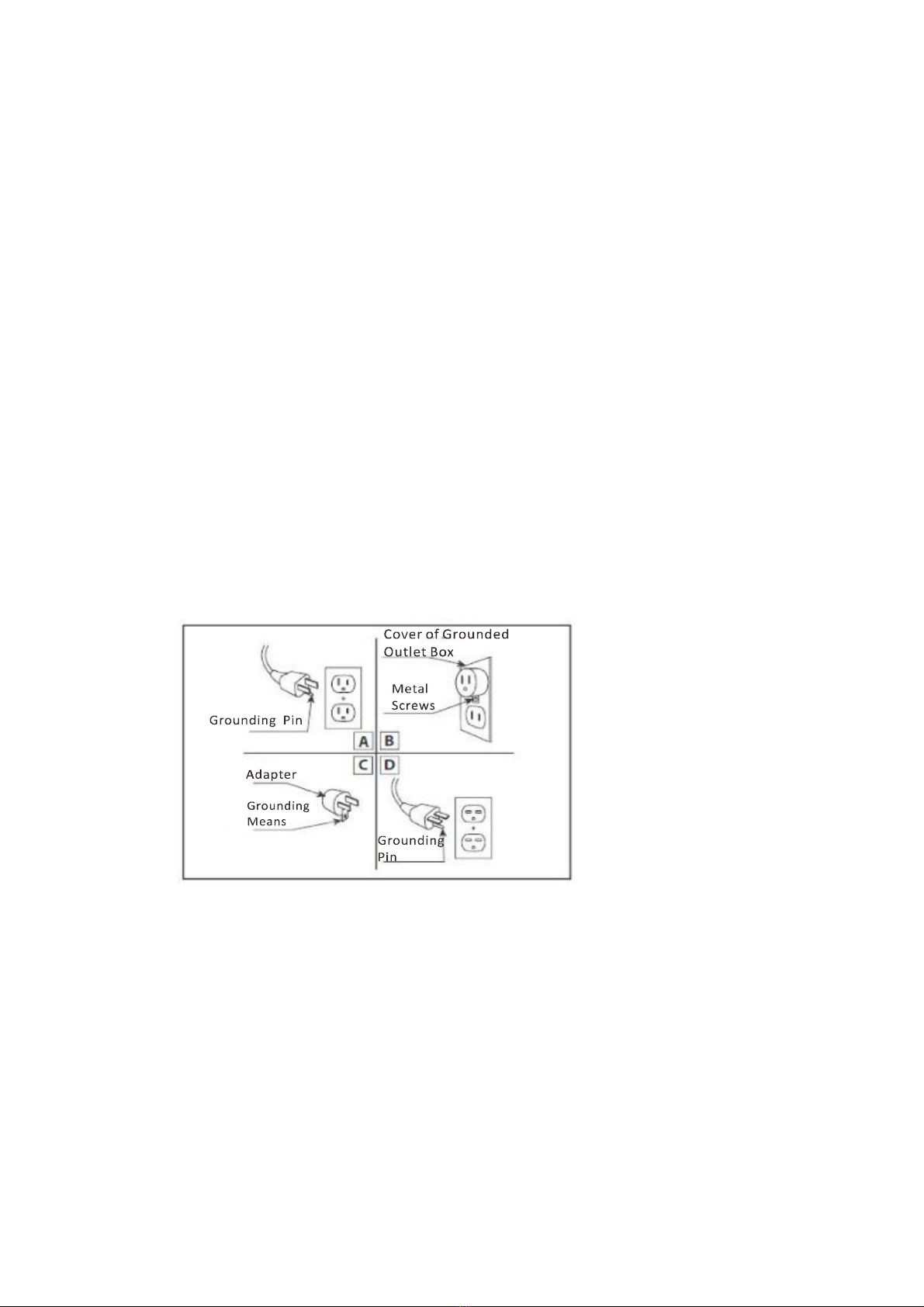

Thisapplianceisforuseon 120Volts.Thecordhasaplugasshownin(A).Anadapteras
shownin(C)isavailableforconnectingthree-bladegroundingtypeplugstotwo-slot
receptacles.The greengrounding lug extending fromthe adaptermustbe connected toa
permanentgroundsuchasaproperlygroundedoutletbox.The adaptershouldnot be used if
athree-slot grounded receptacleisavailable.
Todisconnectappliance, turncontrolstooff, then remove plug from outlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:
1.Wherethe fireplaceislocatedmust allowforwall andceiling clearances
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
NOTE: There may be trace f d r during the first few minutes f initial use. This is
harmless, n rmal and will never ccur again.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
3. A15 ampere,120 Volt, 60 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.

BI-30-XTRASLIM
Description BI-30-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 29 1/ 8”or74.1cm
ApplianceHeight 19 7/ 8”or50.4cm
ApplianceDepth 4 or 10.25cm
Gross Weight 50.7lbsor23kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 29" X 20 3/ 8" or
73.66 cm X 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States
”
7

8
BI-40-XTRASLIM
Description BI-40-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 39 1/ 8”or99.5cm
ApplianceHeight 19 7/ 8”or50.4cm
ApplianceDepth 4 or 10.25cm
Gross Weight 56lbs or 25.5kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 39" X 20 3/ 8" or
99.1 cm X 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States
”

9
BI-50-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 49 1/ 8”or124.9cm
ApplianceHeight 19 7/ 8”or50.4 cm
ApplianceDepth 4 ”or10.25 cm
Gross Weight 66.9 lbs or 30.4kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 49" X 20 3/ 8" or
125cm X 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.
BI-50-XTRASLIM
Description

10
Description BI-60-XTRASLIM
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 59 1/ 8”or150.3.cm
ApplianceHeight 19 7/ 8”or50.4 cm
ApplianceDepth 4”or10.25 cm
Gross Weight 77.07lbs or 35kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 59" X 20 3/ 8" or
150 cm X 52 cm
BTU 4800
This appliancehasbeentestedinaccordance
with theULStandard2021forfixedand
locationdedicatedelectricroomappliances
intheUnitedStatesandCanada.Ifyouneed
assistanceduringinstallation,pleasecontact
yourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/ NFPA
70 NationalElectricalCodeintheUnited
States.
BI-60-XTRASLIM

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat t hefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
11
HARD-WIREINSTALLATION
Turnoff the appliancecompletelyand let coolbeforeservicing. Onlyaqualified service
person shouldserviceandrepairthiselectricappliance.
If itisnecessarytohard-wirethisappliance, aqualified electrician must removethe cord
connection,and wirethe appliancedirectlytothe householdwiring.
Thisappliancemustbe electricallyconnected and groundedinaccordancewithlocalcodes,
ifhard-wired.Inthe absenceoflocalcodes,usethecurrentCSA C22.1CANADIAN
ELECTRICALCODEinCanada orthe currentANSI/NFPA 70 NATIONALELECTRICAL
CODEinthe United States.
1.Removethe coverplatefromthe leftside oftheappliancebyremovingthetwoscrews,as
shownbelow. Unscrewand removepowercord.

12
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from shows,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements.
Inquires about local codes and regulations must be done prior to installation.
3.Return the cover plate to the left side and screw the two screws back in to fasten the plate.
2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoesint othe “L”,the
neutral wireinto “N”and thegroundwireint o “G”.

The overhang (A) must extend at least 1/2 the roof-line height (B).Height is measured from the base of the fireplace.For example: if the roof-line (B) is 8’ above the base of the fireplace,the overhang (A) must be at least 4’.13
OUTDOOR INSTALLATIONS
* When installed in outdoor applications, it is recommended that the BI-XTRASLIM models use
the protective PAN-COVER.

The BI-XTRASLIM series electric fireplaces are suitable for installation in outdoor areas protected from
direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a
rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed
appliance. See illustration below. All wiring connections to line power shall be accordance with local
building code requirements. Inquires about local codes and regulations must be done prior to
installation.

The BI-XTRASLIM Models are designed to be either built-in or wall-mounted depending on
preference. These units allow for the finishing material (drywall, stone, tile, etc.) to be built right
down to the glass edge. However, should that application not be desirable or available, the included
surround can be used as an alternate finish option.
Note: The optional steel surround is not firmly attached and can be removed from the unit by simply
pulling it off. It is recommended that two people remove the surround.
Theroughwall openingsizeofthefireplace:
W(＂) D(＂) H(＂)
BI-40-XTRASLIM 39 4 1/ 2 20 3/ 8
BI-50-XTRASLIM 49 4 1/ 2 20 3/ 8
BI-60-XYRASLIM 59 4 1/ 2 20 3/ 8
1. Carefully remove the unit from the packaging. Plug in and test the fireplace prior to installation.
Built-in Installation Instructions
14
BI-30-XTRASLIM 29 4 1/ 2 20 3/ 8
INSTALLATION-BUILT-IN
NOTE: Due to the many different materials used to build walls, it is highly recommended that
you consult your local builder before you install this appliance on a wall.

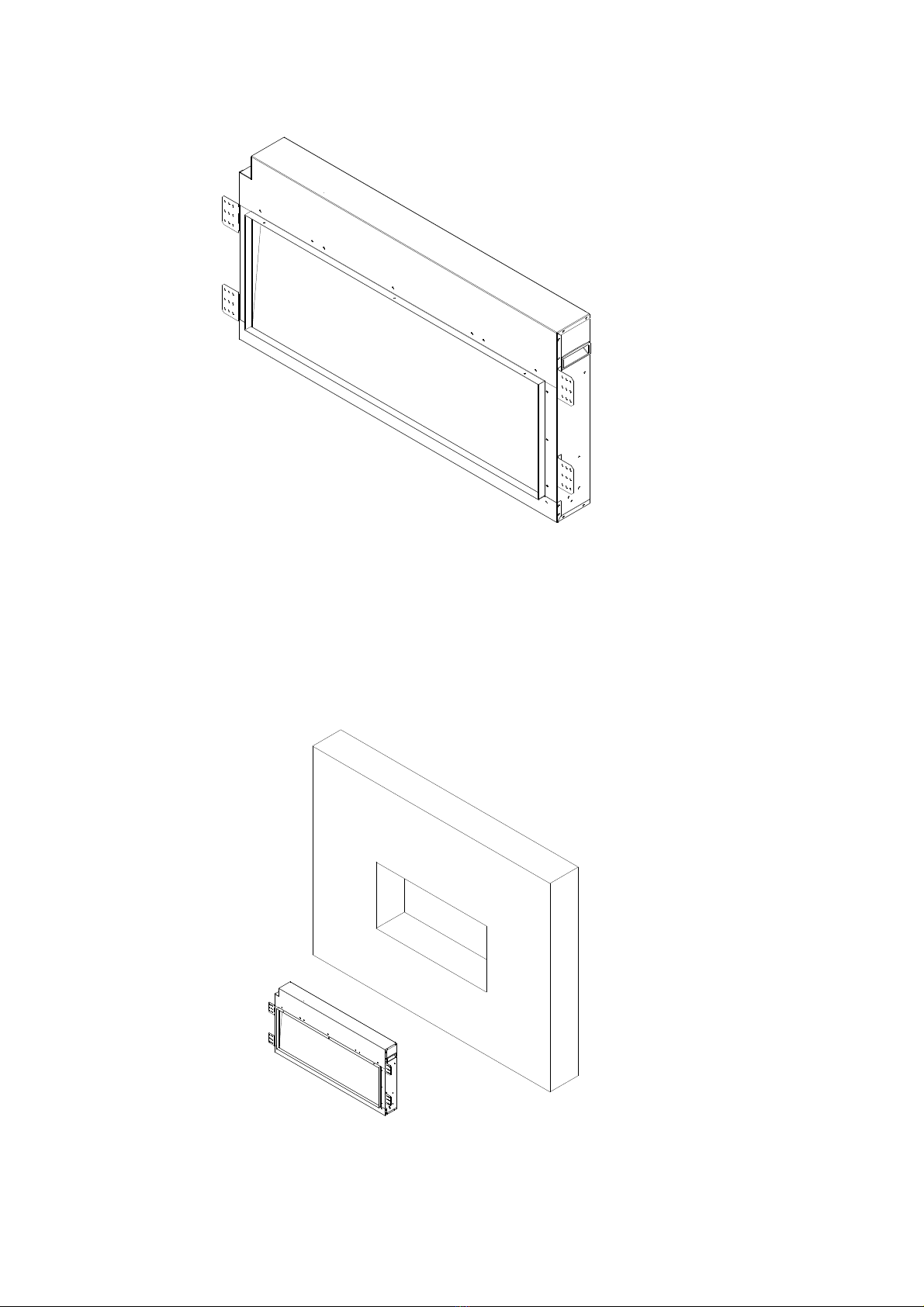

2. Remove the optional trim from the unit as illustrated below. Remove the wall framing plates from
the unit.
3. Re-attach the framing plates to the unit as shown below.
15

16
4. Bend the framing plates as shown.
5. Lift the unit into the wall opening.
Note: Two people are required

17
6. Drive the mounting screws threw the framing plates securing the unit into the wall studs.
7. Using desired materials, finish to the glass for a clean face installation OR re-attach the steel
surround that was removed in STEP 1.

18
Wall-mount installation instructions
1. Take out the unit from the box. Please do the pre-test before you install the fireplace.
2. Pull out the optional trim from the unit as shows below. Remove the framing plates from the unit.
Note: The mantel is available for Optional Purchase only and does not come with the unit.

19
3. Fix the brackets as the picture shows below. You can find the brackets in the plastic bag with the
manual.
4. Make sure the brackets are fixed the right way as the picture shows below.

5. Put the fireplace into the back of the wooden frame.
6. Screw the brackets with the wooden frame and make sure the fireplace and the wooden frame are
firmly fixed.
20
