Amantii ZC-FM-37 User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR ZERO CLEARANCE
AND INSERT UNITS
ZC-FM-37
ZC-FM-45
INS-FM-26
INS-FM-30
INS-FM-34
SAFETY INFORMATION
WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

2
IMPORTANT INSTRUCTIONS ...................................................................................................................................
PLUG INSTALLATION INSTRUCTIONS .................................................................................................................. 6
UNPACKING AND TESTING APPLIANCE ............................................................................................................... 7
GROUNDING APPLIANCE ........................................................................................................................................ 7
LOCATING THE FIREPLACE .................................................................................................................................... 7
CLEARANCES WHEN BUILT-IN ............................................................................................................................... 8
ZC-FM-37 ...................................................................................................................................................................... 9
ZC-FM-45 .................................................................................................................................................................... 10
INS-FM-26 ................................................................................................................................................................... 11
INS-FM-30 .................................................................................................................................................................. 12
INS-FM-34 .................................................................................................................................................................. 13

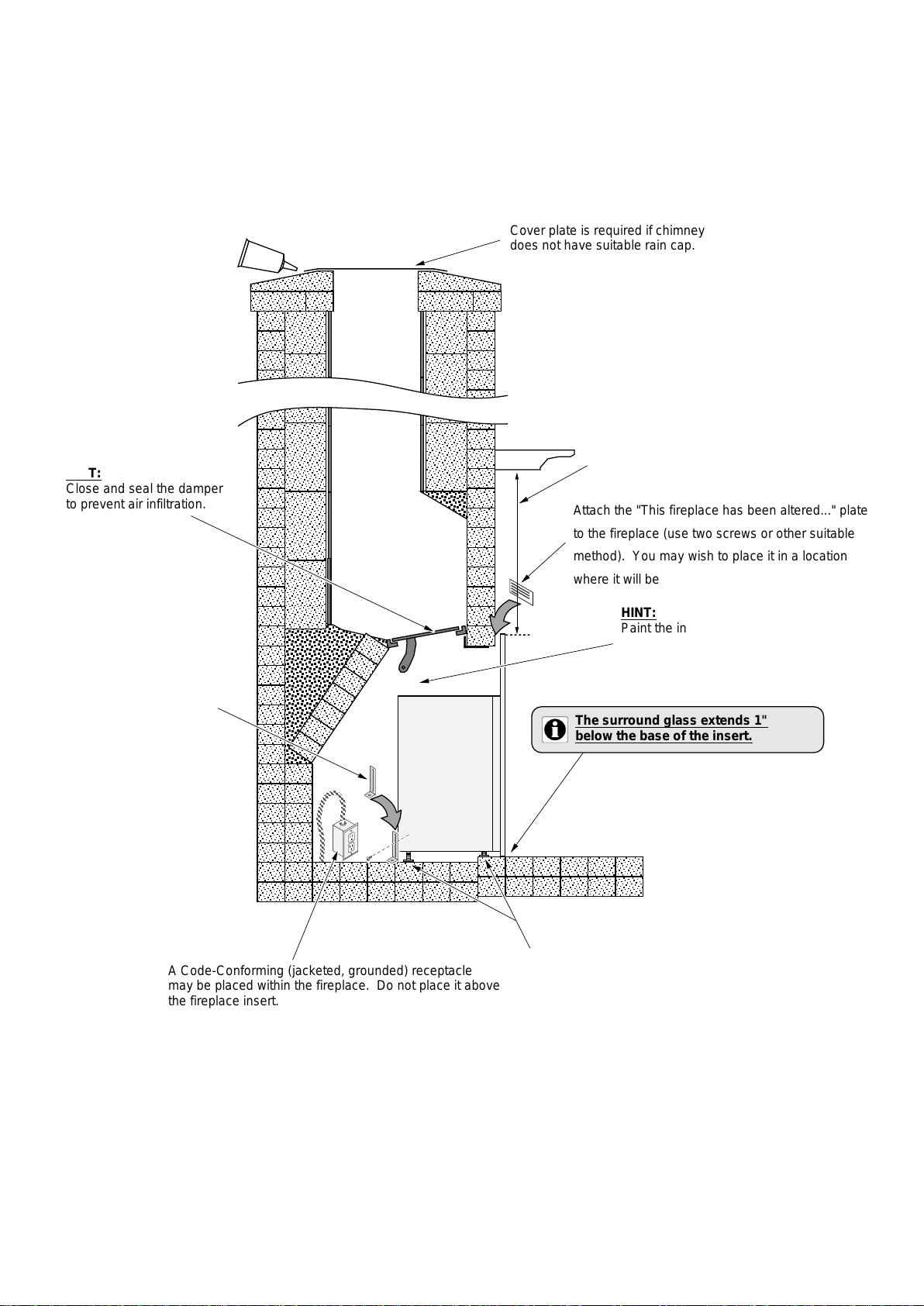

INSTALLATION OVERVIEW – MASONRY FIREPLACES ................................................................................... 14
INSTALLATION OVERVIEW –ZERO-CLEARANCE (METAL) FIREPLACES ................................................... 15
MEDIA OPTIONS ....................................................................................................................................................... 16
DECORATIVE MEDIA INSTALLATION ................................................................................................................. 16
OPERATION ............................................................................................................................................................... 17
MANUAL OPERATION ............................................................................................................................................. 17
REMOTE CONTROL OPERATION-STANDARD FLAME ..................................................................................... 18
CARE AND MAINTENANCE ................................................................................................................................... 21
REPLACEMENT PARTS ............................................................................................................................................ 22
EXPLODED VIEW ..................................................................................................................................................... 23
TROUBLE SHOOTING.............................................................................................................................................. 24
SERVICE HISTORY ................................................................................................................................................... 25
WARRANTY ............................................................................................................................................................... 26
3
TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. Please pay special
attention to the safety instructions provided in this manual. The instructions included here will assure
that you have many years of dependable and enjoyable service from your Amantii product.

3
3
IMPORTANT INSTRUCTIONS
Please read the following instructions carefully before using the appliance.
Caution - Fire, electric shock, physical injury and material damage hazards:
To use the appliance, always follow the instructions for assembly, use and maintenance as well as
usage cautions:
1. Carefully read and retain these instructions.
2. Before connecting the appliance, be sure that the mains voltage available matches that specified
on the rating plate.
3. Do not use the appliance for other than its intended use. For domestic indoor use only.
4. There may be trace of odour during the first few minutes of initial use. This is normal and will
quickly disappear.
5. The heater is hot when in use. To avoid burns, do not let bare skin touch any hot surface.
6. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at
least 1m away from the heater.
7. Do not use the heater in areas where flammable liquids are stored or where flammable fumes
may be present.
8. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
9. Do not use the heater in the rooms with explosive gas or while using inflammable solvents,
varnish or glue.
10. Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as
this may cause electric shock, or fire or damage to the heater.
11. Always unplug or disconnect the appliance from the mains power supply when not in use or
when moving or cleaning it. Do not pull the cord to unplug the heater.
12. Do not immerse the cord, plug or any part of the appliance in water or any other liquid.
13. Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable
parts inside.
14. The heater must not be located immediately below a socket-outlet.
15. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
16. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.
17. Do not use this heater with a programmer, timer, separate remote-control system or any other
device that switches the heater on automatically, since a fire risk exists if the heater is covered or
positioned incorrectly.
18. WARNING: In order to avoid overheating, do not cover the heater.
19. WARNING! – DO NOT COVER THIS APPLIANCE WITH ITEMS SUCH AS CLOTHING, BLANKETS OR
PLACE NEXT TO CURTAINS OR NET/BLINDS.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
21. Do not use this heater in small rooms when they are occupied by persons not capable of leaving

4
the room on their own, unless constant supervision is provided.
22. If the glass is damaged, do not use the heater in order to avoid a hazard.
23. Children of less than 3 years should be kept away from unless continuously supervised.
24. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided
that it has been placed or installed in its intended normal operating position and they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved, Children aged from 3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
25. CAUTION Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
26. This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
27. The heater may emit a slight, harmless odour and smoke when first used. This odour and smoke
is normal and it is caused by the initial heating of internal heater parts and will not occur again.
28. DO NOT plug into an extension lead/cable or plug adaptor.
29. DO NOT cut off the plug and hardwire directly into the mains or via a fused fixed spur.
30. For details about installing the fireplace, please refer to “Installation” section.

Cautions
Do’s
·Always install the heater in accordance with this guide. If in
doubt obtain expert advice.
·Always make sure the electrical socket is accessible and located
adjacent to, but not above the heater.
·Always disconnect the heater from the electrical supply before
moving it, or carrying out cleaning, maintenance.
·Always make sure the heater is firmly secured to prevent it from
being tipped over.
·Always use a fireguard when young children and infirm persons
can come into contact with the heater.
Don’ts
·Never leave children unsupervised in a room where the heater is
ON and unguarded.
·Never obstruct or cover the fan outlet or force items into heater
openings.
·Never install or use the heater anywhere where water is in use,
i.e. Bathrooms, Kitchens, Shower Rooms, and Swimming Pool etc.
·Never use aerosols or steam cleaners on or around the heater.
·Never route the mains supply cable under carpet etc.
·Never install the heater close to curtains or combustible
materials.
·Never use the heater to dry clothes etc.
·Never sit or stand on the heater.
·Never use with a timer or any other device that switches the fire
on automatically.
5

PLUG INSTALLATION
Your power cord will come separate from the unit, please locate it when unpacking
your fireplace. The plug contained inside the box is predetermined at the factory and
according to orders placed by authorized dealers.
Available are UK, European & Swiss plugs. Should you require any of these options
please contact your dealer for purchase. You will be required to give them the correct
part number as listed below.
UK plug European plug Swiss plug
10103060E 10103030E 10103109E
Please follow the instructions to correctly install the plug into your fireplace.
1. Included in the box will be a power cord similar to the one pictured below.
2. Hold the male plug and insert it into the female receptacle. The receptacle is
located on the left side of the fireplace.
Picture 1 Picture 2
3. Please make sure the plugs are firmly connected. See Picture 2 above.
See Picture 1.
6

7

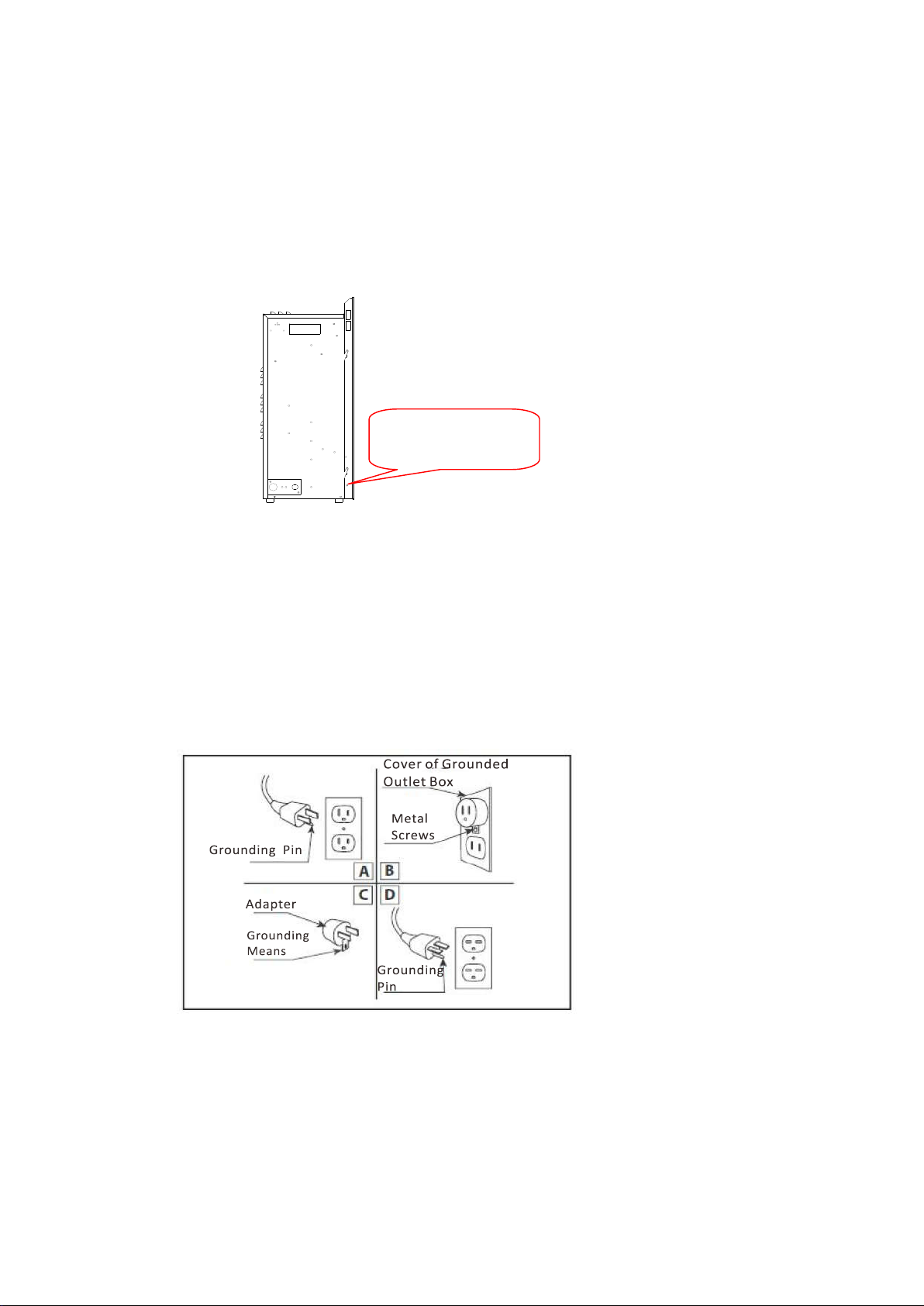

UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box. Remove the packing screws from both sides of the
fireplace.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the
power supply cord into a conveniently located 240 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all components
operate correctly.
GROUNDING APPLIANCE
This appliance is for use on 240 Volts. The cord has a plug as shown in (A). An adapter as shown in (C)
is available for connecting three-blade grounding type plugs to two-slot receptacles. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is
available.
To disconnect appliance, turn controls to off,
then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
Location of Packing
screw

8
3. A 15 ampere, 240 Volt, 50 Hz branch circuit with proper ground must be available at the location.
Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip of fuses
to blow.
CLEARANCES WHEN BUILT-IN
The fireplace may be placed within a framed enclosure that is level, dry and capable of supporting
the weight of the appliance and front glass. It may be placed directly on wood or a non-combustible
surface(not on linoleum or carpet). The minimum clearance from the top of the appliance to a
mantel (combustible or non-combustible) is 2” (50.8 mm). The sides and back must maintain
1”(25.4mm) clearance to any material. The top must maintain a 3/8” (10mm) clearance to any
material.

9
ZC-FM-37
Description Built-in Appliance
Voltage 240V AC 50Hz
Watts 1900W Max
NO HEATER 20.7W
MOTOR HEATER 19W
Appliance Width 29 3/8” or 74.6 cm
Appliance Height 24 3/4” or 63.2 cm
Appliance Depth 10 1/4” or 26.1 cm
Gross Weight 63.8 lbs or 29kg
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
30 1/8”× 25 1/4“ or
76.5 cm ×63.8 cm
27 1
/
2" [699]
37 939 8" [ . ]
30 762" [ ]
21 1/4" [540]
29 1 2 74 6 6 / " [ . ]
8 1/2" [215.8]
10 1 4 26 0 8 / " [ . ]
24 3/4" [625.8]
24 3 4 62 6 / " [ ]
15" [384]
BTU 6500

10
Description Built-in Appliance
Voltage 240V AC 50Hz
Watts 1900W Max
NO HEATER 27.8W
MOTOR HEATER 19W
Appliance Width 37 1/2” or 95.5 cm
Appliance Height 31 3/4” or 80.5 cm
Appliance Depth 10 1/4” or 26.1 cm
Gross Weight 92.4lbs or 42kg
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
39 5/8”× 32 1/2“ or
100.6 cm× 82.5 cm
34 1
/
2" [878]
4 5 1 1 4 3 6" [ . ]
3 7 3 4 9 6 2 / " [ ]
3 7 1 2 9 5 4 6 / " [ . ]
27 3/4" [708]
31 3/4" [804.8]
1 0 1 4 2 6 0 8
/ " [ . ]
8 1/2" [215.8]
32 1 2 82 6 / " [ ]
21 3/4" [552]
BTU 6500
ZC-FM-45

11
INS-FM-26
Description Built-in Appliance
Voltage 240V AC 50Hz
Watts 1900W Max
NO HEATER 13W
MOTOR HEATER 19W
Appliance Width 25 1/4” or 64.2 cm
Appliance Height 16 7/8” or 42.8 cm
Appliance Depth 8 3/4” or 22.2 cm
Gross Weight 61.6lbs or 28kg
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
27 1/4”× 17 1/4“ or
69.2 cm× 43.8 cm
BTU 6500

12
INS-FM-30
Description Built-in Appliance
Voltage 240V AC 50Hz
Watts 1900W Max
NO HEATER 16.2W
MOTOR HEATER 19W
Appliance Width 29 1/2” or 74.6 cm
Appliance Height 19 ” or 48.2 cm
Appliance Depth 10” or 25.7 cm
Gross Weight 63.8lbs or 29kg
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
31 3/8”× 19 7/8“ or
79.7 cm× 50.5 cm
25"
[
633
]
38 965" [ ]
30 3 4 78 0 / " [ ]
20 3/4" [528]
29 1 2 7 46 6 / " [ . ]
19" [481.8]
10 25 6 8" [ . ]
8 1/2" [215.8]
15 1/2" [392]
23 1 2 59 8 / " [ ]
BTU 6500

13
INS-FM-34
Description Built-in Appliance
Voltage 240V AC 50Hz
Watts 1900W Max
NO HEATER 20.5W
MOTOR HEATER 19W
Appliance Width 33” or 84 cm
Appliance Height 23” or 58.7 cm
Appliance Depth 10” or 25.7 cm
Gross Weight 77lbs or 33kg
Plug Location Left side
Cord Length 72.6” or 180 cm
Rough Wall Opening
Size
33 3/4”× 24“ or
85.7 cm× 60.9 cm
30"
[
762
]
24 3/4" [628.3]
3 4 3 4 8 8 4 / " [ ]
4 2 1 0 6 8" [ ]
23" [587]
3 3 8 4 0" [ ]
8 1/2" [215.8]
10 25 6 8
" [ . ]
2 7 3 4 7 0 2 / " [ ]
17 1/2" [441.3]
BTU 6500

14
INSTALLATIONOVERVIEW MASONRYFIREPLACES
2” (50mm) Minimum











HINT:
Paint the interior of the
fireplace with latex paint to
prevent fireplace odors
from entering the home.
Silicone































































































































































































































Leveling Bolts
HINT:
Close and seal the damper
to prevent air infiltration.
Cover plate is required if chimney
does not have suitable rain cap.
A Code-Conforming (jacketed, grounded) receptacle
may be placed within the fireplace. Do not place it above
the fireplace insert.
The surround glass extends 1"
below the base of the insert.
Attach the "This fireplace has been altered..." plate
to the fireplace (use two screws or other suitable
method). You may wish to place it in a location
where it will be covered by the surround glass.
on the insert to secure the
secure the bracket to the
insert from tipping. Secure
brackets to both sides.

15
INSTALLATIONOVERVIEW ZERO-CLEARANCE(METAL)FIREPLACES






























2” (50mm)
Minimum















































































































































The log shelf,
screen, and doors
(if present) must
be removed.



















































































HINT:
Paint the interior of the
fireplace with latex paint to
prevent fireplace odors
from entering the home.
HINT:
Close and seal the damper
to prevent air infiltration.
Cover plate is required if chimney
does not have suitable rain cap.


If the firebox steps down greater than
1", place shims (plywood, tile, etc.)
under the leveling bolts to provide
adequate leveling.
Silicone
The surround glass extends 1"
below the base of the insert.













A Code-Conforming (jacketed, grounded)
receptacle may be placed within the fireplace. Do
not place it above the fireplace insert.
Leveling Bolts
Attach the "This fireplace has been
altered..." plate to the fireplace (use
two screws or other suitable
method). You may wish to place it in
a location where it will be covered by
the surround glass.
Use one of the rear screws
on the insert to secure the
included tie-down bracket to
the fireplace. Once in place,
secure the bracket to the
fireplace floor to prevent the
insert from tipping. Secure
brackets to both sides.

16
MEDIA OPTIONS
The fireplace shipped with an ember log set that
is pre-installed. Consumers have their choice of
decorative media should they wish to install it.
(INS-FM-30 and INS-FM-34 can not do the
decorative media install)
Log set
HZ-12-EMBER
Fi-108-Diamond
DECORATIVE MEDIA INSTALLATION
Removing the log
Unplug the unit from wall and make sure
controls are switched off.
Unscrew two screws both hand side to take off
the front glass. The log is shipped in place. The
log has tabs on each side that hold it secure.
There are two screws to fix the side panel.
Unscrew the screws to remove the side panels.
Remove both side panels to remove the log set .
Screw back the side panels after remove the log
set.
Installing the decorative media
Pour the decorative media into the tray. Feel
free to use any combination of fire glass media
that you find most appealing. Put back the front
glass after you finish install the fire glass.

17
OPERATION
The fireplacecan be operated eitherbythe switcheslocatedontheleftbottomofthe fireplace
unitorbysupplied remotecontrol.
Plug thefireplaceintoa15 Ampwall socket.
1、 Press key . Press for the first time，heater work at 1900W, indicator ights red.
Press for the second time, heater work at 950W，indicator ights b ue. Press for the
third time, the heating e ement turns off, indicator extinguishes.
Note: after the heating e ements are turned on manua y, the heating e ements work but
are not contro ed by the temperature sensor.
2、Press key . Press for the first time and the charcoa and f ame is in the highest
brightness. Press for the second time ,the charcoa and f ame is in medium brightness.
Press for the third time ,the charcoa and f ame is in ow brightness. Press for the fourth time ,
the charcoa and f ame goes out. Then it circu ates in turn.
MANUAL OPERATION

18
REMOTE CONTROL OPERATION-STANDARD FLAME
6 、 Press“ ”to turn on, turn off and adjust top ight co ors. The buzzer beeps once when the key is pressed;
1 、 Press the remote contro ’s key“ ”, its screen turns on, the f ame ignites and the f ame icon appears on
the LCD screen of the remote contro . Week, time (24h system), and temperature setting are disp ayed
norma y. Press it again, the screen of the remote contro wi turn off;
2
、 Key“ ”, f ame and charcoa contro switch. In case of ON, press once, the f ame and the charcoa bed
go out, the LCD screen does not disp ay . Press it again and the f ame and the charcoa bed turn on,
the LCD screen disp ays . The buzzer beeps once when the key is pressed;
3
、 Press“ (1) ”to adjust the red f ame. The buzzer beeps once when the key is pressed;
4 、 Press“ (2) ” to adjust the ye ow f ame. The buzzer beeps once when the key is pressed;
5
、 Press“ (3) ” to adjust the b ue f ame. The buzzer beeps once when the key is pressed;
1
2
3

7、Press the heating key“ .” Press for the first time ,the heating e ements work at 1900W,
the LCD screen disp ays , the indicator on the machine ights red. Press a second
time , the heating e ements work at 950W, the LCD screen disp ays , the indicator
on the machine ights b ue. Press a third time and the heating e ements turn off, the LCD
screen does not disp ay the function icon, the indicator on the machine goes off. The
buzzer beeps once when the key is pressed;
Note: in case the heating e ements are turned on by remote contro , whether the heating
e ements work or not depends on the temperature setting and ambient temperature. They
work on y when the temperature setting is above the ambient temperature.
8、Press key“ ”“ ” to adjust the temperature setting between 7 and 30 ℃ . The
buzzer beeps when the key is pressed;
9、Press shift key“ ”. Press once, the corresponding figure f ashes. Press “ ” “
”
now to set current time and week. The buzzer does not beep when the key is pressed;
10、Press timing parameter setting key“ .” Press for the first time and the LCD screen
disp ays to indicate Monday. Now the temperature setting f ashes, press “ ” to
set the timing temperature for Monday, press key “ ” to confirm and then press “ ”
the time setting for timing.. The disp ayed time parameter is “00-23.” Press “ ”
to set the current operating state of timing function; indicates that the timing is on
current y and the contro temperature is the temperature setting, indicates that the
timing is on current y and the contro temperature is the temperature setting minus 3 ℃, No
disp ay indicates timing is off current and the heating e ements do not work. Corresponding
point f ashes when setting. Press for the second time, it disp ays , set the parameters
19

for Tuesday. Press for the 7th time and it disp ays . Press for the 8th time and it exits
and recovers to the current week day;
11、Press“ .” Press for the first time and the timing function turns on, the LCD screen
disp ays
, the machine’s indicator ights green. Press again to turn off, icon
on the LCD screen goes off. After the timing function is turned on, it works according
the parameter settings. The LCD screen
ights up according to corresponding parameter settings;
Note: when the time, week and timing parameters are changed, you need to switch on-off
the timing key to transfer the timing parameters to the machine. After the machine has
received them correct y, the buzzer wi beep once.
12、 Press“ ”. Press once to turn on the Open Window function, the LCD screen disp ays
icon , the indicator on the machine ights ye ow. Press again to turn it off, the LCD
screen does not disp ay icon
and the indicator on the machine goes off. The
buzzer beeps when the key is pressed;
After the Open Window function is turned on, the program first y detects if the heating
function is turned on. If it is turned on, the program wi save the current ambient temperature
va ue and detects the ambient temperature change once per 12 minutes. When the
decrease in the ambient temperature detected within 30 minutes exceeds 4 ℃ ,the
program wi deem that the window is open and stop heating, and the Open Window
indicator on the machine wi f ash rapid y. After it has stopped heating for 70 minutes,
the program starts to detect if the window is c osed, and the indicator f ashes s ow y. It
heats for 6 minutes every 30 minutes (position H2). If the temperature rise is more than 2 ℃ ,
the window is considered as c osed, and the indicator stops f ashing.
20
