INSTALLATIONANDOPERATIONINSTRUCTIONS FOR
50-TRU-VIEW-XL
60-TRU-VIEW-XL
72-TRU-VIEW-XL
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorot herflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALW ITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.
40-TRU-VIEW-XL

2
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................4
GROUNDING APPLIANCE.........................................................................................................................................4
LOCATINGTHEFIREPLACE.....................................................................................................................................4
50-TRU-VIEW-XL.........................................................................................................................................................6
60-TRU-VIEW-XL.........................................................................................................................................................7
72 TRU-VIEW-XL.......................................................................................................................................................8
SAFETYDRILLSCREWAREA.................................................................................................................................. 9
HARD-WIRE INSTALLATION...................................................................................................................................9
MEDIAOPTIONS.......................................................................................................................................................18
OPERATION................................................................................................................................................................19
INSTALLING WALLTHERMOSTAT........................................................................................................................21
REPLACEMENTPARTS............................................................................................................................................22
EXPLODEDVIEW......................................................................................................................................................23
TROUBLESHOOTING..............................................................................................................................................25
SERVICE HISTORY....................................................................................................................................................26
WARRANTY...............................................................................................................................................................27
INSTALLATION...........................................................................................................................................................12
FOR BATHROOM USE ..............................................................................................................................................10
MEDIAOPERATION..................................................................................................................................................18
REMOTE CONTROL OPERATION ...........................................................................................................................20
WIRING DIAGRAM ..................................................................................................................................................24
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
OUTDOOR INSTALLATIONS ...................................................................................................................................11
40-TRU-VIEW-XL.........................................................................................................................................................5

3
IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.

4
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the
power supply cord into a conveniently located 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all components
operate correctly.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
NOTE: Th r may b trac of odor during th first f w minut s of initial us . This is harml ss,
normal and will n v r occur again.
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as shown in (C)
is available for connecting three-blade grounding type plugs to two-slot receptacles. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is
available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the location.
Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip of fuses
to blow.

5
40-TRU-VIEW-XL
Descript ion Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 43 1/ 4”or109.7cm
ApplianceHeight 26 5/ 8”or67.7 cm
ApplianceDepth 14 1/ 4”or36.3 cm
Gross Weight 121.3lbsor55kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 43 3/ 4”27 5/ 8“or
136.5cm 70.2 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
cont actyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.

6
50-TRU-VIEW-XL
Descript ion Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 53 1/ 4”or135.2cm
ApplianceHeight 26 5/ 8”or67.7 cm
ApplianceDepth 14 1/ 4”or36.3 cm
Gross Weight 123.5lbsor56kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 53 3/ 4”27 5/ 8“or
136.5cm 70.2 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
cont actyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.

7
60-TRU-VIEW-XL
ModelNumber Build-inAppliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 63 1/ 4”or160.6cm
ApplianceHeight 26 5/ 8”or67.7 cm
ApplianceDepth 14 1/ 4”or36.3 cm
Gross Weight 141lbsor64kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 63 3/ 4”27 5/ 8”or
161.9 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
cont actyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.
70.2 cm

8
72 TRU-VIEW-XL
Descript ion Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 75 1/ 4”or191cm
ApplianceHeight 26 5/ 8”or67.7 cm
ApplianceDepth 14 1/ 4”or36.3 cm
Gross Weight 165lbsor75kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWall OpeningSize 75 3/ 4”27 5/ 8”or
192.4cm 70.2 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
cont actyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesuret hat t hefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
HARD-WIRE INSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessaryt ohardw irethisappliance,aqualifiedelectricianmustremovethecordconnection,
and wiretheappliancedirectlyto thehousehold wiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
CanadaorthecurrentANSI/ NFPA70 NATIONAL ELECTRICAL CODEintheUnited States.
1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
9

2. Attachthewiringtothejunctionblock.Pleasemakesuret helivewiregoesint ot he “L”,the
neutral wireinto “N”and t hegroundwireinto “G”.
3. Puttheplatebackandscrew back.
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from shows,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements.
Inquires about local codes and regulations must be done prior to installation.
10

Side of FireplaceABThe overhang (A) must extend at least 1/2 the roof-line height (B).Height is measured from the base of the fireplace.For example: if the roof-line (B) is 8’ above the base of the fireplace,the overhang (A) must be at least 4’.OUTDOOR INSTALLATIONS
The TRU-VIEW-XL series electric fireplaces are suitable for installation in outdoor areas protected from
direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a
rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed
appliance. See illustration below. All wiring connections to line power shall be in accordance with local
building code requirements. Inquires about local codes and regulations must be done prior to
installation.
11

12

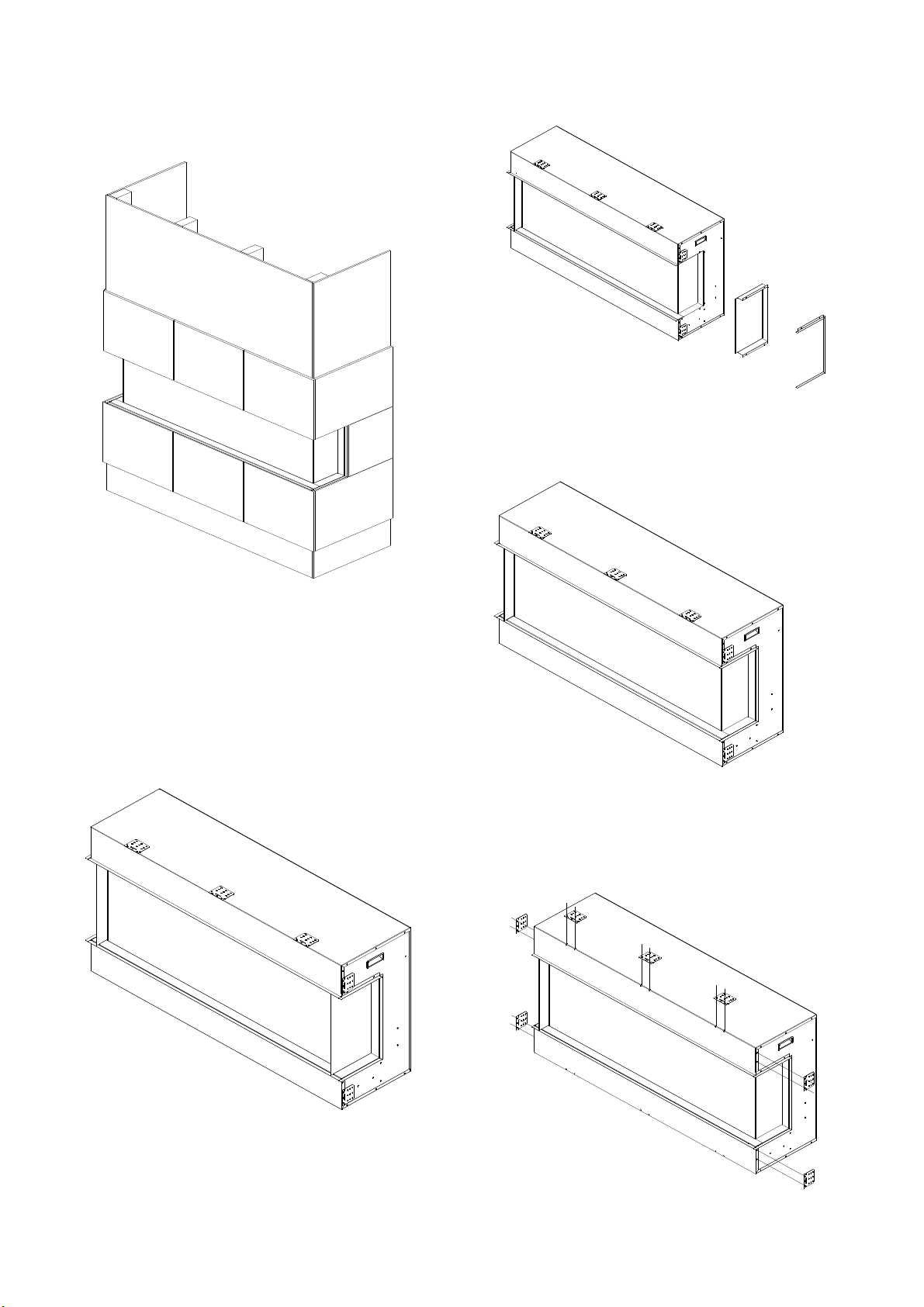

1.Productis fixedwit h fendingbarsand panels
ontheleft andright side.
2.Takeoff thefendingbarsandpanels ifyou
want to viewthefire fromthreeangles.
3.Fixbackthefendingbarafterthepanelis
removed.
4.Removetheframingplatesfromthefireplace
and fixt hemasthepictureshows.
Note:Aft erremovingframingplatesontheleft
and right sides, screwbackthescrews.
INSTALLATION
The TRU-VIEW-XL models are designed t o be built-in and allow for the finishing mat erial (dryw all,
st one, tile, et c) to be built right down t o t he glass edge.
Theroughwall openingsizeofthefireplace:
W(＂)D(＂) H(＂)
50-TRU-VIEW-XL 53 3/ 414 3/ 4" 271/8
60-TRU-VIEW-XL 63 3/ 414 3/ 4" 271/8
72-TRU-VIEW-XL 753/ 414 3/ 4" 271/8
fending bar
fending panel
40-TRU-VIEW-XL 43 3/ 414 3/ 4" 271/8
NOTE: Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this appliance.

13
5.Makeanopeningfort hefireplaceaccording
torequestedmeasurement.
framing plat e
framing plat e
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install plywood or drywall.
6.Insertthefireplaceint othewall opening.
Drivet hemountingscrewsintotheframeplates
ontheunitandthewall st uds. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

14
8.Decoratetheplywood or drywall with glazed
tile, wallpaper, et c.
3.Aft erthefendingpanelisremoved,screw
backthebar.
4.Removetheframingplatesfromthefireplace
and fixt hemasthepictureshows.
Note:Aft erremovingframingplatesontheleft
and right sides, screwbackthescrews.
InstallationforFrontand RightSide
Viewing
1.Toinstall thefireplacewheretheleft sideis
closetoawall, andyouwanttoviewthefire
fromfrontand right side,takeoffthefending
panelontheright.
fendingbarand panel.
2.Unscrew7screwsontheright sidethatfix
thefendingbar andpanelandthentakeoffthe

15
8.Decoratetheplywood or drywall wit h glazed
tile, wallpaper, et c.
5.Makeanopeningfort hefireplaceaccording
torequestedmeasurement.
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install plywood or drywall.
6.Insertthefireplaceint othewall opening.
Drivet hemountingscrewsintotheframeplates
ontheunitandthewall st uds. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

16
3.Aft erthefendingpanelisremoved,screw
backthebar.
4.Removetheframingplatesfromthefireplace
and fixt hemasthepictureshows.
Note:Aft erremovingframingplatesontheleft
and right sides, screwbackthescrews.
InstallationforFrontandLeftSide
Viewing
1.Install thefireplacewheretherightsideis
closetoawall, andyouwanttoviewthefire
fromfront andleftside,takeoffthefending
panelontheleft.
5.Makeanopeningfort hefireplaceaccording
torequestedmeasurement.
2.Unscrew7screwsontheright sidethatfix
thefendingbar andpanelandthentakeoffthe
fendingbarand panel.

17
8.Decoratetheplywood or drywall wit h glazed
tile, wallpaper, et c.
7.Aftercheckingthatthefireplaceoperates
properly,covertheglasspanelswithprotective
plasticbag and install plywood or drywall.
6.Insertthefireplaceint othewall opening.
Drivet hemountingscrewsintotheframeplates
ontheunitandthewall st uds. To fixthebottom
ofthefireplace and thewall studs withthe
framingplatesthatyou’veremovedfromleft
and rightsideofthefireplace atSTEP4. Plugin
and check ifthefireplace works.

18
Media Options
The fireplace comes with no media. Consumers may purchase optional decorative media if they choose.
See dealer for more details.
4. Installingthefireglass media.Pourthefire
glass media intothetrayasshownbelow.
Feelfreetouseanycombination of fireglass
mediathatyoufind mostappealing.
5.Put backthefrontglass and screwbackthe
bracket.
3. Take off t he front glass panel and put it in safe place.
1. Unscrew 2 screw s and t ake off t wo bracket s w hich
are fending t he front glass panel.
Screw s and bracket s
2. After t he bracket s are removed, the front glass panel
will fall down automat ically.
M edia Operation

19
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bot t omofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1. ThemainpowerON/ OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFF switchis at position I,t hefireplaceis readyto use.
3. Press t he buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowst hecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOM ODE
AUTO MODE
Undert his modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72 ℉). Whentheroomtemperatureis between
22-25 (72-77 ℉)theheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebuttonmarked toadjustt heflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebut tonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwit h asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvents). Forsafetyreasons, thefireplacewill NOT aut omaticallyreset.
lToresett heappliance,disconnecttheappliancefromthemainsupplyforatleast10minutes.
Reconnect the main power supply and put the main power sw itch t o the ON posit ion.

20
REMOTE CONTROL OPERATION
Forremotetofunctionmakesuretheheateris pluggedinand mainpowerswitchlocatedonthe
bottomleft handsideis at position I.
Whenoperatingt heremotemakesureyoupointt heremotetot hecentreofthefireplaceand make
sure eachtimeyoupressthebutton.Thebuzzerinsidetheunitwill beeponce.Ittakessometimefor
thereceivertorespondtothetransmitter.DonotPRESS thebuttonsmoret hanoncewithintwo
secondsforcorrectoperation.
Poweron but ton:Thepower-onbuttonattopleftcorneroftheremoteisthemainON/OFF
powerbutton.This will t urnoff all thefunctionsand thefireplacewill bein standbymode.
DISPLAYON/OFF button:SwitchingthefireplaceflameandtraylightON/ OFF.Ithasfunctionsof
settingmemory.
DISPLAYBLUE button:Adjust the blue colorbrightness offlameandtray.
DISPLAYYELLOWbutton:Adjust the yellowcolorbrightness offlameandtray.
DISPLAYORANGE button:Adjust the orangecolorbrightness offlameandtray.
MOODLIGHTON/ OFFbutton:Switchingthemood light ON/ OFF.
ADJUST button:Switchingthecolorofthemoodlight.
FLASHbutton:Switches mood light int o flash mode, t his cycles t hrough all mood light colors.
HEATERON/OFF button: Switchingthe heaterON/OFF. It hasfunctionsof settingmemory.
HIGHTbutton: Press the highbutton toswitchtheheatertohighheat setting1500W.
LOWbutton: Press thelowbuttontoswitchthe heatertolowheat setting750W.
TEMP. button: Press the TEMP.buttontoswitchtheheatertoAUTO mode.Underthismode
the heaterwill operateinsimilarwayasexplained aboveforthemanualoperation.
