Amantii E 50 User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE OWNER’S MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN OWNER’S MANUAL FOR FUTURE REFERENCE.
SAFETY INFORMATION
WARNING
For yo r safety, always comply with all
warnings and safety instr ctions
contained in this man al to prevent
personal inj ry or property damage.
Do not store or use gasoline or other flammable vapors
and li uids in the vicinity of this appliance.
E 70
E 50

2
Table of Contents
IMPORTANT INSTRUCTIONS ............................................................................................................................. 3
UNPACKING AND TESTING APPLIANCE ........................................................................................................ 4
GROUNDING APPLIANCE ................................................................................................................................... 4
CHOOSING FIREPLACE LOCATION .................................................................................................................. 4
VIRTUS 50 ............................................................................................................................................................... 5
VIRTUS 70 ............................................................................................................................................................... 6
MEDIA OPTIONS ................................................................................................................................................... 7
OPERATION ........................................................................................................................................................... 8
MANUAL OPERATION ......................................................................................................................................... 8
AUTO MODE .......................................................................................................................................................... 8
REMOTE CONTROL OPERATION ...................................................................................................................... 9
REPLACEMENT PARTS ...................................................................................................................................... 10

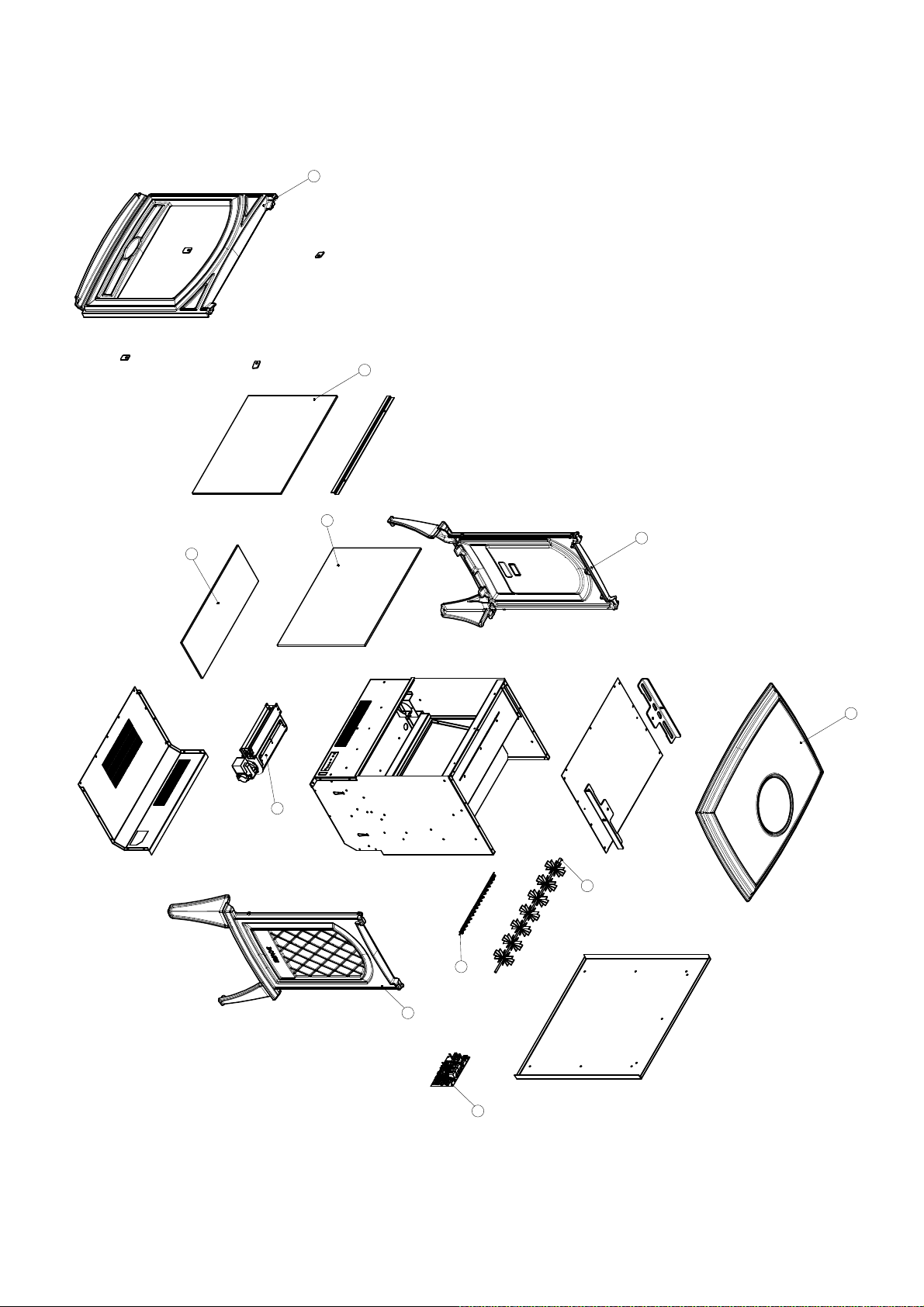

E PLODED VIEW ................................................................................................................................................ 11

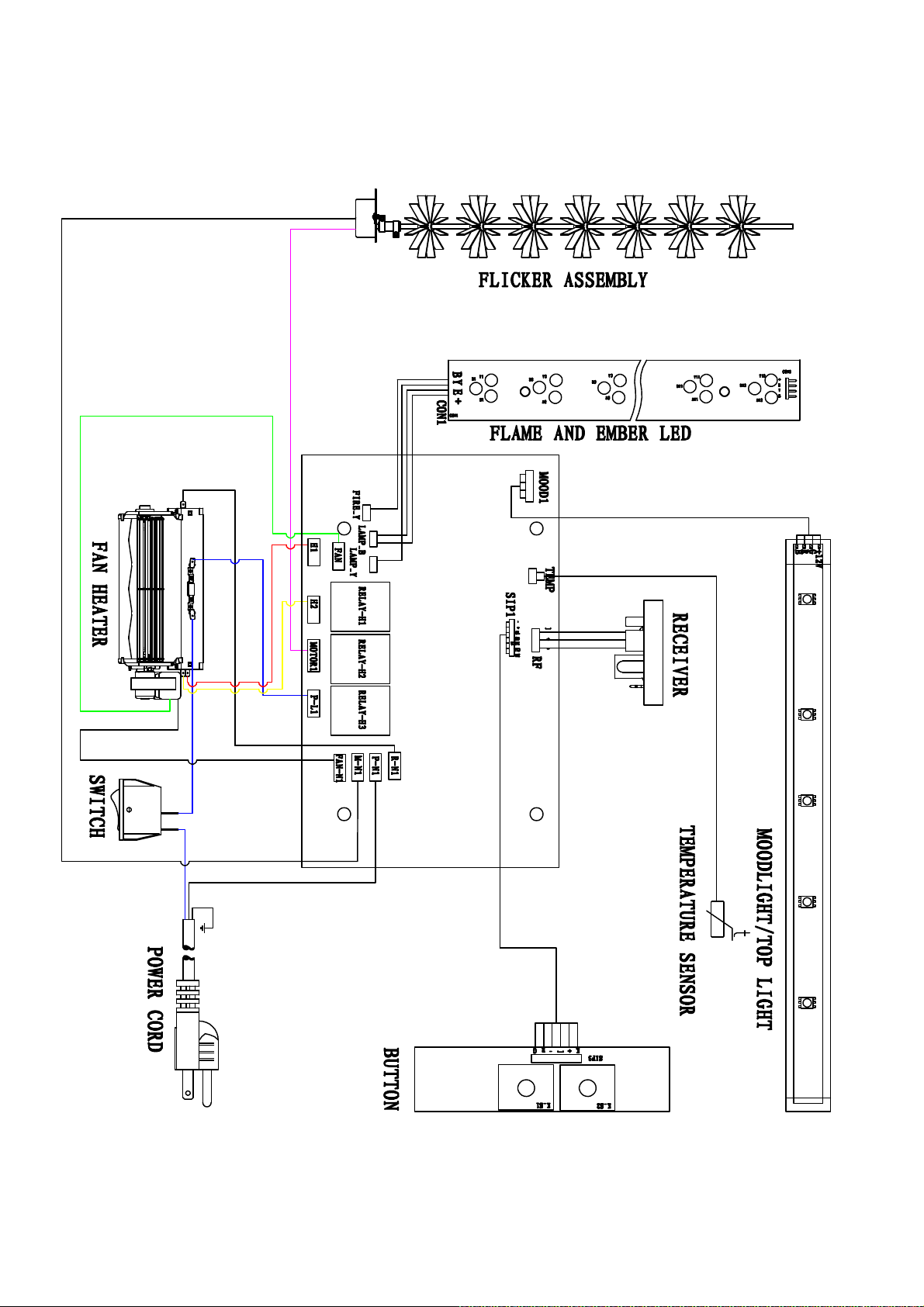

WIRING DIAGRAM ............................................................................................................................................. 12
TROUBLE SHOOTING ........................................................................................................................................ 13
SERVICE HISTORY ............................................................................................................................................. 14
WARRANTY ......................................................................................................................................................... 15
Please read and carefully follow all instructions found in this manual. Please pay special attention to
the safety instructions provided in this manual. The instructions included here will assure that you
have many years of dependable and enjoyable service from your Amantii product.

3
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances basic precautions should always be followed to reduce the risk of fire
electric shock and injury to persons including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns do not let bare skin touch hot surfaces. Keep
combustible material such as furniture cushions bedding paper clothes curtains at least 3
feet from the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is
left operating and unattended
4) Do not operate a fireplace with a damaged cord or plug or if the heater has malfunctioned the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with
individual product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs runners or the like.
Arrange the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended
by the manufacture may cause fire shock or injury to persons
8) Do not use this heater with a programmer timer separate remote-control system or any other
device that switches the heater on automatically since a fire risk exists if the heater is covered
or positioned incorrectly
9) Disconnect all power supply before cleaning maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as
this may cause electric shock fire or damage to the heater
11) Do not immerse the cord plug or any part of the appliance in water or any other liquid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out this appliance
must not be supplied through an external switching device
CAUTION: Procedures and techniques which if not carefully followed will result in damage to the
equipment.
WARNING: Procedures and techniques which if not carefully followed will expose the user to the risk
of fire serious injury illness or death.
IMPORTANT INSTRUCTIONS

4
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a conveniently located 120 olt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components operate correctly.
As with most electronic devices, your electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
NOTE: There may be trace of odor durin the first few minutes of initial use. This is
harmless, normal and will never occur a ain.
GROUNDING APPLIANCE
This appliance is for use on 120 volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
CHOOSING A LOCATION FOR THE FIREPLACE
Plan where to place and frame the fireplace. Before installation consider the following:
1. The location of the fireplace must allow for wall and ceiling clearances.
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 olt, 60 Hz branch circuit with proper ground must be available at the
location. A dedicated branch circuit should be provided to avoid circuit breakers to trip or
fuses to blow.

55
VIRTUS 50
This appliance has been tested in
accordance with the UL Standard
2021 for fixed and location
dedicated electric room appliances
in the United States and Canada. If
you need assistance during
installation, please contact your
local dealer.
NOTE: This appliance must be
electrically wired and rounded
in accordance with local codes.
In the absence of local codes,
use the current CSA C22.1
Canadian Electrical Code in
Canada or the ANSI/NFPA 70
National Electrical Code in the
United States.
Description
Free Standing Appliance
oltage 120 AC 60Hz
Watts 1500W Max
NO HEATER 18.5W
MOTOR HEATER 19W
Appliance Width 23" or 58.6 cm
Appliance Height 28 1/4" or 71.7 cm
Appliance Depth 17 1/2" or 44.3 cm
Gross Weight 123.5 lbs or 56 kgs
Plug Location Left side
Cord Length 70 7/8” or 180
BTU 4800
586.1mm [23"]
716.6mm [28 1/4"]443.4mm [17 1/2"]

VIRTUS 70
This appliance has been tested in
accordance with the UL Standard
2021 for fixed and location
dedicated electric room appliances
in the United States and Canada. If
you need assistance during
installation, please contact your
local dealer.
NOTE: This appliance must be
electrically wired and rounded
in accordance with local codes.
In the absence of local codes,
use the current CSA C22.1
Canadian Electrical Code in
Canada or the ANSI/NFPA 70
National Electrical Code in the
United States.
Description
Free Standing Appliance
oltage 120 AC 60Hz
Watts 1500W Max
NO HEATER 18.5W
MOTOR HEATER 19W
Appliance Width 28" or 70.8 cm
Appliance Height 28 1/4" or 71.6 cm
Appliance Depth 17 1/2" or 44.3 cm
Gross Weight 140.9 lbs or 63.9 kgs
Plug Location Left side
Cord Length 180 cm
BTU 4800
708.1mm [28"]
716.7mm [28 1/4"]443.4mm [17 1/2"]
6

7
MEDIAOPTIONS
MEDIA INSTALLATION
STEP 1: Unplug the unit and make sure
controls are switched off.
STEP 2: Take off the top cover.
STEP 3: Pull the front door up and take it off.
Top cover
STEP 4: Now you can decorate your fireplace.
Your fireplace shipped with DESIGN-
MEDIA-BIRCH-1 PCE.
DESIGN-MEDIA-BIRCH-10PCE
STEP 5: After the media has been installed,
reinstall the front door and top cover.

OPERATION
The fireplace can be operated
by the switches located on the left front of the fireplace unit or by
remote control (included).
MANUAL OPERATION
1.
The main power ON/OFF switch in position
2.
When main power ON/OFF switch is
3. Press the
button repeatedly to set the heater to desired heat setting.
LED will glow which shows the current heater
a) RED 1500W HEAT
OUTPUT
b) BLUE 750W HEAT
OUTPUT
c) PURPLE AUTO MODE
AUTO MODE
Under this mode the heater will automatically turn ON at high heat setting 1500W heat output when
the room te
mperature drops below 22
25℃(72-77℉
) the heater output will switch to low heat setting
goes above 25℃(77℉
) the heater will be turned
will be PURPLE in colour under this
4. Flame effect:
Press the button
will cycle through –Low-
Medium
5.
Mood light effect: Press the button
NOTE: If operated at
the Low heat setting, the fireplace will not provide as much heat as in the High
setting, however,
the low setting will not r
circuit, do not plug the firepla
ce into a circuit that already has other appliances working
When the fireplace is not in use,
switch
SAFETY CUT-OFF
 This appliance is fitted
with a safety
to blocked air vents). For safety reasons, the fireplace will
 To
reset the appliance, disconnect the appliance from the main supply for
Reconnect the suppl
y to the main and switch on the
8
by the switches located on the left front of the fireplace unit or by
The main power ON/OFF switch in position
O, the fireplace is OFF.
When main power ON/OFF switch is
at position I, the fireplace is ready to
button repeatedly to set the heater to desired heat
setting.
LED will glow which shows the current heater
settings.
OUTPUT
OUTPUT
Under this mode the heater will automatically turn ON at high heat setting 1500W heat output when
mperature drops below 22
℃(72℉
). When the room temperature is between 22
) the heater output will switch to low heat setting
750W.
When the room temperature
) the heater will be turned
off
and the cycle will continue. The LED ind
will be PURPLE in colour under this
mode.
Press the button
marked
to adjust the flame brightness. The flame brightness
Medium
-High -OFF.
Mood light effect: Press the button
marked to change the mood light
colour.
the Low heat setting, the fireplace will not provide as much heat as in the High
the low setting will not r
e uire as much electrical power.
To
ce into a circuit that already has other appliances working
switch
off and unplug.
with a safety
cut-off
which will operate if the fireplace overheats (eg. Due
to blocked air vents). For safety reasons, the fire
place will NOT
automatically
reset the appliance, disconnect the appliance from
the main supply for
y to the main and switch on the
appliance.
by the switches located on the left front of the fi
replace unit or by
use.
button repeatedly to set the heater to desired heat setting.
The heater indicator
Under this mode the heater will automatically turn ON at high heat setting 1500W heat output when
). When the room temperature is between 22
-
When the room temperature
and the cycle will continue. The LED ind
icator
to adjust the flame brightness. The flame brightnes
s
colour.
the Low heat setting, the fireplace will not provide as much heat as in the High
To
avoid overloading the
ce into a circuit that already has other appliances
working connected.
which will operate if the fireplace overheats (eg.
Due
automatically
reset.
reset the appliance, disconnect the appliance from the main supply for
at least 10 minutes.

REMOTE CONTROL OPERATION
For remote to function make sure the heater is plugged in and main power switch located on the
bottom left hand side is at position I.
When operating the remote make s
sure each time you press the button the buzzer inside the unit will beep once. It takes some time for
the receiver to respond to the transmitter. Do not PRESS the buttons more than once withi
seconds for correct operation.
Power on button: The power-
power button. This will turn off
all the functions and the fireplace will be in standby
DISPLAY ON/OFF button:
Switch
the last setting.
DISPLAY BLUE button
: Adjust
DISPLAY YELLOW button
: Adjust
tray.
DISPLAY ORANGE button
: Adjust
and tray.
MOOD LIGHT ON/OFF b tton
: Switch
ADJUST b tton: Switches
the color of the mood light.
FLASH b tton
: Switches the mood light into flash mode
HEATER ON/OFF button:
Turns
HIGH button
: Press the high button to switch the heater to high heat setting 1500W.
LOW button
: Press the low button to switch the heater to
TEMP button
: Press the TEMP
the heater will operate as explained
9
REMOTE CONTROL OPERATION
For remote to function make sure the heater is plugged in and main power switch located on the
bottom left hand side is at position I.
When operating the remote make s
ure you point the remote to the center
of the fireplace and make
sure each time you press the button the buzzer inside the unit will beep once. It takes some time for
the receiver to respond to the transmitter. Do not PRESS the buttons more than once withi
-
on button at top left corner of the remote is the main ON/OFF
all the functions and the fireplace will be in standby
Switch
es
the fireplace flame and tray light O
: Adjust
s the blue color and
brightness of flame and tray.
: Adjust
s the yellow color and
brightness of flame and
: Adjust
s the orange color and
brightness of flame
: Switch
es the mood light On and Off..
the color of the mood light.
: Switches the mood light into flash mode
. This cycles
through all mood light colors.
Turns
the heater On and Off. It
will store the last
: Press the high button to switch the heater to high heat setting 1500W.
: Press the low button to switch the heater to
low heat setting 750W.
: Press the TEMP
button to switch the heater to AUTO mode. Under this mode
the heater will operate as explained
in the manual operation.
For remote to function make sure the heater is plugged in and main power switch located on the
of the fireplace and make
sure each time you press the button the buzzer inside the unit will beep once. It takes some time for
the receiver to respond to the transmitter. Do not PRESS the buttons more than once withi
n two
on button at top left corner of the remote is the m
ain ON/OFF
all the functions and the fireplace will be in stan
dby mode.
the fireplace flame and tray light O
n and Off. It will store
brightness of flame and tray.
brightness of flame and
brightness of flame
through all mood light colors.
will store the last
setting.
: Press the high button to switch the heater to high heat setting 1500W.
low heat setting 750W.
button to switch the heater to AUTO mode. Under thi
s mode

10
REPLACEMENT PARTS
This list contains replacement parts
NO PART NUMBER DESCRIPTION QTY
E 50 E 70
2 10701381 10701382 FRONT GLASS 1
3 10702263 10702265 BOTTOM GLASS 1
4 10702262 10702264 BACK GLASS 1
7 3224505 3225505 FLICKER ASSEMBLY 1
8
601136B LED STRIP
601141B LED STRIP
6010 7B CIRCUIT BOARD 1
11 602067D BLOWER AND HEATER
ASSEMBLY(FRT45-187) 1
12 10105063 REMOTE CONTROL 1
13 601036 CONTROL PANEL 1
14 10101225 FLAME MOTOR 1
15 10104002 SWITCH 1
NOTE: Remote control, control panel, flame motor and switch are not shown at the exploded view.

EXPLODED VIEW
11
2
1
5
6
7
10
8
4
3
11
9

Wiring Diagram
12

13
TROUBLE SHOOTING
PROBLEMPOSSIBLECAUSE SOLUTION
FlameLEDsareburntout InspecttheLEDsand replacethemif
necessary.
Dim orno flame
Backblackcloth is fallingoff
and rolled up in the flicker Changea flicker and back black cloth.
Emberbedis not
glowingordimming EmberLEDsare burnt out InspecttheemberbedLED sand replacethemifnecessary.
Appliancehasoverheatedand
safetydevicehascausedthe
thermal switchtodisconnect
Turnoffthemainswitch,allow
appliancetocoolfor10minutes, then
turn iton.
Housecircuitbreakerhas
tripped Reset housecircuitbreaker.
Applianceturnsoffand
will not turnon
Appliancesfusehasblown Replacethefuse.
Applianceis notpluggedintoan
electrical outlet Checkplugandplugin.
Appliancehasoverheatedand
safetydevicehascausedthe
thermal switchtodisconnect
Turnoffthemainswitch,allow
appliancetocoolfor10minutes, then
turn iton.
Appliancewill notcome
onwhenswitchis
flipped to ON
Circuitboardis burntout Inspectthecircuitboardandreplace
it ifnecessary.
No warmaircomingout
of appliance Heateris burnt out Inspecttheburnerand heater assemblyandreplaceitif necessary.
Flamesputters
Flamemotoris defective. Call aqualifiedservicetechnicianand replaceflamemotor.
RemoteControldoes
not work. Lowbatteries. Unitswitch in “O”position. ReplaceAAA batteriesinremote control.
Turn theswitchin “I”position.
Flameis fixed. Wiringmaybelooseorthe
flamemotormaybedefective.

14
SERVICE HISTORY
NOTES:
This heatermustbeserviced annuallydependingonusage.
DateDealer
Name Servicetechnician Name ServicePerformed Special Concerns

15
