American Standard Advanced Clean 3.0 SpaLet User manual

-1 - EN-
Thank you for purchasing this product.
CAUTION
●Carefully read this
installation manual to install
this product correctly.
●Be sure to test operation
after installation has been
completed.
Installation Manual
Advanced Clean 3.0 SpaLet ®Bidet Seat
Model: 8018A60GRC
PCW-1361(19010)
Installation Procedure
1 Check the "Installation Requirements"........................................ P. 6
↓
2Installthejunctiontting............................................................. P. 11
↓
3 Installation of water supply hose to the SpaLet®seat .............. P.12
↓
4 Installation of the SpaLet®seat ................................................... P.13
↓
5Installthewatersupplyhose(junctionttingside).................. P.14
↓
6PositioningandMountingtheRemoteControl......................... P.15
↓
7 Test Operation .............................................................................. P.17
760296-100EN

-2 - EN-
1. Important Safeguards
When using electrical products, especially when children are present, the basic safety precautions should
always be observed.
READ ALL THE INSTRUCTIONS BEFORE USING THIS PRODUCT
The following safety terms are used in this manual to warn against different
hazardous situations:
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury or in damage to the
product or other property.
DANGER
To reduce the risk of electric shock:
1. All electrical installation work must be carried out by a qualified electrician.
2. Install a secure ground connection, following the grounding instructions
(see page 7)
3. Do not place or store product where it can fall or be pulled into a tub or
sink.
4.Do not place on or drop into water or any other liquid.
5. Do not pour water or cleanser inside this product. Do not splash water or
cleanser on the body or the power plug.
6. Do not reach for a product that has fallen into water. Unplug immediately.
7. Do not allow anyone except an authorized service technician to
disassemble, repair or modify this product. If repairs are necessary, contact
our company.
WARNING
To reduce the risk of burns, electrocution
fire, or injury to persons:
1. When small children, elderly persons, persons with limited mobility or
people with illness are using this product, ensure that the proper operating
procedures are followed at all times to ensure the user's safety.
2. When you are using this product for a long period of time, set the seat
temperature to "Off".
For the following persons, be sure to set the seat temperature to "Off"
when they are using this product.
(Children, elderly persons, persons with illness, persons with limited
mobility, persons with sensitive skin, persons who are taking medicines
that cause drowsiness, persons who are intoxicated, or persons who are
extremely fatigued.)
* Using the SpaLet®seat for a long period of time without setting the seat
temperature to "Off" may result in low temperature burns.

-3 - EN-
Low Temperature Burns
A low temperature burn may occur when the skin has been in contact for
some time with an object at relatively low temperature (about 104 °F
[40 °C]). Susceptibility to burns also depends on an individual's skin
sensitivity and other factors.
3. This product should be used only as described in this manual. Do not use
attachments that are not recommended by the manufacturer.
4.Never operate this product if it has a damaged cord or plug, if the plug is
loose in the outlet, if it is not working properly, or if it has been dropped or
damaged. Please contact our company for instructions on resolving any of
the above issues.
5. Keep the cord away from heated surfaces. (Example: Panel Heater)
6. Never block the air openings of the product. If lint or hair, etc. is stuck
in the air openings, remove it immediately.
7. Never use while sleeping or feeling drowsy.
8. Never drop or insert any object into any opening or hose.
9. Do not use outdoors or operate where aerosol (spray) products are being
used or where oxygen is being administered.
10. Connect this product to a properly grounded outlet only. See Grounding
Instructions.
11. This product should only be connected to a potable water supply line.
Failure to do so will cause problems in the operation.
12. Do not pull out or insert the power plug with wet hands.
13. Disconnect the power plug periodically and clean it with a dry cloth.
Dust accumulated on the power plug may cause fire.
CAUTION
To reduce the risk of minor injury or property damage:
1. This product should only be connected to a 120 V AC, 60 Hz GFCI-
protected outlet.
2. Be sure to set the dry temperature to "Low" when the following persons
use the SpaLet®seat.
(Children, elderly persons, persons with illness, persons with limited
mobility, persons with sensitive skin, persons who are taking medicines
that cause drowsiness, persons who are intoxicated, or persons who are
extremely fatigued.)
* If the dryer is used for a long period of time on a setting higher than
"Low", the user may risk a low temperature burn. For this reason, our
company recommends setting the dryer temperature to "Low" during
use.

-4 - EN-
3. For care of the plastic parts, our company recommends the use of a
mild, liquid, all-purpose cleaner. Avoid using abrasive products (such as
powdered cleansers) and chlorine-based products (such as bleach), as
these products can damage the anti-bacterial properties of the plastic
components.
4.If the SpaLet®seat or the body cover is damaged, pull the power plug out
of the outlet and contact our company to request repairs.
5. Do not stand on the seat lid, as it may break.
6. Do not lean back against the seat lid during use, as this may damage or
break the seat lid.
7. Install this product according to this installation manual. Improper
installation may result in electrocution, fire, or a water leak.
8. If it is necessary to change the electrical wiring or plumbing (including
items for which installation is not restricted, such as a ground fault circuit
breaker), have an electrician or plumber who has undergone training
in accordance with federal, state or local laws and regulations and has
obtained the proper license, perform the required construction work.
9. If you will not be using this product for an extended period of time, close
the water shut-off valve and drain the water from the SpaLet seat. In
addition, disconnect the power plug from the outlet.
10. Avoid using front and back cleansing functions excessively or for long
periods of time as such overuse may increase the possibility of washing
away desirable resident bacteria and causing an imbalance of bacteria
in your body. If you are pregnant, are being treated for a gynecological
condition, develop excessive irritation in the area of use, or if you have
questions, please speak to your doctor before beginning or continuing use
of the product.
SAVE THESE INSTRUCTIONS

-5 - EN-
This product incorporates a set of features to improve personal toilet hygiene and comfort.
These features include back cleansing, front cleansing, a warm air dryer and a seat heater as
well as the required controls for these features.
This product includes a SpaLet seat®unit (with heated SpaLet seat, seat lid, and power
cord), hardware for installing the SpaLet seat unit on a toilet bowl and connecting it to the
water supply and this installation and user manual.
This product incorporates the following features:
• back cleansing with water flow strength controls
• front cleansing with water flow strength controls
• warm air dryer with air temperature controls
• seat heater with heat level control
• back and front cleansing water temperature control
• seat and water temperature indicators
• back and front nozzle self-cleaning
• stop button for back cleansing, front cleansing and dryer
2. Product Description
Note:
• When transporting the product, take care not to inadvertently bump or drop it.
• This product has been already inspected using tap water. A small amount of water
may be detected when installing the unit; this should not be a cause for concern.

-6 - EN-
Remove the parts from the box and make sure all the parts in the parts list (below) are
present. Inspect the parts carefully to make sure they are in good condition.
If any part is damaged or missing, do not install this product. Contact the nearest customer
service representative for the part(s) you need.

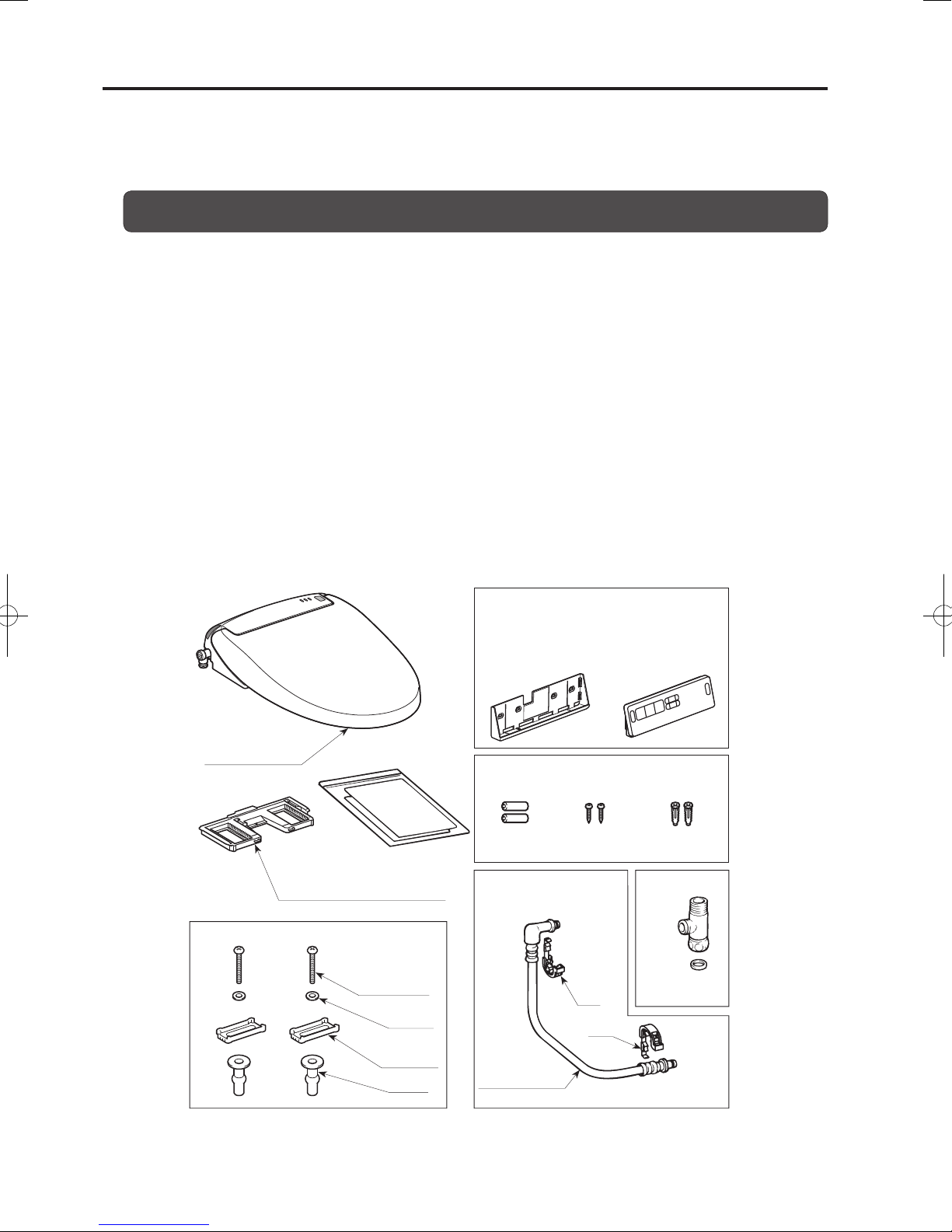

The following parts are included:
• SpaLet®seat unit (with heated seat, seat lid and power cord)
• Mounting plate
• Manual set
• Mounting bolts, washers, and bushings (2 pieces each)
• Junction fitting (with a packing)
• SpaLet seat unit water supply hose (with 2 clips)
• Remote control
• Holder
• Batteries
• Wood screw
• Plastic anchors
3. Installing This Product
Installation Requirements
Before installing this product, ensure that each of the following installation
requirements are met.
Contents
SpaLet seat unit
Packing
2 mm (0.08")
thick
Junction fitting
Manual set
Clip
Clip
water supply
SpaLet
seat unit
hose
(37.40'' (950 mm) long)
Mounting bolt
Bushing
Mounting plate
(This plate attaches to the SpaLet seat unit.)
Mounting
bracket
Washer
Batteries (2) Wood screws
Plastic anchors
Holder
Remote control unit
*Remote control unit and holder are
packed in the box.
For remote control unit

-7 - EN-
A ground fault circuit breaker must be installed in the circuit that supplies power to this product.
Ground Fault Circuit Breaker
Power Supply
Grounding
Installation Location
Water Supply
Unit : inch (mm)Remote control
1.18" (30 mm) or more
1.18" (30 mm) or more
8.15"
(207 mm)
8.62"
(219 mm)
47.24" (1200 mm) or more
15.75" (400 mm) or more
16.77"
(426 mm )
Elongated type: 21.5 (547 mm)
Round type: 20.8 (527 mm)
Checking the Bathroom

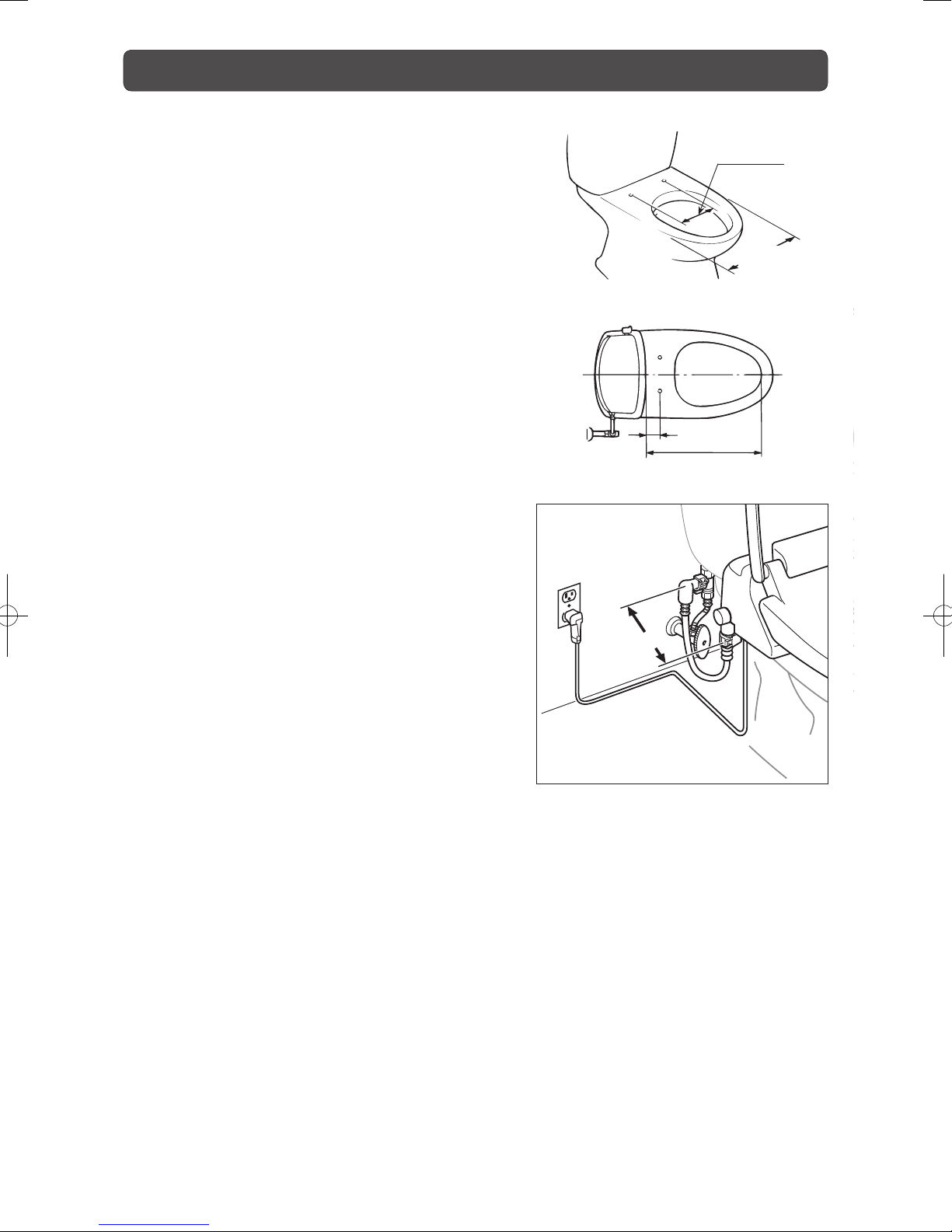

The dimensions required for mounting this product
on a toilet bowl are shown in the figure below.
Check to make sure there is sufficient space inside
the bathroom and that there are no obstructions.
DANGER:Improper use of the grounding plug may cause an electric shock.
Use only the tap water line to supply water to this product. The use of any other type of
water i.e. ground water may cause improper operation of this product.
The tap water pressure must be 8.5 to 106.7 psi (0.06 to 0.74 MPa, 0.6 to 7.5 kgf/cm2).
This product is for use on a nominal AC120 V circuit. Use a AC120 V, 60 Hz power supply. The
maximum power consumption is 1300W. Electrical wiring must be installed that meets these
specifications. The plug outlet shall be placed in an accessible location after installation.
This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. The power cord has a grounding wire
and a three-prong grounding plug (shown below). Do not use an adapter with the product's power plug,
or use any other unauthorized method to connect the plug to an improperly configured outlet.
The outlet to which the product is connected must be AC120 V, 60 Hz, with a minimum electrical rating of
3 A. The outlet must be properly installed and grounded, and it must be a three-slot outlet (shown below).
In order to prevent damaging the electronic components, install this product at a location
that minimizes the possibility of it getting wet. In extremely humid conditions, provide
adequate ventilation by operating an exhaust fan or opening a window or door.
541 mm
(21-5/16")
414 mm
(16-5/16")
195 mm
(7-11/16")
219 mm
(8-5/8")
30 mm
(1-3/16")
or more
30 mm
(1-3/16")
or more

-8 - EN-
Checking the toilet bowl
1. Measure the size of the toilet bowl.
Depending on the size of the toilet bowl, it may
not be possible to mount this product on it.
Make sure the toilet bowl's dimensions are as
shown in the figure on the right.
2. Conditions for using SpaLet®seat
unit water supply hose (included)
The length of the SpaLet seat unit water supply
hose included with this product is 37.40" (950
mm), but a length of 31.50" (800 mm) from the
junction fitting to the SpaLet seat unit's water
supply socket is appropriate. (Refer to the figure
on the right)
31.50" (800 mm)
or less
18.50" (470mm) or more
5.51" to 6.18"
(140 to 157 mm)
15.35" (390 mm)
or less
1.97" (50mm) or more

-9 - EN-
Filter
Power save LED
Power LED
Toilet bowl
Toilet seat
Nozzle (for front cleansing)
Toilet seat lid
Nozzle (for rear cleansing)
Power plug
Water shuto valve
Tank
Marking label
Filter
(See below.)
Junction fitting
Seat unit
Seat sensor
Caution label
Remote control unit
(See page 11)
Water
supply
hose
Illustrated Parts Breakdown
Overview
Indicator Panel Filter
Remote control unit
(See page 10)
Toilet tank
Water supply pipe or tank
water supply hose
SpaLet®seat unit water
supply hose
Water shut-off valve
Power plug
Junction tting
Large nozzle shutter
Toilet bowl
Nozzle (front cleansing)
Nozzle (back cleansing)
SpaLet seat
Caution label
Seat sensor switch
(built into the SpaLet seat
unit)
Seat lid
Product model nameplate
SpaLet seat unit indicator
section
(See the enlarged view below.)
Power indicator
Power save indicator

-10 - EN-
Mounting Plate
Remote Control
Mounting plate
SpaLet®seat unit
Lock leverToilet bowl
* The mounting plate is used to remove the
SpaLet seat unit from the toilet bowl for cleaning
and maintenance. (+Page 13)
Bidet
Dryer
Mild
Water Temp. Power
Cleansing
Deodorizer
Massage
Seat Temp. Power Save
Stop
Nozzle Cleaning
Transmitter TransmitterNozzle Position
Spray Strength
