American Standard Studio Right Height 2794 Maintenance manual

RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure
Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level
1REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
SAVE FOR FUTURE USE
2
7301692-100 Rev. C
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
Right Height®, Elongated Model 2794
Right Height®, Round Front Model 2795
Studio®Dual Flush Concealed Trapway
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years.To ensure this
product is installed properly, please read these instructions carefully before you begin. (Certain installations
may require professional help.) Also be sure your installation conforms to local codes.
!
ROUGHING-IN
DIMENSIONS:
NOTE: Distance from wall to
closet flange centerline must
be as listed below:
IMPORTANT: Water supply
on the wall is required at
2-1/4" or 8" from centerline
of the toilet (see rough-in).
First suggested position is
hidden behind the toilet. The
geometry of the toilet gives
space for this installation.
The second suggested
position is next to the toilet.
Between these two
positions, the space for the
supply between wall and
toilet is limited to 4-1/2". In
this case, check your supply
and hose dimensions.
Certified by
IAPMO R&T
IMPORTANT: Water supply on the wall is required at 2-1/4" or 8" from centerline of the toilet (see rough-in).
First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.
The second suggested position is next to the toilet. Between these two positions, the space for the supply
between wall and toilet is limited to 4-1/2". In this case, check your supply and hose dimensions.
2-1/4"
(57mm)
30-1/4"
(768mm)
8-3/4"
(221mm)
1-1/8"
(29mm)
18-1/2"
(470mm)
4-1/2"
(114mm)
3-1/8"
(81mm) 2-5/8"
(67mm)
7-1/2"
(191mm)
13-11/16"
(347mm)
12-3/16"
(309mm)
16-1/2"
(419mm)
15-3/4"
(399mm)
30-7/8"
(784mm)
12"
(305mm)
FINISHED
FLOOR
FINISHED
WALL
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
SUPPLY
AS
REQUIRED
(position 1 or
position 2)
6"
(152mm)
5-1/2"
(140mm)
14"
(356mm)
8"
(204mm)
BACK VIEW
(for reference)
RIGHT HEIGHT ELONGATED 2-PIECE TOILET
RIGHT HEIGHT ROUND FRONT 2-PIECE TOILET
IMPORTANT: Water supply on the wall is required at 2-1/4" or 8" from centerline of the toilet (see rough-in).
First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.
The second suggested position is next to the toilet. Between these two positions, the space for the supply
between wall and toilet is limited to 4-1/2". In this case, check your supply and hose dimensions.
2-1/4"
(57mm)
28-1/4"
(717mm)
8-3/4"
(221mm)
1-1/8"
(29mm)
16-1/2"
(419mm)
4-1/2"
(114mm)
3-1/8"
(81mm) 2-5/8"
(67mm)
7-1/2"
(191mm)
12-7/8"
(328mm)
12-3/16"
(309mm)
16-1/2"
(419mm)
15-3/4"
(399mm)
30-7/8"
(784mm)
12"
(305mm)
FINISHED
FLOOR
FINISHED
WALL
C/L OF SEAT POST
HOLES 5-1/2"
(140mm) CENTERS
SUPPLY
AS
REQUIRED
(position 1
or
position 2)
6"
(152mm)
5-1/2"
(140mm)
14"
(356mm)
8"
(204mm)
BACK VIEW
(for reference)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2012

7301692-100 Rev. C
- 2 -
!
!
WARNING:
Overtightening of water supply
line nuts could result in breakage
and potential flooding. If the
connection leaks after hand
tightening, replace the supply line.
Do not use any type of sealant on
the water supply connection.
Use of plumber’s putty,
pipe dope, or any other
type of sealant will void
the warranty.
Press firmly.
Apply weight evenly. Do not move after
placement. Water tight seal may break.
TIP: Place 2 pieces of masking
tape on floor (as shown) to help
with alignment in step 6.
Hand Tighten Only.
Do Not Overtighten.
!
Thread, then
hand tighten
water supply.
3 4 5
6 7 8
For seat installation,
see instructions
included with seat.
*
Tighten handles alternately
until tank contacts bowl.
HAND TIGHTEN ONLY!
910

7301692-100 Rev. C
- 3 -
11
13
14
12
Turn on water supply. Submerge
the FLOAT CUP under the water
for 30 seconds. Adjust the water
to desired level by turning WATER
LEVEL ADJUSTMENT ROD and
moving FLOAT CUP up or down.
FLUSH PUSH BUTTONS
• The large flush button should line up over the
white actuator on the flush tower in the tank.
• The small flush button should line up over the
gray actuator on the flush tower in the tank.
• Pressing both buttons at once will result in a
short flush.
LARGE FLUSH BUTTON
FOR SOLID WASTE
1.6 gal/flush
6 Liter/flush
SMALL FLUSH BUTTON
FOR LIQUID WASTE
1.1 gal/flush
4.1 Liter/flush
TIPS:
With the lid removed, directly press the flush button in
the tank to confirm that the toilet is working properly.
If not, follow troubleshooting guide.
1. Install Threaded Rods into holes in bottom of push
buttons approximately 1/2" (12mm).
2. Lightly snug Locking Nut.
3. Place Lid on Tank.
4. Push Button to test flush. If more stroke is
needed, loosen Locknut and turn Threaded Rod
counterclockwise one (1) turn.
5. Replace Lid. Repeat until flush action is achieved.
6. If Valve stays open, turn Threaded Rod clockwise
one (1) turn and lightly snug Locknut.
CARE AND CLEANING
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid detergents,
disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on your toilet seat. Some
bathroom chemicals and cosmetics may damage the seat's finish.
WARNING: Do not use in-tank cleaners. Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the
tank. This damage can cause leakage and property damage.
American Standard shall not be responsible or liable for any tank fitting damage caused by the use of cleaners containing
chlorine (calcium hypochlorite).
!
Install and adjust push
button rods for about
1/16" (1-1/2mm)
clearance between rod
end and valve button.
SEE STEP 13 - TIPS
IMPORTANT:
Refill Float Adjustment
If short flush does not refill
the bowl, turn thumbscrew
CCW 1 turn, flush, repeat
if necessary.
Diagram 1
SEE STEP 12
REFILL NIPPLE
VALVE
BODY
THREADED
SHANK
SHANK
WASHER
FILL
VALVE
FLOAT
CUP
REFILL
TUBE
ADJUSTABLE
HEIGHT
WATER LEVEL
ADJUSTMENT
ROD
LOCK NUT
HALF
16
14
12
10
8
6
4
2
Rod Adjustment
SEE STEP 13
Locknuts
Threaded Rods

7301692-100 Rev. C
- 4 -
In the United States:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Consumer Affairs
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.americanstandard.com
In Canada:
AS Canada ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
In Mexico:
American Standard B&K Mexico
S. de R.L. de C.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx
REPAIR PARTS LIST
DESCRIPTION 3053 3075PART NUMBER
BOWL
NUMBER
TANK COVER
BOLT CAP KIT
FLUIDMASTER INLET VALVE
DUAL FLUSH VALVE ASSEMBLY
FLUSH VALVE SEAL
EZ TANK COUPLING KIT
PUSH BUTTON ASSEMBLY
REFILL TUBE
SEAT ROUND FRONT
SEAT ELONGATED
738168-XXX
7301540-200.XXX0A
738565-457.0070A
7381205-400.0070A
7381213-200.0070A
7381147-200.0070A
7381203-201.0070A
738570-1040A
5121.110.XXX
5218.110.XXX
Repair parts are determined by toilet tank number which can be found marked inside tank.
NOTE: "XXX" represents color or trim finish options. Specify when ordering.
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
15
Does not flush
Poor or sluggish flush
Toilet leaks
Toilet does not shut off
a. Water supply valve closed.
b. Water supply line blocked.
c. Sand or debris lodged in water control.
a. Tank water too low.
b. Bowl water too low.
c. Water supply valve partly closed.
d. Partially clogged trapway and/or drain pipe and/or vent.
e. Supply pressure too low.
a. Poor supply line connection.
b. Poor bowl to floor connection.
a. Flush valve seal leaking or deformed.
b. Sand or debris lodged in water control.
c. Water level set too high.
a. Open valve and allow water to fill tank.
b. Shut off water supply, disconnect supply line and inspect all gaskets and washers.
Reassemble.
c. See Fluidmaster maintenance. (see Step 15)
a. Check that the water level is set to the mark inside the tank.
b. Check that the refill tube is connected to the water control and flush valve port.
Adjust refill float down until bowl water is restored. (see Step 11)
c. Open water supply valve fully. Be sure that proper supply tube size is used.
d. Remove obstruction. Consult a plumber if necessary.
e. Minimum water supply pressure - 20psi. Wait for tank to refill.
a. Review Step 9.
b. Review Step 6.
a. Clean debris from seal surface. Replace flush valve seal as needed.
b. See Step 15 Fluidmaster maintenance.
c. Set water level to mark on back of tank.
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

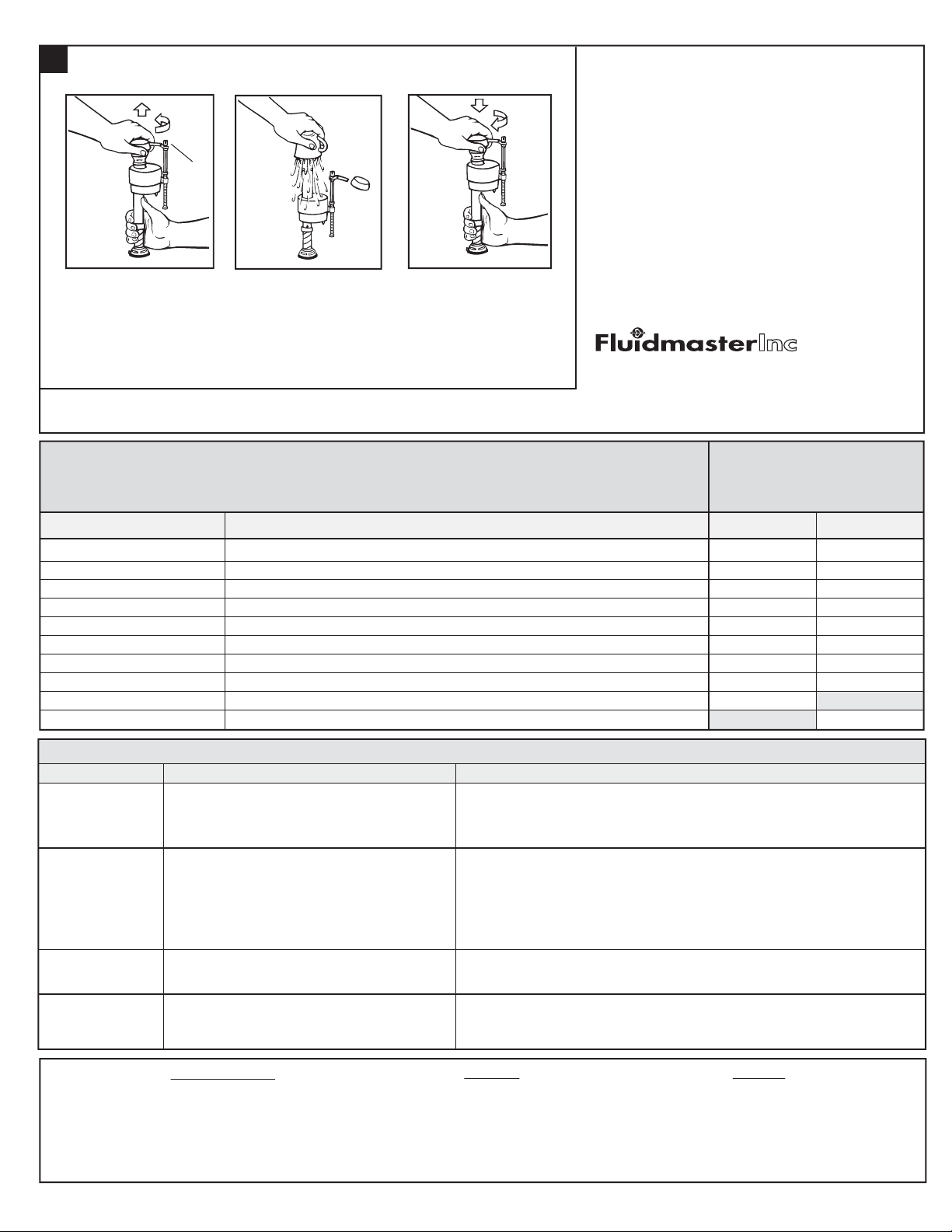

• Make sure water supply is off.
Remove valve TOP by lifting arm
and rotating top and arm 1/8 turn
counterclockwise, pressing down
slightly on cap.
IMPORTANT: Always
clear sand and rust from
system.
• While holding a
container over the
uncapped VALVE to
prevent splashing, turn
water supply on and off
a few times. Leave
water supply off.
• Replace TOP by engaging lugs
and rotating 1/8 turn clockwise.
MAKE CERTAIN TIP IS TURNED
TO THE LOCKED POSITION.
VALVE MAY NOT TURN ON IF
TOP IS NOT FULLY TURNED TO
THE LOCKED POSITION.
For troubleshooting information please contact:
TROUBLESHOOTING
IF FILL VALVE SHUTS OFF BUT CONTINUES TO LEAK
SLOWLY, repeat Step 15.
IF FILL VALVE TURNS OFF AND ON DURING PERIODS OF
NON-USE, it is a signal you are wasting water because:
• The end of the refill tube is inserted into overflow pipe, below
water level in tank. Attach refill tube to overflow pipe using "S"
clip provided.
• The flush valve is leaking because it's worn, dirty or misaligned
with tank ball or flapper (replace with a new flapper).
IF FILL VALVE WON'T TURN ON OR SHUT OFF or REFILL
OF TANK WATER IS SLOW after valve has been in use for
some time, Fluidmaster Model 242 Replacement Seal may be
needed.
Go to our website at www.fluidmaster.com for more
solutions to toilet problems.
© 2001 Fluidmaster, Inc.
® Registered trademark of Fluidmaster, Inc.
Always use quality Fluidmaster repair parts when maintaining your Fluidmaster products. Fluidmaster shall
not be responsible or liable for any damages caused by products used with Fluidmaster valves that were not
manufactured by Fluidmaster, Inc.
30800 Rancho Viejo Road
San Juan Capistrano, CA 92675
[phone] [phone]
www.fluidmaster.com
LIFT ARM
FIRST
NOTE: Pictures are representative and may not
exactly depict the flush valve.
