American Time DSY261RSxE User manual

Installation and Operation Manual
Part # H004825
Rev. 1
August 2015
DSY261RSxE
Digital Clock/Elapsed
Time Indicator
with Code Blue

© American Time
2
DSY261RSxE Owner's Manual
Electrical Shock Hazard
WARNING: Hazardous voltage in electrical equipment can cause severe personal injury or death. Inspection,
installation, and preventive maintenance should only be performed on equipment to which power has been turned
off, disconnected and electrically isolated so no accidental contact can be made with energized parts.
Electrostatic Sensitive Devices
CAUTION: This equipment contains electronic devices that are sensitive to static electric charges. To guarantee
protection for the circuitry of this unit, it is required that electrostatic handling precautions be observed
when installing or repairing this equipment. Any technician or other personnel working on this unit must
wear a static grounding wrist strap or similar device to provide protection of sensitive components.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES

3
© American Time
DSY261RSxE Owner's Manual Table of Contents
American Time
140 3rd Street South
PO Box 707
Dassel, MN 55325-0707
Phone: [phone]
Fax: [phone]
american-time.com
Important Installation and Warranty Information ....................................................................................................4
Specications ............................................................................................................................................................5
Description.................................................................................................................................................................6
DSY261RSxE Digital Clock/Timer ....................................................................................................................6
ATSTCS Control Station ...................................................................................................................................7
Installation Instructions ...........................................................................................................................................8
DSY261RSxE Installation Instructions................................................................................................................8
ATSTCS Installation Instructions ........................................................................................................................9
Operation ................................................................................................................................................................10
Power Up .......................................................................................................................................................10
Setting Time ..................................................................................................................................................10
Setting the Up Counter Preset Time ................................................................................................................10
Up Counter Elapsed Time Operation................................................................................................................11
Setting the Down Counter Preset Time ...........................................................................................................11
Down Counter Elapsed Time Operation...........................................................................................................11
Free Running Clock Operation .......................................................................................................................12
Synchronous Secondary Clock Operation ......................................................................................................12
Code Blue.................................................................................................................................................................13
Operation .......................................................................................................................................................13
Wiring ............................................................................................................................................................13
Important Considerations ...............................................................................................................................14
Maintenance ............................................................................................................................................................15

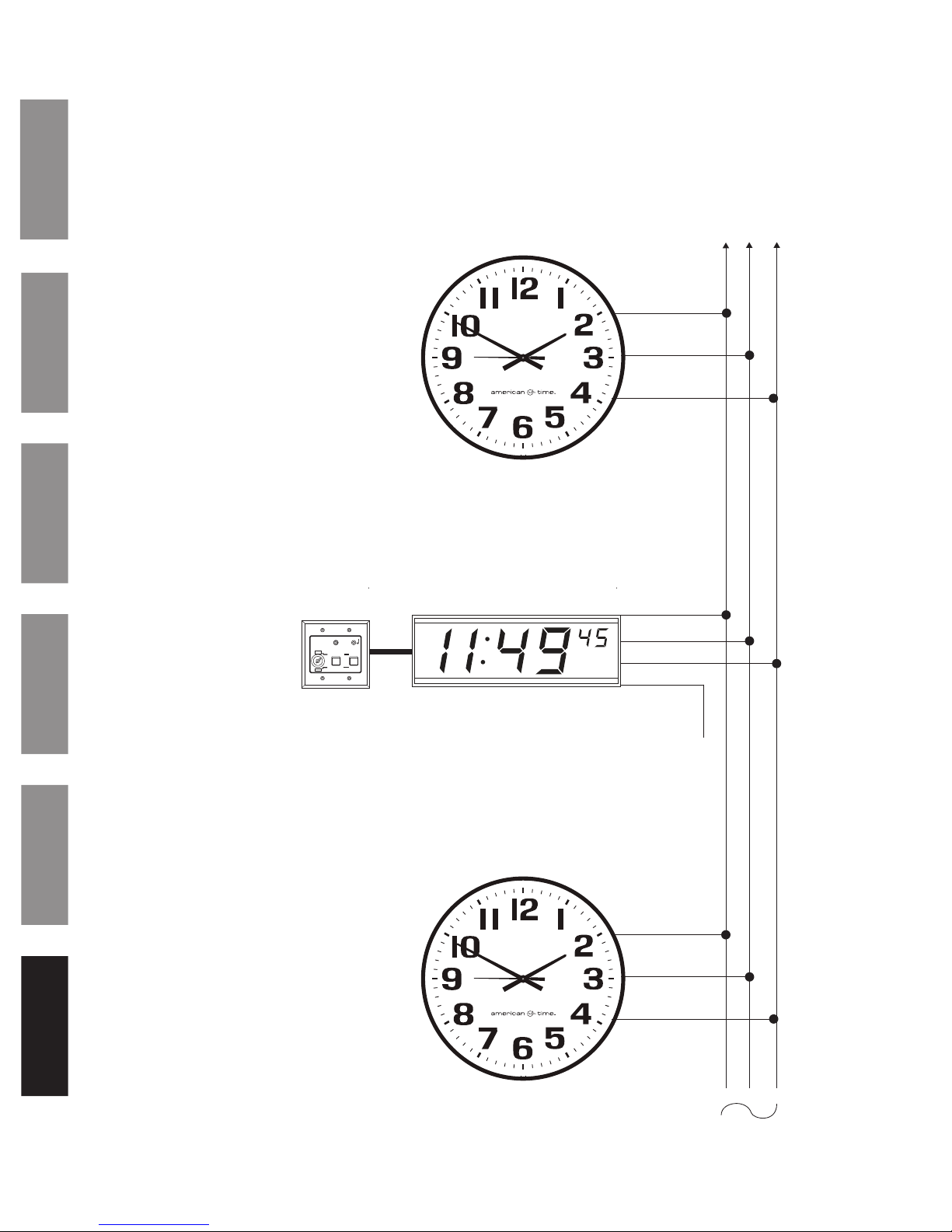

Appendix 1: Wiring For 3-Wire Secondary Clocks.....................................................................................................16
Appendix 2: Operators Flowchart.............................................................................................................................17

© American Time
4
DSY261RSxE Owner's Manual
IMPORTANT INSTALLATION AND WARRANTY INFORMATION
WARRANTY INFORMATION: American Time (the Manufacturer) provides a limited warranty to the Original Purchaser of this
product. The Original Purchaser is the party to whom the Manufacturer issued its Sales Order, generally the Manufacturer’s
distributor. In order to preserve this warranty, it is important that only persons who have been properly trained and authorized by
the Manufacturer service the product.
Other parties involved in the installation of this product may have also provided a warranty, which may be different than that of the
Manufacturer. The Manufacturer will only be responsible to the Original Purchaser and only for the
Manufacturer’s own warranty. For further information regarding the Manufacturer’s warranty, contact the Original
Purchaser.
OWNER’S MANUAL: The owner’s manual does not purport to cover all the details or variations in the equipment described,
nor does it provide for every possible contingency to be met in connection with installation, operation and maintenance. All
specications subject to change without notice. Should further information be desired or should particular problems arise which
are not covered sufciently, the matter should be referred to the Installer or Original Purchaser listed below.
INSTALLER INFORMATION
COMPANY: INSTALLER: PHONE:
ADDRESS: CITY: STATE: ZIP:
DATE INSTALLED: INSTALLER’S SIGNATURE:
ORIGINAL PURCHASER INFORMATION
COMPANY: PHONE:
ADDRESS: CITY: STATE: ZIP:
PURCHASER’S PURCHASE ORDER NO:
DATE PURCHASED:
ATS SALES ORDER ACKNOWLEDGMENT NO.:
ORIGINAL PURCHASER’S SIGNATURE:
NOTE: A copy of the above-completed information may be required by the Manufacturer for authorization of Warranty services.

5
© American Time
DSY261RSxE Owner's Manual Specications
GENERAL
Weight: ..............................Digital Clock/Timer ............................... 4.0 lb.
...............................ATSTCS Control Station ........................... 0.27 lb.
External Dimensions:.........Digital Clock/Timer ............................... 6.1"h x 12"w x 3.5"deep
ATSTCS Control Station ........................... 4.63"h X 4.56"w X 1.25"deep
SPECIFICATIONS
ELECTRICAL
Power Requirements (Digital Clock/Timer only):
Line Voltage: ..................................................................................... DSY261RSAE and DSY261RSPE -120vac 60Hz
DSY261RSBE - 24vac 60Hz
DSY261RSKE - 220vac 60Hz
DSY261RSKE50H - 220vac 50Hz
Note: Voltage is set at factory. See above part number sufx for reference.
Battery:............................................................................................... 9vdc Rechargeable Ni-Cad Battery
Battery Charger: ................................................................................ 9vdc Direct Current source with
current limiting resistor.
Maximum Current (Digital Clock/Timer only): .................................... 120vac 60Hz - 130mA (max), 101mA (avg)
24vac 60Hz -
220vac 60Hz -
220vac 50Hz -
Memory Retention on Loss of Line Voltage: ..................................... 4 hours with fully charged battery
Distance of ATSTCS from Digital Clock/Timer:................................. 30-ft maximum with 22 AWG stranded wire
............................................................................................... with minimum 1/32" thick insulation
Clock Circuits: ................................................................................... 3.0mA. max. @ 24vac/120vac
Code Blue Circuits: ............................................................................ 3.0mA. max. @ 12vac/vdc-30vac/vdc
ENVIRONMENTAL
Ambient Operating Range: ................................................................ 10°C to 49°C (50°F to 120°F)
Recommended Storage Temperature: .............................................. -30°C to 45°C (-22°F to 113°F)
............................................................................................... for six months maximum
Humidity:............................................................................................ 85 %RH at 30°C (86°F)
OPERATION
Modes Available:................12 hour or 24-hour non-system clock
12 hour secondary clock
Incrementing timer with programmable preset value and start/stop capability
Decrementing timer with programmable preset value and start/stop capability
Code Blue incrementing timer
Accuracy: .............................................................................with line voltage applied - line synchronous
with line voltage not applied - ± 0.005 % at 25°C

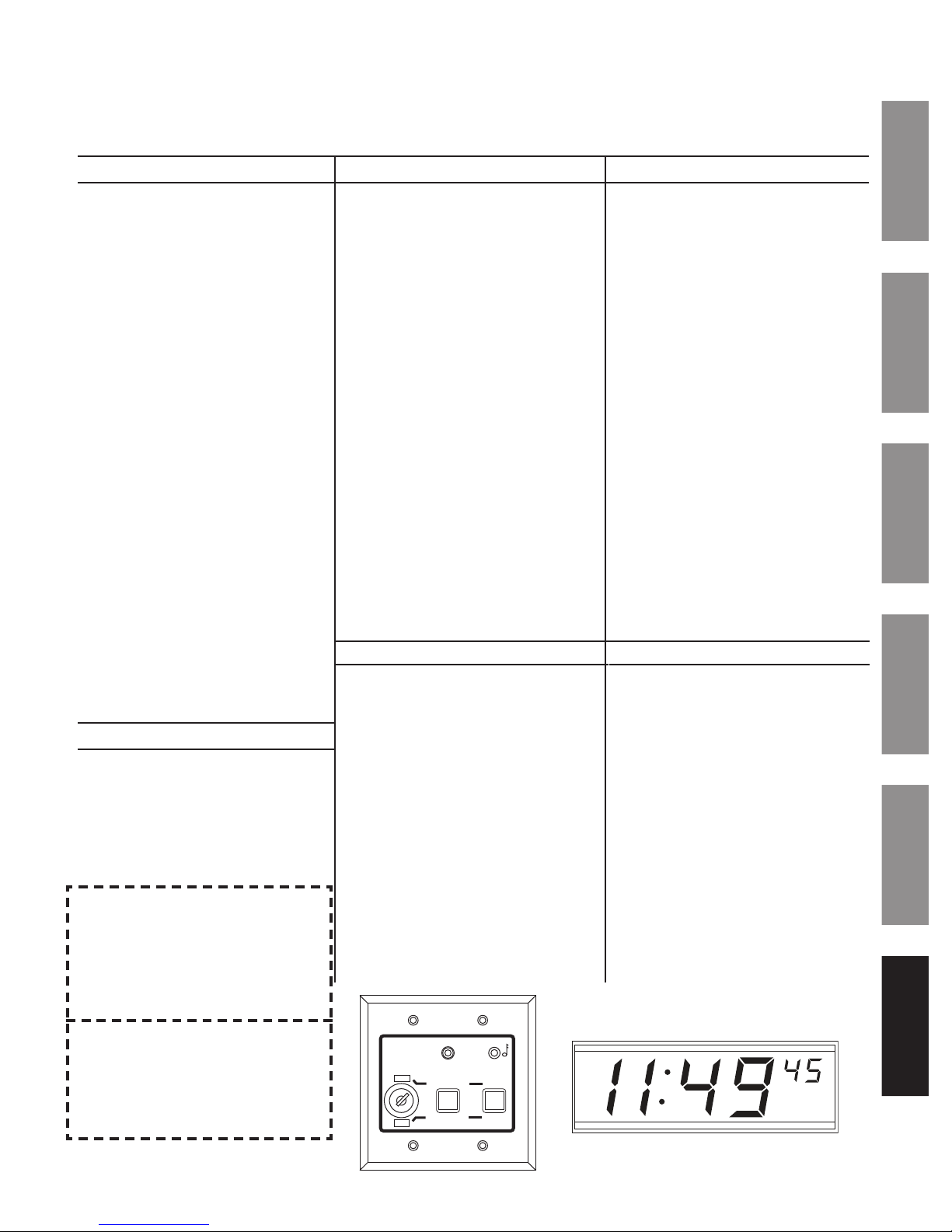

Indications: ........................Digital Clock/Timer .....................hours and minutes - 2.3", bright red, seven segment LED’s
hours and minutes are separated by a colon
seconds - 1", bright red, seven segment LED’s
ATSTCS Control Station ..............2 second audible alarm

© American Time
6
DSY261RSxE Owner's Manual
Appendix Maintenance
Code Blue
Operation Installation Description
Clock/Timer Description
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK

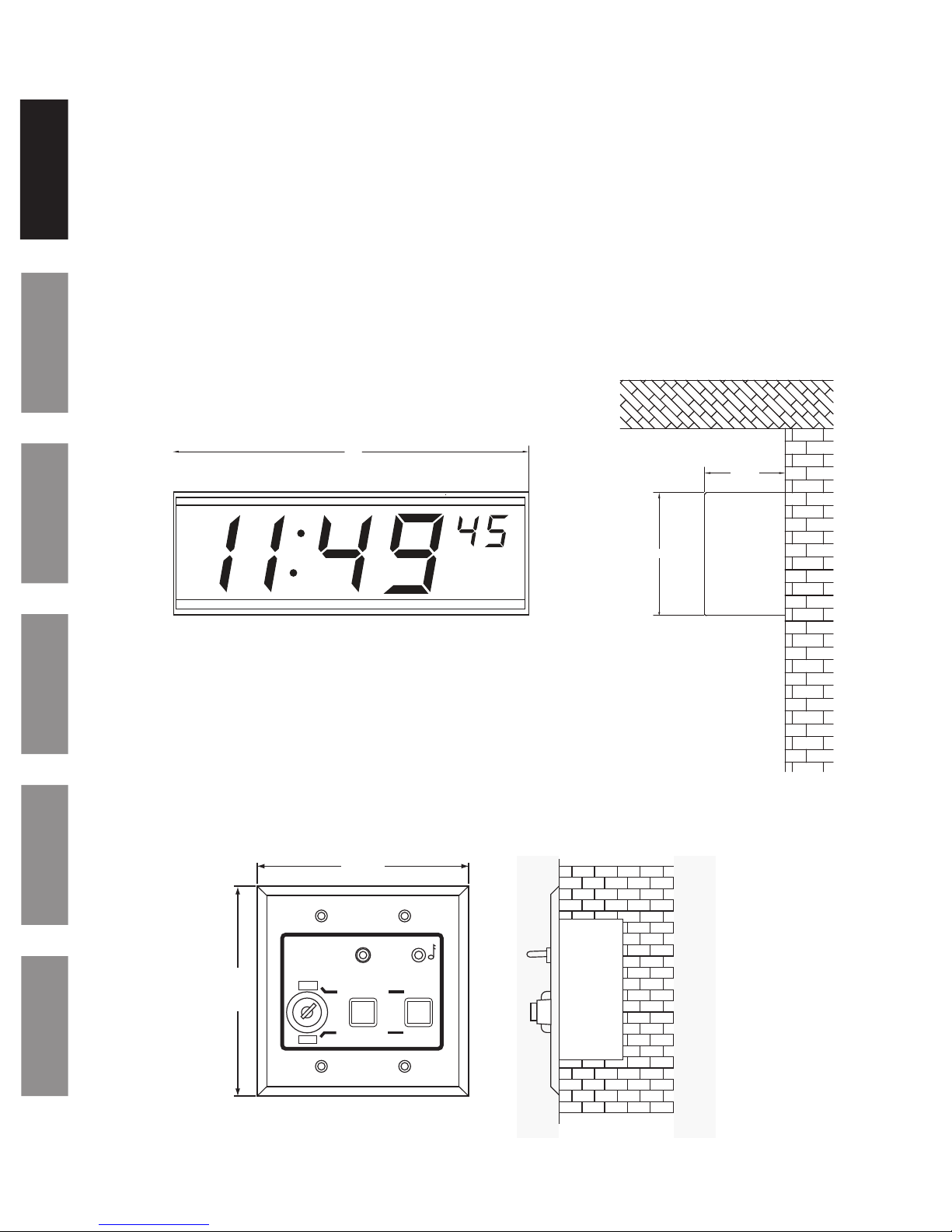

4 9/16”
4 1/2”
Control Station
24 ”
6.1”
3.5”
ATSTCS Control Station
The DSY261RSxE is a six-digit digital multi-function clock/timer which can be used as an up or down counting elapsed
timer with an optional Code Blue trigger. The elapsed timers can be started, stopped, resumed, and reset. Both timer modes
have a programmable preset value. When the timer reaches the preset value, a two-second audible alarm sounds from
the ATSTCS control panel. The Code Blue up counting elapsed timer will override all other modes of operation if used. The
DSY261RSxE can function as a 12-hour or 24 hour stand-alone clock or can be wired as a 12-hour secondary clock for
synchronous time.
Digital Clock/Timer

7
© American Time
DSY261RSxE Owner's Manual
AppendixMaintenance
Code Blue
OperationInstallationDescription

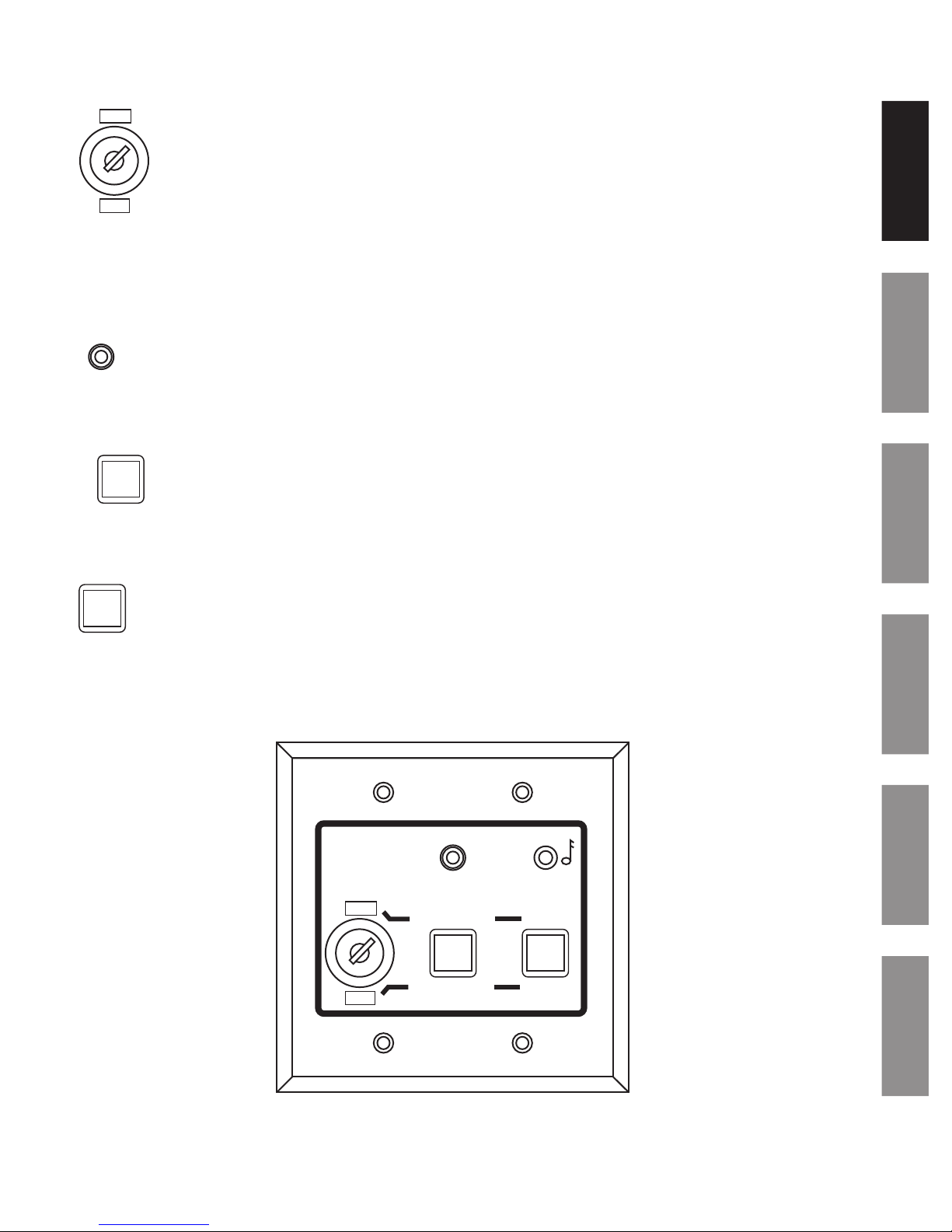

Control Station Switch Functions
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
RESET
ENTER
RUN
SET
UP
DOWN
CLOCK
START/STOP
INCREMENT
Run/Set Switch -
Set Position: This position is used to set the clock or a preset up or down counting time (Timer). It is
also used to reset the Code Blue timer.
Run Position: This position is used to permit Clock/Timer to operate.
Up/Clock/Down Switch -
Up Position: This position is used to choose up counting elapsed timer mode.
Clock Position: This position is used to choose clock mode.
Down Position: This position is used to choose down counting elapsed timer mode.
Start/Stop/Increment Switch -
This button is used to start, stop, and resume timer count, when Run/Set Switch is in the Run
position (Code Blue timer can only be stopped).
This button is also used to increment/advance the number value being set when the Run/Set Switch
is in Set position.
Reset/Enter Switch -
This button is used to return a timer (excluding the Code Blue timer) to the beginning of its count, when
the Run/Set Switch is in Run position.
This button can also be used to select a eld (i.e. format, minute digits, hour digits) when the Run/
Set Switch is in Set position.

© American Time
8
DSY261RSxE Owner's Manual
Appendix Maintenance
Code Blue
Operation Installation Description
Clock/Timer Installation
The Digital Clock/Timer can be mounted to a single or double gang box. To install the Digital Clock/Timer, follow the
instructions below. Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Ensure that NO electrical power is present on any wire before installation.
uRemove the 6-32 black screw on the top of the clock which secures the back mounting plate. Mount the back plate to
a single or double gang box. See Figure 2 below.
vMake electrical connections (hot, neutral, ground and optional correction wires) to non-switched electrical circuit
wiring using UL approved wire nuts. Route eld wiring away from sharp projections, corners and internal components.
For Molex, connect white to neutral/common, black to positive/hot, green to ground and red to optional correction line
if using a wired master. Note: Voltage and frequency is set at the factory. See part number sufx reference.
120vac 60 Hz (DSY261RSAE and DSA261RSPE) 24vac 60 Hz (DSY261RSBE)
220vac 60Hz (DSY261RSKE) 220vac 50Hz (DSY261RSKE50H)
wPull the ten wires from the clock to the control station. Keep these ten wires separate from the high voltage wires.
See Figure 1 below. Note: there are two wires (white and green) in the bundle that are not used.
xJoin the two Molex connectors together, placing excess wiring and Molex connectors into the gang box.
ySlide the clock onto the metal mounting bracket installed in Step 1 and reinsert 6-32 screw from the top of the clock
into the mounting bracket hole. See Figure 2 below.
zConnect eld wiring interconnecting the Clock/Timer with the ATSTCS Control Station to the appropriate
terminals of the Digital Clock/Timer See wiring detail on next page.
Chassis ground MUST be connected to conduit/Earth ground to provide proper protection from electric shock.
CAUTION: Electric Shock Hazard! When making installation, route eld wiring away from sharp projections, corners, and
internal components.
Apply power to the circuit and conrm correct operation.

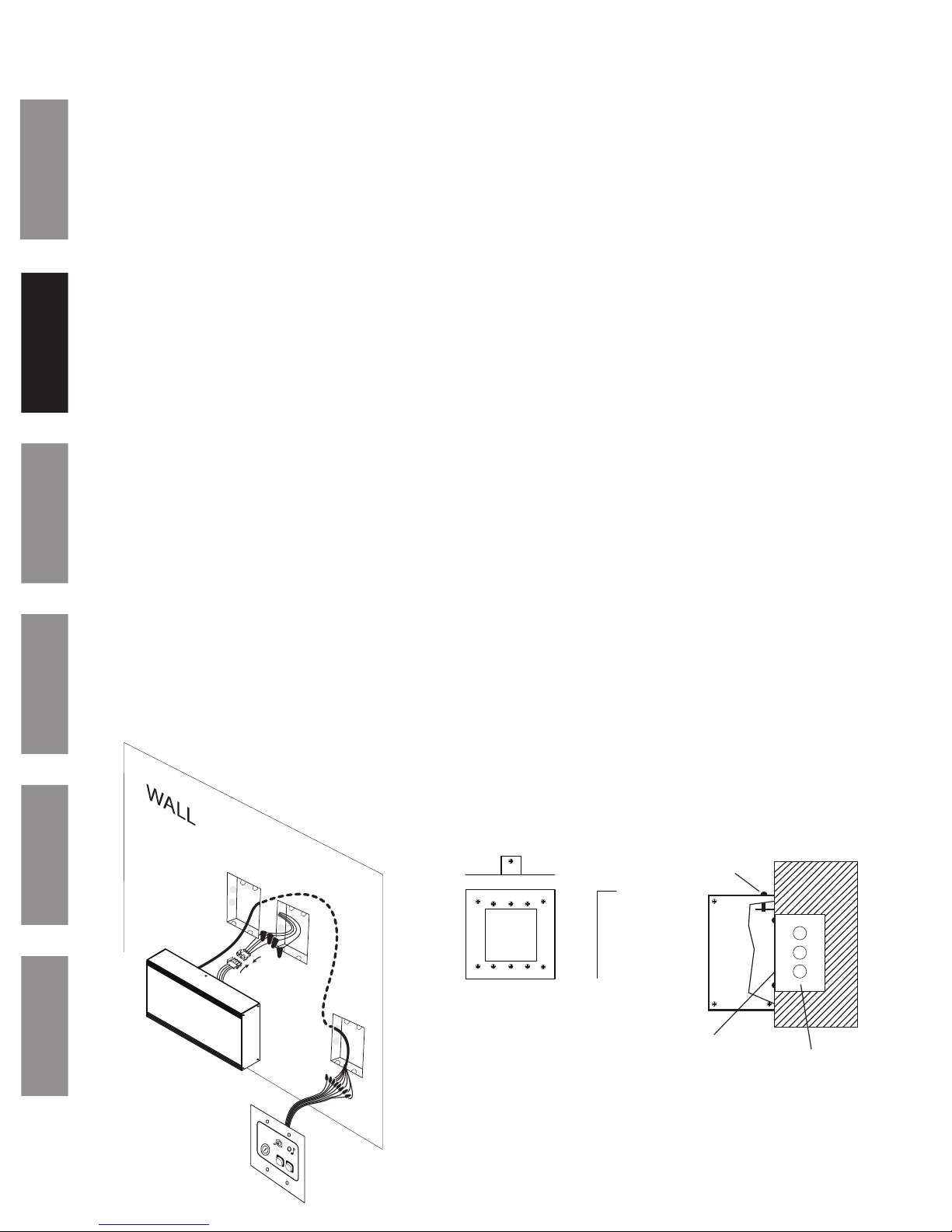

Figure 1
Figure 2
6-32 x 3/4black screw
secures device to the
mounting plate
Single or double gang
box (supplied by others)
must be securely mounted
Mounting plate
fastens to the
back box
Mounting plate detail

9
© American Time
DSY261RSxE Owner's Manual
AppendixMaintenance
Code Blue
OperationInstallationDescription
Control Station Installation
The ATSTCS Control Station can be mounted to a double gang box, 11/2inch deep or deeper. The Control Station can be
mounted up to 30 feet away from the Digital Clock/Timer. The recommended minimum interconnecting eld wire size is
#22.8 AWG stranded wire. Ensure that installation conforms to the National Electrical Code and local wiring codes.
CAUTION: Electric Shock Hazard! Ensure that no electrical power is present on any wire before installation.
uPull interconnecting eld wires into the double gang box.
vConnect eld wiring interconnecting the ATSTCS Control Station with the Digital Clock/Timer to the
appropriate wires of the Control Station. See wiring detail below.
wMount the Control Station to the double gang box using the machine screws provided.
K2+ K2– K1+ K1– 12VAC 12VAC
UNREG GND PIEZO S5 S4 S3 S2 S1 NOT USED NOT USED
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW GREEN WHITE
PIEZO
BUZZER
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
Green-Earth Gnd
Red-Optional
correction line
White-Neutral line
Black-Hot line
Digital Clock/Timer
ATSTCS Control Station
20 ft. supplied cable. Can
be extended to 30 ft.
maximum using #22 AWG
wire (min.) with 1/32”
insulation (min.)
Typical wiring for the Digital Clock/Timer with Control Station

© American Time
10
DSY261RSxE Owner's Manual
Appendix Maintenance
Code Blue
Operation Installation Description
Operation
Powering Up
Before applying power, place the SET/RUN switch to the RUN position and the UP/DOWN/CLOCK switch to the CLOCK position.
Apply power to the unit. The displays may rotate during the power on self test and then a version number will appear for a few
seconds. The DSY261RSxE will display 1:00:00 and begin keeping time. If the backup battery is not depleted, the self test will
be bypassed and the DSY261RSxE may display a time other than 1:00:00.
Setting Time
With the UP/DOWN/CLOCK switch still in the CLOCK position:
Set the SET/RUN switch to the SET position.
The clock will now prompt for a 12 or 24 hour format. Press the INCREMENT switch until the desired format is shown and then
press ENTER.
The clock will now prompt for time. The hours digits will be ashing. Press the INCREMENT switch until the desired hour is
shown and then press ENTER. The minutes digits will be ashing. Press the INCREMENT switch until the until the desired
minutes are shown and then press ENTER. Press the INCREMENT switch again to set the desired seconds and then press
ENTER.
The display will ash donE. Press the SET/RUN switch back to RUN when you want timekeeping to begin at the time you
entered.
The clock will now keep time as a free running clock or as a slave if connected to a master clock and in 12 hour format..
Setting the Up Counter Preset Time
If you want to use the alarm and hold feature with the UP timer, you will need to set a preset time for the UP timer.
Set the UP/DOWN/CLOCK switch to the UP position.
Set the SET/RUN switch to the SET position. The hours digits will be ashing.
Using the INCREMENT switch, set the desired hours for the preset time, then press ENTER. The minutes digits will now be
ashing.
Set the desired minutes the same way, then press ENTER. The seconds digits will then be ashing.
Set the desired seconds the same way, then press ENTER. The display will then ash donE.
Set the SET/RUN switch back to the RUN position.
Note: A preset of 00:00:00 allows the digital clock/timer to be used as a standard elapsed timer with a maximum elapsed time
of 30:59:59.

11
© American Time
DSY261RSxE Owner's Manual
AppendixMaintenance
Code Blue
OperationInstallationDescription
Operation
Up Counter Elapsed Time Operation
Once the desired preset value has been set, the unit is now ready to function as an UP count elapsed timer.
u
Be sure the SET/RUN switch is in the RUN position.
v
Set the UP/DOWN/CLOCK switch to the UP position.
w
Press RESET to display 00:00:00.
x
Press the START/STOP switch to begin counting elapsed time.
y
Press the START/STOP switch again to stop and hold the count.
z
Press the START/STOP switch again to resume elapsed time counting.

To start over press RESET to display 00:00:00 again.
When the timer reaches the preset value, it will sound the audible alarm for 2 seconds and hold the time count.
During an UP count elapsed time operation, you can display any of the other time functions using the UP/DOWN/CLOCK switch
as desired.
Setting the Down Counter Preset Time
If you are using the clock as a DOWN counting elapsed timer, you will need to set a preset time to count DOWN from. In this
mode, the alarm and hold will occur at 00:00:00.
u
Set the UP/DOWN/CLOCK switch to the DOWN position.
v
Set the SET/RUN switch to the SET position. The hours digits will be ashing.
w
Using the INCREMENT switch, set the desired hours for the preset time, then press ENTER. The minutes digits
will now be ashing.
x
Using the INCREMENT switch, set the desired minutes for the preset time, then press ENTER. The seconds
digits will then be ashing.
y
Using the INCREMENT switch, set the desired seconds for the preset time, then press ENTER. The display will
then ash donE.
z
Set the SET/RUN switch back to the RUN position.
Down Counter Elapsed Time Operation
Once the desired preset value has been set, the unit is now ready to function as a DOWN count elapsed timer.
u
Set the UP/DOWN/CLOCK switch to the DOWN position.
v
Be sure the SET/RUN switch is in the RUN position.
w
Press RESET to display the preset value which was set previously.
x
Press the START/STOP switch to begin counting down elapsed time.
y
Press the START/STOP switch again to stop and hold the count.
z
Press the START/STOP switch again to resume elapsed time counting.

To start over press RESET to display the preset value again.
When the timer reaches 00:00:00, the timer will stop counting and the audible alarm will sound for 2 seconds.
During a DOWN count elapsed time operation, you can display any of the other time functions using the UP/DOWN/CLOCK
switch as desired

© American Time
12
DSY261RSxE Owner's Manual
Appendix Maintenance
Code Blue
Operation Installation Description
Operation
Free Running Clock Operation
The Digital Clock/Timer can be used as a free running clock. No additional connections are required. It will run as a line syn-
chronous clock once time has been set.
Synchronous Secondary Clock Operation
The Digital Clock/Timer can be used as a correctable synchronous secondary clock. Simply connect it to a 3- wire
synchronous master clock system. For secondary clock wiring see diagram in Appendix 1. It will run free between corrections
synchronized to the AC power line. The Digital Clock/Timer should not be used in the 24 hour format mode if it is connected
to a 3- wire synchronous system, since the 12 hour corrections cannot distinguish AM and PM.
Supported Correction Types
Cincinnati D1O
Faraday 2370, 2380
IBM 77 Series
Simplex 77 Series, 93-9,91-1, 941-9,943-9
Stromberg 3000
Lathem Type SS Wall Clocks

13
© American Time
DSY261RSxE Owner's Manual
AppendixMaintenance
Code Blue
OperationInstallationDescription
Code Blue
Description
The Code Blue feature provides an override which forces the clock into a special count up elapsed time mode. No matter
which of the three normal functions is being displayed, Code Blue input will cause the unit to begin counting elapsed time
from 00:00:00. All other functions of the unit continue to operate in the background during a Code Blue.
Operation
A Code Blue is initiated by applying a signal ranging from 12vac/vdc to 30vac/vdc to the K2+ and K2- terminals. See the
sample wiring diagram below for more detail.
The Code Blue timer is the highest priority function of the clock/timer while in the run mode. No matter which of the 3 normal
functions is being displayed, the Code Blue input will cause the clock to begin counting up elapsed time from 00:00:00.
The Code Blue timer can be stopped and the time held for viewing by pressing the START/STOP button on the ATSTCS switch
panel. The Code Blue timer cannot be restarted from the switch panel.
To reset the clock back to normal operation, the RUN/SET switch must be set to the SET position momentarily and then
returned to the RUN position.
All other functions of the clock continue to operate in the background during a Code Blue. Time of day and time corrections
from the SiteSync IQ system controller will not be affected. The standard count up timer and the count down timer will
continue as well. However, if one of these timers is switched on for display when a Code Blue occurs, that particular timer
will be reset when the clock is reset back to normal operation.
K2+ K2– K1+ K1– 12VAC 12VAC
UNREG GND PIEZO S5 S4 S3 S2 S1 NOT USED NOT USED
RED BLACK VIOLET GREY BROWN BLUE ORANGE YELLOW GREEN WHITE
12 VAC/DC TO 30 VAC/DC
SUPPLIED BY OTHERS
CODE BLUE CONTACT
FROM OTHER EQUIPMENT
PIEZO
BUZZER
RESET
ENTER
START/STOP
INCREMENT
UP CLOCK DOWN
SET
RUN
CODE BLUE WIRING
Green-Earth Gnd
Red-Optional
correction line
White-Neutral line
Black-Hot line
Digital Clock/Timer
ATSTCS Control Station
20 ft. supplied cable. Can
be extended to 30 ft.
maximum using #22 AWG
wire (min.) with 1/32”
insulation (min.)
Digital Clock/Timer Code Blue wiring using Control Station
The Control Station is connected as normal.

© American Time
14
DSY261RSxE Owner's Manual
Appendix Maintenance
Code Blue
Operation Installation Description
Important Considerations
The ATSTCS must be in the RUN mode for Code Blue to override.
The 12vac/vdc to 30vac/vdc signal that starts the Code Blue timer originates from equipment external to the Digital Clock/
Timer. The external equipment usually employs a switch device (i.e., a relay contact) to apply this signal. That switching
device is often referred to as the Code Blue contact.
The Code Blue contact does not have to open before resetting the Digital Clock/Timer back to normal operation, but must
be opened before another Code Blue can occur. The transition from no voltage to applied voltage (across the K2+ and K2-
terminals) initiates a Code Blue.
If the Code Blue contact opens and closes again before the Digital Clock/Timer is reset back to normal operation, the Code
Blue timer will start over from 00:00:00.
If a power failure occurs during a Code Blue and the back up battery is in place, and the Code Blue contact is still closed
when the power returns, the Code Blue timer will start over from 00:00:00. If the Code Blue contact is open when the power
returns, the Code Blue timer will continue counting the elapsed time including the time while the power was off.
If a power failure occurs during a Code Blue after the Code Blue timer has been stopped for viewing, and the Code Blue
contact is still closed when the power returns, the Code Blue timer will start over from 00:00:00. If the Code Blue contact
is open when the power returns, the elapsed time where the Code Blue timer was stopped prior to the power failure will be
displayed.

15
© American Time
DSY261RSxE Owner's Manual
AppendixMaintenance
Code Blue
OperationInstallationDescription
Operator Maintenance
Cleaning
Occasionally the Digital Clock/Timer and the Control Station will need to be cleaned. Dampen a soft, nonabrasive cloth with
alcohol or a mild detergent. Do not use abrasives or solvents! Gently wipe the exteriors of the units with the cloth.
Battery Maintenance
The Digital Clock/Timer uses a single 9vdc Ni-Cad battery rechargeable via an on board charger. This battery retains the time
of day and timer counts when AC power is lost. If each in a series of AC power losses occur for a similar length of time, the
battery can be conditioned to provide only that amount of backup capacity. This phenomenon is called “memory” effect. The
Ni-Cad battery’s “memory” can be erased by deeply discharging the battery and recharging it.
It is recommended that the operator remove AC power from the Digital Clock/Timer once per year for at least four hours.
System Maintenance
The Digital Clock/Timer and ATSTCS Control Station have been manufactured for years of dependable, reliable use. However,
to assure the reliability of this product, it is recommended that the Digital Clock/Timer be tested at least every six (6) months
with the Control Station and Code Blue contact for operation in accordance with wiring congurations used.
WARNING
Replace the battery only with a 9v Ni-Cad
battery. Do not replace with a regular (primary)
9v transistor battery (i.e., zinc carbon battery,
alkaline battery)! An incompatible battery may
leak or explode, causing equipment damage and/
or personal injury! If battery must be replaced,
contact American Time at 800-328-8996.

© American Time
16
DSY261RSxE Owner's Manual
Appendix Maintenance
Code Blue
Operation Installation Description
Appendix
Wiring Diagram for Synchronous Secondary Clock Operation
For use with 3 Wire Clocks
Appendix 1
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
Common (white)
Correct (red)
Gnd (green)
Digital Clock/Timer
Clock Power (AC voltage
and frequency P/N dependent.
see page 5) from Previous Clock
or Master Clock
ATSTCS Control Station–
Wire per Wiring Diagram
on Page 9
Run
Common
Correct
Run
Common
Correct
To Next Clock
Run (black)

17
© American Time
DSY261RSxE Owner's Manual
AppendixMaintenance
Code Blue
OperationInstallationDescription
Appendix 2
Operator's Flowchart
To Set Time
UP/CLOCK/DOWN switch in
CLOCK position
SET/RUN switch in SET position
Clock display 24Hr or 12Hr
Push INCREMENT to change
Push ENTER
Clock displays ashing hours
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing minutes
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing seconds
digits
Push INCREMENT to change
Push ENTER
Display shows DONE
Place SET/RUN switch in RUN
position
To Use as a Clock
Place SET/RUN switch in RUN
position
UP/CLOCK/DOWN switch in
CLOCK position
Code Blue Operation
SET/RUN switch MUST be in
RUN position
To stop and hold code blue time
for viewing, press START/STOP
To Reset Clock/Timer to
Normal Operation
Place SET/RUN switch
momentarily in SET position and
return switch to RUN position
To Set UP Counter Preset
UP/CLOCK/DOWN switch in UP
position
SET/RUN switch in SET position
Clock displays ashing hours
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing minutes
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing seconds
digits
Push INCREMENT to change
Push ENTER
Display shows DONE
Place SET/RUN switch in RUN
position
To Use UP Counter
UP/CLOCK/DOWN switch in UP
position
Place SET/RUN switch in RUN
position
Place RESET to display 00:00:00
Place START/STOP to Begin
Place START/STOP to Hold
Place START/STOP to begin
again
Alarm will sound when preset
time is reached
Press RESET to reset counter
To Set DOWN Counter Preset
UP/CLOCK/DOWN switch in
DOWN position
SET/RUN switch in SET position
Clock displays ashing hours
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing minutes
digits
Push INCREMENT to change
Push ENTER
Clock displays ashing seconds
digits
Push INCREMENT to change
Push ENTER
Display shows DONE
Place SET/RUN switch in RUN
position
To Use DOWN Counter
UP/CLOCK/DOWN switch in
DOWN position
Place SET/RUN switch in RUN
position
Place RESET to display preset
time
Place START/STOP to Begin
Place START/STOP to Hold
Place START/STOP to begin
again
Alarm will sound 00:00:00 is
reached
Press RESET to reset counter
START/STOP RESET
INCREMENT ENTER
RUN
SET
UP
DOWN
CLOCK
